Instruction and operation manual

S421

Thermal mass flow sensor

Dear Customer,

Thank you for choosing our product.

Please read this manual in full and carefully observe the operating

instructions before starting up the device. The manufacturer cannot be

held liable for any damage which occurs as a result of non-observance

or non-compliance with this manual.

Should the device be tampered with in any manner other than a

procedure which is described and specified in the manual, the warranty

is void and the manufacturer is e empt from liability.

The device is designed e clusively for the described application.

SUTO offers no guarantee for the suitability for any other purpose.

SUTO is also not liable for consequential damage resulting from the

delivery, capability or use of this device.

2 S421

Table of contents

1 Safety instructions......................................................................4

2 Registered trademarks.................................................................6

3 RF e posure information and statement.........................................7

4 Application.................................................................................8

5 Features....................................................................................8

6 Technical Data............................................................................9

6.1 General................................................................................9

6.2 Electrical Data.....................................................................10

6.3 Output-Signals....................................................................10

6.4 Accuracy ...........................................................................10

6.5 Volumetric flow ranges.........................................................10

7 Dimensional drawing.................................................................12

8 Installation considerations..........................................................15

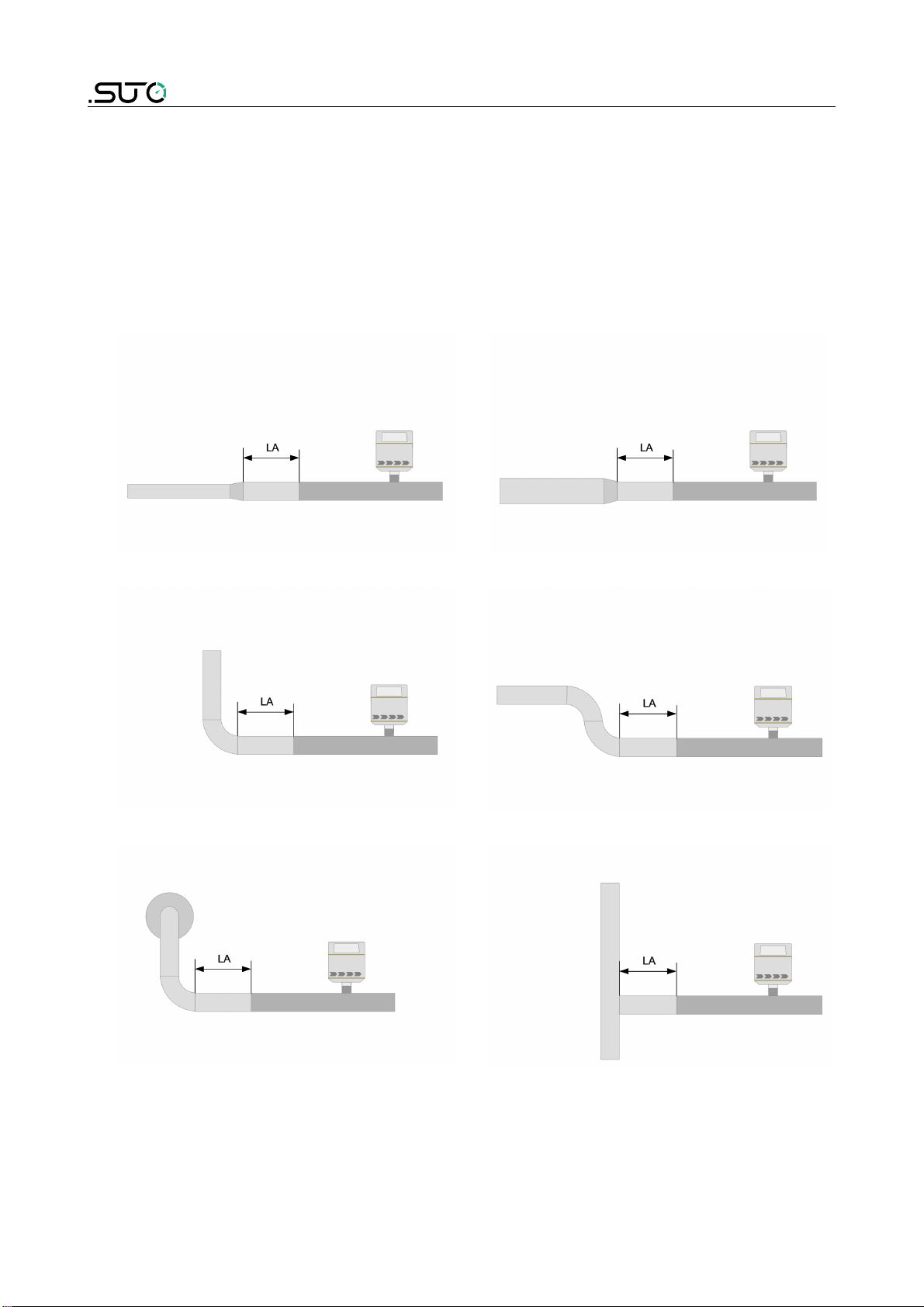

8.1 Inlet and Outlet sections.......................................................15

9 Sensor Installation ..................................................................19

9.1 Installing the S421..............................................................19

9.2 Removing the S421 ............................................................20

9.3 Electrical connection ..........................................................21

9.3.1 M12 connection pins.......................................................21

9.3.2 Ethernet connection.......................................................23

10 Sensor signal outputs...............................................................25

10.1 Analog output...................................................................25

10.2 Pulse output......................................................................25

10.2.1 Pulse Connection Diagrams (A1410)...............................27

10.2.2 Pulse Connection Diagrams (A1413)...............................28

10.3 Modbus output..................................................................30

11 Sensor display (optional)..........................................................32

11.1 Starting process................................................................32

11.2 Configuration using the display............................................33

12 Service App S4C-FS.................................................................34

13 Calibration..............................................................................35

14 Maintenance...........................................................................35

15 Disposal or waste....................................................................35

16 Appendi A Modbus communication e ample...............................36

S421 3

1 Safety instructions

Please check if this instruction manual matches with the

product type.

Please observe all notes and instructions indicated in this

manual. It contains essential information which must be

observed before and during installation, operation and

maintenance. Therefore this instruction manual must be read carefully

by the technician as well as by the responsible user / qualified

personnel.

This instruction manual must be available at the operation site of the

flow sensor at any time. In case of any obscurities or questions,

regarding this manual or the product, please contact the manufacturer.

WAR I G!

Compressed air!

Any contact with quickly escaping air or bursting

parts of the compressed air system can lead to

serious injuries or even death!

•Do not e ceed the ma imum permitted pressure range (see

sensors label).

•Only use pressure tight installation material.

•Avoid that persons get hit by escaping air or bursting parts of the

instrument.

•The system must be pressureless during maintenance work.

WAR I G!

Voltage used for supply!

Any contact with energized parts of the product, may

lead to an electrical shock which can lead to serious

injuries or even death!

•Consider all regulations for electrical installations.

•The system must be disconnected from any power supply during

maintenance.

•Any electrical work on system is only allowed by authorized

qualified personal.

4 S421

1 Safety instructions

ATTE TIO !

Permitted operating parameters!

Observe the permitted operating parameters, any

operation exceeding this parameters can lead to

malfunctions and may lead to damage on the

instrument or the system.

•Do not e ceed the permitted operating parameters.

•Make sure the product is operated in its permitted limitations.

•Do not e ceed or undercut the permitted storage and operation

temperature and pressure.

•The product should be maintained and calibrated frequently, at

least annually.

General safety instructions

•It is not allowed to use the product in e plosive areas.

•Please observe the national regulations before/during installation

and operation.

Remarks

•It is not allowed to disassemble the product.

•Always use spanner to mount the product properly.

ATTE TIO !

Measurement values can be affected by malfunction!

The product must be installed properly and

frequently maintained, otherwise it may lead to

wrong measurement values, which can lead to

wrong results.

•Always observe the direction of the flow when installing the

sensor. The direction is indicated on the housing.

•Do not e ceed the ma imum operation temperature at the sensors

tip.

•Avoid condensation on the sensor element as this will affect

accuracy enormously.

S421 5

1 Safety instructions

Storage and transportation

•Make sure that the transportation temperature of the sensor

without display is between -30 ... +70°C and with display between

-10 ... +60°C.

•For storage and transportation it is recommended to use the

packaging which comes with the sensor.

•Please make sure that storage temperature of the sensor is

between -10 ... +50°C.

•Avoid direct UV and solar radiation during storage.

•For the storage the humidity must be <90%, no condensation.

2 Registered trademarks

SUTO®

Registered trademark of SUTO iTEC

MODBUS®

Registered trademark of the Modbus Organization, Hopkinton, USA

HART®

Registered trademark of the HART Communication Foundation, Austin,

USA

PROFIBUS®

Registered trademark of the PROFIBUS User Organization, Karlsruhe,

Germany

Bluetooth® word mark and logos

Registered trademarks of Bluetooth SIG, Inc.

Android™, Google Play

Trademarks of Google LLC

6 S421

3 RF e posure information and statement

3 RF exposure information and statement

This equipment complies with FCC RF radiation e posure limits set forth

for an uncontrolled environment. This equipment should be installed

and operated with minimum distance of 20 cm between the radiator and

your body.

This device complies with part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Remark: The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this equipment.

Such modifications could void the user’s authority to operate the

equipment.

Remark: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•Consult the dealer or an e perienced radio/TV technician for help。

•This device and its antenna(s) must not be co-located or operating

in conjunction with any other antenna or transmitter.

S421 7

4 Application

The S421 is tge inline-type flow sensor that is designed to measure the

consumption of compressed air and gases within the permissible

operating parameters (see chapter 6 Technical Data ).

The S421 can measure the following values:

•Volume flow of the compressed air or gas (default unit: m3/h)

•Total consumption of the compressed air or gas (default unit: m3)

Other units are configurable using the the S4C-FS Android service app,

the optional display or the service kit.

The S421 flow sensor is mainly used in compressed air systems in

industrial environment, and is not developed to be used in e plosive

areas. For the use in e plosive areas, please contact the manufacturer.

5 Features

•Inline type sensor for high accuracy in small tube diameters

•Thermal mass flow measurement, virtually independent of

pressure and temperature changes

•IP65 casing provides robust protection in the industrial

environment.

•Very fast response time

•Particularly suitable for measuring process gases such as Ar, O2,

CO2 etc

•Optional integrated display, showing velocity, volume flow and

consumption

•Optional Modbus output

•Optional M-Bus output

•Optional Power over Ethernet (PoE).

•Two gas calibrations (optional)

8 S421

6 Technical Data

6.1 General

FCC ID: 2ASK2-SUTO-001

Parameters Standard unit flow: m3/h

Other units: m3/min, l/min, l/s,

cfm, kg/h, kg/min,

kg/s

Consumption units: m3, ft3 , kg

Reference conditions ISO1217 20°C 1000 hPa (Standard-Unit)

DIN1343 0°C 1013.25 hPa (Norm-Unit)

Principle of measurement Thermal mass flow

Sensor Glass coated resistive sensor

Measuring medium Air, gas (non corrosive gas)

Range versions Standard range: 92.7 m/s

Low range: 1/3 of standard range

Vacuum / Atmospheric range：1/3 of

standard range

Operating temperature -30 ... +140°C fluid temperature

-30 ... +70°C casing

-10 ... +50°C display (optional)

Humidity of the meas.

medium

< 90%, no condensation

Operating pressure 0 ... 1.6 MPa (Optional: 4.0 MPa)

Housing material PC + ABS

Material of the probe tube,

sensor head (welded

parts)

Stainless steel 1.4404 (SUS 316L)

Protection class IP65

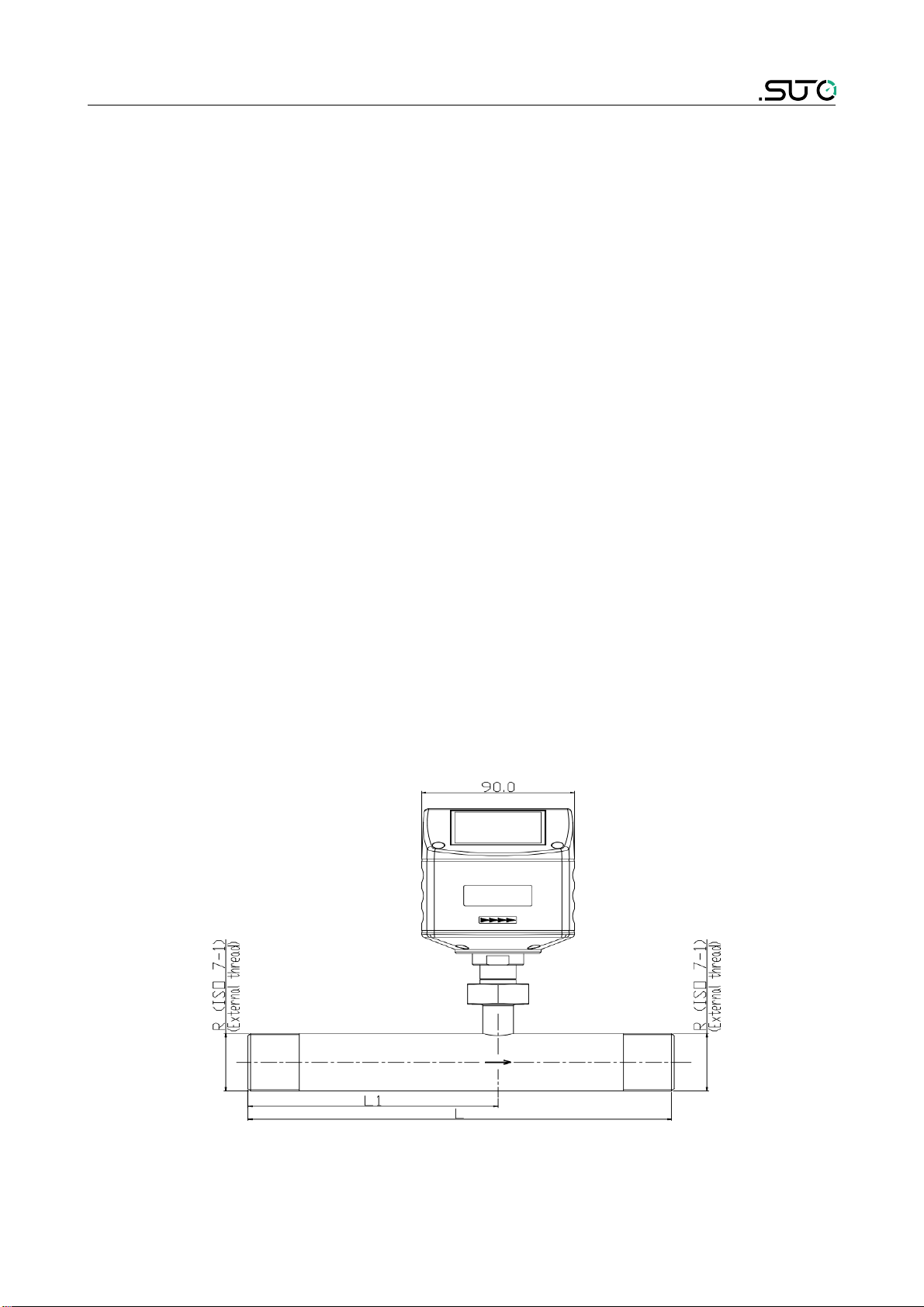

Dimensions See dimensional drawing on page 12

Display (optional) 2.4” colour graphics display with keypad

Tube diameter DN15 ... DN80

S421 9

6 Technical Data

Weight 0.6 kg (Instrument only, not including the

measuring section)

6.2 Electrical Data

Power supply 15 ... 30 VDC, 200 mA

44 ... 57 VDC, 120 mA (PoE)

6.3 Output-Signals

Analogue output Signal: 4 ... 20 mA, isolated

Scaling: 0 to ma flow

Ma load: 250R

Pulse output 1 pulse per consumption unit, isolated

switch, ma . 30 VDC, 200 mA

(pulse length: 10 ... 120 ms, depends on

flow rate)

Modbus output See section 10.3

M-bus output See section 10.4

6.4 Accuracy

Accuracy* ± (1.5% of reading + 0.3% FS) (optional

1% of reading)

Temperature drift: < 0.05%/K

Stated accuracy at Ambient/process temperature 23°C ± 3°C

Ambient/process humidity <90%

Process pressure at 0.6 MPa

Repeatability ±0.25% of reading

*Specified accuracy is valid only within the minimum and ma imum flow

rates that are indicated in section 6.5.

6.5 Volumetric flow ranges

Inch D S421 (m³/h)

½" DN15 0.5 ... 90

¾" DN20 0.9 ... 170

1" DN25 1.5 ... 290

1¼" DN32 2 ... 500

1½" DN40 3 ... 700

10 S421

6 Technical Data

Inch D S421 (m³/h)

2" DN50 4 ... 1000

2½" DN65 6 ... 1500

3" DN80 8 ... 2500

Remarks:

•Measuring ranges are stated under following conditions:

•Standard ﬂow in air

•Reference pressure: 1000 hPa

•Reference Temperature: +20°C

•To calculate flow ranges based on pipe and reference conditions in

your site, download and install the "Flow range calculator" tool for

free from http://www.suto-itec.com.

To fast access the tool download page, enter "flowrange" (without

spaces) in the search field.

S421 11

7 Dimensional drawing

Pipe nominal

size

inch(DN)

total

length

[mm]

inlet

length

[mm]

total

height

[mm]

from pipe

center to

casing top

[mm]

E ternal

thread

S421-1/2” 1/2”/(DN15) 300 210 197.4 186.7 R 1/2”

S421-3/4” 3/4”/(DN20) 475 275 200.2 186.7 R 3/4”

S421-1” 1”/(DN25) 475 275 203.6 186.7 R 1”

S421-1 1/4” 1 1/4”/

(DN32)

475 275 207.9 186.7 R 1 1/4”

S421-1 1/2” 1 1/2”/

(DN40)

475 275 210.9 186.7 R 1 1/2”

S421-2” 2”/(DN50) 475 275 216.9 186.7 R 2”

S421-2 1/2” 2”/(DN65) 475 275 232.7 194.6 R 2 1/2”

S421-3” 2”/(DN80) 475 275 245.5 201.0 R 3”

12 S421

7 Dimensional drawing

Pipe

nominal

size

inch(DN)

total

length

[mm]

inlet

length

[mm]

total

height

[mm]

from pipe

center to

casing top

[mm]

Flange (EN 1092-1

PN40)

ØD

(mm)

ØK

(mm)

n ØL

(mm)

S421-3/4” 3/4”/

(DN20)

475 275 239.2 186.7 105 75 4 Ø14

S421-1” 1”/(DN25) 475 275 244.2 186.7 115 85 4 Ø14

S421-1 1/4” 1 1/4”/

(DN32)

475 275 256.7 186.7 140 100 4 Ø18

S421-1 1/2” 1 1/2”/

(DN40)

475 275 261.7 186.7 150 110 4 Ø18

S421-2” 2”/(DN50) 475 275 269.2 186.7 165 125 4 Ø18

S421-2 1/2” 2 1/2”

(DN65)

475 275 287.1 194.6 185 145 8 Ø18

S421-3” 3”/(DN80) 475 275 301 201.0 200 160 8 Ø18

S421 13

7 Dimensional drawing

Pipe

nominal

size

inch(DN)

total

length

[mm]

inlet

length

[mm]

total

height

[mm]

from pipe

center to

casing top

[mm]

Flange (ANSI/B16.5

class 300)

ØD

(mm)

ØK

(mm)

n ØL

(mm)

S421-1/2” 1/2”/

(DN15)

475 275 234.2 186.7 95.2 66.5 4 Ø15.7

S421-3/4” 3/4”/

(DN20)

475 275 245.4 186.7 117.3 82.5 4 Ø19

S421-1” 1”/

(DN25)

475 275 248.7 186.7 123.9 88.9 4 Ø19

S421-1 1/4” 1 1/4”/

(DN32)

475 275 253.4 186.7 133.3 98.5 4 Ø19

S421-1 1/2” 1 1/2”/

(DN40)

475 275 264.4 186.7 155.4 114.3 4 Ø22.3

S421-2” 2”/

(DN50)

475 275 269.3 186.7 165.1 127.0 4 Ø19

S421-2 1/2” 2 1/2”

(DN65)

475 275 289.9 194.6 190.5 149.3 8 Ø22.3

S421-3” 3”/

(DN80)

475 275 305.8 201.0 209.5 168.1 8 Ø22.3

14 S421

8 Installation considerations

To maintain the accuracy stated in the technical data, the sensor must

be installed inline and fitted to tubes with the same diameter. Please

make sure it e ists unhindered flow characteristics.

Unhindered flow characteristics are achieved if the section in front of the

sensor (inlet) and behind the sensor (outlet) is sufficiently long,

absolutely straight and free of obstructions such as edges, seams,

curves etc..

Please consider that enough space e ists at your site for a adequate

installation as described in this manual. Please Remark the following:

ATTE TIO !

Wrong measurement is possible if the sensor is not

installed correctly.

•Careful attention must be paid to the design of the inlet and outlet

section. Obstructions can cause counter-flow turbulence as well as

turbulence in the direction of the flow.

•The sensor is for indoor use only! At an outdoor installation, the

sensor must be protected from solar radiation and rain.

•It is strongly recommend not to install S421 permanently in wet

environment, which e ists usually right after a compressor outlet.

8.1 Inlet and Outlet sections

The thermal measuring principle may be sensible to inlet and outlet

conditions. For this we recommend the following minimum straight inlet

and outlet sections to ensure an accurate measurement. Sensor should

be always installed upstream from obstacles like valves, filter,

reductions etc. In common the sensor should be installed as far as

possible away from any disturbances.

Remark: If there is any combination of the below, the longest straight

inlet section must be maintained.

S421 15

8 Installation considerations

The S421 sensor comes with its own measuring section and a straight

inlet section, nevertheless additional straight inlet sections must be

added to measuring sections to fulfill the minimum inlet requirements.

Please refer to the installation types below and select your additional

inlet section 'LA' from the table.

Remark: The additional inlet sections depend on the pipe diameter. The

units for the length are in mm.

1 2

3 4

5 6

16 S421
