SUTO S217 Manual

English
Instruction and operation manual
S217
Dew point sensor

Dear Customer,
Thank you for choosing our product.
The operating instructions must be read in full and carefully observed
before you start up the device. The manufacturer cannot be held liable
for any damage which occurs as a result of non-observance or non-
compliance with this manual.
Should the device be tampered with in any manner other than a
procedure which is described and specified in the manual, the warranty
is void and the manufacturer is e empt from liability.
The device is destined e clusively for the described application.
SUTO offers no guarantee for the suitability for any other purpose.
SUTO is also not liable for consequential damage resulting from the
delivery, capability or use of this device.
2 S217

Safety instructions
Table of contents
1 Safety instructions.......................................................................4
2 Registered trademarks.................................................................6
3 Application..................................................................................7
4 Features.....................................................................................7
5 Technical data.............................................................................8
5.1 General................................................................................8
5.2 Accuracy ..............................................................................8
6 Dimensional drawing....................................................................9
7 Electrical connection .................................................................10
8 Modbus output (S217-8 and S217-9)...........................................11
8.1 Modbus holding register table................................................11
8.2 Byte ordering and byte sequencing.........................................13
8.3 Interpretation of system status..............................................13
9 Installation ...............................................................................14
9.1 Installation requirements......................................................14
9.2 Installation procedure ..........................................................14
9.3 Order information................................................................16
10 Calibration..............................................................................17
11 Maintenance............................................................................17
12 Disposal or waste.....................................................................17
S217 3

Safety instructions
1 Safety instructions
Please check if this instruction manual matches with the
product type.
Please observe all notes and instructions indicated in this
manual. It contains essential information which must be
observed before and during installation, operation and
maintenance. Therefore this instruction manual must be read carefully
by the technician as well as by the responsible user / qualified
personnel.
This instruction manual must be available at the operation site of the
dew point sensor at any time. In case of any obscurities or questions,
regarding this manual or the product, please contact the manufacturer.
W RNING!
Compressed air!
ny contact with quickly escaping air or bursting
parts of the compressed air system can lead to
serious injuries or even death!
•Do not e ceed the ma imum permitted pressure range (see
sensors label).
•Only use pressure tight installation material.
•Avoid that persons get hit escaping air or bursting parts of the
instrument.
•The system must be pressureless during maintenance work.
W RNING!
Voltage used for supply!
ny contact with energized parts of the product, may
lead to a electrical shock which can lead to serious
injuries or even death!
•Consider all regulations for electrical installations.
•The system must be disconnected from any power supply during
maintenance work.
•Any electrical work on the system is only allowed by authorized
qualified personal.
4 S217

Safety instructions
TTENTION!
Permitted operating parameters!
Observe the permitted operating parameters, any
operation exceeding this parameters can lead to
malfunctions and may lead to damage on the
instrument or the system.
•Do not e ceed the permitted operating parameters.
•Make sure the product is operated in its permitted limitations.
•Do not e ceed or undercut the permitted storage and operation
temperature and pressure.
General safety instructions
•It is not allowed to use the product in e plosive areas.
•Please observe the national regulations before/during installation
and operation.
Remarks
•It is not allowed to disassemble the product.
•Always use spanner to mount the product properly.
TTENTION!
Measurement values can be affected by malfunction!
The product must be installed properly and
frequently maintained, otherwise it may lead to
wrong measurement values, which can lead to
wrong results.
Storage and transportation
•Make sure that the transportation temperature of the sensor is
between -30 ... +70°C.
•For transportation it is recommended to use the packaging which
comes with the sensor.
•Please make sure that the storage temperature of the sensor is
between -10 ... +50°C.
•Avoid direct UV and solar radiation during storage.
•For the storage the humidity must be <95% rH, no condensation.
S217 5

Registered trademarks
2 Registered trademarks
SUTO® Registered trademark of SUTO iTEC
MODBUS® Registered trademark of the Modbus Organization,
Hopkinton, USA
HART®Registered trademark of the HART Communication
Foundation, Austin,USA
PROFIBUS®Registered trademark of the PROFIBUS User Organization,
Karlsruhe,
Germany
6 S217

Application
3 pplication
The SUTO dew point sensor S217-OEM provides reliable and long term
stable dew point monitoring in industrial applications. The newly
developed sensor features improved signal and stability in demanding
industrial applications.
It’s designed for OEM applications in desiccant and refrigeration dryers.
The measured dew point is output via the loop-powered 4 ... 20 mA
signal. Sensor parameters such as analogue output scaling, physical
units, can be set e factory.
4 Features
•Small size makes it ideal for dryer installations
•Measures dew points down to –50ºC Td
•2-wire loop powered sensor or 3-wire
•Modbus/RTU signal output (model depending)
•IP65 casing provides robust protection in rough industrial
environment
•Very fast response time ensures safe and relia-ble indication
whenever dew points are out of valid ranges
•Can be installed directly into dryers through G 1/2” thread
•High accuracy of 1 … 2ºC Td dew point
•Withstands condensation
•Can be supplied with connection cable attached
•M8 connector and cable with open wires
S217 7

Technical data
5 Technical data
5.1 General
Measuring range
(model depending)
-50 ... +20°C Td
-20 ... +50°C Td
Accuracy ±1ºC Td [-5 … +10ºC]
±2ºC Td [-50 … +20ºC]
Pressure range -0.1 ... 5.0 MPa
-0.1 ... 35 MPa (optional)
Power supply 12 ... 30 VDC
Measured gas Non-corrosive gases
Ambient temperature -20 ... +50°C
Ambient humidity 0 ... 100% rH
Transport temperature -30 ... +70°C
Response time t90
(@ 4 l/min)
-40°C Td - > -20°C Td: 20 seconds
0°C Td - > -40°C Td: 120 seconds
Output signal 4 ... 20 mA, 2-wire (S217-0 / S217-3 )
4 ... 20 mA, 3-wire (S217-4 / S217-5)
Modbus/RTU (S217-8 / S217-9)
Cable M8 connector, 1.8 m, open wires, 4 poles
Casing Process connection: stain-less steel
Casing: Al alloy
Cassification IP65
Process connection G ½” thread (ISO 228/1)
Sensor protection Stainless steel sinter filter pore size <30 µm
EMC According to IEC 61326-1
5.2 ccuracy
Stated accuracy under following conditions:
•Ambient / process temperature 23 ± 3°C
•Ambient humidity <95% rH, no condensation
•Airflow > 2 l/min at sensor tip
8 S217

Dimensional drawing
6 Dimensional drawing
S217 9

Electrical connection

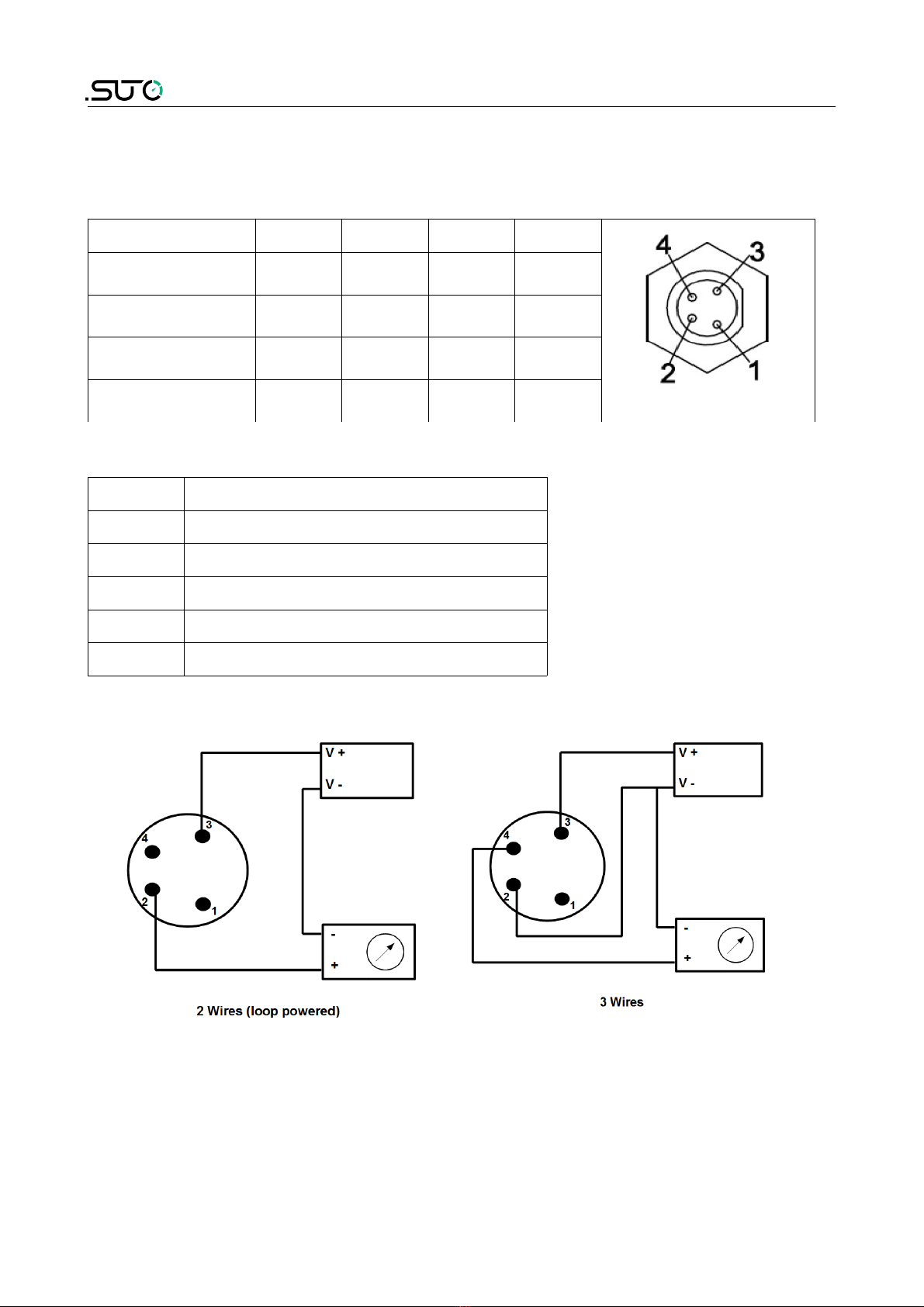

7 Electrical connection
Pin assignment
Pin 1 Pin 2 Pin 3 Pin 4
2-wire SDI -VB +VB N/A
3-wire SDI -VB +VB +I
Modbus/RTU -D -VB +VB +D
Color Brown White Blue Black
Legend for pin assignment
SDI Digital signal (Internal use only)
-VB Negative supply voltage
+VB Positive supply voltage
+I 4 ... 20 mA (3-wire)
+D Positive data Modbus
-D Negative data Modbus
Schemas
10 S217

Modbus output (S2 7-8 and S2 7-9)
8 Modbus output (S217-8 and S217-9)
Mode : RTU
Baud rate : 19200
Device address : last two digits of serial number
Framing / parity / stop bit : 8, N, 1
Response time : 1 second
Response delay : 0 ms
Inter-frame spacing : 7 char
8.1 Modbus holding register table
Modbus
Register
address
Data type Data
Length
Channel
description
Unit Res.* R/
W
0 FLOAT 4-Byte Temperature (°C,°F) 1 R
2 FLOAT 4-Byte Relative
humidity
(%) 3 R
6 FLOAT 4 Byte Pressure dew
point
(°Ctd or
°Ftd)
1 R
8 FLOAT 4 Byte Atmosphere
dew point
(°Ctd
atm,°Ftd
atm)
1 R
10 FLOAT 4 Byte Mi ing ratio (g/kg) 3 R
12 FLOAT 4 Byte Absolute
humidity
(g/m3, or
mg/m3)
3 / 1 R
16 FLOAT 4 Byte Volume ration (ppm) 1 R
49 INT32U 4 Byte Serial number NA 1 R
55 INT32U 4 Byte System status NA 1 R
200 FLOAT 4 Byte Temperature NA ** R
202 ASCII string
(°C, or °F)
4 Byte Unit of
temperature
NA 1 R
204 INT16U 2-Byte Resolution of
temperature
NA 1 R
205 INT16U 2 Byte Status
temperature
NA 1 R
S217 11

Modbus output (S2 7-8 and S2 7-9)
Modbus
Register
address
Data type Data
Length
Channel
description
Unit Res.* R/
W
212 FLOAT 4 Byte Humidity1 NA ** R
214 ASCII string
(%,°Ctd,°Ftd
,
g/m3,mg/m3
,g/kg, ppm,
°Ctd
atm,°Ftd atm
)
8-Byte Unit of
Humidity1
NA 1 R
218 INT16U 2 Byte Resolution of
Humidity1
NA 1 R
219 INT16U 2 Byte Status of
Humidity1
NA 1 R
220 FLOAT 4 Byte Humidity2 NA ** R
222 ASCII string
(%,°Ctd,°Ftd
,
g/m3,mg/m3
,g/kg, ppm,
°Ctd
atm,°Ftd atm
)
8 Byte Unit of
Humidity2
NA 1 R
226 INT16U 2 Byte Resolution of
Humidity2
NA 1 R
227 INT16U 2 Byte Status of
Humidity2
NA 1 R
* Res. denotes resolution.
** The resolution varies with units.
Remark: Units can be changed using the service software.
12 S217

Modbus output (S2 7-8 and S2 7-9)
8.2 Byte ordering and byte sequencing
In the response message that the device returns to the master:
•Function code: 03
•Byte order (32-bit data): MID-LITTLE-ENDIAN.
To properly decode the 4-byte float and unsigned integer data in
the response message, the master must change the byte order
from MID-LITTLE-ENDIAN to the order that it is using (LITTLE-
ENDIAN or BIG-ENDIAN).
Byte sequencing of byte orders:
Byte order Byte sequencing (HEX) Example
MID-LITTLE-ENDIAN
(Read from the device)
A B C D 0 0A 11 42 C5
LITTLE-ENDIAN B A D C 0 11 0A C5 42
BIG-ENDIAN C D A B 0 42 C5 0A 11
8.3 Interpretation of system status
The device provides the device statuses via Modbus as well. The 32-bit
data information is read as single bits. The meanings of these bits are
described as follows.
Bit Description
2Dew point over range
3 Temperature over range
6 calibration over due
7 EEPROM broken
8 Dew point sensor broken
S217 13

Installation
9 Installation
Before installing the sensor, please make sure that all components listed
below are included in your package.
Qty Description Item No.
1 Sensor Model specific
(See section 9.3 for details.)
1 2 m cable with M8 connector No P/N
1 Instruction manual No P/N
1 Calibration certificate No P/N
9.1 Installation requirements
The flowing air or gas must pass the sensor tip for a proper
measurement. This can be realized with a measurement chamber. For a
installation without measuring chamber you need to concern the
installation depth which is described in the ne t chapter.
9.2 Installation procedure
The following steps e plain the procedure of an appropriate installation.

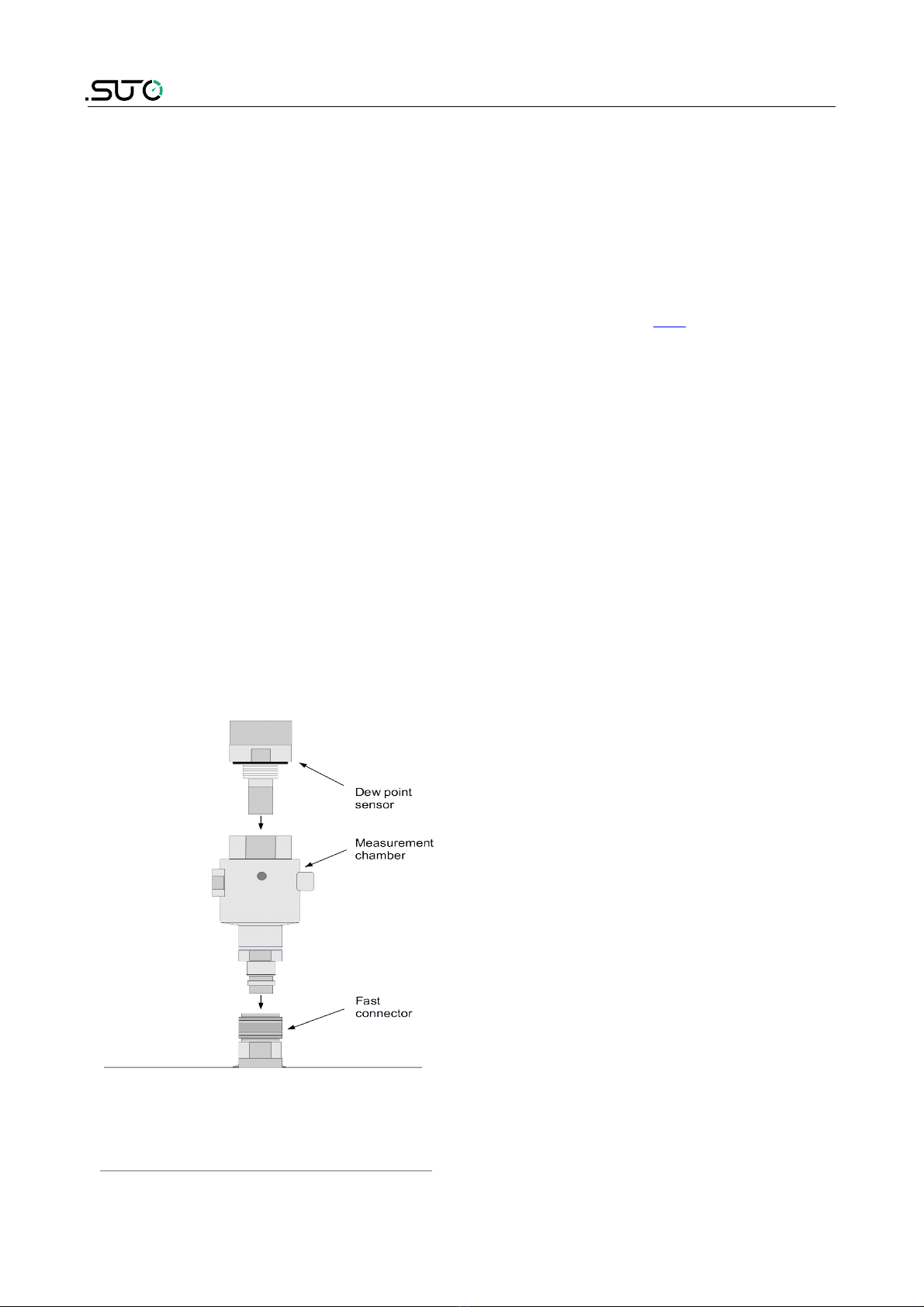

Installation of the sensor with measurement chamber
1. Connect the sensor with
the measurement
chamber.
2. Connect the sensor and
the measurement
chamber with the fast
connector.
14 S217

Installation

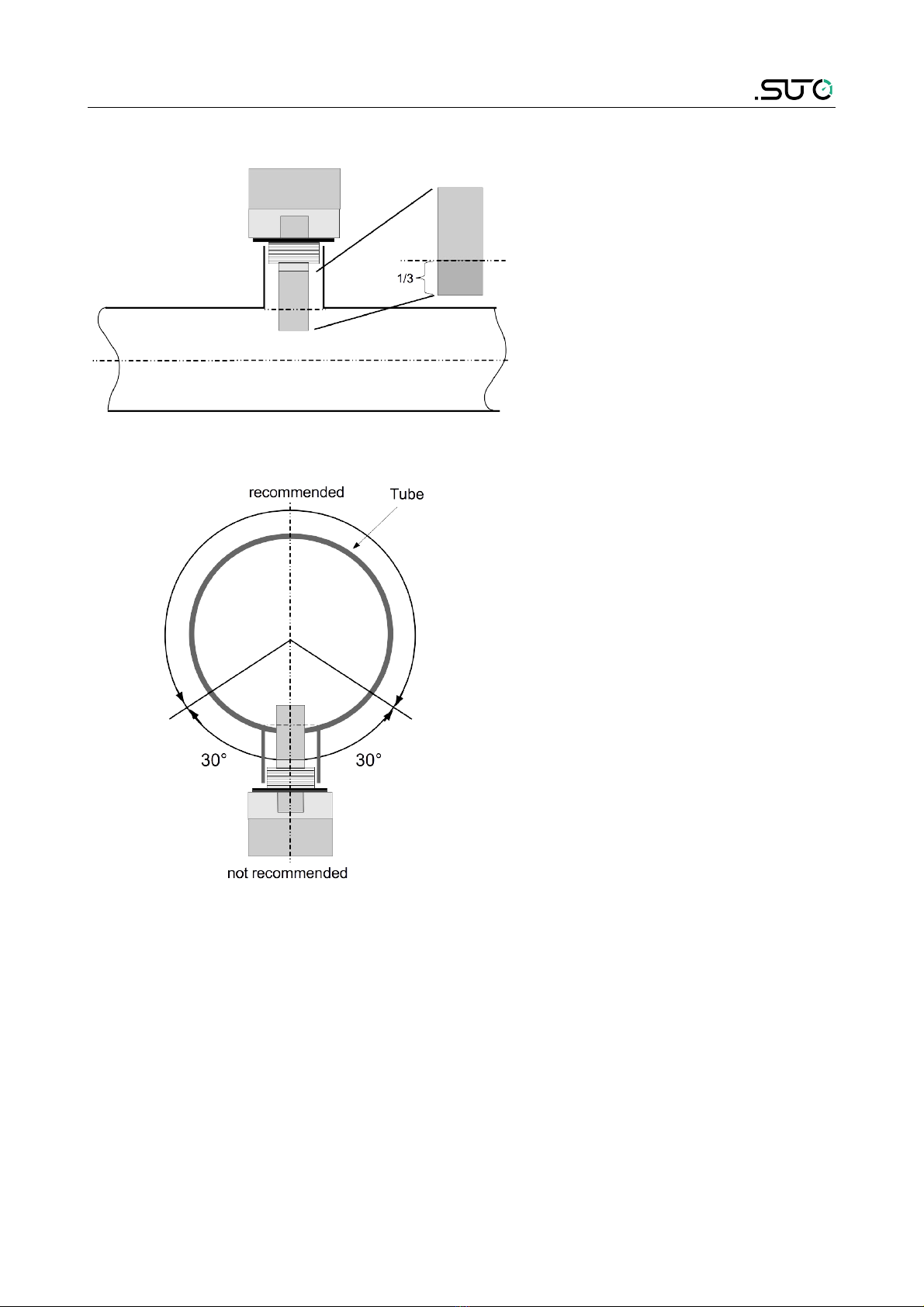

Installation of the sensor without measurement chamber
•Install the sensor only if
the system is
pressureless.
•Not less than 1/3 of the
sensor tip should be inside
of the pipe. For this please
check the size of the
nozzle.
•The inner thread must be
G 1/2”.
Remarks
Please install the sensor only
in the recommended area
like you can see in the
picture. A upside down
installation is not permitted.
Please consider that the
distance to the vertical level
must be >30°.
Removal of the sensor
To remove the sensor unscrew the sensor from the measurement
chamber or from the nozzle. Please observe that the system is
pressureless when the sensor is removed.
S217 15

Installation
9.3 Order information
Order no. Description
S699 2170 S217-0, dew point sensor, 4 ... 20 mA (2-wire),
-50 ... +20ºC Td, G 1/2” thread, 50 bar, M8
S699 2173 S217-3, dew point sensor, 4 ... 20 mA (2-wire),
-20 ... +50ºC Td, G 1/2” thread, 50 bar, M8
S699 2174 S217-4, dew point sensor, 4 ... 20 mA (3-wire),
-20 ... +50ºC Td, G 1/2” thread, 50 bar, M8
S699 2175 S217-5, dew point sensor, 4 ... 20 mA (3-wire),
-50 ... +20ºC Td, G 1/2” thread, 50 bar, M8
S699 2178 S217-8, dew point sensor, Modbus/RTU, -50 ... +20°C Td,
G1/2" thread, 5.0 MPa, M8
S699 2179 S217-9, dew point sensor, Modbus/RTU, -20 ... +50°C Td,
G1/2" thread, 5.0 MPa, M8
A1390 S217, customized measuring range
A1391 S217, high pressure option 35 Mpa (350 bar)
A554 2005 Service kit for sensor configuration including software
A699 3491 Measuring chamber for easy installation in compressed air
system up to 15 bar
A699 3493 Measuring chamber bypass type (in and out 6 mm hose
connection)
C198 0002 Sinter cap, stainless steel
16 S217

Calibration
10 Calibration
The sensor is calibrated e work. The e act calibration date is printed on
the certificate which is supplied together with the sensor. The accuracy of
the sensor is regulated by the on site conditions, parameters like oil,
high humidity or other impurities can affect the calibration and
furthermore the accuracy. However we recommend to calibrate the
instrument at least once per year. The calibration is e cluded from the
instruments warranty. For this please contact the manufacturer.
11 Maintenance
Please observe from time to time the sinter cap. If it appears to be
dirty, it is recommended to replace it for this please contact the
manufacturer.
TTENTION!
Contaminated filters can lead to longer response
time and to wrong measurements.
12 Disposal or waste
Electronic devices are recyclable material and do not
belong in the household waste.
The sensor, the accessories and its packings must be
disposed according to your local statutory requirements.
The dispose can also be carried by the manufacturer of the
product, for this please contact the manufacturer.
S217 17

18 S217

S217 19

SUTO iTEC GmbH
Grißheimer Weg 21
D-79423 Heitersheim
Germany
SUTO iTEC (ASIA) Co., Ltd.
Room 10, 6/F, Block B, Cambridge Plaza
188 San Wan Road, Sheung Shui, N.T.
Hong Kong
Tel: [phone]
Fa : [phone]
Email: [email protected]
Website: http://www.suto-itec.com
Tel: [phone]
Fa : [phone]
Email: [email protected]
Website: http://www.suto-itec.com
All rights reserved © Modifications and errors reserved
S217_im_en_2020-3
20 S217
