Suunto M9i User manual

1
CUSTOMER SERVICE CONTACTS
Suunto Oy Phone [phone]
Fax [phone]
Suunto USA Phone [phone]
Canada Phone [phone]
European Call Center Phone [phone]
Suunto Website www.suunto.com

2
TABLE OF CONTENTS
1. INTRODUCTION ...................................................................................................... 5
1.1 CHECKLIST .................................................................................................... 5
1.2 CAREAND MAINTENANCE ........................................................................... 5
1.3 WATER RESISTANCE .................................................................................... 5
1.4 CHARGING THE BATTERY ............................................................................ 6
2. HOW TO USE YOUR SUUNTO M9i .......................................................................... 7
2.1 DISPLAY ...................................................................................................... 7
2.1.1 Mode Indicator ................................................................................. 7
2.1.2 Battery Indicator .............................................................................. 7
2.1.3 Alarm Symbol ................................................................................... 8
2.1.4 GPS Activity and Accuracy Bar Display ......................................... 8
2.2 BUTTONS ...................................................................................................... 8
2.2.1 Short and Long Press ..................................................................... 8
2.2.2 Start/Data Button.............................................................................. 8
2.2.3 Stop/Cancel Button .......................................................................... 9
2.2.4 Enter Button ..................................................................................... 9
2.2.5 Arrow Buttons ...............................................................................10
2.3 MENUS .......................................................................................................10
2.3.1 Basic Menu Structure .................................................................... 10
2.3.2 Navigating in Menus ......................................................................10
2.4 Understanding GPS ....................................................................................12
2.4.1Overview ........................................................................................12
2.4.2 Line-of-sight Needed .....................................................................12
2.4.3 Accuracy ....................................................................................... 12
2.4.4 GPS Usage ....................................................................................13
2.4.5 Versatility .......................................................................................13
3. MODES ..............................................................................................................14
3.1 GENERAL INFORMATION ............................................................................14
3.2 TIME MODE ................................................................................................. 14

3
3.2.1 Main Display ...................................................................................14
3.2.2 Stopwatch ..................................................................................... 15
3.2.3 Function Menu ...............................................................................15
3.2.4 Alarm ..............................................................................................15
3.2.5 Time/Date ....................................................................................... 16
3.2.6 General ..........................................................................................18
3.2.7 Units ...............................................................................................20
3.3 WEATHER MODE .........................................................................................24
3.3.1 Main Display ...................................................................................24
3.3.2 Function Menu ...............................................................................24
3.3.3 Barometric Memory ......................................................................24
3.3.4 Weather Alarm ...............................................................................25
3.4 COMPASS MODE .........................................................................................26
3.4.1 Main Display ...................................................................................26
3.4.2 Function Menu ...............................................................................27
3.4.3 Calibrate ......................................................................................... 27
3.4.4 Declination ..................................................................................... 28
3.5 SAILING MODE ............................................................................................29
3.5.1 Main Display ...................................................................................29
3.5.2 Function Menu ...............................................................................30
3.5.3 Tracking ......................................................................................... 30
3.5.4 Tracks ............................................................................................ 31
3.5.5 Race ............................................................................................... 32
3.6 NAVIGATION MODE ....................................................................................32
3.6.1 Main Display ...................................................................................32
3.6.2 Function Menu ...............................................................................34
3.6.3 Navigate ......................................................................................... 34
3.6.4 Routes ............................................................................................35
3.6.5 Race ............................................................................................... 38
3.7 RACING MODE ............................................................................................39

4
3.7.1 Main Display ...................................................................................39
3.7.2 Function menu ...............................................................................41
3.8 FUNCTION MENU .........................................................................................47
3.8.1 GPS ................................................................................................ 47
3.8.2 MOB ...............................................................................................48
3.8.3 Memory Point ................................................................................. 49
3.8.4 POSITION .......................................................................................49
3.8.5 WINDdir .......................................................................................... 50
4. ADDITIONAL FEATURES ........................................................................................ 51
4.1 PC INTERFACE .............................................................................................51
4.1.1 Transferring Data ..........................................................................51
4.1.2 PC software installation ................................................................51
4.2 SUUNTO SAIL MANAGER ...........................................................................52
4.2.1 Suunto Sail Manager Features ......................................................52
4.2.2 Changing the Suunto M9i Settings ................................................53
4.3 WWW.SUUNTOSPORTS.COM .................................................................... 54
4.3.1 System Requirements ................................................................... 54
4.3.2 SuuntoSports.com Sections ..........................................................54
5. TECHNICALSPECIFICATIONS ................................................................................ 57
6. GPS DATUM LISTING ............................................................................................. 58
7. GLOSSARY .........................................................................................................66
8. USER’S RESPONSIBILITY ...................................................................................... 69
9. COPYRIGHTAND TRADEMARK NOTICE ............................................................... 69
9.1 PATENT NOTICE ........................................................................................... 70
10. CE COMPLIANCE ................................................................................................. 70
11. LIMITS OF LIABILITYAND ISO 9001 COMPLIANCE ............................................ 70
12.AFTER SALES SERVICE ......................................................................................71
12.1 ONLINE WARRANTY REGISTRATION ......................................................71
13. DISCLAIMER .......................................................................................................72
14. DISPOSAL OF THE DEVICE ................................................................................. 73

5
1. INTRODUCTION
Congratulations, your newly purchased Suunto M9i is designed to provide years of
enjoyment in your sailing activities.
Suunto M9i is a reliable high precision electronic instrument intended for recreational
use.
NOTE: Suunto M9i should not be substituted for acquiring measurements that require
professional or industrial precision.
1.1 CHECKLIST
After purchasing this instrument, make sure the package contains the following items:
• Suunto M9i
• Charger
• PC-interface and charging cable
• CD containing the Suunto Sail Manager software and Suunto M9i User’s manual
• Suunto M9i User’s Guide
• Suunto M9i Pocket Guide
Should any of these be missing from the package, contact the resale agent who sold
you the package.
1.2 CARE AND MAINTENANCE
Only perform the procedures described in this manual. Never disassemble your Suunto
M9i. Protect it from shocks, extreme heat and prolonged exposure to direct sunlight. If
not in use, store your Suunto M9i in a clean and dry environment at room temperature.
Wipe your Suunto M9i clean with a lightly moistened (warm water) cloth. If there are
stubborn stains or marks, you can apply mild soap to the area. Do not expose it to
strong chemicals such as gasoline, cleaning solvents, acetone, alcohol, insect
repellents, adhesives and paint, as they will damage the unit’s seals, case and finish.
Keep the area around the sensor free of dirt and sand. Never insert any objects into
the sensor opening.
1.3 WATER RESISTANCE
Suunto M9i is water resistant. Its water resistance is tested to 100m/330ft according
to ISO 2281 standard (www.iso.ch). This means that you can use the Suunto M9i for
swimming or other water sport activities but it should not be used for scuba diving or
freediving.

6
NOTE: Do not push the buttons under any circumstances while swimming or in
contact with water. Deliberate or unintentional depression of the buttons while the
unit is submerged could cause the unit to malfunction.
NOTE: Large amounts of water and dirt under the cover of Suunto M9i may disturb the
satellite signal reception.
1.4 CHARGING THE BATTERY
Suunto M9i is equipped with an internal rechargeable battery. You can recharge the
battery approximately 500 times. The life expectancy of a single charge depends on
the use of the GPS, Compass and data storage functions. When the battery level
indicator on the display reaches the red zone, the battery voltage is low. When this
occurs, you should recharge the battery. However, extremely cold weather affects
the battery voltage even when the battery is still fully operational.
If the battery warning indicator is activated in temperatures above 10°C (50°F), recharge
the battery.
Do not attempt to change the battery, as this will void warranty. Take the Suunto M9i to
an authorized Suunto dealer for a battery change.
You can charge the battery with either the included mains charger (universal mains
voltage) or through your PC’s USB connector. For other charging options see
www.suunto.com.

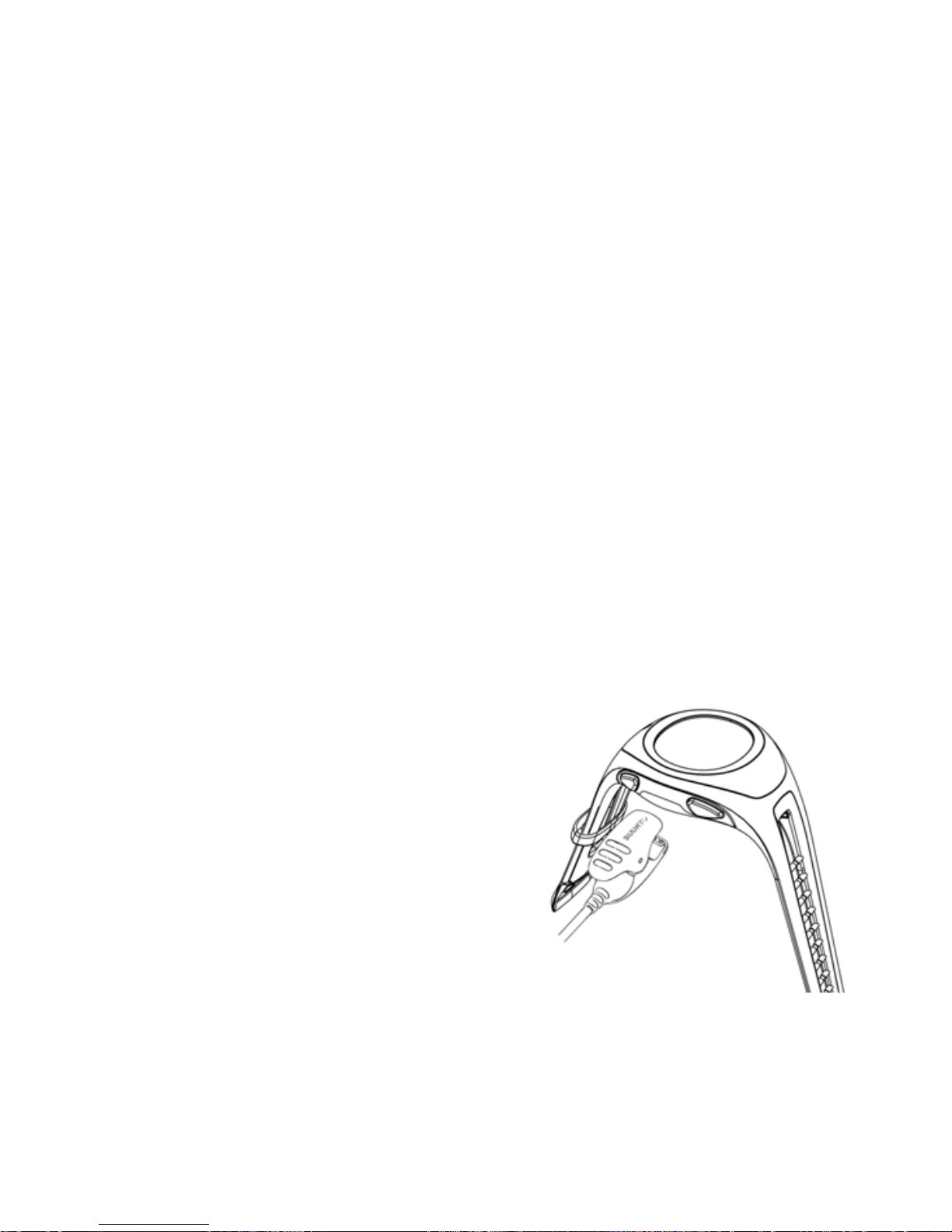

Charging the battery with a mains charger
To charge the battery with a mains charger:
1. Plug the charger into the mains outlet and attach
its data clip firmly to your Suunto M9i.
2. When the battery level indicator is full, discon-
nect the charger from the mains outlet. Your
Suunto M9i is now ready for use.
Charging the battery through your PCs USB
connector
To charge the battery through your PCs USB
connector:
1. When your PC is on, plug the USB cable into the USB port and attach its data clip
firmly to your Suunto M9i.

7
2. When the battery level indicator is full, disconnect the cable from the PC. Your
Suunto M9i is now ready for use.
NOTE: Heavy use of the GPS, backlight and compass will significantly reduce the
battery life.
WARNING
This Suunto product contains a Li-ion battery. To reduce the risk of fire or burns, do
not disassemble, crush, puncture, short external contacts, or dispose of in fire or
water. Only replace with manufacturer specified batteries. Recycle or dispose of
used batteries properly.
2. HOW TO USE YOUR SUUNTO M9i
2.1 DISPLAY
2.1.1 Mode Indicator
On the left side of the display there is a mode indicator that shows the currently active
mode. The mode indicator displays the modes from the top down in the following order:
TIME, WEATHER, COMPASS, SAILING and NAVIGATION. The active mode is indicated
by the moving segment next to the indicator bar. When the RACING mode is active, both
the SAILING and the NAVIGATION segments are displayed.
2.1.2 Battery Indicator
On the right side of the display there is a battery indicator
that shows the battery voltage. When the indicator is in the
red zone, the battery needs recharging. When the battery
is being recharged, the battery indicator moves up
continuously until the battery is full, and the indicator is
shown in full length.

8
2.1.3. Alarm Symbol
If a regular alarm or a Baro Alarm is activated, a rectangular
symbol is displayed at the right side of the lower horizontal
dot line.
2.1.4. GPS Activity and Accuracy Bar Display
When the GPS is set on, a dot bar display appears on the
upper horizontal dot line of the
display. When the GPS is on but does
not have a fix, an empty rectangular
dot is displayed. When the GPS has
a fix, 1 to 5 filled rectangular dots
are displayed. The amount depends
on the fix quality. More dots represent
better satellite coverage and signal
reception.
2.2 BUTTONS
2.2.1 Short and Long Press
The buttons may have different functions depending on how long you press them.
The ordinary press or short press means that the button is pressed quickly.
The long press means that the button is pressed for more than 2 seconds.
2.2.2 Start/Data Button
Short Press
• In the Time mode, it starts the timing and records the split times.
• Activates the information displays in the Sailing, Navigation and Racing modes and
in the MOB function. Returns to the main display from the Sailing, Navigation, Racing
and MOB information displays.
Long Press
• Activates the backlight when the backlight is not set to the off position. The backlight
stays on as long as a selection is active and 5 seconds after the last selection. For
more information about backlight settings, see section 3.2.6.

9
2.2.3 Stop/Cancel Button
Short Press
• Returns to the previous menu level or to the previous selection without accepting
the selection.
• In the main mode displays, it acts as a shortcut button that toggles the lowest field
of the main display between three different alternatives. The selection stays active
even if the mode or menu level is changed. Changing the shortcut in the Time mode
is possible only after the Stopwatch has been reset.
• In the Time mode, it stops the timing and scrolls the split times on the display.
Long Press
• Returns to the main display of the current mode without accepting the last selection.
• In the Time/Stopwatch mode, it resets the stopwatch.
2.2.4 Enter Button
Short Press
• Moves to a lower menu level.
• Activates the Function menu in all the main modes.
• Records all the Function menu parameters in the temporary memory. The param-
eters are erased when the unit returns to the main mode, except for the one that has
been confirmed by the user. For more information on the Function menu, see section
3.8, Function Menu.
• If the GPS is not active, it accesses the Function menu in order to turn the GPS on.
Accepting any selection that requires GPS usage, also turns the GPS on.
• With two possible selections (e.g. light on/off), it activates the selection and ac-
cepts the selections made with the arrow keys.
• Accepts the selections made on the information displays and returns to the main
display.
Long Press
• Moves to the Set menu from the main displays. (The individual Set menu names are
identical to the mode names.)
• Accepts the selections made with the arrow keys and returns to the main display.

10
2.2.5 Arrow Buttons
Short Press
• Scroll the menus up and down.
Move between the main modes
• From the Racing mode, the up arrow navigates to the Sailing mode and the down
arrow navigates to the Navigation mode.
NOTE: You can only access the racing mode after you have activated it. (For more
information on this, see sections 3.5.5 and 3.6.5 race.)
• Change the values. The up arrow increases the value and the down arrow de-
creases the value. With two possible selections (e.g. light on/off), both arrows
change the value.
2.3 MENUS
2.3.1 Basic Menu Structure
The menus are organized hierarchically under the modes. When you select a mode,
first the name of the mode, then its main display appears. When you press the up or
down arrow quickly, only the names of the modes are shown. When you long press
Enter in the mode’s main display, the mode’s Set menu is displayed. The Set menu
includes several functions, all of which include sub-functions or settings. This is
called the hierarchical menu structure.
Always when you press Enter to enter into a submenu for performing setting, timer
sync, MOB etc. the Suunto M9i records data like time, direction and position in the
temporary memory The data is utilized in the Function menu features.
2.3.2 Navigating in Menus
The menu items can be scrolled with the up and down arrows located on the right side
of Suunto M9i. Three menu items are displayed at the same time. The menu item that is
currently active and can thus be selected is displayed in reversed color. The indicator
bar on the left side of the display shows the active mode. To move deeper into the
hierarchy, select a menu item and press Enter. To return one step up in the hierarchy,
press Stop/Cancel. Remember that if you just press Stop/Cancel, the changes made
in the menu are not saved. First you have to accept the changes with the Enter button.
If you want to return directly to the main display of the active mode, press either Enter

11
(saves the changes) or Stop/Cancel (discards the last change) for more than 2
seconds.
Suunto M9i has been designed to guide you as much as possible when you navigate
in the menus. When you perform a function, Suunto M9i often returns automatically to
the menu item you are likely to use next.
Short pressing Enter in any of the modes brings up the Function menu. The Function
menu is almost identical in all the main modes. In the Function menu you can:
• Turn the GPS on or off manually (GPS On/Off)
• Record and store the coordinates of a Man Over Board situation (MOB)
• View the current position (Position)
ENTER
Change the value
with UP/DOWN
ENTER (stores sensor data to temporary memory)
Press ENTER
for over 2 sec Function menu
GPS On/Off
See chapter 2.1.4.
Time menu
ALARM
TIME/DATE
UNITS
GENERAL
TIME 24h
DATE dd.mm
TEMP °C
ENTER
ENTER: accept and return
STOP/CANCEL: discard and return
ENTER for over 2 sec: accept and return to the main display
STOP/
CANCEL
STOP/
CANCEL
Scroll the menu
with UP/DOWN
STOP/CANCEL
TIME 24h
DATE dd.mm
TEMP °C

12
• Store a memory point (MEMPoint)
• Store the wind direction (WIND DIR)
For more information on the Function menu, see section 3.8 Function Menu.
The Function menu of the Racing mode differs to a certain extent from other modes.
For more information refer to the Racing mode section 3.7.2 Function menu.
2.4. UNDERSTANDING GPS
2.4.1. Overview
Suunto M9i uses Global Positioning System (GPS) in determining the user’s position.
GPS incorporates a set of satellites orbiting the Earth at an altitude of 20 000 km, at the
speed of 4 km/s. The satellites send relatively weak radio signals at power levels
comparable to normal household light bulbs. So, the GPS reception gets disturbed
much more easily than, for example, cellular phone signal reception because the GPS
signals that reach the Earth are thousands of times weaker than cell phone signals.
However, due to the extreme sensitivity of the built-in GPS radio receiver, even the
faintest signals can be picked up.
2.4.2. Line-of-sight Needed
To ensure a good position measurement, there must be a line-of-sight connection
between the satellites and the receiver. This means that the objects or materials
between the satellites and the GPS receiver must not excessively attenuate the signal.
In practice, water-containing objects, such as people, trees or other dense vegetation,
can cause problems. The signals will not penetrate rocks or buildings or any metallic
materials. However, the receiver typically works well under relatively thin plastic,
fabric or wooden covers, e.g. inside boats.
2.4.3. Accuracy
To calculate a position, a GPS receiver usually requires simultaneous reception from at
least four satellites. The position accuracy typically increases with the number of
satellites being tracked but the most important factor is actually the relative geometric
position of the satellites. The best position estimate is obtained when satellites from
different directions and angles can be tracked. In other words, the less obstructed the
receiver’s view of the sky, the better the accuracy.
The accuracy also improves with the number of measurements made on the same

13
spot, as some errors will be averaged out. Under all-in-view satellite conditions a
global average horizontal positioning error is 7.8 meters (95% confidence level).
However, depending on the satellite constellation and the distortion the GPS signal
experiences when traveling through the ionosphere, the instantaneous accuracy can
vary from a couple of meters to over ten meters. The vertical position estimate is
roughly two times more inaccurate than the horizontal.
2.4.4. GPS Usage
When you turn on the GPS, the receiver starts searching for radio signals from the
satellites and as soon as one is found, data starts flowing from the satellite to the
receiver. The data includes a list of the satellite positions and the GPS time. The GPS
time is highly accurate because each satellite has an atomic clock on board.
The data flows quite slowly and usually a little less than a minute is needed for the
calculation of the first position estimate. To minimize the duration, you should maintain
an unobstructed view of the sky right after turning on the GPS. You need the satellite
positions and the GPS time before you can perform the actual position calculation and
before the GPS becomes functional. After the first position fix has been established, it
still takes additional 10 minutes before all relevant data has been received from the
satellites. The position estimate accuracy improves during this time as more satellites
can be used for position calculation.
The downloaded data is valid roughly for the next four hours during which the receiver
starts more quickly, typically in less than 10 seconds if it was turned off in between.
You should turn off the GPS when you do not need it. This is because satellite tracking
consumes large amounts of power. Suunto M9i uses the lowest power consuming
GPS technology available but you should still turn off the GPS when you do not need it.
2.4.5. Versatility
The GPS system is run by the United States Department of Defense and has been fully
operational since 1995. At least 24 operational satellites circle the globe every 12
hours in 6 orbital planes with 4 satellites per plane to provide a true global coverage.
A worldwide ground control network monitors the health and status of the satellites.
The system works 24 hours a day regardless of the weather. It can provide service to
an unlimited number of users and it is free of charge.
NOTE: The very first time you initiate the GPS, it will take longer than usual for the

14
GPS to start, as it has no reference to its current location. This may also happen if the
GPS has not been used for a long time.
Please activate your new Suunto M9i GPS at least once before sailing out. Subsequent
GPS starts will take less time. To minimize the GPS initiation time, hold the unit steady in
one position with the display facing up and make sure you are located in an open area
so that the unit has a clear view to the sky. After starting the GPS (i.e. after it has a fix),
the unit can be moved more freely without losing the connection to the satellites. The
signal strength bar on the unit’s display indicates the fix. (See section 2.1.4, GPS
Activity and Accuracy Bar Display)
3. MODES
3.1 GENERAL INFORMATION
Suunto M9i has six different modes: Time, Weather, Compass, Sailing, Navigation and
Racing. You can switch between the modes with the arrow buttons. Each mode has
several sub-modes. The mode indicator on the left side of the display indicates the
active mode.

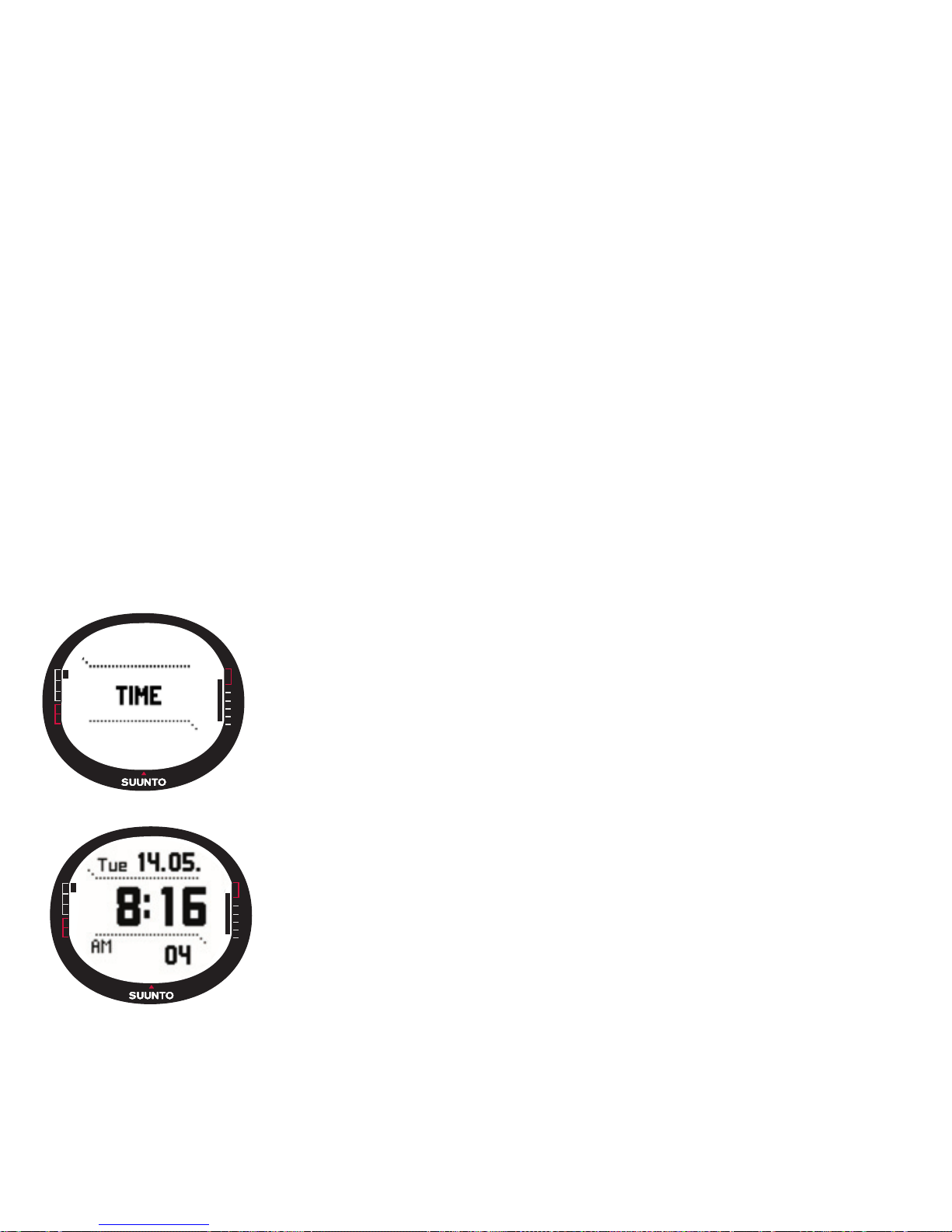

3.2 TIME MODE

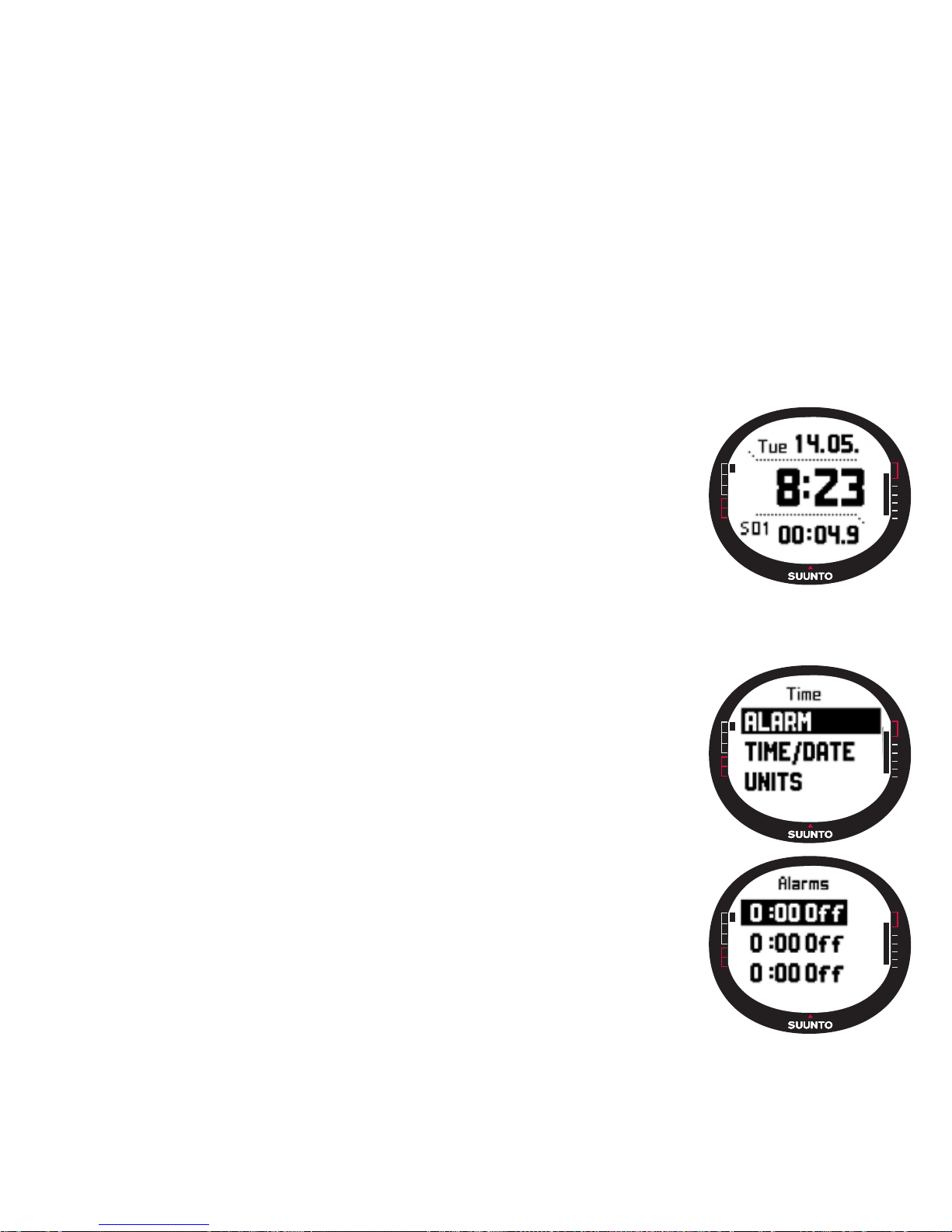

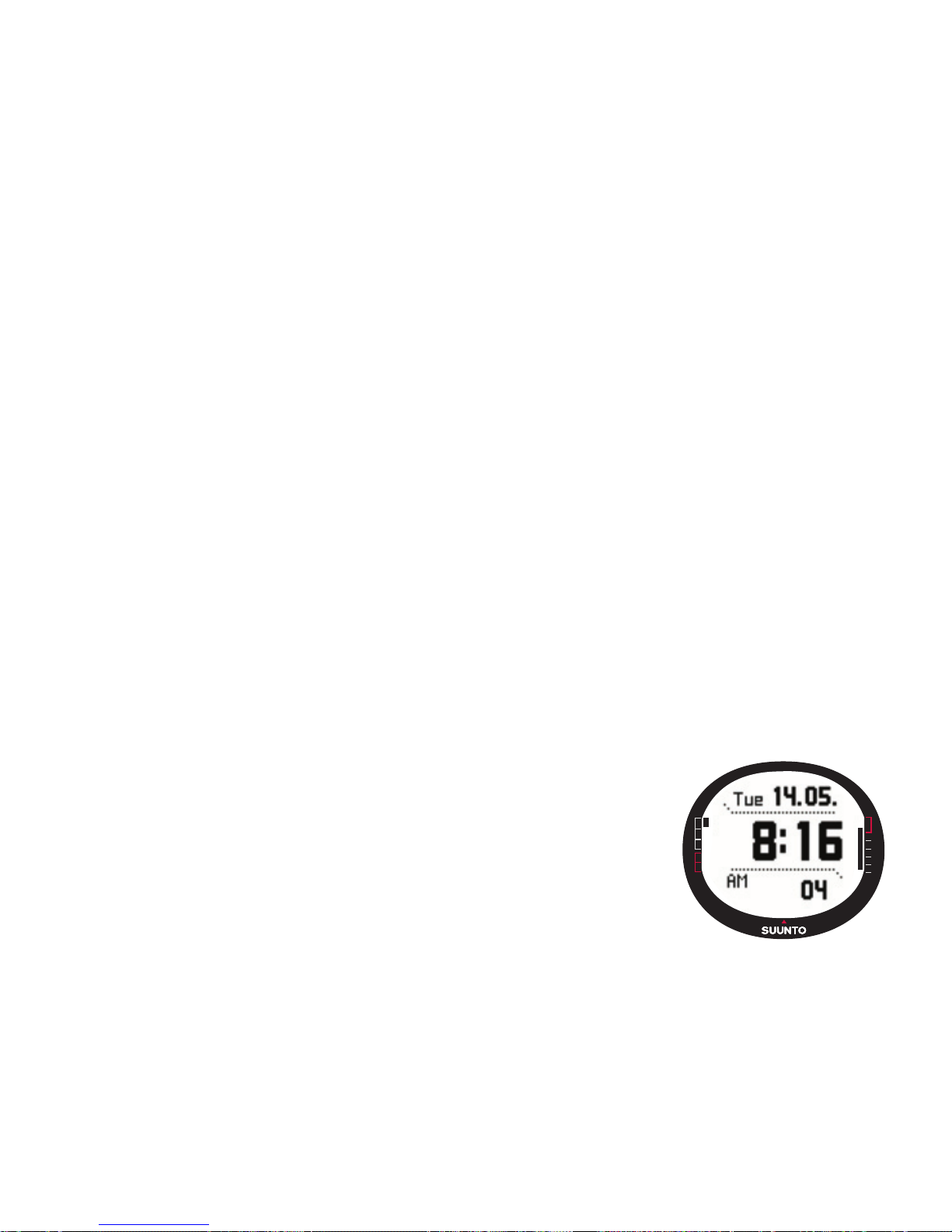

3.2.1 Main Display
When you select the Time mode, the main display opens.
The main display has three rows:
Date
The first row displays the date in the selected format. For
more information about changing the date format, see section
3.2.7 Units.
Time
The second row displays the time in the selected format. For
more information about changing between 12- and 24-hour
displays, see section 3.2.7 Units.

15
Shortcuts
The third row displays either the stopwatch, the seconds or Dual time. To switch
between these, short press Stop/Cancel.
•Seconds: Displays seconds.
•Dual time: Displays the dual time if it has been set. For more information on setting
the dual time, see section 3.2.5 Time/Date.
•Stopwatch: (For information on operating the stopwatch, see section 3.2.2 be-
low.)
3.2.2 Stopwatch
Press Start/Data to start the timing. If you want to view a split
time, press Start/Data again. The time stops for three (3)
seconds to show the split time and then returns to showing
the running time.
Press Stop/Cancel to stop the timing. After the timing has
been stopped, you can scroll the split times with Stop/Cancel.
To reset the timer, long press Stop/Cancel. If the stopwatch
has not been reset after stopping the timing, press Start/Data to continue the timing.
Suunto M9i can display up to 29 split times.
NOTE: When you have used the stopwatch, you cannot select
other shortcuts before resetting the timer.
NOTE: The maximum time you can record with the stopwatch
is 10 hours.
3.2.3 Function Menu
For more information on the Function menu, see section 3.8
Function Menu.
3.2.4 Alarm
You can set altogether three independent alarms. When the
alarm is set, the alarm symbol appears on the display.
Activating alarms
To activate an alarm:

16
1. In the Set menu, Alarm is already the first menu item. Short press Enter to select it.
The alarm menu displays the status of the alarms. When you open the menu for the
first time, the alarm indicators are set to off as default.

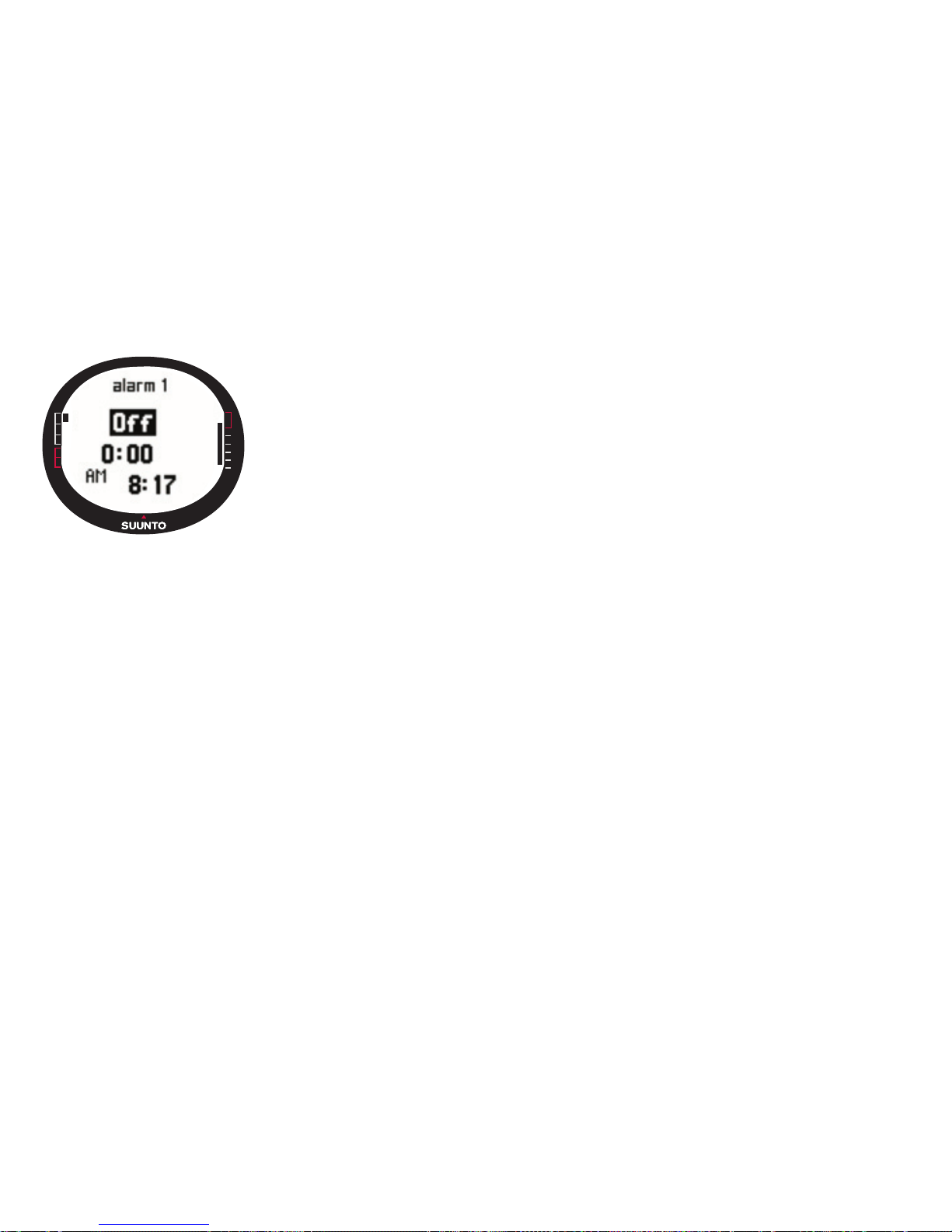

2. Scroll to the alarm you want to set and short press Enter. The alarm information is
displayed and the on/off indicator is displayed as active (in reversed color). When
you open the alarm information for the first time, the time is 0:00.
3. Press either the up or down arrow to change the alarm
status to on.
4. Short press Enter. The alarm indicator changes to on and
the hour selection is activated.
5. Set the correct hour with the arrow buttons and short
press Enter. The minute selection is activated.
6. Set the correct minutes with the arrow buttons and short
press Enter. The alarm is now set.
Deactivating alarms
To deactivate the alarm:
1. In the Set menu, Alarm is already the first menu item. Short press Enter to select it.
2. Scroll to the alarm you want to set off and short press Enter. The alarm information
is displayed and the On/Off indicator is displayed in reversed color.
3. Press either the up or down button to change the alarm status to off and short press
Enter. The alarm symbol disappears from the display.
Acknowledging alarms
When you hear the alarm, you can acknowledge it by pressing any of the Suunto M9i
buttons.
3.2.5 Time/Date
The current time is visible on the second row of the Time mode’s main display.
Dual time allows you to keep track of another time, for example, another time zone
when you are traveling. The dual time is displayed on the third row of the Time mode’s
main display as a shortcut. To scroll to the dual time shortcut, press Stop/Cancel in the
Time mode’s main display.

17
NOTE: The GPS checks and sets the correct time and date when activated if the
Sync function is on. You can change the UTC time offset in the Time/Date feature of
the Set menu or in the PC. You must always change the Dual time manually.
Off GPS does not affect the time settings
On GPS sets the time but does not update the time zone
(uses the UTC offset set in the device or the Suunto Sail
Manager)
Sync
You can set the GPS time synchronization on or off.
To set the time synchronization:
1. In the Set menu, scroll to Time/Date and short press Enter.
2. Scroll to Sync and short press Enter. The On/Off selection
is activated.
3. Change the On/Off status with the arrow buttons and short
press Enter. The time synchronization is now set. You re-
turn to the Set menu.
NOTE: The time is synchronized each time the GPS is
activated and it makes the first fix. The time is not updated
continuously.
Setting the time and the dual time
To set the time and the dual time:
1. In the Set menu, scroll to Time/Date and short press Enter. The menu with the
options Time/Date and Dual time is displayed.

18
2. Scroll to either Time/Date or Dual time and short press Enter. The hour selection is
activated.
NOTE: If the time is displayed as a 12-hour clock, the symbol AM or PM is displayed
on left side of the last row. For dual time, the AM/PM-symbol is displayed on the right
side of the time. (For more information on the 12/24-hour clock, see section 3.2.7
Units.)
3. Change the hour with the arrow buttons and short press Enter. The minute selec-
tion is activated.
4. Change the minutes with the arrow buttons and short press Enter. The second
selection is activated.
5. When you press the down arrow button, the seconds are zeroed. If you want to set
specific seconds, press the up arrow button and the seconds start running. When
the settings are correct, short press Enter. The date selection is activated.
6. Change the date with the arrow buttons and short press Enter. The month selection
is activated.
7. Change the month with the arrow buttons and short press Enter. The year selection
is activated.
8. Change the year with the arrow buttons and short press Enter. You automatically
return to the Set menu.
NOTE: When you set the seconds for the time, they are
automatically updated in the dual time as well.
3.2.6 General
The General function includes the general settings for using
your Suunto M9i.
Setting the light
Light means the backlight of the Suunto M9i display. Light has
three possible settings:
•Normal: The light switches on when you press Start/Data
for more than 2 seconds. The light is on for 5 seconds after
the last press of any button.
•Off: The light does not switch on from any button.
•Night Use: The light switches on when you press any of
the buttons and stays on for 5 seconds after the last press
of a button.

19
To change the light setting:
1. In the Set menu, scroll to General and short press Enter. The General menu is
displayed.
2. Light is already the first menu item. Short press Enter to select it. The current light
setting is displayed in reversed color.
3. Select the suitable light setting with the arrow buttons and short press Enter. The
light settings are now ready and you return to the Set menu.

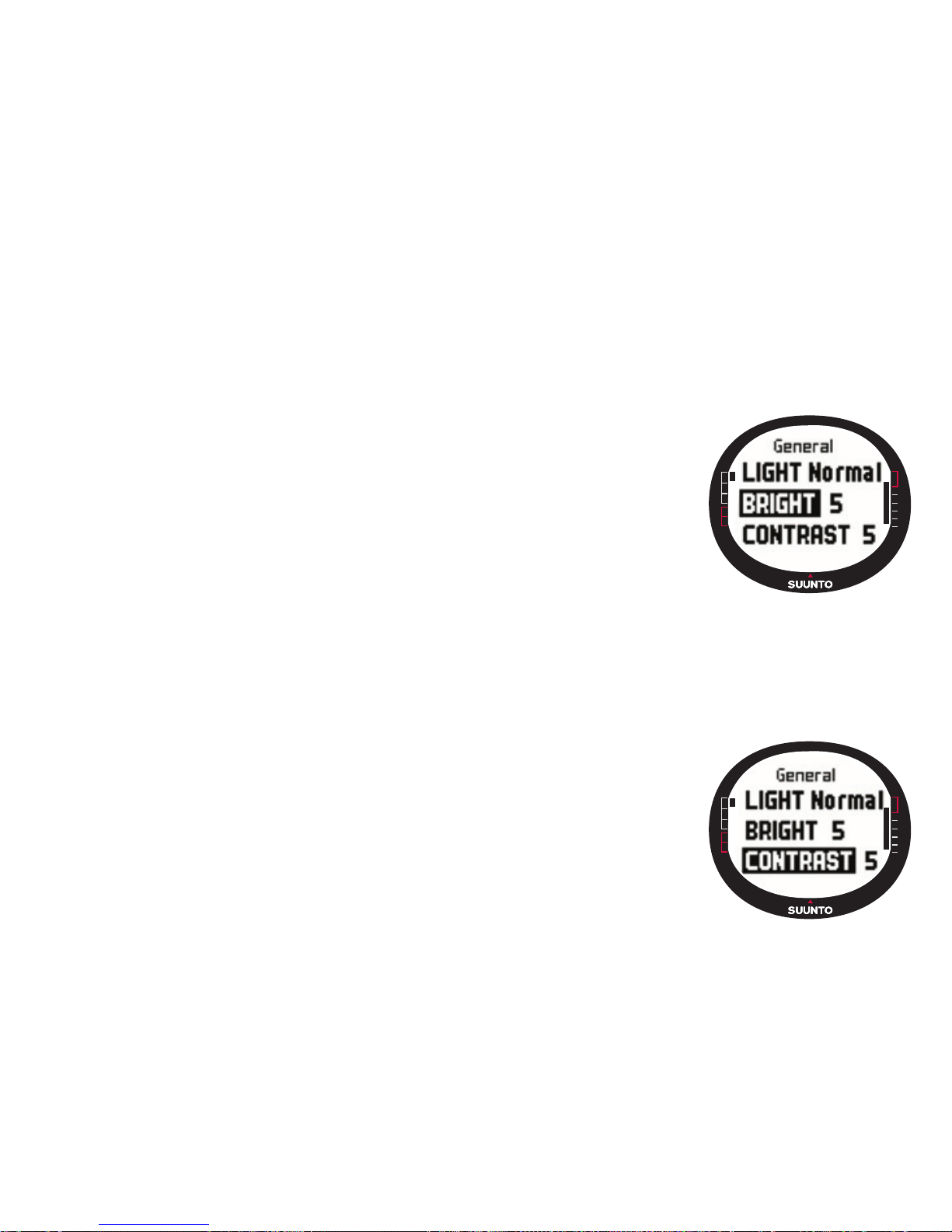

Setting the brightness
This setting adjusts the brightness of the Suunto M9i backlight.
The brightness is measured on a scale of 1 to 6. Brighter
displays consume more battery power.
To change the brightness:
1. In the Set menu, scroll to General and short press Enter.
The General menu is displayed.
2. Scroll to Bright and short press Enter. The brightness set-
ting is activated.
3. Change the value with the arrow buttons and short press Enter. The brightness is
set and you return to the Set menu.
NOTE: The default brightness setting is 3.
Setting the contrast
This setting adjusts the contrast of the Suunto M9i display.
The contrast is measured on a scale of 1 (minimum) to 9
(maximum). The maximum contrast setting consumes more
power than the minimum setting.
To change the contrast:
1. In the Set menu, scroll to General and short press Enter.
The General menu is displayed.
2. Scroll to Contrast and short press Enter. The contrast set-
ting is activated.
3. Change the value with the arrow buttons and short press Enter. Contrast is now
set.
NOTE: The default contrast setting is 4.
