Sven MS-330 User manual

www.sven.fi
OPERATION
MANUAL
MS-330
2.1 Multimedia Speaker System

Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS............................................................. ............
3. SAFETY PRECAUTIONS .................................................. ...................
4. TECHNICAL DESCRIPTION .................................................... ................
5. PREPARATION AND OPERATION ..........................................
......................
6. TROUBLESHOOTING.................................
...............................................
7. TECHNICAL SPECIFICATIONS .................................................... ...........
1
2
2
2
3
5
6
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty
card has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
Technical support is on www.sven.fi.
ENG
1
Operation Manual MS-330

ENG
2
2.1 Multimedia Speaker System
2. PACKAGE CONTENTS
•Subwoofer — 1 pc
•Satellites — 2 pcs
•Mini-jack to mini-jack (Ø 3.5 mm) signal cable — 1 pc
•Remote control — 1 pc
•Operation manual — 1 pc
•Warranty card — 1 pc
3. SAFETY PRECAUTIONS
•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi
•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the
power amplifier or the ground, for it causes damage to the power amplifier output stage.
•Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
•Do not put foreign objects inside the holes of the MSS.
•Protect the MSS from high humidity, water and dust.
•Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose it
to direct sunlight.
•Do not place any open flame sources on or close to MSS.
•Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When
operating the MSS, do not put any devices on it, do not cover it with cloth or other objects pre-
venting it from cooling.
•Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
MS-330 Multimedia Speaker System 2.1 (MSS) is designed to play music and sound games,
movies etc. The subwoofer has a built-in power amplifier, due to which it can be connected to
virtually any audio source (CD/DVD-player, TV, PC, etc.) without using an additional power amplifier.
Remote control for bass and volume levels is included.
Special features
•Built-in transformer power supply
•Volume and bass control
•Speaker system is compatible with PCs, DVD/Media-players, mobile devices
and other sound sources
•Remote control for bass and volume levels
•Magnetic shielding
•MDF subwoofer and satellites cabinets
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.

ENG
3
Operation Manual MS-330
BASS
VOLUME
a
b
cde f
g
h
i

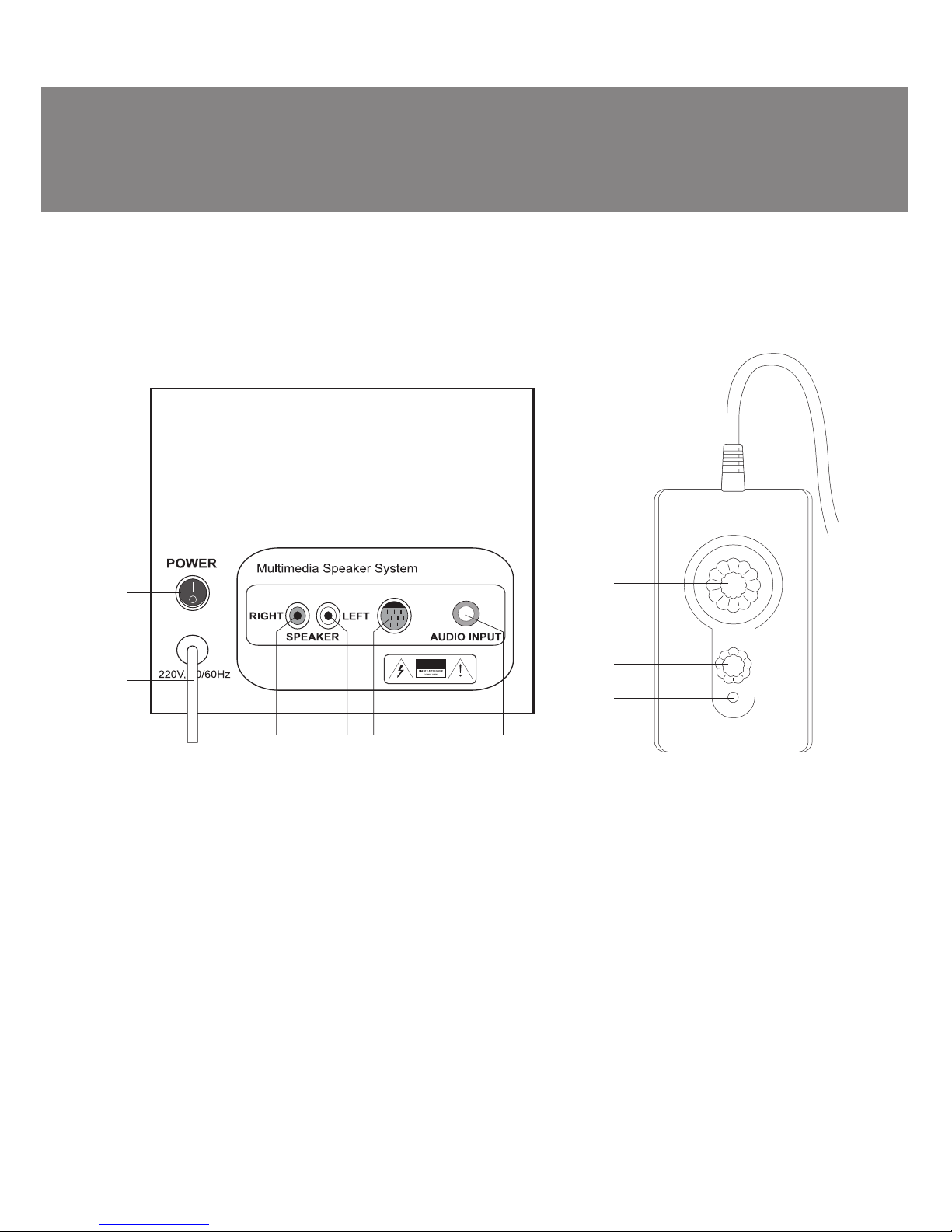

Fig. 1. Subwoofer rear panel Fig. 2. Volume and bass
remote control
fAUDIO INPUT: audio source input
gVOLUME: volume control knob
hBASS: bass control knob
iPower LED
Sunwoofer rear panel and remote control
aPOWER: power switch
bPower cord
cRIGHT: right speaker input
dLEFT: left speaker input
eRemote control input
5. PREPARATION AND OPERATION
Speaker placement
•Place the speakers symmetrically to the listener at the distance not less than one meter. The sub-
woofer emits non-directional sound, therefore it can be located in any place of the room, where it
will sound to the best advantage.
•Place MSS far away from monitors and TV sets, as insignificant image distortion in these super-
sensitive devices is possible
Installation and operation
MS-330 Multimedia Speaker System can be connected to virtually any audio source: DVD / CD, PC
sound card, etc. (see connection diagram in Fig. 3).

ENG
4
2.1 Multimedia Speaker System
•Before connecting make sure that the MSS is switched off. Then connect the built-in audio cables
to outputs on the rear panel of the subwoofer (see connection diagram above): the audio cable of
the right speaker should be connected to RIGHT coutput, and the audio cable of the left speaker
should be connected to LEFT doutput.
•To connect the speaker system to an audio source, the mini-jack to mini-jack stereo signal cable
(Ø 3.5 mm stereo jack) should be used. Insert one end of the cable into the AUDIO INPUT fon the
rear panel of the subwoofer, and insert the other end of the cable into the audio source input
(Ø 3,5 mm stereo jack).
Note. Sound is directly dependent on accuracy and reliability of the connections of cables.
It is recommended to use the cables supplied with the speakers.
•To connect the speaker system to DVD/CD-players, a mini-jack (Ø 3.5 mm) to 2RCA signal cable
(not included) should be used; its RCA jacks should be connected to outputs of DVD/CD-players. If
such a cable is not available, use mini-jack (Ø 3.5 mm) to 2RCA adapter (optional).
•Insert the plug of power cord bon the rear panel of the subwoofer into the socket.
•Adjust volume level to its minimum by turning VOLUME control knob gon the remote control of
the subwoofer counterclockwise until it stops.
•Shift POWER switch aon the rear panel of the subwoofer, power LED iwill illuminate.
•Adjust volume level by turning VOLUME control knob gon the remote control of the subwoofer.
•Adjust bass level by turning BASS control knob hon the remote control.
Notes:
•If you aren’t using the MSS for a long time, please mind to switch off POWER aon the
subwoofer rear panel and pull out its plug from the socket.
•To enhance sound quality, use Line-Out output of the sound card.
AUDIO INPUTSPEAKER
LEFT
RIGHT
Multimedia Speaker System
~220V/50Hz
Mini-jack to mini-jack
signal cable Subwoofer rear panel
Left
speaker

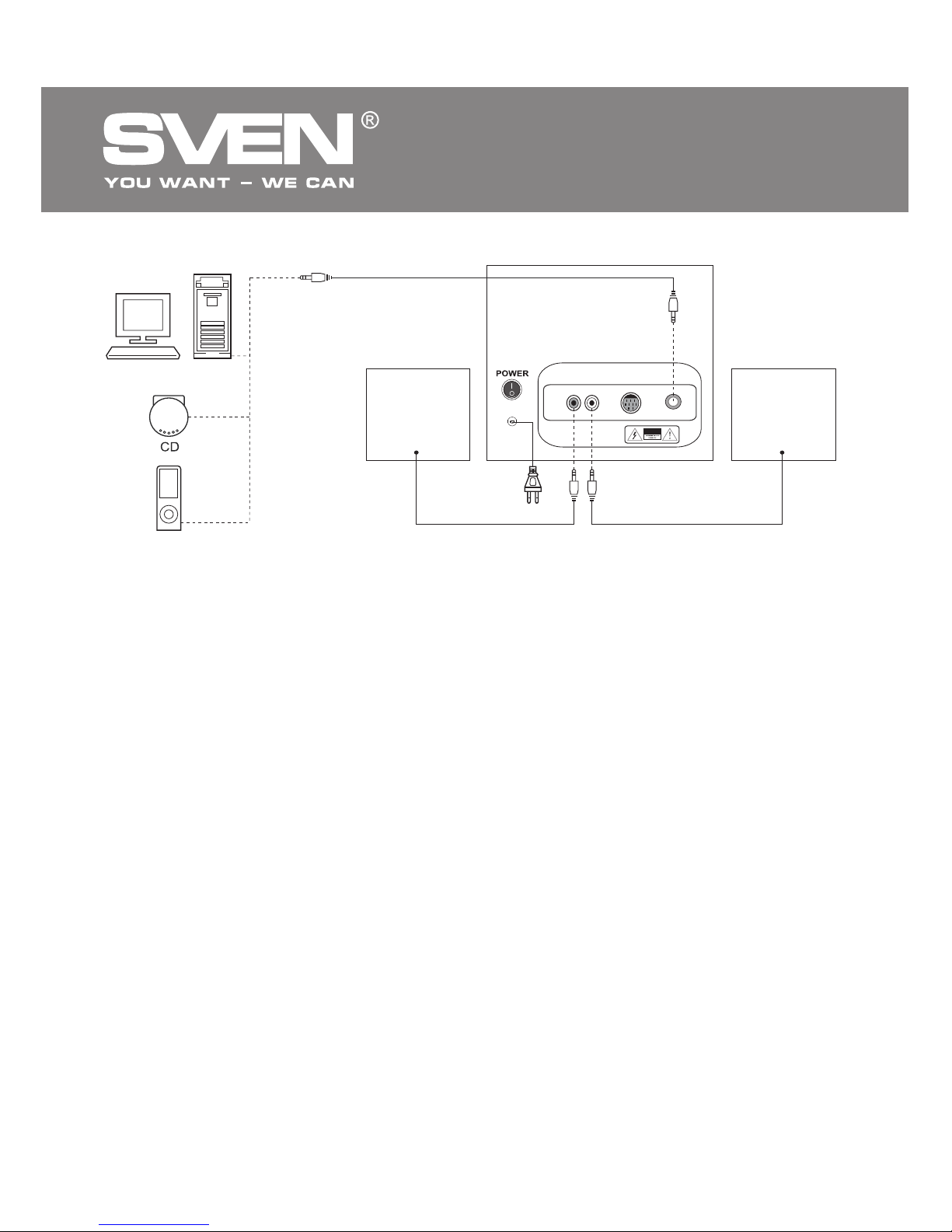

Fig. 3. Connection diagram
Power
cord
Audio cableAudio cable
Right
speaker
PC
PLAYER

ENG
5
Operation Manual MS-330
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
6. TROUBLESHOOTING
Problem
The MSS does not
turn on.
No sound.
The sound of the
speakers is too
quiet.
Distortion of
sound.
Sound is produced
by one of the
channels only.
Remote control is
not working.
Cause
The MSS is not connected to the mains
outlet.
Power switch is off.
Volume level is set at minimum value.
The audio source is improperly connected.
Volume level is set at minimum value.
Large amplitude of the input signal.
The speakers are improperly connected to
the audio source.
Remote control is not connected to the
subwoofer.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Adjust the volume control knob.
Turn down the source volume
and the MSS volume.
Check the connection of the
speakers.
Check the connection.

7. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due to
the improvement of SVEN production.
Value
50 (30 + 2 × 10)
30
2 × 10
40 – 20,000
≥60
Ø 133
Ø 75
~220/50
255 × 236 × 290
122 × 130 × 132
6.5
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Frequency range, Hz
S/N ratio, dB
Speaker diameter, mm
subwoofer
satellites
Power supply, V / Hz
Dimensions (W × H × D), mm
subwoofer
satellites (one speaker)
Weight, kg
ENG
6
2.1 Multimedia Speaker System

Модель: MS-330
Импортер вРоссии: ООО «СКАНДИТРЕЛ»,
111024, РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация вРоссии: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
вгарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176
Джу Чиат Роуд, №02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15.
Сделано вКитае .
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
