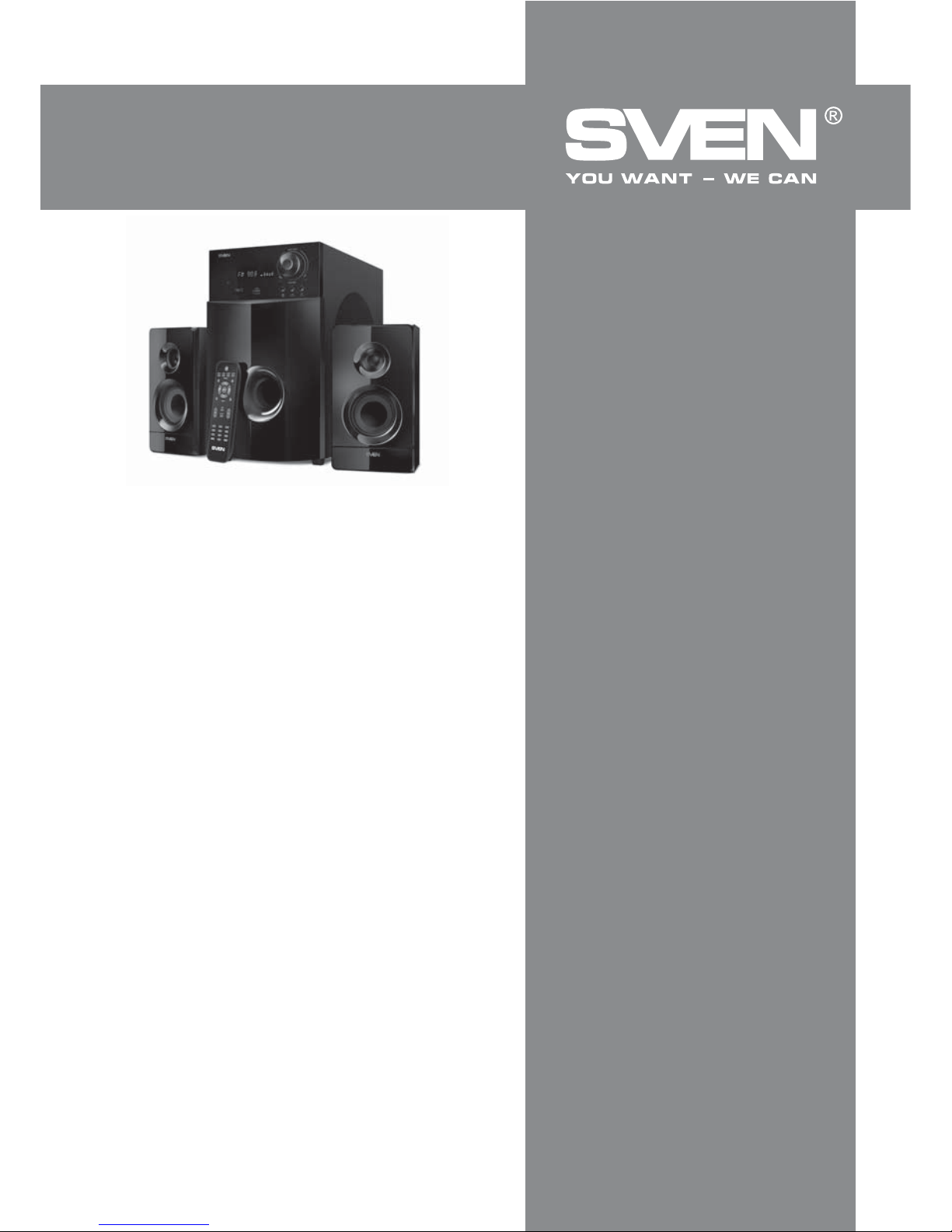

Sven MS-2100 User manual

www.sven.fi
OPERATION
MANUAL
MS-2100
2.1 Multimedia Speaker System

Technical support is on www.sven.fi.
ENG
1
Operation Manual MS-2100
Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS............................................................. ............
3. SAFETY PRECAUTIONS .................................................. ...................
4. TECHNICAL DESCRIPTION ....................................................
................
5. PREPARATION AND OPERATION .......................................... ......................
6. OPERATION MODES ....................................................
.......................
7. TROUBLESHOOTING................................. ...............................................
8. TECHNICAL SPECIFICATIONS .................................................... ...........
1
2
2
2
4
6
7
8
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card. Remember: in case of warranty card loss or
discrepancy of numbers you forfeit the right for warranty repairs.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.

ENG
2
2. PACKAGE CONTENTS
• Subwoofer – 1 pc
• Satellites – 2 pcs
• Remote control (RC) – 1 pc
• AAA type batteries – 2 pcs
•Audio cables – 2 pcs
•Signal cable – 1 pc
•Antenna wire – 1 pc
• Operation manual – 1 pc
• Warranty card – 1 pc
3. SAFETY PRECAUTIONS
•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi
•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power
amplifier or the ground, for it causes damage to the power amplifier output stage.
•Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
•Do not put foreign objects inside the holes of the MSS.
•Protect the MSS from high humidity, water and dust.
•Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose
it to direct sunlight.
•Do not place any open flame sources on or close to MSS.
•Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When operating
the MSS, do not put any devices on it, do not cover it with cloth or other objects preventing it from
cooling.
•Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
MS-2100 2.1 Multimedia Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS has a built-in power amplifier and audio cables allowing to connect it to virtually
any audio source (CD/DVD-player, TV, PC, etc.) without using an additional power amplifier. The
MSS has a built-in FM radio, audio player and a clock. Remote control is included.
Special features
• Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound
sources
• Built-in FM radio and clock
•Built-in player for audio files from external storage devices
•Digital VFD display
•USB flash port and SD card slot
•Two switchable inputs
•Remote control
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.
2.1 Multimedia Speaker System

ENG
3
Operation Manual MS-2100
Fig. 2. Subwoofer rear panel
a b c d e
VOLUME
INPUT SET
CH-
IR
SD/MMC
CARD USB
CH+AUTO
MHz
FM AUTO SLEEP
kHz
f g h
•StandBy, Mute and Sleep modes
•Wooden (MDF) cabinets of the sub-
woofer and satellites
Subwoofer control panels
aVFD display
bIR: infrared receiver
cSD/MMC CARD: slot for SD/MMC
cards* containing МР3 audio files
dUSB: slot for a USB flash device*
containing МР3 audio files
e/СН+-: previous track (pressed
short in the Player mode);
previous station** (pressed short in the
Tuner mode)
f/AUTO: Play/Pause (pressed short
in the Player mode);
Start/Stop auto scan (pressed short in the Tuner mode);
volume control (knob rotation to the right or the left)
g/СН+: next track (pressed short in the Player mode);
next station** (pressed short in the Tuner mode)
hINPUT/VOLUME -/+: the MSS switching on (the knob
rotation left-to-right from OFF mode) and volume control;
the MSS switching off(pressed long);
PC/AUX/FM/MP3 mode switch (pressed short)
iON/OFF: power switch
jPower cord
kRADIO ANT: radio antenna input jack
lPC AUDIO INPUT: PC input jack
mAUX AUDIO INPUT: line input jack
nAUDIO OUTPUT: satellite output terminals
Remote control (see Fig. 3)
aINPUT: the MSS mode selection
bTREBLE-/+: treble level up/down
cTUNE+/-: manual band scanning (in the Tuner mode)
dCH-/ : previous track (pressed short in the Player mode*)
previous station** (pressed short in the Tuner mode)
eBASS-/+: bass level up/down
fSW+/-: subwoofer volume control
g0-9: numeric pad
hREPEAT: player operation mode selection
iRESET: return to default settings
jCLOCK: current time display
FM
ANT
k
l
m
n
j
iAUX
PC
R
R
L
L
OFF
ON
AUDIO OUTPUT
RA DIO A NT
AUDIO INPUT
R
L
POWER SWITCH
Fig. 1. Subwoofer control panel

ENG
4
kVOL+/-: volume level control
lSET: time setting (in the ST-BY mode)
mCH+/ : next track (pressed short in the Player mode)
next station** (pressed short in the Tuner mode)
n/AUTO: Play/Pause (in the Player mode)
oMUTE: sound on/offа
pSLEEP+/-: Sleep mode switch-on time setting
q: On/Offswitch
rSAVE: memorize selected frequency (in the Tuner mode)
Battery Installation
• Open the battery compartment on the back of the remote control.
• Insert the included AAA batteries.
• Close the battery compartment.
Notes:
• Use the RC at an angle no more than 30° at a distance of no
more than 7 meters.
• Direct the remote control to the infrared receiver bon the
subwoofer.
• If the remote control does not operate, check the batteries
or replace the discharged batteries with new ones.
• Remove the batteries from the RC if you don’t intend to use
it for a long time (more than one week).
* The storage device must be formatted as FAT, FAT32. Memory cards
SDHC class 10 or less can be used. Connection of external hard disks
other than USB flash drive is not recommended, otherwise it can cause
the MSS damage.
** The frequencies are switched if stations have been preset in the me-
mory.
5. PREPARATION AND OPERATION
Speaker placement
•Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits
non-directional sound, therefore it can be located in any place of the room where it sounds the best.
•Place MSS far away from monitors and TV sets, as insignificant image distortion in these super-
sensitive devices is possible.
Installation and operation
MS-2100 speaker system can be connected to virtually any audio devices: DVD/CD players, PCs,
laptops, etc. (see connection diagram in Fig. 4).
• Before making any connections, make sure the MSS is offand unplugged. Then connect speakers
to the subwoofer AUDIO OUTPUT L/R nterminals with the help of included audio cables. Observing the
polarity connect the right speaker to the subwoofer AUDIO OUTPUT R with the audio cable and the left
b
c
c
d
e
g
a
f
h
b
n
e
l
k
j
o
m
i
RESETREPEAT
SLEEP
INPUT SAVE MUTE
TREBLE
AUTO
BASS
SET
CLOCK VOL
SW
12 3
456
987
+
-
+
-
TUNE-
TUNE+
CH+
CH-
0
q pr
Fig. 3. Remote
control
2.1 Multimedia Speaker System

ENG
5
Operation Manual MS-2100
CD
PC
DVD
Player
FM
ANT
Right
speaker
FM antenna
2RCA to 2RCA
signal cable
2RCA to mini-jack
signal cable
AUX
PC
R
R
L
L
OFF
ON
Left
speaker
USB/SD-card
connection
CD player
AUDIO OUTPUT
RA DIO A NT
AUDIO INPUT
R
L
POWER SWITCH
Fig. 4. Connection diagram
SD/MMC
CARD USB
USB
SD
speaker – to the AUDIO OUTPUT L. Pay attention that the plus (red) cable wires of speakers must be
connected to the subwoofer plus terminals (+ →+) and the minus ( black) cable wires of speakers – to the
subwoofer minus terminals (– →–) (see connection diagram in Fig. 4).
Note. Check the reliable fixation of wires in the terminals, polarity of connection and ab-
sence of contact of the bared wires with each other and the metal parts of the hardware.
• To connect the MSS to a PC, МР3/CD player, use a 2RCA to mini-jack signal cable (included).
Connect the RCA jacks of the signal cable to the L and R jacks of the PC AUDIO INPUT l, and the
mini-jack (Ø 3.5 mm) of the signal cable – to the LINE OUT port of your PC sound card or to the
audio output (OUTPUT) of your МР3/ CD player, as shown in Fig. 4.
• To connect the MSS to a TV or DVD/CD player, use the 2RCA to 2RCA signal cable (not included).
Connect the RCA jacks of the signal cable to the L and R jacks of the AUX AUDIO INPUT m, and the
other RCA jacks – to your TV or DVD/CD player audio output jacks, as shown in Fig. 4.
•Connect the subwoofer to the mains outlet with the power cord j.
• Turn on the MSS power supply using the ON/OFF switch (i, ON) on the subwoofer rear panel.
• Turn on the MSS using VOLUME knob hon the front panel or button qon the remote control.
• Select a desired signal source pressing short the INPUT button hon the control panel or pressing
the INPUT button aon the remote control.
• Adjust the master volume as desired with VOLUME knob hon the control panel or with the
VOL+/- buttons kon the remote control.

ENG
6
• Adjust the bass and treble level using the BASS+/- eand TREBLE+/- bbuttons on the re-
mote control.
• To adjust the subwoofer volume, use the SW+/- buttons fon the remote control.
• To listen to the radio, connect the antenna to the RADIO ANT kjack (see Fig. 4) and adjust it for
better reception.
• After completing the MSS operation, mind to switch it offusing the ON/OFF switch (i, OFF
position) and unplug the power cord jfrom the socket.
6. OPERATION MODES
Player Mode
• The system will automatically enter the Player mode when a USB device is connected to the USB
port dor an SD card is inserted into the corresponding slot c; or press the INPUT button hon
the front panel or the INPUT button aon the remote control. The display awill show the selected
mode, then the number of the tracks found and the number of the track played, and then the
playback time elapsed. The files will automatically start playing. The playing device symbol will show
on the display as well.
• To select a track, you can directly enter its number on the remote control using the numeric pad
buttons gor select it using buttons eand gon the front panel. The display awill show the track
number for a short time, and then the playback time elapsed.
• You can select the playback mode using the remote control REPEAT button h(“ONE” – the playing
track replay; “RND” – play random tracks; “ALL” – play all tracks available).
* The MSS operation may be incorrect if an SD card of 512 Mb capacity or lower is used. If a USB
flash device of 8 Gb capacity or more is used, command processing time may be extended.
Tuner Mode
• To switch to the Tuner mode, use the INPUT button hon the front panel or the INPUT button a
on the remote control. The subwoofer display awill show the FM inscription.
• To auto scan and memorize the found stations, press AUTO button fon the front panel or the
AUTO button non the remote control short. To stop auto scanning, press this button again before
the scanning is over. The display awill show the frequency being scanned. When the channel is
being memorized, the display shows its number for a short moment.
• For manual scanning, use buttons TUNE-/+ con the remote control (up/down the frequency
range). To save the selected station, press the SAVE button ron the remote control and then,
using buttons eand gon the front panel or buttons dand mon the remote control, assign the
station its number and press the SAVE button ragain. When the station has been memorized, the
display awill write “Good”.
• If preset stations are available in the memory, you can switch from one to another by short pressing
buttons e, gon the front panel or buttons d, mon the remote control. You can also enter the
frequency or the number of the preset station with the remote control numeric pad buttons. The
display will show the station number for a short moment and then its frequency.
The radio will tune to the set frequency within 2-3 seconds.
AUX/PC Mode
• To switch to the AUX/PC mode, press the INPUT button hon the front panel or the INPUT button a
on the remote control, the MSS switched on. The display awill show AUX or PC inscription.
2.1 Multimedia Speaker System

ENG
7
Operation Manual MS-2100
Clock Mode
• When the MSS is in the ST-BY mode, the display ashows the current time. When the system is in
a different mode, to see the time, use the CLOCK button jon the remote control. The current time
will be displayed for 3-5 seconds.
• To set the current time, go to the ST-BY mode by pressing long INPUT button hon the front
panel or button qon the remote control. To enter the time setting mode, press the SET button l
on the remote control (the corresponding position will start blinking on the display a). Set the
minutes and hours directly from the RC numeric pad or using buttons e, gon the front panel or
d, mon the RC. To switch between setting hours/minutes and to exit the setting mode, press the
RC SET button lshort.
ST-BY Mode
• To enter/exit this mode, press and hold down INPUT button hon the front panel or button qon
the remote control. When the MSS is in the ST-BY mode, the display ashows the current time.
MUTE Mode
• To enter the MUTE mode, press button oon the remote control. To exit the MUTE mode, press
this button oagain.
Note. Due to the constant development of the software, the actual MSS operation may differ
from that described in this Manual. The most recent version of the Manual is available at
www.sven.fi.
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound or the
sound is too quiet.
Distortion of sound.
The remote control
is not working.
Cause
The MSS isn’t connected to a mains
outlet.
The power switch is off.
Volume level is set at minimum value.
Improperly connected audio source.
Large amplitude of the input signal.
The batteries are discharged.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect the audio sources correctly.
Turn down the source volume
and the MSS volume.
Replace the batteries with new ones.
7. TROUBLESHOOTING

ENG
8
Parameter, measurement unit
Output power (RMS), W:
subwoofer
satellites
Frequency response, Hz:
subwoofer
satellites
Speaker diameter, mm:
subwoofer
satellites
Power supply, V/Hz
Dimensions, mm:
subwoofer
satellites (one speаker)
Weight, kg
8. TECHNICAL SPECIFICATIONS
Notes:
•Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
•Technical specifications and package contents are subject to change without notice due
to the improvement of SVEN production.
Value
80 (50 + 2 × 15)
50
2 × 15
40 – 200
200 – 20,000
Ø 176
Ø 80 + Ø 37
~220/50
198 × 345 × 300
120 × 216 × 103
8
2.1 Multimedia Speaker System

2.0 Multimedia Speaker System
Automatic Voltage Regulator
Стабилизатор напряженияСтабилизатор напряжения
Automatic Voltage Regulator
2.0 Multimedia Speaker System2.0 Multimedia Speaker System
SPS-619
MS-2100
2.1 Multimedia Speaker System
Модель: MS-2100
Импортер вРоссии: ООО «СКАНДИТРЕЛ», 111024,
РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация вРоссии: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75,
стр. 5. Условия гарантийного обслуживания смот-
рите вгарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу Чиат
Роуд, №02-02, Сингапур, 427447. Произведено
под контролем «Свен Скандинавия Лимитед»,
48310, Финляндия, Котка, Котолахдентие, 15.
Сделано вКитае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
