OPERATION
MANUAL
Multimedia Speaker System 2.0
SPS-700
ENG
13
Operation Manual SPS-700
1
6
12
14
14
14
14
15
15
15
16
17
CONTENTS
RUS ..........................................................................................................
UKR .......................................................................................................
ENG ................................................................................................
1. DESCRIPTION ........................................................................................
2. SAFETY PRECAUTIONS ............................................................................
3. PACKAGE CONTENTS ..............................................................................
4. SPECIAL FEATURES .................................................................................
5. LOCATING .............................................................................................
6. CONTROL PANEL ....................................................................................
7. INSTALLATION AND OPERATION GUIDE .......................................................
8. TROUBLE SHOOTING .............................................................................
9. TECHNICAL SPECIFICATION .....................................................................
Technical support is on www.sven.
Congratulations on your purchase of the Sven speaker system!
Please read this operation manual before using the unit and retain this operation manual in a safe
place for future reference.
COPYRIGHT
© 2011. SVEN Company Ltd. Version 1.0 (V 1.0).
This manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted eorts to make this manual more exact, some discrepancies may occur. The
information of this manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damages which have arisen from the information,
contained in the given manual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damages; if the product was damaged during transportation, address the rm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
ATTENTION!
Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
ENG
14
Multimedia Speaker System 2.0
1. DESCRIPTION
SPS-700 Multimedia Speaker System 2.0 (MSS) is designed to play music and sound games,
movies etc. MSS has built-in transformer power supply, due to which it can be connected to
virtually any audio source (CD/DVD-players, TV, PC, etc.). The speaker which has audio and
control panel is named active one. MSS can be connected to an active subwoofer.
2. SAFETY PRECAUTIONS
• To avoid electric shock, do not open the MSS and do not perform repairs by yourself.
• Do not allow circuit of wires (including grounded ones) between the speakers, power amplier or
ground, for it causes damage of power amplier output stage.
• Do not put foreign objects inside the holes of the MSS. Make sure that needles, hair pins, coins,
insects etc. do not get inside.
• Protect the MSS from high humidity, water and dust. Do not locate it in areas with high level of
humidity and dust.
• Protect the MSS from heating: do not locate it near a heat source or expose to direct sunlight.
• Do not use gasoline, alcohol or other solvents when cleaning, since they may damage the
paint-coated surface of the MSS. Clean it with dry soft cloth only.
•If the MSS does not operate, unplug it and address your dealer.
3. PACKAGE CONTENTS
• Active speaker — 1 pc
• Passive speaker — 1 pc
• 2RCA to mini-jack (Ø 3.5 mm) stereo signal cable — 1 pc
• Acoustic cable — 1 pc
• Operation manual — 1 pc
• Warranty card — 1 pc
4. SPECIAL FEATURES
• Easy connection to various audio devices
• Control knobs on the active speaker side panel
•Smooth timbre control
•Active subwoofer output
•Slot phase inverters
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.
ENG
15
Operation Manual SPS-700

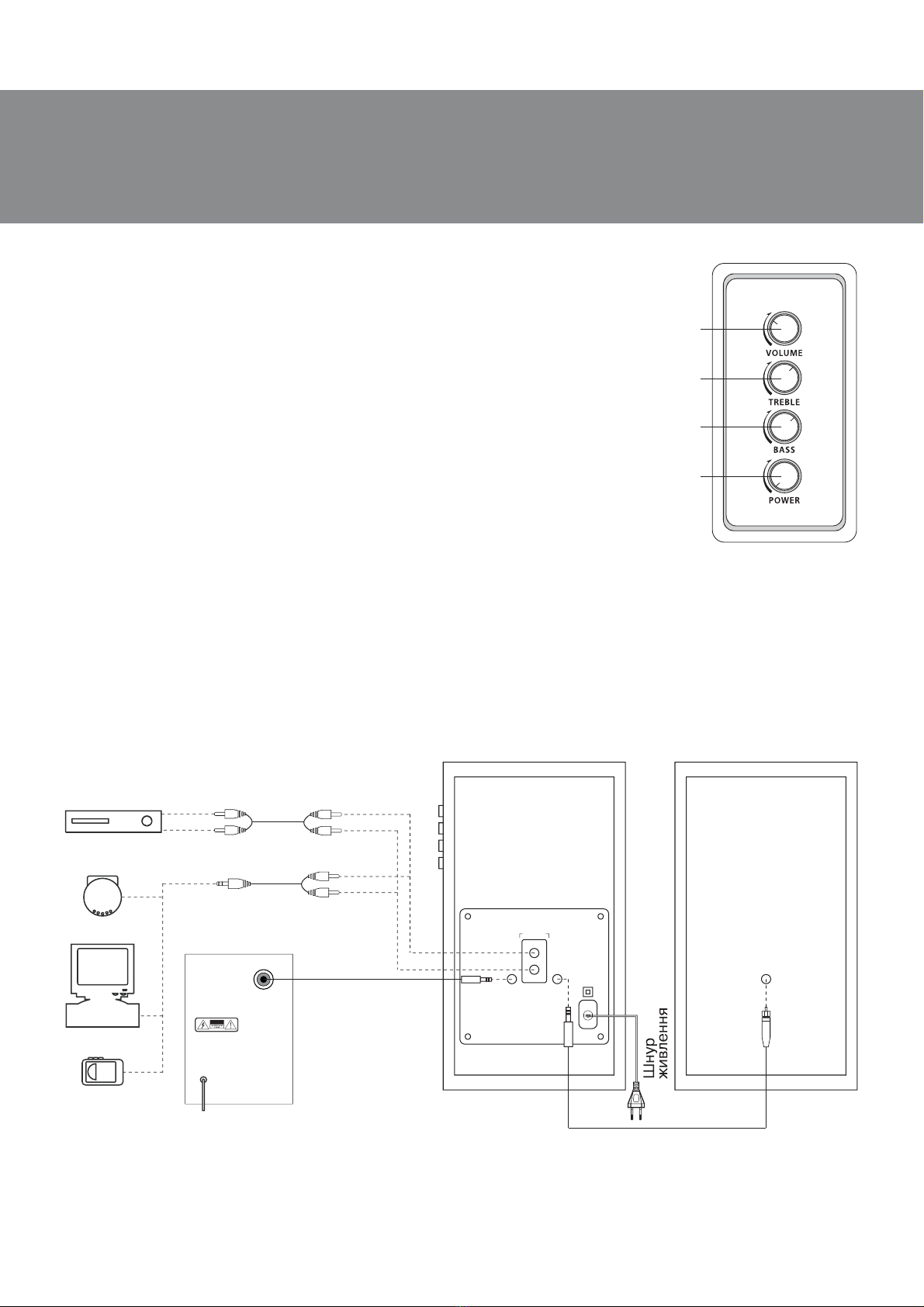

~220V/50Hz
AUDIO IN
SUB.OUT L-SPK
RIGHT
LEFT
AUDIO INPUT
a
b
d
c
Active
speaker
Passive
speaker
5. LOCATING
•Place the speakers symmetrically to the listener at a distance not
less than one meter.
•Place the speaker system far away from TV sets, as insignicant
image distortion in supersensitive monitors and TV sets is possible.
6. CONTROL PANEL
aVOLUME: Volume control knob
bTREBLE: Treble control knob
cBASS: Bass control knob
dPOWER: Power control knob
7. INSTALLATION AND OPERATION GUIDE
SPS-700 Multimedia Speaker System (MSS) can be connected to
virtually any audio source: DVD/CD, PC sound card, etc. (see Fig. 2).
• Before connecting, make sure that the MSS is unplugged. Connect
the speakers (see the connection diagram, Fig. 2) to each other using the acoustic cable (included).
•Plug the RCA connectors of 2RCA to 3.5 mm mini-jack stereo signal cable (included) into AUDIO IN
LEFT/RIGHT input, and the 3.5 mm mini-jack of the signal cable - into the output of your PC sound
card or an audio output of another sound source, as shown in Fig. 2.
Notes:
• To connect the MSS to CD/DVD/MP3-players or TV, use the 2RCA to 3.5 mm mini-jack
stereo signal cable (included) witha mini-jack to 2RCA adapter (not included) or a 2RCA to
2RCA stereo signal cable (not included), as shown in Fig. 2.

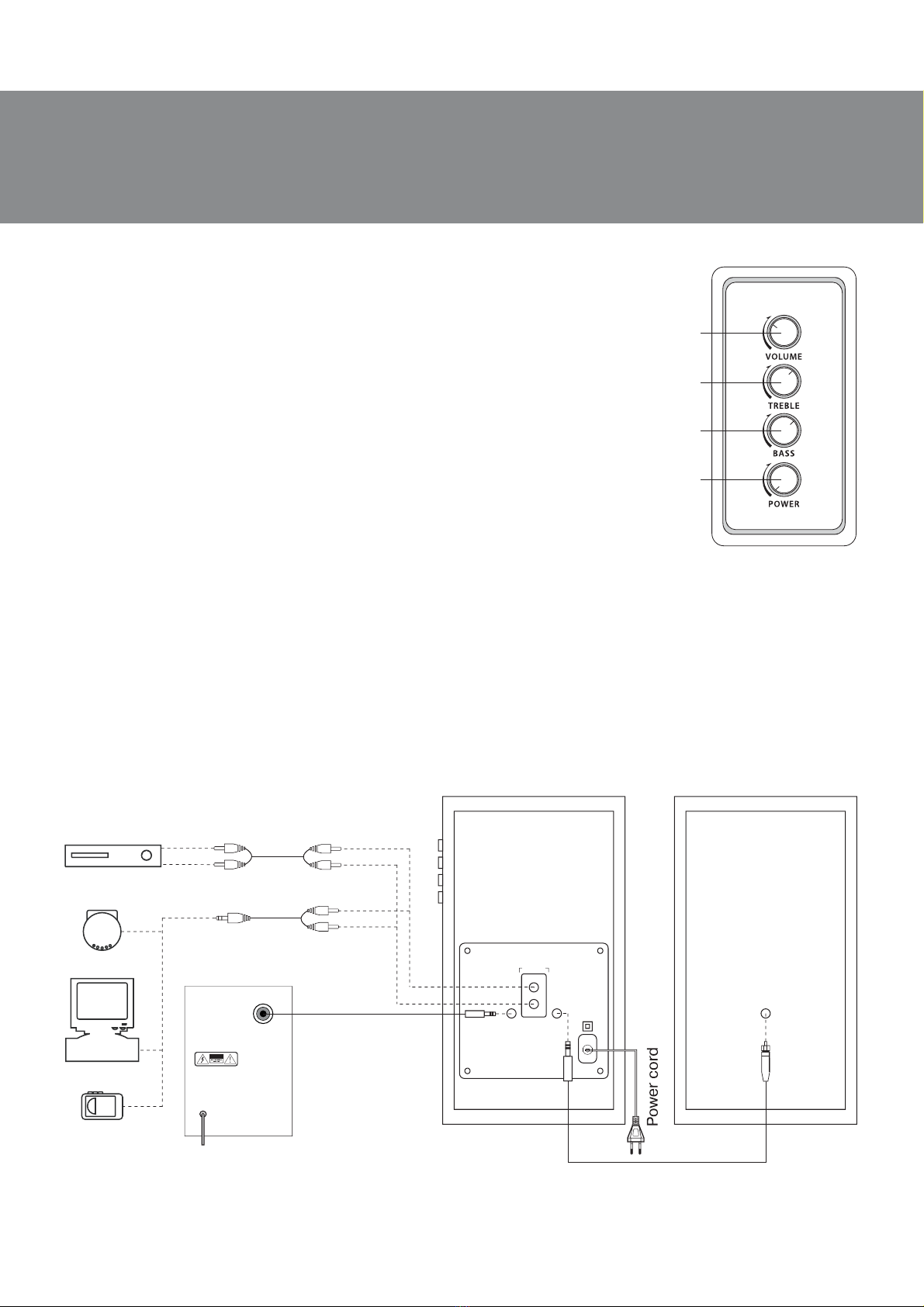

Fig. 2. Connection diagram
Fig. 1. Control panel
coustic cable
DVD, TV
CD
COMPUTER
MP3-player
2RCA to 2RCA
signal cable
or
2RCA to mini-jack
signal cable
Subwoofer
Signal cable
supplied with
the subwoofer
ENG
16
Multimedia Speaker System 2.0
• To connect a subwoofer to the MSS, plug the signal cable supplied with the subwoofer
into SUB.OUT on the rear panel of the active speaker (see Fig. 2).
•Plug the power cable into a mains outlet. Set master volume level to the minimum by turning
VOLUME control knob acounterclockwise until it stops.
•Switch on power supply by turning POWER knob don the active speaker side panel clockwise
until it clicks.
•Turn on your audio source.
•Adjust volume level by turning VOLUME control knob a. By turning the knob clockwise, you
increase volume level; by turning the knob counterclockwise, you reduce it.
•Adjust treble and bass levels by turning TREBLE control knob band BASS control knob c
respectively. By turning the knob clockwise, you increase treble/bass level; by turning the knob
counterclockwise, you reduce it.
Notes:
• After using the MSS, mind to switch off power on the active speaker side panel by turning
POWER knob dcounterclockwise until it clicks, and unplug the power cable.
• To enhance sound quality, use Line-Out output of the sound card.
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of
sound.
Cause
MSS is not connected to the mains outlet.
Power switch is o.
Volume level is set at minimum value.
Improperly connected audio source.
Volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust volume control knob.
Connect audio sources correctly.
Adjust volume control knob.
Turn down the source volume
and MSS volume.
8. TROUBLE SHOOTING
ENG
17
Operation Manual SPS-700
Value
40 (2 × 20)
40 – 20 000
Ø 20
Ø 115
~220/50
150 × 255 × 195
4.74
Parameter, measurement unit
Output power (RMS), W
Frequency range, Hz
Speaker units, mm
tweeter
woofer
Power supply, V/Hz
Dimensions (one satellite) (W × H × D), mm
Weight, kg
9. TECHNICAL SPECIFICATION
Notes:
• Technical specication given in this table is supplemental information and cannot give
occasion to claims.
• Technical specication is subject to change without notice due to improvement of SVEN
production.
2.0
:
SPS-700
: «»,
111024, , . , . , . 65, . 1.
: «-»,
105082, . , . , . 75, . 5.
www.sven.
: 12 .
: 5 .
«
», 48310, , ,
, 15. .
:
SPS-700
/ : « ».
, . -,
. , 31.
,
. .
www.sven.
: 12 .
: 5 .
/ .
. .
«
», 48310, , , , 15.
.
: «GREENWAVE INDUSTRIAL LTD»,
4210, Oce Tower, Convention Plaza, 1 Harbour Road,
Wanchai, Hong Kong, China
Produced under the control of Oy Sven Scandinavia Ltd.
15, Kotolahdentie, KOTKA, Finland, 48310.
Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
SPS-700
Other manuals for SPS-700
1
Table of contents
Other Sven Speakers System manuals
