Swann SWC28S User manual

Installation and User Guide
For model: FL
Swan Service Help line
NEEHIINGNN
Under Counter Cooler
SR12030_IM.indd 1 06/12/2017 15:28

22
Table of Contents
3. Your Cooler
4-5. Important Safeguards
6-7. Installation Notes
7-8. First Time Use
8. 19615'66*'6'/2'4#674'%10641.
9. Cleaning & Maintenance
10. Troubleshooting
10. Service & Spares, Specification
11. WEEE Directive, Warranty
SR12030_IM.indd 2 06/12/2017 15:28

3

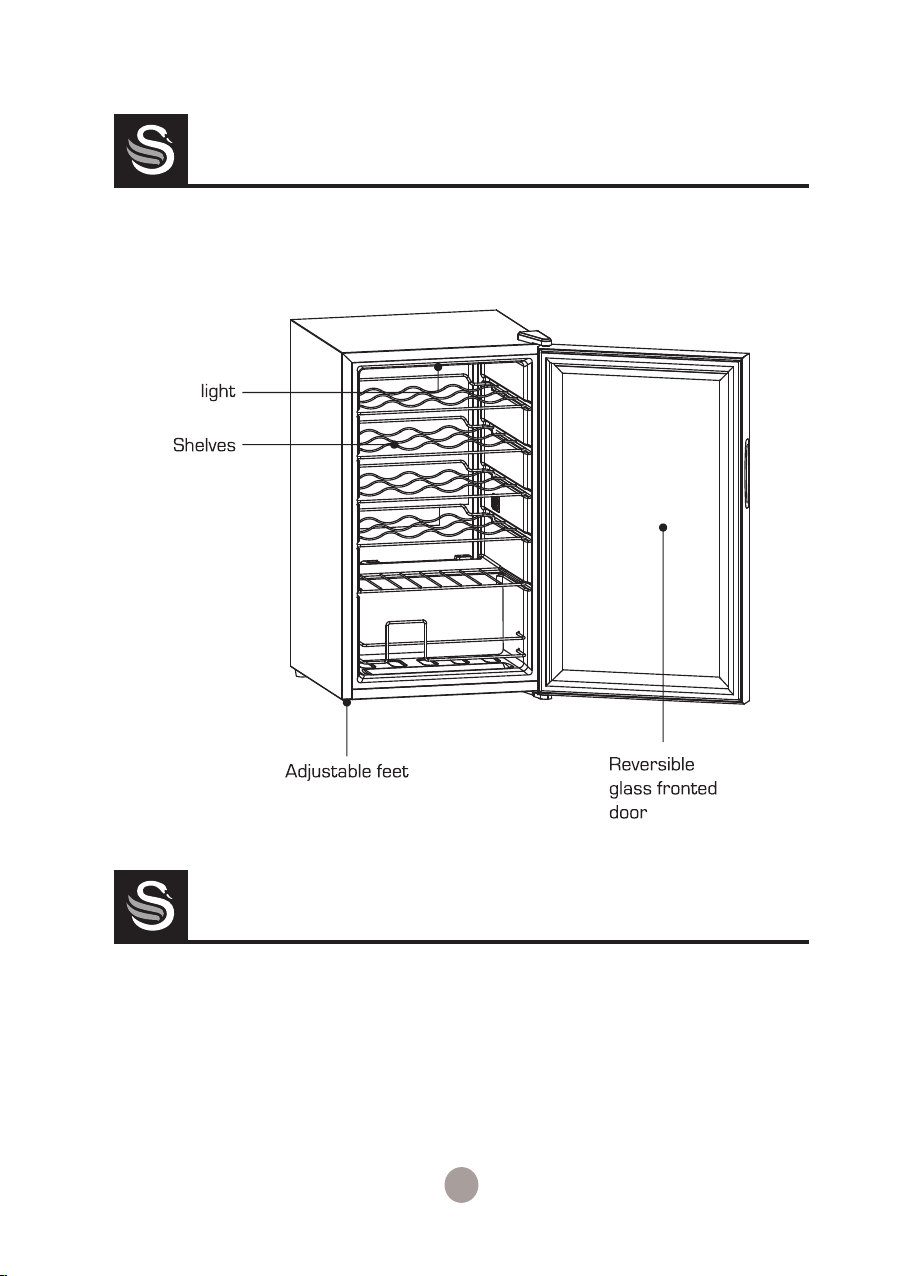

Your Cooler
Specifications
Volume: 70 Litres
Energy B
Weight: 24kg
Refrigerant: R600a (20g)
Dimensions: 430x450x740mm
Power consumption: 0.6A
Voltage: 220-240V ~ 50/60Hz
Climate type: N
Net weight: 21.5kg
SR12030_IM.indd 3 06/12/2017 15:28

4
Important Safeguards
• Do not connect your appliance
to the electricity supply until all
packing and transit protectors
have been removed.
• Leave to stand upright for at
least 4 hours before switching
on to allow compressor oil to
settle
• This product must only be used
for its intended purpose i.e the
storing and freezing of edible
foodstuff.
• Do not dispose of the appliance
on a fire. Your appliance
contains non CFC/HFC natural
substances in the cooling
system and in the insulation,
which are potentially flammable
if exposed to fire. Therefore,
take care not to damage, the
cooling circuit or pipes of the
appliance in transportation
and in use. In case of damage
do not expose the appliance to
fire or potential ignition source
and immediately ventilate the
room where the appliance is
situated.
• See installation section
for information on suitable
location.
• On delivery, check to make
sure that the product is not
damaged and that all the parts
and accessories are in perfect
condition.
• Ensure that the plug remains
readily accessible. Do not use
multiple adaptor or extension
cables.
• Failure to observe these
instructions may invalidate
your right to free service during
the guarantee period.
• Keep ventilation openings, in
the appliance enclosure or in
the built-in structure, clear of
obstruction.
WARNING: Keep ventilation
openings, in the appliance
enclosure or in the built-in
structure, clear of obstruction.
Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended by the
manufacturer.
GAS WARNING CAUTION RISK
OF FIRE: Due to the flammable
refrigerant (R600a) and/or the
flammable insulation blowing gas
used, this gas is natural gas with
high environmental compatibility
SR12030_IM.indd 4 06/12/2017 15:28

5
Important Safeguards
that is, however, also combustible.
When transporting and installing
the appliance, care should be
taken to ensure that no parts
of the refrigerating circuit are
damaged.
Refrigerant and/or insulation
blowing gas squirting/leaking out
of the pipes or body of appliance
could ignite or cause an eye
injury. If leak is detected, avoid any
naked flames or potential sources
of ignition and air the room in
which the appliance is standing
for several minutes. Servicing
and repair of R600a refrigerant
shall be done by qualified service
technicians. Do not damage the
refrigerant circuit.
WARNING: Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by the
manufacturer.
• We suggest you keep these
instructions in a safe place for
easy reference.
• This appliance can be used
by children aged from 8
years and above if they have
been given supervision or
instruction concerning use of
the appliance in a safe way and
if they understand the hazards
involved. Cleaning and user
maintenance shall not be made
by children unless they are
older than 8 and supervised.
Keep the appliance and its
cord out of reach of children
aged less than 8 years.
• If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
CAUTION:Inordertoavoidahazard
due to inadvertent resetting of
the thermal cutout, this appliance
must not be supplied through an
external switching device, such as
a timer, or connected to a circuit
that is regularly switched on and
off by the utility company
This appliance should only
be connected to an earthed,
switched mains socket. Do not
use an extension cord with this
appliance
SR12030_IM.indd 5 06/12/2017 15:28

6
Installation Notes

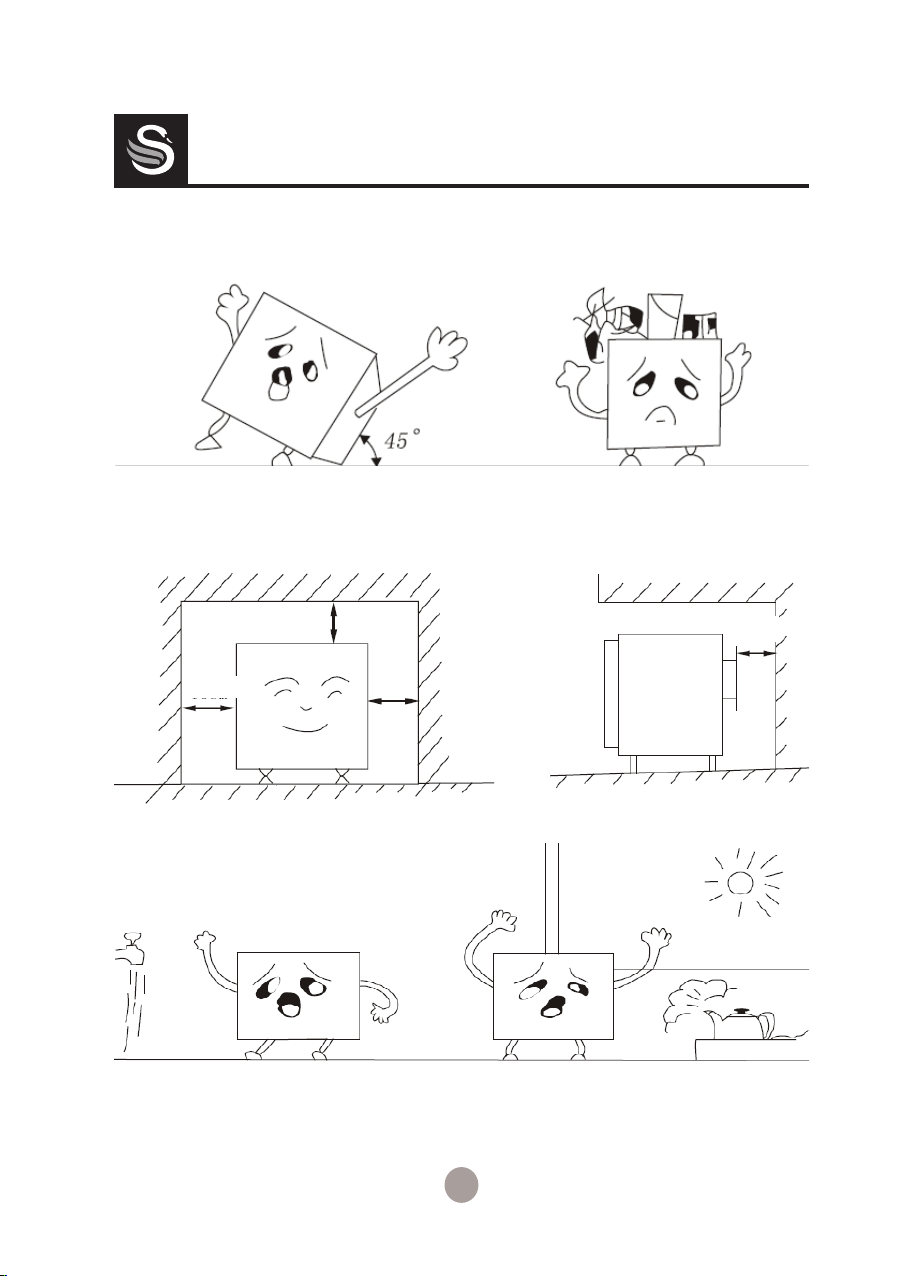

1. The appliance should not be tilted more than 45 degrees when you move it. Do
not use force on any part such as the condenser, the door or handle. They could
distort and affect the operation of the cooler. Ensure ALL packaging is removed
before installation
2. Make sure there is enough ventilation space around cooler
3. The appliance should not be installed near external heat sources eg direct sun-
shine - or external moisture sources.
It is important that upon receipt you stand your appliance upright for at least 1 hour
before switching on to allow the system to settle.
3cm
10cm
10cm
5cm
SR12030_IM.indd 6 06/12/2017 15:29

7
Installation Notes
4. Ensure the supply voltage of socket is same as rating label.
5. The plug must be properly inserted to the wall socket.
6. The mains supply socket must be earthed - preferably with a switch. If it is not
earthed, do NOT install this appliance there. Do not use an extension cord
7. The product is equipped with adjustable feet. Once the product is in place, adjust
these to ensure the cooler is level and doesn’t rock.
DO NOT SITE THE PRODUCT WHERE THE AMBIENT TEMPERATURE IS LIKELY TO
DROP BELOW 5 DEGREES CENTIGRADE - EG: GARAGE OR SHED
1. .'#06*'#22.+#0%'X#0&$'6*1417)*X'52'%+#..;+06*'+06'4+14j''.'#0+0)n#+06'0#0%'kT
2. 0%#5'6*'+06'4+14#%%'5514+'5#4'016%144'%6.;2.#%'&X4'#44#0)'6*'/#5&'5%4+$'&+0
%*#26'417411.'4T
3. 056#..%11.'4+0#%108'0+'06.1%#6+10#9#;(41/':64'/'*'#6#0&%1.&T..1957((+%+'06
%.'#4#0%'$'69''06*'4'(4+)'4#614#0&5+&'9#..516*'&1149+..12'09+6*1761$5647%6+10T
11.'4+5016&'5+)0'&(144'%'55'&+056#..#6+10T
4. '.'%6#52#%'9+6*56410).'8'.(.114T
5. ..19F+0%*'5jI%/k1(52#%'$'69''06*'%11.'45+&'n9#..#0&H+0%*'5jEN%/k
$'69''0$#%-n6*'9#..T
First Time Use
SR12030_IM.indd 7 06/12/2017 15:29

8
How to set the temperature control
SR12030_IM.indd 8 06/12/2017 15:29
Setting The Temperature Control
Your cooler has been equipped with an tautomatictcontrol panel lock, that will activate 20
seconds after the last time a button has been touched.
Push button simultaneously for 2 seconds to unlock the control panel. You will hear
a tBEEPtsound to after you that the control is now active.
You can select temperature display setting from Fahrenheit to Celsius degree by pushing button
for 2 second. The degrees will appear in blue color in the temperatura display window.
You can set the temperature as you desire by pushing button . The temperature that you
desire to set will increase 1 °F or 1 °C if you push the button once.
You can set the temperature as you desire by pushing button . The temperature tha6you
desire to set will decrease 1 °F or 1 °C if you push the button once.
Interior Light
Press the button to turn ON or OFF the interior light.
NOTE: If you turn on the wine-cooler for the first time (or after a long period of non-use), the
display temperature will differ from the set temperature until the inside of the wine cellar and
the stored bottles are cooled to the desired temperature (the display during cooling shows the
actual temperature inside the wine-cooler, which may oscillate due to the ambient temperature,
the frequency of opening the door or the amount of bottles inserted).
RECOMMENDED TEMPERATURE
Red Wine 14 °C - 18 °C
Dry / White Wine 9 °C - 14 °C
Rose / Sparkling Wine 5 °C - 8 °C

9
Cleaning & Maintenance
DAILY CLEANING
The outside of your cooler can be cleaned using a soft cloth moistened with a mild detergent solution. Wipe
dry with kitchen towel.
Do not use chemical or abrasive cleaners on any part of your cooler as these could permanently damage
or discolour the surfaces.
DOOR SEALS
Ensure that the door seals are kept free from debris at all times. If they don’t seal properly this can waste
energy.
CLEANING INSIDE
From time to time it may be necessary to clean the inside of the cooler (eg after a spill)
1. Switch off the cooler and remove plug from wall socket
2. Remove drinks and shelves
3. Clean the inside with a soft cloth moistened with a mild detergent soloution. Dry thoroughly with
kitchen towel before replacing the shelves, drinks and switching the unit back on.
4. Do not use abrasive or chemical cleaners on any part of the the cooler at any time.
CONDENSATION
Depending on the environment, you may notice a little condensation on the outside of the glass door. This
is normal and can be wiped away with a dry cloth or piece of kitchen towel.
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings
identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked
with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
SR12030_IM.indd 9 06/12/2017 15:29

10
Troubleshooting
1. If the cooler does not run:
Check the supply voltage is available at the socket and check that the power plug is
correctly connected. Check that the power switch near the thermostat/light unit is
switched ON.
2. If the cooler does not become cold enough:
a. is the thermostat is set properly?
b. is there enough space around the cooler?
c. is the door opened too frequently or not closed properly? (check seals).
d. is there direct sun shine on the appliance or are there heat sources nearby?
e. is there too much foodstuff inside the compartment? (Do not put hot liquids in the
cooler)
f. is there dust and debris built up on cooling matrix or compressor?
3. If the cooler operates noisily:
a. Check that the appliance is installed on a stable, level floor. Adjust the feet if nec-
essary. Is the cooler is too near the wall?
b. The food stored in the cooler is not touching - particularly applies to glass contain-
ers. The cooler creates very slight vibrations, which can be amplified greatly with
touching glass containers!
Note:
During high relative humidity environment, condensation may occur on the surface
of the cooler. This is not a malfunction. Simply clean the surface of condensation.
If the cooler is not working properly after all these checks, contact the service cen-
tre without further delay.
Service and Spares
If you experience any problems at all with your product or require spare parts,
expert help is just a phone call away!
