22
Important Safeguards
Do not connect your appliance
to the electricity supply until all
packing and transit protectors
have been removed.
Leave to stand upright for at least
4 hours before switching on to
allow compressor oil to settle
This cooler must only be used
for its intended purpose i.e the
storing cooling of drinks in bottles,
cans or plastic containers. It is
not designed for foodstuff to be
in direct contact with the internal
surfaces.
Do not dispose of the appliance
on a fire. Your appliance
contains non CFC/HFC natural
substances in the cooling system
and in the insulation, which are
potentially flammable if exposed
to fire. Therefore, take care not
to damage, the cooling circuit
or pipes of the appliance in
transportation and in use. In
case of damage do not expose
the appliance to fire or potential
ignition source and immediately
ventilate the room where the
appliance is situated.
We suggest you contact your
local authority for disposal
information and facilities available.
See installation section for
information on suitable location.
On delivery, check to make
sure that the product is not
damaged and that all the parts
and accessories are in perfect
condition.
Ensure that the plug remains
readily accessible. Do not use
multiple adaptor or extension
cables
Failure to observe these
instructions may invalidate your
right to free service during the
guarantee period.
WARNING: Ensure adequate
ventilation around the appliance.
Do not site close to heat sources.
SR16220_IM.indd 2 03/04/2018 14:06

3
Important Safeguards
WARNING: Do not damage the
refrigerant circuit.
We suggest you keep these
instructions in a safe place for
easy reference.
This appliance can be used by
children aged from 8 years
and above if they have been
given supervision or instruction
concerning use of the appliance in
a safe way and if they understand
the hazards involved.
Cleaning and user maintenance
shall not be made by children
unless they are older than 8 and
supervised. Keep the appliance and
its cord out of reach of children
aged less than 8 years.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
The plug must be accessible after
the installation.
Children should be supervised to
ensure that they do not play with
the appliance.
CAUTION: In order to avoid
a hazard due to inadvertent
resetting of the thermal cutout,
this appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a circuit
that is regularly switched on and
off by the utility company
This appliance should only
be connected to an earthed,
switched mains socket. Do not
use an extension cord with this
appliance
SR16220_IM.indd 3 03/04/2018 14:06

4
Installation Notes
1. The appliance should not be tilted more than 45 degrees when you move it. Do
not use force on any part such as the condenser, the door or handle. They could
distort and affect the operation of the cooler. Ensure ALL packaging is removed
before installation
2. Make sure there is enough ventilation space around product
3. The appliance should not be installed near external heat sources eg direct sun-
shine - or external moisture sources.
It is important that upon receipt you stand your appliance upright for at least 4
hours before switching on to allow the system to settle.
2cm
2cm
2cm
2cm
SR16220_IM.indd 4 03/04/2018 14:06

5
Installation Notes
4. Ensure the supply voltage of socket is same as rating label.
5. The plug must be properly inserted to the wall socket.
6. The mains supply socket must be earthed - preferably with a switch. If it is not
earthed, do NOT install this appliance there. Do not use an extension cord
7. The product is equipped with adjustable feet. Once the product is in place, adjust
these to ensure the fridge is level and doesn’t rock.
DO NOT SITE THE PRODUCT WHERE THE AMBIENT TEMPERATURE IS LIKELY TO
DROP BELOW 5 DEGREES CENTIGRADE - EG: GARAGE OR SHED
SR16220_IM.indd 5 03/04/2018 14:06

6
First Time Use
1. It is important that upon receipt you stand your appliance upright for at least 4
hours before switching on to allow the system to settle
2. When using the cooler for the first time, set the thermostat to setting 3 or 4.
When the refrigeration system starts, you will hear the quiet hum of the compres-
sor. You may also hear the circulation of liquids and gases. This is normal on first
start up, Generally it will take 2-3 hours for the appliance to reach temperature.
Once temperature has been reached then put the beverages inside.

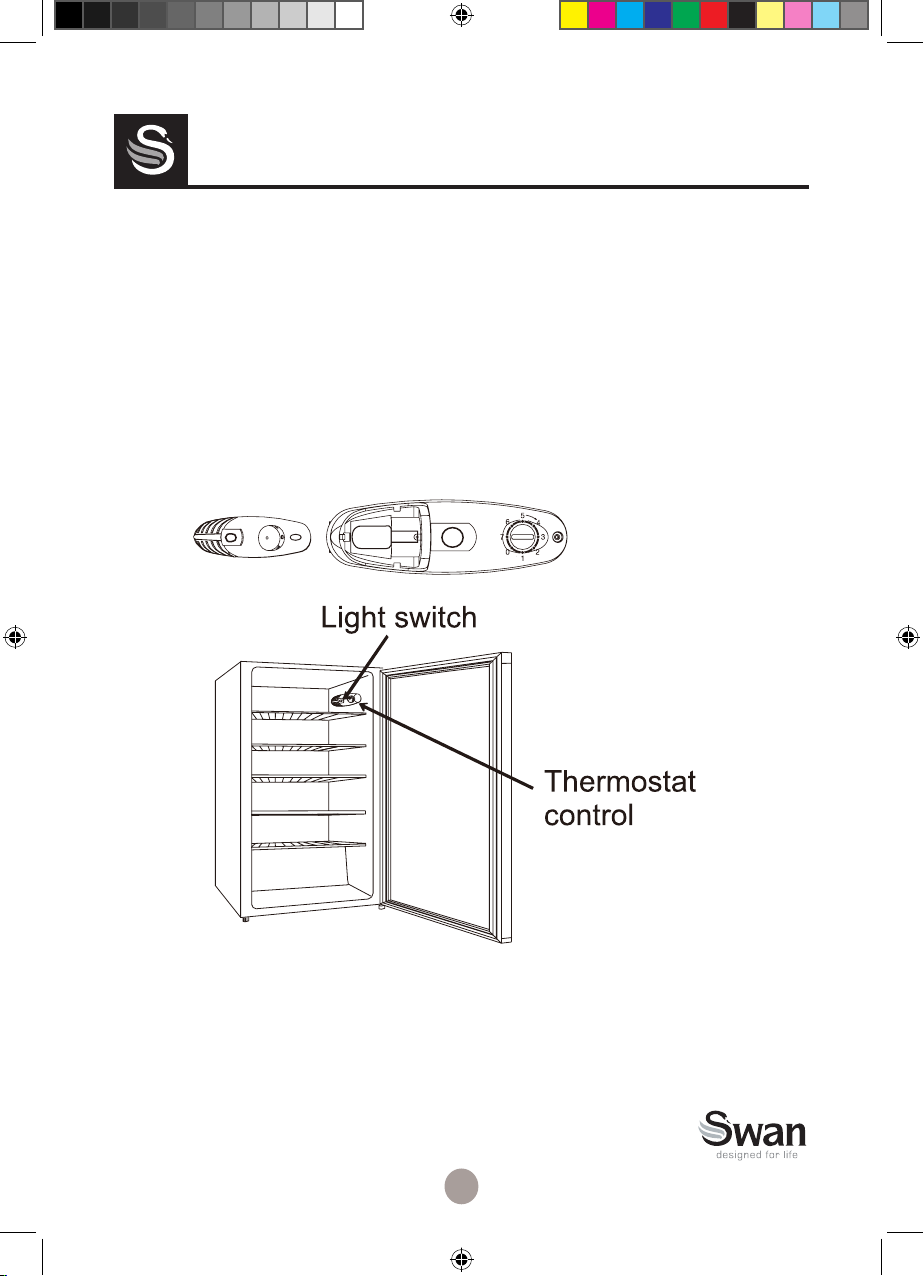

3. See below for location of thermostat and light switch on this model.
SR16220_IM.indd 6 03/04/2018 14:06

7
Reversing the Door
The door of the cooler can be reversed quite easily. See the illustration below. It is
best if you have a friend help you due to the weight, and to assist with alignment.
NOTE: Since reversing the door requires it to be inverted so the hinge mounts line
up, it will result in your Swan logo being upside down! Contact our service line if you
need to order another one. Always unplug the cooler before reversing the door.
1. Support the door from the bottom
2. Remove the 6 screws that affix the hinges and spacers to the cabinet frame
3. Place the door on a flat, padded surface to prevent scratching
4. Remove the 6 screws that affix the hinges to the door
5. Remove the blanking plugs from the opposite side and use those to plug the
holes exposed by the removal of the hinge from the cabinet frame
6. Screw the hinges to the opposite side of the door
7. Pick up the door and carefully align it with the cabinet holes
8. Screw the remaining 6 screws in to both hinges and the 2 spacers into the
cabinet to secure the door.
SR16220_IM.indd 7 03/04/2018 14:06

8
Cleaning & Maintenance
DAILY CLEANING
The outside of your refrigerator can be cleaned using a soft cloth moistened with a mild
detergent solution. Wipe dry with kitchen towel.
Do not use chemical or abrasive cleaners on any part of your refrigerator as these could
permanently damage or discolour the surfaces.
INTERNAL CLEANING
Wipe up any internal spills immediately with a soft cloth moistened with a mild detergent solu-
tion. Dry thoroughly.
SHELVES AND GUARDS
Any shelves can be removed and cleaned separately.
DOOR SEALS
Ensure that the door seals are kept free from debris at all times. If they don’t seal properly
this can waste energy and cause refrigeration unit to over run
Troubleshooting
Condensation on outside of door Humidity in the room is high. This is also
to be expected if the room is very warm
Condensation on the inside of the
cabinet
This is also caused by high humidity.
You can minimise this by only keeping
the door open only as long as you need
to .
Too cold/not cold enough inside the
cabinet
Adjust thermostat up or down accord-
ingly. Make sure nothing is stopping the
door from sealing properly
No power to cooler Check power cord, power supply or on/
off switch
SR16220_IM.indd 8 03/04/2018 14:06

9
Service and Spares
If you experience any problems at all with your cooler or require spare parts, expert
help is just a phone call away!
0333 220 6050
You will need to quote the model number of your appliance to hand.
Specifications
Total capacity: 115 L
Energy A+
Dimensions: 55 x 55 x 84 cm
Climate class: N (normal)
Weight: 35.06 kg
Back plate: Metal
SR16220_IM.indd 9 03/04/2018 14:06

10
WEEE Directive
Disposal of Unit
Disposal instructions for Swan items in accordance with the WEEE directive. Appliances
bearing the symbol shown here may not be disposed of in domestic rubbish. You are required
to dispose of old electrical and electronic appliances like this separately. Please visit www.
recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling
of electrical items. The WEEE directive, introduced in August 2006, states that all electrical
items must be recycled, rather than taken to landfill. Please arrange to take this appliance to
your local Civic Amenity site for recycling, once it has reached the end of its life.
BS Plug Wiring
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings
identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked
with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
SR16220_IM.indd 10 03/04/2018 14:06

11
Warranty
Notes:
This product is guaranteed for one year from the date of original purchase. If any defect arises
due to faulty materials of workmanship the faulty product will be repaired, refunded or replaced
at our discretion.
The following conditions apply:
The product must have been purchased from new. Proof of purchase will be required
The product must be installed and used in accordance with the instructions contained in this
instruction guide. It must be used only for household and similar purposes such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
The appliance has not been altered, serviced, dismantled or otherwise interfered with by any
person not authorised by Swan.
Any repair work must be undertaken by us or our appointed agent.
Any parts removed during repair work or any appliance that is replaced becomes our property.
It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd
has no liability for incidental or consequential loss or damage. Food value is NOT covered by
the warranty.
This guarantee is valid in the UK and Eire Only.
