Swann SH16340N User manual

v1.0
Wall Mounted
Patio Heater
Model: SH16340N
Help line: 0333 220 6050
SH16340N_IM.indd 1 21/02/2019 10:21

2
• Warning! The heater must only be switched on when fully
assembled and fitted to the wall.
• Read the instructions before using the appliance for the first
time.
• The appliance must be installed following national regulations
for use.
• It is necessary to be vigilant and supervise the appliance while
children are close by.
• This appliance is only designed for domestic use. Use the
heater only as indicated in the instructions. Any other use that
does not conform to the supplier’s instructions may cause
material damage or personal injury
• Do not cover the appliance or restrict air flow.
• Do not leave this appliance unsupervised while it is on. When
not being used, always ensure that the product is securely in
the ‘Off’ position (0) and unplugged from the socket.
• If the power cable is damaged, it must be replaced by the
manufacturer, their after-sales service or a similarly qualified
person to avoid any hazards.
• Do not place the cable under a carpet or any heavy object, and
do not cover.
• To avoid accidents, keep away from areas where people may
trip. Do not place on unstable surfaces
• Do not place this appliance close to flammable fabrics,
surfaces or liquids in order to avoid any risk of fire. Keep it
well away from any source at risk of causing hazards and
maintain it at a safe distance (whether this is the front, rear or
sides). Do not use this appliance in locations such as garages,
warehouses etc. where dangerous or flammable products are
stored (paint, fuel, alcohol etc.).
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SH16340N_IM.indd 2 21/02/2019 10:21

3
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
• The appliance must not be placed just underneath an electric
socket.
• Do not use this heating appliance close to a swimming pool,
bath or shower
• Check that the voltage corresponds to that of the power supply
(230v mains socket) To avoid any risk of electric shock, plug
the appliance in with the pins fitted correctly into the socket.
• In the event that you need an extension cable, ensure that it is
suitable for the appliance’s power level.
• While the appliance remains plugged into the socket (wall
socket) it is not disconnected from the power supply, even if it
is switched off. The appliance must be completely unplugged
before cleaning, services, maintenance, disassembly or even
moving from one place to another.
• The power socket must always be equipped with an earth
connection. If your domestic electrical installation is not
earthed, you should not connect the appliance.
• WARNING: To avoid overheating, do not cover the heater.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Appliances are not designed to be used in conjunction with a
separate timer or with a control system used at a distance.
• Children under 3 years must be kept away unless constantly
monitored.
• Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and
vulnerable people are present.
SH16340N_IM.indd 3 21/02/2019 10:21

4
Description: Wall Mounted Patio Heater
Model: SH16340 (all colours)
Input Voltage: 220-240V
Frequency: 50Hz
Power consumption: 1600-1900 Watts
TECHNICAL DATA
• Do not wrap the power supply cord around the unit
• Do not use this unit as a clothes drier or towel drier
• Do not use this unit as a sauna heater.
• Do not use this unit as a room heater.
• Do not use this unit for heating animal enclosures or pens
• Be aware that the product remains hot for a significant time
after switching off.
• Do not use the product indoors as it does not have a thermo-
stat to control room temperature.
OUTDOOR USE ONLY
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SH16340N_IM.indd 4 21/02/2019 10:21

5
PARTS
No Part name No Part name
1 Expansion bolt M6*70 8 M8 nut with cover
2 Steel board 9 Lower bracket
3 Washer 10 Screw M8*70
4 Spring washer 11 Switch
5 Screw nut M6 12 Control panel
6 Screw knob M6*12 13 Remote control
7 Upper bracket
Part List (refer to diagram)
Accessories Pack Check List
Accessory Qty
Steel board 1
Upper bracket 1
Expansion bolt M6*70 4
Screw knob M6*12 2
M8 nut with cover 1
Screw M8*70 1
M8 nut with cover 1
Preparation
Unpack the carton. Take out the accessories pack. Make sure the accessories
listed in the above Accessories Check List are included. If anything is missing, call
the help line on the cover of this manual, You’re going to need a cross head screw
driver, a drill with hammer action and a spanner for the nut.
Assembly is much easier with two people.
SH16340N_IM.indd 5 21/02/2019 10:21

6

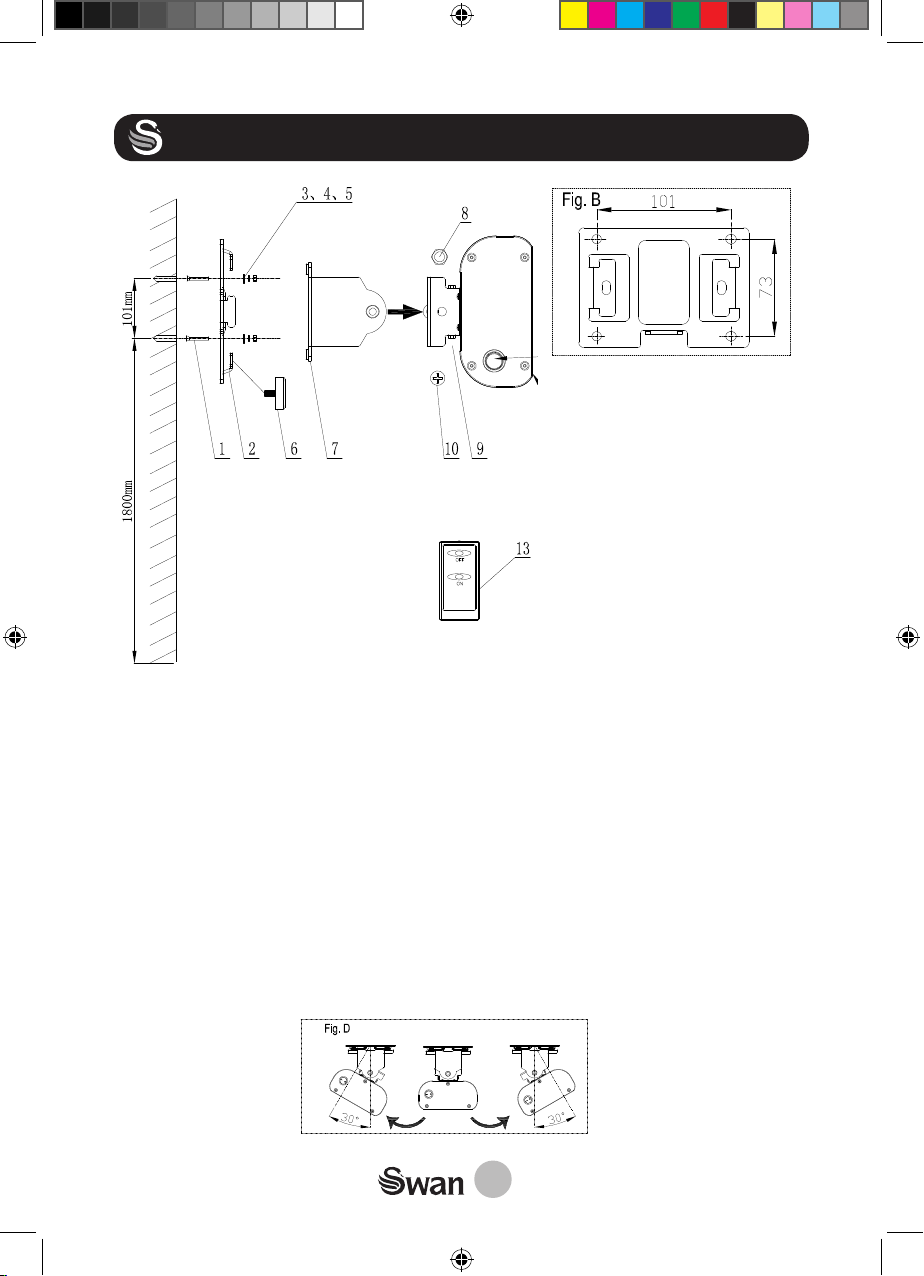

WALL MOUNTING
1. The heater must be installed
at least 1.8m from the
ground and at least 50cm
from any side wall or ceiling.
2. Drill 4 holes on the ceiling
or wall according to the size
shown on Fig. B. Insert the 4
Expansion Bolts (1) into the
holes.
3. Use a spanner to tighten the
Nuts on the Expansion Bolts
clockwise till they are securely
located in the holes.
4. Unscrew the Screw Nuts (5) and set them aside with Washers (3) and Spring Washers
(4) for use later.
5. Put Steel Board (2) onto the ceiling or wall. Put 4 Expansion Bolts go through the 4
holes on Steel Board and fix it with the Washers, Spring Washers and Screw Nuts that
you removed earlier
6. Mount Upper Bracket (7) on Lower Bracket (9). Screw it tightly with Screw M8*70 (10)
as shown on Fig. A.
7. For wall-mounted vertical installation, the switch panel needs to be
lower most so rising heat doesn’t damage the switch panel or power
cord
8. Mount the heater onto the wall or ceiling by sliding Upper Bracket into the opening on
the Steel Board. Fix them together with 2 Screw Knobs M6*12 (6).
9. Use a screw driver to loosen the Screw M8*70 (10) a little bit. Set the heater to a
desired angle then tighten it again.. The adjustable angle is within 60 degrees. Fig.D
Fig. A
SH16340N_IM.indd 6 21/02/2019 10:21

7
CEILING MOUNTING
Ceiling mounting is the same method as wall mounting. Please ensure the wall or
ceiling is sturdy enough to take the weight of the heater. Always take extra care
when using ladders etc. Wear appropriate safety goggles when drilling.
HOW TO USE
1. Plug in the unit to a 220-240V 13 Amp AC socket
2. Press Switch on left side of the heater. LED indicator light stars flashing show-
ing the heater is on standby. Press ON button on control panel (or ON button
on remote control) to switch on the heater. To shift the heater to standby
mode, press OFF button on control panel (or OFF button on remote control).
LED indicator light will start flashing again.
3. To switch off the heater, press Switch on left side of the heater accordingly.
Insert 2 x AAA batteries (not included) in the remote control unit. Please carefully
observe correct polarity. Remove spent batteries to prevent battery corrosion from
damaging the remote. Always use good quality, branded batteries.
SH16340N_IM.indd 7 21/02/2019 10:21

8
• Always unplug the appliance and keep it away from any socket before
cleaning.
• To clean the outer surface of the appliance, use a lightly damp cloth.
Then, dry it thoroughly with a soft, dry cloth before using again.
• Do not use any cleaning or chemical products of any kind. Do not let
water enter the openings on the heater.
• Do not use wax or products that create a shine as they can react to
heat and cause discolouration.
• When the appliance is not being used for prolonged periods, ensure that
it is fully unplugged from the socket - preferably unmounted and in its
original box.
CLEANING & MAINTENANCE
WARRANTY
This product is guaranteed for 2 years from the date of original purchase. If
any defect arises due to faulty materials of workmanship the faulty products
must be returned to the place of purchase. Refunds or replacement is at the
discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions
contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss
or damage.
• This guarantee is valid in the UK and Eire Only.
SH16340N_IM.indd 8 21/02/2019 10:21

9
DISPOSAL OF UNIT
Appliances bearing the symbol shown here may not be disposed of
in domestic rubbish. You are required to dispose of old electrical
and electronic appliances like this separately. Please visit
www.recycle-more.co.uk or www.recyclenow.co.uk for access
to information about the recycling of electrical items. Please visit www.
weeeireland.ie for access to information about the recycling of electrical items
purchased in Ireland. The WEEE directive, introduced in August 2006, states
that all electrical items must be recycled, rather than taken to landfill. Please
arrange to take this appliance to your local Civic Amenity site for recycling,
once it has reached the end of its life.
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings
identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked
with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
BS PLUG
SH16340N_IM.indd 9 21/02/2019 10:21
