Swegon HAWK Ceiling User manual

1

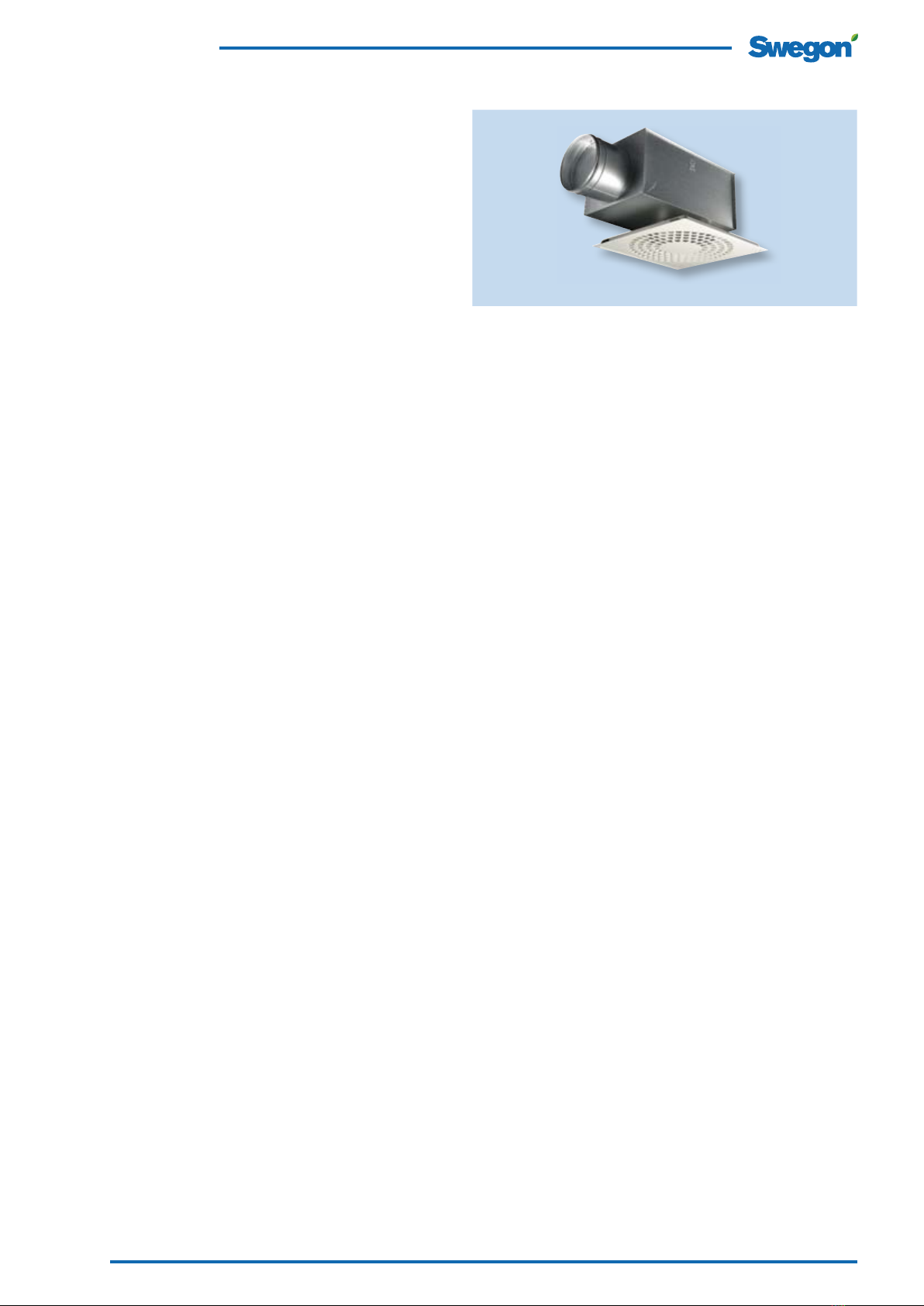

HAWKTM Ceiling
Square ceiling diffuser for supply air
HAWK Ceiling
Quick facts
►Flush design
►Also available in exhaust air version
►
Designed for modular suspended ceilings (595x595 mm)
►Quick Access diffuser face
►Easy access
►ALS commissioning box with 1 or 2 changes in dimen-
sion between the inlet and outlet
►Available in a version with low installation height
►Available in alternative colours
►Included in the MagiCAD and CadVent databases
Quick guide
A I R F L O W - S O U N D L E V E L
HAWK C l/s
Size 25 dB(A) 30 dB(A) 35 dB(A)
125- 600 39 45 54
160-600 61 75 85
200-600 90 105 120
250-600 135 155 175
315-600 145 175 205
400-600 200 240 285
HAWK C ALS l/s
Size Size 25 dB(A) 30 dB(A) 35 dB(A)
125- 600 100-125 27 33 40
160-600 125-160 37 46 58
200-600 160-200 56 71 90
250-600 200-250 85 110 150
315-600 250-315 126 145 170
400-600 315-400 170 205 245
The data specified in the table is applicable to 50 Pa total pressure when
an ALS commissioning box is used.

HAWK Ceiling
2We reserve the right to alter specifications. 20110816 www.swegon.com
Technical description
Design
The square, perforated supply air diffuser consists of a
diffuser backing box and a diffuser face. The diffuser face
has perforations designed for managing high airflows. The
diffuser face is hung on hinges on one side and secured by
springs on the opposite side. This Quick Access fastening
system makes it simpler and quicker to open and close the
diffuser face for installation, commissioning and cleaning.
The air diffuser is also available in a low version for installa-
tion in ceiling void where low installation height is required.
The air diffuser is then supplied without any branch.
Materials and surface treatment
The backing box and diffuser face are made of sheet steel.
The connection branch is made of galvanized sheet steel.
The interior and exterior surfaces of the air diffusers are
painted in our standard colour: RAL 9010. The air diffusers
are also available in optional colours: RAL 7037 Dusty grey,
RAL 9006 white aluminium, RAL 9005 jet black, RAL 9007
grey aluminium and RAL 9003 signal white (NCS 0500).
Accessories
Commissioning box:
ALS. Made of galvanized sheet steel. Contains removable
commissioning damper, fixed measurement tappings and
sound absorbing material with reinforced surface layer, to
Fire Resistance Class B-s1,d0 according to EN ISO 11925-2.
The air diffuser is also available in a low version if the
height in the ceiling void is restricted. The commissioning
box is then supplied without outlet branch.
The commissioning box is available with 1 or 2 differences
in dimension between the inlet and outlet.
Frame:
SAR K. For aesthetic installation of a lowered diffuser.
Adapter:
ADAPTER, for adaptation to various variants and makes
of systemized false ceilings: Ecophon, Gyproc, Dampa
etc. Also used for adaptation to optional sizes of lay-in
ceilings, for instance 625 x 625 or 675 x 675. Specification
in separate product sheet for ADAPTER.
Planning
The HAWK Ceiling is available with square dimensions
of 595 x 595 mm in all connection sizes. This makes the
HAWK Ceiling very easy to install in suspended modular
ceilings with insertion dimensions for 600 x 600 mm
modules. Position the whole air diffuser on the surface
of the T-bar framework and then secure it to the duct
system. The HAWK Ceiling is also available in a low
version for installation in ceiling void where its installation
height must be minimized. See Figure 2.
Installation
To dismantle the face (see Figure 1) prior to installing the air
diffuser, insert a thin object, such as a Quick Access card or
similar card, between the air diffuser face and backing box
to release the springs. Then slide the card from the centre
outward toward the corners, see figure 1. The inlet spigot
of the diffuser backing box can be secured to the connec-
ting ducting by means of self-tapping screws or blind rivets.
For flush-mounting in fixed ceiling constructions, secure
the air diffuser by means of screws into place in the
framework through either the sides or top of the diffu-
ser backing box. The face and backing box in the version
for low installation height must be centred and jointed
together using the locking strip supplied. Secure the air dif-
fuser in the correct position by means of self-tappingscrews
to the underside of commissioning box. See figure 3.
Position these directly down in the T-bar framework, and then
secure them to the duct system or to the commissioning box.
If an ALS commissioning box is used, it must be secured to the
building structure by means of hangers or mounting brackets.
The distance between the air diffuser and the commissioning
box can be increased by as much as 500 mm with an ordinary
circular duct without having to lengthen the measuring tubes
and damper adjustment cords. See Figure 2.
Commissioning
Commissioning should be carried out with the face plate
mounted. Pull the measuring tube and damper adjusting
cord out through the face plate. Connect a manometer to
the right measuring tube. The red or blue tube is used for
supply air depending on whether a one or two-step ALS
commissioning box is used. For extract air, use the transpar-
ent tube only. The required commissioning pressure can
be calculated by means of the K-factor of the air diffuser/
register. Adjust the damper to the correct position and tie
a commissioning knot on the damper cords to indicate the
damper setting.
The K-factor is specified on the product identification plate and
also in the relevant commissioning instructions available at www.
swegon.com.
Maintenance
The air diffuser can be cleaned, if necessary, using luke-
warm water with dishwashing detergent added. The duct
system can be accessed after opening the diffuser face. If
an ALS commissioning box is used, pull the distributor plate
aside and then twist the damper unit from of its mounting,
see figure 4.
Environment
The Declaration of construction materials is available at
www.swegon.com.

3
We reserve the right to alter specifications. 20110816 www.swegon.com
HAWK Ceiling
HAWK Ceiling
Installation
Figure 2. Installation.
Figure 1. Opening and closing the diffuser
face with Quick Access.
Figure 3. Installation of air diffusers and commissioning box with
low installation height.
Figure 4. To dismantle the damper.

HAWK Ceiling
4We reserve the right to alter specifications. 20110816 www.swegon.com
Sizing
• The specified sound levels dB(A) are applicable to rooms
with an equivalent sound absorption area of 10 m2.
• The throw l0.2 is measured under isothermal discharge
conditions.
• Recommended max. permissible temperature below
room temperature is 10 K.
• For calculating the width of the air stream, air velo-
cities in the occupied zone or sound levels in rooms
with other dimensions, please refer to our ProAir web
calculation software available for download at www.
swegon.com.
Sound data - HAWK C - Supply air -
Air diffuser only
Sound power level Lw(dB)
Table Kok
Size Mid-frequency (Octave band) Hz
HAWK C 63 125 250 500 1000 2000 4000 8000
125- 600 3 6 6 9 -1 -14 -24 -15
160-600 2 5 5 8 0 -11 -21 -17
200-600 2 3 3 2 -12 -12 -22 -14
250-600 2 3 4 6 3 -8 -18 -11
315-600 2 4 4 5 4 -8 -16 -11
400-600 5 5 4 3 5 -4 -19 -21
Tol. ± 2 2 2 2 2 2 2 2
Sound attenuation DL(dB)
Table DL
Size Mid-frequency (Octave band)
HAWK C 63 125 250 500 1000 2000 4000 8000
125- 600 20 15 10 53554
160-600 19 14 943554
200-600 19 14 833455
250-600 16 11 542344
315-600 14 9422233
400-600 14 8410000
Tol. ± 2 2 2 2 2 2 2 2
Sound data - HAWK C - Exhaust air
- Diffuser only
Sound power level LW(dB)
Table Kok
Size Mid-freqency (Octave band) Hz
HAWK C 63 125 250 500 1000 2000 4000 8000
250-600 -1 7 4 2 4 -1 -13 -12
315-600 4 6 5 4 4 -3 -13 -11
400-600 4 3 3 2 4 -2 -19 -22
Tol. ± 2 2 2 2 2 2 2 2
Sound attenuation DL(dB)
Table DL
Size Mid-freqency (Octave band) Hz
HAWK C 63 125 250 500 1000 2000 4000 8000
250-600 16 11 542344
315-600 14 9422233
400-600 14 8410000
Tol. ± 2 2 2 2 2 2 2 2

5
We reserve the right to alter specifications. 20110816 www.swegon.com
HAWK Ceiling
HAWK Ceiling
Sound data - HAWK C + ALS - Supply
air - One step
One dimension in difference between the inlet and the
outlet of the commissioning box
Sound power level Lw(dB)
Table Kok
Size Mid-frequency (Octave band) Hz
HAWK C
+ ALS
One step 63 125 250 500 1000 2000 4000 8000
125- 600 411 10 7-1 -9 -15 -13
160-600 611 9 7 -2 -8 -14 -12
200-600 611 7 5 -1 -6 -10 -10
250-600 411 7 3 0 -5 -9 -7
315-600 610 6 5 3 -7 -14 -12
400-600 912 6 4 3 -5 -15 17
Tol. ± 2 2 2 2 2 2 2 2
Sound attenuation DL(dB)
Table DL
Size Mid-frequency (Octave band)
HAWK C
+ ALS
One step 63 125 250 500 1000 2000 4000 8000
125- 600 21 16 917 23 16 11 13
160-600 19 14 10 17 19 12 10 12
200-600 16 11 816 18 12 11 11
250-600 13 8 8 16 17 12 12 13
315-600 11 6 7 19 14 10 10 13
400-600 14 5 8 14 11 10 11 12
Tol. ± 2 2 2 2 2 2 2 2
Sound data - HAWK C + ALS - Supply
air - Two steps
Two steps difference in dimensions between the inlet and
outlet of the commissioning box.
Sound power level LW(dB)
Table Kok
Size Mid-freqency (Octave band) Hz
HAWK C
+ ALS
Two steps 63 125 250 500 1000 2000 4000 8000
160-600 312 11 5-2 -6 -11 -10
200-600 412 10 4-2 -4 -9 -10
250-600 613 8 2 -1 -4 -10 -8
315-600 312 7 1 -1 -5 -9 -7
Tol. ± 2 2 2 2 2 2 2 2
Sound attenuation DL(dB)
Table DL
Size Mid-freqency (Octave band) Hz
HAWK C
+ALS
Two steps 63 125 250 500 1000 2000 4000 8000
160-600 19 14 11 17 24 15 13 15
200-600 18 14 10 16 23 15 14 15
250-600 15 9 9 20 19 15 16 14
315-600 13 810 19 16 13 16 16
Tol. ± 2 2 2 2 2 2 2 2
HAWK C + ALS - Extract air
Sound power level LW(dB)
Table Kok
Size Mittfrekvens (oktavband Hz
HAWK C 63 125 250 500 1000 2000 4000 8000
250-600 215 9 1 -2 -5 -11 -15
315-600 413 7 0 0 -1 -14 -19
400-600 810 4 2 4 -3 -14 -19
Sound attenuation DL(dB)
Table DL
Size Mid-freqency (Octave band) Hz
HAWK C 63 125 250 500 1000 2000 4000 8000
250-600 13 8 8 16 17 12 12 13
315-600 11 6 7 19 14 10 10 13
400-600 14 5 8 14 11 10 11 12

HAWK Ceiling
6We reserve the right to alter specifications. 20110816 www.swegon.com
Engineering graphs – HAWK Ceiling
Air flow - Pressure drop - Sound level - Throw
• The graphs illustrate data for the HAWK C recessed in
a ceiling.
• The graphs are not to be used for commissioning.
• The dB(A) values are applicable to rooms with normal
acoustic absorption (4 dB room attenuation).
• The dB(C) value is normally 6-9 dB higher than the
dB(A) value.
HAWK C 125-600, 160-600, 200-600 - Supply air
HAWK C 250-600, 315-600 and 400-600 - Exhaust air
p
t
Pa
100200300400500 m
3
/h
30 40 50 100200 l/s
2
3
4
5
10
20
30
40
50
100
20
25
30
35
40 dB(A)
125
160
200
200
160
3 4 5 10 20
125
m
0,2
l
p
t
Pa
30040050010002000 m
3
/h
100200300400500 l/s
2
3
4
5
10
20
30
40
50
100
20
25
30
35
40 dB(A)
250, 315
400
HAWK C 250-600, 315-600, 400-600 - Supply air
p
t
Pa
3004005001000 m
3
/h
100200300400 l/s 500
2
3
4
5
10
20
30
40
50
100
20
25
30
35
40 dB(A)
250
315
400
400
315
3 4 5 10 20
250
m
0,2
l
Size. 250 and 315 has the same preassure drop. 315 has 5 dB
lower sound level.

7
We reserve the right to alter specifications. 20110816 www.swegon.com
HAWK Ceiling
HAWK Ceiling
Engineering graphs – HAWK Ceiling +
ALS – Supply air
Air flow - Pressure drop - Sound level - Throw
• The graphs illustrate data for the HAWK C recessed in
a ceiling.
• The graphs are not to be used for commissioning.
• ∇ = Min. airflow required for obtaining sufficient com-
missioning pressure.
• The dB(A) values are applicable to rooms with normal
acoustic absorption (4 dB room attenuation).
• The dB(C) value is normally 6-9 dB higher than the
dB(A) value.
• The version for low installation height generates 3 dB(A)
higher sound level than the value plotted in the graph.
HAWK C 125-600 + ALS 100-125 - One step HAWK C 160-600 + ALS 100-160 - Two steps
HAWK C 160-600 + ALS 125-160 - One step HAWK C 200-600 + ALS 125-200 - Two steps
p
t
Pap
t
Pa
40 50 100200 m
3
/h
p
t
Pap
t
Pa
10 20 30 40 50 l/s 100
10
20
30
40
50
100
200
300
400
500
20
25
30
35
40 dB(A)
0%
100%
1 2 3 4 5
m
0,2
l
p
t
Pap
t
Pa
40 50 100 200 m
3
/h
p
t
Pap
t
Pa
10 20 30 40 50 l/s 100
10
20
30
40
50
100
200
300
400
500
20
25
30
35
40 dB(A)
0%
100%
1 2 3 4 5
m
0,2
l
p
t
Pap
t
Pa
100200300400 m
3
/h
p
t
Pap
t
Pa
20 30 40 50 100 l/s
10
20
30
40
50
100
200
300
400
500
20
25
30
35
40 dB(A)
0%
100%
1 2 3 4 5
m
0,2
l
ptPaptPa
100 200 300400 m3/h
ptPaptPa
20 30 40 50 100 l/s
10
20
30
40
50
100
200
300
400
500
20
25
30
35
40 dB(A)
0%
100%
1 2 3 4 5
m
0,2
l

HAWK Ceiling
8We reserve the right to alter specifications. 20110816 www.swegon.com
HAWK C 315-600 + ALS 250-315 - One step
HAWK C 315-600 + ALS 200-315 - Two steps
HAWK C 250-600 + ALS 200-250 - One step
HAWK C 250-600 + ALS 160-250 - Two stepsHAWK C 200-600 + ALS 160-200 - One step
p
t
Pap
t
Pa
100 200 300400500 m
3
/h
p
t
Pap
t
Pa
20 30 40 50 100 l/s 200
10
20
30
40
50
100
200
300
400
500
20
25
30
35
40 dB(A)
0%
100%
2 3 4 5 10
m
0,2
l
p
t
Pap
t
Pa
100 200 300400500 m
3
/h
p
t
Pap
t
Pa
20 30 40 50 100 l/s 200
10
20
30
40
50
100
200
300
400
500
20
25
30
35
40 dB(A)
0%
100%
1 2 3 4 5
m
0,2
l
p
t
Pap
t
Pa
200 300 400 500 m
3
/h
p
t
Pap
t
Pa
30 40 50 100 200 l/s 300
10
20
30
40
50
100
200
300
400
20
25
30
35
40 dB(A)
0%
100%
2 3 4 5 10
m
0,2
l
p
t
Pap
t
Pa
200 300 400 500 m
3
/h
p
t
Pap
t
Pa
30 40 50 100 200 l/s 300
10
20
30
40
50
100
200
300
400
500
20
25
30
35
40 dB(A)
0%
100%
2 3 4 5 10
m
0,2
l
p
t
Pap
t
Pa
200 300 400 500 1000 m
3
/h
p
t
Pap
t
Pa
40 50 100 200 300 l/s 400
10
20
30
40
50
100
200
300
400
20
25
30
35
40 dB(A)
0%
100%
2 3 4 5 10
m
0,2
l
HAWK C 400-600 + ALS 315-400 - One step
p
t
Pa
30040050010002000 m
3
/h
100200300400500 l/s
10
20
30
40
50
100
200
300
20
25
30
35
40 dB(A)
100%
0%
3 4 5 10 20
m
0,2
l

9
We reserve the right to alter specifications. 20110816 www.swegon.com
HAWK Ceiling
HAWK Ceiling
HAWK C + ALS – Extract air
Air flow - Pressure drop - Sound level
• The specified sound levels dB(A) are applicable to rooms
with an equivalent sound absorption area of 10 m2.
• ∇ = Min. airflow required for obtaining sufficient com-
missioning pressure.
• For calculating the width of the air stream, air velo-
cities in the occupied zone or sound levels in rooms
with other dimensions, please refer to our ProAir web
calculation software available for download at www.
swegon.com.
HAWK C 250-600 + ALS 200-250
p
t
Pa
200300400500 m
3
/h
30 40 50 100200 l/s 300
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
p
t
Pa
2003004005001000 m
3
/h
40 50 100200300 l/s 400
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
p
t
Pa
2003004005001000 m
3
/h
50 100200300400 l/s 500
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
HAWK C 400-600 + ALS 315-400
HAWK C 315-600 + ALS 250-315

HAWK Ceiling
10 We reserve the right to alter specifications. 20110816 www.swegon.com
Dimensions and weights
HAWK Ceiling
Size AØD Ød I M Weight, kg
125- 600 595 340 124 575 70 3,5
160-600 595 340 159 575 70 3,5
200-600 595 420 199 575 70 3,5
250-600 595 500 249 575 70 3,5
315-600 595 500 314 575 50 3,5
400-600 595 500 317 575 50 3,5
Dimensions of opening = l x l
Figure 5. HAWK Ceiling
HAWK Ceiling with ALS - 1 step
Size ABCØD Ød E1 E2 F1 F2 G1 G2 H K Weight, kg
125- 600 595 282 217 99 125 255 212 113 70 175 132 270 80 5,5
160-600 595 342 252 124 160 279 236 113 70 188 145 315 80 6,2
200-600 595 404 288 159 200 314 271 113 70 205 162 375 100 7,0
250-600 595 504 332 199 250 354 311 113 70 225 182 465 115 8,7
315-600 595 622 388 249 315 395 352 93 50 230 187 575 140 11, 8
400-600 595 767 488 314 400 455 –93 –262 –712 175 15,0
HAWK Ceiling with ALS - 2 steps
Size ABCØD Ød E1 E2 F1 F2 G1 G2 H K Weight, kg
160-600 595 342 252 99 160 255 212 113 70 175 132 315 80 5,5
200-600 595 404 288 124 200 279 236 113 70 188 145 355 80 4,2
250-600 595 504 332 159 250 314 271 113 70 205 162 450 100 7,0
315-600 595 622 388 199 315 334 291 93 50 205 162 550 115 8,7
CL = Center line
Figure 6. HAWK Ceiling with ALS. Figure 7. HAWK Ceiling with ALS. Low installation height.
SARb K Frame
Size LWeight, kg
600 595 1
Figure 8. SAR K frame.

11
We reserve the right to alter specifications. 20110816 www.swegon.com
HAWK Ceiling
HAWK Ceiling
Order key
Product
Square ceiling air diffuser
for supply air
HAWK C a-aaa -600 -b
Version
Nominal connection dim., mm:
125, 160, 200, 250, 315, 400
Nominal square dimension 600 mm
Low version: L
Specify only if diffuser for low installation height is required.
(Except 400-600).
Standard range
Size: 125-600
160-600
200-600
250-600
315-600
400-600
Accessories
Commissioning box ALS d-aaa - bbb -c
Version:
For HAWK Ceiling; ALS:
125- 600 100-125
160-600 100-160
160-600 125-160
200-600 125 -200
200-600 160-200
250-600 160-250
250-600 200-250
315-600 200-315
315-600 250-315
400-600 315- 400
Low installation height: L
Specify only if diffusers in the low versions are selected.
Frame SAR b K -600
Version:
Quadratic:
Size:
Specification example
SD XX
Swegon's complete square, perforated type HAWK
Ceiling air diffuser, with ALS commissioning box and the
following functions:
• Designed for modular suspended ceilings (600 x 600 mm)
• Quick access diffuser face opening/closing action for
quick access to the commissioning box and duct system
• Method of measurement with low systematic error
• Powder coated white
• Cleanable ALS commissioning box with removable
adjustment damper, method of measurement with low
systematic error and lined inside with sound absorbing
material covered with woven surface layer.
Size: HAWK C a -aaa-600-b with
ALSd aaa-bbb-c
xx items
Accessories:
Frame: SARb K 600 xx items
