SWIT S-1073H User manual

Model: S-1073H
7” 4K HDMI LCD Monitor
User Manual
Ver：A
Please read this User Manual
throughout before using

Preface
1. All internal technologies of this product are protected, including device, software and trademark.
Reproduction in whole or in part without written permission is prohibited.
2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative
trademarks in this user manual are the property of their respective owners.
3. Due to constant effort of product development, SWIT reserves the right to make changes and
improvements to the product described in this manual without prior notice.
4. The warranty period of this product is 2 years, and does not cover the following:
⑴Physical damage to the surface of the products, including scratches, cracks or other damage to
the LCD screen or other externally exposed parts;
⑵The LCD dot defects are not over three;
⑶Any damage caused by using third-party power adaptors;
⑷Any damage or breakdown caused by use, maintenance or storage not according to the user
manual.
⑸The product is disassembled by anyone other than an authorized service center.
⑹Any damage or breakdown not caused by the product design, workmanship, or manufacturing
quality, etc.
＊Any sales personnel have no rights to provide additional warranty.
5. For any suggestions and requirements on this product, please contact us through phone, fax,
Email, etc.
SWIT Electronics Co., Ltd.
Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,
Nanjing 210038, P.R.China
Phone: [phone]
Fax: [phone]
Email: cont[email protected]
http://www.swit.cc

Maintenance
Warning
1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or
damp places.
2. Please keep away from the strong magnetic field; it may cause the noise of the video
and audio signals.
The power
1. Please use the power adapter provided or recommended by the manufacturer in order to
avoid damage.
2. For a third party power adapter, please make sure the voltage range, supplied power,
and polarity of power lead are fit.
3. Please disconnect the power cable under the following situations:
(A). If you do not operate this monitor for a period of time;
(B). If the power cable or power adaptor is damaged;
(C). If the monitor housing is broken.
The monitor
1. Please don't touch the screen with your fingers, which would probably deface the screen.
2. Please don't press the screen; the LCD is extremely exquisite and flimsy.
3. Please don't lay this product on unstable place.
Cleaning
1. Please clean the screen with dry and downy cloth or special LCD cleanser.
2. Please do not press hard when cleaning the screen.
3. Please do not use water or other chemical cleanser to clean the screen.
The chemical may damage the LCD.
Contents
Preface........................................................................................................................错误!未定义书签。
Maintanance...............................................................................................................错误!未定义书签。
Contents...................................................................................................................................................3
Packing list...............................................................................................................................................4
Introduction..............................................................................................................................................4
Installation Dimension.................................................................................................错误!未定义书签。
Operation Instruction.................................................................................................................................5
Screen display......................................................................................................................................8
Main Menu...............................................................................................................................................8
Specification...........................................................................................................................................15
Trouble shooting.........................................................................................................错误!未定义书签。

Packing list
S-1073H offers the standard package and luxury package for option.
Standard package includes:
Luxury package includes:
1、User manual
2、Warranty card
3、Cold shoe / Screw ball head
4、Sun hood
5、D-tap to lockable DC cable
6、S-7006（U/F/D）S-7000(A/S)
1、User manual
2、Warranty card
3、Sun hood
4、Articulating arm trestle
5、AC-DC power adaptor
6、Power cable
7、BNC SDI cable
8、HDMI cable
9、D-tap to lockable DC cable
10、S-7006（U/F/D）/S-7000(A/S)
11、LCD protective film
12、Carrying case
Introduction
S-1073H adopts TFT LCD panel, with resolution 1920×1200 and wide viewing angle H160°∕V160°. It
supports 2 x 3GSDI (Level A/B), 1 x HDMI2.0 (4K display) input. It also supports 1x 3GSDI, 1 x HDMI
and 1 x analog audio loop through output.
Features:
Support HDMI 4K display
Camera Log conversion
Support 3DLut cube
Support multiple Aspect Ratio and scan modes
Support multiple Marker selection (Marker, SafetyArea)
Powerful audio and video analysis functions
Support multiple functions user-defined (Source ID, function keys)
Multiple power supply methods to meet different requirements
USB firmware upgrade

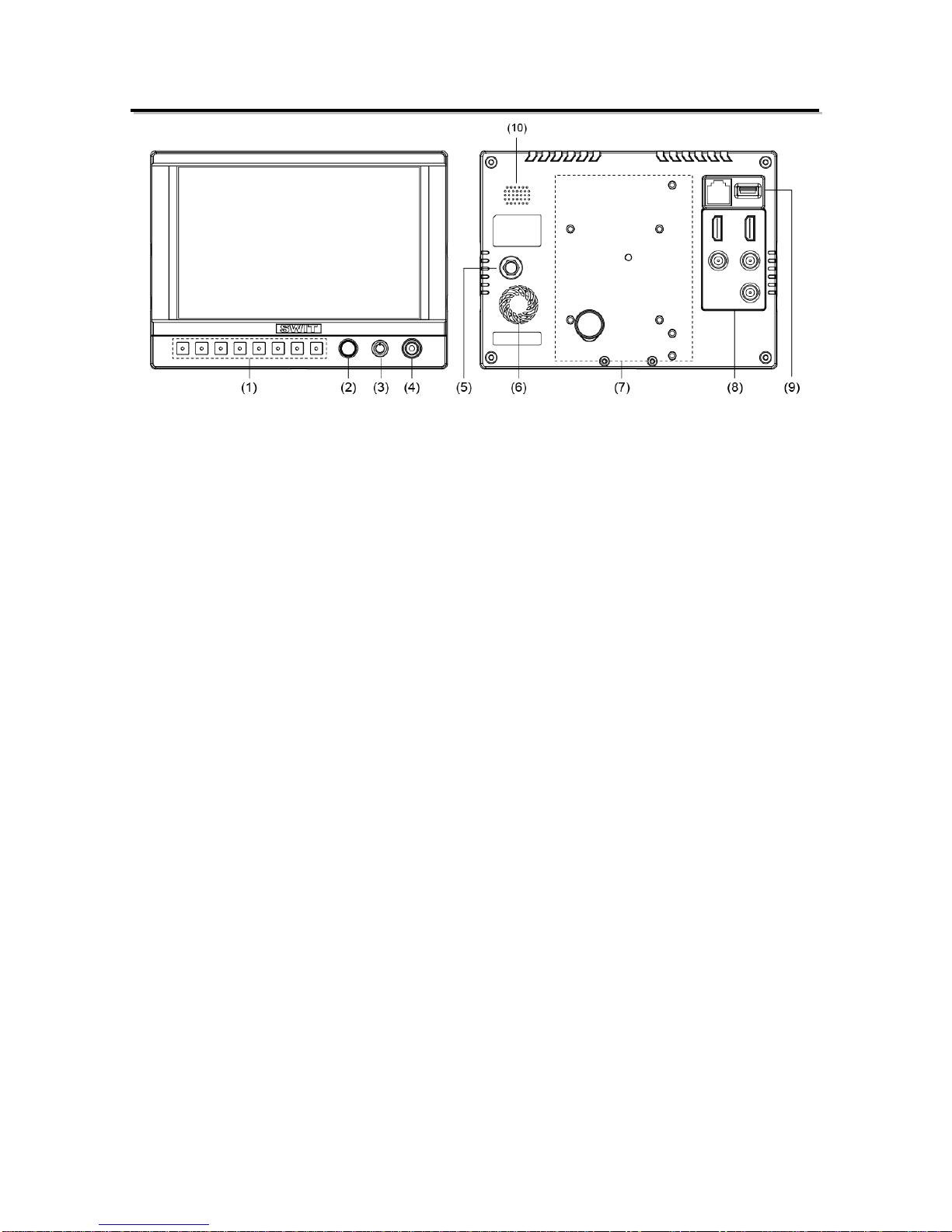

Operation Instruction
⑴Button
Source: Signal selection button（HDMI、SDI1、SDI2）
User definable function keys（F1～F4）
User can set F1～F4 keys to corresponding function for quick operation according to their needs.
For example：User can set F1 to “Focus Assistant”, and press F1 to directly switch the focus
assistant parameter, the sequence is “Red→Blue→Off”.
Quick function keys support multi definition, for details please refer to “4.Function key settings” in
the “MENU” section.
DISPLAY：Press “DISPLAY” to turn on or turn off relevant status information, audio and video
analysis assistant Pattern.
When main menu is activated, press “DISPLAY” to quit menu.
⑵Main menu settings
When no menu is opened, user can directly press the knob, and open the main menu on the left
top of the screen;
Rotate the knob, select corresponding submenu; the corresponding item is highlighted in yellow;
Press the knob, enter the submenu;
Rotate the knob to select items; the corresponding item is highlighted in yellow;
Press the knob, the parameter of the item is highlighted in yellow;
Rotate the knob to select the parameter and press to save the settings.
⑶POWER: Power on/off
⑷PHONE：3.5mm earphone socket, for SDI/HDMI embedded audio and analog audio monitoring.
⑸DC 6.5-36V IN:Round head DC power supply interface (Outer: Negative, Inner: Positive)
⑹Silent fan
⑺Battery mount connector
⑻Video Signal Interface
HDMI-IN：HDMI input (HDMI-A connector)
HDMI-OUT：HDMI output (HDMI-A connector)
SDI-IN1：3G/HD/SD SDI input (BNC connector)
SDI-IN2：3G/HD/SD SDI input (BNC connector)
SDI-OUT：3G/HD/SD SDI output (BNC connector), the monitor choose the current SDI1/SDI2
signal to output.
⑼External interface control
GPI：GPI control socket
USB：For firmware upgrade
⑽Speaker
Monitor HDMI, SDI embedded audio and analog audio monitoring. (when connecting 3.5mm audio
output, the speaker is off).

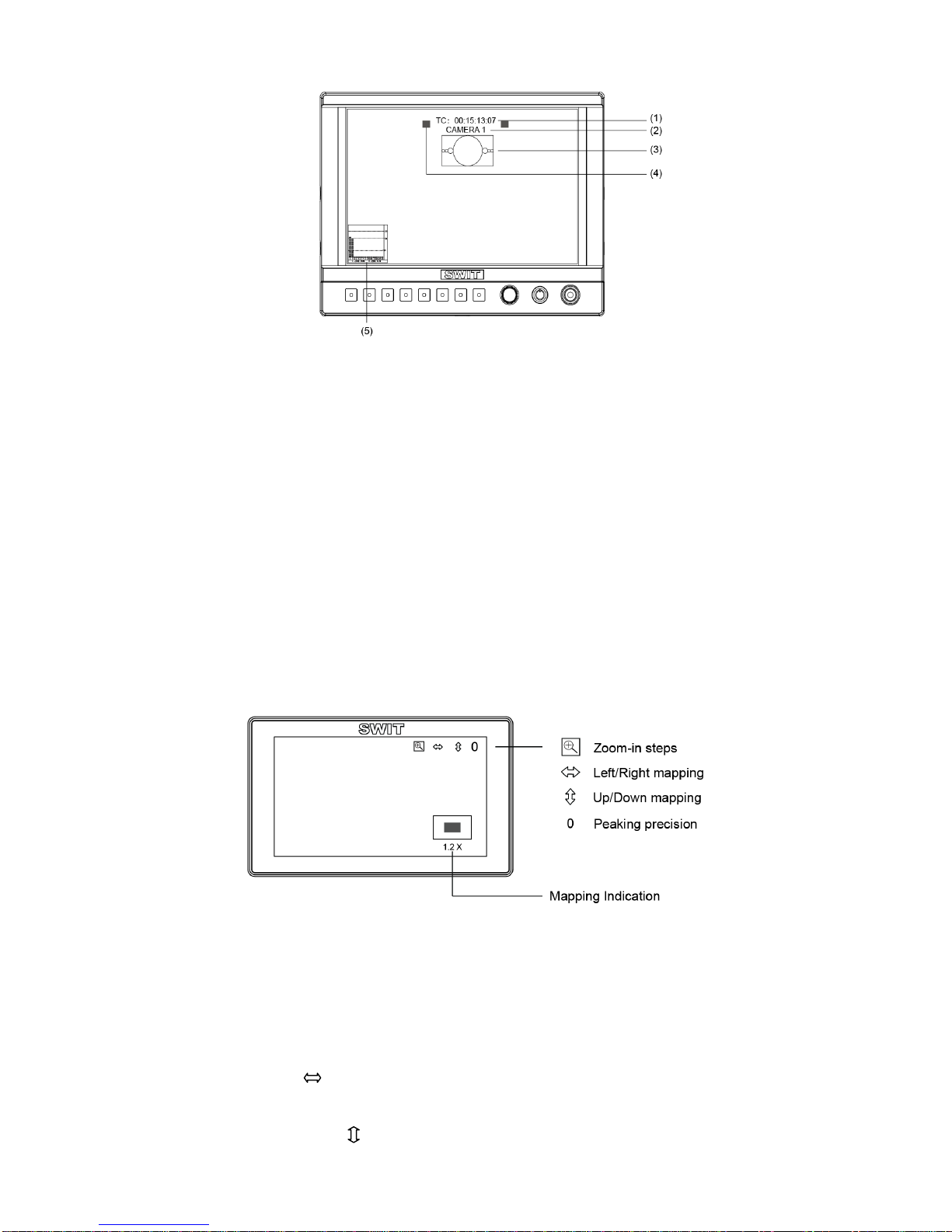

·Screen display
⑴、Timecode（SDI）
Under SDI input, it can display Timecode. If no Timecode information is detected, it will be
displayed as “TC: UNLOCKED”.
User can set function keys F1～F4 as “Timecode” to turn on or off this function
⑵、UMD
Display the source title. Set up the UMD under ‘UMD” submenu.
⑶、AFD（SDI）
User can set function keys F1～F4 as “AFD” to turn on or off this function. If no relevant
information is detected, it will be displayed as “AFD: UNLOCKED”.
⑷、Soft Tally
When connected with TALLY control devices and set TALLY port in GPI, the screen will display
soft TALLY signal, flashing in Red, Green or Yellow. Refer to “Main Menu—5. GPI”.
⑸、Audio
Monitor the audio information. User can set function Keys F1～F4 as “Audio” to turn on or off this
function
The relevant parameters like position, audio channels and blending, etc can be changed under
“Audio” submenu.
·Zoom-in and mapping
Set “Zoom-in” to function keys, and enable zoom-in mode, the OSD displays as above.
1、Zoom-in steps operation
Scroll the menu key up and down you can quickly zoom in the video by the following rates: 1.2x,
1.5x, 1.8x, 2.0x, 2.4x, 2.6x, 2.8x, 3.0x, without black waiting. The zoom-in indication window is
displayed on bottom right of the screen.
Press the menu key to switch to Left/Right mapping function, and press again to switch to Up/Down
mapping, and so on.
2、Left and Right mapping
Press Menu key, the button is highlighted. Scroll the Menu key up and down to move the video
left and right.
3、Up and Down mapping
Press Menu key again, the button is highlighted. Scroll the Menu key up and down to move the
video up and down.

4、Peaking precision adjust
Press Menu key again, the peaking precision number is highlighted. Scroll the Menu key up and
down to adjust the peaking focus assist precision from 0-9.
5、Mapping indication window
Under zoom-in mode, the mapping indication window is displayed on bottom right of the screen,
and indicates the zoom-in rate, up/down/left/right position.
Introduction of audio and video functions
16-ch embedded audio meters
Under 3G/HD/SD SDI, it displays 16 channels embedded audio meters. Under HDMI, it displays 8
channels embedded audio meters. The audio meter is green, and will turn yellow when audio
exceeds -20dB, and turn red when audio exceeds -9dB.
Audio alarm
If the embedded audio value is too low or no embedded audio, it will display “MUTE” or
“UNLOCKED” in the audio bar.
Time code（SDI）
Under SDI input, it can display the SMPTE time code (VITC1, VITC2 or LTC) on the top of the
screen, which is used extensively for synchronization, and for logging and identifying material in
recorded media. If no Time code information is detected, it will be displayed as “UNLOCKED”.
Internal Color Bar
Under SDI and HDMI input, it has 100% internal color bar which helps to analyze the monitor color
and adjust the display parameter.
User can set function Keys F1～F4 or GPI pins as “color bar” to turn on or off this function.
Peaking focus assist (red/blue switch)
The Peaking focus assist function is to mark the sharpest edges of the image with red or blue
color under SDI and HDMI input, for users to check if the subjects are focused.
User can set function Keys F1～F4 or GPI pins as “Focus Assist” to turn on or off this function
Zebra stripes
Zebra Stripes are used to check if the image is over exposed or not by showing black and white
lines on the monitor. It is considered over exposed when luminance value exceeds 90%.
User can set function Keys F1～F4 as “Zebra” to turn on or off this function.
Freeze Frame
The freeze frame is to capture and display the current broadcast frame.
User can set function Keys F1～F4 as “Freeze Frame” to turn on or off this function
R/G/B/Mono
R/G/B/Mono is to display only the blue/red/green primary signal or the luminance signal only so as
to monitor the image noise.
User can set function Keys F1～F4 as “R/G/B/Mono” to turn on or off this function.
False Color
The false color is used to aid in the setting of camera exposure. Under false color mode, there’s a
color chart on the bottom of screen for reference. The color from the dark to the bright will be
displayed as blue, cyan, green, yellow, orange and red in a consecutive way. User can set
function Keys F1～F4 as “False color” to turn on or off this function.
AFD（SDI）
It is the abbreviation of active format description. AFD is to display the SDI embedded AFD
information graphically on the screen.
H/V Delay (SDI)
Under SDI input, H/V Delay can be used to display line/field blanking signal, and to observe the
horizontal and vertical synchronous signal.

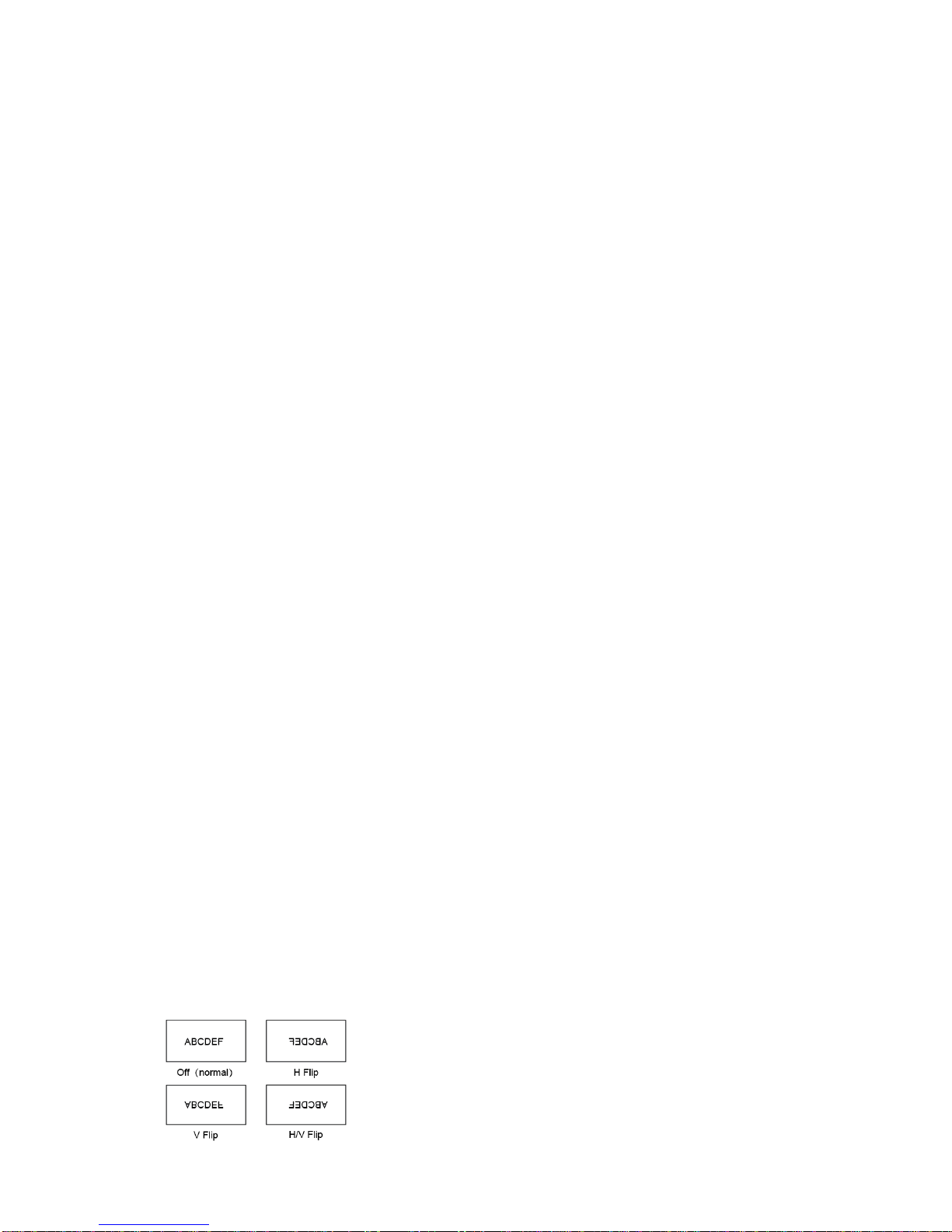

Image flip
Horizontal, vertical, horizontal and vertical two-way image flip function.

Main menu
S-1073H has OSD to adjust the parameters and settings, for example: Picture, color temp.,
function keys, etc.
1. Press “MENU” button, the main menu will popup from the left top of the screen. The selected main
menu highlights in yellow.
2. Revolve “MENU” to select submenu, the selected submenu highlights in yellow, press “MENU” to
apply and enter into the selected submenu’s items.
3. Revolve “MENU” to select the item which needed to adjust, press “MENU”, the selected item and its
parameters will be highlighted in yellow.
4. Revolve “MENU” to change the selected item’s parameter, press “MENU” to apply and save the
settings.
5. Revolve “MENU” to select “Exit”, press “MENU” to quit submenu. Select “Exit & Status” under the
Main Menu and press to quit Main Menu.
Notice:
＊The items in gray can not be set up.
＊If there is no operation under the set time, the menu will automatically save settings and quit.
＊If the key inhabit function is turned on, except key inhibit function, all other items are in grey. Please
turn off the key inhibit function to adjust the items.

Submenu introduction（the default values are marked with underline ）

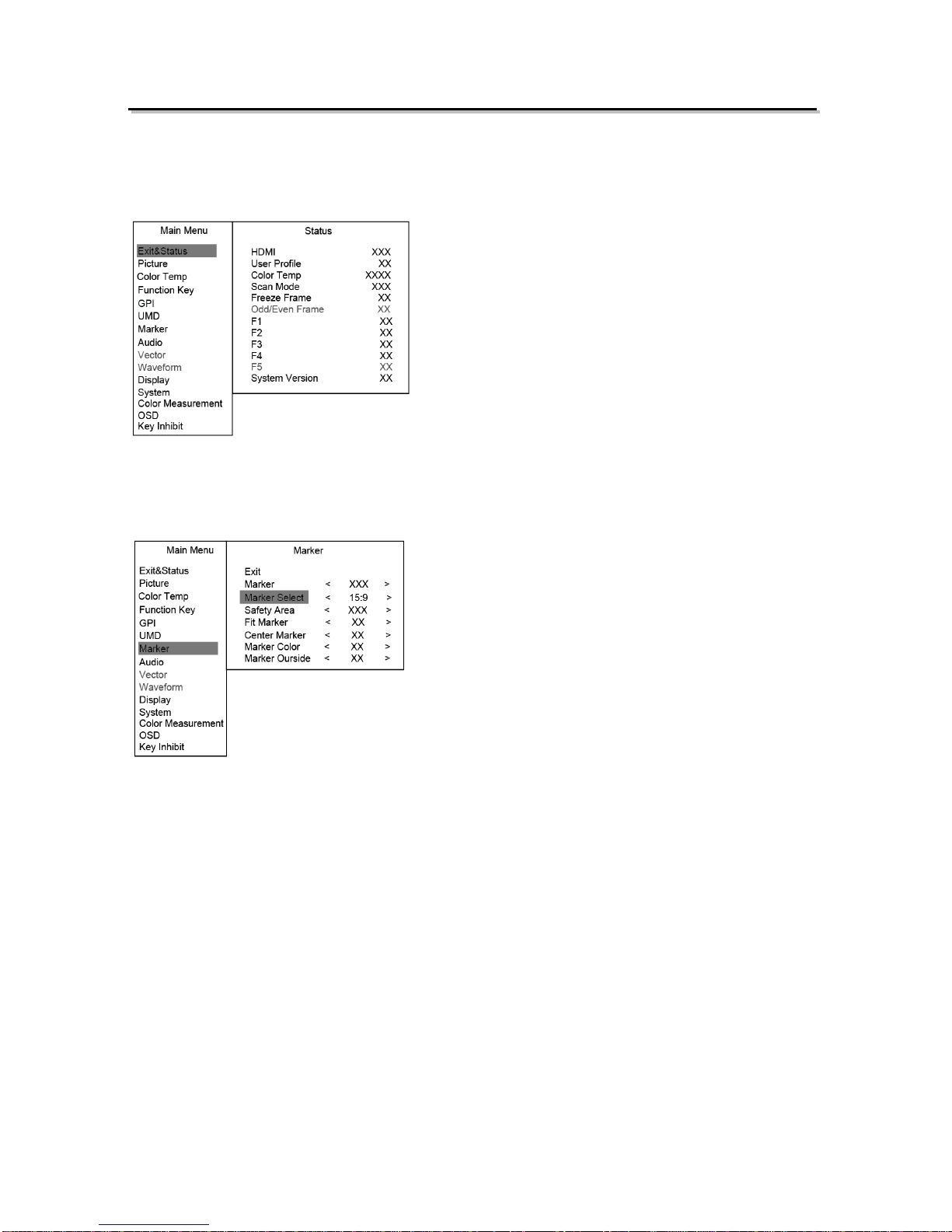

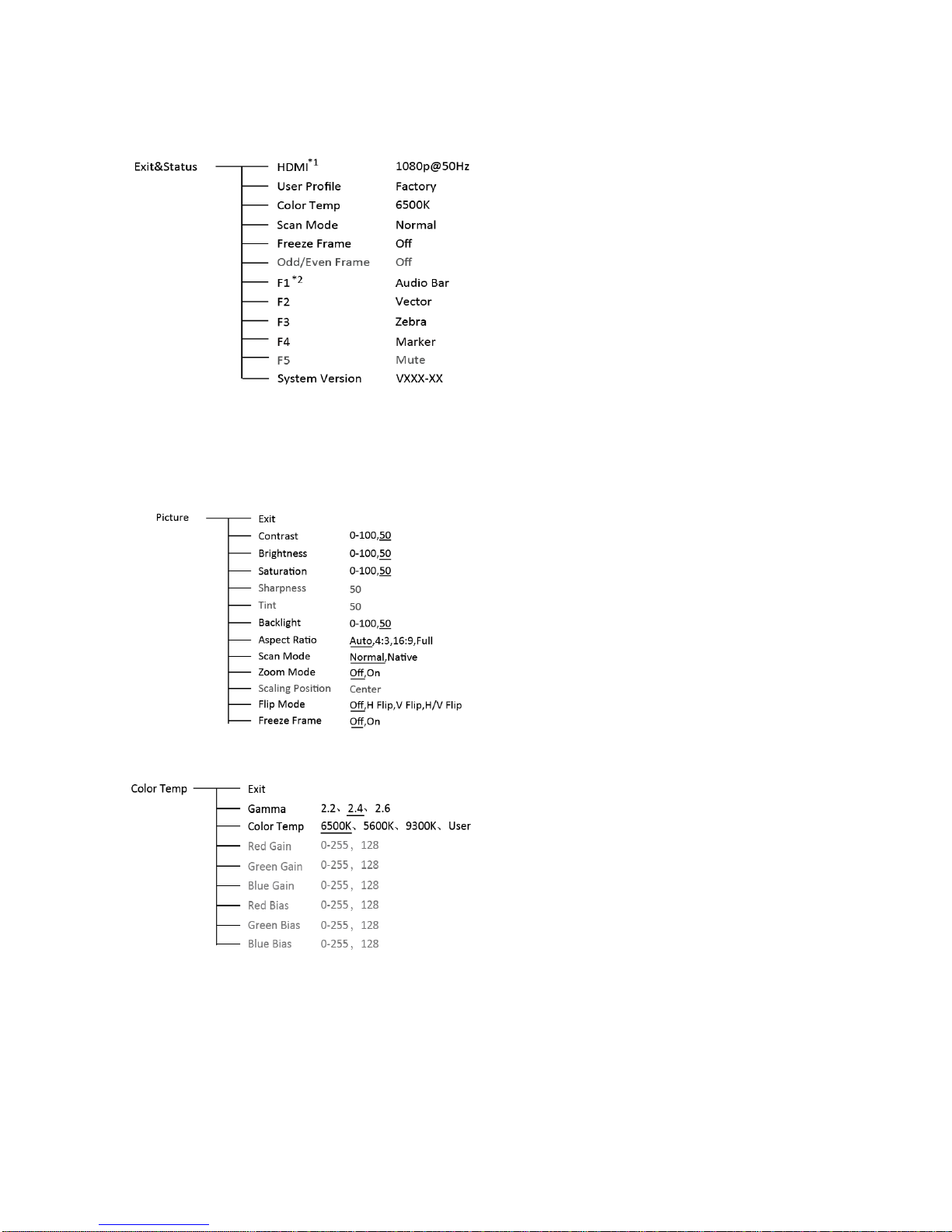

1. Exit & Status
Displays the current status, the details are as down below:
*1 Display the current video signal and format
*2 Display the current function keys setup
2. Picture
To adjust picture parameters
3. Color Temp
To select different color temperature or setup user-defined color parameters.
* Only “Color Temp” is set to “User”, the Red/Blue/Green Gain or Red/Blue/Green Bias can be
adjusted.

4. Function key
To define the F1～F4 function keys
*1 Function keys F1-F4 can be set as the down below functions:
Audio Bar, False Color,AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD,Audio Alarm, Max
backlight, Focus Assist,Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, Color
Temp, Time code, Zebra.
For example: Set F3 to “R/G/B/Mono” under “Function key” submenu. User can press F3 on the front
panel to adjust the parameters of “R/G/B/Mono”, and the “R/G/B/Mono” will change and follow the
sequence: Blue Only →Red Only →Green Only →Mono →Off.
5、GPI
User can set GPI pins 1-4 to relevant functions to turn on or off this function.
*1 When “GPI control” is set to “On”, the monitor can be operated through external GPI control unit.
*2 The GPI pins can be set to the down below functions:
Red Tally, Green Tally, Yellow Tally, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame,
Flip Mode, Color Temp, Time code, Zebra, Vector, Audio Bar, Histogram, False Color,AFD, H/V Delay,
R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Max backlight, Focus Assist.
When connecting the GPI pin with ground, the setted function will be turned on, and goes out
when disconnecting.
Example 1: Under “GPI ” submenu, set “GPI control” to “On”, set “2
Pin” to “Red Tally”, when the pin 2 of the extenal GPI control unit is
connected with ground, the Tally light will display on the front panel which
will flashes in red around every second. When disconnected, the monitor
will not display tally light information.
Example 2: Under “GPI ” submenu, set “GPI control” to “On”, set “4
Pin” to “Scan Mode”, when the pin 4 of the extenal GPI control unit is connected with ground, the Scan
mode will change and follow the sequence: “Normal” →”Overscan”→”Native” .

6、UMD
Set “UMD”:
⑴ Select “Source ID”
(2) The underline flashes as a reminder on the bottom of the first letter. Revolve "MENU" to select the
letters; the letter will follow the sequence of the down below if clockwise revolved:
(3) Press “MENU” to save the current settings letter and then start to set the next letter.
⑷Repeat step (2) and step (3), max 8 letters are supported.
⑸Press “Exit” to quit and save the settings.
7. Marker
*1 When “Fit Marker” is “Off”, the size of safety area is benchmarked against the actual display screen,
accounting for 80% ~ 95% of actual display screen. When “Fit Marker” is “On”, the size of safety area
is benchmarked against the area inside the scales marker, accounting for 80% ~ 95% of the area
inside the scales marker.
Example:

Aspect ratio: 4:3 Aspect ratio: 4:3
SafetyArea: 85% SafetyArea: 85%
Center Marker: On Center Marker: Off
Fit Marker: Off Fit Marker: On
8. Audio
*1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed.
When “Bar Frame” is set to “On”, frame and real-time audio value will be displayed.
*2 Select Channel
Under HDMI signal, channel1-2 can be selected.
Under SDI signal, channel 1-2, 1-8 and 1-16 can be selected.
*3 When “Audio Alarm” is set to “On”, if no embedded audio is detected, the audio bar will display
“UNLOCKED”. If the audio value is too low, the audio bar will display “MUTE”
*4 Audio channels can be selected to output according to the requirements.
When the current “Select Channel” is set to “Channel1-2”, the left channel and right channel
output can be selected from Channel1 or channel 2.
When the current “Select Channel” is set to “Channel1-8”, the left channel and right channel
output can be selected from Channel1 to channel 8.
When the current “Select Channel” is set to “Channel1-16”, the left channel and right channel
output can be selected from Channel1 to channel 16.
In audio bar, the left channel information will be in green, and the right channel information will be
in red.
Channel 1～2 Channel 1～8 Channel 1～16

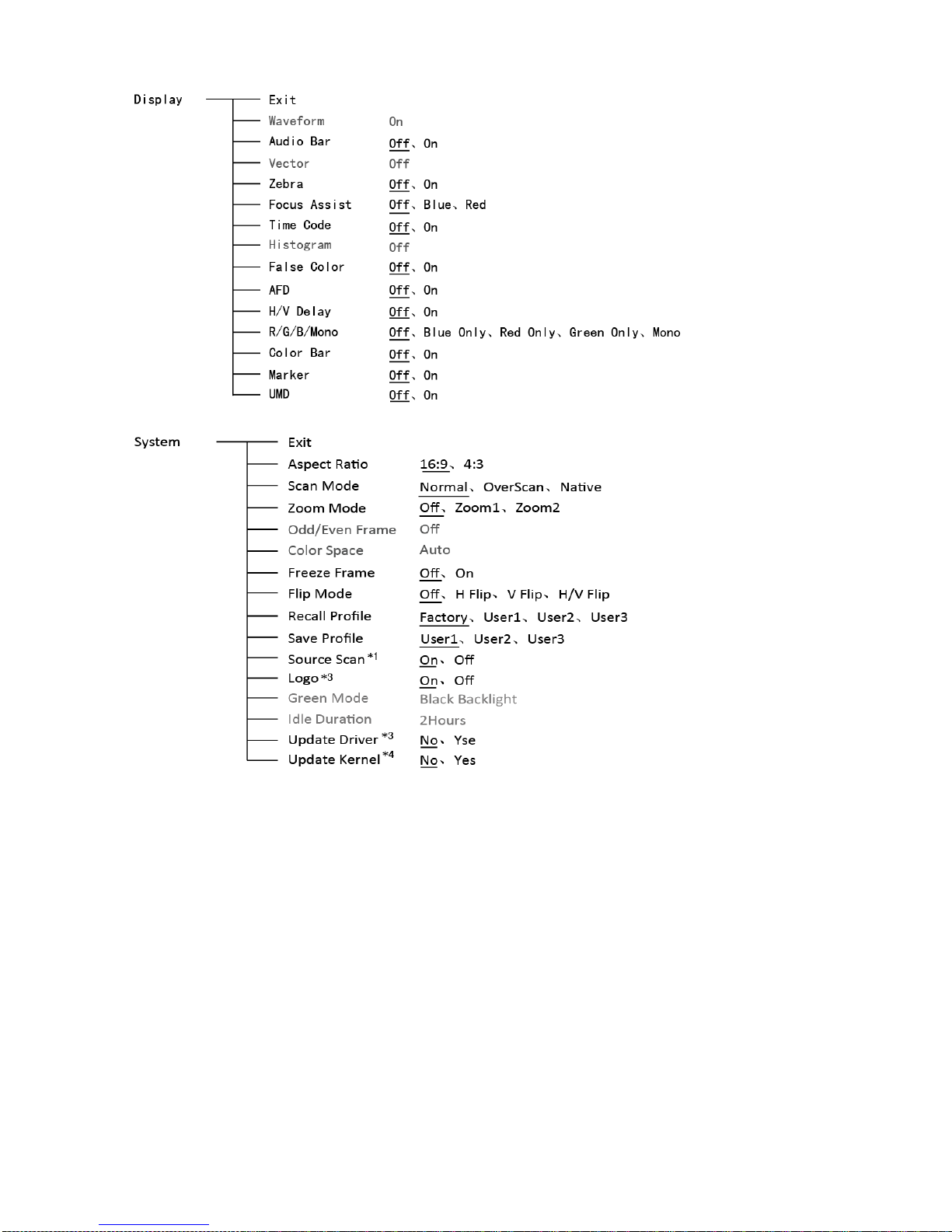

9. Display
10. System
*1 Source Scan
When set to “Yes”, after turn on the monitor, the signal will be inspected and follow the sequence
of “SDI1→SDI2→HDMI”
For example: if channel is selected to SDI1, SDI1-IN has no input, and HDMI has input. When turn
on the monitor, after automatic inspection, SDI1 has no recognized signal, and HDMI has recognized
signal, then the input signal will be HDMI.
When set to “No”, update model will not be supported.
*2 Logo
When powered on, the screen will display SWIT logo.
*3.*4Update Driver/ Kernel
⑴Open the power supply, plug the U disk with upgrading programma into the USB port on the
rear of the monitor；
⑵ Press “MENU” rotary knob, open the main menu, enter the “system” submenu, select
“Driver/Kernel”；
⑶ Set the parameter to “Yes”, and press “MENU” rotary knob to begin upgrading；

⑷While upgrading, there will be a prograss bar displaying on the screen (Note: Do not power off
when upgrading）；
⑸After upgraded, the monitor will automatically reboot.
11. Color Measurement
*1 Camera Log conversion
When shooting with Log mode of the camera, you can select the corresponding Log conversion LUT,
to convert the log mode video to standard ITU Rec.709 mode to monitor. A”User-Log”is provided for
user defined LUT converting to Rec.709.
*2 Color measurement
Set the Color measurement parameter to “On”before color calibration, make sure the parameter set to
“Off”after color calibration. When reboot, the Color measurement parameter automatically set to “Off”.
*3 Import 3DLUT cube file
⑴Use a color analysis instrument and calibration software, and set to 6500K, Gamma2.4 for
color calibration, this will generate a correct cube file (recommended Konica Minolta color analyzer
CA-310 and Spectracal CalMAN software);
⑵Rename the cube file to “3DLut.cube”(attention to the cap lettters) , and copy to USB stick;
⑶Insert USB stick to the rear panel of the monitor. Select Operate Menu –Color Measurement –
“Import”–“3DLut.cube”–“Yes”to import
⑷Import user needed Log Lut, User-log file and 1DLut by USB stick.
*4 Reset to factory cubes
For any wrong cubes imported that caused wrong display colors, you can reset the cubes to factory
cubes here.

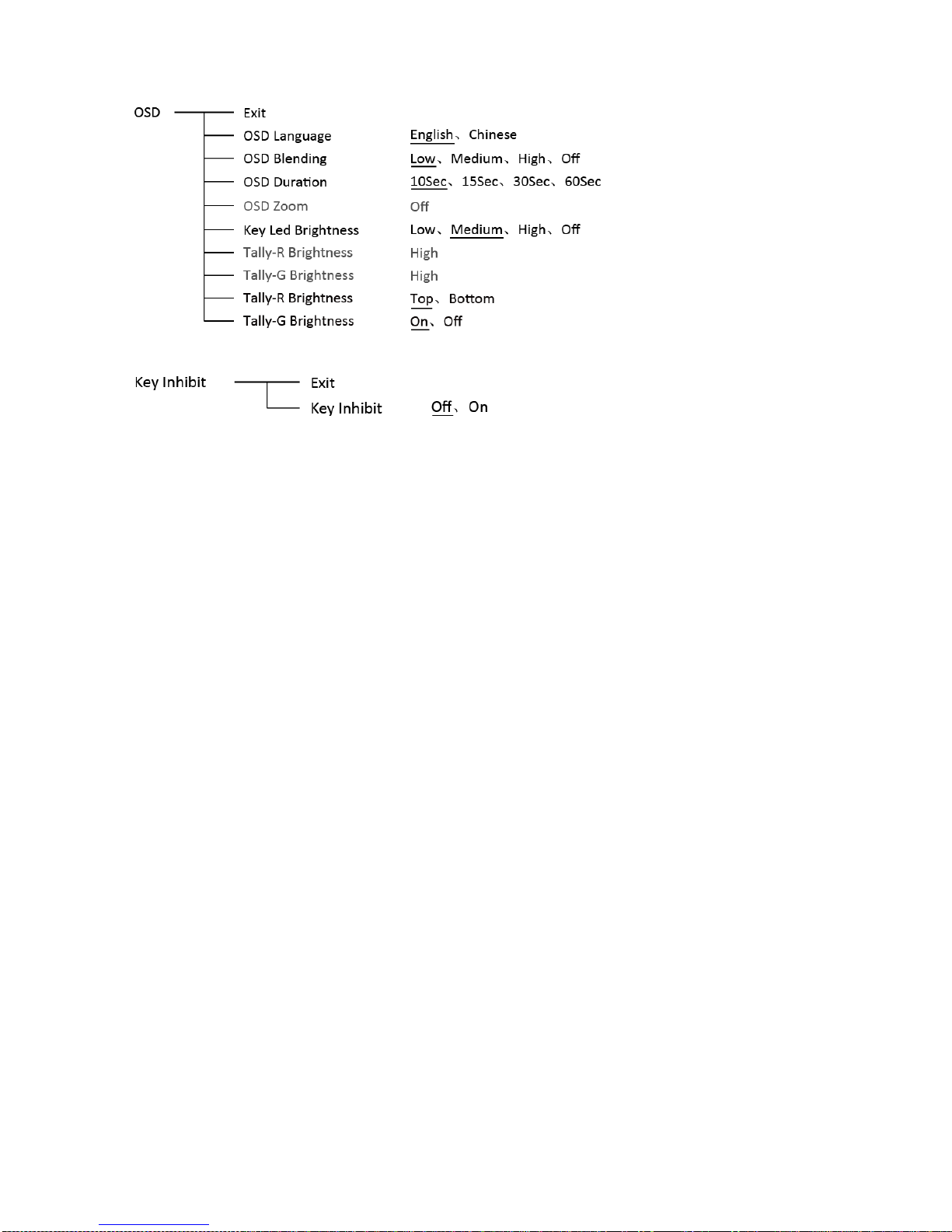

12. OSD
13. Key Inhibit
When the “Key inhibit” is set to “on”, there is no response when all the buttons except ” MENU” is
pressed, the sreen will be displayed as ” Key Inhibit”.
User can set “Key inhibit” to off under the “Key inhibit” submenu, restore the function of all keys.

Specification
LCD Performance
Size
7 inch
Display area
151.2×94.5 mm
Resolution
1920×RGB×1200
Color
8 bit
Aspect ratio
16:9∕4:3
Brightness
400 cd∕㎡
Contrast
1000:1
Viewing angle
Horizontal / Vertical: 160°∕160°
Input/Output
Input
HDMI×1
HDMI input
BNC×2
3G/HD/SD-SDI input
USB×1
Output
HDMI×1
HDMI loop output
BNC×1
3G/HD/SD-SDI loop output
3.5mm×1
SDI/HDMI embedded audio output
Video format
HDMI
480i／576i／480p／576p
1080i（60／59.94／50）
720p（60／59.94／50）
1080p（60／59.94／50／30／29.97／25／24／23.98）
1080psf（30／29.97／25／24／23.98）
4096X2160（60／50／30／25／24）
3840X2160（60／50／30／25／24）
SDI
SMPTE-425M-A/B
1080p（60／59.94／50）
SMPTE-274M
1080i（60／59.94／50）
1080p（30／29.97／25／24／23.98）
SMPTE-RP211
1080psf（30／29.97／25／24／23.98）
SMPTE-296M
720p（60／59.94／50）
SMPTE-125M
480i（59.94）
ITU-R BT.656
576i（50）
SMPTE-2048-2
2048×1080p（23.98／24／25／29.97／30／50／59.94／60）
2048×1080i（50／59.94／60）
General
Input voltage
DC∕Battery：6.5V～36V
Power consumption
9～13W
Working temperature
-10℃～+50℃
Working humidity
10%～90%
Storage temperature
﹣15℃～﹢60℃
Storage humidity
10%～90%
Dimensions
187×137×41mm
Net weight（main body）
500 g

Trouble-shooting
symptom
Possible causes
Solution
No display
The power is not turned on
Please check if the power is
connected, and then press ”POWER”
button to turn on the monitor
Unstable power voltage
Reconnect to power supply
BNC or HDMI cable loose contact or not
correctly connected
Check and correctly connect the BNC
or HDMI cable
The attached battery is no power
Change battery
Using DIY power supply but the polarity
is reversed
Refer to the provided power supply,
reconnect the power.
Image or color
abnormal
Bad contact of BNC or HDMI cable
Change cable
Video signal has Interference
Remove the interference source(s)
Improper adjustment of the color
parameters
Adjust the “Recall profile” to “Default”
under “System” submenu
Distortion of the image
Reset theAspect ratio
Set to Red/Green/Blue only or Mono
Turn the Blue only/ Red Only/ Green
Only/Mono off under R/G/B/Mono
submenu
Turn on the “Focus Assist” function
Turn off the “Focus Assist” function
Turn on the “False Color” function
Turn off the “False Color” function
Signal can not correctly recognize color
space, wrong set of HDMI color space.
Set to the correct color space mode
No audio
output
Set to Mute
Turn off MUTE or revolve
“MENU/ENTER” to adjust the volume
Bad contact of signal cable
Connect to the correct input socket
