SWIT S-1223H User manual

1
Model: S-1223H
21.5" Broadcast Studio LCD Monitor
User Manual
Ver: A.2
SWIT Electr
onics Co., Ltd.
Please read t is User Manual
t roug out before using.

2
Preface
1. All internal tec nologies of t is product are protected, including device, software and trademark.
Reproduction in w ole or in part wit out written permission is pro ibited.
2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and ot er relative
trademarks in t is user manual are t e property of t eir respective owners.
3. Due to constant effort of product development, SWIT reserves t e rig t to make c anges and
improvements to t e product described in t is manual wit out prior notice.
4. T e warranty period of t is product is 2 years, and does not cover t e following:
P ysical damage to t e surface of t e products, including scratc es, cracks or o ⑴ t er damage to
t e LCD screen or ot er externally exposed parts;
T e LCD dot defects are not over t ree; ⑵
Any damage caused by using t ird ⑶ -party power adaptors;
Any damage or breakdown caused by use, maintenance or storage not according to t e user ⑷
manual;
T e product is disassembled by anyone ot er t an an aut orized service center; ⑸
Any damage or breakdown not caused by t e product design, workmans ip, or manufacturing ⑹
quality, etc;
＊ Any sales personnel ave no rig ts to provide additional warranty.
5. For any suggestions and requirements on t is product, please contact us t roug p one, fax,
Email, etc.
SWIT Electronics Co., Ltd.
Address: 10 Hengtong Road, Nanjing Economic and Tec nological Development Zone,
Nanjing 210038, P.R. C ina
P one: [phone]
Fax: [phone]
Email: [e-mail]
Website: ttp://www.swit.cc

3
Maintenance
Warning
1. In order to reduce t e risk of fire and electrical s ock, do not lay t is product in rain or damp
places.
2. Please keep away from t e strong magnetic field; it may cause t e noise of t e video and audio
signals.
The power
1. Please use t e power adapter provided or recommended by t e manufacturer in order to avoid
damage.
2. For a t ird party power adapter, please make sure t e voltage range, supplied power, and
polarity of power lead are fit.
3. Please disconnect t e power cable under t e following situations:
(A). If you do not operate t is monitor for a period of time;
(B). If t e power cable or power adaptor is damaged;
(C). If t e monitor ousing is broken.
The monitor
1. Please don't touc t e screen wit your fingers, w ic would probably deface t e screen.
2. Please don't press t e screen; t e LCD is extremely exquisite and flimsy.
3. Please don't lay t is product on unstable place.
Cleaning
1. Please clean t e screen wit dry and downy clot or special LCD cleanser.
2. Please do not press ard w en cleaning t e screen.
3. Please do not use water or ot er c emical cleanser to clean t e screen. T e c emical may
damage t e LCD.

4
Contents
Preface ..................................................................................................................................................... 2
Maintenace .............................................................................................................................................. 3
Contents ................................................................................................................................................... 4
Packing List ............................................................................................................................................. 4
Introduction .............................................................................................................................................. 4
Installation Dimensions ............................................................................................................................ 5
Operation Instructions ............................................................................................................................. 6
Front Panel ........................................................................................................................................... 6
OSD ...................................................................................................................................................... 7
Rear Panel ........................................................................................................................................... 9
Main Menu ............................................................................................................................................. 10
Specification ........................................................................................................................................... 17
Trouble-S ooting ................................................................................................................................... 18
Packing List
Standard Package:
1. Battery plate (V-mount or Gold mount option)
2. Desktop Stand Feet
3. Power adaptor + power cable
Introduction
S-1223H adopts FFS LCD panel, wit resolution 1920×1080 and wide viewing angle H178°⁄V178°.
It supports 2 x 3GSDI (Level A/B), 1 x HDMI, 1 x CVBS, 1 x Y/Pb/Pr, 1 x VGA and 1 x analog audio
input. It also supports 2 x 3GSDI, 1 x HDMI, 1 x CVBS and 1 x analog audio loop t roug output.
Features:
 Support multiple Aspect Ratio and scan modes
 Support multiple Marker selection (Marker, Safety Area)
 Powerful audio and video analysis functions
 Support multiple functions user-defined (Source ID, function keys, GPI)
 Multiple power supply met ods to meet different requirements
 TSL UMD (RS485&RS232) ,Tally, GPI Control
 USB firmware upgrade
 Support 2K display
 Support green energy saving mode

5
Installation imension
T e main body (in mm)
Wit desktop stand feet (in mm)
For optional purchase
Item Name Item Model
V-mount battery plate S-7004S
Gold-mount battery plate S-7004A
1. Battery plate
Installation
1. Take off t e rub cover on t e rear panel; see Fig (1).
2. Insert t e DC cable of S-7004S/A into t e ole, and
plug onto t e power socket inside t e ole; see Fig (2).
3. Fix t e battery plate onto t e rear panel by t e supplied
screws; see Fig (3).
S-7004S S-7004A
Fig (1) Fig (2) Fig (3)

6
Operation Instructions
·Front Panel
(1) Desktop Stand Feet
(2) Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earp one
is plugged in)
(3) Illuminated Pus Button
SDI1: Press “SDI1” to switc to SDI input 1
SDI2: Press “SDI2” to switc to SDI input 2
HDMI: Press “HDMI” to switc to HDMI input
ANALOG: Press “ANALOG” to select from CVBS, VGA, Y/ Pb / Pr signal
F1 ～ F5: User definable function keys; please see details in “4.Function Key” under “Main Menu”.
For example: Set F1 as “Histogram”, press F1 to open Histogram function and press again to close
t is function.
DISPLAY: Press “DISPLAY” to turn on or turn off relevant status information, audio and video
waveform.
Press “DISPLAY” to release one key quit t e menu w en Menu is opened.
(4) Rotary Knob
MENU/ENTER: W en t e menu is inactivated, press “MENU/ENTE” to turn on t e main menu
Revolve “MENU/ENTER” to adjust settings or parameters, and press to apply
W en t e menu is inactivated, revolve “MENU/ENTER” to adjust t e sound volume
BRIGHT: 0-100 value adjustment and t e default value is 50
CONTRAST: 0-100 value adjustment and t e default value is 50
SATURATIO: 0-100 value adjustment and t e default value is 50
POWER: Power on/off
⑸
PHONE ⑹ : 3.5mm earp one socket, for SDI/HDMI embedded audio and analog audio monitoring.
⑺ TALLY Lig t: Red, Green and Yellow 3-color TALLY indicator

7
·OS
Time ⑴ code （ SDI ）
Under SDI input, it can display Timecode. If no Time code information is detected, it will be
displayed as “TC UNLOCKED”.
User can set function keys F1 ～ F5 or GPI pins as “Time code” to turn on or off t is function.
UMD ⑵
Set up t e UMD under “UMD” submenu.
⑶ AFD (SDI)
User can set function keys F1 ～ F5 or GPI pins as “AFD” to turn on or off t is function. If no
relevant information is detected, it will be displayed as “AFD: UNLOCKED”.

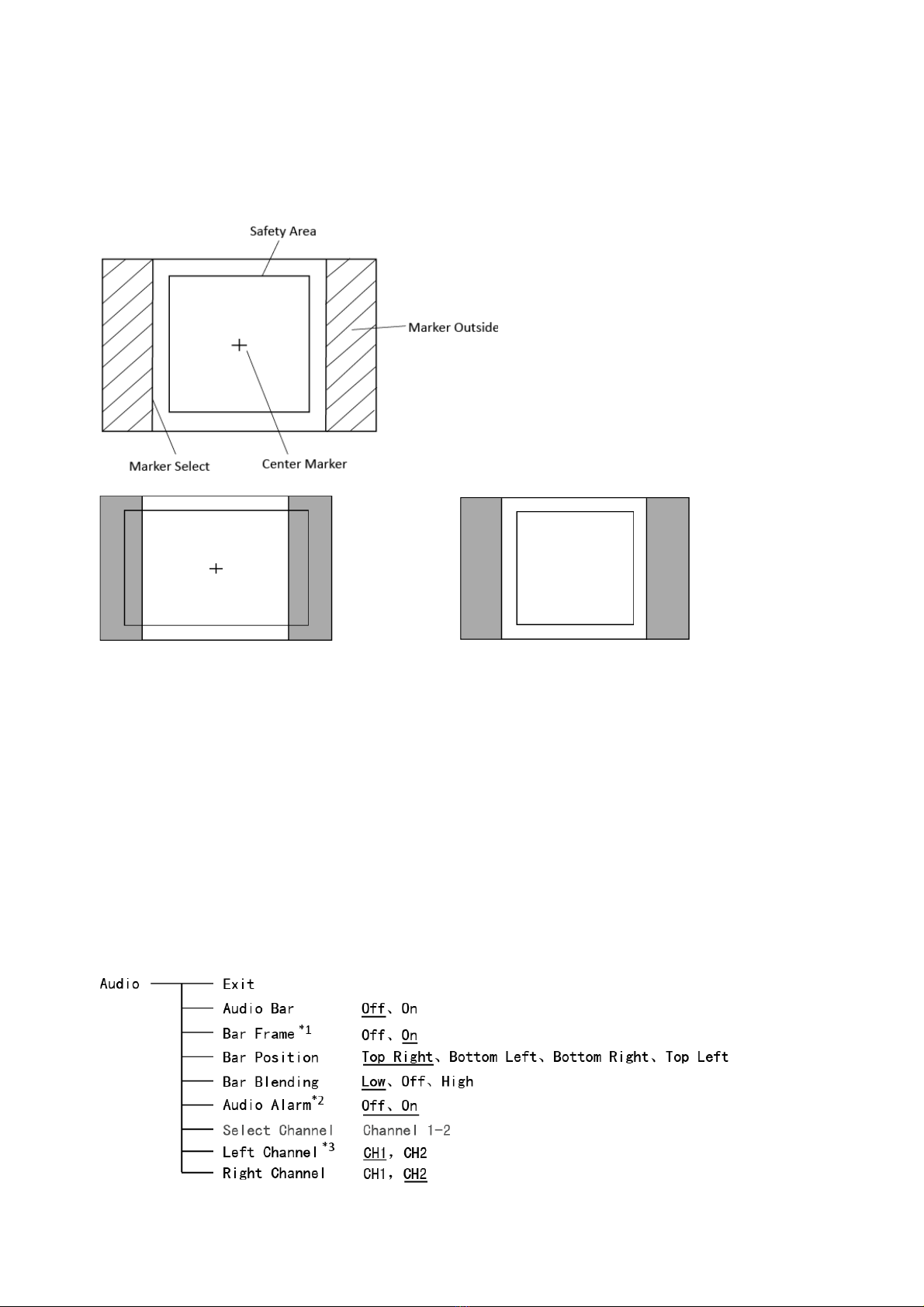

Audio ⑷ Bar
Monitor t e audio information. T e relevant parameters like position, audio c annels and blending,
etc. can be c anged under “Audio Bar” submenu.
User can set function Keys F1 ～ F5 or GPI pins as “Audio Bar” to turn on or off t is function.
Introduction of audio and video functions
 2-ch embedded audio meters
Under 3G/HD/SD-SDI, HDMI and CVBS (CVBS, VGA, YPbPr), it displays 2 c annels embedded
audio meters. T e audio meter is green, and will turn yellow w en audio exceeds -20dB, and turn red
w en audio exceeds -9dB.
 Audio alarm
If t e embedded audio value is too low or no embedded audio, it will display “MUTE” or
“UNLOCKED” in t e audio bar.
 Time code （
（（
（ S I ）
））
）
Under SDI input, it can display t e SMPTE time code (VITC1, VITC2 or LTC) on t e top of t e
screen, w ic is used extensively for sync ronization, and for logging and identifying material in
recorded media. If no Timecode information is detected, it will be displayed as “TC UNLOCKED”.
 Internal Color Bar
Under SDI and HDMI input, it as 100% internal color bar w ic elps analyze t e monitor color
and adjust t e display parameter.
User can set function Keys F1
～ F5 or GPI pins as “color bar” to turn on or off t is function.
 Peaking focus assist (red/blue switch)
T e Peaking focus assist function is to mark t e s arpest edges of t e image wit red or blue

8
color under SDI and HDMI input, for users to c eck if t e subjects are focused.
User can set function Keys F1 ～ F5 or GPI pins as “Focus Assist” to turn on or off t is function.
 Zebra stripes
Zebra Stripes are used to c eck if t e image is over exposed or not by s owing black and w ite
lines on t e monitor. It is considered over exposed w en luminance value exceeds 90%.
User can set function Keys F1 ～ F5 or GPI pins as “Zebra” to turn on or off t is function.
 Freeze Frame
T e freeze frame is to capture and display t e current broadcast frame.
User can set function Keys F1 ～ F5 or GPI pins as “Freeze Frame” to turn on or off t is function.
 R/G/B/Mono
R/G/B/Mono is to display only t e blue/red/green primary signal or t e luminance signal only so as
to monitor t e image noise.
User can set function Keys F1 ～ F5 or GPI pins as “R/G/B/Mono” to turn on or off t is function.
 False Color
T e false color is used to aid in t e setting of camera exposure. Under false color mode, t ere’s a
color c art on t e bottom of screen for reference. T e color from t e dark to t e brig t will be displayed
as blue, cyan, green, yellow, orange and red in a consecutive way. User can set function Keys F1 ～ F5
or GPI pins as “False color” to turn on or off t is function.
 AF （
（（
（ S I ）
））
）
It is t e abbreviation of active format description. AFD is to display t e SDI embedded AFD
information grap ically on t e screen.
 H/V elay （
（（
（ S I ）
））
）
Under SDI input, H/V Delay can be used to display line/field blanking signal, and to observe t e
orizontal and vertical sync ronous signal.
 UM
W en using external control unit, it can display t e video source ID and tally information on t e
screen.
 Image Flip
Horizontal, vertical, orizontal and vertical two-way image flip function.

9
·Rear Panel
⑴ Handle
⑵ DC IN 11V-17V BACK UP: Back up power input, connect wit DC11V ～ 17V 4-pin XLR power
adapter. (Pin 1: Negative, Pin 4: Positive)
⑶ DC IN 11V-17V MAIN: Main power input, connect wit DC11V ～ 17V 4-pin XLR power adapter. (Pin
1: Negative, Pin 4: Positive)
⑷ Reserved battery plate power socket: Take off t e rub cover; connect V-mount or Gold mount
battery plate to t e power socket.
⑸ Power adaptor
⑹ VESA Mount: Standard 10×10cm VESA desktop stand installation
⑺ 1U plastic bump: Protect t e BNC sockets on t e rear panel
⑻ Socket1
RS-485 (IN, OUT): TSL UMD control port

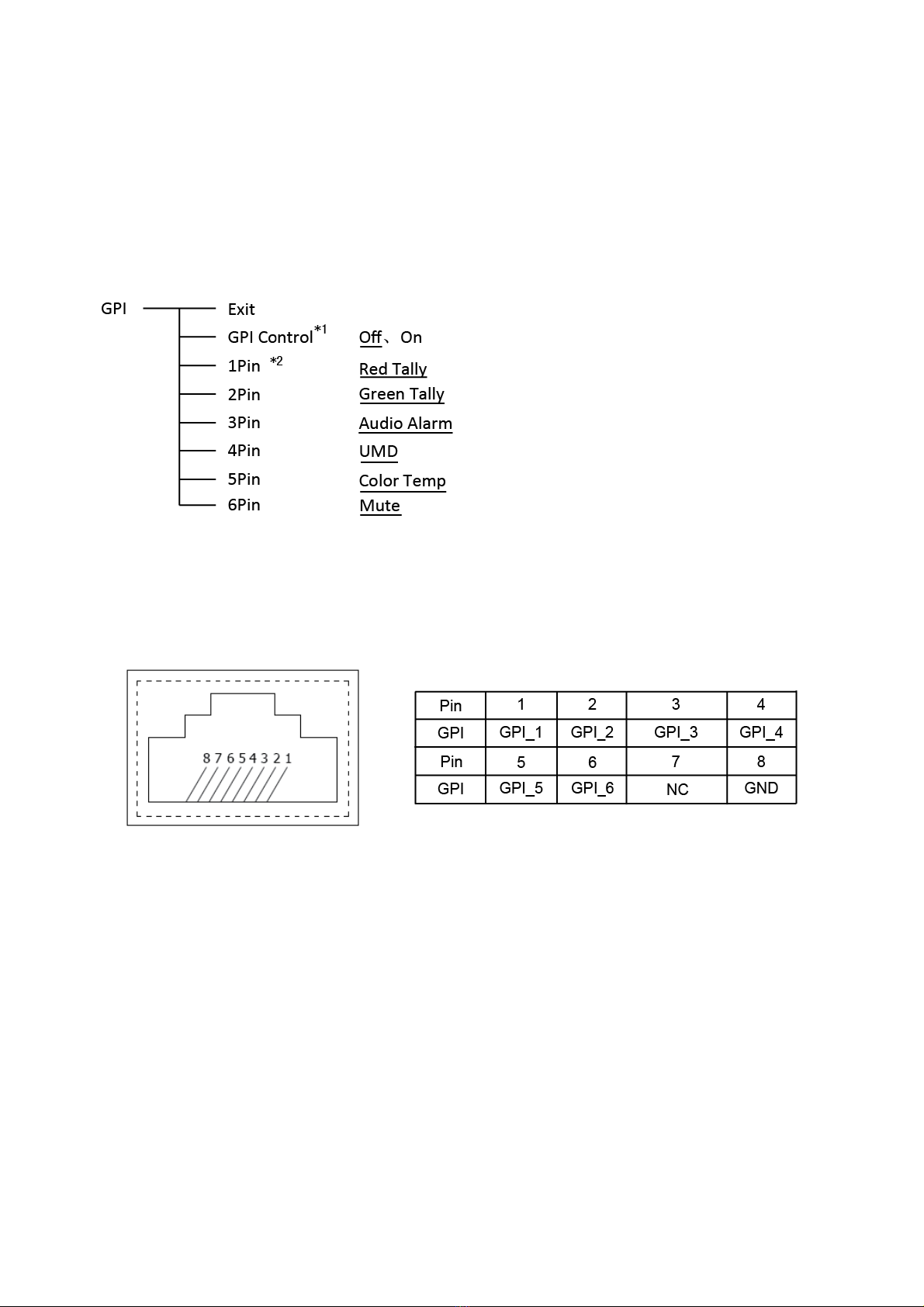

GPI: GPI control port
Y/Pb/Pr: Y/Pb/Pr input
CVBS-IN: CVBS input (BNC connector)
CVBS-OUT: VBS output (BNC connector)
⑼ Socket 2
RS-232C: TSL UMD control port
VGA-IN: VGA input
HDMI (IN, OUT): HDMI input/output (HDMI-A connector)
SDI-IN1: SDI input (BNC connector)
SDI-OUT1: SDI loop t roug output from SDI-IN1 (BNC connector)
SDI-IN2: SDI input (BNC connector)
SDI-OUT2: SDI loop t roug output from SDI-IN2 (BNC connector)
AUDIO-L: Left c annel audio signal input (3.5mm RCA)
AUDIO-R: Rig t c annel audio signal input (3.5mm RCA)
⑽ USB socket

10
Main Menu
S-1223H as OSD to adjust t e parameters and settings, for example: Picture, color temp.,
function keys, etc.
1. Press “MENU/ENTER” button, t e main menu will popup from t e left top of t e screen. T e
selected main menu ig lig ts in yellow.
2. Revolve “MENU/ENTER” to select submenu, t e selected submenu ig lig ts in yellow, press
“MENU/ENTER” to apply and enter into t e selected submenu’s items.
3. Revolve “MENU/ENTER” to select t e item w ic needed to adjust, press “MENU/ENTER”, t e
selected item and its parameters will be ig lig ted in yellow.
4. Revolve “MENU/ENTER” to c ange t e selected item’s parameter, press “MENU/ENTER” to apply
and save t e settings.
5 Revolve “MENU/ENTER” to select “Exit”, press “MENU/ENTER” to quit submenu. Select “Exit &
Status” under t e Main Menu and press to quit Main Menu.
Notice:
＊ T e items in gray can not be set up.
＊ If t ere is no operation under t e setted time, t e menu will automatically save settings and quit.
＊ If t e key in abit function is turned on, except key in ibit function, all ot er items are in grey. Please
turn off t e key in ibit function to adjust t e items.
