SWIT BM-215NDI User manual

Statement Any internal technology (including hardware equipment, software design and product trademark) of the product shall be protected by law, and any infringement of intellectual property rights of the product shall be investigated for legal liability。All the brand and trademark in this product are protected by law,all other company’s brand and trademark in this product are protected by their owner’s law. In order to better service majority users,SWIT products will keep improving and developing,SWIT keep the right to revise and improve this user manual without previous notice. The warranty period of this product are two years,the following condition are not covered by the warranty: ⑴ The appearance and the LCD panel are damaged by man-made out force;⑵ The amount of defective pixels are under three;⑶ The product is damaged by using incompatible power adaptor;⑷ The product is damaged by failure to use, maintain or storage according to the user manual.;⑸ The product is disassembled by user in the process of using;⑹Other faults or damages not caused by design ,technology,manufacture and quality.*Any sales person have no right to provide extra warranty beyond these terms. Please feel free to contact with us by phone,fax or email when you have any question or need any help in the process of using. ⸻ This user manual applies to all BM-NDI model monitor,all the illustration take BM-215-NDI for example,any difference of specification or appearance,this manual will be attached text explanation;⸻ The function with mark ”#” in this user manual have not been realized yet.SWIT Electronics Co., Ltd.Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone, Nanjing 210038, P.R.ChinaPhone: +86-25-85805753Fax: +86-25-85805296Email: cont[email protected]http://www.swit.cc02

AttentionWarning1. Do not put the monitor in rainy or wet environment to avoid the dangerous of fire or electric shock;2. Do not put the monitor close to any device with high-intensity magnetic. Warning of power connection1. Please using original power adaptor to avoid damage;2. When using other DC power ,make sure the range of voltage,output power and polarity of it meet requirements;3. Please cut off the power including AC power cable or battery under below conditions: (A)、If the monitor will not be used for a long time. (B)、If the power cable or power socket is damaged.。(C)、If the housing of the monitor is broken by out-force or falling. Warning of using 1. Do not touch the surface of screen directly to avoid damage,also the fingerprint on the screen will be hard to clean. 2. Do not put pressure on the LCD screen because LCD screen is fragile;3. Do not put the monitor on anywhere unstable to avoid falling.Maintenance and cleaning1. Use soft dry cloth and LCD screen clean liquid to clean the dust and stain on the screen. 2. Do not put pressure on LCD screen when doing cleaning. 3. Do not clean the LCD screen by water or other chemical liquid to avoid damage. 03

OverviewThe resolution of BM-NDI series LCD monitor is up to 1920*1080, H178°/ V178° super wide angle of view,support 2* 3G/HD/SD-SDI input 、1* HDMI 2.0 input and 1* NDI input,1* 3G/HD/SD-SDI loop out、1* NDI to SDI loop out,1* 3.5mm jack input and speaker. Features: 1920×1080 HD resolution;Support NDI signal input、multi signal source input;Support 16 channel embedded audio bar,any of two channel can be chosen to output;Waveform Y/Cb/Cr/R/G/B/RGB, support single line waveform;Support vector scope、R/G/B/Y histogram、red/blue focus assist;Support 3DLUT(17x17x17)Auto self-calibration;Support TSL UMD and text TALLY(TSL 3.1/4.0);Safety Marker:4:3/13:9/14:9/15:9/16:9/1.85:1/2.35:1/2.39:1/2:1/User 1/User 2;Support USB firmware update and LOG file uploading(The format of USB driver should be FAT 32);Support Green mode. Packing listStandard accessoriesMonitorBattery plate(V-mount or Gold-mount)Monitor standPower cableQuantities
X
1
X
1
X
2
X
1No.123404Table of contentsStatement Attention Table of contentsPacking listProduct featureInstruction Front panel view Back side view OSDStatusOperation The menu contentDimensionSpecificationTroubleshoot23444557891010181922

05Instruction·Front panel view(1) Tally light:Can be set to red, green and yellow;(2) Speaker:Can play embedded audio of HDMI、SDI and NDI.(Speaker will not work when earphone is connecting);(3) Desktop stand feet ;(4) User1~User4:In order to quickly enter in the mode which was preset already .Hold the shortcut button to save current user setting.Specific please see “The menu content-Ⅷ. System” ;(5) INFO:Press ”INFO” to remove or recover all current function in display like status information and A/V analyzed pattern;Press “INFO” to exit menu when the menu is on;(6) F1~F5 Function key:User can set these function key to different function according to their requirement;(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)

06(8) Menu/Enter:When menu is off,press the button directly to open the Main Menu;rotate “MENU” to choose different setting selection or adjust the value;press the knob to confirm the setting;(9) LUT/Firmware:Firmware update or LUT file upload;(10)PHONE:3.5mm jack input,monitor embedded SDI and HDMI audio signal;(11)Power:power switch.(7)Brightness Contrast Saturation
Backlight Volume Source Brightness:Brightness control,Range:-100~100,Default value:0Contrast:Contrast control,Range:-100~100,Default value: 0Saturation:Saturation control,Range:-100~100,Default value:0Backlight:Backlight control,Range:0~100,Default value:16Volume:Volume control,Range:0~100,Default value:36Source:Input signal source selectionPress “Brightness”、”Contrast”、”Saturation、Backlight”、”Volume” on the front panel to choose corresponding functions,turn “MENU” knob left and right to control the corresponding value。If no operation is performed within 5 seconds,the selection will automatically cancelled,the button light will off;long press to recover to default value;long press the “VOLUME” button to enter in mute mode.“NDI Source” and “NDI setting” in the menu is to choose the input source under NDI channel,here are the details:1. NDI Source:Detect and show all NDI device and all NDI signal name of NDI device in the same network,turn “MENU & ENTER” to change different signal source. 2. NDI Setting:Set the IP address of secondary network device of monitor to be able to detect secondary device and the signal source.

07·Back side view(1)SDI IN1/2: 3G-SDI (2)NDI-SDI loop out:3G-SDI(3)SDI loop out:3G-SDI(4)NDI IN:12G /3G-SDI(5)HDMI 2.0 IN:The DHCP protected content is not displayed(6)Reset: Formatting button Instruction(Do not do this without SWIT permission):1. Switch off monitor;2. Touch and keep pressing the small button with suitable tool (Do not release it when switch on monitor);3. Switch on monitor with “POWER” button,Tally light will show red light (release the reset button after tally light shows red light);4. Wait for 5~10s,Tally light shows green;5. Reboot monitor to finish resetting. (7) RS485 #:TSL UMD control port(8) GPI #:GPI control port(9) Fan(10)DC IN:12V~17V(11)AC IN:100V~240V(12)Battery plate:Support V-mount battery or Gold-mount battery(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)(12)

⑴ Time code(SDI)Display the information of time code which is embedded in SDI signal(LTC,VITC1&2),moni-tor will show “TC:UNLOCKED” if no time code information is detected.User can set shortcut key(F1~F5) or GPI pin to “time code” function,in order to quickly switch on/off this function.⑵ On screen TALLYThe tally signal is controlled by GPI. ⑶ Source ID/UMDDisplay/UMD(TSL3.1/4.0),user can set in the UMD menu. ⑷ Lissajous patternLissajous pattern will show audio signal,user can set shortcut key(F1~F5) or GPI pin to “Lissajous pattern” function,in order to quickly switch on/off this function. ⑸ WaveformUser can switch on/off “Waveform” function or choose different type of waveform by setting shortcut key(F1~F5) or GPI pin to “Waveform” function on the front panel.The parameters such as on-screen-position,transparency and color of “waveform” can be set in MENU. ⑹ Vector scopeUser can switch on/off “Vector scope” function by setting shortcut key(F1~F5) or GPI pin to “Vector scope” on the front panel.The parameters such as on-screen-position,transparency and color of “Vector scope” can be set in MENU. ⑺ Audio meterIn order to monitor audio signal,User can switch on/off “Audio meter” function by setting shortcut key(F1~F5) or GPI pin to “Audio meter” function on the front panel. The parameters such as on-screen-position, transparency and numbers of audio channel of “Audio meter” can 08·OSDin phase
LR
TC 00:15:13:07
CAMERA (1)
(2)
(3)(4)(5)(6)(7)(8)

09Status be set in MENU. ⑻ HistogramUser can switch on/off “Histogram” function by setting shortcut key(F1~F5) or GPI pin to “Histogram” function on the front panel. (1)(6)(5)(7)(8)(4)(3)(2)
Main MenuExit&Status >Input >Picture > Color Management >Scanning >Control >Assist >De-embed >Auto Calibration >NDI Source >NDI Settings > Multiview Setting >
StatusFormatChannelColor TempF1F2F3F4F5Loaded ProfileNetworkVersion XXHost Name XX XX XX XXXXXXXXXXXXXXXXX XX XXPress “Menu/Enter”,the menu will show in the top left corner of screen,“Exit & status” will show current working status of monitor. ⑴ FormatShow current input signal format;Will show “NO SIGNAL” when there is no recognizable input signal”.Will show the format of current SDI source when the input source is SDI. ⑵ Channel Show current chosen input source.⑶ Color temp Show current color temperature. ⑷ Function Key F1~F5 Show the function of Key F1~F5. (5) Loaded Profile Show current user mode.(6) Network Show the connection status of Internet. (7)Version Show version of current firmware .(8)Host name Show the model of this monitor.

10OperationThe menu contentSteps1、Press “Menu/Enter” knob,the menu will show on top left corner of screen.2、Turn “Menu/Enter” left and right to choose different sub-menu,the chosen one will show yellow backlight,press“Menu/Enter” knob to set the corresponding parameter. 3、Turn “Menu/Enter” knob left and right to set corresponding parameter,press “Menu/Enter”knob, the chosen one will show yellow backlight. 4、Turn “Menu/Enter” knob left and right to set corresponding parameter,press “Menu/Enter” knob to save the setting after finish adjustment.5、Turn “Menu/Enter” knob to choose “EXIT”,press “Menu/Enter” knob,exit the sub menu,choose “EXIT & STATUS” in the main menu,press “Menu/Enter” knob to exit main menu.Attention* The options which shown grey can not be set. * The menu will save and exit automatically when no operation is performed within a period of time. “The menu content” will introduce the specific contents of setting in menu and sub-menu,the menu option which is noted with “ * ” will be explained in detail under the list. Ⅰ、Input—Set the color of input video Menu optionInput range *1YUV Color MatrixRed GainGreen GainBlue GainRed Bias Green BiasBlue Bias ResetInstructionSet the input range of videoChoose YUV Color MatrixAdjust the value of Red GainAdjust the value of Green Gain Adjust the value of Blue Gain Adjust the value of Red Bias Adjust the value of Green Bias Adjust the value of Blue Bias Reset the value of Gain and Bias The range of value0-1023,4-1019,64-940,64-1023Auto,BT.601,BT.709,BT.2020-100 ~ +100-100 ~ +100-100 ~ +100-100 ~ +100-100 ~ +100-100 ~ +100/*1 Input rangeSet the input range to compatible with input video signal,the default input range is 64-940 which is compatible with broadcast application program. Ⅱ、Picture *1—Set the display of input video Menu optionContrastBrightnessSaturationSharpnessBacklightInstructionAdjust the contrast of videoAdjust the brightness of videoAdjust the saturation of videoAdjust the sharpness of videoAdjust the backlight of videoThe range of value-100 ~ +100-100 ~ +100-100 ~ +1000 ~ +1000 ~ +100

11*1 PictureThe value of “Contrast”,“Brightness”,“Saturation”,“Sharpness” and “Backlight” can be quickly adjusted by the shortcut key on the front panel. Menu optionColor Gamut *1GammaInstructionSet the Color GamutSet the value of Gamma
The range of value
LCD Panel,DCI-P3,Rec.709,Rec.20201.0,1.8,2.2,2.4,2.6,PQ1000,HLG1000,S-Log3
These option will only show underthe valueof specificColor Gamut and Gamma
HLG System Gamma *2D-Log to 709 *3D-Log to PQSet HLG System Gamma
Set the camera LUT when Color
Gamut is Rec 709. Set the camera LUT when Color Gamut is Rec.2020,Gamma is PQ1000Set the camera LUT when Color Gamut is Rec.2020,Gamma is HLG10001.0,1.1,1.2(default),1.3,1.4,1.5OFF,J-Log1,Log-C,S-Log2,C-Log,V-Log,RedLogFilm,S-Log3,User-LogOFF,ARRI_LogC_PQ,Canon_CLog2Cin_PQCanon_CLog3Cin_PQ,Panasonic_VLog_PQ,RED_L3G10_PQ,Sony_SLog3_Cin_PQ,Sony_SLog3_SG3_PQOFF,ARRI_LogC_HLG,Canon_CLog2Cin_HLGCanon_CLog3Cin_HLG,Panasonic_VLog_HLG,RED_L3G10_HLG,Sony_SLog3_Cin_HLG,Sony_SLog3_SG3_HLGD-Log to HLG
Color temp(USER)Color tempRed GainGreen GainBlue GainRed Bias Green BiasBlue Bias Import*4
Set the value of color temperature (USER)
Adjust the value of Red Gain(USER)Adjust the value of Green Gain(USER) Adjust the value of Blue Gain(USER) Adjust the value of Red Bias(USER) Adjust the value of Green Bias(USER) Adjust the value of Blue Bias(USER) Choose the cube file which need to be imported
Set the value of color temperature
2000K~10000K, D55,D65,D75,D93,USER1,USER22000K~10000K,D55,D65,D75,D93-100 ~ +100-100 ~ +100-100 ~ +100-100 ~ +100-100 ~ +100-100 ~ +100None,3DLut.cube*1 Color GamutSet the Color Gamut to match with input video. *2 HLG System GammaOnly adjustable when Gamma is HLG1000*3 D-Log to 709:Only adjustable when Color Gamut is Rec.709 and Gamma is between 1.0, 1.8,2.2,2.4,2.6*4 ImportPut the cube file in the root of USB driver,connect USB driver with the monitor via USB interface on the front panel,choose and import corresponding file in the menu. Ⅲ、Color management—Set the color of input video

12Menu optionFalse colorBlue onlyFocus assistZebraⅣ、ControlMenu optionF1*1F2F3F4F5InstructionSet the function of shortcut keySelectionTime Code, Color Temp,Waveform,Waveform type,Single line waveform,Marker,Blue only,Audio Bar,Zebra,Vector,Histogram,Odd/Even Frame,Lissajous pattern,Focus assist,False color ,H/V delay*1F1~F5 Now only support “Waveform,Vector,Audio Bar,Blue only,Marker”. Ⅴ、AssistWaveformWFM TypeWFM PositionWFM BlendingWFM ColorWFM Single Line*1WFM Line CountVectorCIEVector PositionVector Blending Vector color HistogramHistogram BlendingMarkerMarker SelectHorizontal*2VerticalSafety areaFit MarkerCenter MarkerMarker ColorMarker TypeMarker OutsideInstructionSwitch on/off false color functionSwitch on/off Blue only function Switch on/off Focus assist function and choose the color of it. Switch on/off Zebra functionSwitch on/off waveform functionSet the type of WaveformSet the display position of Waveform patternSet the transparency of the background of Waveform pattern Set the color of the WaveformSwitch on/off Single line Waveform function Adjust to show Waveform of specific linesSwitch on/off Vector functionSwtich on/off color gamut patternSet the display position of Vector pattern. Set the transparency of the background of Vector pattern . Set the color of Vector patternSwitch on/off Histogram patternSet the transparency of the background of Histogram pattern .Switch on/off Marker functionSet the ratio of MarkerSet the X value of Marker functionSet the Y value of Marker functionSet the ratio of Safety areaSwitch on/off Fit Marker function Switch on/off Center Marker functionSet the color of MarkerSet the type of MarkerSwitch on/off Marker Outside function and change the color.SelectionOFF,ONOFF,ONOFF,Blue,RedOFF,ONOFF,ONY, Cb, Cr, R,G,B, RGBBottom left,Bottom right,Top left,Top rightOFF,LOW,HIGHWhite,Green,Color OFF,ON1-2160OFF,ONOFF,ONBottom left,Bottom right,Top left,Top rightOFF,LOW,HIGHWhite,Green,ColorOFF,ONOFF,LOW,HIGHOFF,ON16:9,15:9,14:9,13:9,4:3,2.39:1,2.35:1,2:1,1.85:1,USER 1,USER 250%~99%(0~1920)50%~99%(0~1080)80%~99%OFF,ONOFF,ONWhite,Red,Green,Blue,Black,GreyType 1,Type 2OFF,Black,GreyWaveform SettingVector SettingHistogram settingMarker setting

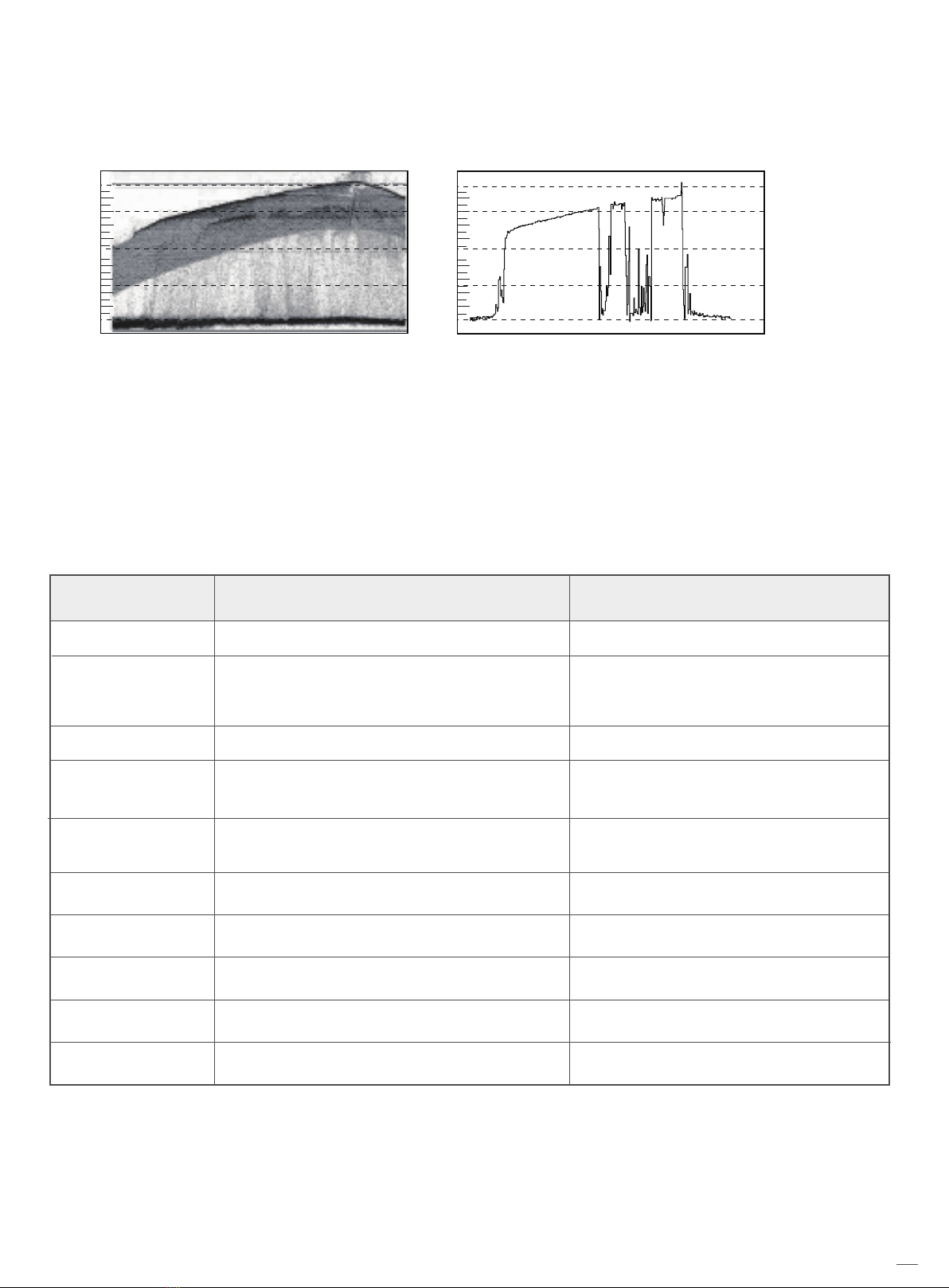

13*1 WFM Single lineSwitch on “WFM Single line” function,Monitor only show one line waveform of video.Turn “Menu/Enter” knob left and right to choose the number of waveform lines.。(The selected range of waveform lines depends on the current signal format.)*2 Horizontal/VerticalWhen the “Marker Select” is “USER 1” or “USER 2”,User can adjust X value and Y value of Marker according to their requirement,the value is adjustable between 50%~99%(0~1920 and 0~1080).Y
WFM Single Line:OFF WFM Single Line:ON
Y
64 64
256 256
512 512
768 768
940 940
Ⅵ、De-embedMenu optionLissajousLissajous PositionAudio BarBar PositionBar blendingBar type*1Left ChannelRight ChannelVolumeH/V delay*2InstructionSwitch on/off Lissajous patternSet the display position of Lissajous PatternSwitch on/off Audio Bar functionSet the display position of Audio BarSet the transparency of the background of Audio Bar .Set the type of Audio BarSelect left input audio channelSelect Right input audio channelAdjust the volume of audio signalSwitch on/off H/V delay functionSelectionOFF,ONBottom left,Bottom right,Top left,Top rightOFF,ONBottom left,Bottom right,Top left,Top rightOFF,LOW,HIGHType 1,Type 2Channel 1~16Channel 1~160~100ON,OFF*1 Bar type:Audio bar show 16 channel Type 1:Audio bar onlyType 2:Show db value of audio signal,audio warning signal and right/left channel information

14*2. H/V Delay H/V Delay is not displayed on HDMI channel. Audio alarm information
M
T
U
E
M
T
U
E
M
T
U
E
M
T
U
E
U
N
L
O
C
K
E
D
U
N
L
O
C
K
E
D
U
N
L
O
C
K
E
D
U
N
L
O
C
K
E
D
U
N
L
O
C
K
E
D
U
N
L
O
C
K
E
D
U
N
L
O
C
K
E
D
U
N
L
O
C
K
E
D

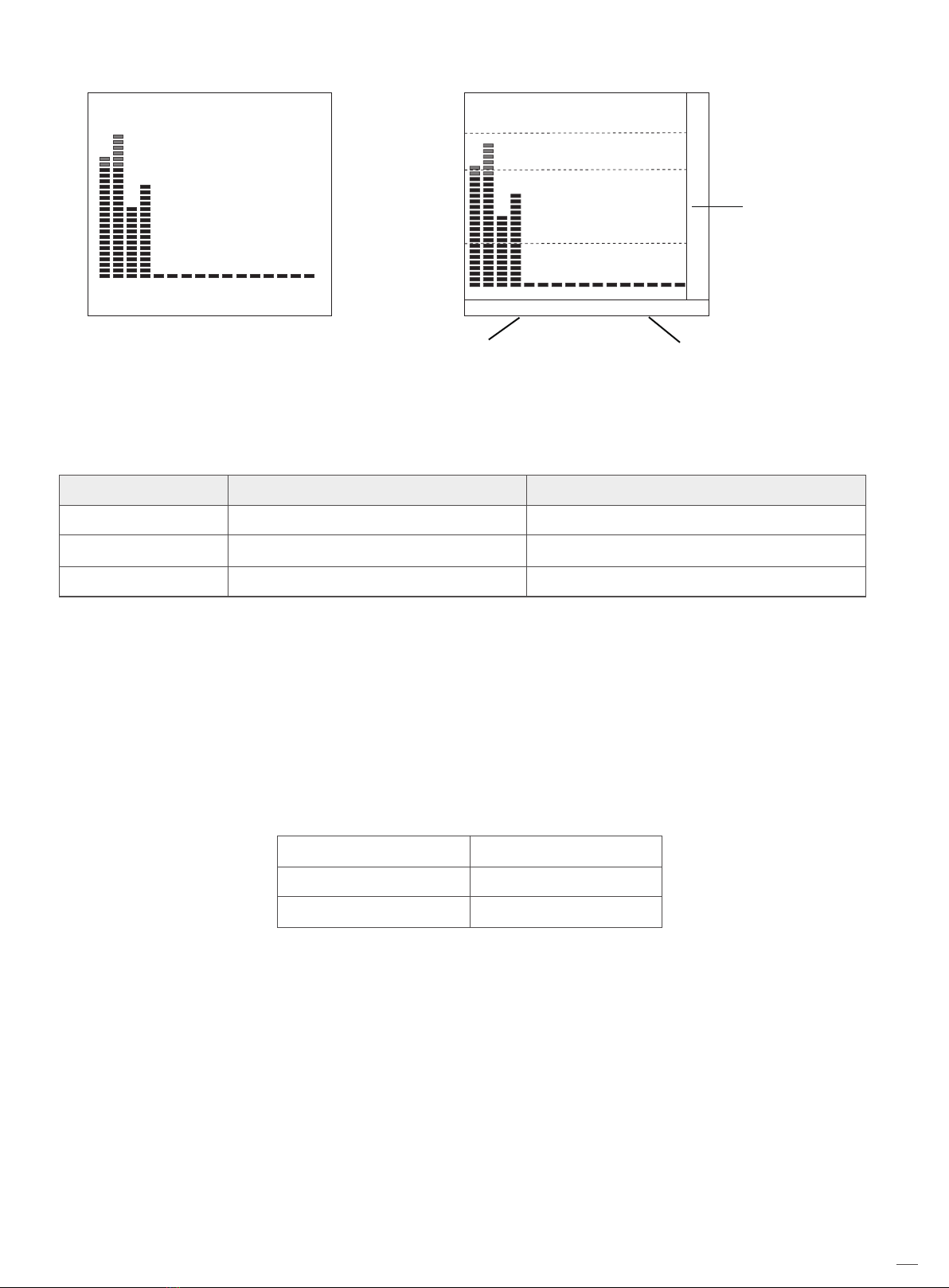

1 2 3 4 5 6 7 8 9 10111213141516
-48
-20
-09
L -32DB 01CH R -13DB 02CH
Left Channel:1 Green Right Channel:2 Red
Type 1 Type 2
Ⅶ、Auto Calibration*1Menu optionProbe Select*2Start Calibration*3Measurement*4InstructionSelect the calibrator Start to calibrate or notTest current colorSelectionX-rite l1 Pro OEM,Jeti Specbos 1211NO/YESNO/YES*1 Auto CalibrationMonitor internally installed 3DLUT Calibrate software,support to directly connect with below calibrator via USB interface on the front panel.When start to calibrate,calibrate probe will read the standard color created by monitor and upload the result to monitor via USB interface. Monitor will compare the color which created by calibrate probe with standard color and create a 3D LUT file and finish calibrating automatically. *2 Probe SelectThis monitor support below kinds of calibrate probe:BRANDX-riteJETIMODEI1 Pro OEMSpecbos 1211*3 Start CalibrationSteps:1、 Switch on monitor.2、 Connect Calibrator with monitor via USB interface on the front panel(Compatible with X-rite and JETI).Make sure monitor and calibrator is in good condition and the aging time of monitor is over 30 minutes. 3、 Select “MENU”-“AUTO CALIBRATION”-“Probe Select” to select current calibrate probe.4、 Select “Start Calibration”-“YES” to start calibrating.Monitor will show info box and calibrate position hint box,make sure the lens of calibrator is forward to the calibrate position hint box.Do not push the LCD screen when setting the calibrator.

5、Select “OK” to do auto-calibratio.Calibrator will measure the color of screen and calibrate the screen automatically,please pay attention to the progress bar.6、Press “INFO” to stop calibration.When the progress bar reach to 100%,auto calibration finished. Press “INFO”to exit menu after auto-calibration,monitor will recover to normal. 7、The screen will show the Delta value before and after calibration,shown as below: *4 MeasurementMonitor have calibrated in factory already but also need to re-calibrate after a period of time using.Before re-calibrating,“Measurement” function will show Delta value of last time calibration,user can decide to calibrate or not from comparing the Delta value. 15Auto Calibration
Progress 23%
Please wait...
Select INFO to Cancel!
INFO:Quit
Auto Calibration
Please make sure the monitor is in
dark room,and the sensor probe is
put in the center marker and close
to the screen.
Select MENU to start!
MENU:OK INFO:Quit
Auto Calibration
Please make sure the monitor is in
dark room,and the sensor probe is
put in the center marker and close
to the screen.
Select MENU to start!
MENU:OK INFO:Quit
R
R75
Mg
Mg75
B
B75
Cy
Cy75
G
G75
YI
YI75
W
Delta = 0.9
Before Calibration After Calibration
R
R75
Mg
Mg75
B
B75
Cy
Cy75
G
G75
YI
YI75
W
Delta = 2.3
CIE and Delta E
before calibration
CIE and Delta E
after calibration
R
R75
Mg
Mg75
B
B75
Cy
Cy75
G
G75
YI
YI75
W
Delta = 0.9
Last Calibration
New Measured
R
R75
Mg
Mg75
B
B75
Cy
Cy75
G
G75
YI
YI75
W
Delta = 2.3
CIE and Delta E
result of last calibration
CIE and Delta E
result of new measured
Connect calibrate probe with monitor and put it on the right position,Select “Auto Calibration”-“Measurement”,Monitor will create part of color and finish testing within 30 seconds.Testing result shown as below:

Ⅷ、SystemMenu optionKey Lock *1Recall Profile *2Save ProfileGreen ModeIdle DurationDHCP*3IP *4Net maskGatewayOSD TIMELanguageSystem ResetUpdate *5InstructionSet key lock function Select current Mode Save current setting to one of USER setting Set the display mode of Green Mode Set the stand-by time before switch on Green Mode Switch on/off DHCP ModeShow current network information of monitor Set the lasting time of OSD Select the operation language of monitor Reset all setting in the menu To do update for monitor SelectionOFF,Lock All,Lock Rotary Knobs,Lock Key Buttons Factory,USER1~USER4USER1~USER4Black Bcklight,Grey Backlight 30s,1hour,2hour,4hour,OFFON,OFF192.168.001.200255.255.255.000192.168.001.0015~180s中文(Chinese),EnglishNO/YESNO/YES*1.Key Lock When “Key Lock” function is “ON”,part of menu will be hidden,only “Menu” button is available,other button will be locked. Screen will show “Key Locked” when the locking button is pressed,shown as below: 16Key Locked
All

17*2 Recall Profile/Save Profile Monitor supply 4 User setting,User can save current setting according to demand and habit to (USER1~USER4).After that,user only need to select “USER1~USER4” to show corresponding menu setting. For example:Adjust “Color Temp” to 2200K,switch on assist function such as “Histogram”,set function key such as F1 to “Only Blue” ,now save all these setting to “USER 1”,turn “Menu/Enter” to select “Recall Profile”-“USER 1”,monitor will change all setting to the setting which saved in “USER 1”.*3 DHCPThe IP address will be assigned by router or switch automatically when “DHCP” function is “ON”;User can set IP/Net mask/Gateway manually to match their own Network segment when “DHCP” function is “OFF” in order to detect the NDI signal source in system.*4 IPConnect monitor to the LAN with NDI IN/ETHERNET port in order to control monitor by website.Pin No12345678Pin NameTX+TX-RX+RX-Website loading:Open browser and enter the IP address to load the monitor web page. ◎ Make sure the network cable which used to connect monitor with computer directly is cross line cable. ◎ Make sure the network cable which used to connect monitor with router is straight-through cable. ◎ If you have any problem with your network connection,please ask your network administrator for help. *5 UpdateFirmware can be updated via USB port,update steps as below:1、Update the latest firmware to the root of USB driver2、Switch on monitor,connect your USB driver with monitor3、Select “MENU”-“SYSTEM”-“Update”,the monitor will update automatically. 4、Press “Power” button to switch off and reboot monitor after successfully updating. NDI INETHERNET

18※Caution1、Make sure only one firmware is copied to the root of USB driver one time. 2、Do not cut off the power when doing update.UPDATE
Do you want to update now?
Select MENU to start !
MENU:OK INFO:Quit
Ⅸ、Multiview Setting Menu optionMultiview Type*1PIC 1 *2PIC 2PIP Window PositionBorderInstructionSet the type of Multiview functionSet the signal channel of Multiview function Set the Position of PIP on screen Set the border of PIP functionSelectionPBP,PIPSDI1,SDI2, HDMI,NDIBottom left,Bottom right,Top left,Top right, CenterON,OFF*1 Multiview Type “Multiview Setting” is available when signal channel is Multiview,otherwise “Multiview setting” will show grey and unavailable; The “Input range”,“Color gamut”,“Gamma”,“UMD” and “Payload ID” of each video can be set sepa rately when signal channel is “Multiview”; Part of menu function will be disabled when signal channel is Multiview. *2 PIC 1、PIC 2 When signal channel is “Multiview”,“PIC 1” and “PIC 2” can select to display any signal channel. Overall DimensionDimension(mm) BM-215-NDI

19SpecificationLCD PerformanceInput /OutputModelSizeDisplay areaResolutionDisplay colorDisplay ratio BrightnessContrastViewing angleBM-215-NDI21.5495.6×292.2mm1920*108016.7M16:94003000:1H/ V:178°/ 178°BM-245-NDI23.8543.0×316.72mm1920*108016.7M16:94003000:1H/ V:178°/ 178°BNC×2HDMI×1RS-485×2GPI×1USB×1ETHERNRT/NDIBNC×1BNC to NDI×1RS-485×13G/HD/SD-SDI×2HDMI InputUMD×112G/6G/3G/HD/SD3G/HD/SD-SDI×13G/HD/SD-NDI×1UMD×1InputOutputOther specificationBM-245-NDI
580.9
392.3
423
Working voltagePower consumptionWorking TemperatureWorking HumidityStorage TempStorage HumidityOverall DimensionNet weight(Only monitor body)AC:100V~240VDC/Battery:12V~17V45W0℃~+50℃10%~90%﹣15℃~﹢60℃10%~90%530.6×364.3×74.2mm5.90KG580.9×392.3×74.2mm8.87KG

3G/HD/SD-SDI×2HDMI InputUMD×112G/6G/3G/HD/SD3G/HD/SD-SDI×13G/HD/SD-NDI×1UMD×1No.123456789101112131415161718192021222324252627282930313233343536373839Format720×480/60I720×480/60P720×576/50I720×576/50P1280×720/23.98P1280×720/24P1280×720/25P1280×720/29.97P1280×720/30P1280×720/50P1280×720/59.94P1280×720/60P1920×1080/50I1920×1080/59.94I1920×1080/60I1920×1080/23.98PSF1920×1080/24PSF1920×1080/23.98P1920×1080/24P1920×1080/25P1920×1080/29.97P1920×1080/30P1920×1080/48P1920×1080/50P1920×1080/59.94P1920×1080/60P2048×1080/23.98PSF2048×1080/24PSF2048×1080/25PSF2048×1080/29.97PSF2048×1080/30PSF2048×1080/23.98P2048×1080/24P2048×1080/25P2048×1080/29.97P2048×1080/30P2048×1080/47.94P2048×1080/48P2048×1080/50PSDI1/2√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√NDI—
—
—
—
—
—
—
—
—
√
√
√
√
√
√
—
—
√
√
√
√
√
—
√
√
√
—
—
—
—
—
—
—
—
—
—
—
—
—HDMI—
√
—
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√SDI720*480I60720×480/60P720×576/50I720×576/50P1280×720/23.98P1280×720/24P1280×720/25P1280×720/29.97P1280×720/30P1280*720P501280*720P59.941280*720P601920*1080I501920*1080I59.941920*1080I59.941920×1080/23.98PSF1920×1080/24PSF1920×1080/23.98P1920*1080P23.981920*1080P251920*1080P29.971920*1080P29.971920×1080/48P1920*1080P501920*1080P59.941920*1080P59.942048×1080/23.98PSF2048×1080/24PSF2048×1080/25PSF2048×1080/29.97PSF2048×1080/30PSF2048×1080/23.98P2048×1080/24P2048×1080/25P2048×1080/29.97P2048×1080/30P2048×1080/47.94P2048×1080/48P2048×1080/50PHDMI—720*480P60—720*576I501280*720P241280*720P241280*720P251280*720P301280*720P301280*720P501280*720P601280*720P601920*1080I501920*1080I601920*1080I601920*1080PSF241920*1080PSF241920*1080P241920*1080P241920*1080P251920*1080P301920*1080P301920*1080P481920*1080P501920*1080P601920*1080P602048*1080PSF242048*1080PSF242048*1080PSF252048*1080PSF302048*1080PSF302048*1080P242048*1080P242048*1080P252048*1080P302048*1080P302048*1080P502048*1080P482048*1080P50NDI—————————1280*720P501280*720P59.941280*720P601920*1080I501920*1080I601920*1080I60——1920*1080P241920*1080P241920*1080P251920*1080P301920*1080P30—1920*1080P501920*1080P59.941920*1080P60—————————————Input terminalSignal format shown in the Status Display asSupported format:Below signal format can be displayed on the monitor 20
