Symmons Origins ActivSense S6960B User manual

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6960B
Sensor Lavatory Faucet
Operation and Mainenance Manual
Origins ActivSense™
Location:
Model Numbers Feature Highlights
☐S6960B Single Supply Sensor Lavatory Faucet
6X1.5V Batteries included
☐S6960E Single Supply Sensor Lavatory Faucet
9V Transformer
• LEED Rating
• Optional hygiene flush
• Robust brass body
• Adjustable settings
• Easy to install
• ADA compliant
• Single hole or 4" center, optional deck plate included
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI 372
- UL# E311169 (USA & Canda)
- Buy American Act Compliant
Note: Append appropriate sux to model number.
Note: Append appropriate sux to model number.
Finish Options/Modifications
Options (sold as separate line items)
☐STS Stainless Steel finish
☐035 0.35 gpm (1.3 L/min) flow restrictor
☐10 1.0 gpm (3.8 L/min) flow restrictor
☐RC6960 Remote Control
☐SD6960BL Matching ORIGINS soap dispenser
Battery
☐SD6960BF Matching ORIGINS soap dispenser
☐USDP8 8 Inch Deck Plate
☐SD010 Converts S6960B to AC powered
(S6960E)
☐SF278 120V Cable 4.5 feet long
Hard wired 15 Amp circuit.
(QTY:10) 12 Volt Outputs , 4.2A
Any combination of devices
10 devices maximum
(SF277 not inlcuded)
c
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Warranty

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

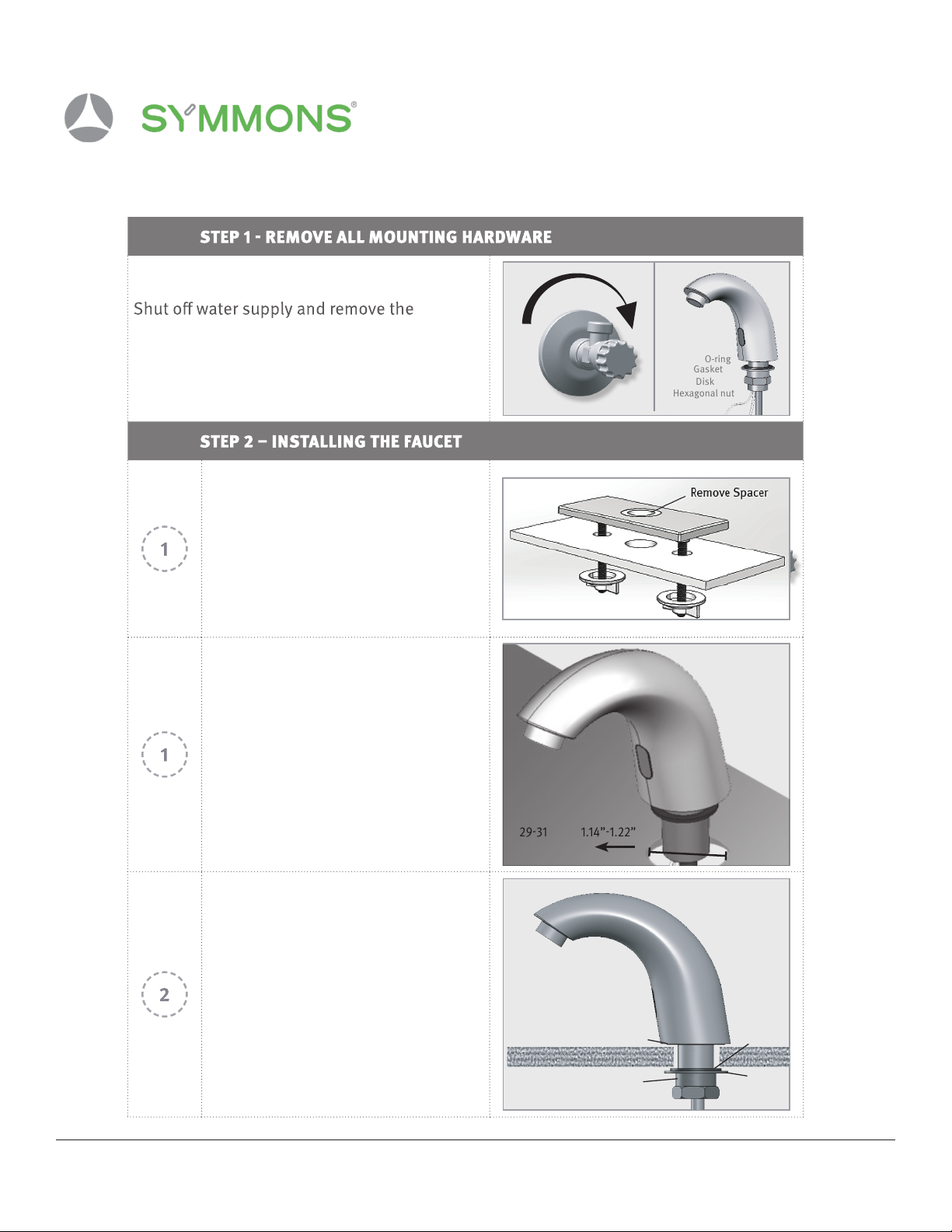

hexagonal nut, the disk and the gasket. Do
not remove the o-ring from the base of the
faucet.
O-ring
Gasket
Disk
Hexagonal nut
Optional: Remove spacer, place
deck plate through the holes on the
deck and secure deck plate prior to
faucet installation.
Place the faucet with the o-ring into
the hole in deck or lavatory. Make
sure the o-ring is located between
the deck or lavatory and the bottom
of the faucet.
O-ring
Center
hole
size of the hole:
mm /
Under the deck, slide the gasket,
disk and hexagonal nut over the
flexible hose and secure the faucet
into place. Gasket
O-ring
Hexagonal nut Washer

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

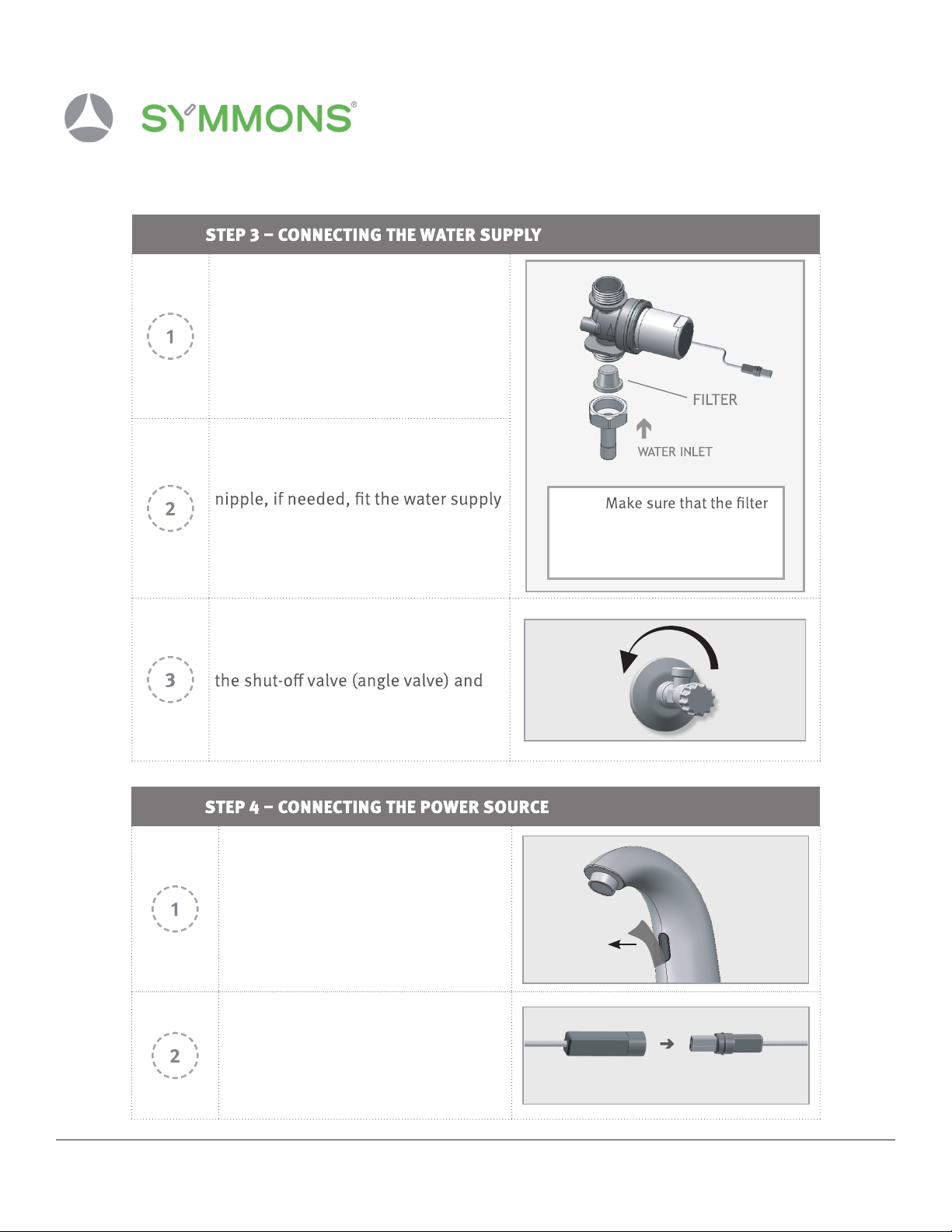

Fit the flexible pipe coming from the
faucet to the solenoid valve housing.
IMPORTANT: Inlet and outlet should
follow the indicating arrow in the
solenoid housing
NOTE:
is assembled between the
housing of the solenoid valve
and the inlet nipple.
The faucet is provided with an inlet
inlet to the adapter at the solenoid
valve housing.
Turn on the central water supply and
check for leaks.
Remove the protective sticker from the
sensor
Connect the waterproof connector
coming from the electronic unit to
the solenoid valve connector. FROM THE ELECTRONIC UNIT TO THE SOLENOID VALVE

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

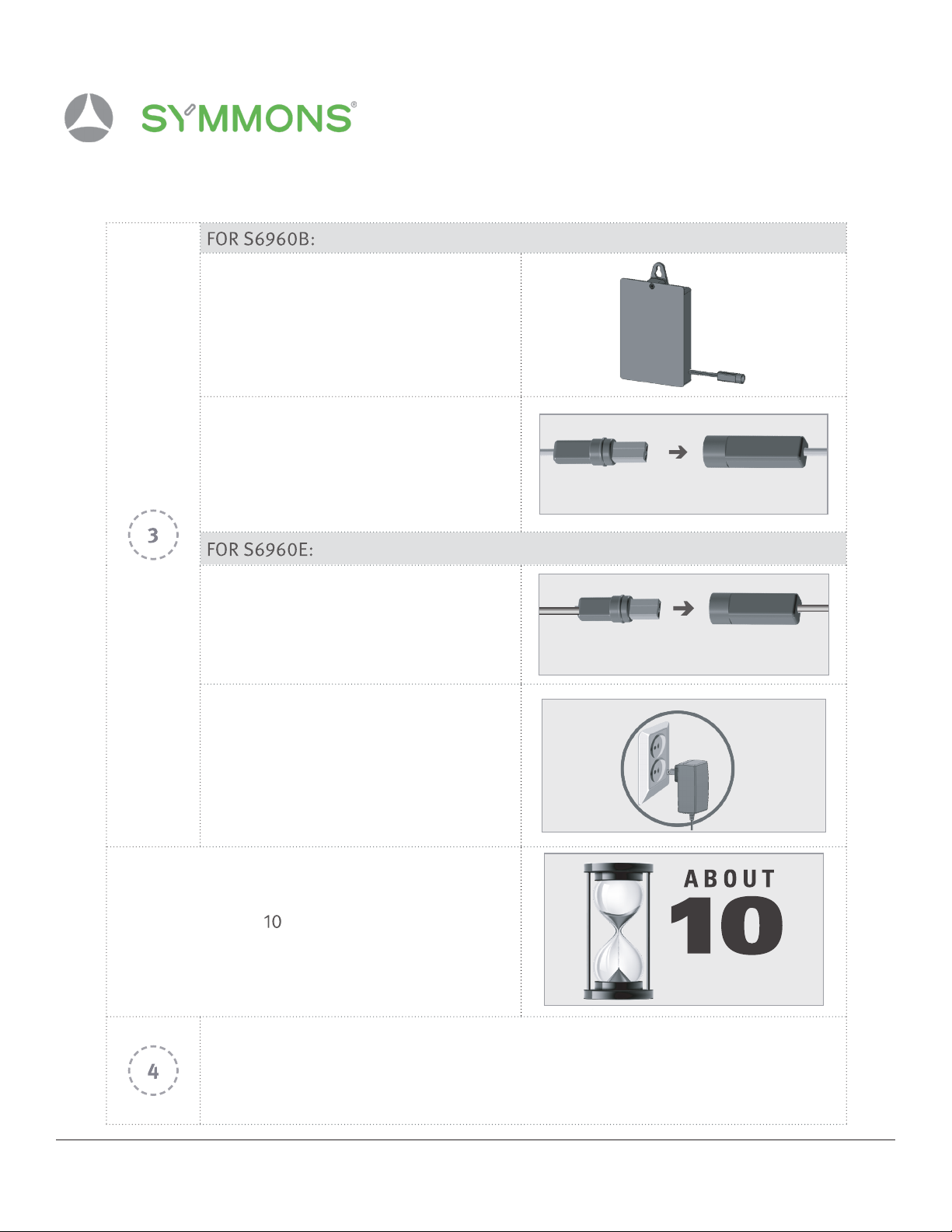

a. The battery box can be secured to
the wall underneath the sink
using the screw.
b. Connect the waterproof connector
coming from the electronic unit to
the battery box. FROM THE ELECTRONIC UNIT TO THE BATTERY BOX
a. Connect the waterproof connector
coming from the electronic unit to
the transformer. FROM THE ELECTRONIC UNIT TO THE TRANSFORMER
b. Plug the transformer into the elec-
tricity socket.
IMPORTANT: Wait seconds before operating
the system.
SECONDS
If the range is unsatisfactory, refer to the section titled ”Settings
adjustment”.

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

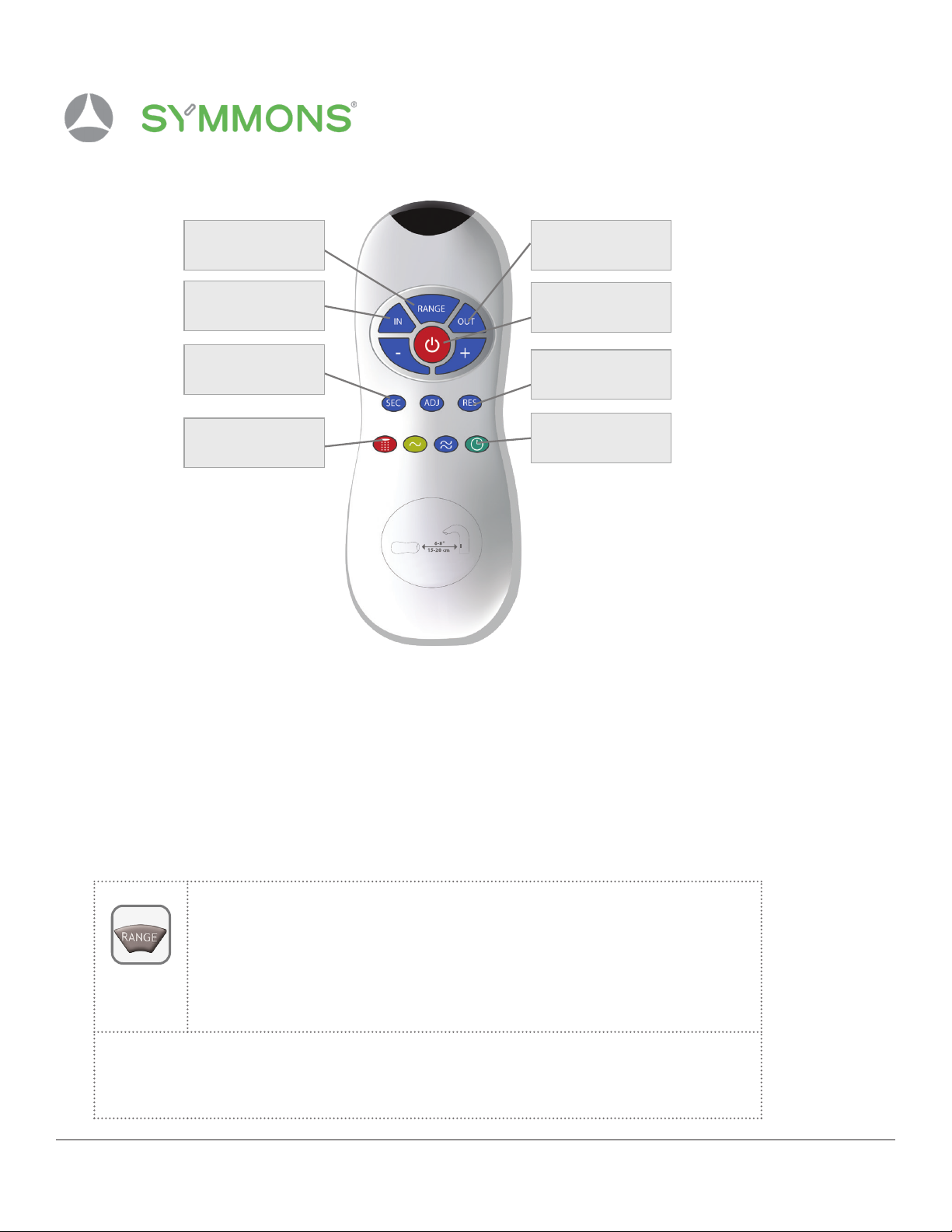

DETECTION
RANGE
DELAY IN TIME
SECURITY TIME
COMFORT FLUSH
DELAY OUT TIME
TEMPORARY OFF
FUNCTION
RESET
HYGIENE FLUSH

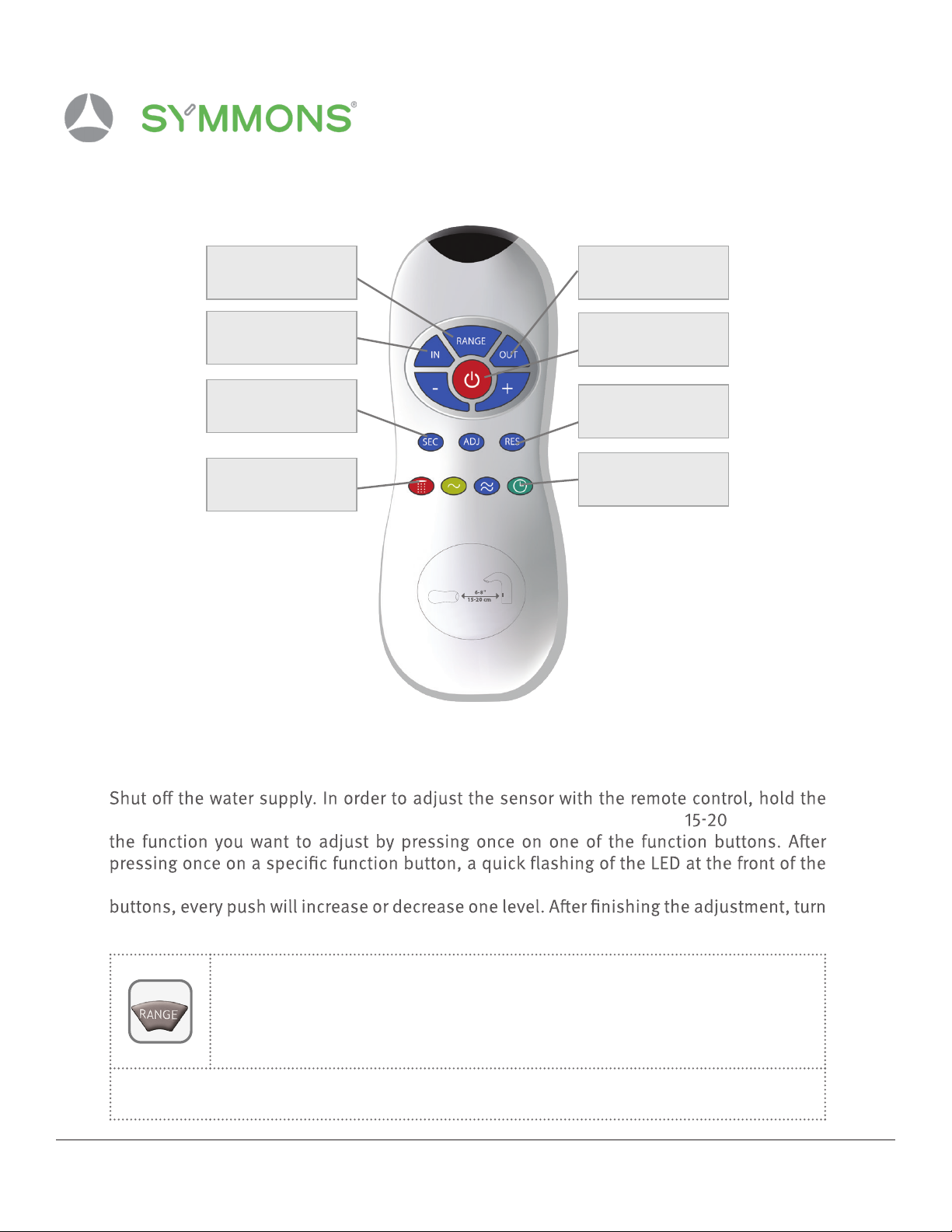

Adjusting the settings with the remote control
If necessary, the sensor settings can be adjusted as following:
remote control straight in front of the sensor in a distance of about 6-8” ( cm). Choose
sensor will occur. At this stage, you can change the setting by pressing the (+) or the (-)
the water supply back on.
DETECTION RANGE: Only if necessary, use the remote control to adjust the
sensor range as follows:
Press the RANGE button. Wait until a quick flashing of the LED in the sensor
eye is perceived. Then, press + to increase the one level and – to reduce it
every push will increase or decrease one level.
NOTE: Once you have changed the detection range with the remote control, this
distance will be remembered by the sensor, even if the power source is disconnected.

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

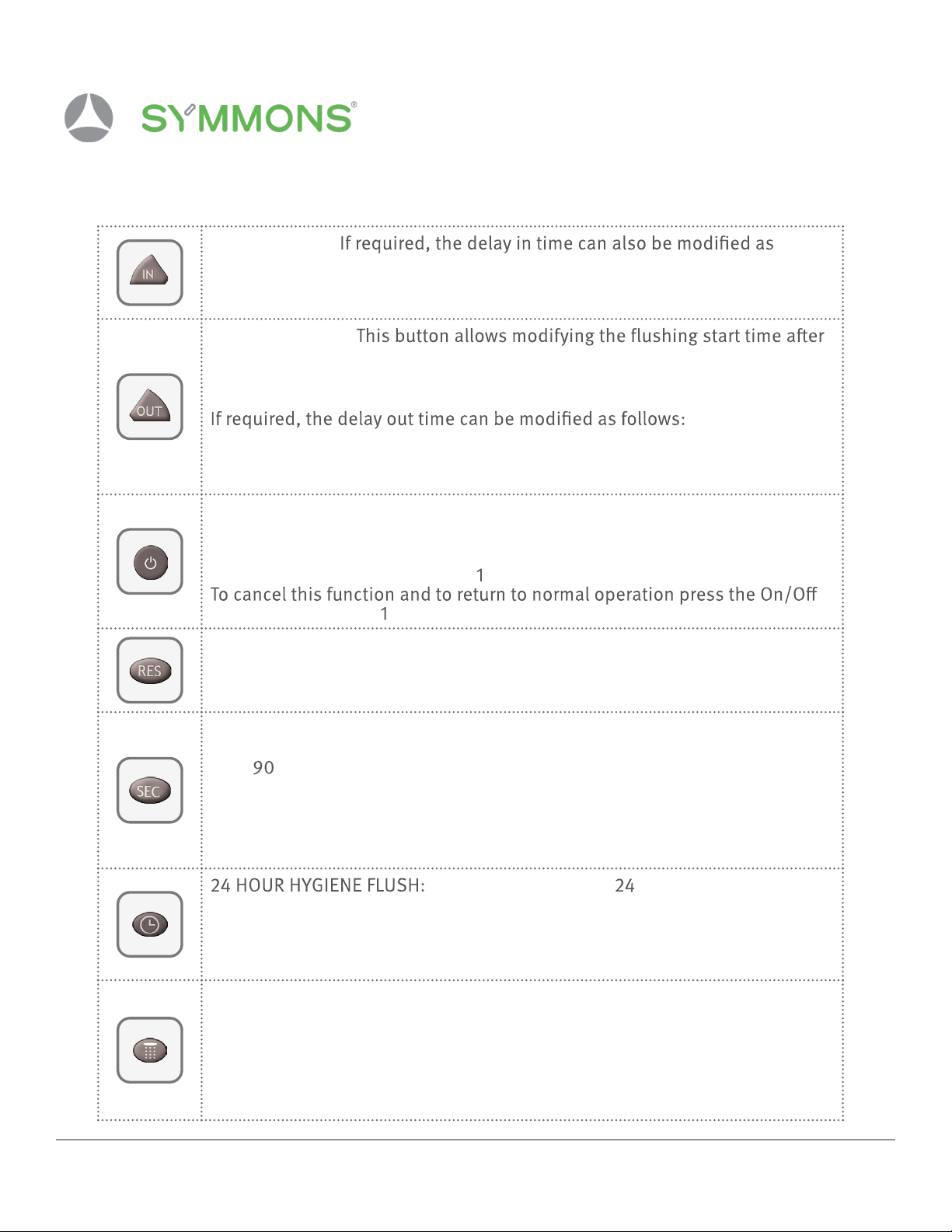

DELAY IN TIME:
follows: Press the IN button. Wait until a quick flashing of the LED in the
sensor eye is perceived. Then, press + to increase the delay in time and – to
reduce it.
DELAY OUT TIME:
the user moves away from the product. A delay out time close to 0 will save
more water. An increased delay out time will make the user experience
more comfortable.
Press the OUT button. Wait until a quick flashing of the LED in the sensor
eye is perceived. Then, press + to increase the delay out time and – to
reduce it.
TEMPORARY OFF FUNCTION: This function is ideal to perform any kind of
activity in front of the sensor without operating the system (for example,
cleaning).
The product will remain shut for minute when this button is pressed once.
button again or wait minute.
RESET BUTTON: This function restores all the factory settings except for the
sensor range. If required, press the Reset button and without releasing it,
press the + button once.
SECURITY TIME: The Security time, prevents continuous flushing of water
due to reflections or vandalism. By default, if the sensor is covered for more
than seconds the water flow will shut automatically. To resume regular
operation any obstruction must be removed.
Press the SEC button. Wait until a quick flashing of the LED of the sensor
eye is perceived. Then, press + to increase the security time and – to reduce
it.
This model includes a hours hygiene flush
which is disabled. To activate the hygiene flush, press the clock button.
Wait until a quick flashing of the LED in the sensor eye is perceived.
Then press + to activate the hygiene flush. To disable it again, press – to
deactivate it.
COMFORT FLUSH: If your model includes a COMFORT FLUSH setting, it can
be activated by pressing the flush button.
When the button is pressed, one blink of the blue in the sensor eye is per-
ceived. The pre-programmed flush cycle will take place then.
The Comfort flush cannot be interrupted or deactivated by pressing any
button until it is over.

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6960B
Sensor Lavatory Faucet
Operation and Mainenance Manual
Origins ActivSense™
Numéros de modèle Faits saillants des fonctionnalités
☐S6960B Robinet de lavabo à capteur d'alimen-
tation unique. 6 piles de 1.5 V incluses
☐S6960E Robinet de lavabo à capteur d'alimen-
tation unique. Transformateur 9V
• Cote LEED
• Rinçage hygiénique en option
• Corps en laiton robuste
• Paramètres ajustables
• Facile à installer
• Conforme à l'ADA
• Trou unique ou centre de 4 ", plaque de pont en option
incluse
Emplacement:
Conformité
- ASME A112.18.1/CSA B125.1
- NSF/ANSI 372
- UL# E311169 (USA & Canda)
- Buy American Act Conforme
Remarque: ajoutez le suxe approprié au numéro de modèle.
Options de finition/Modifications
Choix (vendus en tant qu'éléments de ligne distincts)
☐STS Finition en acier inoxydable
☐035 Limiteur de débit de 0,35 gpm (1,3
L/min)
☐10 Limiteur de débit de 1,0 gpm (3,8 L/
min)
☐RC6960 Télécommande
☐SD6960BL Distributeur de savon ORIGINS
assorti
☐SD6960BF Distributeur de savon ORIGINS
assorti
☐USDP8 Plaque de pont de 8 pouces
☐SD010 Convertit le S6960B en alimenta-
tion CA (S6960E)
☐SF278 Câble 120V 1.3716 m de long
Circuit câblé de 15 ampères.
(QTÉ : 10) Sorties 12 volts, 4,2 A
Toute combinaison d'appareils
10 appareils maximum
(SF277 non inclus)
c
Comprend une plaque de
pont de 4"
Durée de vie limitée - jusqu'à la fin
d'origine
consommateur/acheteur résidentiel
installations.
10 ans - pour commercial/industriel
installations. Faire référence à
www.symmons.com/garantie pour
informations complètes sur la garantie.
Garantie
Remarque: ajoutez le suxe approprié au numéro de modèle.

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

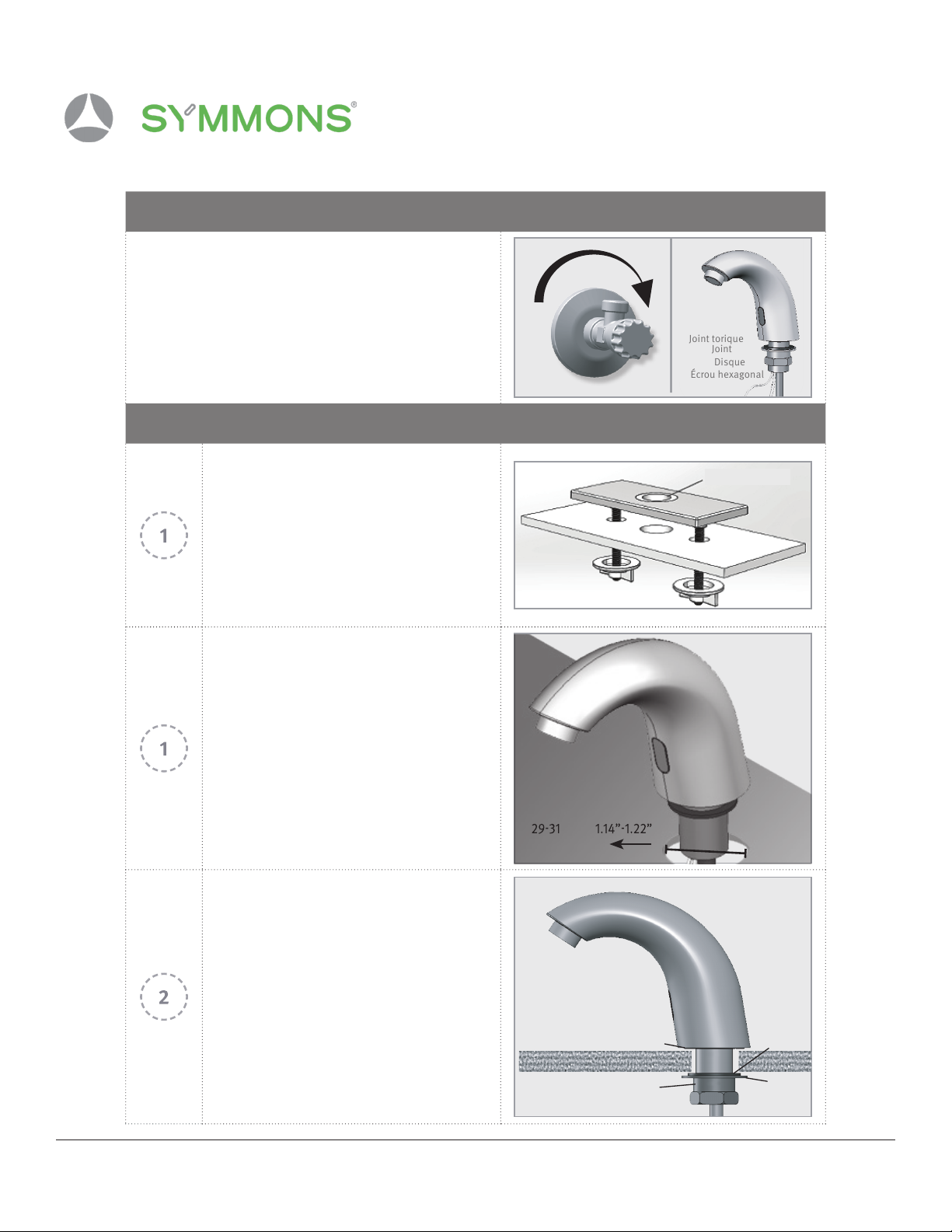

Coupez l'alimentation en eau et retirez le
l'écrou hexagonal, le disque et le joint. Fais
ne retirez pas le joint torique de la base du
robinet.
Joint torique
Joint
Disque
Écrou hexagonal
Facultatif: retirez l'entretoise, placez
plaque de pont à travers les trous
sur le plate-forme et xez la plaque
de plate-forme avant de mise en
place du robinet.
Placez le robinet avec le joint torique
dans le trou dans le pont ou les
toilettes. Faire, construire
assurez-vous que le joint torique est
situé entre la terrasse ou les toilettes
et le fond du robinet.
joint
torique
Trou
central
taille du trou :
mm /
Sous le pont, glissez le joint,
disque et écrou hexagonal sur le
flexible et xez le robinet
en place. Joint
joint torique
Écrou hexagonal Rondelle
ÉTAPE 1 - RETIREZ TOUT LE MATÉRIEL DE MONTAGE
ÉTAPE 2 – INSTALLATION DU ROBINET
Supprimer l'entretoise

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

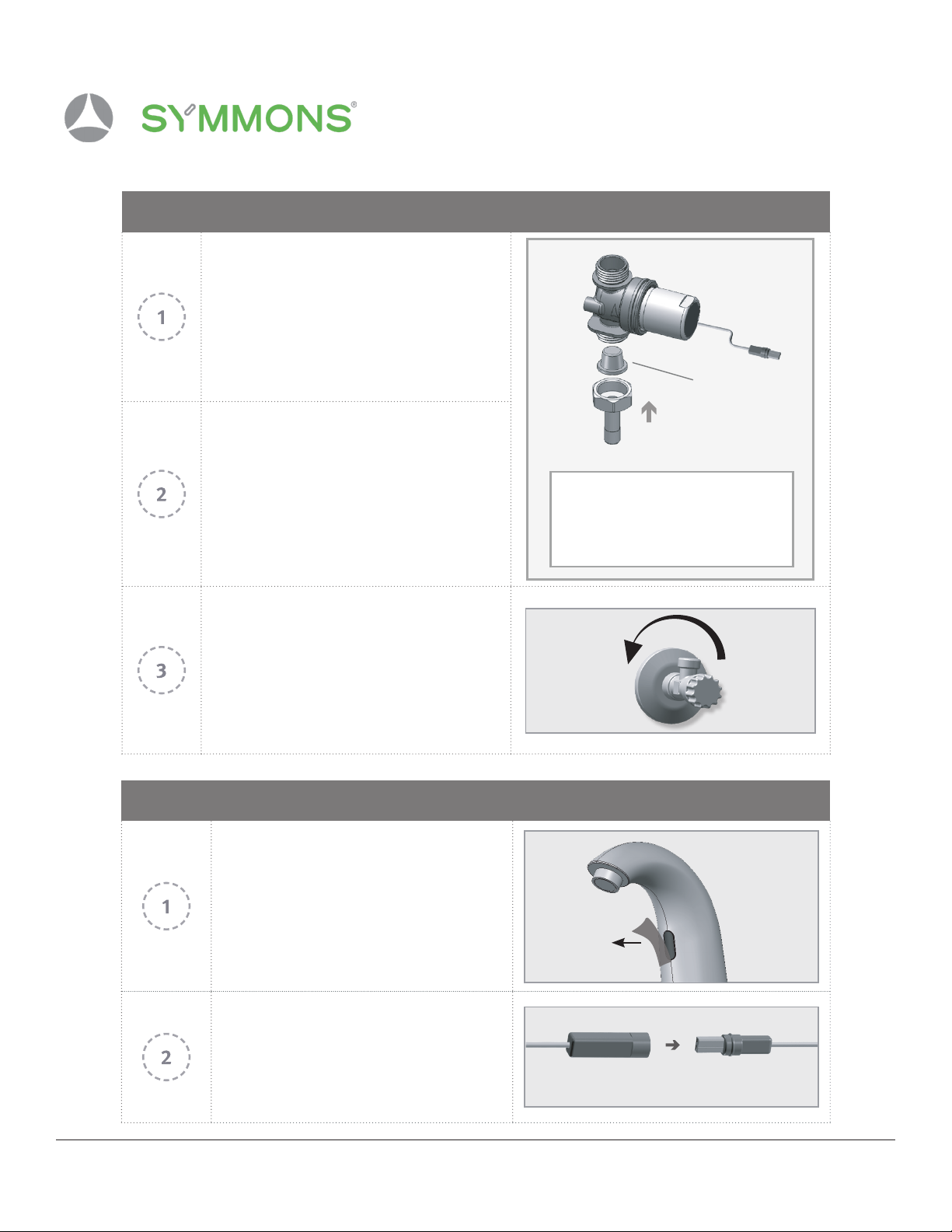

Monter le tuyau flexible venant du
robinet au boîtier de l'électrovanne.
IMPORTANT : L'entrée et la sortie
doivent suivez la flèche indicatrice
dans le boîtier du solénoïde
REMARQUE:
Le robinet est muni d'une entrée
mamelon, si nécessaire, monter
l'alimentation en eau entrée de
l'adaptateur au niveau du solénoïde
logement de soupape.
Ouvrez l'alimentation en eau centrale et
la vanne d'arrêt (vanne d'équerre) et
vérier les fuites.
Retirez l'autocollant de protection du
capteurv
Connectez le connecteur étanche
provenant de l'unité électronique vers
le connecteur de l'électrovanne. DEPUIS L'UNITÉ ÉLECTRONIQUE VERS L'ÉLECTROVANNE
ÉTAPE 3 – BRANCHEMENT DE L'ALIMENTATION EN EAU
ÉTAPE 4 - CONNEXION DE LA SOURCE D'ALIMENTATION
Assurez-vous que le ltre est assemblé entre
le boîtier de l'électrovanne et le mamelon
d'entrée.
FILTVRE
ENTRÉE D'EAU

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2022 Symmons Industries, Inc. ■symmons.com ■[e-mail] ■ZV-3550 REV A ■ 070522
S6906B

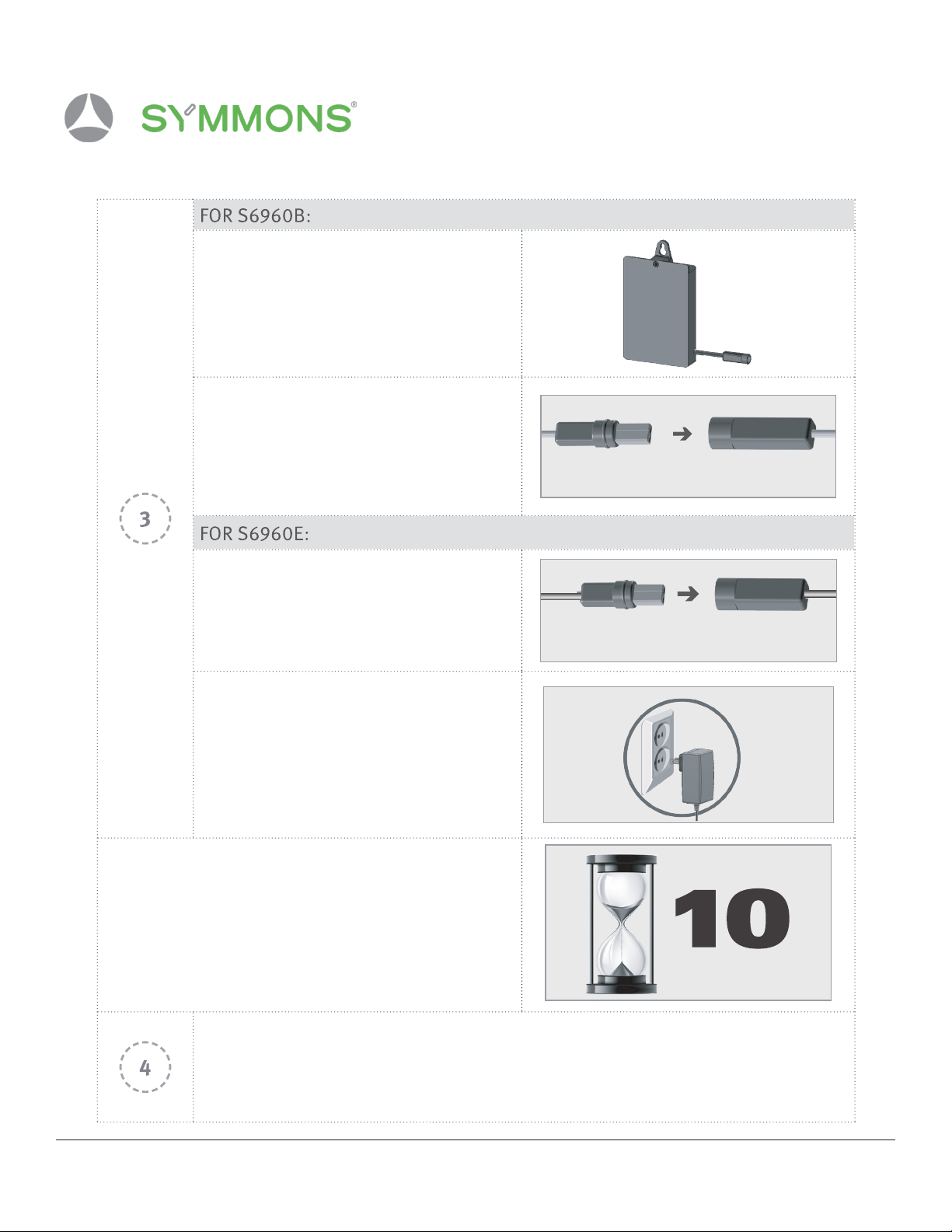

a. Le boîtier de la batterie peut être
xé à le mur sous l'évier à l'aide de
la vis.
b. Connectez le connecteur étanche
provenant de l'unité électronique vers
le boitier de batterie. VERS LE BOÎTIER À
BATTERIE
a. Connectez le connecteur étanche
provenant de l'unité électronique vers
le transformateur. DEPUIS L'UNITÉ
ÉLECTRONIQUE
VERS LE
TRANSFORMATEUR
b. Branchez le transformateur dans
la prise électrique.
IMPORTANT: Attendez 10 secondes avant d'utiliser
le système.
SECONDES
Si la plage n'est pas satisfaisante, reportez-vous à la section intitulée
"Paramètres ajustement"
À PROPOS DE
DEPUIS L'UNITÉ
ÉLECTRONIQUE
