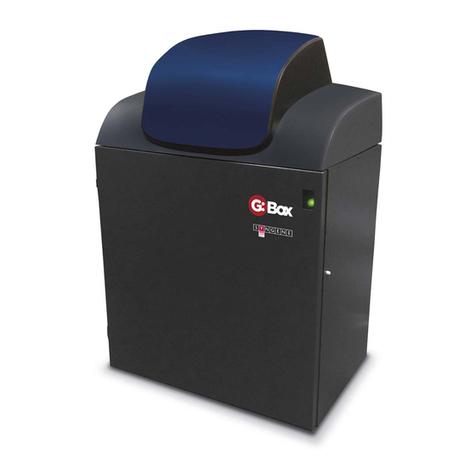

G:BOX Chemi XRQ Installation – Quick Guide
1. Darkroom with epi white lighting (factory fitted)
2. Camera with lens, close–up lens and UV filter (factory fitted)
3. UV transilluminator
4. GeneSys and GeneTools software
5. USB to serial/COM port converter
6. All required cables
System components
CAUTION: Do not connect power supply to any of the components until you are instructed
to below. For assistance please contact your supplier or Syngene directly
Camera 1. Connect the camera power cable (9-way D-type connector) to
the back of the darkroom (port labelled ‘camera’) (Figure 1)
Camera
port
2. Place the camera on top of the darkroom (first remove lens cap if fitted, pull off lens
cap, DO NOT screw off or you will remove filters) on top of the darkroom with the
bracket facing the rear and connect the camera power cable (the DC power end) to
the camera (Figure 2).
1. Connect power cable to the back of the darkroom
Figure 1
Figure 2- XRQ
camera
Darkroom set-up
Camera USB
cable
Camera power
cable

2
Darkroom lighting
1. Turn on darkroom (switch at rear of G:BOX) system
2. With the darkroom open slide the transilluminator between the runners located on each
side
3. Connect the flying mains lead in the darkroom into the input socket on the rear of the
transilluminator. Make sure the power button on the front of the transilluminator is
turned on and the power switch is set to 100 percent.
5. DO NOT attach the free end of the USB
cable to USB 2 port on the PC until GeneSys
software has been installed
6. Place the hood on top of the darkroom to
cover the camera and lens assembly ensuring
cables are not trapped (Figure 4)
Thread
cables
through
hood
Figure 4
3. Using nuts and shake proof washers attach the camera to the top of the darkroom
Lens port
5. Attach the micro USB cable to the camera
Figure 3
4. Connect lens cable to the back of the
darkroom (port labelled ‘Lens’) (Figure 3)
Fitting the white light panel option
1. If White Light Panel option has been purchased, the white light stage is factory fitted
on hinges at the rear of the G:BOX unit
2. Fold the white light stage down, so that it rests on top of the transilluminator
3. The stage is fitted with adhesive strips, on to which the panel is mounted. Peel off the
film from the adhesive strips and attach the panel to them, the rubber feet on the panel
locate into holes in the stage
4. Insert the panel power lead into the power inlet on the panel

3
6. If the CD does not auto-run then using Windows Explorer locate the
InstallGeneTools.exe file on the CD
7. Follow on-screen instructions to install and license GeneTools software. For
hardware or network licensing you will have been supplied with a hardware key. For
software licensing, each PC will need a media key (found on the CD insert)
Installing GeneTools software
CONTACT SYNGENE:
EUROPE: USA:
Tel: [phone] Tel: [phone] 662 2863
Email: [email protected] Email: s[email protected]
www.syngene.com
GBI0114
PC set-up
1. Set up the PC by attaching the monitor, keyboard and mouse into the appropriately
labelled ports
2. Connect electrical power leads to each component. Turn on the PC (if you purchased
the PC directly from Syngene then all the following software steps below will have
been done for you. You will however have to accept the Microsoft WindowsTM
operating system licence and plug in the camera and serial cable)
Installing GeneSys software
3. Insert the GeneSys CD and run the set-up program. Then follow the instructions on
screen.
4. Once installed plug in the camera to a high speed USB 2 port on the PC. The camera
drivers should be automatically loaded. If a warning appears about the drivers being
unsigned or unverified then choose to proceed with the installation
5. Connect the serial cable from the labelled port in the rear of the darkroom
(‘Darkroom/PC’) directly to the serial port on the PC then proceed to step 6. If
there is no serial port on the PC then use the supplied USB adapter
N.B. GeneSys requires an OpenGL compatible graphics card with a resolution of at least
1280x900 with true colour, with DPI set to normal size (96DPI)
When using GeneSys software for the first time or when you have purchased additional
accessories, (eg converter screens), you need to programme lighting, filters and
accessories into GeneSys software
1. From the home page select the ‘View available hardware icon’
2. To enter this information simply press if you have a touch screen monitor or click
the appropriate buttons to select the hardware that you have with your system.
Selected items will turn red.
3. Ensure that you click “Save”
S
Y
N
G
E
N
E
A D IV I S I O N O F T HE S YN O P T IC S GR O U P
Load GeneSys software
