TAG RCK-CDR22 User manual
MODEL # RCK-CDR22
ASSEMBLY INSTRUCTIONS
same instructions for CDR22S & CDR22L
www.tagfitness.net
630-375-1500
PARTS LIST
NO. Description Q’ty NO. Description Q’ty
1 Upright Frame 2 9 Flat Washer Φ9*Φ16*1.6 80
2 Cross Frame 2234*228*37*4
2 10 Flat Washer Φ13.5*Φ24*2.5 16
3 Saddles 166*46.5*67 20 11 Spring WasherΦ8 40
4 Saddles 158*47.5*40 20 12 Nut M8 40
5 Rubber Foot 169*129*16 4 13 Nut M12 8
6 Hex Bolt M8*15 40 14 Name Plate 2
7 Hex Bolt M12*30 8 15 Rivet Φ4*12 4
8 Hex Bolt M8*15 8

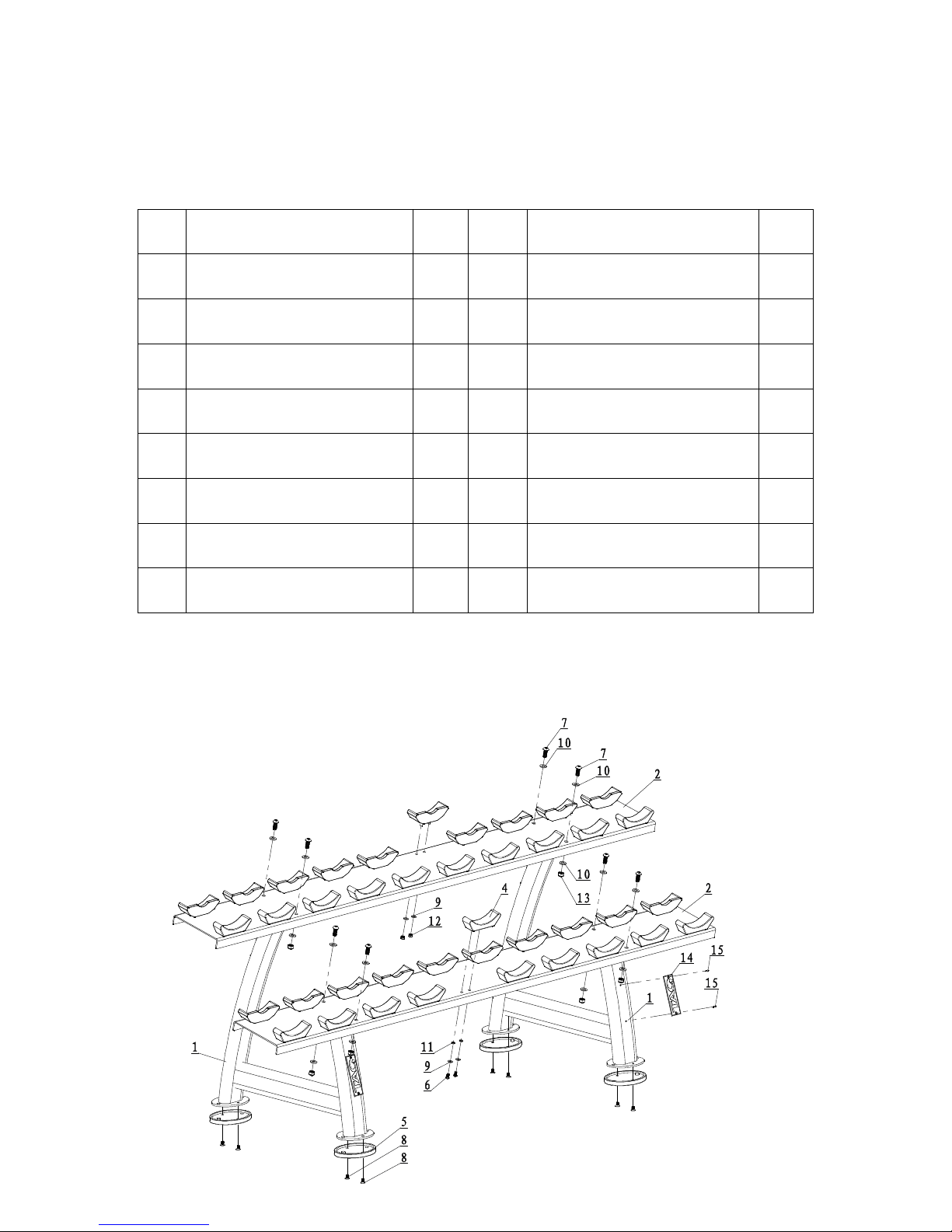

Exploded Drawing
Assembly
Step 1
Install Cross Frame 2234*228*37*4(2) to Upright Frame (1) using Hex Bolt M12*30(7), Flat
Washer Φ13.5*Φ24*2.5(10) and Nut M12 (13).
Step 2
Install Cross Frame 2234*228*37*4(2) to Upright Frame (1) using Hex Bolt M12*30(7), Flat
Washer Φ13.5*Φ24*2.5(10) and Nut M12 (13).
