TAG S-Line 736 User manual

MODEL # S-Line 736
ABDOMINAL/LOWER BACK COMBO
www.tagfitness.net
630-375-1500

ABSTRACT
PREVENTIVE MAINTENANCE................................................................................3
SPECIFICATIONS OF THE PRODUCT..................................................................3
SAFETY INFORMATIONS........................................................................................ 4
ASSEMBLY.................................................................................................................. 5
Pictures and photos in this manual are merely illustrative. The company reserves the right to change
specifications and design without notice. This manual may illustrate optional items which are not part of the
equipment purchased. Read all the information applied to the product and the Manual/Guide that comes with it.

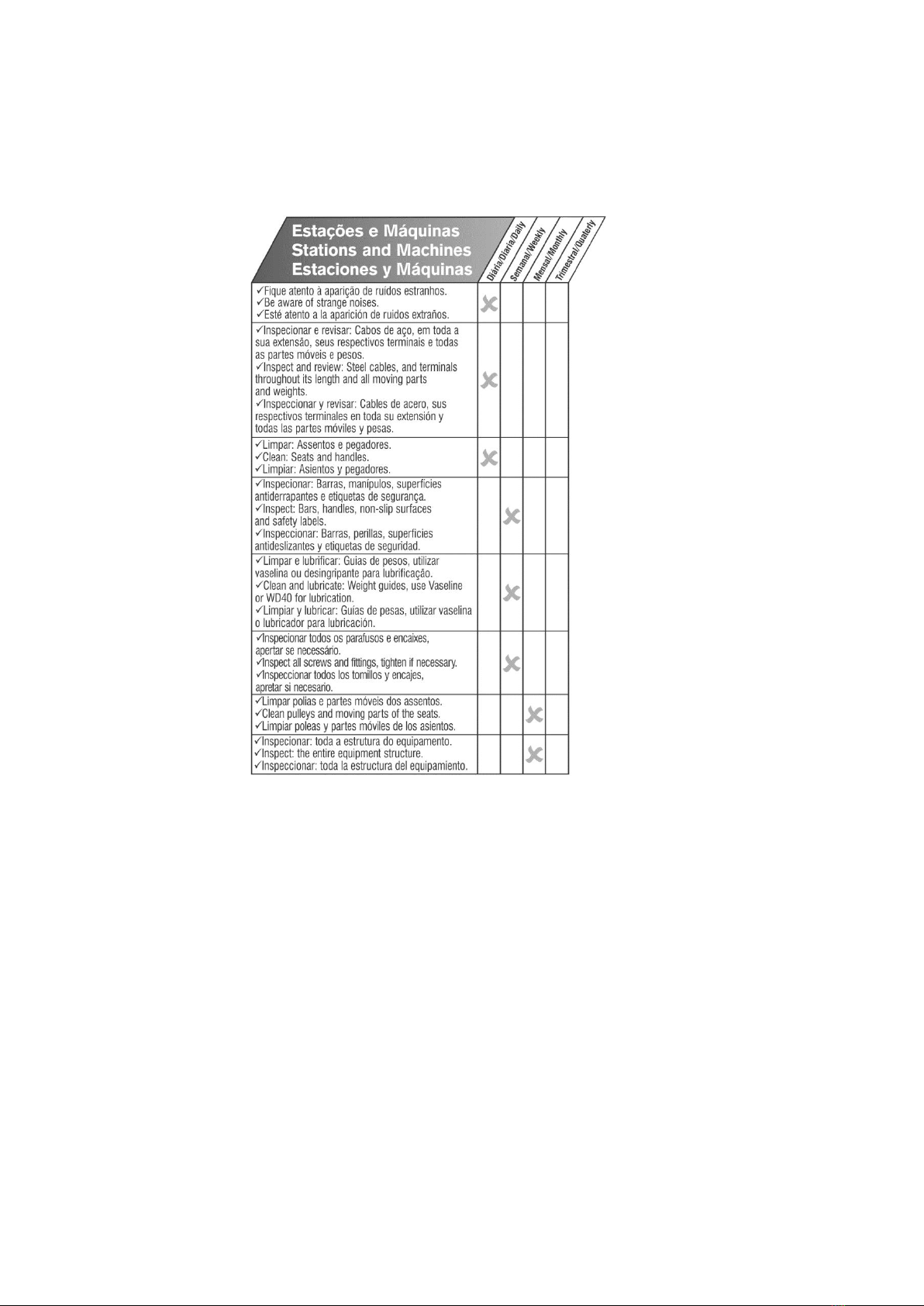

PREVENTIVE MAINTENANCE
SPECIFICATIONS OF THE PRODUCT
Follow these guidelines to maintain perfect operation of the equipment.
Note: For your convenience and quick access, the same information is applied in the product, sticker fixed on
tower.

SAFETY INFORMATIONS
Before using the equipment, carefully read all the safety labels and warnings related to the equipment as well as all the
instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe place for future reference. It is
the owner's responsibility to ensure that all users of the equipment are adequately informed about the safety precautions and
use. The misuse of this equipment could result in health hazards. The manufacturer assumes no responsibility for personal
injury or property damage incurred by the improper use of this equipment.
PRODUCT
Two or more people will be required to assemble this equipment. Make sure that the floor is flat and there is sufficient
space to mount, dismount, and use the equipment. Remove the equipment from the packaging. Do not discard the packaging
until the installation is complete. Proceed with the assembly and make sure that the equipment is firmly installed and that all
parts are tightened correctly. The equipment must be retained in the original configurations of the project. Do not carry out any
modification that alters the equipment, which could result in the loss of the product warranty.
Replace damaged parts with original parts and regularly carry out preventive maintenance;
Replace defective parts immediately and/or take the equipment out of use until it is repaired;
Replace damaged labels;
For equipment with a weight stack, never use a system of weights if the top adapter plate is attached in a higher
position relative to the others;
Adjust the required force so that exercises are smooth and uniform;
Inspect the equipment before use, especially cables, pulleys, fittings, canvas, attachment of the seat/saddle, pedal and
shoe, moving or adjustable parts when applicable. Make sure that all the pieces and parts are securely fastened;
Never release the anklet, handles or bar while the weights are raised: the weights will fall with a lot of force and this can
damage the equipment;
Electrical equipment must be connected to a grounded electrical system. For treadmills use a 16A breaker, at least.
Make sure that the installation voltage is the same as the equipment. Regularly ensure that the cables and plugs are in perfect
condition. Do not place power cables under carpets or any other object;
Keep electrical equipment disconnected from the mains when not in use.
PERSONAL
Consult your doctor before starting and during any exercise program. Special attention should be given to children,
pregnant women, the elderly, people with heart problems and those with a disability or pre-existing health problems.
Keep children and pets, away from the equipment especially during use. Children should be watched so they do not to
play with the equipment, whether or not it is in use.
The equipment is not intended to be used by children or people with some reduction in their physical, sensory or
mental capacity, lack of experience and knowledge, unless they have been given the necessary instructions for the use of the
equipment and be under the care of a person who is responsible for their safety.
When the machine is in motion never put your hands on the column weights covers (if applicable) or any moving parts.
Do not insert any object in the openings. Never carry out any adjustments, cleaning or maintenance when the equipment is in
motion.
Keep your body, clothes and hair away from any moving parts so that you do not suffer an accident or serious injury.
Do not allow more than one person use the equipment at the same time, except in those stations that are designed for
this purpose.
Use the settings provided by the equipment and place yourself in a comfortable and adequate position on the
equipment.
When using treadmills the user should not be on the belt when starting the equipment. Hold the handles and place your
feet on the side rails and then start the unit. Check the alignment of the belt.
The treadmills have a safety switch that is coupled to the monitor and is fastened to one's clothing. If you want to stop
the treadmill quickly, remove the switch. Make sure it is working properly.
Stop any exercise if you feel any dizziness, chills, shortness of breath, tachycardia, headache or chest pain, weakness
or breathing difficulty.
Heartbeat sensors cannot be used as accurate measurements for clinical use. Use them only as a reference.
Wear appropriate athletic attire. Do not wear loose clothing that could eventually become caught in the equipment.
Always wear athletic shoes for exercising.
Do not perform any exercises 1 hour before or 2 hours after meals. Hydrate yourself during the exercises.
Before you start the exercise it is recommended that you warm up for 5-10 minutes, doing rhythmic exercises that will
move every muscle so you not damage the muscle during the exercises. Stretch before and after your session. Inhale and
exhale while exercising to relax and coordinate breathing with the movement. Once a muscle has been exercised rest it for 48
hours before exercising it again. The exercises are efficient and you can get the most out of the equipment if you are supervised
by a professional.
Note: For your convenience and quick access, basic safety information, also available in sticker fixed on tower.

ASSEMBLY
STEP 1

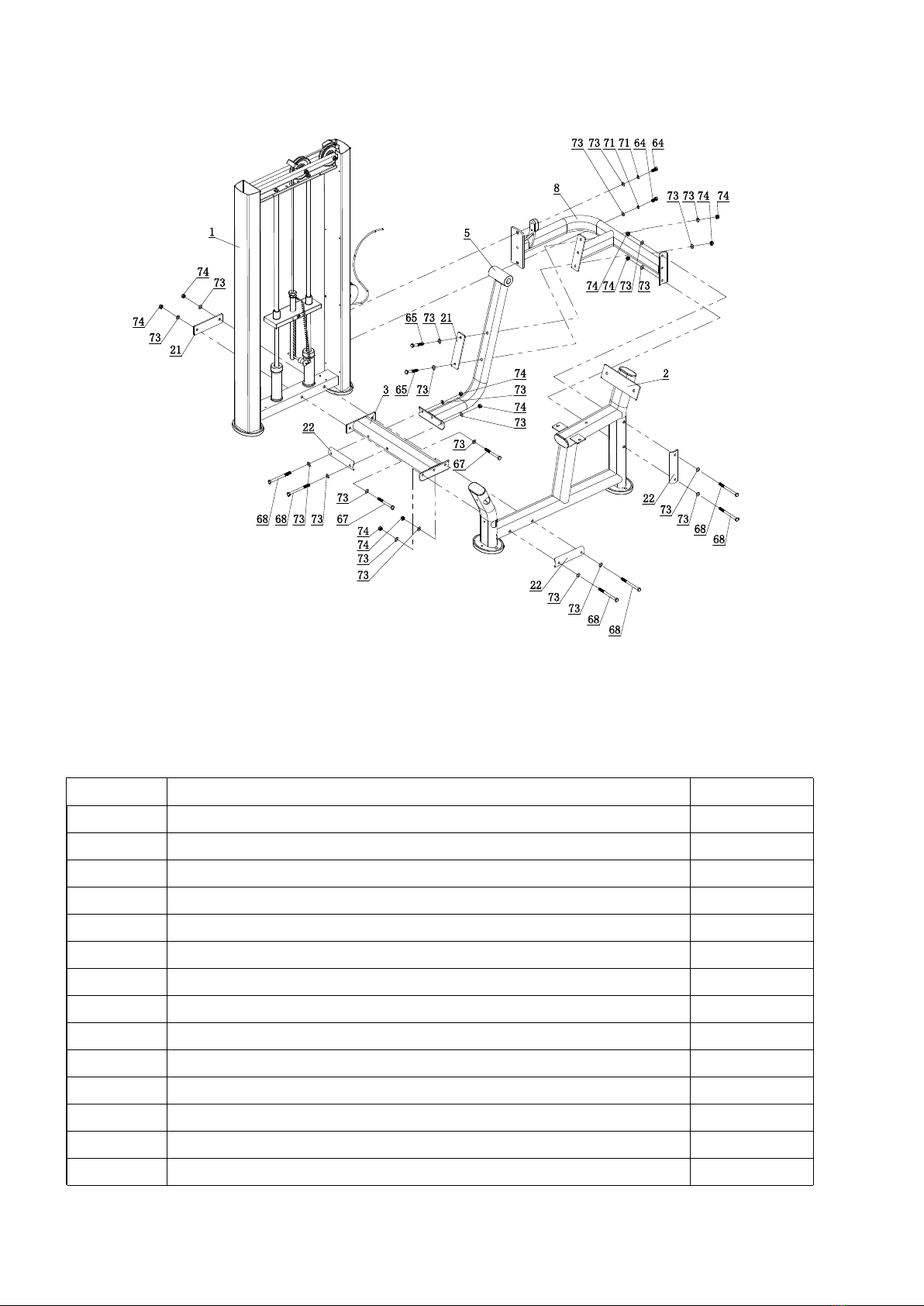

Assemble Tower Frame(1) to Main Frame(2) using Connecting Tube(3), Connecting Frame(5) and Connecting
Frame(8), Fixing Plate(21), and Fixing Plate(22). To fix it use 14 Flat Washers(73), 2 Spring Washers(71), 6 Lock Nuts
Hex M10(74), 2 Pan Head Allen Bolt M10x25(64), 2 Pan Head Allen Bolt M10x65 (65),6 Pan Head Allen Bolt
M10x125(68) and 2 Pan Head Allen Bolt M10x100 (67). Do not tighten bolts and nuts in this step.
Nº
English description
Qty
1
TOWER FRAME
1
2
MAIN FRAME
1
3
CONNECTING TUBE
1
5
CONNECTING FRAME
1
8
CONNECTING FRAME
1
21
FIXING PLATE
2
22
FIXING PLATE
3
64
HEX HEAD BOLT M10*25
2
65
HEX HEAD BOLT M10*65
2
67
HEX HEAD BOLT M10*100
2
68
HEX HEAD BOLT M10*125
6
71
SPRING WASHER
2
73
FLAT WASHER
22
74
LOCK NUT HEX M10
10

STEP 2

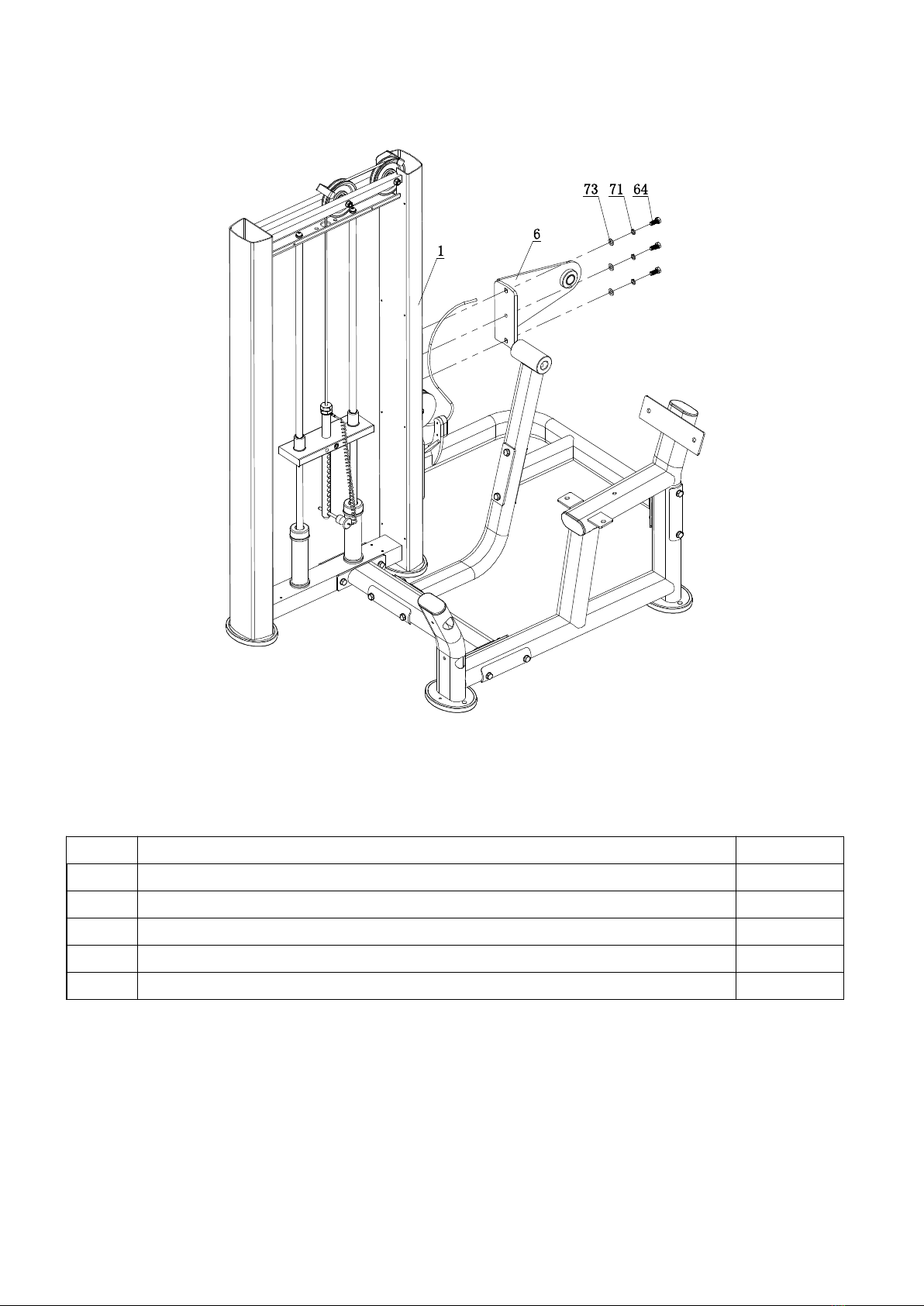

Assemble Support Frame (6) to Tower Frame (1) using 2 Hex Head Bolt M10x25 (64), 3 Flat Washer (71),
3 Spring Washer (73). Do not tighten the bolts and nuts in this step.
Nº
English description
Qty
6
SUPPORT FRAME
1
1
TOWER GRAME
64
HEX HEAD BOLT M10*25
3
73
FLAT WASHER
3
71
SPRING WASHER
3

STEP 3

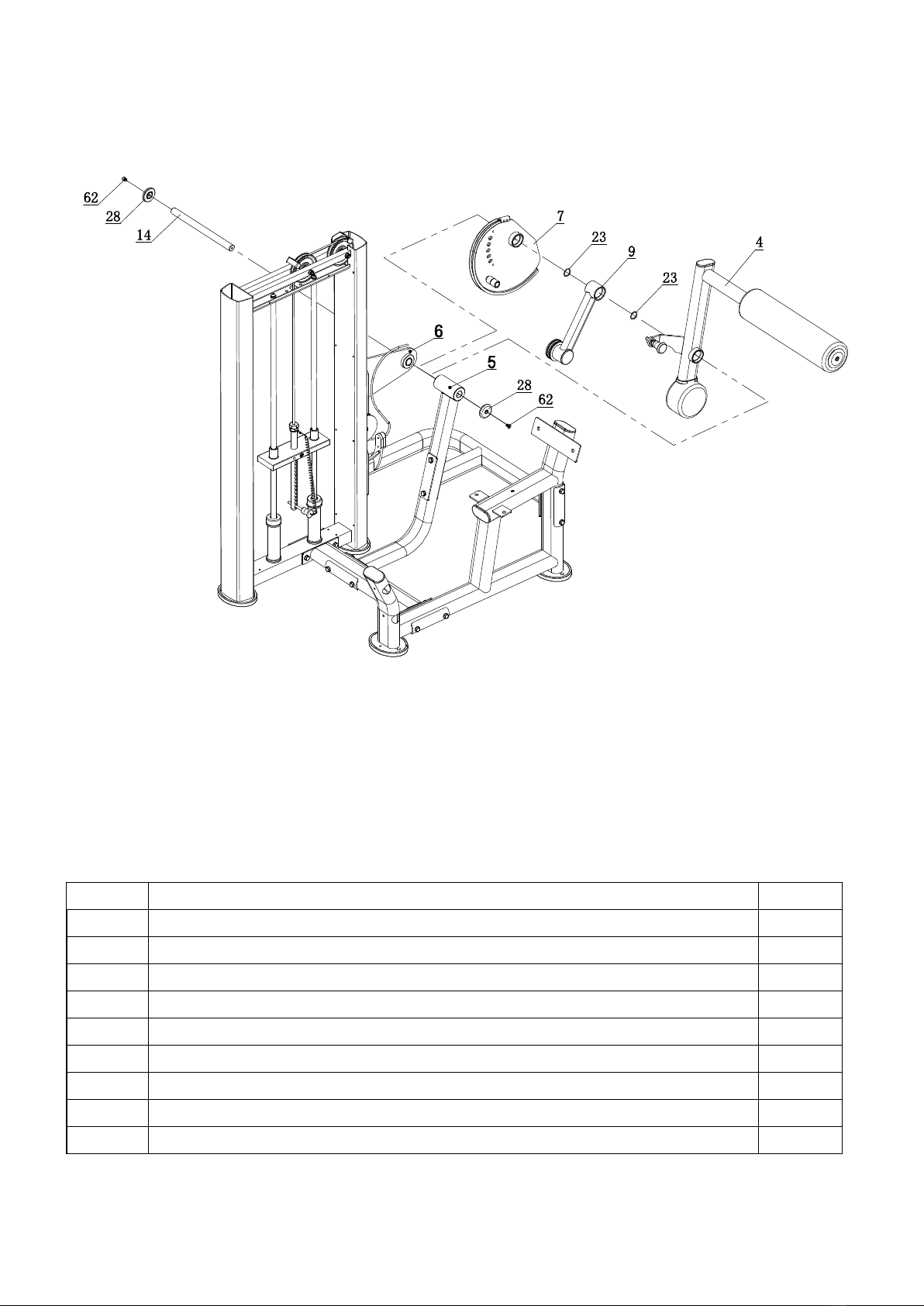

Assemble Support Frame (6), Cam Support (7), Special Washer (23), Rotating Frame (9), Special Washer
(23), Rotating Arm (4) to Connecting Frame (5), using Central Axle (14). In the 2 sides of Central Axle, fix 2 End
Cap (28) with 2 Flat Head Allen Bolt M8x15 (62). Using right tools tighten bolts and nuts from the steps 1, 2 and 3
properly.
Nº
English description
Qty
4
ROTATING ARM
1
5
CONNECTING FRAME
1
6
SUPPORT FRAME
1
7
CAM SUPPORT
1
9
ROTATING FRAME
1
14
CENTRAL AXLE
1
28
END CAP
2
23
SPECIAL WASHER
2
62
FLAT HEAD, ALLEN BOLT M8*15
2

STEP 4

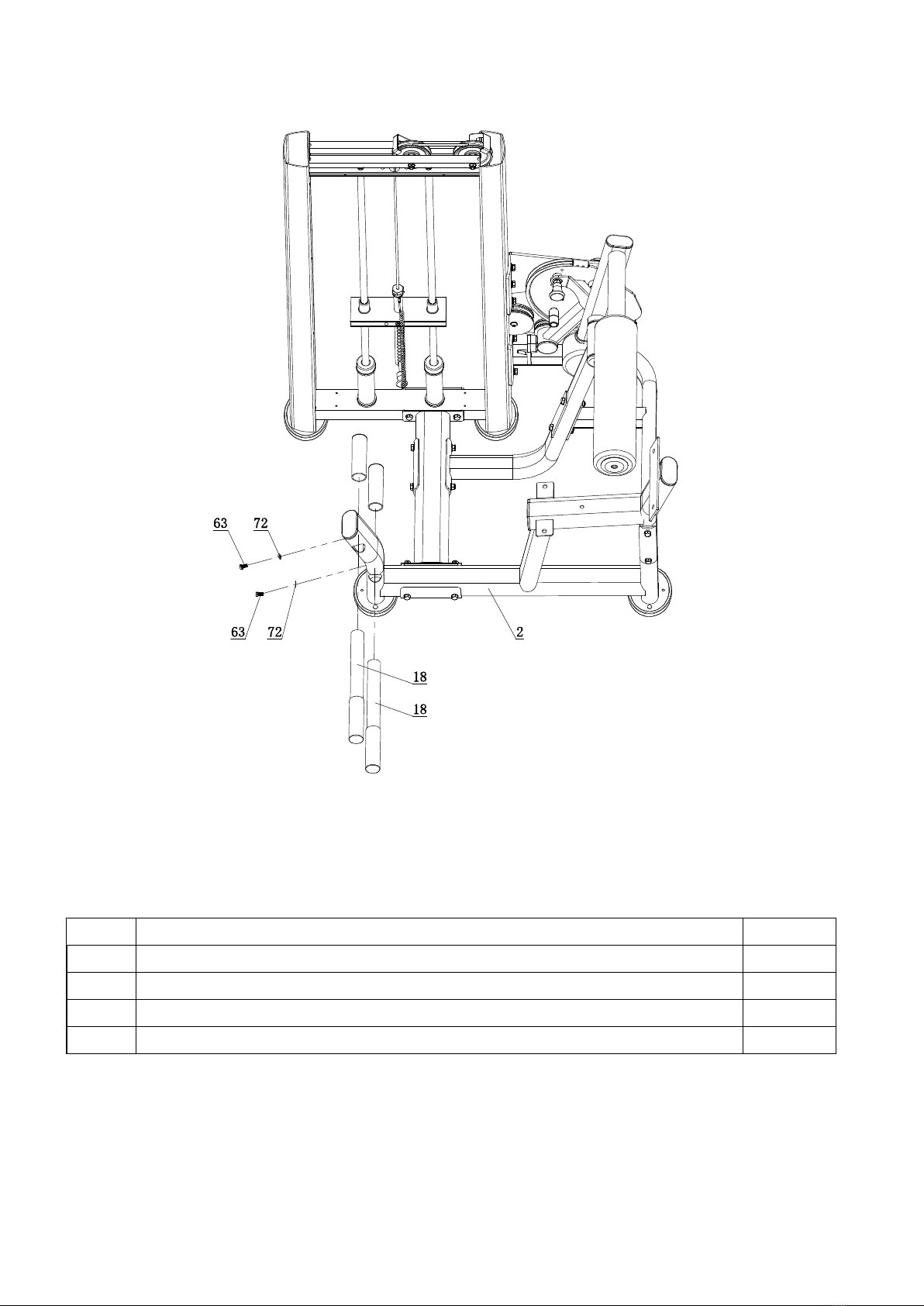

Fix the Pedal Bar (18) to Main Frame (2), using 2 Hex Head Bolt M8x15 (63), 2 Flat Washers M8 (72).
Using right tools tighten bolts properly.
Nº
English description
Qty
2
MAIN FRAME
1
18
PEDAL BAR
1
63
HEX HEAD BOLT M8*15
2
72
FLAT WASHER M8
2

STEP 5
Install 2 Base Cover(36) to Tower Frame(1) using 4 Pan Head Phillips Bolt M6x15(70).
Nº
English description
Qty
1
TOWER FRAME
1
36
BASE COVER
2
70
PAN HEAD PHILLIPS BOLT M6X15
4

STEP 6

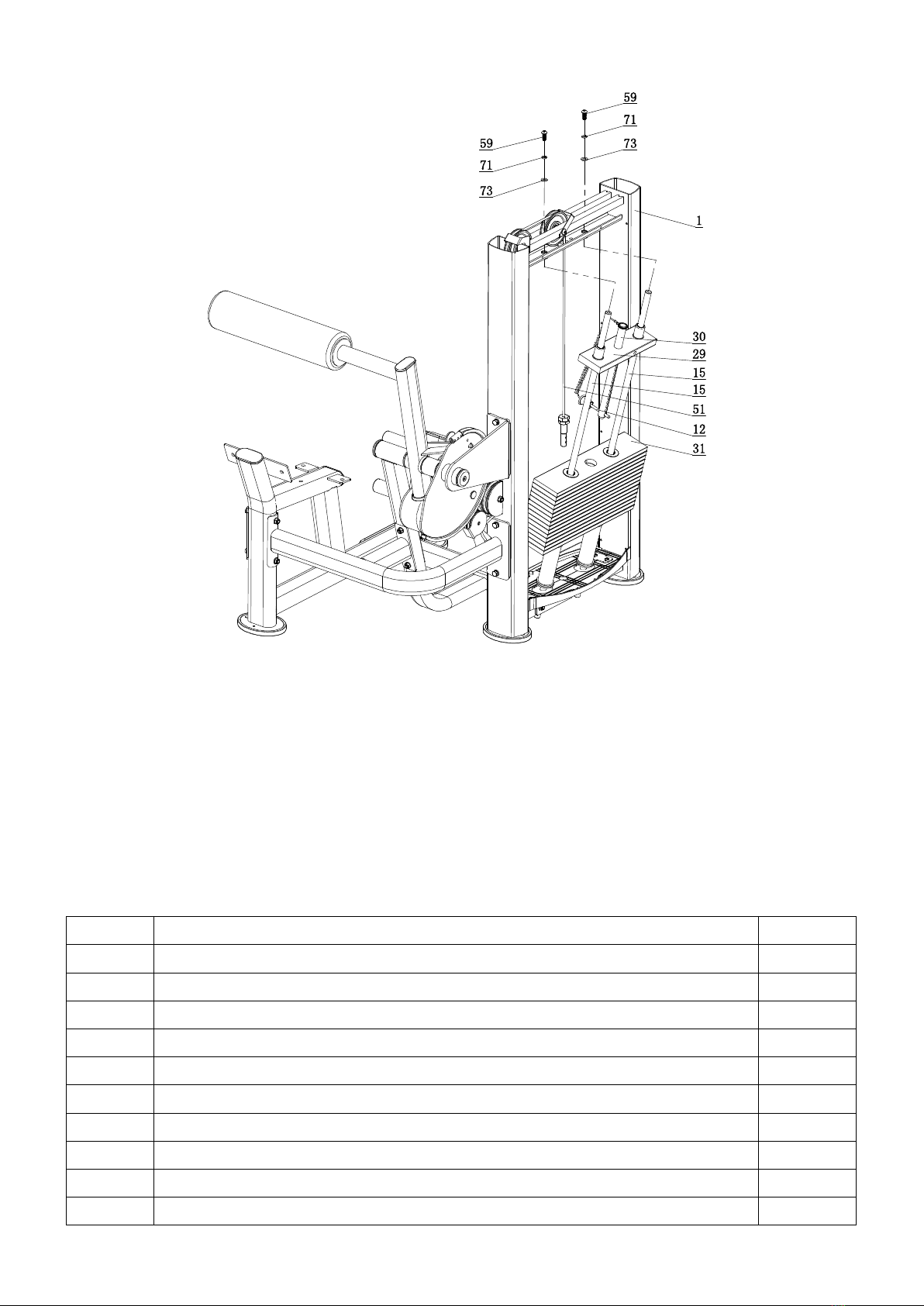

Remove Cable (51) from Selector Shaft (30). Remove 2 Pan Head Allen Bolt M10x25 (59), 2 Spring
Washer (71) and 2 Flat Washer (73) from Guide-rod (15). Incline Guide-rod (15) as shown in the drawing and then
remove the combination of Top Weight Stack (29) and Selector Shaft (30). Make sure the shock absorber rubber
and the weight lift are in the right position as shown in the drawing.
Then put 15 Weight Stack (31) to Guide-rod (15), insert back the combination of Top Weight Stack (29)
and Selector Shaft (30). Assemble Guide-rod (15) to Tower Frame (1) using 2 Flat Washer(73), 2 Spring Washer
(71) and 2 Pan Head Allen Bolt M10x25 (59). Connect Cable (51) to Selector Shaft (30) and using the right tools
tighten bolts and nuts properly.
Nº
English description
Qty
1
TOWER FRAME
1
12
WEIGHT SELECTOR PIN
1
15
GUIDE-ROD
2
29
TOP WEIGHT STACK
1
30
SELECTOR SHAFT
1
31
WEIGHT STACK
15
59
PAN HEAD, ALLEN BOLT M10*25
2
71
SPRING WASHER
2
73
FLAT WASHER
2
51
CABLE
1

STEP 7
Insert Cable (51) onto Cam (7) and fix using 5 Allen Head Set Screw M8x8 (69). Using the right tools
tighten bolts properly.
Nº
English description
Qty
7
CAM
1
51
CABLE
1
69
ALLEN HEAD SET SCREW M8X8
5

STEP 8

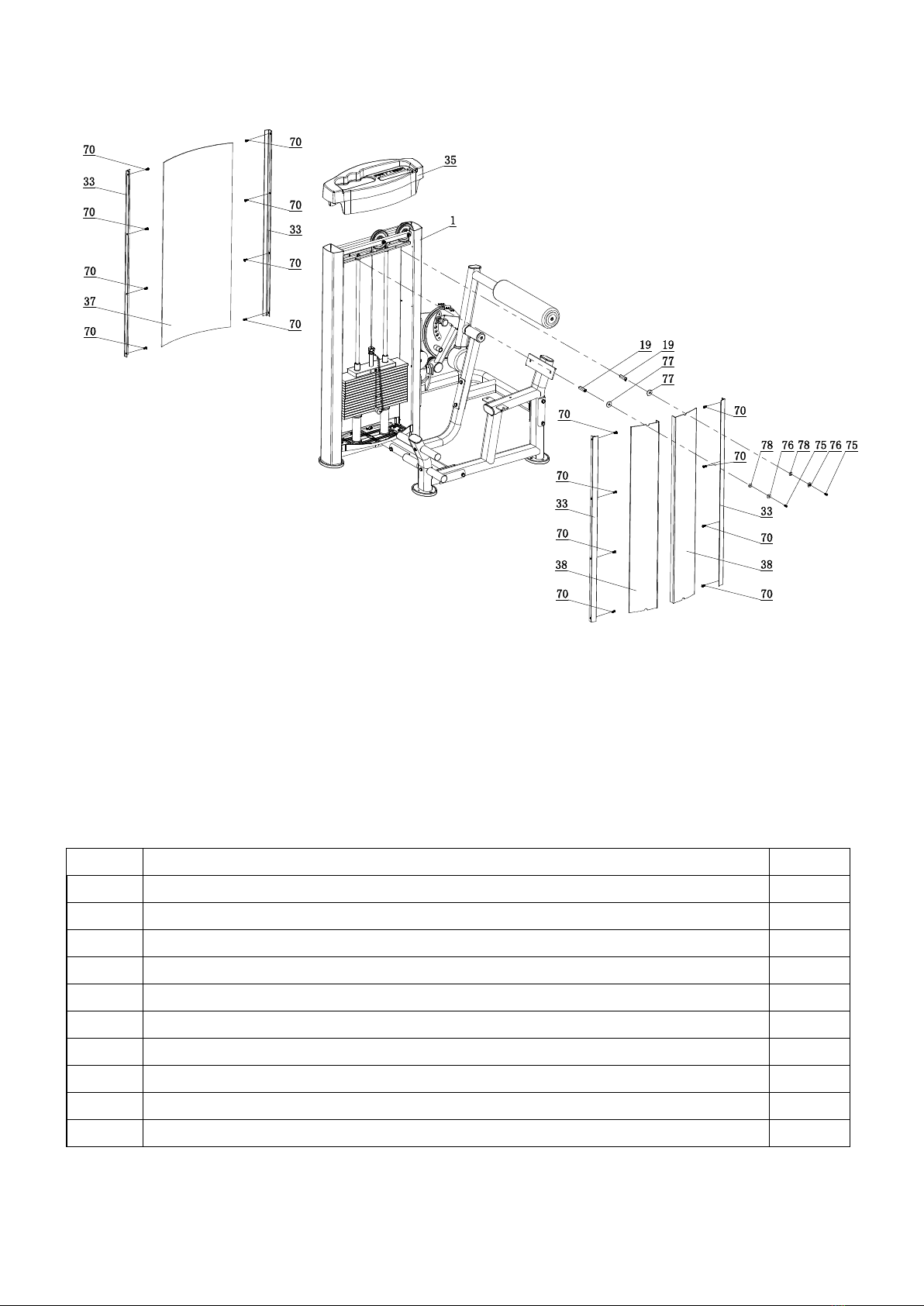

Fix 4 Side Face (33) in the Tower Frame (1) using 16 Pan Head Phillips Bolt M6x15 (70), 2 in the front and
2 in the back. Using the right tools tighten bolts properly.
Insert 2 Front Cover (38) and 1 Back Cover (37) into Tower Frame (1). Then fix Bolt (19) on the Tower
Frame (1) using 2 Pan Head Phillips Bolt M6x20 (75), Washer (76), Washer (78), and Big Washer (77), and using
the right tools tighten bolts properly. Put Top Cover (35) onto Tower Frame (1).
Nº
English description
Qty
1
TOWER FRAME
1
19
BOLT
2
33
SIDE FACE
4
35
TOP COVER
2
37
BACK COVER 504*1173*3
1
38
FRONT COVER 184*1184*3
2
70
PAN HEAD, PHILLIP BOLT M6*15
30
76
WASHER
2
77
BIG WASHER
2
78
WASHER
2
COMPLETED ASSEMBLY
