TAG S-Line767 User manual

MODEL # S-Line 767
LEG EXTENSION/CURL COMBO
www.tagfitness.net
630-375-1500

SAFETY INFORMATIONS
Before using the equipment, carefully read all the safety labels and warnings related to the equipment as
well as all the instructions contained in this Guide or the Equipment Installation Guide and retain them in a safe
place for future reference. It is the owner's responsibility to ensure that all users of the equipment are adequately
informed about the safety precautions and use. The misuse of this equipment could result in health hazards. The
manufacturer assumes no responsibility for personal injury or property damage incurred by the improper use of
this equipment.
PRODUCT
Two or more people will be required to assemble this equipment. Make sure that the floor is flat and
there is sufficient space to mount, dismount, and use the equipment. Remove the equipment from the packaging.
Do not discard the packaging until the installation is complete. Proceed with the assembly and make sure that the
equipment is firmly installed and that all parts are tightened correctly. The equipment must be retained in the
original configurations of the project. Do not carry out any modification that alters the equipment, which could
result in the loss of the product warranty.
Replace damaged parts with original parts and regularly carry out preventive maintenance;
Replace defective parts immediately and/or take the equipment out of use until it is repaired;
Replace damaged labels;
For equipment with a weight stack, never use a system of weights if the top adapter plate is attached in a
higher position relative to the others;
Adjust the required force so that exercises are smooth and uniform;
Inspect the equipment before use, especially cables, pulleys, fittings, canvas, attachment of the
seat/saddle, pedal and shoe, moving or adjustable parts when applicable. Make sure that all the pieces and parts are
securely fastened;
Never release the anklet, handles or bar while the weights are raised: the weights will fall with a lot of
force and this can damage the equipment;
The training equipment shall only be used in areas where access and control is specifically regulated by
the owner.
The training equipment shall only be used in supervised area.
PERSONAL
Consult your doctor before starting and during any exercise program. Special attention should be given
to children, pregnant women, the elderly, people with heart problems and those with a disability or pre-existing
health problems.
Keep children and pets, away from the equipment especially during use. Children should be watched so
they do not to play with the equipment, whether or not it is in use.
The equipment is not intended to be used by children or people with some reduction in their physical,
sensory or mental capacity, lack of experience and knowledge, unless they have been given the necessary
instructions for the use of the equipment and be under the care of a person who is responsible for their safety.
When the machine is in motion never put your hands on the column weights covers (if applicable) or any
moving parts. Do not insert any object in the openings. Never carry out any adjustments, cleaning or maintenance
when the equipment is in motion.
Keep your body, clothes and hair away from any moving parts so that you do not suffer an accident or
serious injury.
Do not allow more than one person use the equipment at the same time, except in those stations that are
designed for this purpose.
Use the settings provided by the equipment and place yourself in a comfortable and adequate position on
the equipment.
Stop any exercise if you feel any dizziness, chills, shortness of breath, tachycardia, headache or chest
pain, weakness or breathing difficulty.
Wear appropriate athletic attire. Do not wear loose clothing that could eventually become caught in the
equipment. Always wear athletic shoes for exercising.
Do not perform any exercises 1 hour before or 2 hours after meals. Hydrate yourself during the exercises.
Before you start the exercise it is recommended that you warm up for 5-10 minutes, doing rhythmic
exercises that will move every muscle so you not damage the muscle during the exercises. Stretch before and after
your session. Inhale and exhale while exercising to relax and coordinate breathing with the movement. Once a
muscle has been exercised rest it for 48 hours before exercising it again. The exercises are efficient and you can
get the most out of the equipment if you are supervised by a professional.
The person exercising should face the equipment at all times during the exercise. The weight stacks
should remain within the field of vision of the user throughout exercise to prevent danger to the third party.
Note: For your convenience and quick access, basic safety information, also available in sticker fixed on
tower.

ASSEMBLY

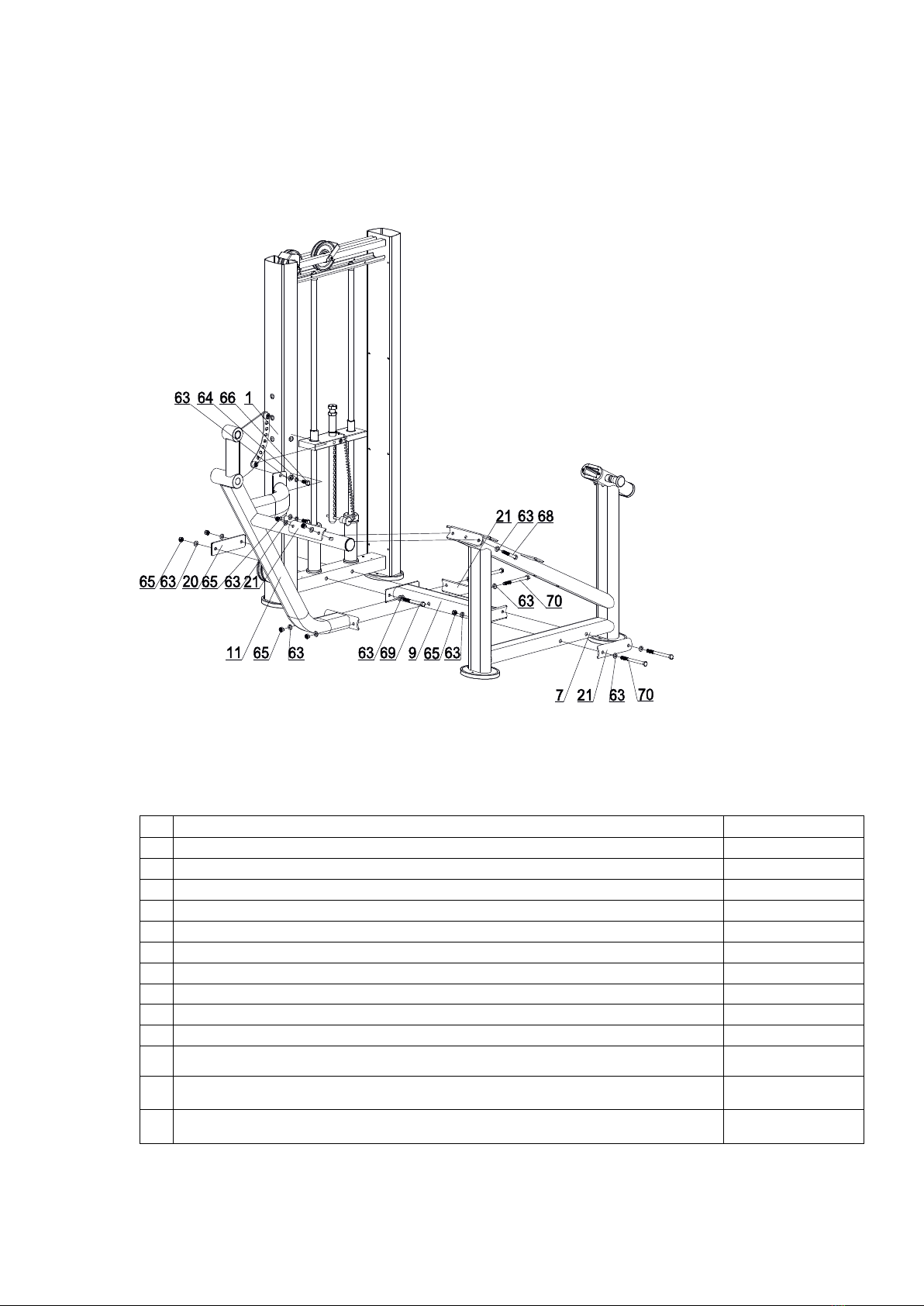

STEP 1
Assemble tower frame (1), main frame (7), connecting tube (9), curl support tube(11),)fixing
plate (20) and fixing plate (21), using flat washer(63) , spring washer(64),lock nut hex M10(65), hex
head bolt M10x25(66), hex head bolt M10x75(68), hex head bolt M10x100(69) and hex head bolt
M10x125(70). Do not tighten the bolts and nuts at this step.
Nº
English description
Qt
1
TOWER FRAME
1
7
MAIN FRAME
1
9
CONNECTING TUBE
1
11
CURL SUPPORT TUBE
1
20
FIXING PLATE
1
21
FIXING PLATE
3
63
FLAT WASHER
18
64
SPRING WASHER
2
65
LOCK NUT HEX M10
8
66
HEX HEAD BOLT M10x25
2
68
HEX HEAD BOLT M10x75
2
69
HEX HEAD BOLT M10x100
2
70
HEX HEAD BOLT M10x125
4

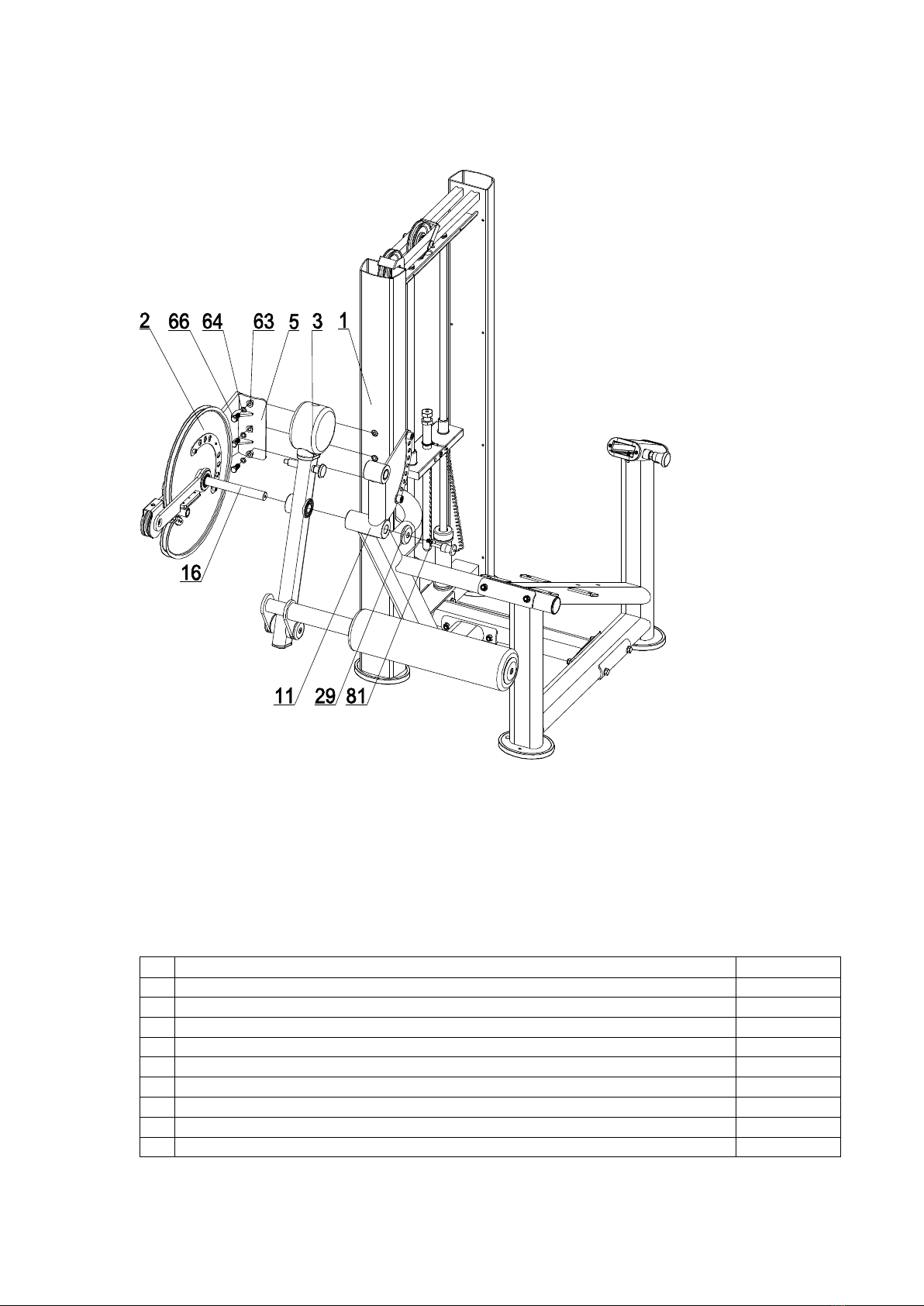

STEP 2
Install cam support (5) to tower frame (1), using flat washer (63), spring washer (64) and hex
head bolt M10x25 (66). Do not tighten the bolts and nuts at this step.
Insert long Axis (16) into cam support(5),cam (2), leg cushion frame (3), curl support tube
(11), then fix the long Axis(16) using ending cap (29) and flat head, allen bolt (81).
Nº
English description
Qt
1
TOWER FRAME
1
2
CAM
1
3
LEG CURL FRAME
1
5
CAM SUPPORT
1
27
ENDING CAP
2
61
FLAT WASHER
3
62
SPRING WASHER
3
64
HEX HEAD BOLT M10x25
3
79
FLAT HEAD, ALLEN BOLT M8x15
1

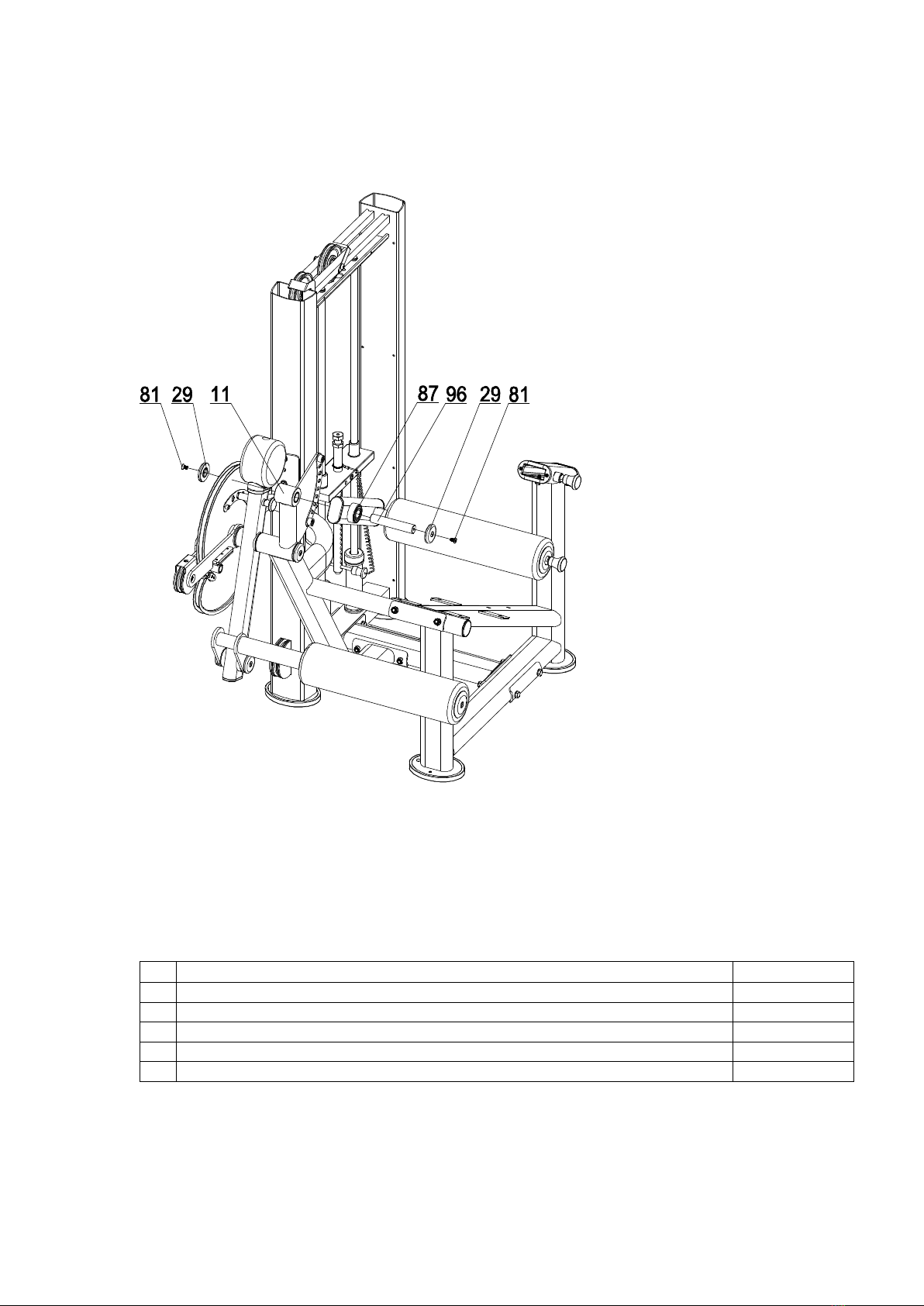

STEP 3
Insert foam Axis (96) into foam support(87),curl support tube (11), then fix using ending cap
(29) and flat head, allen bolt (81).
Nº
English description
Qt
11
CURL SUPPORT TUBE
1
29
ENDING CAP
1
81
FLAT HEAD, ALLEN BOLT M8x15
1
87
FOAM SUPPORT
1
96
FOAM AXIS
1

STEP 4
Install handle bar (10) and fixing plate (20) to main frame (7), using flat washer (63), lock nut
hex M10 (65) and hex head bolt M10x75 (68).
Nº
English description
Qt
7
MAIN FRAME
1
10
HANDLE BAR
1
20
FIXING PLATE
1
63
FLAT WASHER
4
65
LOCK NUT HEX M10
2
68
HEX HEAD BOLT M10x75
2

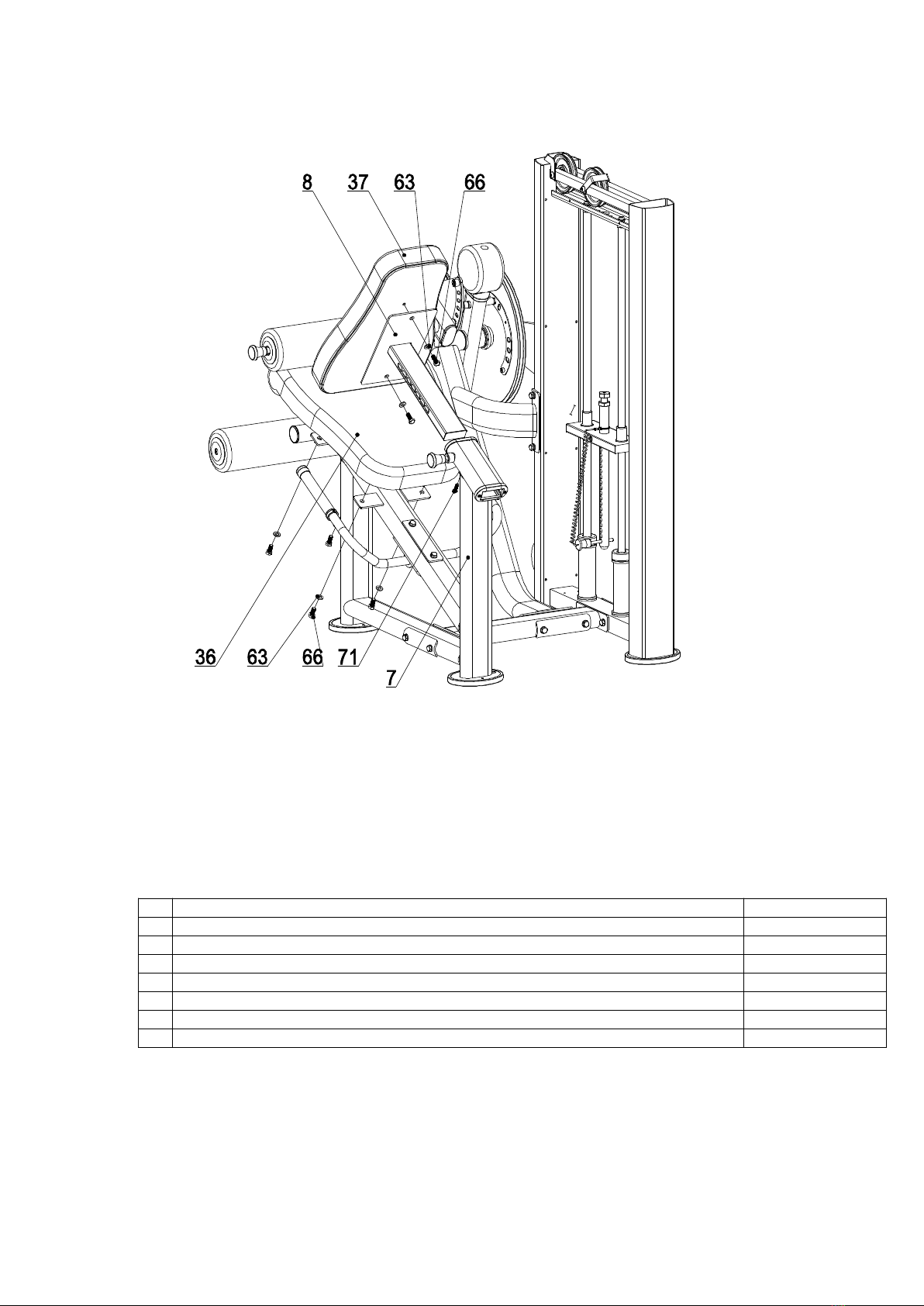

STEP 5
Fix back cushion (37) to the adjusting tube (8) using 2 flat washers(63) and 2 pan head Allen
bolt M10x25(66), then remove hex head bolt M8x25(71) from main frame(7), install adjusting tube(8)
to right position ,fixed the hex head bolt M8x25(71); Fix cushion (36) to main frame (7) using 4 flat
washer (63) and 4 hex head bolt M10x25 (66). Use the right tool tighten the bolts.
Nº
English description
Qt
7
MAIN FRAME
1
8
ADJUSTING TUBE
1
36
CUSHION
1
37
BACK CUSHION
1
63
FLAT WASHER
6
66
HEX HEAD BOLT M10x25
6
71
PAN HEAD, ALLEN BOLT M8x25
1

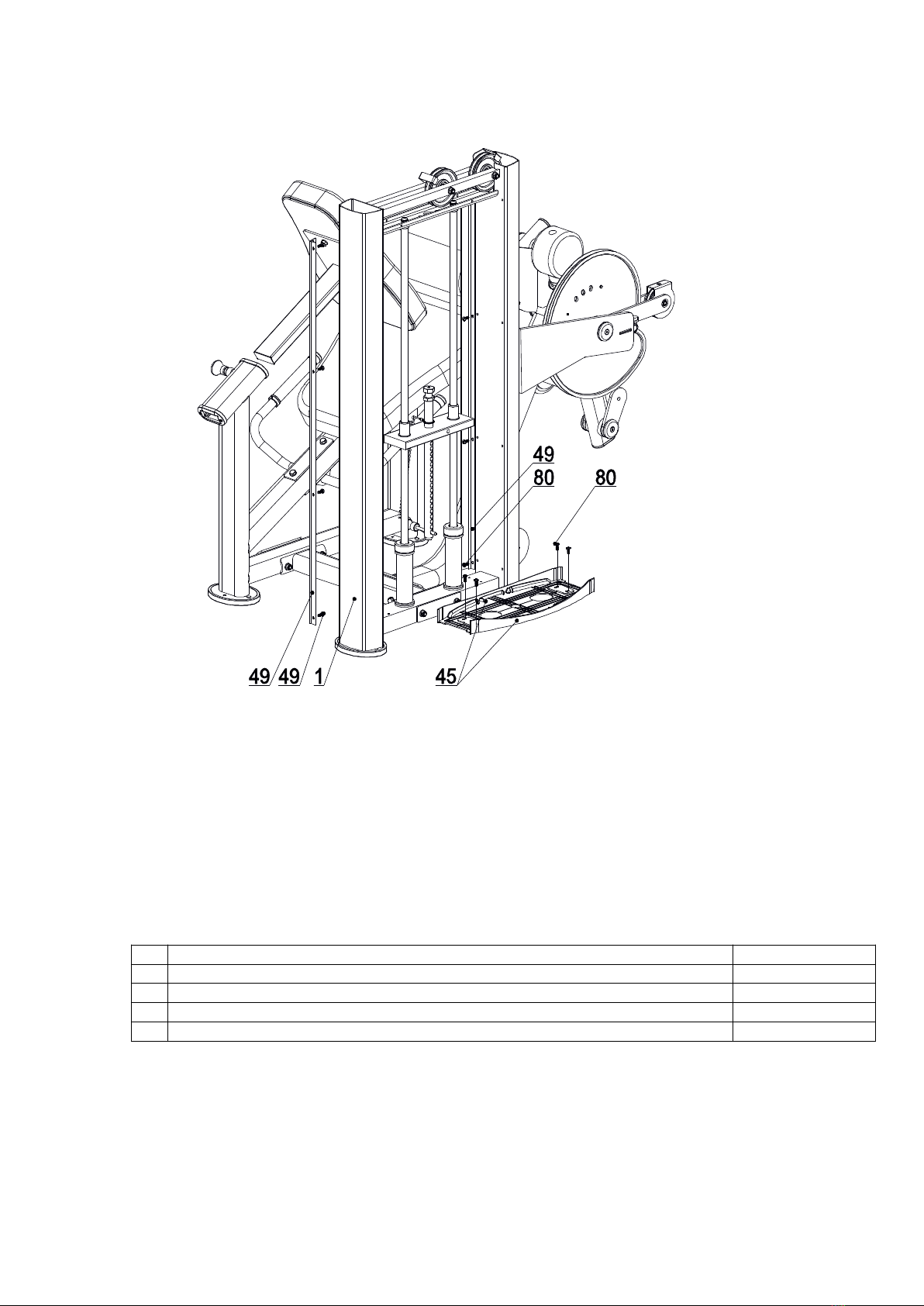

STEP 6
Install base cover (45) to tower frame (1) using pan head phillips bolts M6x15(80). Fix 2 side
faces (49) in the tower frame (1) using 8 pan head Phillips bolt M6x15 (80), Using the right tools
tighten bolts properly.
Nº
English description
Qt
1
TOWER FRAME
1
45
BASE COVER
2
49
SIDE FACE
2
80
PAN HEAD PHILLIPS BOLT M6X15
12

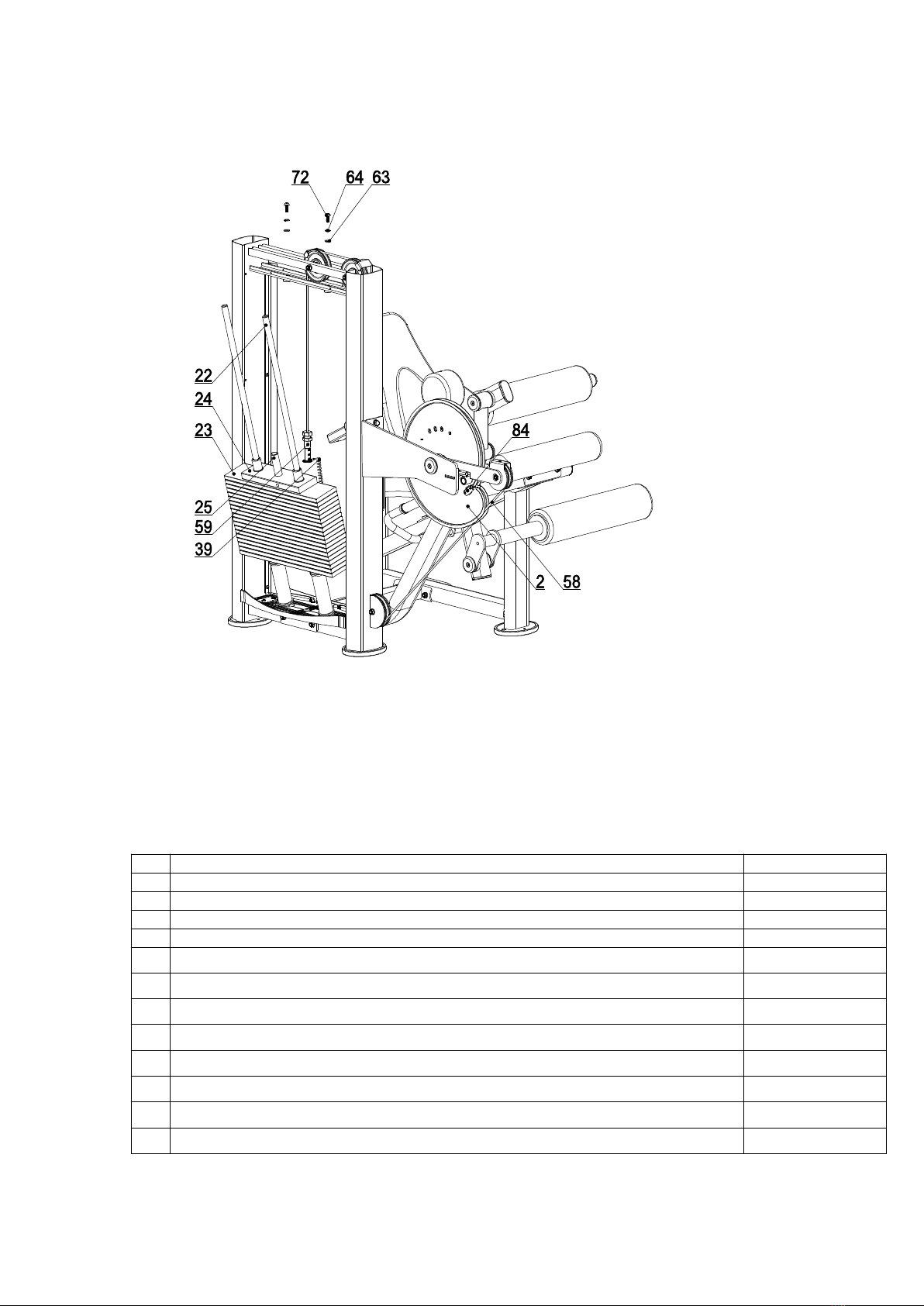

STEP 7
Remove the terminal (59) from selector shaft (25). Remove 2 pan head Allen bolt M10x25
(72), 2 spring washer (64) and 2 flat washers (63) from guide-rod (22). Incline the guide-rod (22) as
shown in the drawing and then remove the combination of the top weight stack (24) and selector shaft
(25). Make sure the shock absorber rubber and the weight lift are in the right position as shown in the
drawing, then put 19 weight stacks (23) to the guide-rod (22) and insert back the combination of the top
weight stack (24) and selector shaft (25). Assemble the guide-rod (22) to the tower frame (1) using 2
flat washers (63), 2 spring washer (64) and 2 pan head Allen bolt M10x25 (72). Connect the terminal
(59) to the selector shaft (25) and using the right tools to tighten bolts and nuts properly.
Fix the cable (58) in the cam frame (2) using 5 Allen head set screw M8x8 (84).
Nº
English description
Qt
1
TOWER FRAME
1
2
CAM FRAME
1
22
GUIDE-ROD
2
23
WEIGHT STACK
19
24
TOP WEIGHT STACK
1
25
SELECTOR SHAFT
1
58
CABLE
1
59
TERMINAL
1
63
FLAT WASHER
2
64
SPRING WASHER
2
72
PAN HEAD, ALLEN BOLT M10x25
2
84
ALLEN HEAD SET SCREW M8x8
5

STEP 8
Fix 1 top cover(44) on the tower frame(1), Using 10 pan head Phillips bolt M6x15(78),. Using
the right tools tighten bolts properly.
Nº
English description
Qt
1
TOWER FRAME
1
46
TOP COVER
1
79
PAN HEAD, ALLEN BOLT M6*15
10
80
PAN HEAD, PHILLIP BOLT M6*15
8
49
SIDE FACE
2
50
BACK COVER
1
51
FRONT COVER
2
89
LEFT HOLDER
1
90
RIGHT HOLDER
1
99
FLAT WASHER
2
100
SPRING WASHER
2
COMPLETED ASSEMBLY
