Taiden HCS-5335 Series User manual

Compact Digital Infrared Wireless Conference System
Installation and Operating Manual
V 1.1


Remarks:
All rights reserved for translation, reprint or reproduction
Contents may change without prior announcement
All technical specifications are guideline data and not guaranteed features
We are not responsible for any damage caused by improper use of this manual
The equipment must be connected to earth!
This product conforms to the rules of the European directive 2014/30/EU.
To protect your hearing avoid high pressure level on earphones. Adjust to a lower and convenient level.
If any detailed information needed, please contact your local agent or TAIDEN service center in your region.
Any feedback, advice and suggestion about the products is appreciated.
In order to extend the life time of whole system, we strongly recommend that the conference system be
scheduled to shut down every day in the evening when not in use.
TAIDEN is the registered trademark of TAIDEN Industrial Co., Ltd.
I

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
6. The MAINS plug serving as a disconnection device
should be easy to operate.
7. The apparatus should be connected to the MAINS
socket-outlet with protective earth.
8. Clean only with dry cloth.
9. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
10. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
11. Do not bypass the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
12. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the
manufacturer.
14. Do not leave the battery near the fire or under an
environment over 60 ºC (such as under direct sunlight
in the car), otherwise it may damage the protection
circuit of the battery and cause fire, explosion, leakage
or heat generation.
15. Unplug this apparatus during lightning storms or when
unused for long periods of time.
16. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
17. Do not place the equipment on any uneven or unstable
stand; original product package or appropriate package
should be used to avoid damage caused by strong
impacts during transportation.
18. Power supply cords:
AC 100 V-120 V 60 Hz or AC 220 V-240 V 50 Hz
19. The quantity of connected transceivers in one system
should not exceed prescribed quantity. For service,
please contact the nearest TAIDEN Service Center.
20. All TAIDEN products are guaranteed for definite time
(see the WARRANTY CARD for details) excluding the
following cases:
A. All damage or malfunction caused by human
negligence;
B. Damage or malfunction caused by improper
operating by operator;
C. Parts damage or loss caused by disassembling the
product by non-authorized personnel.
21. Use ONLY specified connection cable to connect the
system equipment.
22. Upon receipt of the product, please fill out the Warranty
Card enclosed and post it to TAIDEN Service Center
nearby in your region.
This label appears on the rear of the unit due to space limitations
The lightning flash with an arrowhead symbol, with
an equilateral triangle, is intended to alert the user to
the presence of uninsulated ‘dangerous voltage’
within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation mark within an equilateral triangle is
intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
CAUTION: To reduce the risk of electric shock,
DO NOT open covers, no useable serviceable
parts inside. Refer servicing to qualified service
personnel only.
WARNING: These apparatuses shall not be
exposed to dripping or splashing and no
objects filled with liquids, such as vases
shall be placed on the apparatus.
II

Important Safety Instructions
Attention: Installation should be performed by
qualified service personnel only in accordance
with the National Electrical or applicable local
codes.
Power Disconnect: Units with or without ON – OFF
switch have power supplied to the unit whenever the
power cord is inserted into the power source;
however, the unit is operational only when the ON –
OFF switch is in the ON position. The power cord is
the main power disconnect for all units
WARNING: To reduce the risk of electric
shock, DO NOT expose units to rain or
moisture.
WARNING:
The apparatus should be
connected to a mains socket outlet with a
protective earthing connection.
III

Lithium battery safety precautions
To change battery please power off and take off the battery immediately.
Keep the battery away from heat sources to prevent fire or explosion.
Do not use a battery that is leaking, deformed, discolored or overheats.
Take extra precautions to keep a leaking battery from fire.
Do not use a battery that emits odor or smoke.
Do not solder, disassemble, puncture or deform the battery, otherwise, it may damage the protection circuit of
the battery and cause fire, leakage or explosion.
Do not short-circuit the positive and negative electrode with wire or other metal objects, otherwise it may
cause fire, explosion, leakage or heat generation.
Do not store or transport the battery with metal objects (such as necklace or hair grip), otherwise it may cause
fire, explosion, leakage or heat generation.
Do not heat the battery or throw it into fire, otherwise it may damage the safety valve or the protection circuit
of the battery and may cause fire or explosion.
Do not put the battery in the water or moisten the electrode of the battery, otherwise it may corrode the
battery and cause fire, explosion, leakage or heat generation.
Be careful to put the battery into the charging case with correct electrode position, otherwise it may cause fire,
explosion, leakage or heat generation.
Do not leave the battery near the fire or under an environment over 60 ºC (such as in the car from direct
sunlight), otherwise it may damage the protection circuit of the battery and cause fire, explosion, leakage or
heat generation.
Please charge the battery with the dedicated base plate, using other charging unit may cause fire, explosion,
leakage or heat generation.
Please use the battery in assigned unit, otherwise it may cause fire, explosion, leakage or heat generation.
Do not drop or shock the battery, otherwise it may damage the protection circuit of the battery and cause fire,
explosion, leakage or heat generation.
If battery contents get into eyes it may cause blurred vision. DO NOT rub. Rinse with clear water immediately
and consult a doctor.
If the battery leaks onto skin or clothing, wash the area immediately with clean water to avoid skin injury and
fabric damage.
It will result in low battery and may damage the battery if the battery is not used for a long time. Please fully
charge the battery for every three months.
IV

Contents
Installation & User Guide...........................................................................................................VI
Chapter 1 System introduction...................................................................................................1
1.1 Overview......................................................................................................................................................................1
1.2 Functions and features................................................................................................................................................3
1.3 System technology ......................................................................................................................................................4
1.3.1 Basic system concept..................................................................................................................................................4
1.3.2 IR radiation..................................................................................................................................................................4
1.3.3 Aspects of infrared signal transmission.......................................................................................................................4
1.3.4 Carriers and channels.................................................................................................................................................4
Chapter 2 Digital IR Wireless Conference System Combo Unit.................................................5
2.1 Overview......................................................................................................................................................................5
2.2 Functions and indications............................................................................................................................................5
2.3 Installation and connection..........................................................................................................................................6

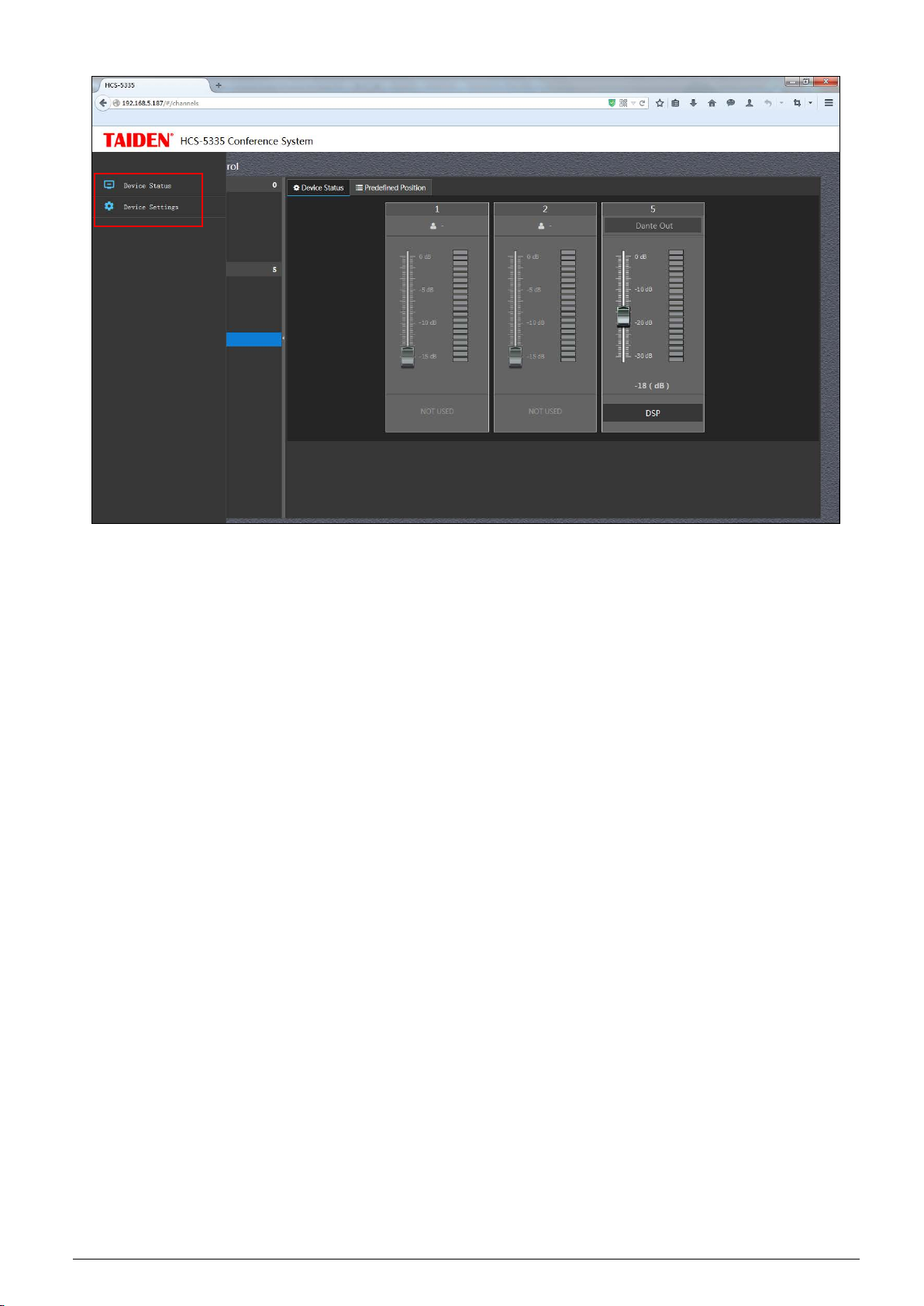

2.4 Web server ..................................................................................................................................................................7

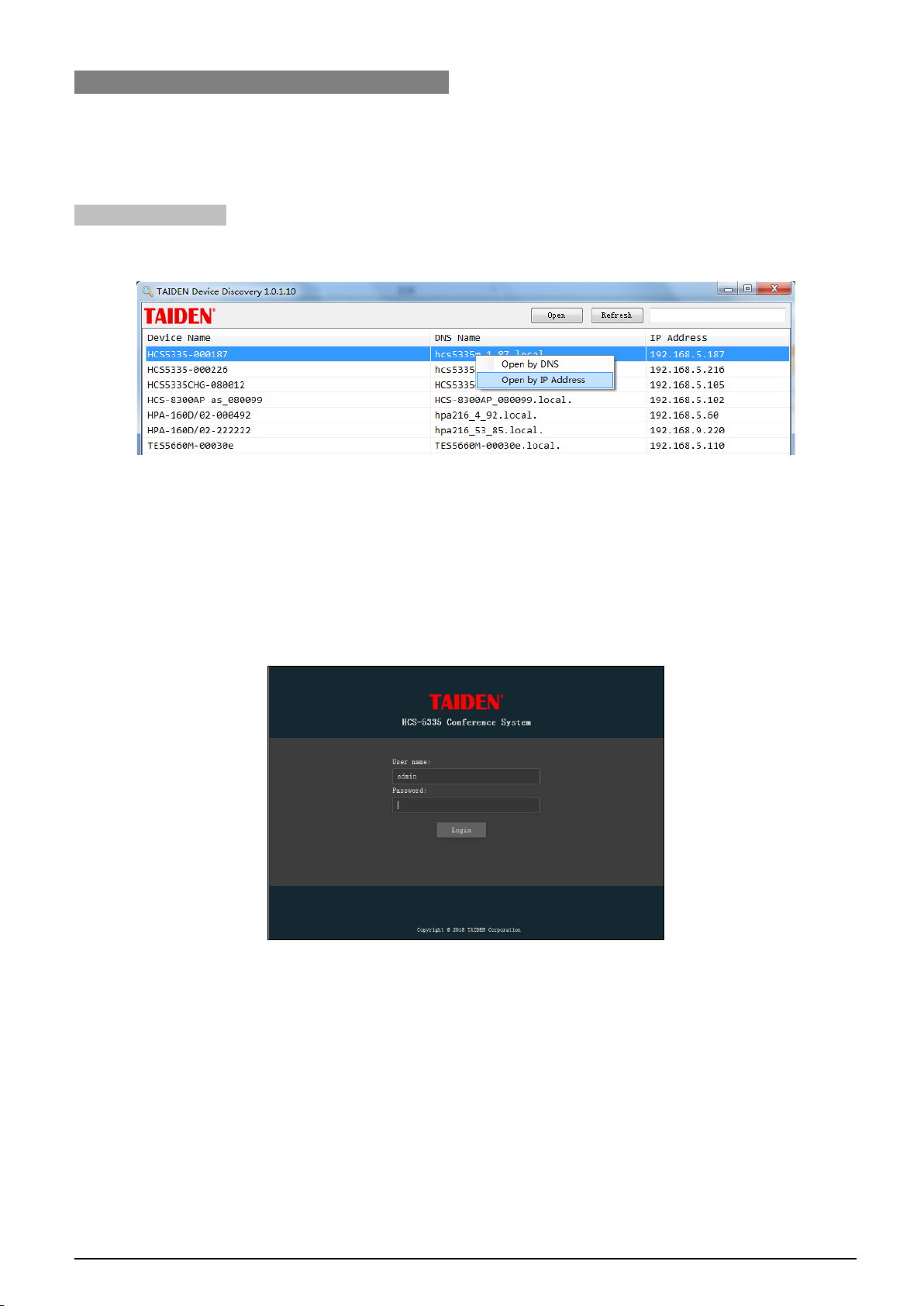

2.4.1 Login and exit..............................................................................................................................................................7

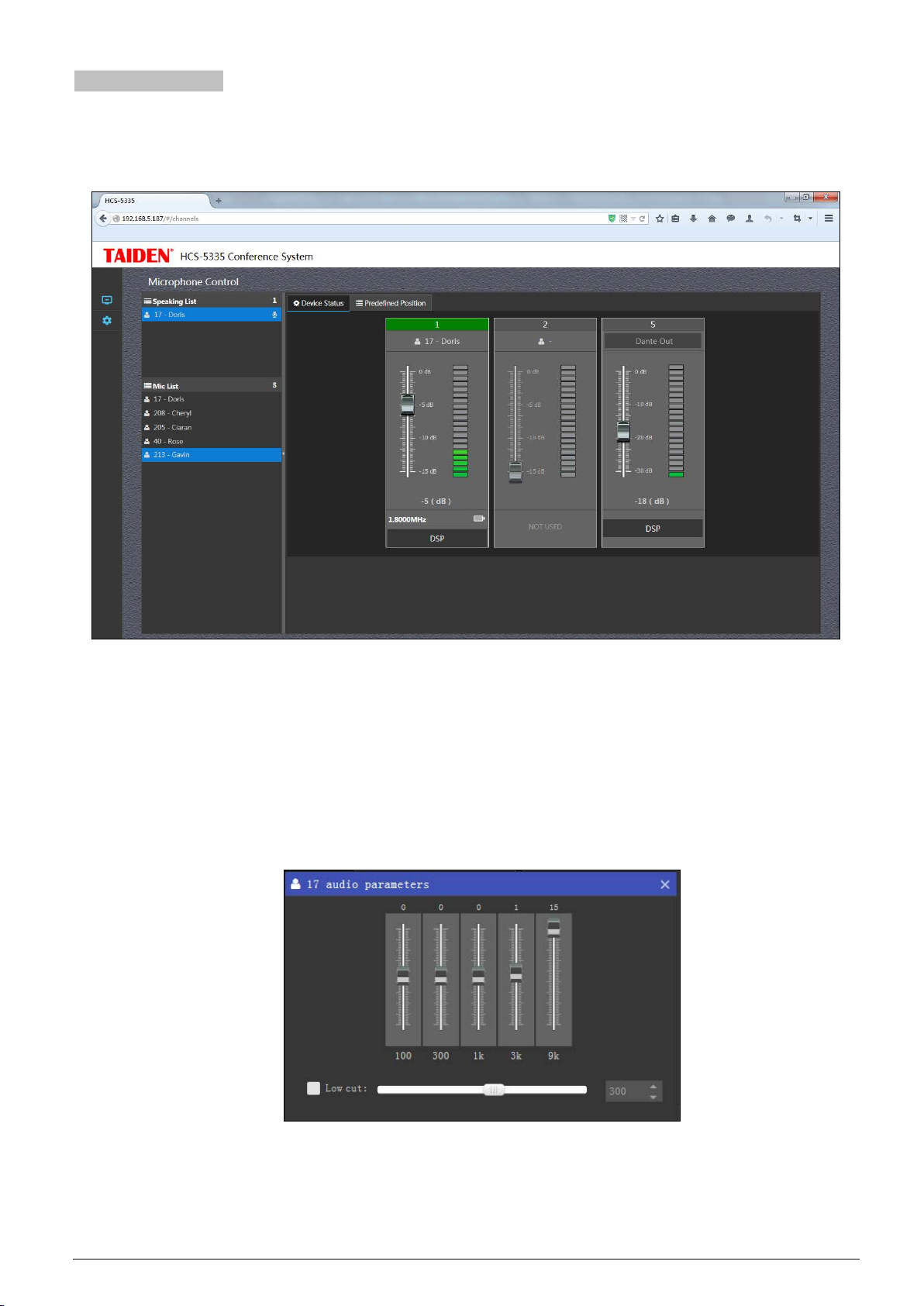

2.4.2 Device Status..............................................................................................................................................................9

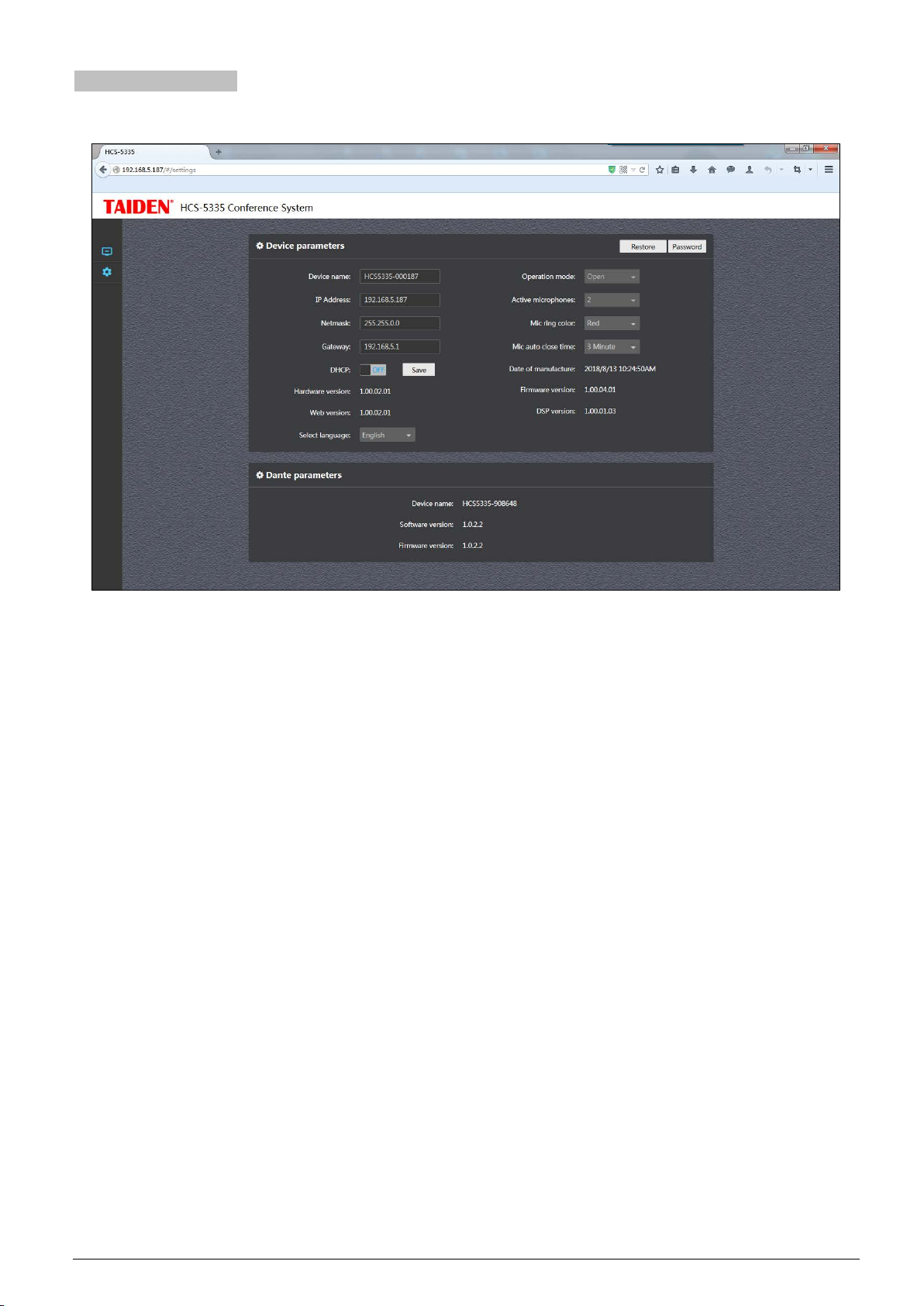

2.4.3 Device Settings .........................................................................................................................................................12
Chapter 3 Digital infrared wireless conference unit..................................................................13
3.1 Overview....................................................................................................................................................................13
3.2 Functions and indicating............................................................................................................................................14
3.3 Precautions in using ..................................................................................................................................................15
3.4 Operation...................................................................................................................................................................15
3.4.1 The operation of delegate unit...................................................................................................................................15
3.4.2 The operation of chairman unit..................................................................................................................................15
Chapter 4 Accessories .............................................................................................................16
4.1 Intelligent charging station.........................................................................................................................................16
4.2 HCS-5335ZJ Stand....................................................................................................................................................18
4.3 HCS-5335KS Storage case.......................................................................................................................................18
4.4 Stem Microphone.......................................................................................................................................................18
Chapter 5 Technical data..........................................................................................................19
5.1 System specification..................................................................................................................................................19
5.2 Compact digital infrared wireless main unit...............................................................................................................20
5.3 Compact digital infrared wireless conference unit.....................................................................................................21
5.4 Charging Device........................................................................................................................................................22
V

Installation & User Guide
About this manual
This manual is a comprehensive guide to the
installation and operation of TAIDEN HCS-5335 series
Compact Digital Infrared Wireless Conference System.
It includes detailed description of the function and
interface of the HCS-5335 system components, system
connection and installation, system set-up and
operation.
The manual is divided into the following chapters:
Chapter 1: Introduction
Introduction to the HCS-5335 system components
technical principle and aspects of system planning as
well.
Chapter 2: Digital infrared wireless conference
combo unit
Detailed description of functions, connection,
configuration and operation of compact digital infrared
wireless conference combo unit.
Chapter 3: Digital infrared wireless conference
unit
Detailed description of functions and operation of
compact digital infrared wireless conference unit.
Chapter 5: Accessories
Detailed description of accessories for charging
devices, stand, storage case and microphone stem.
Chapter 6: Technical data
Mechanical and electrical details of the complete
HCS-5335 system equipment.
This manual is applicable to:
Compact Digital IR Wireless Conference
System Combo Unit
HCS-5335MA
Compact Digital IR Wireless Conference System
Combo Unit (tabletop, with digital IR transceiver, Web
server, PoE power supply, connect to digital audio
power amplifier with Dante)
Compact Digital IR Wireless Conference Unit
HCS-5335AC
Digital IR Wireless Chairman Unit (black, with battery)
HCS-5335AD
Digital IR Wireless Delegate Unit (black, with battery)
HCS-5335BD
Digital IR Wireless Delegate Unit (boundary
microphone, black, with battery)
Charging Device
HCS-5335CHG/04 Charging Station (4 pcs/case)
HCS-ADP9V6A Power Adapter (DC 9 V, 6 A)
Stand
HCS-5335ZJ Stand
Storage Case
HCS-5335KS Storage Case
VI

Chapter 1 System introduction
1.1 Overview
TAIDEN extends its portfolio of wireless conferencing
solutions by launching a compact complement,
HCS-5335 series Digital Infrared Wireless Conference
System. Its performance stays true to its predecessor
but features ingenious integration by combining the
transceiver and the control unit together. No changes
or further holes need to be made in the meeting rooms
to be equipped thanks to its wireless transmission of
audio signals and tabletop/on-tripod installation of the
new main unit, making the system an ideal solution for
small to medium sized multipurpose rooms or historical
buildings.
The system consists of one digital infrared wireless
conference combo unit, one digital audio power
amplifier and up to 200 digital infrared wireless
conference units.

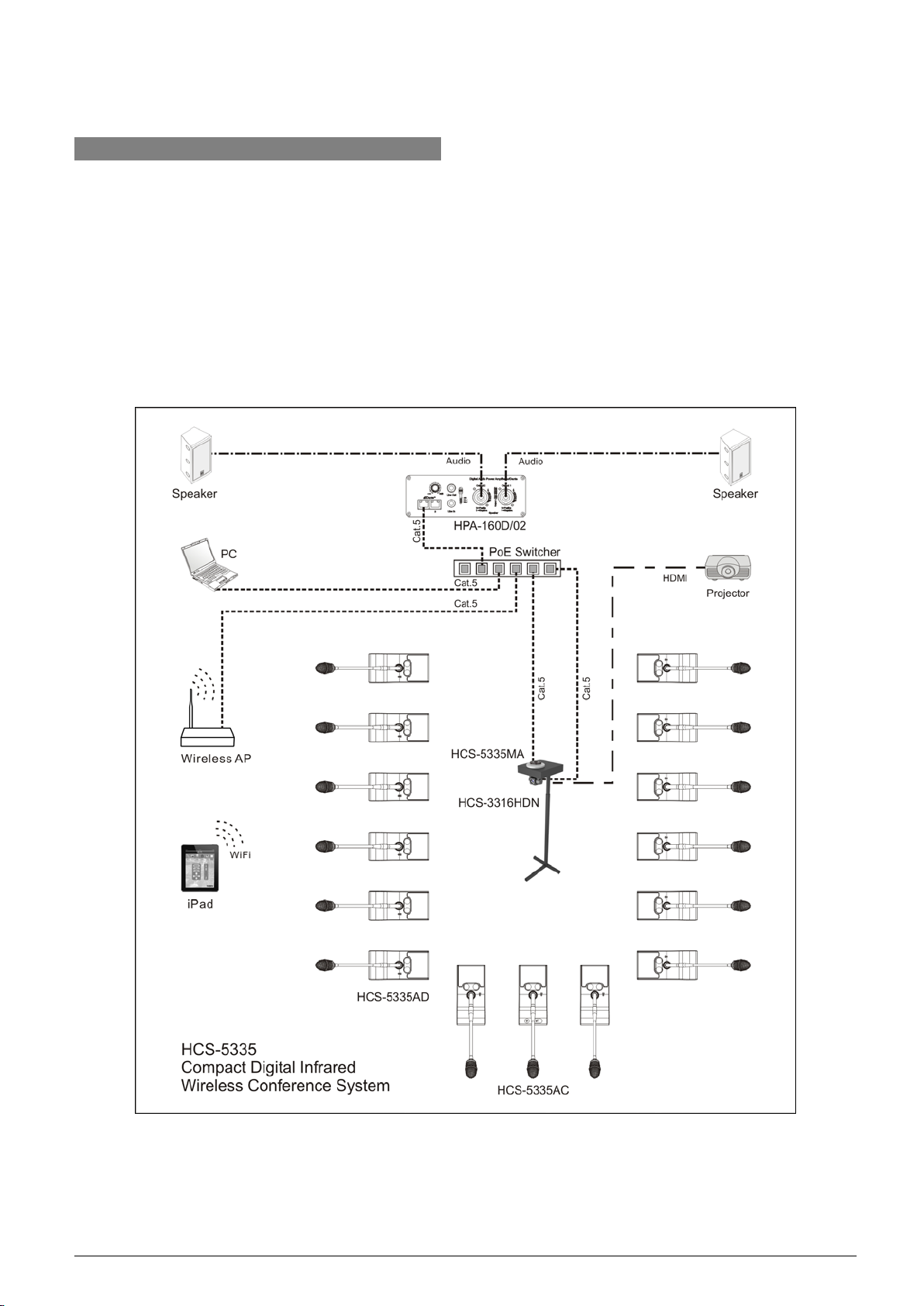

Figure 1.1 System overview
1

The system is composed of one or more of the
following:
Compact Digital IR Wireless Conference
System Combo Unit
HCS-5335MA
Compact Digital IR Wireless Conference System
Combo Unit (with digital IR transceiver)
Compact Digital IR Wireless Conference Unit
HCS-5335AC
Digital IR Wireless Chairman Unit (black, with battery)
HCS-5335AD
Digital IR Wireless Delegate Unit (black, with battery)
HCS-5335BD
Digital IR Wireless Delegate Unit (boundary
microphone, black, with battery)
Charging Device
HCS-5335CHG/04 Charging Station (4 pcs/case)
HCS-ADP9V6A Power Adapter (DC 9 V, 6 A)
Stand
HCS-5335ZJ Stand
Storage Case
HCS-5335KS Storage Case
2

1.2 Functions and features
Based on TAIDEN originated dirATC-digital
infrared Audio Transmitting and Control
technologies
Digital infrared audio processing and
transmitting technologies ensure superb
sound quality:
Freq. Response: 20 Hz to 20 kHz
S/N: >85 dBA
THD: <0.06%
IR transmission technology, no worries about
eavesdropping and radio interference, no RF
radiation
Privacy guaranteed by infrared transmission
Unlimited quantity of infrared wireless
conference systems within a building
Easy to setup, move and remove, no wiring or
drilling, perfect solution for historic venues
Thanks to tabletop installation and ceiling
reflection, especially suitable for small to
medium-sized conference rooms with a
light-colored ceiling not exceeding 5 meters
Audio, control and power signals all
transmitted over a single Cat.5 cable from the
highly-integrated main unit with infrared
receiver and a built-in digital signal processor
Adopts 1~6 MHz transmission frequency,
undisturbed by HF driven light sources
IR coverage ＞8 m radius (4 m high ceiling)
Excellent immunity to RF interference from
mobile phones and RF devices
Discussion and automatic video tracking
3

1.3 System technology
1.3.1 Basic system concept
The system composition of one digital infrared wireless
conference combo unit, one digital audio power
amplifier and digital infrared wireless conference units:
The digital infrared wireless conference combo unit
receives infrared signals from every digital infrared
wireless conference unit and converts the signals into
audio which is transmitted to the digital audio power
amplifier, or into control signals which are convert into
carrier outputs and transmitted to the digital infrared
conference units.
1.3.2 IR radiation
Audio and control signals of HCS-5335 are transmitted
as modulated infrared light. Infrared radiation is part of
the electro-magnetic spectrum, which is composed of
visible light, radio waves and other types of radiation.
Its wavelength is longer in comparison with the
wavelength of visible light.
Infrared light cannot pass through opaque walls and
ceilings and therefore guarantees privacy of the
meeting by avoiding of being intercepted or disturbed.
In addition, infrared light has no radio radiation and a
license is not required when operating infrared light
systems.
1.3.3 Aspects of infrared signal transmission
Just like visible light, infrared radiation is reflected from
hard surfaces and refracted by hyaloid (glassy or
transparent appearance) items. Objects in the
conference venue as well as structure of the walls and
ceilings will influence the distribution of infrared light.
Infrared radiation is reflected from almost all hard
surfaces. Smooth, bright or shiny surfaces reflect well.
Dark or rough surfaces absorb a large part of the
infrared energy. Usually, surfaces opaque to visible
light are also opaque to infrared radiation.
Shadows from walls and furniture will influence the
transmission of infrared light. This can be solved by
using a sufficient quantity of transceivers. They should
be positioned in a manner to provide an infrared field
strong enough to cover the whole conference area.
1.3.4 Carriers and channels
TAIDEN HCS-5335 compact digital infrared wireless
conference system adopts 1~6 MHz wave band (IEC
61603 BAND Ⅲ,Ⅳ), shown as figure 1.2.. And the
Channels and corresponding frequencies refer to table
1.1.
Figure 1.2Standard wave band in HCS-5335 system
Route Channel Frequency
From conference
unit(s) to combo
unit
Audio channel 1 1.8 MHz
Audio channel 2 2.3 MHz
Control channel 2.8 MHz
From combo unit
to conference
unit(s) Control signal 3.3 MHz
Table 1.1 Channels and corresponding frequencies in
HCS-5335 system
4

Chapter 2 Digital IR Wireless Conference System Combo Unit
2.1 Overview
HCS-5335M Compact Digital Infrared Wireless
Conference System Combo Unit is the heart of the
HCS-5335 wireless conference system. Its audio,
control and power signals all transmitted over a single
Cat.5 cable from the highly-integrated main unit with
infrared receiver and a built-in digital signal processor.
It outputs mixed microphone signal through DanteTM
network and integrates Web server configuration and
control of the main unit, discussion units and auto
tracking cameras as well
HCS-5335MA features tabletop installation and ceiling
reflection, especially suitable for small to medium-sized
conference rooms with a light-colored ceiling not
exceeding 5 meters
Types:
HCS-5335MA
Compact Digital IR Wireless Conference System
Combo Unit (with digital IR transceiver)
2.2 Functions and indications

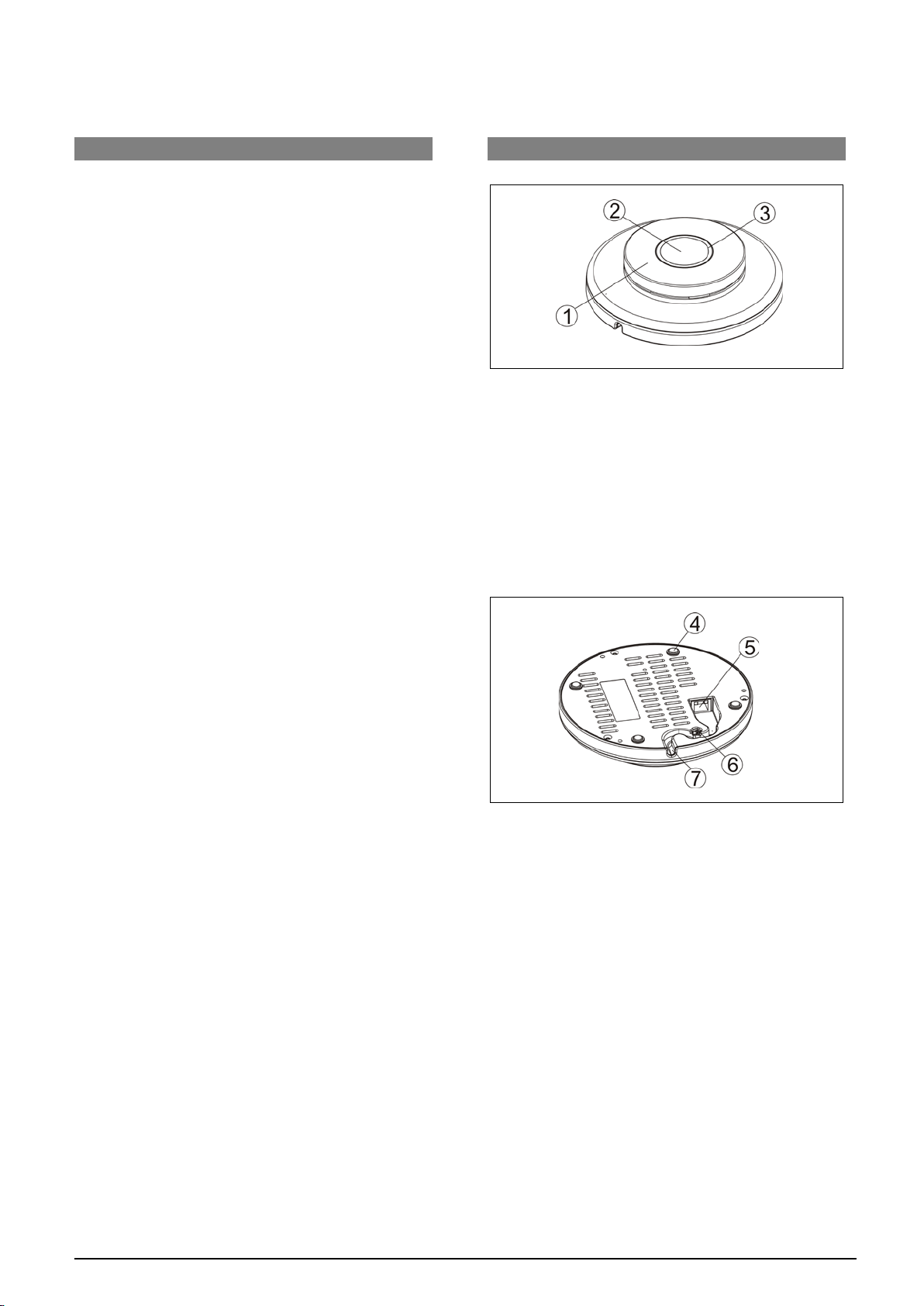

Figure 2.1 front
Figure 2.1
1. IR transmitter
2. IR receiver
3. Indicator light ring
Red flash when power on
Green when the conference unit on
Figure 2.2 back
Figure 2.2
4. Rubber
5. RJ45 interface
Connect via Cat.5 cable for power supply and
data transmission
6. Cable yard
7. Cable slot
5

2.3 Installation and connection
HCS-5335MA is tabletop mounted and it can also be
fixed on HCS-5335ZJ stand.
HCS-5335M is highly-integrated main unit with infrared
receiver and a built-in digital signal processor with its
audio, control and power signals all transmitted over a
single Cat.5 cable.
Discussion and auto video tracking can be realized by
connecting the HCS-5335M to the Ethernet PoE switch
via a Cat.5 cable for communication with other network
devices such as PC, web camera and HPA-160D/02
together with louder speakers and HCS-5335C/D
conference units.
Figure 2.3Connection
6

2.4 Web server
Web server can be used for configuration and control of the discussion units and tracking cameras by connecting
HCS-5335M to PC via PoE switch.
Operating environment: Firefox, Chrome, or IE11 or higher.
2.4.1 Login and exit
Search HCS-5335M with TAIDEN Device Discovery, as shown below:
Figure2.4: search device
How to enter Web server:
Select the device, click "Open" button;
Or, select the device, right click on it, and click "Open by IP Address";
Or, input the IP address of the device (for example 192.168.5.187) in the web browser.
The default user name is admin and the default password is 123456, click “Login” to enter the Web interface:
Figure2.5: Login
Web interface is shown below. Two icons on the left side are "Device Status" and "Device Settings".
7

Figure2.6: Web interface
Note: Parameter settings take effect immediately; please exit the web page before the HCS-5335M powered off to save
the configuration.
8

2.4.2 Device Status
Device Status includes “Device status” and “Predefined Position”.
The left side of “Device status” is speaking list and microphone list, and the right side displays the current status of the
devices.
Figure2.7: Device status
Speaking List: display the quantity of active microphone and microphone ID;
Mic List: displays microphones being connected and had been connected, double click the microphone ID can add
the delegate name;
Device status: includes microphone input status (2 microphones at most can be turned on at the same time) and
Dante output status;
Microphone input status: displays microphone ID, delegate name, dynamic level of input, frequency and
battery capacity; click “DSP” can adjust the audio parameters as well:
EQ: 5 segment graphical equalization, drag pushers to adjust equilibrium parameter (range: -15 to 15 dB).
Low cut: range: 50 to 500 Hz.
9

Dante output status: HCS-5335M has 4 Dante outputs: Dante1 for the mixed audio of MIC1 and MIC2,
Dante2 for MIC1, Dante3 for MIC2 and Dante4 is null. The Dante Output displays dynamic level of Dante1, the
gain can be adjusted (range: -30 to 0 dB) as well and click “DSP” can set the parameter of EQ and DRC
(dynamic ratio compressor);
EQ: 31 segment graphical equalization, drag pushers to adjust equilibrium parameter (range: -15 to 15
dB). You can also enable/disable low-cut and high-cut features, and set their frequency point (range: 50 to
500 Hz for low-cut, 4000 to 12000 Hz for high cut). Click “Reset” to reset to 0 dB;
DRC: sets the Threshold, Ratio, Attack Time and Decay Time. You can also select Bypass mode.
Figure2.8: EQ settings
Figure2.9: DRC settings
10

Predefined Position:set predefined position for every microphone. If the conference system is equipped with
cameras, the system can realize automatic video tracking, i.e. display the image of the speaking participator to the
displays (large screen, TV, and so on).
Figure2.10: Predefined Position
Microphone predefined position setup:
1．Input the IP of camera and click “Connect”;
2．Select a microphone on the speaking list, or select the “Panorama”;
3．Select the predefined position number (the camera can accommodate 64 positions, only 1 panorama in it);
4．Adjust the camera angle by the four direction buttons, and click zoom in/out button to adjust the size of the
video image;
5．Click the “OK” button to send the current predefined position to the combo unit if the adjustment is done;
6．Repeat the above steps to set the predefined position for other seats/microphones;
During the conference, if all microphones are configured with predefined positions, the camera will track the speaking
participator automatically, i.e. automatic video tracking.
11

2.4.3 Device Settings
Setting the parameter of HCS-5335 system:
Figure2.11: Device Settings
Device name: set the name of HCS-5335M Digital IR Wireless Conference Combo Unit;
IP Address: IP address of HCS-5335M;
Netmask;
Gateway;
DHCP: the IP address, netmask and gateway can be got automatically when power on if the DHCP is “ON”, and you
can set them manually if DHCP is “OFF”. Then click “Save” and reboot the device to apply the setting;
Hardware version;
Web version;
Select language: select the operation language;
Operation mode:
“Open”: If the number of active Mic. is less than 2, a further delegate microphone can be activated;
Active microphones: the number of maximum active microphones (2 pcs);
Mic ring color: selects the color (red/green) of active microphone ring and its unit indicator;
Mic auto close time: In case of a speech pause (range: on, 1 to 10 minutes), the microphone will turn off
automatically；
Date of manufacture；
Firmware version；
DSP version；
Dante parameters: displays the device name of Dante and its software version and firmware version;
Restore: restore to the default of HCS-5335M (IP address: 192.168.1.10; netmask: 255.255.255.0);
Password: set the password.
12

Chapter 3 Digital infrared wireless conference unit
3.1 Overview
HCS-5335 series Compact Digital Infrared Wireless
Conference Units are the basic devices for meeting
participators, divided into delegate unit and chairman
unit with priority features.
Types：
HCS-5335AC
Digital IR Wireless Chairman Unit (black, with battery)
HCS-5335AD
Digital IR Wireless Delegate Unit (black, with battery)
HCS-5335BD
Digital IR Wireless Delegate Unit (boundary microphone,
black, with battery)
