Thank you for purchasing this Takara Belmont product.
The instructions contained in this booklet should be thoroughly read and understood
before use.
Using this product before reading this operating manual may result in an accident.
This product is an industrial shampoo unit designed for barbers and hair salons.
Only use this product for its intended purpose and do not use it for non-hairdressing work.
Keep this manual and refer back to them when required.
This product is designed for shampooing and hair/scalp care.
July 2015
Version 1
Table of Contents
Operating Manual
Image is of
-
-
()
Image is of
-
-
( )
Image is of
-
-
( )

Do not climb on parts such as the
basin, armrest or backrest.
Do not climb on, pull or
apply excessive force
to parts such as the
basin, armrest, back-
rest or footrest.
Failure to follow this
instruction may
damage the product or
cause it to fall over.
Safety Precautions (Adhere to these precautions at all times)
Description of Warning Symbols
Before using this product
Precautions listed here
Symbols
Warning
Caution
If this symbol is ignored and the product is used, "there is the risk of death or serious
injury to the user".
If this symbol is ignored and the product is used, "there is the risk of light or moderate
injury or physical damage".
Common danger, warning and caution
notifications
Guidance or instruction regarding common
user actions
Common prohibited actions
The precautions listed here are to ensure that this product can be used safely, and to prevent any danger or risk to the
person using this product or those around them.
These precautions are important for ensuring safety. Adhere to these precautions at all times. Takara Belmont is not
responsible for any damage or risk to the person using this product or those around them due to accidents if this product
is used without adhering to the "Safety Precautions", "Precautions for Use" and "Precautions for Handling Synthetic
Leather". In this case, the person failing to adhere to the "Safety Precautions", "Precautions for Use" and "Precautions for
Handling Synthetic Leather" will be responsible for any damage or risk incurred. Detailed descriptions of symbols are
provided below. Read and understand these symbols thoroughly before reading this manual.
CAUTION
Hot water
Prohibited disassembly or repairs/modifications
Notification of high temperature warning
Disassembly
Prohibited
Description of "ideal points to adhere to for safety".
Note
The "Safety Precautions", "Precautions for Use" and "Precautions for Handling Synthetic Leather" contained in this
booklet should be thoroughly read and understood before use.

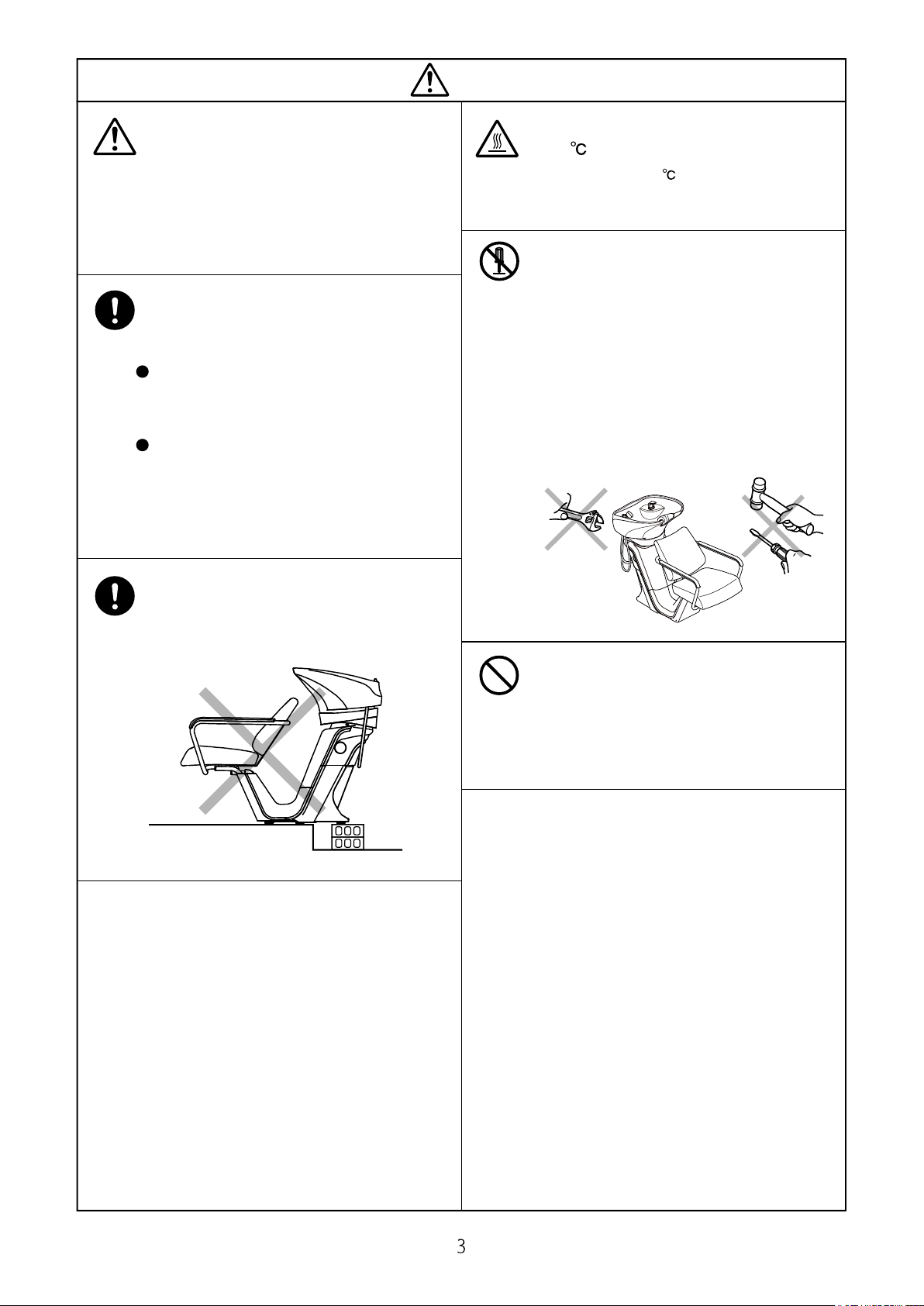

Do not insert fingers into movable
parts.
Do not insert fingers into movable parts.
Failure to follow this instruction may cause injury.
Warning

Return the temperature control knob
to an appropriate position after using
hot water.
Return the temperature control knob to an
appropriate position after using hot water.
Continuing to use the hot water with the knob in
the hot position may cause burns.
Adjust the water temperature while
checking the temperature by hand.
When adjusting the temperature of the water,
reduce the volume of water, point the shower
head away from the customer and check the
temperature by hand. Take care when doing so,
as hot water may come out of the shower head. Disassembly and
repairs/modifications are prohibited.
Disassembly, repairs and modifications must not
be conducted by people other than qualified
repair technicians. Failure to follow this instruction
may cause electrocution, fire or abnormal
operation, leading to injury.
< Basin Tilt Specification>
To adjust the degree of tilt of the basin, see the
section "Adjusting Basin Movement" (p.16).
Disassembly
Prohibited
Do not use hot water (boiling water)
of 60 or higher.
Using hot water of 60 or higher may deform or
damage the parts such as the basin, shower head
and water stop knob.
CAUTION
Hot water
Warning
Do not lean on the basin
Leaning on the basin may cause the basin to fall
over.
Also, coloring dyes on the neck cushion or
basin may stain the user's clothes.
Install on a stable area
Install the main body on a flat, firm floor, and fix it
securely. Failure to follow this instruction may
cause the main body to fall over.
Using other equipment that share the same
water/hot water supply source at the same time
may cause unstable water temperature. If
multiple equipment are to be used, move the
temperature control knob slowly to adjust the
water temperature.

Do not use this product if the coating
is peeling.
Replace the water taps
(water control knob) or step if the coating is peeling.
continuing to use this product when the coating
is peeling may cause injury
Do not spray areas other than the
basin with water.
Take care not to spray areas other than the
basin with water. If water does come in contact
with areas other than the basin, wipe them dry as
soon as possible. Water entering the main body
may cause malfunctions or a ground leakage fire.
Caution
Do not use the product in a place
where freezing is expected.
Failure to take this precaution may result in
breakage of parts, thus resulting in water leaks.
Repair of breakage due to freezing will result in
fees being charged even during the warranty
period. If freezing is expected, maintain the room
temperature at 0 or above by using a heater.
Do not hit the unit with objects.
Do not hit the unit with hard objects. Failure to
follow this instruction may cause deformation or
damage to the unit.
Do not drink the hot water.
This product is designed for washing hair. Do not
drink the hot water. The water quality may cause
diarrhea or stomach pain.
Do not touch the hot water supply
pipe or mixing pipe.
The hot water supply pipe or mixing pipe may
become very hot. Do not touch the pipes directly.
Only use this product for its intended
purpose and do not use it for
non-hairdressing work.
This product is an industrial product designed for
barbers and hair salons. Only use this product for
its intended purpose and do not use it for
non-hairdressing work.
Failure to take this precaution may result in
injuries by the sink outlet fixture in the basin.
Pay attention when cleaning the basin.
Do not use outdoors.
This product is designed for indoor use. Do not
install this product outdoors or within a vehicle.
Be sure to only use this product inside a barber or
hair salon. Failure to follow this instruction may
cause malfunctions or damage to the main body.
Do not subject the unit to shocks.
Do not subject the unit to shocks. Failure to
follow this instruction may cause damage,
leading to injury.
Do not use this product with the
cover broken.
Replace the cover if it breaks. Continuing to use
this product with a broken cover may cause a
malfunction or an accident.
Do not turn the water fully on with the
shower head in the shower head bracket.
Failure to follow this instruction may cause water
to spill out of the basin, covering the customer
with water. When turning the water on with the
shower head in the shower head bracket, check
the surrounding area and turn the water control
knob slowly.
Take care not to allow water to drip on the floor.
If water does drip on the floor, wipe it dry as soon
as possible. Failure to follow this instruction may
damage the floor, or cause water leakage.

Caution

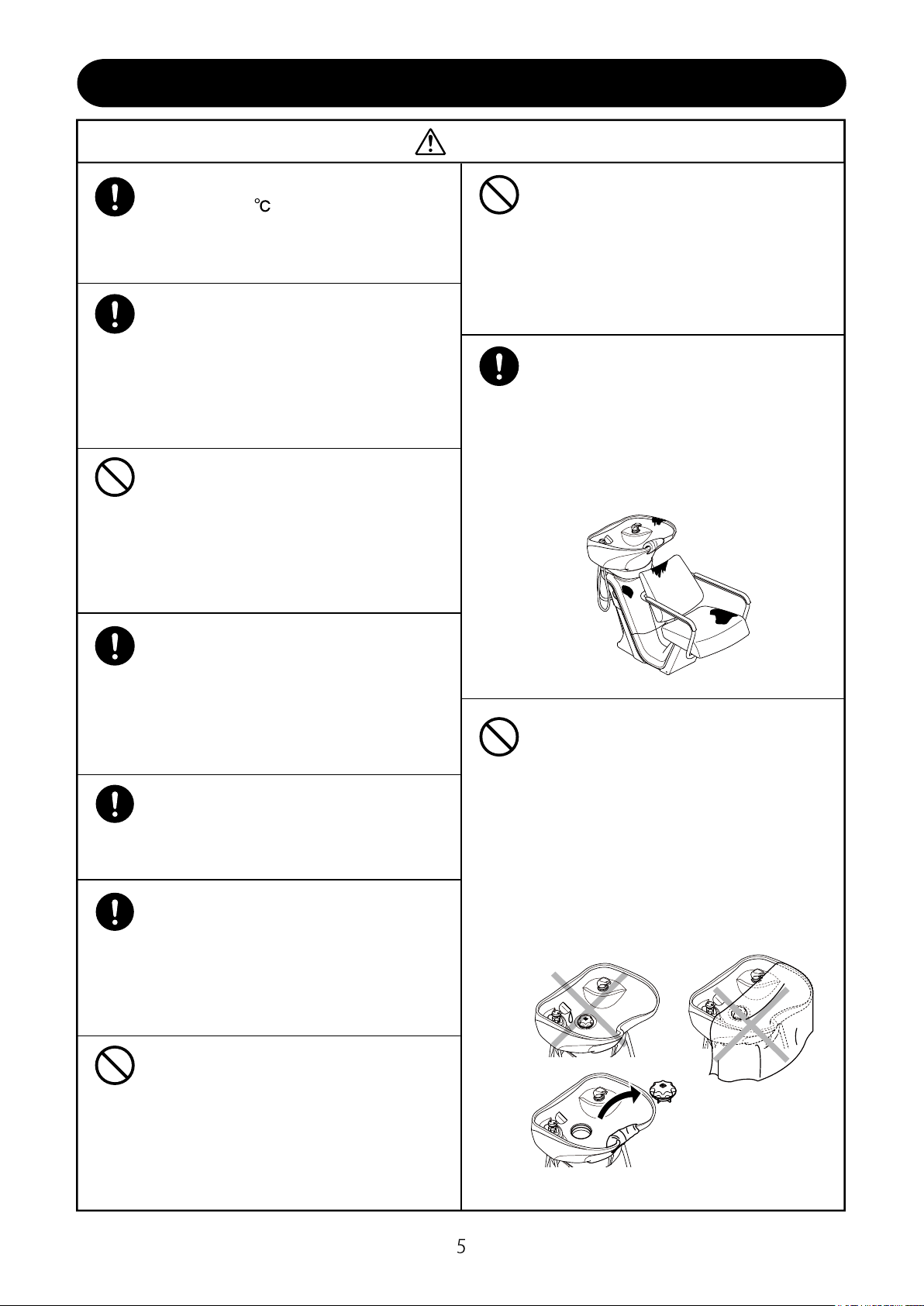

Precautions for Use
Pay attention to the handling of the
neck cushion.
Do not touch or scratch the neck cushion with a
cutting tool, such as scissors, or an edged tool
(including long nails). Failure to take this
precaution may result in scratches or damage to
the surface.
Do not use peppermint or aroma oil.
Do not use peppermint or aroma oil containing
menthol. Failure to take this precaution may
damage the resin parts, such as the
showerhead, showerhead bracket,
shower hose, water control knob,
neck cushion, hair catcher, and drain cap.
Set the water temperature for this
product to 60 or less.
Failure to follow this instruction may cause malfunctions
or damage in parts such as the stop valve, check valve,
flexble pipe, and fauset.
Do not use strongly acidic or
strongly alkaline cleaning solvents.
Do not use cleaning solvents containing mainly caustic
soda (NaOH) or caustic potash (KOH) to clean the drain
pipe. Never pour thinners, alcohol, nail polish remover,
gasoline or kerosene into the drain. Failure to follow this
instruction may cause damage to the drain hose.
In cold regions, ensure that water is
removed.
When using this product in winter in cold regions,
open the maintenance cover and open the check
valve filter to remove water and prevent freezing.
Failure to follow this instruction may cause water
leakage.
Do not use an abrasive compound.
Do not use an abrasive compound to clean the
water faucet fixtures (showerhead, showerhead
receptacle, water contral knob. Use of an
abrasive compound,
sponge with abrasive compound, or hard
cleaning tools, such as wire wool or a nylon
scrubbing brush, may damage the fixture surface.
If chemicals spill on to this product,
wipe them dry as soon as possible.
If chemicals such as hair dyes spill on to this
product, wipe them dry as soon as possible.
Failure to follow this instruction may cause
discoloration, deterioration or deformation.
Also, if chemicals spill on to the floor, wipe them
dry as soon as possible.
Always wipe the floor clean if it is wet.
Wipe the floor as soon as possible if it is wet after
shampooing. Failure to follow this instruction may
damage the floor or cause degradation and
malfunctions to parts in contact with the floor.
Wet floor
may cause falling or water leakage to
downstairs leading to an accident.
Do not cover the drain outlet when
this product is not going to be used.
Do not cover the drain outlet with the drain cap,
towel, or shampoo cloth after finishing the work.
Water may overflow the basin when water is
improperly discharged or a small amount of
hot water is discharged due to an increase in
water pressure during the night, resulting in
water leaks.
Be sure to remove the trap cover from the drain
outlet when the product is not in use.
Always use the neck cushion.
Using this product without the neck cushion may
apply unnecessary load to the customer's neck,
causing injury. Always use the neck cushion.

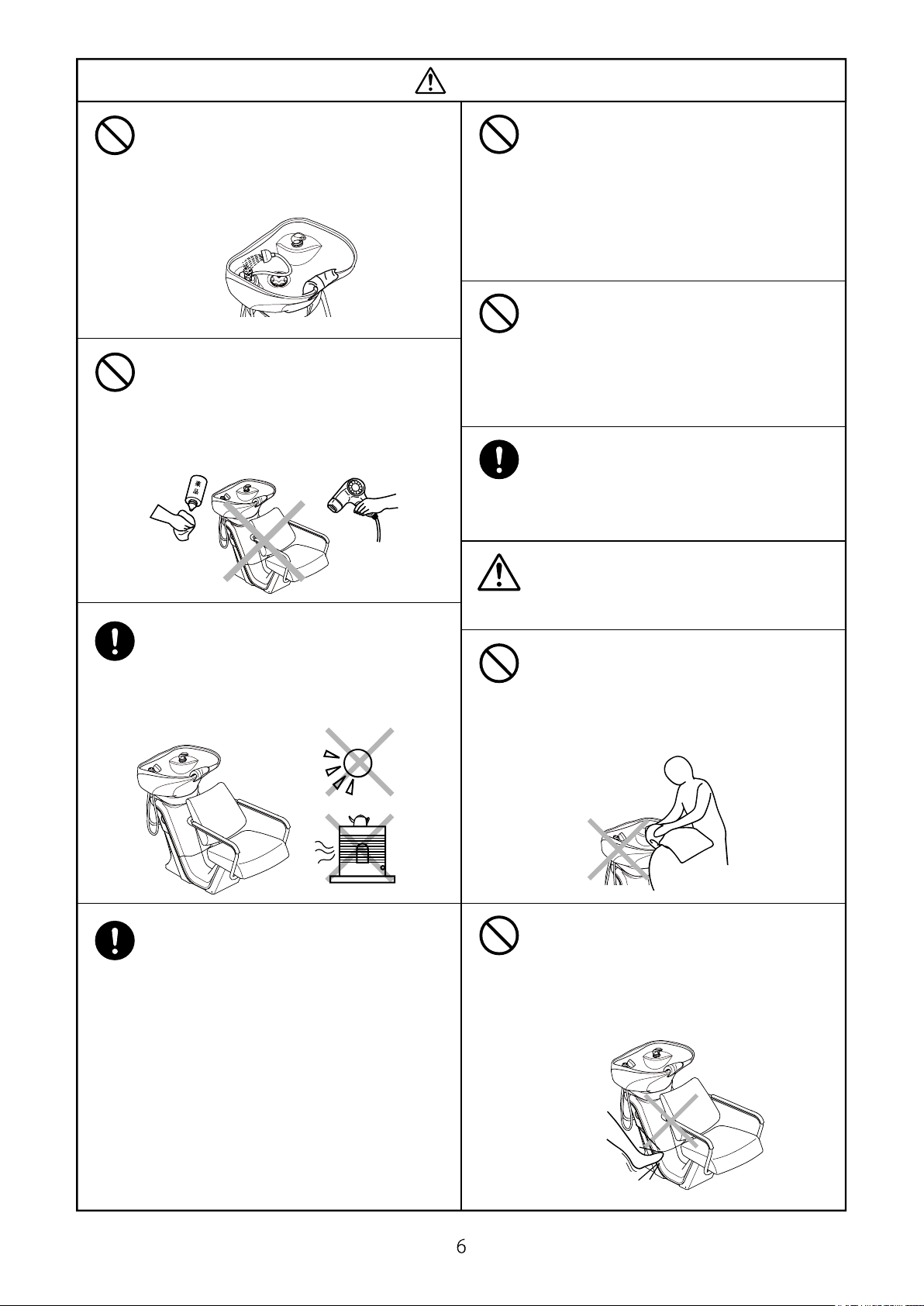

Do not wipe with chemicals or apply
heat.
Failure to follow this instruction may cause
deformation or discoloration. If chemicals spill on to
the leather or covers, wipe them dry as soon as
possible.
Caution
Do not strike the resin (plated) parts
with a hard object.
Do not strike the resin (plated) parts, such as the
Water control knob, with a hard object.
Failure to take this precaution may cause flaws or
cracks on the plated surface and peeling of plating,
thereby resulting in injuries.
After use, wipe water away from all
parts other than the basin.
Leaving the main body with water on it may
cause damage, and make dirt difficult to remove.
Close the Water control knob firmly.
After use or shampooing is complete, close the
water control knob firmly and turn the water off
completely.
Failure to turn the water off completely may
cause water leakage.
Do not wet the shower head bracket
with water.
Do not wet the shower head bracket with water.
Failure to follow this instruction may cause water
leaks.
Avoid direct sunlight or heat from a
stove.
Avoid direct sunlight or heat from a stove. Failure
to follow this instruction may cause discoloration
or degradation of the leather.
Do not hit the cover with objects, or
kick the cover.
Failure to follow this instruction may cause
malfunctions or accidents, leading to damage to
the main body.
Do not move the basin swiftly.
Move the basin gently, paying attention to avoid
hitting people or objects.
Do not practice front shampooing.
This product is intended for side shampooing
and backward shampooing. Practicing the
front shampooing may cause water leaks,
thus wetting the floor.
Pay attention to maintenance methods.
Be sure to execute daily maintenance according
to the section "Maintenance" on page 16.
In the case of insufficient or improper
maintenance or when periodically replaced parts
are not replaced, the customer shall be
responsible for any harm, damage, or defects
that result; our company shall not assume
responsibility.

Clean the hair catcher regularly.
Clean the hair catcher as regularly as possible.
Continuing to use the hair catcher without
cleaning it may cause the drain to become
blocked with hair, leading to water overflowing
and unhygienic conditions.
Try to clean the hair catcher after each shampoo.
Caution

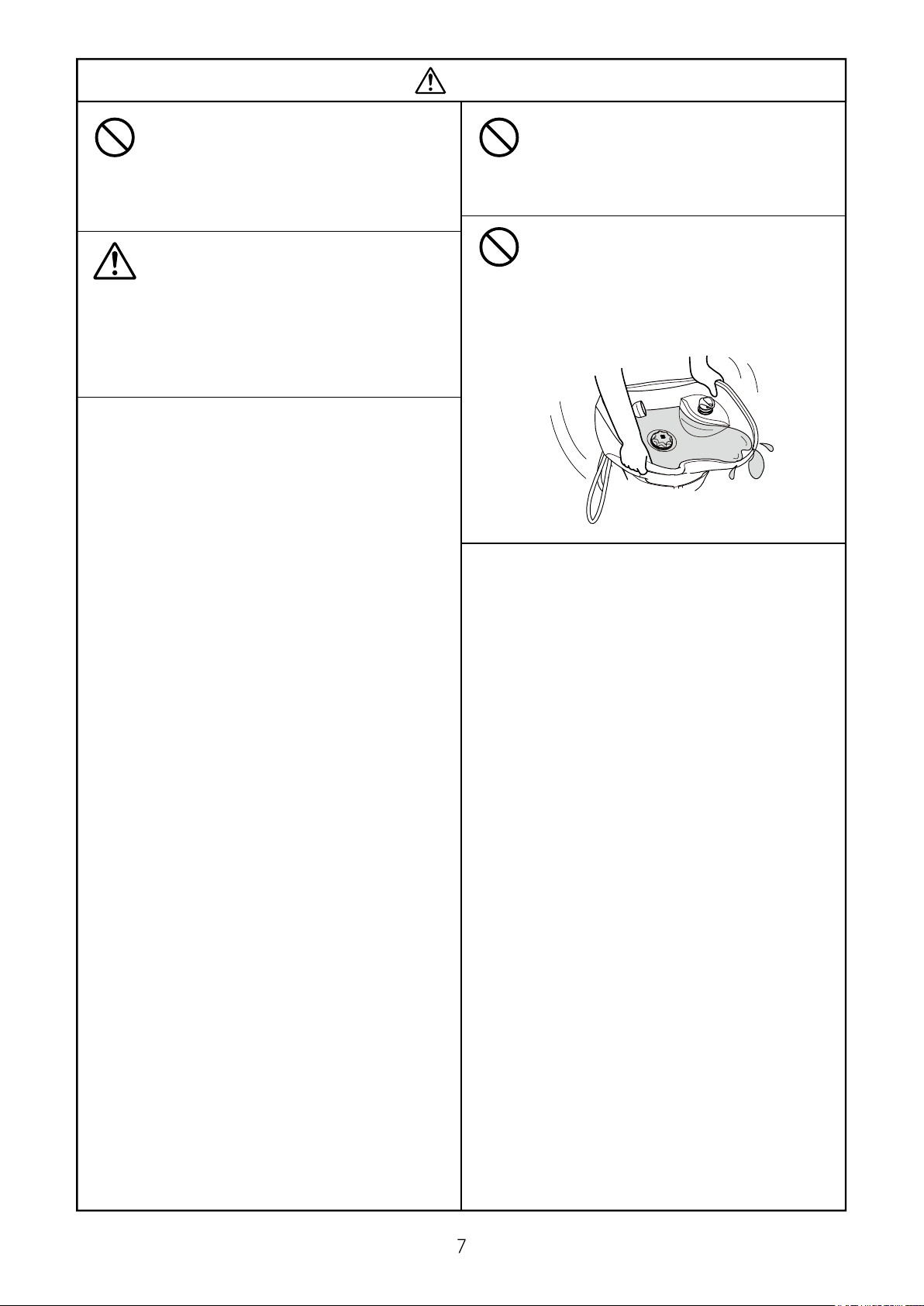

Do not drop heavy objects on to the basin.
Do not place or drop heavy objects on to the
basin. Failure to follow this instruction may cause
damage such as scratches or cracks to the basin.
Do not leave the shower head
immersed in water.
If pressure in the water pipes decreases due to
repairs that follow water stoppages, the water in
the basin may flow back through the shower head.
Do not move the basin with water filled.
Be sure to check that there is no water in the
basin before moving it. Failure to take this
precaution may cause the water to spill out of the
basin and splash onto the customer.

Precaution on Basin
This product employs a ceramic basin. Since bending or deformation cannot be avoided when forming
the basin, the position, height, or shape of the neck differs slightly from product to product.
Precautions for Handling Synthetic Leather
Handling precautions
Stains caused by clothing dyes
The synthetic leather of this product may become stained by direct contact with clothes or belts. If there is stains, wipe
clean as quickly as possible with a 10% detergent solution diluted using water to prevent permanent staining.
Take care of deformation or stains due to direct contact
• Direct contact with other objects such as plastic products, painted items, solvents or adhesive tape may cause
changes to the surface luster, cracking, deformation or peeling.
• Direct contact with newspaper or printed paper may cause stains.
• Direct contact with items of clothing such as printed images of t-shirts, or jeans may cause discoloration of the
synthetic leather of this product.
• Direct contact with solvents such as benzene, nail polish remover, alcohol, oil (including beauty treatment oils) may
cause discoloration, melting of the surface, elution of the plasticizing agent, changes to surface luster,
hardening/softening or peeling.
• Using bleach or bleached sheets may cause changes to surface luster or discoloration.
• Installing this product next to sources of excess heat such as irons or heaters may cause deformation or
discoloration.
• Protect this product from direct sunlight by installing curtains. Failure to follow this instruction may cause changes,
shrinking, discoloration or fading of the leather surface.
• Placing heavy objects for a long period of time may leave an imprint or wrinkles on the synthetic leather that cannot
be removed.
Position of Warning Labels

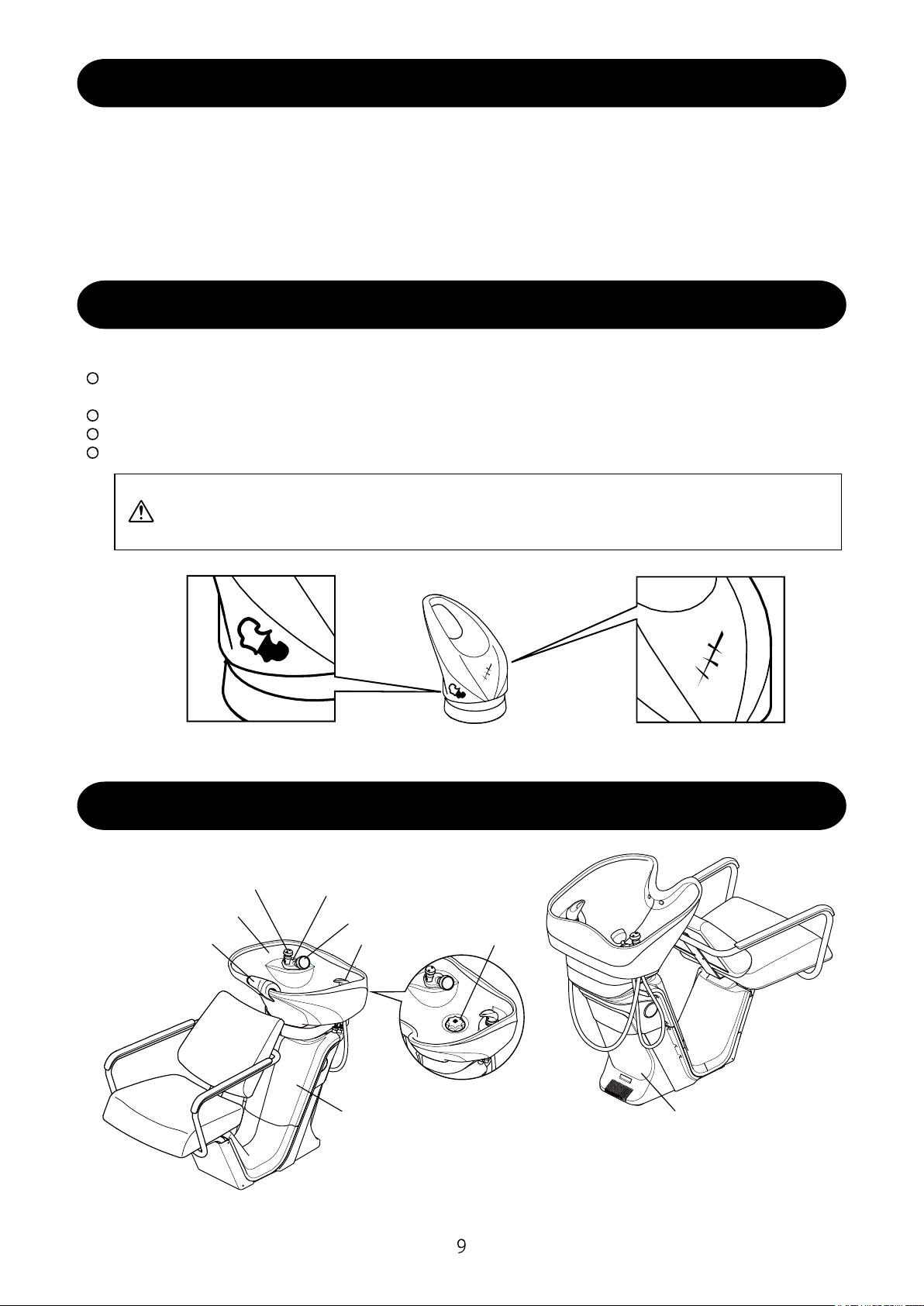

Name of Parts
Caution
• The back wash basin is a shampooing product designed for performing back shampooing*1 or hair/scalp care.
• Check that all accessories have been attached properly.
• Please note that the gap between the backrest and the basin when the backrest is reclined may vary slightly
from product to product.
*1 Back shampooing: the user stands behind the basin and performs shampooing from the back
(back position).
Before Using This Product
Check to ensure that there are no flaws, cracks, or peeling of the plated surface of the knobs
before using the product. If peeling is observed, immediately stop using the product and
contact your closest dealer or Takara Belmont. Continued operation may result in injuries.
• Resin plating is adopted for part of the water stop knob,Shower head bracket and the temperature control knob.
Plating is a thin, hard metal film applied to the surface that may crack or peel due to corrosion or
aged deterioration.
Flaws or cracks may occur on the plated surface due to impacts from falling objects.
Flaws or cracks may occur on the plated surface when a hard object hits the surface.
Peeling of the plating may occur from flaws or cracks on the plated surface.
Example of Flaws on the
Plated Surface
Example of Peeling of the
Plated Surface
Precautions on Resin (Plated) Parts
water control knob Drain cap
Basin Shower head
Neck cushion
Maintenance cover
Shower head bracket
Front cover
Vacuum breaker

The illustrations show the
AY-ELI / AY-P073X
Backrest
Seat
Lumbar
Armr est p a d
Armr est
Accessories
Neck cushion
Installation instructions
Operating Manual
Setting sheet
RS3 Shiatsu Shampoo Technique DVD
Drain cap Hair catcher Hexagonal-head wrench
Backrest
Seat
The illustrations show the
AY-S195X / AY- P0 7 3X
Armr est p a d
The illustrations show the
AY-LUX / AY- P 0 73 X
Armr est
Seat
Backrest

The fixing pins are detachable. Be careful
not to lose them.
The neck cushion is consumable supply.Replace it if it is extremely dirty or
the surface has deteriorated. (available at additional cost)
Note
Preparations

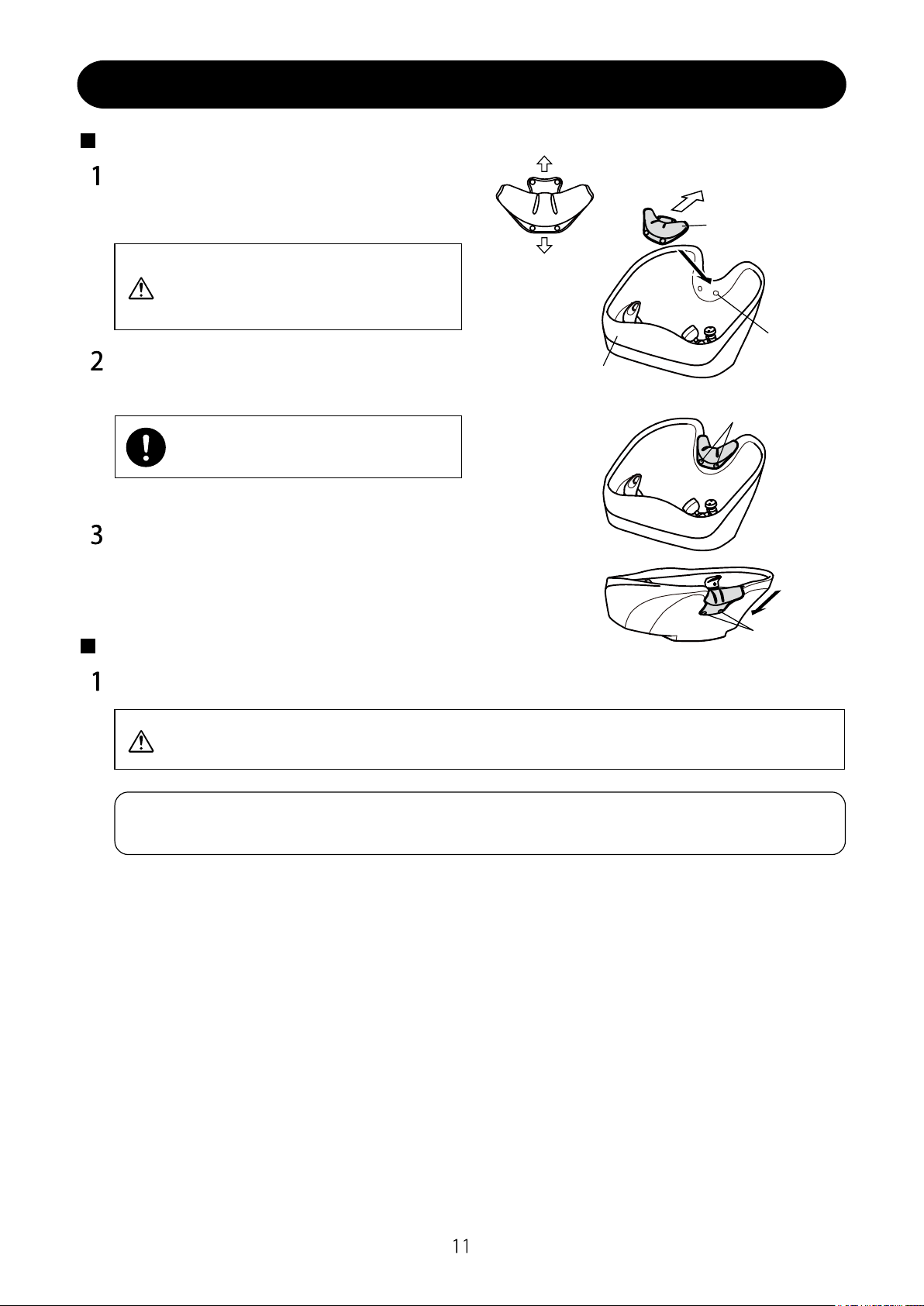

Attach neck cushion on the basin
As shown in the illustrations, check the proper
direction of the neck cushion and fit it to the basin
along the basin edge.
While shaping the neck cushion along the basin
edge, secure the hooks of the neck cushion to
the fixing pins on the outer side of the basin.
Secure the hooks of the neck cushion to the
fixing pins on the inner side of the basin.
Check the front and back.
When the cushion is mounted in
the wrong direction, it may contact
the backrest.
Remove neck cushion
Hold the hooks when removing the neck cushion.
Caution
Caution
Applying excessive force to remove the neck cushion may damage the parts.
Hook
Chair Side
Neck Cushion
Fixing Pin
Hook
Basin
Chair Side
Basin Side

Caution
Caution
Caution
Caution
Remove the shampoo cloth and allow the customer to exit the chair.
Raise the customer's body while supporting the customer's head with the hand.
Shampoo the hair.
When the customer leans back against the backrest, support the customer's head with
your hand. Failure to take this precaution may result in the customer's head hitting the basin.
Allow the customer to grip the armrest of the chair and lean back against the backrest.
To move the basin, be sure to hold it at
the leading and the trailing end of the
basin as illustrated. Failure to take this
precaution may result in operational
failure.
Move the basin position according to the neck
position of the customer.
When seated, inform the customer not to place any weight on the backrest in advance.
Failure to take this precaution may result in the customer's body hitting the basin.
Allow the customer to be seated in the chair and then apply the shampoo cloth.
The customer may place the feet on the step as required.
Leading End
Trailing End
Angle
There is no function to secure the basin.
Therefore, when the customer applies a load with the head exceeding a specific level,
the basin may move. Encourage the customer to pay attention.
The hairdresser must not lean on the basin. The basin may move, which is dangerous.
20
How to Use

Caution
Caution
Caution
After using the product, wipe off any moisture.
- Moisture from the shower hose that dripped onto the floor.
- Moisture adhered to the main unit cover and outside the basin.
After use, be sure to wipe off any
moisture from all parts other than the
basin. Leaving the product with water
drops may result in failure or any
contamination will not be removed.
When the floor is wet, be sure to wipe
the moisture off. Wet floors increase
the possibility of slipping and falling or
water leaks to the downstairs, thus
resulting in accidents.
The drain cap must be detached from the
drain outlet when the product is not in
use. If the lid is not detached, the lid may
accidentally close, and the water may
overflow the basin from the failure to
notice water discharge, thus resulting in
water leaks.
Drain cap
Rotate the screw in the counterclockwise direction.
<When basin movement is heavy>
Rotate the screw in the clockwise direction.
<When basin movement is light>
Rotate the basin adjustment screw provided on the
main unit with the supplied hexagonal-head wrench
and set to an adequate position. The screw is provided
on the right and the left sides.
The adjustment should be done on the opposite side.
Adjusting the Basin Movement
<Adjustment on the Left Side of Basin>
The basin adjustment screw will fall off if loosened too much. Pay attention to avoid losing the
screw too much.
The basin adjustment screw is provided on both the right and the left sides. Rotate the screw
the same amount on both sides to adjust movement. Adjusting only one side may result in
breakage of the basin.
Do not drop the hexagonal-head wrench on the main unit. Failure to take this precaution may
result in breakage of the main unit.
Be sure to check basin movement after finishing the adjustment.
Basin Adjustment Screw
Hexagonal-head
Wrench
Heavy Light

Caution
When the basin is not being used, make sure to turn the water off properly.
Failure to do this may cause water leakage.
When the basin is not being used, do not cover the drain with the drain cap, towel or shampoo
cloth as water may come out. Water may be accidentally trickled due to an increase in water
pressure at night. This may cause water to spill from the basin, leading to water leakage.
Note
Adjusting the volume of water, and adjusting the water temperature
Turn the water stop knob in the H or C direction to set the
temperature to an appropriate level.
Push the knob to forward direction and adjust the volume of
water according to an angle of the knob.
A gushing sound may be emitted from the main body depending on the environment or conditions
that it is used in. This sound is due to water flowing fast through pipes as a result of high water
pressure or water volume control, and is not indicative of a defective product. This gushing sound can
be reduced by adjusting the water pressure.
Water control knob
Caution
Return the handle to an appropriate position after use.
Using other equipment that share the same water / hot water supply source at the same time
may cause unstable water temperature.
Note
The water flow may change significantly when controlling the hot water temperature
depending on the operating environment or conditions. This phenomena occurs when the hot
water temperature exceeds the recommended values (60 ), there is significant difference
in the water supply or hot-water supply pressure, or multiple devices are used at the same time-it
is not equipment failure.
< Output the water > < Close the water >
(C) Cold
(H) Hot

Note
Caution
Caution
Accumulating Hot Water
To accumulate hot water for emulsification of hair
color, rotate the drain cap in the clockwise direction to
close the drain outlet. The amount of water should
be below the level shown by the dotted line in the
illustration on the right
(just below the shower hose slot).
When water accumulates and exceeds the dotted
line, water may overflow from the shower hose slot.

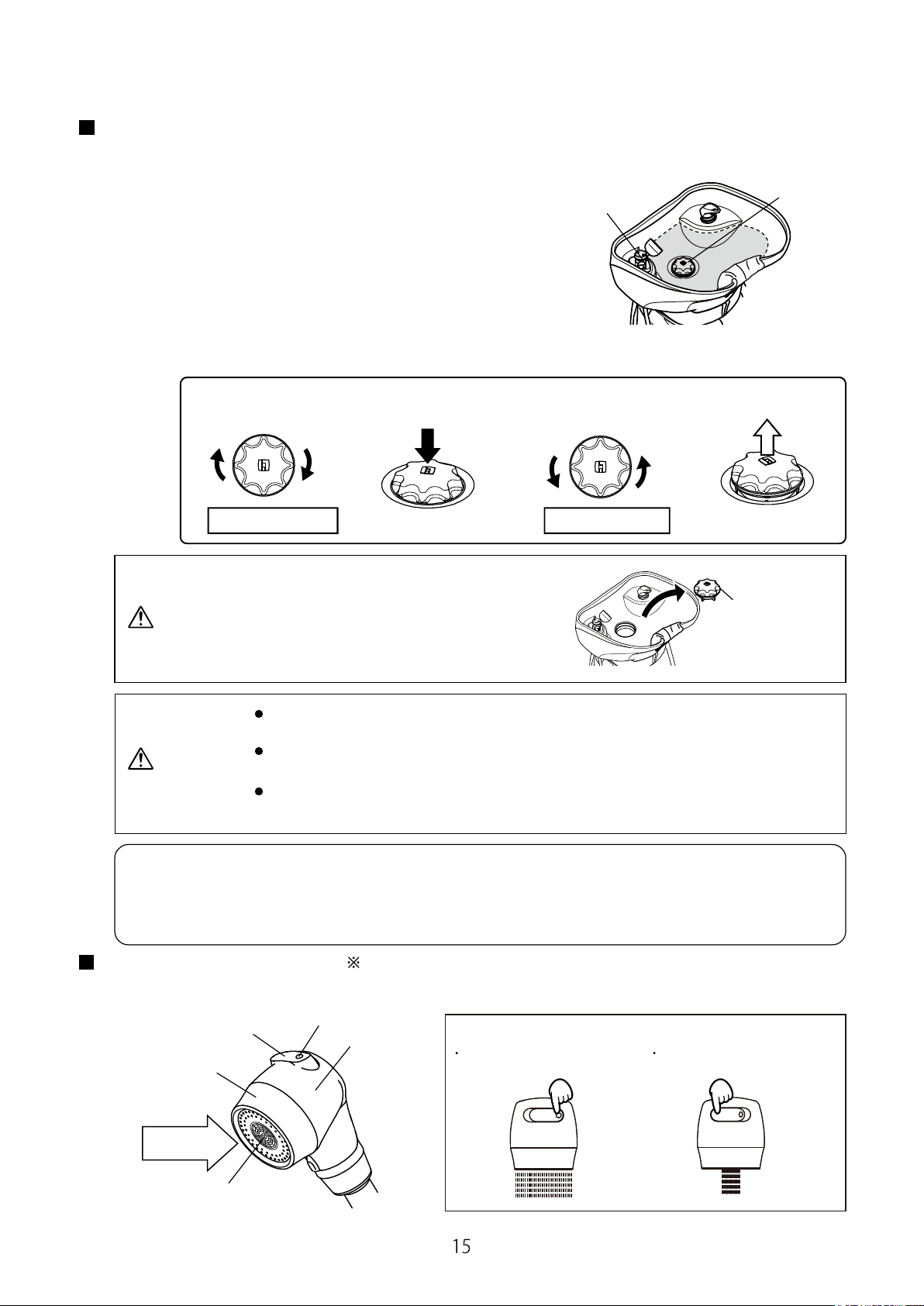

To drain the accumulated water, rotate the drain cap
in the counterclockwise direction to open the drain
outlet.
Shower Hose Slot Drain cap
The lid is closed. The lid is open.
Counterclockwise Direction
Clockwise Direction
<Accumulating the Water> <Discharging the Water>
The drain cap must be detached from the drain
outlet when the product is not in use. If the lid
is not detached, the lid may accidentally close,
and the water may overflow the basin from the
failure to notice water discharge, thus resulting
in water leaks.
Do not leave the showerhead in the water. Water may flow back when the water pressure
in the water pipe decreases during a water outage.
When the drainage speed slows, there is a possibility that dust and dirt may have clogged
the drainpipe. Immediately stop using the product and contact your closest dealer.
Do not move the basin with water in it. Failure to take this precaution may result in overflow
of water from the basin or splashing of water over your closest dealer.
Drain cap
The amount of accumulated hot water may decrease slightly in an amount that does not affect use.
A small amount of water may flow out, which does not affect use. If the decreasing level is
significant, the gasket of the drain cap may have deteriorated or become worn. Replace the drain cap.
(Available at additional cost.)
Water Spray Plate
Air Bubble Area
<Shower Water Discharge> <Air Bubble Water Discharge>
Press the switch on the side
with the protrusion.
Press the switch on the flat side.
Water Discharge
Outlet
Using the Spa-Showerhead
Changing the selection switch position switches between shower water discharge and air bubble
water discharge.
Selection Switch Protrusion
Showerhead
[ Spa-showerhead is an optional part]

Hair catcher
Pull out the hair catcher located under the drain cap and remove any hair
that has been caught. The hair catcher is a consumable supply. Replace
the hair catcher if it is extremely dirty or the surface has deteriorated.
(available at additional cost)
Clean the hair catcher as regularly as possible.
Continuing to use the hair catcher without cleaning can
cause the drain to become blocked with hair, leading to
water overflowing and unhygienic conditions. Try to
clean the hair catcher after each shampoo.
Caution

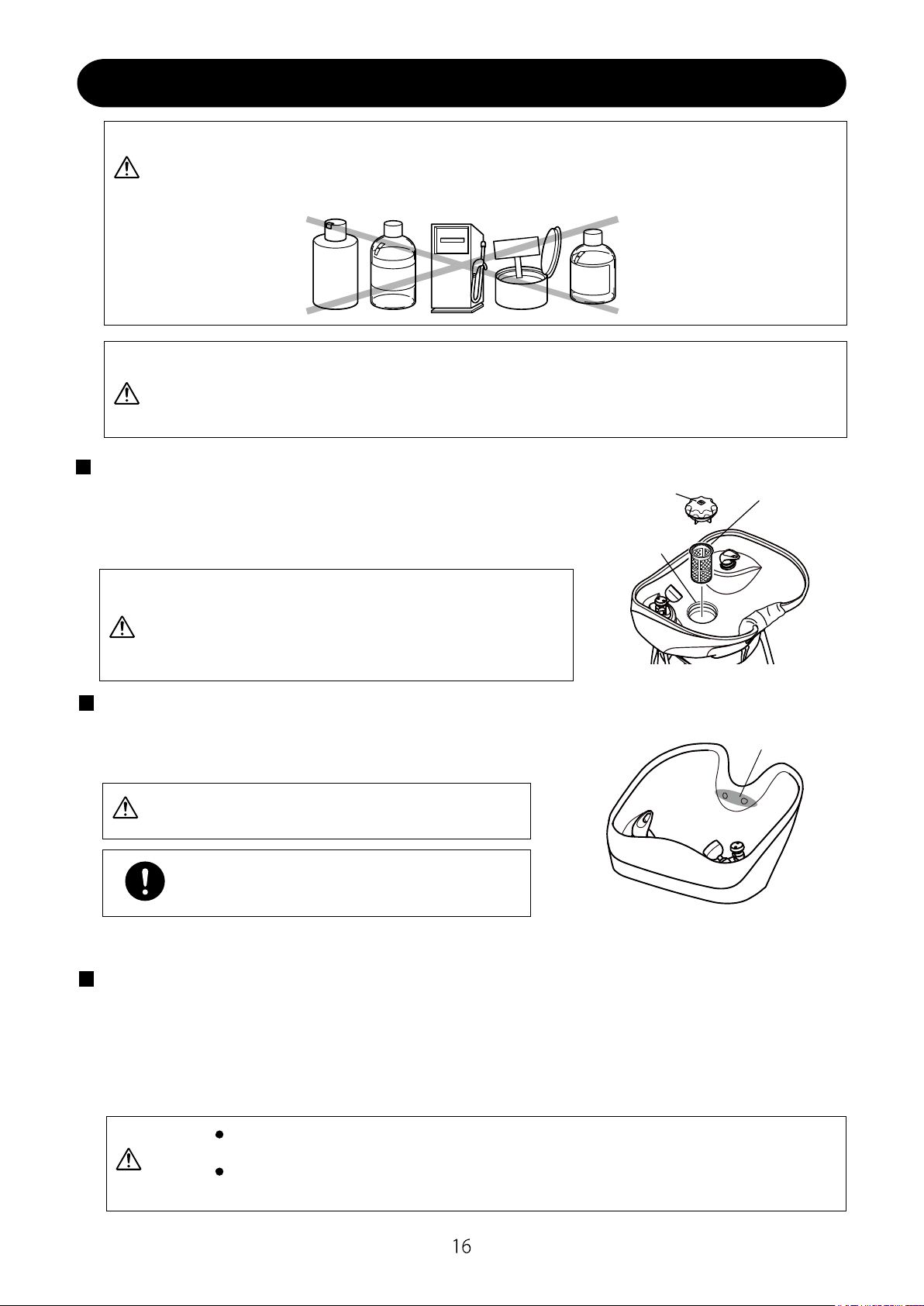

Be sure to execute daily maintenance according to the maintenance procedures stated in this
section. In the case of insufficient or improper maintenance or when periodically replaced parts
are not replaced, the customer shall be responsible for any harm, damage, or defects that result,
and our company shall not assume responsibility.
Caution
Never use volatile chemicals such as thinners, alcohol, gasoline or kerosene, cleaning products
such as abrasire wax , a sponge with a scourer, detergents that include organic solvents,
acidic, alkaline or chlorine-based detergents, or scouring pads. Failure to follow this instruction
may cause scratches or discoloration.
Caution
Thinner
Wax
Chemicals
Alcohol
Kerosene
Abrasire
Maintenance
Basin
Do not use a metallic scourer or sandpaper,
as this will damage the basin.
Caution
Wipe any dirt clean using detergent diluted with water.
If streaked scratches appear due to contact with metallic objects such
as watch bands, rub the area with a nylon scourer.
The fixing pins are designed to be detachable.
Be careful not to lose them.
The area around the fixing pins of the neck cushion should be
carefully cleaned with a cotton-tipped swab.
Area of Fixing Pins
Neck cushion
At the end of work each day, wash the neck cushion with water, wipe them dry with a towel, and allow
them to dry in the shade.
If they are extremely dirty, wash with detergent diluted with water, and rinse carefully with
water.
The neck cushion is a consumable supply. Replace it if it is extremely dirty or the
surface has deteriorated.(available at additional cost)
Caution
If solvents drip onto the neck cushion, rinse with water as soon as possible.
Failure to follow this instruction may cause deformation or discoloration.
Clean the neck cushion every day. Leaving dirt uncleaned may cause them to get
moldy.
Hair catcher
Drain cap
Drain

Drain cap
Wash around the drain cap, and remove any hair or dirt from solvents.
The drain cap is a consumable supply.
If it is extremely dirty, remove the packing from the drain cap, wash
with detergent solution diluted using water, and rinse carefully with
water.
Replace the packing if degradation causes water to leak quickly when
the basin is filled with water. (available at additional cost)
Drain cap Gasket
Drain cap

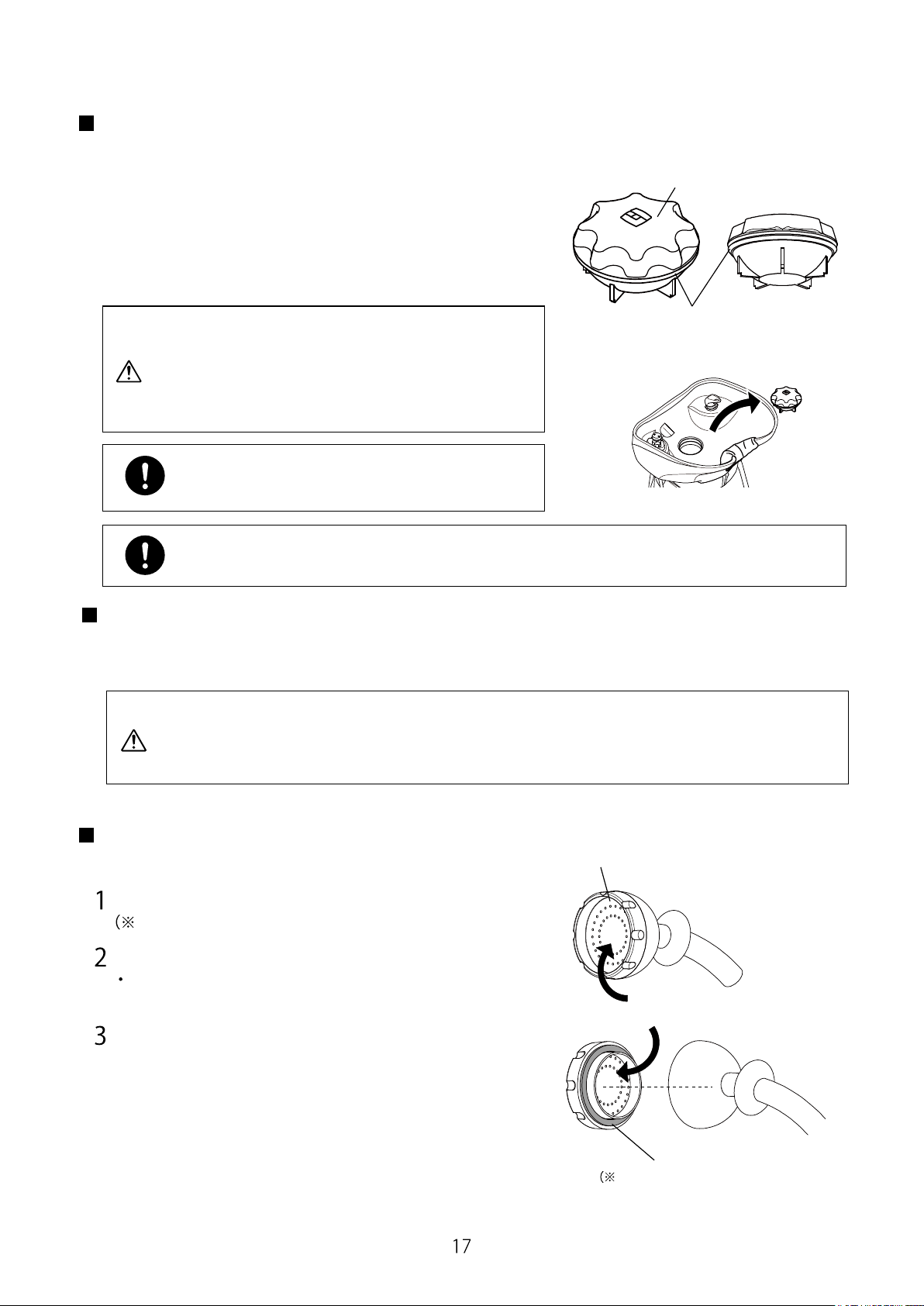

The drain cap should be handled carefully. It may
break if it is dropped.
The drain cap gasket is fixed on the drain cap. If you try to remove it forcibly, the gasket may be
damaged and the water in the basin may decrease at a faster pace.
Caution
The drain cap must be detached from the drain
outlet when the product is not in use. If the lid is
not detached, the lid may accidentally close, and
the water may overflow the basin from the failure
to notice water discharge, thus resulting in water
leaks.
Cover
Wipe clean with a soft, dry cloth. If they are extremely dirty, wipe with detergent diluted with water, and
always wipe them dry.
Caution
Never use volatile chemicals such as thinners, alcohol, nail polish remover, gasoline or kerosene,
cleaning products such as wax with a scourer, a sponge with a scourer, detergents that include
organic solvents, acidic, alkaline or chlorine-based detergents, or scouring pads. Failure to follow
this instruction may cause scratches or discoloration.
Rubber Gasket
Rotate and detach the shower filter.
Do not detach the Rubber Gasket.)
Clean the shower filter unit (with water).
Remove dirt, such as water deposits in the shower holes
on the shower filter unit, with a toothbrush.
Shower Filter unit
Surface to be Cleaned
(front and back)
Re-assemble the showerhead.
Cleaning the Showerhead
Do not detach the Rubber Gasket.)

Running Water Air Bubble Unit
The air bubble unit should be rinsed with running water
in the direction shown in the illustration below:
<The case of Spa-showerhead>
Rotate and detach the sprinkling filter unit and remove the
three parts (sprinkling filter unit, air bubble unit, and rubber
gasket).
Do not detach the O-ring.)
Clean the sprinkling filter unit (with water).
Remove dirt, such as water deposits in the shower holes
on the sprinkling filter unit, with a toothbrush.
Clean the air bubble unit (with water).
Clean the unit once a month (as a general guide).
Remove dirt, such as water deposits on the air bubble
unit, with a toothbrush.
Sprinkling Filter unit
Air Bubble Unit
Rubber Gasket
O-ring
Showerhead Main Unit
Surface to be Cleaned
(front and back)
Re-assemble the showerhead.
<Assembling Procedures>

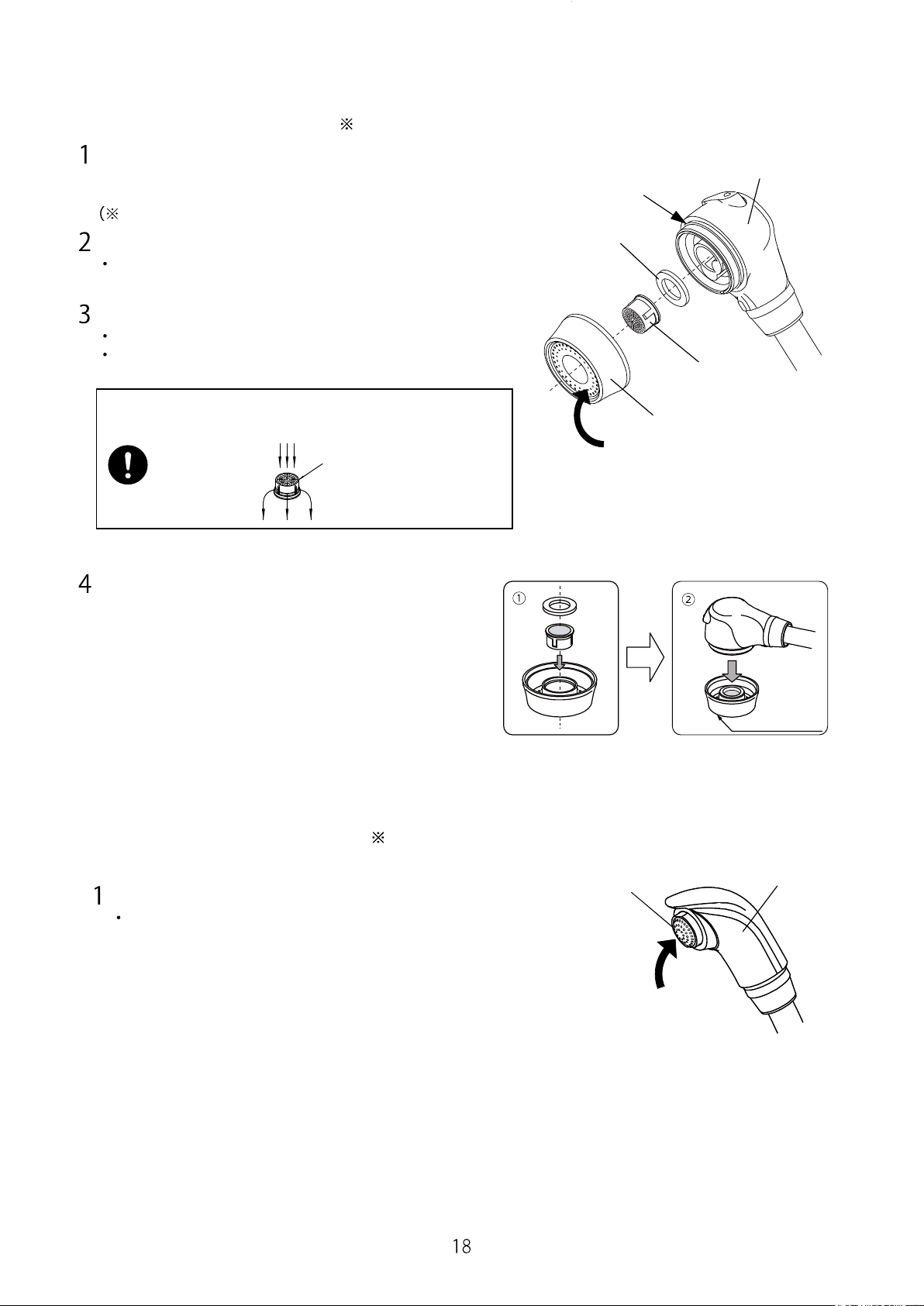

(1) Insert the air bubble unit and the rubber gasket in
the sprinkling filter unit in this order.
(2) Mount the sprinkling filter unit on the showerhead
main unit, while the water discharge side of the
sprinkling filter unit facing down.
Water Discharge Side
[ Spa-showerhead is an optional part]
<The case of Yume-showerhead> [ Yume-showerhead is an optional part]
Body
Surface to be Cleaned
Shower Filter unit
Clean the shower filter unit (with water).
Remove dirt, such as water deposits in the shower holes
on the shower filter unit, with a toothbrush.

Synthetic leather parts
Wipe with a soft, dry cloth or a damp cloth. If the leather is extremely dirty, wipe with a 10% detergent solution diluted
using water, followed by a damp cloth, then wipe dry.
If leather is stained by clothes or belts, it should be wiped clean as quickly as possible with a 10% detergent solution
diluted using water to avoid further staining by the plasticizing agent.
Take care to remove all water after wiping with a damp cloth. Any water that remains may encourage hydrolysis.
Do not use solvents or bleach.
Do not use leather cleaner containing solvents or scourers. The surface may degrade, leading to changes in the
texture and luster. If leather cleaners are to be used, first check that there is no discoloration by testing in an area
that is not visible.
Clean the leather every day after work. Leaving dirt uncleaned may cause mold to grow.
Caution
Do not use the following items.Volatile chemicals such as thinners, alcohol, benzene, nail polish
remover, gasoline or kerosene, wax with a scourer, or a sponge with a scourer.
Do not use brushes or scouring pads.Do not use brushes or scouring pads when cleaning the
leather. Failure to follow this instruction may cause scratches, and dirt may not be able to be
removed.
Caution In cold regions, always drain the water as a measure to prevent freezing.Failure to follow this
instruction may cause water leakage.
To use the basin for a long period of time, clean the strainer (inside the check valve) regularly.
If temperatures are expected to drop below freezing in cold regions, drain the water from the check valve.
Maintenance of the inside of the main unit <cleaning procedures>
Prepare a container and dustcloth for the water.
Detach the maintenance cover.
The cover can be detached by pulling horizontally, while
gently pressing the cover sides.
Warning
The hot water supply pipe may become
very hot. Take care not to touch the pipe
directly.
After removing the maintenance cover, check that
there is no water leakage within the basin. If there
is water leakage, the pipes within the basin may be
damaged.
If this is the case, contact your closest dealer.
Leaving water leaks may sometimes result in
serious accidents or water damage. In this case,
the customer will be responsible for the accident
and a significant amount of labor and costs will be
incurred.
Before and after using the product, check that water does not trickle out beneath the main unit.
Check that water does not leak from the water supply pipe, hot-water supply pipe, and the joints of the
drainage pipe. Be sure to inspect for water leaks and clean on a regular basis.
(We recommend checking for water leaks at least once a month by opening the maintenance cover.)
Maintenance Cover
Press the sides.

Caution
The water in the trap serves to prevent
odors from sewage water.
Be sure to add some water to the trap
after cleaning.
Drain the water from the trap and clean the trap.
After draining the water and cleaning the trap by
removing dust and dirt, tighten the drain part firmly.
Note
According to the instractions of trap used,please care.
Note
The "Parts Replaced on a Regular Basis" described on page 26 must be replaced on a regular basis
to ensure and maintain safety and performance. Any part that is outside the designated replacement
period must be replaced even if there is no problem during use. Our company will not assume
responsibility for any harm, damage, or defects attributed to the fact that a part was not replaced
within the designated period.
Close the hot water and water stop valves.
Caution
To prevent water leakage, always check
that the stop valves are completely closed
before cleaning or draining the water from
the strainer.
After checking that the strainers have been fastened properly,
open the stop valves.
Check that there are no water leaks from the check valve.
Mount the maintenance cover onto the main unit.
The maintenance cover can be mounted by hooking the
three latches on the main unit. First, hook the top latch and
then hook the bottom two latches.
Caution
Check that the maintenance cover is properly
secured with the three latches. If not, water
may penetrate the main unit resulting in
system failure.
Clean the strainer.
When the strainer is detached, the water in the pipe will come
out. Therefore, rotate and detach the strainers of the check
valves for hot water and water, while catching the water in a
container. After completely draining the water from the check
valve, clean the strainer by removing dust and dirt, set it in
the original position, and tighten firmly.
(Tool required: a blade-head screwdriver)
Caution
Removing the strainer from the hot water
supply pipe may cause hot water to spill out.
Take extra care when draining the hot water.
The drain nut and strainer should be
tightened firmly. If they are not, there is a
possibility of water leaks.
If the drain water spills onto the floor,
immediately wipe it up.

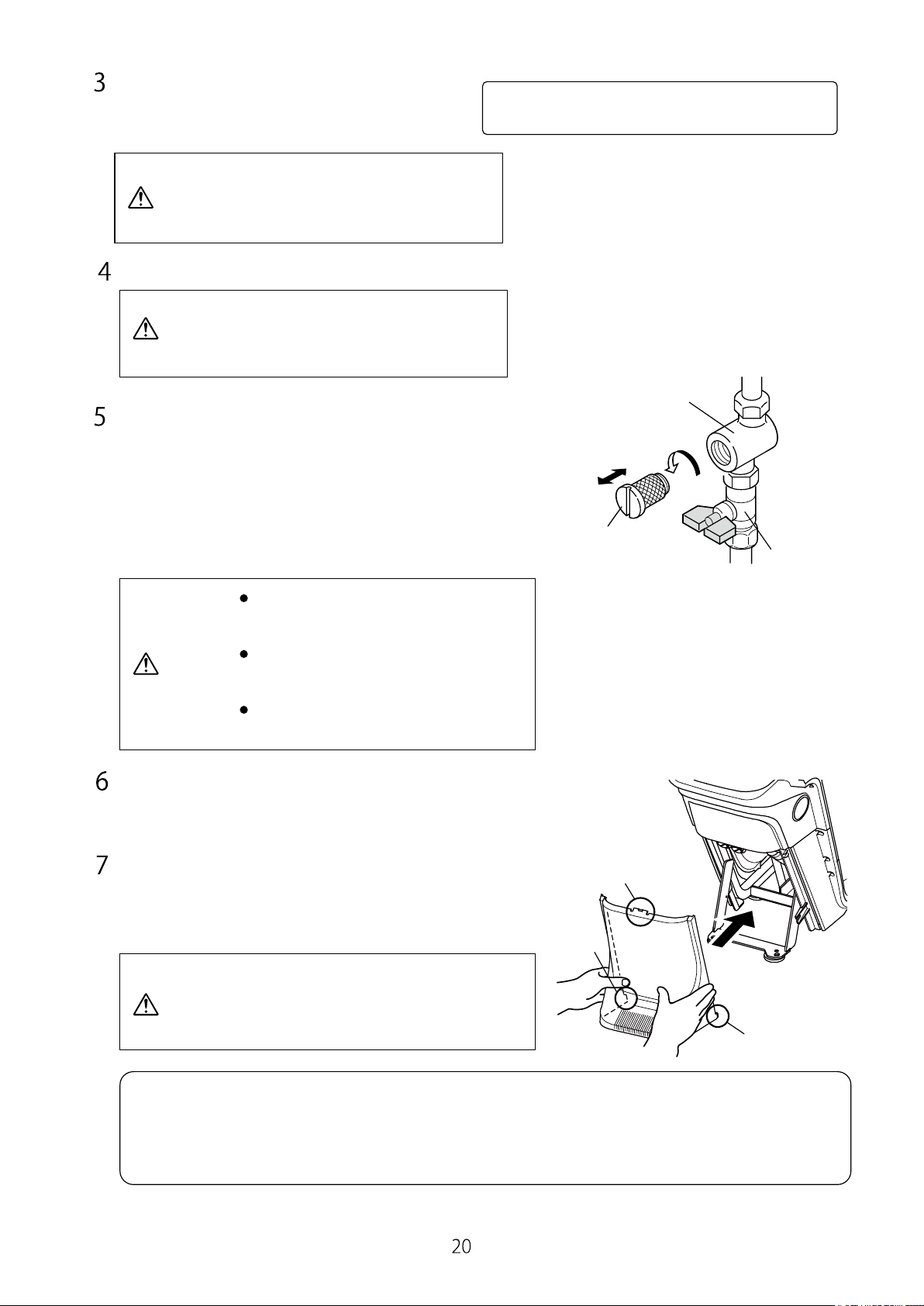

Latch
Latch
Latch
Check Valve
Stop Valve
Strainer
Detach
Attach
Loosen
Tighten
