Thank you for purchasing this Takara Belmont product.
Be sure to read this operation manual
before operating the chair and always
operate the chair properly according to
the instructions herein. Failure to read this
operation manual may lead to accidents. This product is
designed for commercial use in barber shops and beauty
salons. Do not use this chair for any applications other
than hairdressing/beauty-related procedures. Store this
operation manual in a secure location and refer to it
whenever necessary.
Use the "Book No." indicated on the back cover to request
another copy of this manual from Takara Belmont if it
becomes torn or damaged and unreadable, or is lost.

Use a single outlet (do not share an outlet with other plugs)
Unplug the power plug when the chair is not in use
Do not disassemble or repair this product
Do not sit on the backrest of the chair
Sitting on the backrest of the chair could cause it to tip over, resulting in injury or damage.
Securely connect to ground
Be careful of power cord or plug breakage
WARNING
Safety Precautions (Must be Obeyed)
Be sure to thoroughly read these precautions related to safety and operate the chair accordingly in a
safe manner.
■Before Use
Only persons who are certified hairdressers or beauticians can be allowed to use this chair.
■User Prohibitions of this Product
■About the Precautions Listed Here
Classification of Precautions
Level of Harm and Damage, and Degree of Urgency
WARNING
CAUTION
1
NOTE
The precautions described herein are in order to ensure safe use, to prevent any injury to users and
other persons, and to prevent any damage. All these precautions describe important items related to
safety. Be sure to always obey all the precautions contained in this manual. Takara Belmont has
absolutely no responsibility for accidents that might be caused by failure to obey "Safety Precautions",
"Use Precautions" and "Precautions Related to Synthetic (Natural) Leather" resulting in injury to users
and other persons or other damage. In such cases, the responsibility for any injury and damage lies
solely with the user who fails to obey "Safety Precautions", "Use Precautions" and "Precautions Related
to Synthetic (Natural) Leather" and similar precautions. A detailed explanation of the cautionary symbols
is provided below. Be sure that you fully understand their contents before reading the rest of this manual.
This indicates that failure to obey the corresponding warning and the
resulting improper operation can result in death or serious injury.
This indicates a recommended action that should be performed in
order to ensure safety.
This indicates that failure to obey the corresponding warning and
the resulting improper operation can result in mild injury, or
moderate harm and damage.
Use an unshared outlet* that has an attached ground terminal and matches the rated voltage and current of this product.
Using the same outlet together with the power plug of other devices can result in abnormal heat generation and possible fire.
* 230 V AC (7 A or more)
Do not use any power cord or plug that is damaged, or that fits loosely when inserted into an outlet. Doing so can result
in electric shock or fire.
Turn off the power switch and remove the power plug from the outlet when the chair is not in use. Unexpected operation
can result in an accident or fire from a short circuit due to insulation aging.
Failure to make a ground connection can result in electric shock if there is a malfunction or short circuit. Consult an
electrician for grounding procedures.
Disassembly or repair must only be done by a qualified service staff. Disassembly by yourself can result in an accident,
a malfunction, electric shock or fire.

Safety Precautions (Must be Obeyed)
Power cords must be replaced by a certified technician
Power cord replacement must be performed by the dealer, Takara Belmont staff, or a technician with equivalent certification.
Consult an electrician for wiring work
Wiring work must be performed by certified personnel. Consult an electrician for wiring work.
Firmly insert the power plug into the outlet
There is a danger of pinching and other physical injury.
Hold by the power plug when unplugging
Do not wash the chair by pouring water on it
Do not connect the earth (ground) to the following objects
• Water pipes
Complete grounding is not possible as hard plastic pipes are widely used.
• Gas Pipes
Connecting to gas pipes can result in an explosion or fire.
• Lightning rods and telephone dedicated grounding wire
Installation precautions
Do not use in an environment where there are electromagnetic interference waves
Precautions when getting in and out of the chair
Precautions for the surrounding area during chair operation
WARNING
2
Be sure to fully insert the power plug into the outlet until reaching the base of the plug. Failure to fully insert the plug or
a similar fault can result in a short circuit or heat generation that causes a fire.
Do not pull the cord to remove the power plug from the outlet. Hold by the power plug at the end of the cord when
removing. Removing the plug by pulling the power cord can damage the power cord, resulting in electric shock or fire.
This chair is an electronic device. Do not sprinkle with water to clean it. Washing in such a manner can result in a
malfunction or electric shock.
Using this chair in an environment where there are electromagnetic interference waves can cause faulty operation. Do
not install the chair near equipment that generates electromagnetic waves such as communication equipment and
elevators. Do not use devices that generate electromagnetic waves (such as mobile telephones) near this chair.
Before and during operation, thoroughly check that there are no bodies or limbs of persons, or possible obstacles in the
operating range of the chair (ranges of seat raising/lowering, backrest reclining/raising, chair rotation, legrest operation)
or nearby. There is a danger of body parts being pinched by the chair, resulting in injury or damage.
Always be sure to lower the chair to the lowest position and lock the rotation when a customer is getting in or out of the
chair in order to ensure safety. Be especially careful when moving a person in a wheelchair in and out of the chair, and
make sure that the wheelchair is not positioned in the operating range of the chair when moving the person. Feet, casters
or other parts contacting the UP/DOWN pedal switch will cause sudden operation of the chair, resulting in injury or damage.
• Installation of this chair must be performed by specialized personnel (personnel from Takara Belmont or Takara
Belmont specified representative).
• The chair must be installed on a perfectly flat and solid floor.
• Installing the chair to a location with an angle of 5°or more can result in the chair tipping over.
Be careful to keep the hands, fingers and other body parts of the customer and user from
touching or getting close to moving parts

3
Safety Precautions (Must be Obeyed)
Procedures if a power outage occurs
Do not allow a customer to lie face down on the chair
Do not allow a customer to lie face down on the chair. Sudden operation of the chair can result in injury.
Precautions regarding customers and children
Do not stand on the edge of the step
Only sit in the area designated for such use
Precautions after changing the preset positions
Precautions when changing the preset positions
WARNING
Precautions when reclining/raising the backrest
Precautions during chair rotation
• Before and while setting the preset positions, thoroughly check that there are no bodies or limbs of persons, or
possible obstacles in the operating range of the chair or the area around the chair. There is a danger of body parts
being pinched by the chair, resulting in injury or damage.
• When changing the legrest position, be very careful that the step or the customer's feet do not contact any nearby
equipment or other items.
After changing the settings of preset positions, thoroughly check that there are no bodies or limbs of persons, or
possible obstacles in the operating range of the chair or the area around the chair. There is a danger of body parts
being pinched by the chair, resulting in injury or damage.
Never sit on the headrest, armrests, edge of the backrest, legrest, or the step, or subject these to an excessive (more
than necessary) load or force with the backrest reclined. Doing so can result in the chair tipping over or being damaged.
Do not stand on the edge of the step. Doing so could cause the chair to tip over or the step could suddenly move,
resulting in injury or damage.
Be careful to closely watch customers (especially children) in order to make sure that they do not accidentally cause
chair operation, resulting in an unexpected accident.
• The space between the backrest and seat becomes narrow when the backrest is reclined. Check that the customer's
hands, arms or clothes are not caught between the backrest and seat before reclining the backrest. There is a danger
of body parts being pinched by the chair, resulting in injury.
• Carefully recline the backrest so that the headrest or backrest will not contact any shampoo bowl or nearby equipment.
• When you recline the backrest without using the headrest, support the customer's head with your hand so that the
customer will not make contact with the shampoo bowl.
• Before raising the backrest, check that the customer's arms or hands are not in between the backrest and armrests,
and operate it safely.
• Do not rotate the chair until you confirm that the customer has completely sat down in the chair.
• Always be sure that no other persons are in the surrounding area before rotating the chair, and rotate so that the step
and other parts do not contact the customer or any nearby equipment. Be especially careful of the customer when the
backrest is reclined and check that the safety of the customer is ensured before rotating the chair.
• Be sure to always lock (secure) chair rotation by using the rotation lock switch after rotating the chair. Always be sure
that chair rotation is locked before moving the chair. There is a danger of injury or damage if the chair rotates
suddenly.
• Always be sure to lock the chair when not rotating it.
• Turn off the power switch and remove the power plug of this product from the outlet in order to prevent unexpected
operation when recovering from a power outage. Also turn off the power switches of all devices connected to the
service outlet and remove the power plugs of devices.
• Be extremely careful if there is a power outage when the seat is in a high position such as for shampooing as it is not
possible to lower the chair. Assist the customer in getting in and out of the chair in that position, being very careful that
the customer is not injured and the chair does not tip over.

Precautions when raising or lowering the chair
Safety Precautions (Must be Obeyed)
WARNING
Be sure to always perform daily inspection
Do not let children fix or clean the chair
Do not let children play with the chair
Only persons who are certified hairdressers or beauticians can be allowed to use this chair
This product is designed for commercial use in barber shops and beauty salons.
Only persons who are certified hairdressers or beauticians can be allowed to use this chair.
Precautions when using the table
Turn off the power switch and unplug the power plug before cleaning
Doing so can result in electric shock or fire. Also, sudden movement of the chair while cleaning can result in injury.
4
Precautions when using the heater
Precautions for the service outlets
Before raising or lowering the chair, always be sure to check that there are no persons or objects near the chair or step,
under the armrest or in the gap of the support arm and so on. There is a danger of body parts being pinched, resulting
in injury or damage.
• The heater light is lit up in red when the heater is operating. Using the heater for an extended period causes the
temperature to increase, possibly resulting in burns or fire. Be sure to turn off the heater switch when not necessary.
• Turn off the power and remove the power plug if you feel abnormal heat when touching the legrest, and contact your
closest dealer or Takara Belmont.
• Be sure to fully insert the power plug of the device being used into the outlet until reaching the base of the plug. Failure
to fully insert the plug or similar loose connection can result in a short circuit or heat generation that causes a fire.
• If the connection becomes loose, immediately stop using the device plugged into the service outlet, turn off the device
power switch, and remove the power plug from the outlet. Also, stop using the chair, turn off the power, unplug the
power plug, and contact your closest dealer or Takara Belmont.
• Remove the power plug of a device from the outlet when not using it.
• If any water gets on a service outlet, immediately turn off the chair power switch, remove the plug, and wipe away the
water. Additionally, if a substantial amount of water gets inside a service outlet, immediately remove the plug and
contact your closest dealer or Takara Belmont.
• Do not touch a service outlet with a wet hand.
Check that the table is securely inserted into the table securing slot before using the table. Failure to fully insert the
table can result in the table falling off, causing injury and damage.
Do not let children play with the chair or stand on the backrest, armrests or other parts of the chair. Doing so can result
in an accident or injury.
Do not let a person unfamiliar with handling the chair (lack of experience and skills) such as children fix or clean the
chair. Doing so can result in an accident or injury.
Perform daily inspection according to the "Daily Inspection Procedures". Using the chair without performing daily
inspection can result in malfunction or accident.

Safety Precautions (Must be Obeyed)
CAUTION
Do not strongly strike or scrape the chair
Precautions for cleaning procedures
Precautions when operating the headrest
Observe the following precautions when tilting the seat
• Do not raise the seat with the backrest reclined.
• Make sure the chair is properly adjusted for children before letting a child sit on it.
Precautions when using the dryer/iron holder
Be extremely careful not to mistake the switches when operating.
Immediately wipe off any chemical solutions or water that spills on the chair
Before operation, confirm that every part is working normally and safely
Do not place any objects on top of the power cord
Do not allow any person whose weight exceeds 135 kg/300 lb to sit in the chair
Doing so can cause the chair to tip over or faulty operation.
Turn off the power switch after you are finished using the chair
Turn off the power after use. Always operate the power switch by your hands only.
Be careful that the power cord is not caught up by your feet or legs
5
Doing so can result in tearing of covers and similar damage, and faulty operation. In particular, striking or strongly pushing
the plastic parts such as the backrest cover, the control panel, and the pump cover can result in deformation or breakage.
Do not place any objects on top of the power cord. Damage to the power cord can cause a severed wire or short circuit,
resulting in electric shock or fire.
Be constantly careful of and inspect for looseness, rattling, tilting, vibration, noise, odors and other possible problems. If
you feel that something seems slightly different or not normal, immediately stop using the chair, and contact your closest
dealer or Takara Belmont.
Chemical solutions can become a stain, and their adhering to an electrical part can cause faulty operation or short
circuit. Immediately wipe off any grime or other foreign material that has adhered to the chair by using a dry soft cloth.
The person operating the chair must pay careful attention to the surrounding area and give verbal warning and not
mistake the operation of the chair.
• Be careful that the dryer or iron does not contact the legs or other body parts of the customer when using the dryer/iron holder.
• Always be sure to store the holder under the body after use so it does not interfere with work.
• Do not rotate the dryer/iron holder with a hand dryer or iron still inserted in the slot. Doing so can damage the chair,
and the heat can cause deformation or other damage.
• The dryer/iron holder can withstand a load of up to 50 N (5 kgf/11.2 lbf).
Be careful when operating the headrest that fingers and other body parts are not pinched between the area around the
headrest operation lever or between the headrest and backrest.
• Do not use any of the following substances to clean the chair.
Thinner, alcohol, nail polish remover, volatile chemicals (such as gasoline or kerosene), acid or alkaline solutions,
chlorinated cleaners, disinfectants that are highly corrosive to metal, povidone iodine (iodine solution), sodium
hypochlorite, waxes containing abrasive compounds, sponges containing abrasive compounds, and similar substances.
• Do not use brushes, scouring brushes or similar items when cleaning the chair. Using them will damage the chair or
result in the inability to clean off the dirt or grime.
• The metal and mechanical parts of the chair have sharp edges. Be careful when cleaning the chair that your hands,
fingers or other body parts are not injured.
Make sure that no feet or hands, or other objects will be pinched between the step and floor when
raising/lowering or rotating the chair

Safety Precautions (Must be Obeyed)
CAUTION
Unplug the power plug during installation of the chair and parts replacement
Precautions when using the cape holder
• Do not apply excessive force to the cape holder as it can only withstand a load of 10 N (1 kgf/2.2 lbf).
• Be sure to always return it to the stored state when not in use.
• When storing the cape holder, be careful not to pinch the customer's or user's fingers between it and the armrest.
• When using or storing the cape holder, hold and rotate it until it reaches its final position.
Do not pull up the headrest more than necessary
Be careful not to pull up the headrest more than necessary because doing so will make the headrest come off the chair.
6
Use Precautions
Do not apply heat
Do not apply heat to the chair. Doing so can result in deformation or discoloration.
CAUTION
Do not place any objects other than persons in the seat
Do not place any objects other than persons in the seat. Doing so can result in deformation or tearing of the leather, or corrosion.
Immediately wipe off any chemicals that spill on the chair
Immediately wipe off any chemicals adhering to the leather or pump cover.
Recline the backrest at the end of the day
Contact your closest dealer or Takara Belmont if the breaker function (p. 25) frequently operates.
Be sure to keep a copy of the operation manual where these precautions are described.
NOTE
Unplug the power plug from the outlet during installation of the chair and parts replacement. Doing so can result in an
accident or injury.
When you have finished working for the day, lower the chair to the lowest position and completely recline the backrest.
This helps to extend the service life of the chair by not applying a load to springs and cylinders.
The maximum load of this chair is 1,350 N (135 kgf/300 lbf). The raising speed of the seat declines as the maximum
load is approached.

7
• Operation manual (this manual) • Installation manual • Rubber ring
● Clothing dye adhering
The color of clothing or belts can be transferred to the synthetic leather of this chair by means
of contact. If color adheres to the leather, wipe off the stain as soon as possible by using a soft
cloth that has been dabbed with a neutral detergent diluted with water to approximately 10% in
order to prevent the stain from soaking in due to the plasticizer. Wipe the area with a dry cloth
after wiping off the color.
● Precautions regarding deformation and color transfer due to contact
• Contact with other plastic parts, painted items, solvents, adhesive tape and similar items can
result in changes in surface luster, cracking, deformation and peeling.
• Contact with newspaper or other printed items can result in color transfer.
• Contact with printed clothing such as t-shirts, jeans and similar items can result in color
transfer such as by dye adhering to the leather.
•
Contact with benzene, nail polish remover, alcohol and similar substances can result in
discoloration, surface or plasticizer dissolution, changes in luster, hardening or softening, or peeling.
• Use of bleach, or use of a sheet or other cloth for which bleach has been used can result in
changes in luster and color.
• Placement of an iron, heater or other excessive heat source near the chair can result in
deformation and discoloration.
• Use a curtain or similar item to block the chair from exposure to direct sunlight. Exposure to
direct sunlight can result in surface deformation, shrinking, discoloration, faded colors and
similar problems.
• Placement of a heavy item for an extended period can result in marks or wrinkles that do not
disappear after removing the item.
Locations of Warning Labels
Precautions Related to Synthetic (Natural) Leather
Accessories

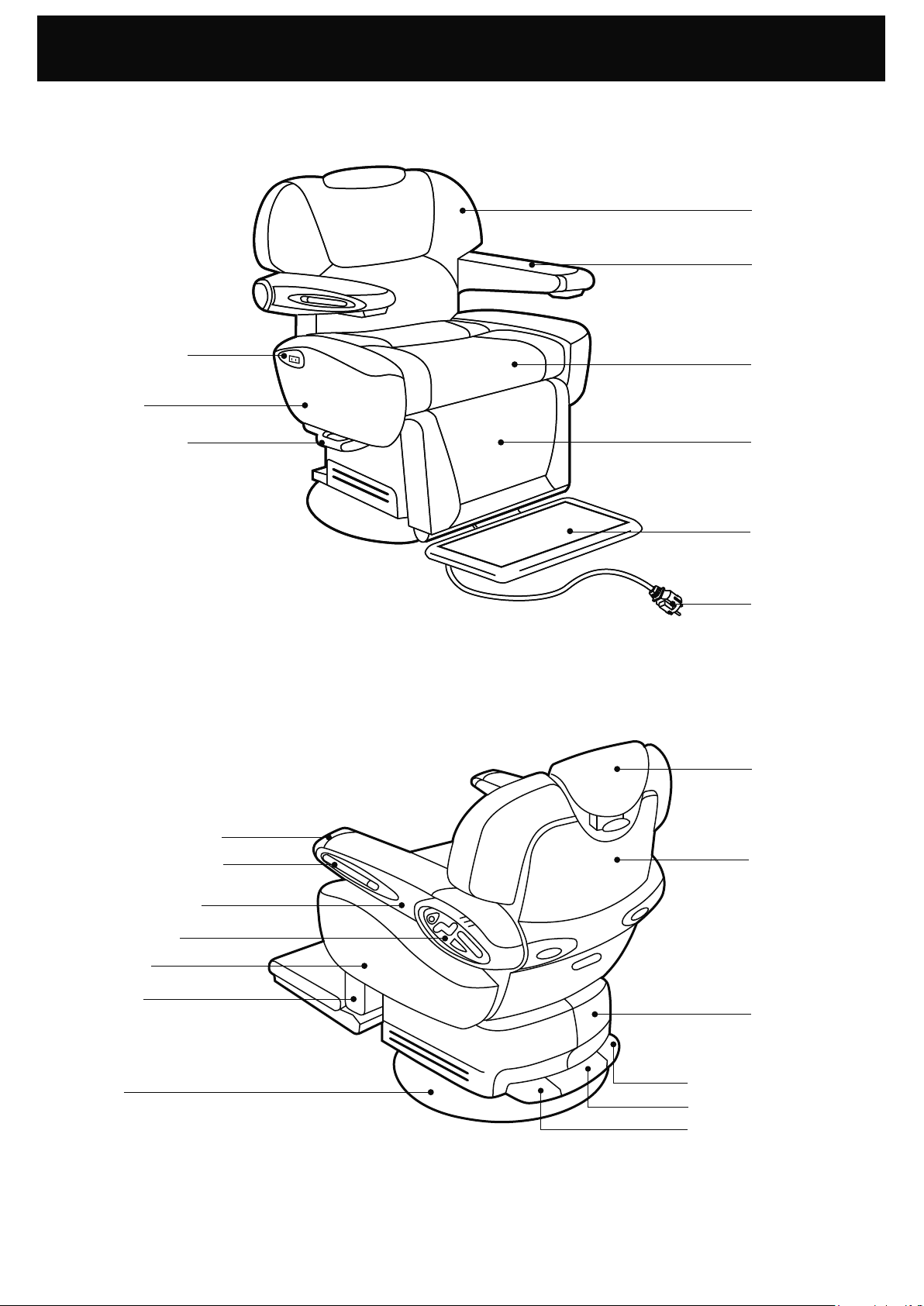

■Main Unit
8
Legrest
(Roll-up type)
AB-9500P
Headrest
Decorative end cap
Pop-up cape holder
Armrest molding
Control panel
Left body
Legrest
(Full-flat type)
AB-9500E
Base
Backrest cover
Pump cover
Step
Seat
Dryer/Iron holder
Right body
Service outlet
(Models with the
C-type plug only)
Armrest
Backrest
Power plug
Rotation lock switch
UP/DOWN pedal switch
Rotation lock switch
Name of Components

■Operating Section
9
Right Left
C lamp (Lights up every time the chair is turned by 180° from the central position)
L lamp (Lights up when rotation is locked)
Preset switch P2
Preset switch P1
Auto-return
Legrest operation switch
UP/DOWN operation switch
Backrest operation switch
Seat operation switch
Leg heater switch
Lit up: Rotation locked Flashing: Rotation enabled
Rotation lock switch
Support arm
Rotation lock switch
UP/DOWN pedal switch
Power switch (Breaker)
H lamp
(Indicates the leg heater status)
Lit up: Central position Locked automatically a few seconds after the lamp lights up
Control panel
Base Operation Section
c
L
c
L
H
P2
HEATER
SEAT
P2
SEAT
Name of Components

Power plug
C-type plug model
Power cord
Ground
Power Supply
1. Insert the power plug into the outlet
10
BF-type plug model
Power plug
Power cord
Ground
• Be sure to fully insert the power plug
into the outlet until reaching the
base of the plug. Failure to fully
insert the plug or a similar fault can
result in a short circuit or heat
generation that causes a fire.
• Do not pull the cord to remove the
power plug from the outlet. Hold by
the power plug at the end of the
cord when removing. Removing the
plug by pulling the power cord can
damage the power cord, resulting in
electric shock or fire.
• Power cord replacement must be
performed by the dealer, Takara
Belmont staff, or a technician with
equivalent certification.
• Use an unshared outlet* that has an
attached ground terminal and
matches the rated voltage and
current of this product. Using the
same outlet together with the power
plug of other devices can result in
abnormal heat generation and
possible fire.
* 230 V AC (7 A or more)
• Wiring work must be performed by
certified personnel. Consult an
electrician for wiring work.
• Do not connect the earth (ground) to
the following objects.
• Water pipes
Complete grounding is not
possible as hard plastic pipes are
widely used.
• Gas Pipes
Connecting to gas pipes can result
in an explosion or fire.
• Lightning rods and telephone
dedicated grounding wire
• Failure to make a ground connection
can result in electric shock if there is
a malfunction or short circuit.
Consult an electrician for grounding
procedures.
Preparation
WARNING

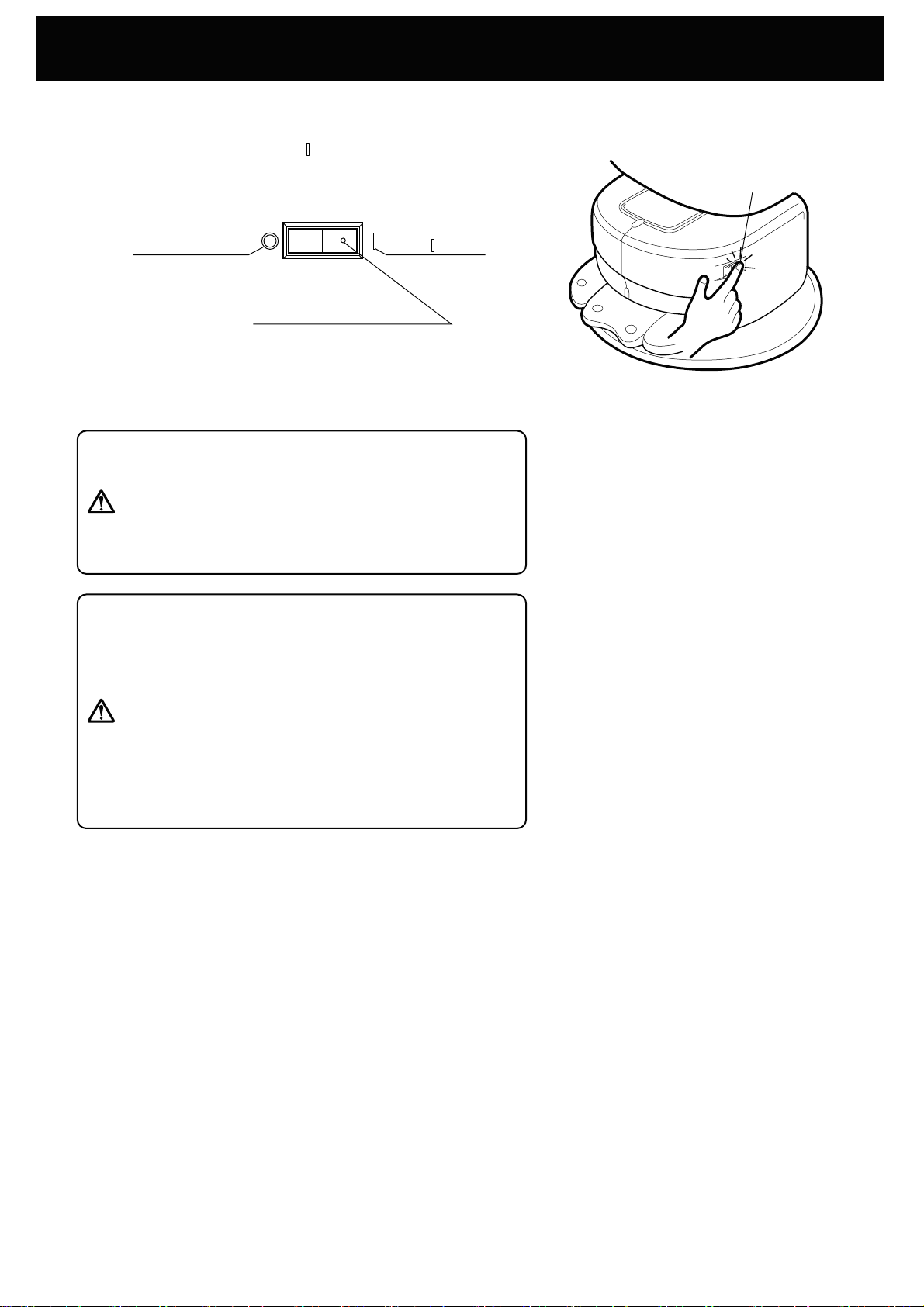

Press the side with the mark to turn the power on.
Press the side with the ◎mark to turn the power off.
2. Turn on the power
11
Power switch
Preparation
OFF (◎mark) ON ( mark)
<Power switch>
Power switch lamp
WARNING
CAUTION
*When the power is turned on with the chair rotation
lock released, the chair rotation gets locked
automatically.
Turn off the power switch and remove
the power plug from the outlet when
the chair is not in use. Unexpected
operation can result in an accident or
fire from a short circuit due to
insulation aging.
• Turn off the power after use. Always
operate the power switch by your
hands only.
• Immediately wipe off any medicinal
solution or water that has adhered to
the product by using a dry soft cloth
or similar item. Chemical solutions
can become a stain, and their
adhering to an electrical part can
cause faulty operation or short circuit.

How to Use
12
Styling
station side
Base
C lamp
(Central position
Control panel
indicator)
L lamp
(Locked state indicator)
Central position
C
L
(1) Guiding Customers
Rotation lock switch
WARNING
1. Rotate the chair so that the customer can be
easily seated on the chair
1 Release the rotation lock
Press the rotation lock switch to release the lock and enable
rotation of the chair.
(Operation is the same with the rotation lock switch on either side.)
The chair lock switch is operated by a hydraulic system.
The rotation lock repeatedly alternates between locked
and released each time that the rotation lock switch is
stepped on.
Rotation lock disengaged: The L lamp on the control
panel flashes.
Rotation lock engaged: The L lamp on the control
panel lights up.
This function does not work when the power is
switched off.
2 Rotate the chair.
Hold the backrest or armrests when rotating the chair.
You can rotate the chair a full 360°.
3 Fix the chair in a work position.
Stop the chair at the desired work position and press the
rotation lock switch at the foot controler. The chair
is locked and prevented from rotating.
Automatic rotation lock function
This chair is equipped with a function that automatically
locks it when you rotate it towards the front of the hair
styling station. (Refer to the diagram that shows a 180°
rotation interval with the base in the center.)
1 The C lamp on the control panel lights up when the frontal
position of the chair is detected.
2 The chair is automatically locked a few seconds after the
C lamp on the control panel lights up.
(The L lamp stops flashing and remains lit.)
3 To release the lock, press the rotation lock switch.
•Always be sure to lower the chair to the lowest position and lock the rotation
when a customer is getting in or out of the chair in order to ensure safety.
• Do not rotate the chair until you confirm that the customer has completely sat
down in the chair.
•Always be sure that no other persons are in the surrounding area before
rotating the chair, and rotate so that the step and other parts do not contact the
customer or any nearby equipment. Be especially careful of the customer
when the backrest is reclined and check that the safety of the customer is
ensured before rotating the chair.
• Be sure to always lock (secure) chair rotation by using the rotation lock switch
after rotating the chair. Always be sure that chair rotation is locked before moving
the chair. There is a danger of injury or damage if the chair rotates suddenly.
•Always be sure to lock the chair when not rotating it.

How to Use
13
2. Using the cape holder
2 Rotate the ejected cape holder forward.
3 Pull out the tip of the cape holder and pinch the cutting cape.
(1) Pull from the top of the hair cutting cape. (2) Pinch the cape holder and release.
4 Rotate the cape holder rearward to store it.
CAUTION
Using the cape holder:
• Provides space between the customer and the cutting cape to provide good ventilation.
• Makes it easy to clean up the cut off hair.
1 Reach below the front of the cape holder, and gently
push it upwards to eject it to the side.
5 Push the front of the cape holder from above to
insert it into the armrest.
• Do not apply excessive force to the cape holder as it can only withstand a
load of 10 N (1 kgf/2.2 lbf).
• Be sure to always return it to the stored state when not in use.
• When storing the cape holder, be careful not to pinch the customer's or user's
fingers between it and the armrest.
• When using or storing the cape holder, hold and rotate it until it reaches its
final position.

UP/DOWN
pedal switch
(UP switch)
UP/DOWN
operation switch
(UP switch)
UP/DOWN
pedal switch
(DOWN switch)
Left Right
Left Right
How to Use
(2) Raising/Lowering the Chair
1. Raising the chair

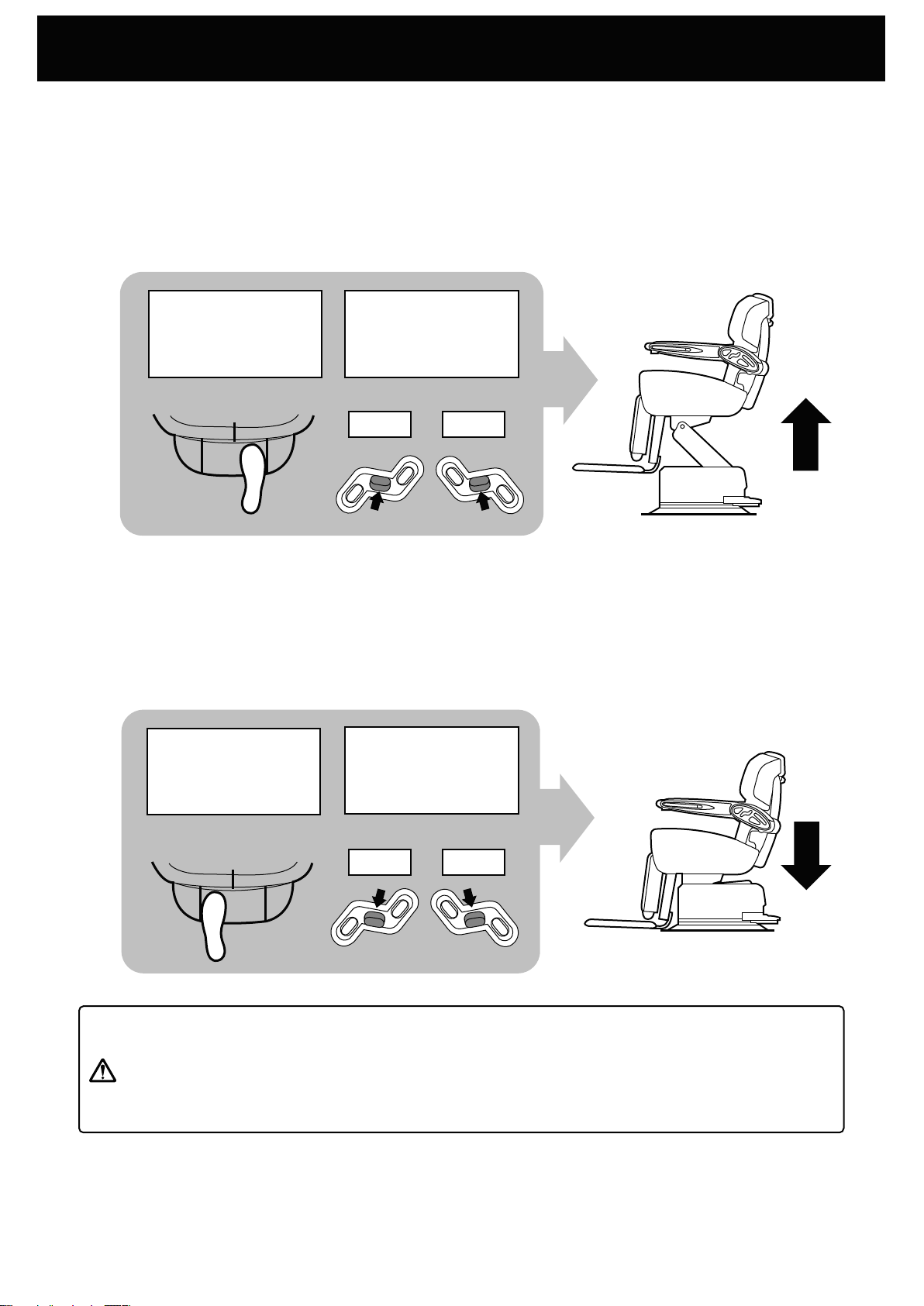

To raise the chair, step on the right side of the UP/DOWN pedal switch or press the
UP/DOWN operation switch upwards.
The chair operates while you are stepping on (pressing) the switch.
2. Lowering the chair
To lower the chair, step on the left side of the UP/DOWN pedal switch or press the
UP/DOWN operation switch downwards.
The chair operates while you are stepping on (pressing) the switch.
14
WARNING
UP/DOWN
operation switch
(DOWN switch)
• Before raising or lowering the chair, always be sure to check that there are no
persons or objects near the chair or step, or in the gap of the support arm.
There is a danger of body parts being pinched, resulting in injury or damage.
• This chair moves backwards as it is raised. Thoroughly check that there are
no obstacles in front of or behind the chair.

15
1 Lift up the headrest operation lever
and pull out the headrest.
You can stop in any position.
2 Hold the headrest, and rotate it in a position
that is suitable for the customer.
Rotate the headrest until you feel it click. The
headrest position is now locked.
Make sure the headrest position is locked
before you let a customer lie down.
3 To return the chair to its original position after
finishing work
(1) Keep the headrest rotation lock button pressed,
and hold the headrest operation lever.
(2) Next, raise the headrest, push it all the way back
towards the backrest to store it.
Push the backrest operation switch on the control panel (right or left) in the direction of the arrow
to recline the backrest.
1. Pulling out the headrest
Do not use the headrest if it is not needed, such as for back shampooing.
2. Reclining the backrest
Backrest operation switch
The chair operates while the switch is pressed.
Left Right
* If the chair rotation lock is released, the chair rotation is locked automatically when you press the switch.
MAXIM
Locked state position
Headrest rotation lock button
Headrest operation lever
(1)
(2)
How to Use
(3) Reclining/Raising the Backrest
WARNING
CAUTION
• Never use the headrest without its rotation lock engaged. A customer may be
injured if the headrest accidentally rotates during shaving or similar work.
• Check that there are no impediments in the surrounding area when rotating the
seat with the headrest pulled out.
• If the headrest comes off, press and hold the headrest rotation lock button, and
insert the headrest in its original position.
• The armrests on this chair move together with the backrest, which causes the
gaps between those parts and the body to narrow when the chair is reclined.
• Being pinched between them may cause serious injuries.

How to Use
16
5. Raising the backrest
4. Lowering the legrest
3. Raising the legrest

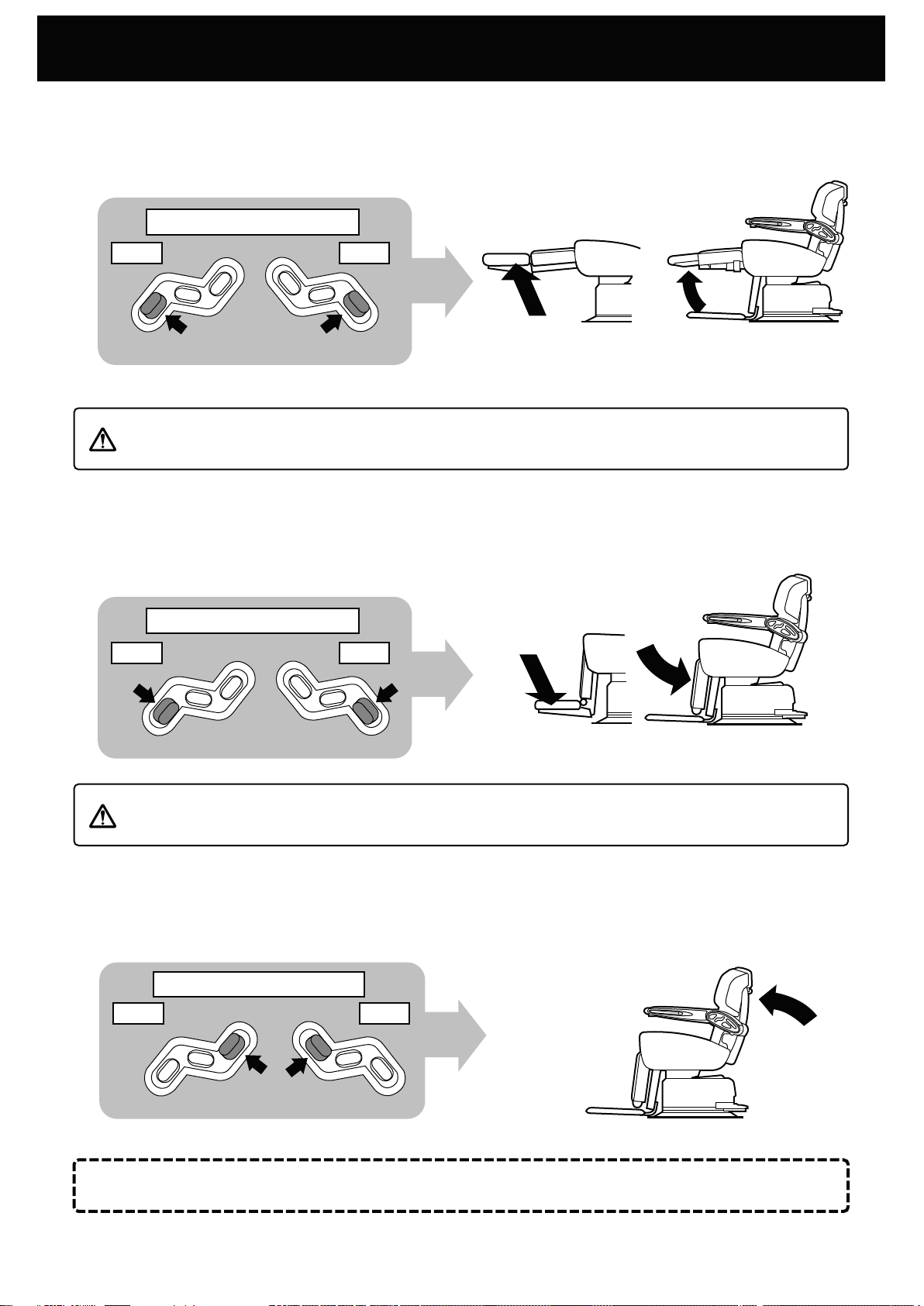

Push the legrest operation switch on the control panel (right or left) in the direction of the arrow
to raise the legrest.
Push the backrest operation switch on the control panel (right or left) in the direction of the arrow
to raise the backrest.
Push the legrest operation switch on the control panel (right or left) in the direction of the arrow
to lower the legrest.
*
The roll-up type chair is equipped with a roll-up function that gradually extends the legrest forward as it is lifted.
Legrest operation switch
Legrest operation switch
Backrest operation switch
The chair operates while the switch is pressed.
Left Right
The chair operates while the switch is pressed.
Left Right
The chair operates while the switch is pressed.
Left Right
Use the preset function to move the chair to the preset position.
Refer to "(4) Using Preset Functions" on p. 17.
Roll-up type
9500P
Full-flat type
9500E
Roll-up type
9500P
Full-flat type
9500E
WARNING
WARNING Before raising the legrest, be very careful that the customer's feet will not
contact any equipment in the front, and operate it safely.
Before lowering the legrest, make sure that no persons or objects are under the
legrest, and operate it safely.

How to Use
17
Preset Function ⇒This function allows you to simply press the switch once to make the
chair rise automatically to its preset position and the backrest recline.
Preset switch P2
Preset switch P1
Roll-up type
9500P
Full-flat type
9500E
P2
HEATER
SEAT
P2
SEAT
Right Left
(4) Using Preset Functions
1. Using the preset function
<Changing Settings of the Preset Function>
CAUTION
1. Pull the headrest out to the desired position beforehand if you need to use it.
2. Press the preset switch (indicating P1 or P2) on the control panel once. The chair moves to the
previously set position.
Although the setting positions of the preset switches are previously set when shipped from the
factory, you can change the settings to positions that match your customers. There are only two
seat tilting positions available: the neutral position and the relaxation position. When shipped from
the factory, the seat is set to the neutral position.
Perform the following procedures to change the preset positions.
(1) Move the chair to the desired position.
(2) Press and hold the preset switch for approximately three seconds until you hear an electronic
beep indicating that the position is set.
(3) Setting is completed when the electronic beep is emitted. Return the chair to its original
position by using the auto-return switch, and use the preset switch for which you have changed
the setting to make sure that the chair moves to the position you have set.
• Be very careful when setting the position of the legrest so that the customer's
leg will not contact any equipment or other items in the front.
• Perform position setting with a person sitting in the chair. The chair is equipped
with a shockless device. Accordingly, the final operating position varies slightly
if position setting is performed without a person sitting in the chair.
• The seat cannot be operated when it is place above its neutral position.

How to Use
18
Cancel Function
Before using the auto-return function, make sure that no persons or animals are
under the legrest or step or in the support arm area, and operate it safely.
Auto-return switch
Base Operation Section Control panel
Left Right
Right Left
P2
HEATER
SEAT
P2
SEAT
Roll-up type
9500P
Full-flat type
9500E
You can use the switch on either the left or
right control panel to stop operation.
Pressing any of the switches shaded in gray will stop the operation.
<Changing Settings of the Auto-return Function>
2. Using the auto-return function
Press the auto-return switch on the control panel (right or left).
The chair height, backrest angle, legrest position, and seat position return to their original positions
automatically.
WARNING
The position set by the auto-return switch is already configured when the chair is shipped from the
factory. The seat tilting position, on the other hand, can be set according to the customer's
preferences either to the neutral or relaxation position. When the chair is shipped from the factory,
the seat tilting position is set to neutral.
Perform the following procedures to change the preset positions.
(1) Change the seat tilting position to either the neutral or relaxation position.
(2) Press and hold the auto-return switch for approximately three seconds until you hear an
electronic beep indicating that the position is set.
(3) Setting is completed when the electronic beep is emitted. Use the seat operation switch to raise
the seat, and then use the auto-return switch to confirm that the position has been set correctly.
Press any switch other than the vibration switch if you want to stop chair operation midway when
using the preset or auto-return switches. The cancel function operates to stop chair operation.
