Takara Belmont LEGEND AB-LGF User manual

Model No. AB-LGF
Operation Manual
Takara Belmont Barber Chair
Contents
SAFETY PRECAUTIONS (MUST BE OBEYED)
NOTES FOR USE

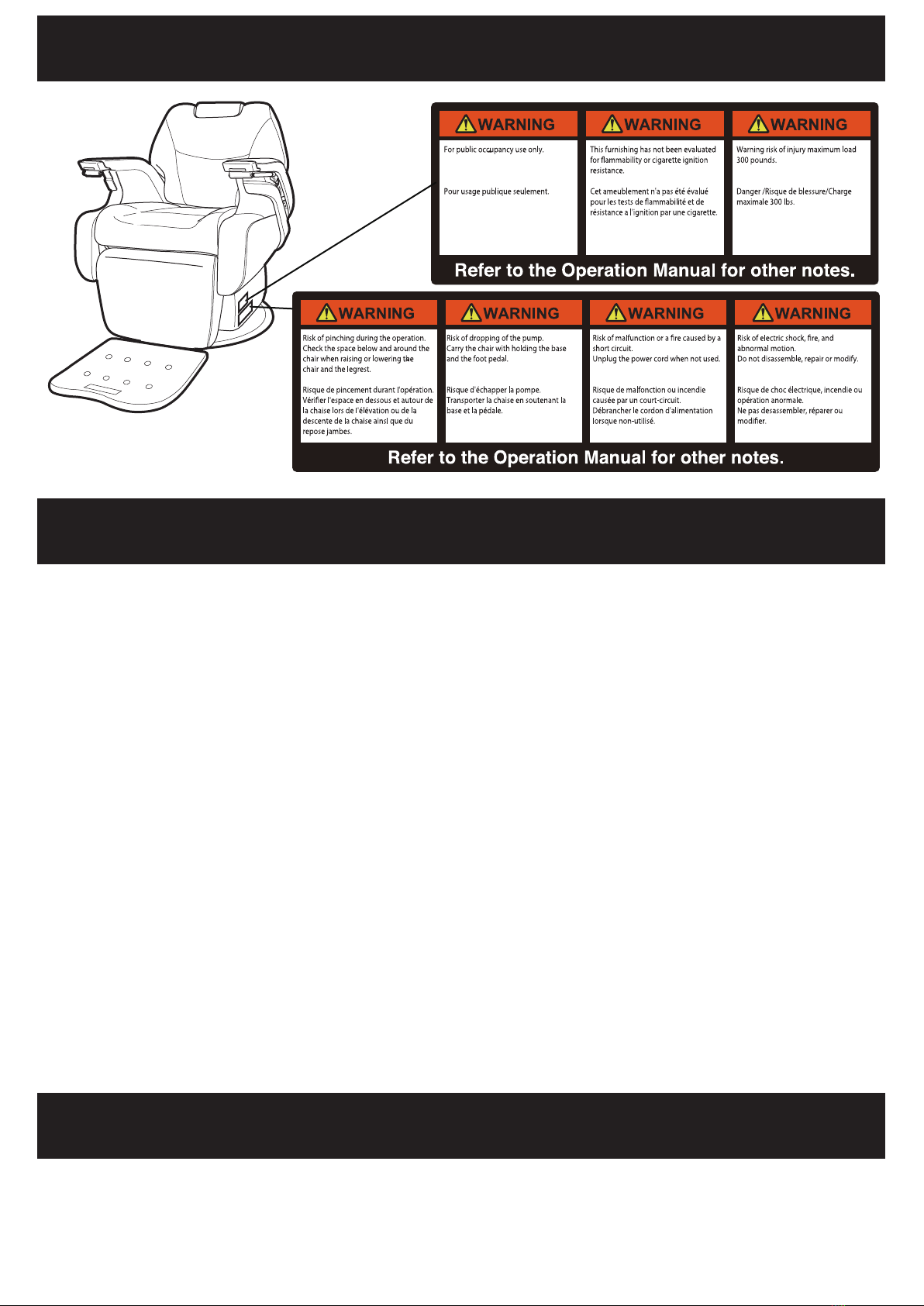

LOCATIONS OF WARNING LABELS
NOTES RELATED TO SYNTHETIC (NATURAL) LEATHER
ACCESSORIES

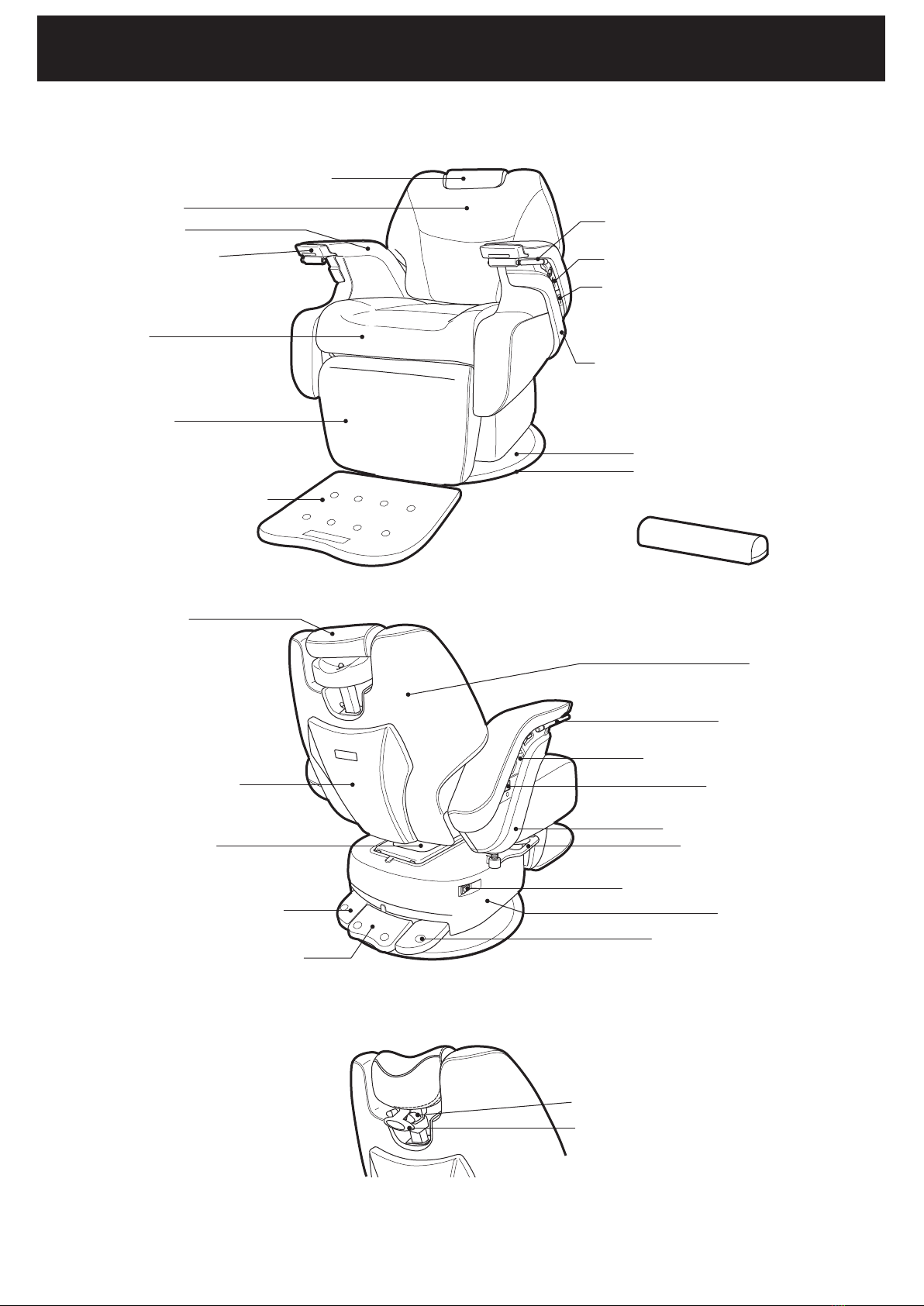

NAME OF COMPONENTS
PREPARATION
HOW TO USE
1
7
8
8
8
9
11
CARE AND MAINTENANCE
DAILY INSPECTION
BEFORE REQUESTING REPAIR
DAILY INSPECTION PROCEDURES
SPECIFICATIONS
STANDARD PERIOD OF USE
DISPOSING OF THIS PRODUCT
26
27
28
29
31
32
32
13
15
16
20
22
23
23
24
25
25
11
(1) Guiding Customers
(2) Raising/Lowering the Chair
(3)
Reclining/Raising the Backrest
(4) Using Preset Functions
(5) Removable Step
(6) Heater
(7) Accumulator
(8) Dryer/Iron Holder
(9) Service Outlets
(10) Foot Cushion
Power Supply
Takara Belmont would like to thank you
for purchasing this Takara Belmont
product.
Be sure to read this operation manual
before operating the chair and always
operate the chair properly according to the
instructions herein.
Failure to read this operation manual may
lead to accidents.
This product is designed for commercial
use in barber shops and beauty salons.
Do not use this chair for any applications
other than hairdressing/beauty-related
procedures.
Store this operation manual in a secure
location and refer to it whenever necessary.
Please inform Takara Belmont of the book
number on the back cover to obtain a new
operation manual if this operation manual
becomes torn or damaged and unreadable, or is
lost.

Securely connect to ground.
Failure to make a ground connection can result in electric shock if there is a malfunction or
short circuit. Consult an electrician for grounding procedures.
Use a single outlet (do not share an outlet with other plugs).
Do not sit on the backrest of the chair.
Sitting on the backrest of the chair could cause it to tip over, resulting in injury or damage.
Do not disassemble or repair the chair.
Disassembly or repair must only be done by a qualified service staff. Disassembly by
yourself can result in an accident, a malfunction, electric shock or fire.
Unplug the power plug when the chair is not in use.
Be careful of power cord or plug breakage.
SAFETY PRECAUTIONS (MUST BE OBEYED)
Classification of Precautions
Level of Harm and Damage, and Degree of Urgency
1
NOTE
WARNING
■Before Use
Be sure to thoroughly read these precautions related to safety and operate the chair
accordingly in a safe manner.
■User Prohibitions of this Product
Only persons who are certified hairdressers or beauticians can be allowed to use this chair.
■About the Precautions Listed Here
T he precautions continued herein are in order to ensure safe use, and to prevent any injury to
users and other persons, and to prevent any damage.
All these precautions describe important items related to safety. Be sure to always obey all the
precautions contained in this manual.
Takara Belmont has absolutely no responsibility for accidents that might be caused by failure
to obey "Safety Precautions" and "Notes for Use" resulting in injury to users and other
persons, or other damage.
In such cases, the responsibility of any injury and damage lies solely with the user who fails to
obey such precautions.
A detailed explanation of the cautionary symbols is provided below.
Be sure that you fully understand their contents before reading the rest of this manual.
This indicates that failure to obey the corresponding warning
and the resulting improper operation can result in death or
serious injury.
This indicates that failure to obey the corresponding warning
and the resulting improper operation can result in mild injury,
or moderate harm and damage.
This indicates a recommended action that should be
performed in order to ensure safety.
Use an unshared * outlet with an attached ground terminal. Using the same outlet together
with the power plug of other devices can result in abnormal heat generation and possible
fire.* 230V AC (7 A or more)
Do not use any power cord or plug that is damaged, or that fits loosely when inserted into
an outlet. Doing so can result in electric shock or fire.
Turn off the power switch and remove the power plug from the outlet when the chair is not
in use. Unexpected operation can result in an accident or fire from a short circuit due to
insulation aging.
WARNING
CAUTION
NOTICE

SAFETY PRECAUTIONS (MUST BE OBEYED)
Power cord replacement must be performed by a certified person.
Power cord replacement must be performed by your closest dealer, Takara Belmont or a
technician with equivalent certification.
Consult an electrician for wiring work.
Wiring work must be performed by certified personnel. Consult an electrician for wiring
work.

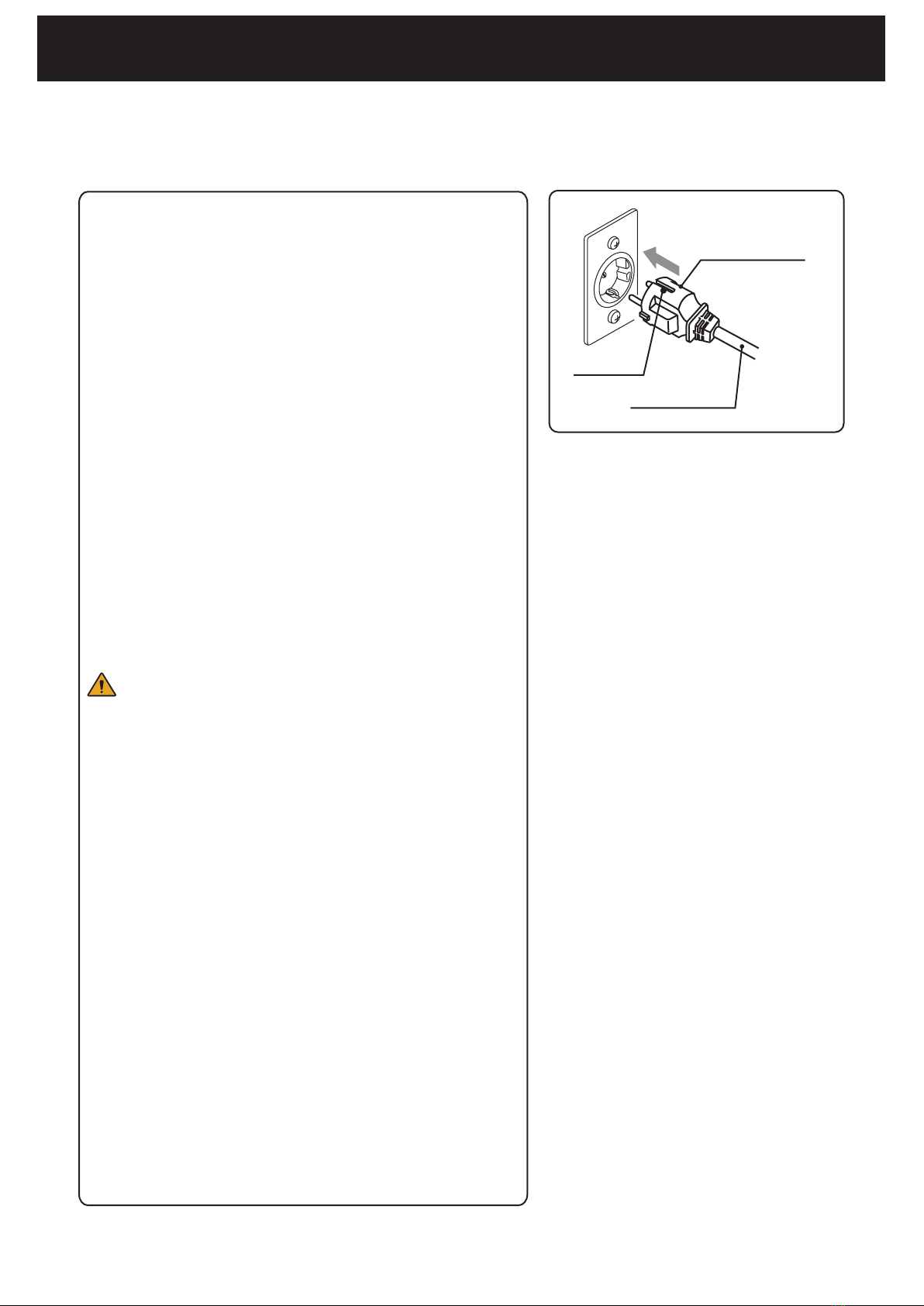

Firmly insert the power plug into the outlet.
Be sure to fully insert the power plug into the outlet until reaching the base of the plug.
Failure to fully insert the plug or similar fault can result in a short circuit or heat generation
that causes a fire.
Hold by the power plug when unplugging.
Do not pull the cord to remove the power plug from the outlet. Hold by the power plug at
the end of the cord when removing. Removing the plug by pulling the power cord can
damage the power cord, resulting in electric shock or fire.
Do not wash the chair by pouring water on it.
This chair is an electronic device. Do not sprinkle with water to clean it. Washing in such a
manner can result in a malfunction or electric shock.
Do not connect the earth (ground) to the following objects.
•Water Pipes
Complete grounding is not possible as hard plastic pipes are widely used.
•Gas Pipes
Connecting to gas pipes can result in an explosion or fire.
•Lightning rods and telephone dedicated grounding wire
Installation precautions
•Installation of this chair must be performed by specialized personnel (personnel from
Takara Belmont or Takara Belmont specified representative).
•The chair must be installed on a perfectly flat and solid floor.
•Installing the chair to a location with an angle of 5°or more can result in the chair tipping
over.
Do not use in an environment where there are electromagnetic interference waves.
Using this chair in an environment where there are electromagnetic interference waves can
cause faulty operation. Do not install the chair near equipment that generates
electromagnetic waves such as communication equipment and elevators. Do not use devices
that generate electromagnetic waves (such as mobile telephones) near this chair.
Precautions when getting in and out of the chair
Always be sure to lower the chair to the lowest position and lock the rotation when a
customer is getting in or out of the chair in order to ensure safety. Be especially careful
when moving a person in a wheelchair in and out of the chair, and make sure that the
wheelchair is not positioned in the operating range of the chair when moving the person.
Feet, casters or other parts contacting the UP/DOWN foot switch will cause sudden
operation of the chair, resulting in injury or damage.
Be careful to keep hands, fingers and other body parts of the customer and user from
touching or getting close to moving parts.
There is a danger of pinching and other physical injury.
2
WARNING

3
SAFETY PRECAUTIONS (MUST BE OBEYED)
Precautions for the surrounding area during chair operation
WARNING
Before and during operation, thoroughly check that there are no bodies or limbs of persons,
or possible obstacles in the operating range of the chair (ranges of seat raising/lowering,
backrest reclining/raising, chair rotation, legrest operation) or nearby. There is a danger of
body parts being pinched by the chair, resulting in injury or damage.
Precautions when changing the preset positions
•Before and while setting the preset positions, thoroughly check that there are no bodies or
limbs of persons, or possible obstacles in the operating range of the chair or the area
around the chair. There is a danger of body parts being pinched by the chair, resulting in
injury or damage.
•The legrest moves in conjunction with the backrest. When changing the preset positions,
be very careful that the step or the customer's feet will not contact any nearby equipment
or other items.
Precautions after changing the preset positions
After changing the settings of preset positions, thoroughly check that there are no bodies or
limbs of persons, or possible obstacles in the operating range of the chair or the area around
the chair. There is a danger of body parts being pinched by the chair, resulting in injury or
damage.
Only sit in the area designated for such use.
Never sit on the headrest, armrests, edge of the backrest, legrest or step, or subject these to
an excessive (more than necessary) load or force with the backrest reclined. Doing so can
result in the chair tipping over or being damaged.
Do not stand on the edge of the step.
Do not stand on the edge of the step. Doing so could cause the chair to tip over or the step
could suddenly move, resulting in injury or damage.
Precautions regarding customers and children
Be careful to closely watch customers (especially children) in order to make sure that they
do not accidentally cause chair operation, resulting in an unexpected accident.
Do not allow a customer to lie face down on the chair.
Do not allow a customer to lie face down on the chair. Sudden operation of the chair can result
in injury.

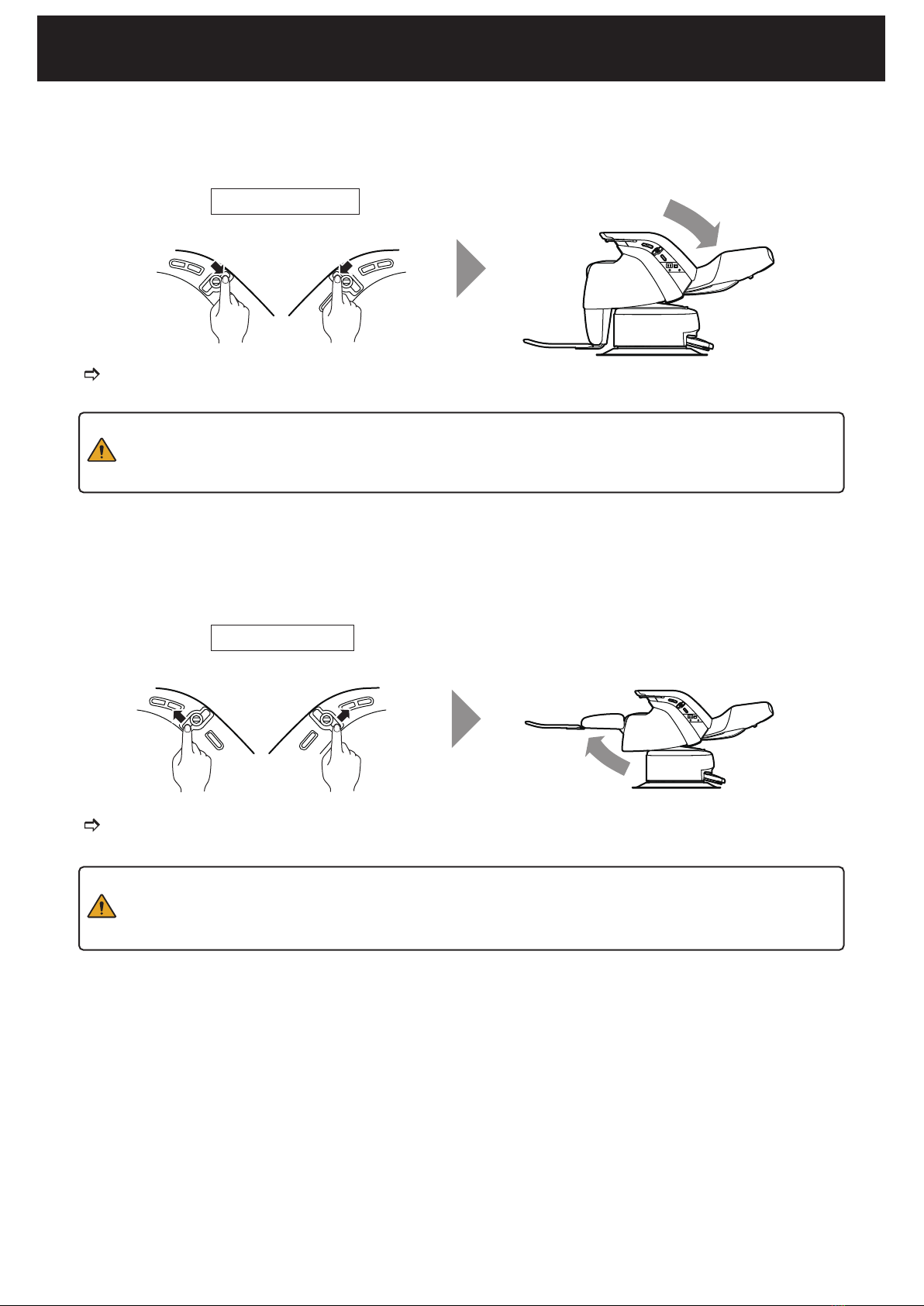

Precautions when reclining/raising the backrest
•The space between the backrest and seat becomes narrow when the backrest is reclined.
Check that the customer's hands, arms or clothes are not caught between the backrest and
seat before reclining the backrest. There is a danger of body parts being pinched by the
chair, resulting in injury.
•Carefully recline the backrest so that the headrest or backrest will not contact any
shampoo bowl or nearby equipment.
•When you recline the backrest without using the headrest, support the customer's head
with your hand so that the customer will not contact with the shampoo bowl.
•Before raising the backrest, check that the customer's arms or hands are not in between
the backrest and armrests, and operate it safely.

Precautions during chair rotation
SAFETY PRECAUTIONS (MUST BE OBEYED)
4
WARNING
• When rotating the chair with a customer seated, always make sure that the customer is
seated completely before rotating the chair.
• Always be sure that no other persons are in the surrounding area before rotating the chair,
and rotate so that the step and other parts do not contact the customer or any nearby
equipment. Be especially careful of the position of a reclined customer, and the customer's
body, hands and feet when the backrest is reclined. Check that the safety of the customer
is ensured before rotating the chair.
• Be careful that the adjuster under the step does not contact or catch on the power cord.

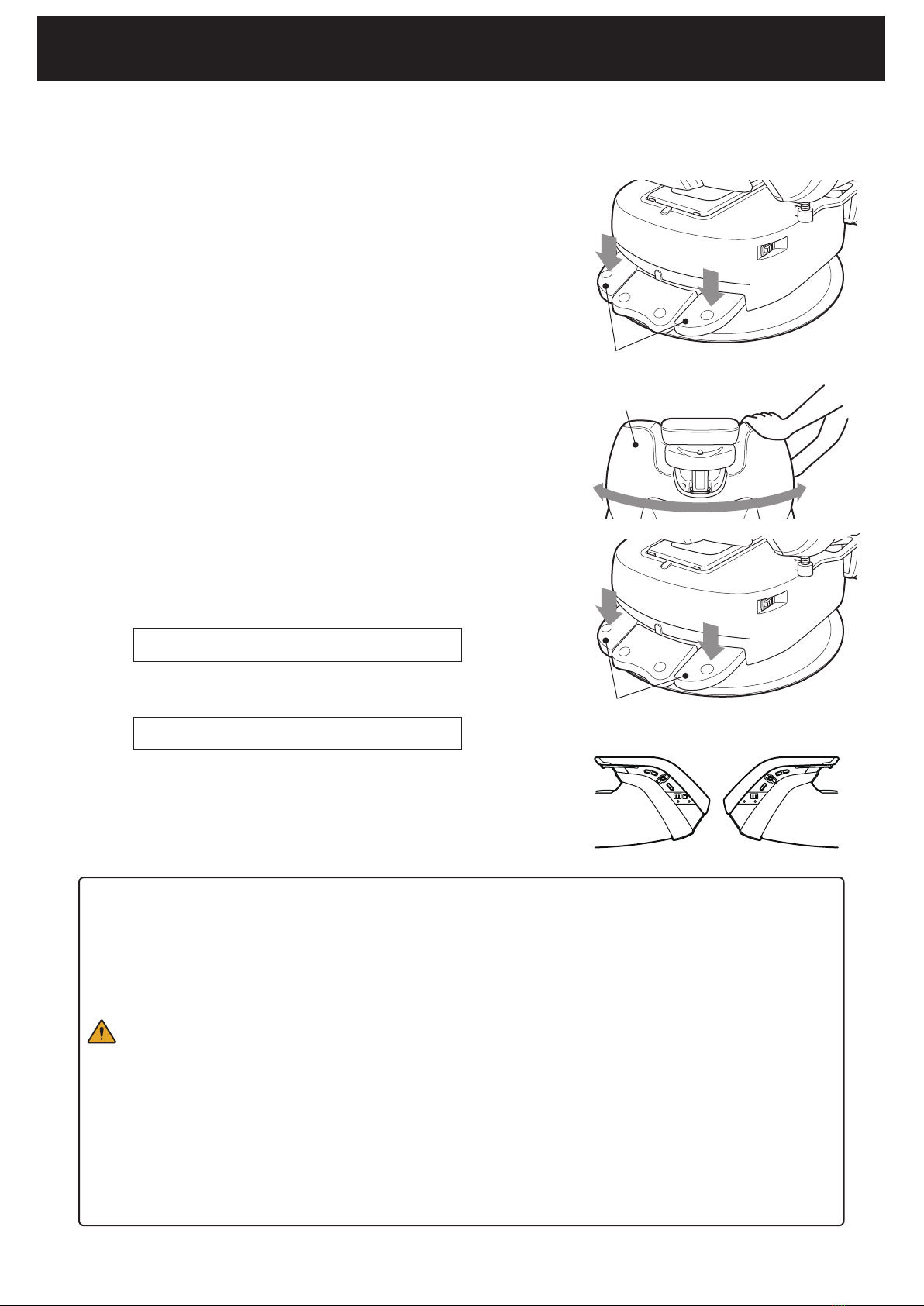

• Be sure to always lock (secure) chair rotation by using the rotation lock switch after
rotating the chair. Always be sure that the chair rotation is locked before moving the chair.
There is a danger of injury or damage if the chair rotates suddenly.
• Always be sure to lock the chair when not rotating it.
Procedures if a power outage occurs
• Turn off the power switch and remove the power plug of this product from the outlet in
order to prevent unexpected operation when recovering from a power outage. Also turn
off the power switches of all devices connected to the service outlet and remove the power
plugs of devices.
• Be extremely careful if there is a power outage when the seat is in a high position such as
for shampooing as it is not possible to lower the chair. Assist the customer in getting in
and out of the chair in that position, being very careful that the customer is not injured and
the chair does not tip over.
Precautions for the surrounding area during chair operation
Before and during operation, thoroughly check that there are no bodies or limbs of persons,
or possible obstacles in the operating range of the chair (ranges of seat raising/lowering,
backrest reclining/raising, chair rotation, legrest operation) or nearby. There is a danger of
body parts being pinched by the chair, resulting in injury or damage.
Precautions when raising or lowering the chair
Before raising or lowering the chair, always be sure to check that there are no persons or
objects near the chair or step, under the armrest or in the gap of the support arm and so on.
There is a danger of body parts being pinched, resulting in injury or damage.

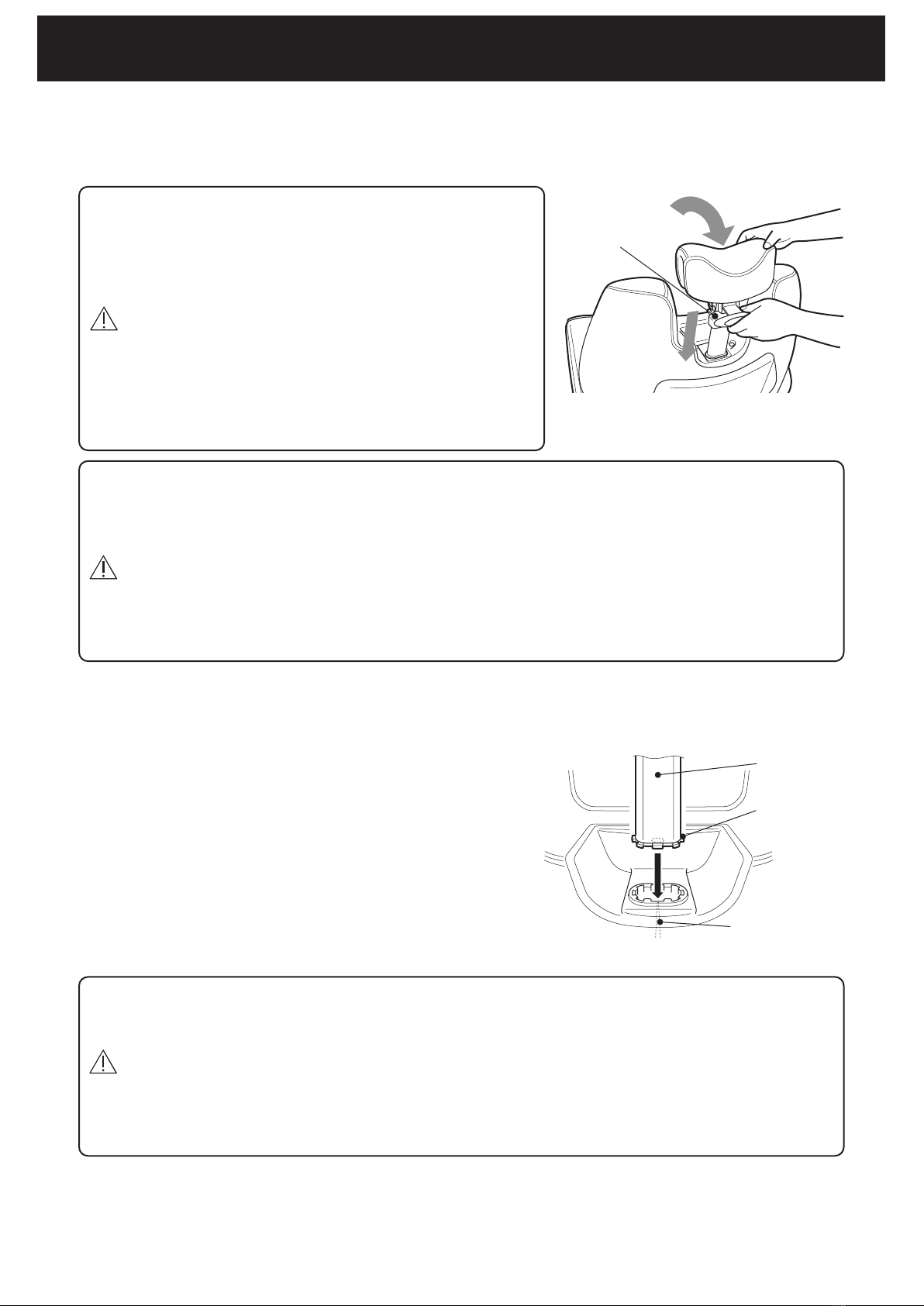

Procedures for using removable step
• After installing the step, check that the step fixture is securely held by the guide, the
plating Flange nuts(M6) are inserted in the insertion holes, and the step is not loose. Be
careful that there is no looseness as this could result in instability when the customer is
getting in and out of the chair, and in rubbing against the upper surface of the step when
the legrest is raised.
• Be careful when lifting and carrying the step, and of where you place it because the step
is heavy. Dropping the step could result in serious injury.
Precautions for using heater
The heater light is lit up in orange when the heater is operating. Be careful that using the
heater for an extended period causes the temperature to increase, possibly resulting in burns
or fire.
Only persons who are certified hairdressers or beauticians can be allowed to use this chair.
This chair is specially designed for providing procedures and services of indoor hair salons
or esthetic salons. It can only be used by trained professional hairdressers, or by staff under
the supervision of a trained professional hairdressers.

Do not let children play with the chair.
SAFETY PRECAUTIONS (MUST BE OBEYED)
5
WARNING
This chair is specially designed for providing procedures and services of indoor hair salons
or esthetic salons. It can only be used by trained professional hairdressers, or by staff under
the supervision of a trained professional hairdressers.
Do not let children fix or clean the chair.
Do not let a person unfamiliar with handling with the chair (lack of experience and skills),
such as children fix or clean the chair. Doing so can result in an accident or injury.
Always perform daily inspection.
Perform daily inspection according to the "Daily Inspection Procedures". Using the chair
without performing daily inspection can result in malfunction or accident.
Do not strongly strike or scrape the chair.
Turn off the power switch after you are finished using the chair.
Turn off the power after use. Always operate the power switch by your hands only.
Do not allow any person whose weight exceeds 135 kg/300 lbf to sit in the chair.
Doing so can cause the chair to tip over or faulty operation.
Do not place any objects on top of the power cord.
Do not place any objects on top of the power cord. Damage to the power cord can cause a
severed wire or short circuit, resulting in electric shock or fire.
Be careful that the power cord is not caught up by your feet or legs.
Before operation, confirm that every part is working normally and safely.
Be constantly careful of and inspect for looseness, rattling, tilting, vibration, noise, odors
and other possible problems. If you feel that something seems slightly different or not
normal, immediately stop using the chair, and contact your closest dealer or Takara Belmont.
Immediately wipe off any chemical solutions or water that spills on the chair.
Chemical solutions can become a stain, and their adhering to an electrical part can cause
faulty operation or short circuit. Immediately wipe off any grime or other foreign material
that has adhered to the chair by using a dry soft cloth.
Be extremely careful not to mistake the switches when operating.
The person operating the chair must pay careful attention to the surrounding area and give
verbal warning and not mistake the operation of the chair.
CAUTION
Doing so can result in tearing of covers and similar damage, and faulty operation. In
particular, striking or strongly pushing plastic parts such as the backrest cover, the armrest
control panel, and the pump cover can result in deformation or breakage.
Make sure that no feet or hands, or other objects will be pinched between the step and
floor when raising/lowering or rotating the chair.

SAFETY PRECAUTIONS (MUST BE OBEYED)
Precautions for using Dryer/Iron Holder
6
CAUTION
• Be careful that the dryer or iron does not contact the legs or other body parts of the
customer when using the dryer/iron holder.
• Always be sure to store the holder under the body after use so it does not interfere with
work.
• Do not rotate the dryer/iron holder with a hand dryer or iron still inserted in the slot.
Doing so can damage the chair, and the heat can cause deformation or other damage.
• The dryer/iron holder can withstand a load of up to 50 N (5 kgf).
Precautions for cleaning procedures
Do not use any of the following substances to clean the chair.
Thinner, alcohol, nail polish remover, volatile chemicals (such as gasoline or kerosene),
acid or alkaline solutions, chlorinated cleaners, disinfectants that are highly corrosive to
metal, povidone iodine (iodine solution), sodium hypochlorite, waxes containing abrasive
compounds, sponges containing abrasive compounds and similar substances.
Do not use brushes, scouring brushes or similar items when cleaning the chair. Using them
will damage the chair or result in the inability to clean off the dirt or grime.
Precautions for using headrest
Be careful when operating the headrest that fingers and other body parts are not pinched
between the area around the headrest storage lever (or headrest operation button) or in
between the backrest.
Do not pull up the headrest more than necessary.
Be careful because doing so will make the headrest to completely come off the chair.
Precautions for adjusting the adjuster
When adjusting the adjuster, be careful that the adjuster does not rub the floor or catch on
the power cord in rotating the chair.
Adjust the adjuster so that the chair does not tip over when stepping on the step.
Precautions when using the cape holder
• Do not apply excessive force to the cape holder as it can only withstand a load of 10 N
(1 kgf/2.2 lbf).
• Be sure to always return it to the stored state when not in use.
• When storing the cape holder, be careful not to pinch the customer's or user's fingers
between it and the armrest.
Unplug the power plug during installation of the chair and parts replacement.
Unplug the power plug during installation of the chair and parts replacement. Failure to do
so can result in an accident or injury.

NOTES FOR USE
Immediately wipe off any chemical that spills on the chair.
Immediately wipe off any chemicals adhering to the leather or pump cover.
Do not place any objects other than persons in the seat.
Do not place any objects other than persons in the seat. Doing so can result in deformation
or tearing of the leather, or corrosion.
Do not apply heat.
Do not apply heat to the chair. Failure to do so can result in deformation or discoloration.
Recline the backrest at the end of the day.
When you have finished working for the day, lower the chair to the lowest position and
completely recline the backrest. This helps to extend the service life of the chair by not
applying a load to springs and cylinders.
7
NOTICE
Contact your closest dealer or Takara Belmont if the breaker function (P. 25) frequently
operates.
CAUTION
The maximum load of this chair is 1,350 N (135 kgf/300 lbf). The raising speed of the seat
declines as the maximum load is approached.
SAVE THESE INSTRUCTIONS

8
•Operation manual (this manual) •Installation manual •Step (with adjuster)
• Rubber ring • Foot cushion
● Clothing dye adhering
The color of clothing or belts can be transferred to the synthetic leather of this chair by
means of contact. If color adheres to the leather, wipe off the stain as soon as possible by
using a soft cloth that has been dabbed with a neutral detergent diluted with water to
approximately 10% in order to prevent the stain from soaking in due to the plasticizer. Wipe
the area with a dry cloth after wiping off the color.
● Precautions regarding deformation and color transfer due to contact
• Contact with other plastic parts, painted items, solvents, adhesive tape and similar items
can result in changes in surface luster, cracking, deformation and peeling.
• Contact with newspaper or other printed items can result in color transfer.
• Contact with printed clothing such as t-shirts, jeans and similar items can result in color
transfer such as by dye adhering to the leather.
• Contact with benzene, nail polish remover, alcohol and similar substances can result in
discoloration, surface or plasticizer dissolution, changes in luster, hardening or softening,
or peeling.
• Use of bleach, or use of a sheet or other cloth for which bleach has been used can result in
changes in luster and color.
• Placement of an iron, heater or other excessive heat source near the chair can result in
deformation and discoloration.
• Use a curtain or similar item to block the chair from exposure to direct sunlight. Exposure
to direct sunlight can result in surface deformation, shrinking, discoloration, faded colors
and similar problems.
• Placement of a heavy item for an extended period can result in marks or wrinkles that do
not disappear after removing the item.
LOCATIONS OF WARNING LABELS
NOTES RELATED TO SYNTHETIC (NATURAL) LEATHER
ACCESSORIES

Headrest cover (Leather)
Headrest
Backrest
Control panel (Left)
Body cover (Left)
Service outlet
Armrest end
decoration
Armrest
Seat
Legrest
Step (Removable)
Headrest operation button
Headrest storage lever
Base
Rubber ring
■Main Unit
■Headrest
Foot cushion
Backrest cover
Support arm
Rotation lock switch
UP/DOWN foot switch
Pump cover
Rotation lock switch
Dryer/iron holder
Body cover (Right)
Service outlet
Control panel (Right)
Cape holder
Cape holder
Backrest
Power switch (Breaker)
9
NAME OF COMPONENTS

Left Right
(5)(6)(3)
(2)
(1)
(4)
(8)
(5)
(6)(3)(2)(1)
(4)
(8)
(7)
(1) Backrest switch
(2) UP/DOWN switch
(3) Legrest switch
(4) Auto-return switch
(5) Preset switch P1
(6) Preset switch P2
(7) Legrest heater switch
(8) Service outlet (4 A or less in total)
Rotation lock switch
UP/DOWN foot switch
Rotation lock switch
Power switch (Breaker)
These are collectively
referred to as "Foot Control".
Base
Control Panel
Foot Control
■Operating Section
10
NAME OF COMPONENTS

Power plug
Power cord
Ground
European specifications
Power Supply
1. Insert the power plug into the outlet.
WARNING
11
• Be sure to fully insert the power
plug into the outlet until
reaching the base of the plug.
Failure to fully insert the plug or
similar fault can result in a short
circuit or heat generation that
causes a fire.
• Do not pull the cord to remove
the power plug from the outlet.
Hold by the power plug at the
end of the cord when removing.
Removing the plug by pulling
the power cord can damage the
power cord, resulting in electric
shock or fire.
• Power cord replacement must be
performed by your closest
dealer, Takara Belmont or a
technician with equivalent
certification.
• Use an unshared * outlet with an
attached ground terminal. Using
the same outlet together with the
power plug of other devices can
result in abnormal heat
generation and possible fire.
* 230V AC (7 A or more)
• Wiring work must be performed
by certified personnel. Consult
an electrician for wiring work.
• Do not connect the earth
(ground) to the following
objects.
• Water Pipes
Complete grounding is not
possible as hard plastic pipes
are widely used.
• Gas Pipes
Connecting to gas pipes can
result in an explosion or fire.
• Lightning rods and telephone
dedicated grounding wire
• Failure to make a ground
connection can result in electric
shock if there is a malfunction or
short circuit. Consult an
electrician for grounding
procedures.
PREPARATION

ON ( mark)
OFF ( mark)

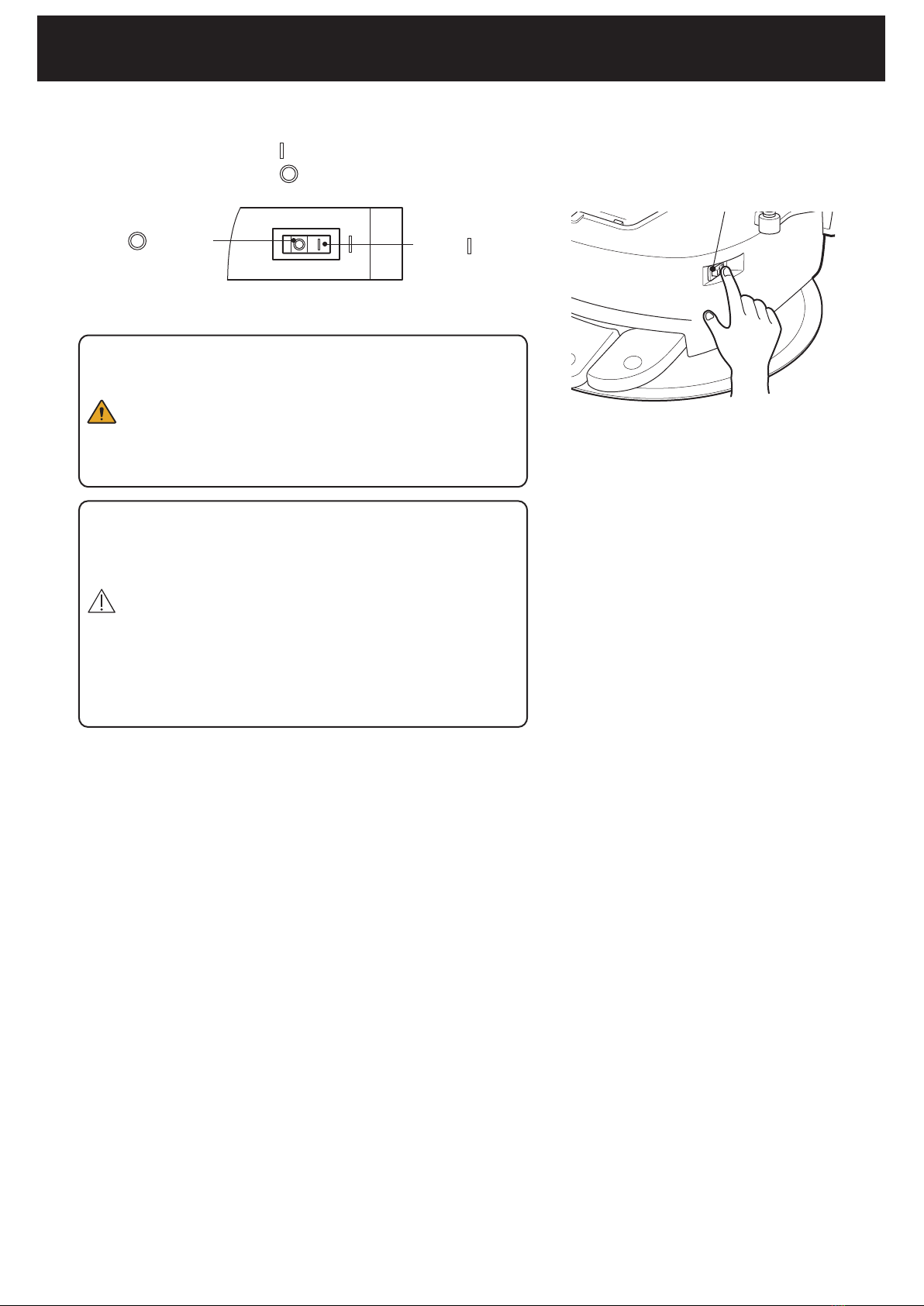

<Power switch>
Press the side with the mark to turn the power on.
Press the side with the mark to turn the power off.
2. Turn on the power.
WARNING
CAUTION
Power switch
12
Turn off the power switch and
remove the power plug from the
outlet when the chair is not in
use. Unexpected operation can
result in an accident or fire from
a short circuit due to insulation
aging.
• Turn off the power after use.
Always operate the power
switch by your hands only.
• Immediately wipe off any
chemical solutions or water that
has adhered to the chair by
using a dry soft cloth. Chemical
solutions can become a stain,
and their adhering to an
electrical part can cause faulty
operation or short circuit.
PREPARATION

Backrest
<Control Panel>
Rotation lock switch
Rotation lock switch
<Foot Control>

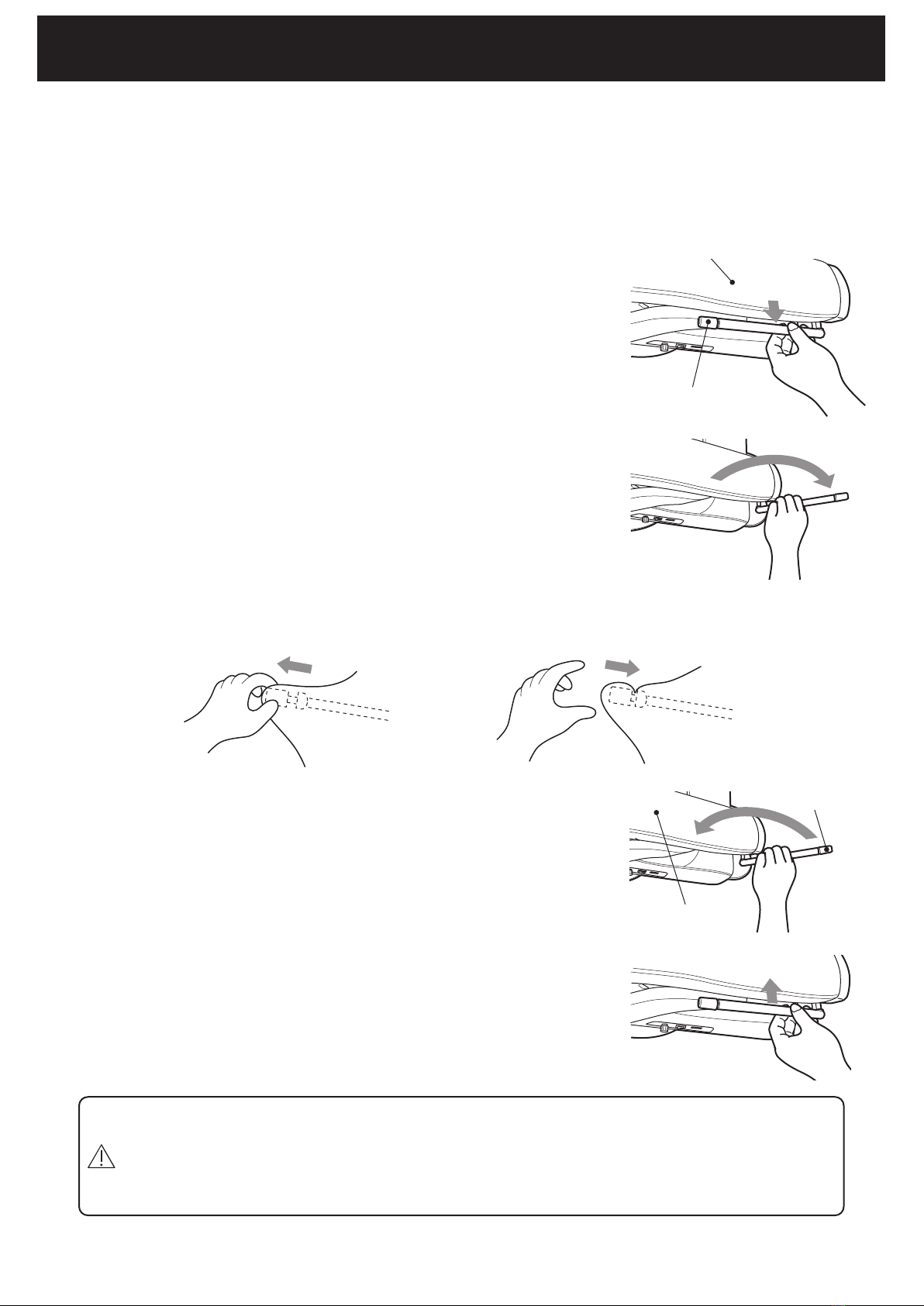

3 Fix the chair in a work position.
Stop the chair at the desired work position and
press the rotation lock switch in the foot control.
The chair is locked and prevented from rotating.
When the power switch is turned on.
If the power is turned off, chair rotation gets locked
automatically when the power is turned on.
When any of the switches are pressed.
If any of the switches of the foot control or control
panel (excluding the legrest heater switch) is
pressed, chair rotation is locked automatically.
HOW TO USE
(1) Guiding Customers
WARNING
13
1 Release the base rotation with the rotation lock
switch.
Pressing the rotation lock switch either at the foot
control or the control panel releases the base
rotation. (Operation is the same on either side.)
Chair rotation is locked by hydraulic system.
Each press of the rotation lock switch alternately
locks and releases the base rotation.
2 Rotate the chair.
Hold the backrest or armrests when rotating the
chair.
The chair is 360 degrees rotatable.
•Always be sure to lower the chair to the lowest position and lock the
rotation when a customer is getting in or out of the chair in order to
ensure safety.
•When rotating the chair with a customer seated, always make sure that
the customer is seated completely before rotating the chair.
•Always be sure that no other persons are in the surrounding area
before rotating the chair, and rotate so that the step and other parts do
not contact the customer or any nearby equipment. Be especially
careful of the position of a reclined customer, and the customer's body,
hands and feet when the backrest is reclined. Check that the safety of
the customer is ensured before rotating the chair.
•Be careful that the adjuster under the step does not contact or catch on
the power cord.
•Be sure to always lock (secure) chair rotation by using the rotation
lock switch after rotating the chair. Always be sure that the chair
rotation is locked before moving the chair. There is a danger of injury
or damage if the chair rotates suddenly.
•Always be sure to lock the chair when not rotating it.
1. Rotate the chair so that the customer can
be easily seated on the chair.

Cape holder
Armrest
HOW TO USE
•Do not apply excessive force to the cape holder as it can only
withstand a load of 10 N (1 kgf/2.2 lbf).
•Be sure to always return it to the stored state when not in use.
•When storing the cape holder, be careful not to pinch the customer's or
user's fingers between it and the armrest.
CAUTION
2. Using the cape holder
1 Pull out the front part of the cape holder to the side.
2 Rotate the pulled-out cape holder forward.
3 Pull out the tip of the cape holder and pinch the cutting cape.
(1) Pull from over the cutting cape. (2) Pinch the barber cape and release.
4 Rotate the cape holder rearward to store it.
5 Push the root of the cape holder into the armrest.
Armrest
Cape holder
14
Using the cape holder:
•Provides space between the customer and the cutting
cape to provide good ventilation.
•Makes it easy to clean up the cut off hair.

RightLeft
UP/DOWN foot switch
(Up switch)
UP/DOWN switch
(Up switch)
WARNING
HOW TO USE
(2) Raising/Lowering the Chair
15
1. Raising the chair
To raise the chair, step on the right side of the UP/DOWN foot switch on the foot
control or press the UP/DOWN switch of the control panel upwards.
The chair operates while the stepping on (pressing) the switch.
To lower the chair, step on the left side of the UP/DOWN foot switch on the foot
control or press the UP/DOWN switch of the control panel downwards.
The chair operates while the stepping on (pressing) the switch.
If any switch except for the legrest heater switch is pressed while the chair rotation
lock is released, chair rotation is engaged and then locked.
If any switch except for the legrest heater switch is pressed while the chair rotation
lock is released, chair rotation is engaged and then locked.
2. Lowering the chair
RightLeft
•Before raising or lowering the chair, always be sure to check that there
are no persons or objects near the chair or step, or in the gap of the
support arm. There is a danger of body parts being pinched, resulting
in injury or damage.
•This chair moves backwards as it is raised. Thoroughly check that
there are no obstructing items before and behind the chair.
UP/DOWN foot switch
(Up switch)
UP/DOWN switch
(Up switch)

HOW TO USE
Headrest operation button
16
(3) Reclining/Raising the Backrest
1. Pull out the headrest.
Use the headrest when supporting the customer's head is needed, such as for shaving.
1 Lift up the headrest storage lever and pull up the headrest.
Secure the headrest at the desired position so that you can use it at that position. If the
headrest is excessively pulled out, return it while pressing the headrest operation
button.
When pulling out the stored
headrest, do so without pressing
the headrest operation button.
Pressing the headrest operation
button when pulling out the headrest
can cause the headrest to tip forward
and scratch the backrest leather,
resulting in strong force being
applied to the leather and damage to
the leather of the backrest.
Headrest
storage
lever
Headrest
operation button
2 While pressing the headrest operation button, tip the headrest forward.
Tip the headrest forward to fit it against the customer's head so that the customer will
be more comfortable even if used for an extended period.
CAUTION

Inner pipe
Guide
Lock
supporting rod
HOW TO USE
Remove or Install the headrest.
17
Headrest
operation
button
(1)
(2)
3 Store the headrest when finished using it.
While pressing the headrest operation button, return the headrest to its original
position by the other hand and lower it.
When the headrest is not used, the headrest inner
pipe can be removed from the chair. To install the
pipe, insert the inner pipe into the lock supporting
rod while pressing the headrest storage button (or
headrest operation button) and aligning with the
guide.
When storing the headrest, return
the headrest which is tipped
forward by hand to its original
position so that the headrest can
be lowered.
Failure to return the tipped-forward
headrest by hand can result in the
headrest lowering and the headrest
contacting the backrest leather,
resulting in strong force being
applied to the leather and damage to
the leather of the backrest.
•Check that there are no impediments in the surrounding area when
rotating the seat with the headrest pulled out.
•Do not apply excessive force to the headrest or strike it from above
when it is pulled out. Doing so can result in damage.
•Be careful when operating the headrest that fingers and other body parts
are not pinched between the area around the headrest storage button (or
headrest operation button) or in between the backrest.
•Be sure to always store the headrest when shampooing with the
customer's head back. Otherwise, the shampoo bowl will interfere with
the headrest possibly resulting in breakage.
•Check that there are no impediments in the surrounding area when
rotating the seat with the headrest pulled out.
•Do not apply excessive force to the headrest or strike it from above
when it is pulled out. Doing so can result in damage.
•Be careful not to pull up the headrest more than necessary because
doing so will make the headrest to come off the chair. Be careful when
operating the headrest that fingers and other body parts are not pinched
between the area around the headrest storage button (or headrest
operation button) or in between the backrest.
CAUTION
CAUTION
CAUTION

Before raising the legrest (step), be very careful that the step or the
customer's feet will not contact any equipment in front of the step, and
operate it safely.
WARNING
Legrest switch
RightLeft
3. Raising the legrest
Push the legrest switch of the control panel in the direction of the arrow to raise the legrest.
The chair operates while the switch is pressed.
18
If any switch except for the legrest heater switch is pressed while the chair rotation lock is
released, chair rotation is engaged and then locked.
Push the backrest switch of the control panel in the direction of the arrow to recline the backrest.
The chair operates while the switch is pressed.
2. Reclining the backrest
Backrest switch
RightLeft
WARNING
If any switch except for the legrest heater switch is pressed while the chair rotation lock is
released, chair rotation is engaged and then locked.
The space between the backrest and seat becomes narrow when the
backrest is reclined. Check that the customer's hands or arms are not
between the backrest and seat before reclining the backrest.
HOW TO USE

Backrest switch
RightLeft
Use the preset function to move the chair to the preset position.
Refer to "(4) Using Preset Functions" (P. 20).
5. Raising the backrest
Push the backrest switch of the control panel in the direction of the arrow to raise the backrest.
The chair operates while the switch is pressed.
Before raising the backrest, check that the customer's elbows or hands
are not in between the backrest and armrests, and operate it safely.
WARNING
If any switch except for the legrest heater switch is pressed while the chair rotation lock is
released, chair rotation is engaged and then locked.
19
Legrest switch
RightLeft
4. Lowering the legrest
Push the legrest switch of the control panel in the direction of the arrow to lower the legrest.
The chair operates while the switch is pressed.
Before lowering the legrest (step), make sure that no persons or objects
are under the legrest (step), and operate it safely.
WARNING
If any switch except for the legrest heater switch is pressed while the chair rotation lock is
released, chair rotation is engaged and then locked.
HOW TO USE
