Takstar V3 User manual

领夹麦克风
Lavalier Microphone

产品特性
•
• 一键配对，开机自动连接，操作简便;
• 360度全指向麦克风，智能降噪，录音清晰自然;
• 充电、使用两不误，可在使用过程中给手机充电;
• 降噪算法拾音，满足不同环境下的精确拾音;
• 实时耳返监听，掌控录音环境;
• 内置聚合物锂电池，待机持久长效续航，使用时间约6.5小时;
• 自带混响功能，随时随地K歌;
• 配有高档收纳包，方便携带户外出行。
2.4G无线传输技术，传输信号稳定，空旷地区有效距离约为120米;
尊敬的用户：
感谢您选购得胜V3领夹麦克风，为了您能够更好的了解使用本产品，
建议您在使用前仔细阅读本说明书。
若存在有疑问或者您有宝贵的建议，可通过拨打得胜
官方服务热线400 6828 333或微信扫描二维码关注
得胜官方公众号与我们联系。
前言
1
领夹麦克风

包装清单
发射器…………..…………………………….……………............…2个
接收器…………..……………………………………..……........…… 1个
充电线…………..……….…………………………..………..……….. 1条
耳机…………..…………………………………………........….…..…1副
防风毛套…………..………………………………………………..….2个
转换头..............................................................................1个
说明书…………..………………………………………………..…..… 1份
收纳包…………………………………………………………………..1个
直播、VLOG、摄像、采访、K歌等场合
产品适用范围
•
• 频率响应：20-20KHZ
• 信噪比：64dB（A）
• 灵敏度：-38dBFS
• 传输延时时间：25ms
• 充电输入电压：DC4.8~5.4V
• 满电电压：4.15~4.2V
频率范围：2.4GHz
技术参数
发射器
2
领夹麦克风
• 低电关机电压：<3.4V
• 开机电流：17.8mA-18.5mA
• 搜索电流：18.5mA-21mA
• 充电电流：约100mA
• 工作电流（不带监听耳机）：17.8mA-19mA
• 工作电流（带监听耳机）：18.2mA-26mA
• 关机电流：7.5uA

• 频率范围：
• 频率响应：20Hz-20KHz
• 信噪比：64dB(A)
• 搜索电流：21mA-22.5mA
• 开机电流：33.5mA-35mA
• 工作电流：34mA-40mA
注：以上数据由得胜实验室测试得到。
2.4GHz
接收器
• 指示灯：绿色、红灯
• 耳机接口：3.5MM
• 单体重量：约5.8g
• 单体尺寸：45.5*27.27*9.65mm
• 取电方式：插入设备取电
3
90min
• 工作时间：约6.5H
• 电池容量：120mAh（带锂电保护板）
• 电池尺寸：651220
• 电池重量：2.5g
• 充电时间：约
• 指示灯：RGB三色
• 充电/监听接口：Type-C
• 单体重量：8.7g
• 单体尺寸：46.31*15.5*18.14mm
• 天线：陶瓷天线
领夹麦克风

功能示意
1
2
3
4
5
7
68
1.接收端
2. 充电口
3.功能切换键
Type-C
Type-C
4.降噪开关/音量循环键
5.3.5mm监听接口
6.开关/静音键
7. 监听/充电接口
8.
9.接收端指示灯
Type-C
发射端指示灯
4
发射端
领夹麦克风
状态 操作/现象 灯光/指示灯
开机 单击开机按键 绿灯亮一秒
关机 长按开机键三秒 /
搜索配对 无连接对象 绿灯慢闪
配对成功 连接成功 绿灯常亮
清除配对 开机十秒内三击开机键 红绿灯快闪
静音/拾音 单击开机键切换静音/拾音
静音：绿灯快闪
语音提示：麦克风静音
拾音：绿灯常亮
语音提示：麦克风开启
充电 连接Type-C充电线进行充电
充电：红灯常亮
充满：灯灭
低电状态 低于5%电量（15分钟内自动关机） 红灯慢闪
9

5
状态 操作/现象 灯光/指示灯
搜索配对 无连接对象 绿灯慢闪
配对成功 连接成功 绿灯常亮
清除配对 开机十秒内三击“ / ”键 红绿灯快闪
手机充电 安卓版本充电线插入Type-C接口
给手机充电 /
静音/拾音
静音：绿灯快闪
语音提示：麦克风静音
拾音：绿灯常亮
语音提示：麦克风开启
混响模式 点按“ / ”键
原声/降噪 长按“ ”循环键+-
指示灯依次为：
原声模式：绿灯闪一次
语音提示：降噪关
降噪模式：绿闪两次
语音提示：降噪开
接收端
长按“ / ”键切换静音/拾音
麦克风与监听
音量等级
指示灯依次为：
红灯闪一次（一级）
语音提示：嘟
红灯闪两次（二级）
语音提示：嘟嘟
红灯闪三次（三级）
语音提示：嘟嘟嘟
单击 键“+-”
混响模式开：红灯闪一次
语音提示：混响开
混响模式关：红灯闪两次
语音提示：混响关
领夹麦克风
三个等级依次循环

1.设备连接使用说明
绿灯慢闪表示处于搜索状态，当接收器与发射器
指示灯显示绿灯常亮表示配对连接成功。
接收器插入手机/电脑等设备，设备自动开机，设备
使用说明
2.手机连接使用说明
将接收器Type-C插头插入对应接口的手机，接收端
与发射端绿灯常亮，即可使用麦克风收音。
3.Windows系统操作
将接收器Type-C插头至电脑type-C接孔，或使用Type-C转USB转换头
进行连接，接收端与发射端指示灯显示绿灯，电脑自动识别，即插即用
免驱动，点击电脑右下方：“声音”设置选项然后点击页面下方选择“声音
输入”选择，选择对应“TAKSTAR V3”选项确认即可使用。
4.Mac系统操作
将接收器Type-C插头至电脑Type-C接孔，接收端与发射端指示灯显示绿灯，
在APPLE电脑上选择“设置”选项后再点击“声音”设置选项然后选择
“声音输出”选项点击选择“扬声器”外放后确认；再选择“声音输入”
选项后选择“TAKSTAR V3”点击确认即可使用。
6
领夹麦克风

5.OTG连接开启（仅限安卓系统）
以OPPO A72为例
设置 其他设置 最近任务管理
备份与恢复
还原手机
Google
OTG连接
存储空间 10分钟未使用，将自动关闭。
日期和时间
键盘与输入法
截屏
屏幕录制
定制专属于你的ColorOS
飞行模式
SIM 卡与流量管理
WLAN 关闭
未连接
用户01641280831
管理“云服务”、“查找手机”、登录设备等
蓝牙
第一步
进入设置页面
第二步
进入其他设置
第三步
点击OTG连接
6.毛套安装说明
插入再顺时针旋转 即可固定。
将毛套塑料扣位对准发射端凹槽，
90°
向下插入顺时针旋转90
7
领夹麦克风

1.当设备无法配对时，可在接入设备10秒内三击发射器与接收器的开关键
进行清除配对，此时指示灯红绿快闪，再次三击开机键进行重新配对，
若无法配对请继续上述操作。
故障排除
为避免电击、高温、着火、辐射、爆炸、机械危险以及使用不当等可能造
成的人身伤害或财产损失，使用本产品前，请仔细阅读并遵守以下事项：
1.使用产品时请确认所连接设备与本产品功率是否匹配以及合理调整音量
大小，不要在超过产品功率及大音量下长时间使用，以免造成产品异常
和听力损伤；
2.使用中若发现有异常（如冒烟、异味等），请立即关闭电源开关并拔掉
电源插头，然后将产品送经销商检修；
3.若产品需要使用可拆装电池时，严禁使用外壳绝缘材料破损的电池，
请不要为非充电电池充电；
4.本产品及附件都应放置在室内干燥通风处，勿长期存放在潮湿、灰尘多
的环境，使用中避免靠近火源、雨淋、进水、过度碰撞、抛掷、振动本机
及覆盖通风孔，以免损坏其功能；
5.若产品需要固定于墙壁或天花板上时，请确保固定到位，防止因固
定强度不足导致产品发生跌落危险；
安全警示
8
领夹麦克风

9
6.使用该产品时需遵守相关安全规定，法律法规明确禁止使用场合请
勿使用本机，以免导致意外事故；
7.请不要自行拆机改装或维修，以防止出现人身伤害，如有问题或服
务需求请联系当地经销商跟进处理。
领夹麦克风
关于图标含义解释
根据RL2004/108/EG和European Low Voltage Directive
（欧洲低电压指令）RL2006/95/EG的测试结果表明，本产品
符合欧共体关于电磁兼容性的成员国法律整合的指令中所规定的限值。
未经合规方明确批准的变更或修改可能会使用户失去操作设备的权限。
此设备符合FCC规则第15条部分的要求。操作须符合以下两个条件：
(1) 此设备可能不会造成有害干扰；
(2) 此设备必须接受接收到的任何干扰，包括可能导致意外操作的干扰。
此符号表示，根据WEEE指令(2012/19/EU)和国家法律，由于这种
类型的废弃物会有潜在的有害物质，可能对环境和人类健康产生负
面影响，所以本产品不应与您的家庭垃圾一起处置，应将本产品应
交由授权的电气和电子设备（WEEE）回收站回收。同时，您在正确处理本
产品的同时将有助于自然资源的有效利用。如需了解更多有关您可以在何
处放置废物回收设备的信息，请联系您当地的城市办事处、废物管理局或
家庭废物处理服务部门。

关于本说明书
本说明书中内容符合截止印刷之日的技术规格。由于得胜公司会不断改进产
品，本说明书可能不符合您的特定产品的技术规格。要获取最新版说明书，
请访问得胜官网，然后下载说明书文件。技术规格、设备或另售的附件在各
个地区可能有所不同，如有问题请与当地得胜经销商确认。 如需更多支持
和深层产品信息，请浏览得胜官方网站：https://www.takstar.com/
10
领夹麦克风
环保说明

11
Lavalier Microphone
Dear Customer,
Thank you for purchasing Takstar V3 Lavalier Microphone. In order to
better understand and use the product, please read this manual
carefully.
If you have any questions or suggestions, please contact our local
dealer.
Preface
Features
○
○
○
○
○
○
○
○
○
2.4GHz wireless transmission, stable and effective up to
about 120m.
One-key pairing, automatic sync after powering up, easy to
operate.
360° omnidirectional mic with smart noise reduction for clear
recording.
Charge your phone while in use without issue.
Noise reduction algorithm to record accurately in various
conditions.
Real-time monitoring for better field control.
Lithium-polymer battery inside lasts for up to 6.5hrs.
Built-in reverb function, start karaoke anywhere, anytime.
Comes with a high-grade storage bag for easy carrying outdoors.

Package Contents
Transmitter…………..…………………………………………………2 pcs.
Receiver…………..………………………………………………………1 pc.
Charging Cable…………..……………………………………………1 pc.
Earphone…………..…………………………………………….…..…1 pr.
Furry Windshield…………..…………………………………………2 pcs.
Adapter Connector…..……………………………………………….1 pc.
User Manual…..………………………………………………..………1 pc.
Storage Bag…………………………………………………………….1 pc.
Live broadcast, vlog, filming, interview
Applications
Specifications
Transmitter
• Frequency Range: 2.4GHz
• Frequency Response: 20-20KHz
• S/N Ratio: 64dB (A)
• Sensitivity: -38dBFS
• Transmission Delay: 25ms
• Charge Input Voltage: DC4.8~5.4V
• Fully Charged Voltage: 4.15~4.2V
• Low Power Shutdown Voltage: <3.4V
• Power-on Current: 17.8mA-18.5mA
• Search Current: 18.5mA-21mA
12
Lavalier Microphone

• Charge Current: approx. 100mA
• Operating Current (w/o earphone): 17.8mA-19mA
• Operating Current (w/ earphone): 18.2mA-26mA
• Shutdown Current: 7.5uA
• Charging Time: approx. 90min
• Operation Time: approx. 6.5H
• Battery Capacity: 120mAh (w/ Lithium battery protection board)
• Battery Size: 651220
• Battery Weight: 2.5g
• Antenna: ceramic antenna
• Indicator Light: RGB tri-color
• Charging/Monitoring Interface: Type-C
• Weight: 8.7g
• Dimensions: 46.31*15.5*18.14mm
Receiver
• Frequency Range: 2.4GHz
• Frequency Response: 20Hz-20KHz
• S/N Ratio: 64dB (A)
• Search Current: 21mA-22.5mA
• Power-on Current: 33.5mA-35mA
• Operating Current: 34mA-40mA
Note: The above data is measured by Takstar laboratory.
13
• Power Supply: plug-in device
• Indicator Light: green, red
• Earphone Interface: 3.5mm
• Weight: approx. 5.8g
• Dimensions: 45.5*27.27*9.65mm
Lavalier Microphone

Function Descriptions
1
2
3
4
5
7
68
1. Receiver Type-C
2.
3. Function Switch Button
4. Denoise Switch / Volume Key
Type-C Charging Port
5. 3.5mm Minitor output
6. Power/Mute
7. Type-C Monitor/Charging Port
8. Transmitter Indicator
9. Receiver Indicator
Status Operation/Phenomenon LED/Indicator
Power on Press the power button once Green for 1s
Power off Press and hold the power
button for 3s /
Search for a match No connectible object Slow green flash
Paired successfully Connection established Solid green light
Clear pairing Press the power button 3 times
within 10s after power-on Rapid red & green flash
Muted/Unmuted Press the power button to mute/unmute
Muted: pause recording
Unmuted: start recording
Muted: rapid green flash
voice prompt: muted
Transmitter
Charge Connect the Type-C charging
cable to charge
Charging: solid red light
Full: light off
14
Low power Battery level lower than 5%
(auto shutdown in 15 minutes) Slow red flash
Unmuted: solid green light
voice prompt: unmuted
Lavalier Microphone
9

15
Status Operation/Phenomenon LED/Indicator
Search for a match No connectible object Slow green flash
Paired successfully Connection established Solid green light
Clear pairing Press [ / ] button 3 times
within 10s after power-on Rapid red & green flash
Charge phone Insert the Android charging cable
into Type-C port to charge the
phone
/
Muted/Unmuted
Muted: rapid green flash;
voice prompt: muted
Mic volume level Press the [+ -] key once
Respective prompt tone:
Red flash once (level 1)
prompt tone: Doo
Red flash twice (level 2)
prompt tone: Doo Doo
Red flash three times (level 3)
prompt tone: Doo Doo Doo
Reverb Press and hold [ / ] button twice
Reverb ON: red flash once,
voice prompt: reverb ON.
Reverb mode off: red flash twice,
voice prompt: reverb OFF.
Receiver
Press and hold button to
mute/unmute
[ / ]
Cycle through 3 levels
Raw/Noise-
reduction Press and hold the [+ -] key
Respective indication:
Raw audio mode: green flash once,
voice prompt: ANC OFF.
Noise reduction mode: green flash
twice,
voice prompt: ANC ON.
Unmuted: solid green light;
voice prompt: unmuted
Lavalier Microphone

Operation Instructions
1. Device Connection
automatically power up. Then the device LED
flashes green slowly in search of a connection.
Once paired successfully, the receiver and
transmitter LEDs will turn solid green.
Insert the receiver into phone/computer, and it will
2. Phone Connection
Once both LEDs on the receiver and transmitter
turn solid green, you can use the mic for recording.
Insert the receiver Type-C plug into your phone.
3. Windows System Settings
Insert the receiver Type-C plug into computer Type-C port directly or
into computer USB-A port via the included Type-C to USB-A adapter.
After the LEDs on receiver and transmitter turn solid green, click
bottom right corner in Windows: Open Sounds settings >> Input >>
Select “TAKSTAR V3”.
4. macOS System Settings
After the LEDs on receiver and transmitter turn solid green, go to
System Preferences >> Sound >> select speaker under “Output”
tab >> select “TAKSTAR V3” as default under “Input” tab.
Insert the receiver Type-C plug into the computer Type-C interface.
16
Lavalier Microphone

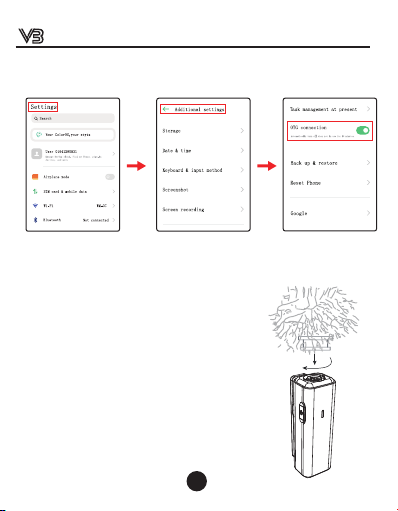

5. Enable OTG Connection (Android OS only)
Take OPPO A72 as example
Step 1
Go to Settings
Step 2
Go to Other Settings
Step 3
Tap OTG Connection
6. Furry Windscreen Installation
with the groove of the transmitter mic,
insert and rotate 90° clockwise to secure it.
Align the plastic buckle of the windscreen
Insert downwards >> Rotate 90° clockwise
17
Lavalier Microphone

If the device fails to pair, you can press the power buttons of the
transmitter and receiver 3 times within 10s after plugging in the
receiver to clear their pairing history, which is indicated by rapid
red and green flashes. Then, press their power buttons 3 times
again to re-pair. Retry afore steps if it fails.
Troubleshooting
To avoid electric shock, overheat, fire, radiation, explosion,
mechanical risk and injury or property loss due to improper use,
please read and observe the following items before use:
1. Please check if the power of the connected equipment matches
with that of this product before operation. Adjust the volume to
proper level during operation. Do not operate at over-power or
high-volume level for extended time to avoid product malfunction
or hearing impairment.
2. If there is any abnormality during use (e.g., smoke, strange odor),
please kill the power switch and unplug from power source, then
send the product to the local dealer for repair.
3. Never use any replacement battery with broken insulation.
Do not charge non-chargeable battery.
Safety Instructions
18
Lavalier Microphone

4. Keep this product and its accessories in a dry and ventilated area.
Do not store in a humid or dusty area for extended time. Keep away
from fire, rain, liquid intrusion, bumping, throwing, vibrating, or
from blocking any ventilation openings, to prevent malfunction.
5. The product must, when installed on walls or ceilings, be fixed
firmly in place at adequate strength to prevent from falling.
6. Please abide by safety rules during operation. Do not use the
product in places prohibited by laws or regulations to avoid
accident.
7. Do not disassemble or repair the product by yourself to avoid
injury. If you have any questions or require any services, please
contact our local dealer.
Label Meanings
19
Lavalier Microphone
This device is compliant with the limits of the European
Council Directive on the approximation of the laws of
the member states relating to electromagnetic compatibility
according to RL2004/108/EG and European Low Voltage Directive
RL2006/95/EG.
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
Note: This equipment has been tested and found to comply
