TARGUS DESKTOP USB
2.0 7 -PORT HUB WITH
AUDIO PASS-THROUGH
Introduction
Congratulations on your purchase of the Targus Desktop
USB 2.0 7-Port Hub with Audio Pass-Through. This
desktop hub allows you to expand your desktop by
adding 7 additional USB ports with over-current
protection, and audio pass-through ports for easy
connection of headphones/speakers and a microphone.
The desktop USB 2.0 7-Port Hub with Audio Pass-
Through also offers three unique features:
1High Power technology - provides twice the USB
specification for devices that require more power than
normal USB ports provide.
2Targus Always On technology - provides power to the
USB ports when the computer is shut-down,
disconnected, or in hibernation/ stand-by mode. This
allows USB devices that charge via the USB port to
keep charging under any circumstance.
3Targus Easy Access Ports - USB ports are spaced
wider apart to accommodate larger USB adapters.

5
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
Features
Space Saving and Flexible:
The desktop USB 2.0 7-Port Hub with
Audio Pass-Through is designed to sit on
your desktop in either the horizontal or

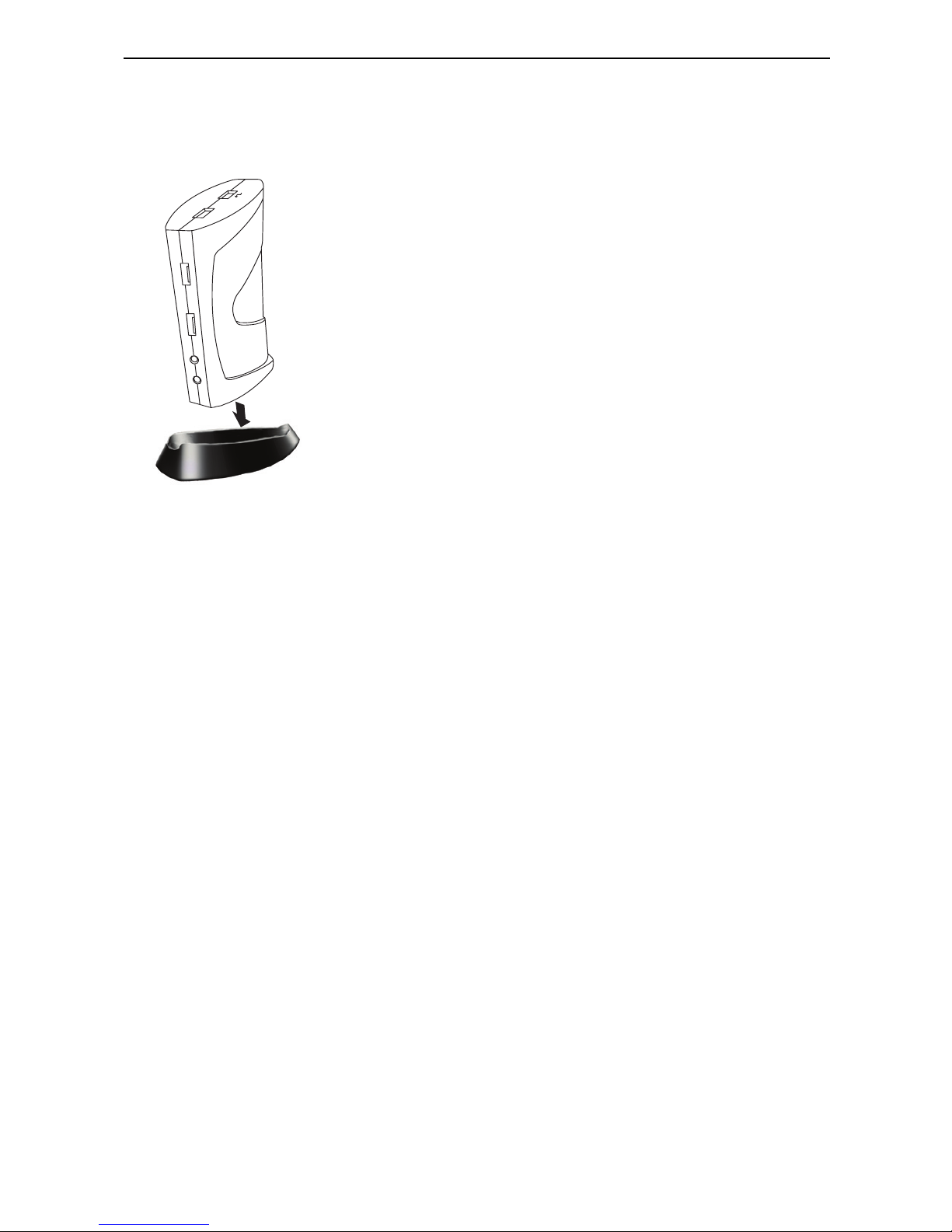

vertical position. To stand the hub in the
vertical position, simply insert it into the
provided base. This will maximize your
desktop space and provide easy access to
the top ports. The hub can also be
positioned on the left or right side of your
monitor for different usage styles of left or
right handed mouse users.
The Desktop USB 2.0 7-Port Hub
includes the following ports:
• Four 3.5 mm Audio: (2) headset in/out and (2)
microphone in/out (located on the front and the back of
the hub)
• Five USB 2.0 ports
• Two USB High Power Ports (Providing up to 1Amp of
power per port - one port located on the top of the hub,
and ther other one port located at the back of the hub.
These ports are distinguished by the lightning bolt icon
next to them)
• One mini USB port (Type B)

6
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
Package Contents
In addition to this user guide, the package contains:
• Targus Desktop USB 2.0 Hub 7-Port Hub with Audio
Pass-Through
• High-speed USB 2.0 upstream cable
• Audio pass-through cable for microphone/ headset
• AC power adapter (Required)
•OneRemovableBase
System Requirements
Hardware
• USB version 2.0 port
• Audio Connections for use with Audio pass-through
ports (required only if you wish to use the pass-through
ports)
NOTE: WHEN CONNECTED TO AUSB VERSION 1.1 PORT ON YOUR
COMPUTER, THE DESKTOP 7 PORTS USB HUB’SPERFORMANCE LEVEL WILL BE
LESS THAN OPTIMAL. FOR BEST RESULTS, CONNECT IT TO AUSB VERSION 2.0
PORT.
Operating System
• Windows®ME, 2000 Service Pack 4
• Windows®XP
• Windows VistaTM

7
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
• Mac OS X (10.X or greater)
NOTE: TODOWNLOAD THE LATEST SERVICE PACKS, PLEASE VISIT YOUR
COMPUTER MANUFACTURER’SWEBSITE OR MICROSOFT’SDOWNLOAD CENTER:
http://support.microsoft.com/default.aspx?scid=fh%3BEN-
US%3Bsp
Connecting the Desktop
USB 2.0 7-Port Hub with
Audio Pass-Through
Connecting the Desktop USB 7 -
Port Hub
with Audio Pass-Through
to Your Computer
To connect the Desktop 7-Port USB Hub to your
computer:
1 Connect the supplied AC power adapter to the AC
power jack on the back of the hub.
2 Connect one end of the USB upstream cable to the
mini USB port on back of the hub, and the other end
into an available USB 2.0 port on your computer.
WARNINGS: THE DESKTOP USB 2.0 7-PORT HUB WITH AUDIO PASS-
THROUGH WILL NOT FUNCTION PROPERLY WITHOUT THE AC ADAPTER
PLUGGED INTO AN AC OUTLET.
DONOT CONNECT ANY DEVICES TO THE DESKTOP USB 2.0 7-PORT HUB
WITH AUDIO PASS-THROUGH UNTIL THE CONNECTION IS COMPLETED.

8
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
LED Status Indicator Lights

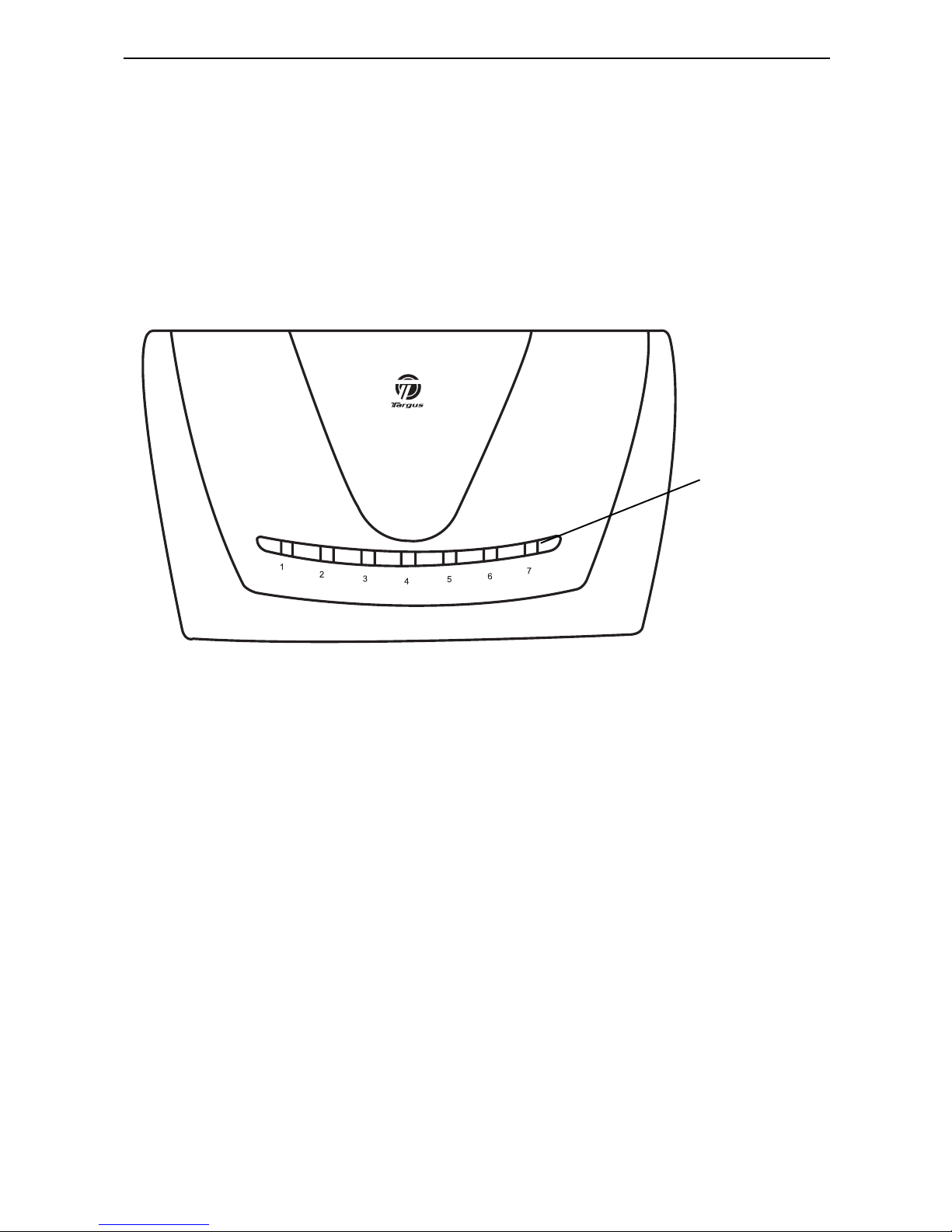

The USB LED status indicator lights on the side of the
USB hub glow when you connect devices to the hub.
• Green Tx light illuminates when connected to an USB
device.
USB 2.0 7-Port Hub Horizontal View
Green Tx
Light

9
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
USB 2.0 7-Port Hub Back Vertical View
USB 2.0 7-Port Hub Top and Front Vertical View
Audio-In (Microphone) Port
Audio-Out (Headset) Port
Mini-USB Port
(Type B)
DC Jack
High Power
USB Port
USB Port
USB Port
High Power
USB Port
Audio-In (Microphone) Port
Audio-Out (Headset) Port
567

10
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
Connecting New Devices
To avoid possible damage when connecting a new
device, do not force the cable connector into the port on
the USB hub. If the cable connector does not attach
smoothly, turn the connector or over and try attaching it
again.
Connecting a USB Device
To connect a USB device, plug it into a USB port and
follow the additional instructions provided with the device
or on your computer screen.
All seven USB ports meet USB High-speed
requirements, of which two of them are High Power USB
ports with unique features. See “Targus Always On” on
page 12 for more details, and “Using USB Devices That
Require More Power” on page 12
The standard USB ports, which are located next to the
microphone port and the High Power USB port at the top
of the hub, are high-speed ports that provide standard
500mA of power.
THE TWO USB PORTS WITH THE LIGHTING BOLT SYMBOL ARE ALSO HIGH-SPEED
PORTS THAT PROVIDE UP TO 1AMP OF POWER EACH. THEY CAN BE USED TO
POWER USB DEVICES SUCH AS HARD DRIVES, PRINTERS, AND EXTERNAL OPTICAL
DEVICES THAT DRAW MORE POWER THAN ASTANDARD USB PORT SUPPLIES.

11
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
Connecting an Audio Device
1 Connect pass through cables from notebook/ PC to
hub. Plug your headphones or speakers into the green
3.5mm Audio Out (Headset) port on the USB hub.
2 Plug your microphone jack into the mono Audio In
(Microphone) port.
3 Connect the audio output from the back of your
computer to the back of the USB hub via the supplied
audio pass-through cable as shown below.
Audio Connection of USB 7-Port Hub and PC
NOTE: SOME COMPUTERS NEED TO CONNECT TO EITHER THE LINE-OUT OR
THE CENTER-OUT CHANNEL OF ASOUND CARD. CONSULT THE SOUND CARD
MANUAL FOR INSTRUCTIONS (PROCEDURES MAY VARY).
567
Audio-In
(Microphone)
Audio-Out
(Headset)
High Power
USB Port
USB Port
DC Jack
Mini-USB (TypeB)
Headset / Speaker /
Microphone (pink)
Stereo (green)
USB Port

12
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
Global Suspend Mode
When your computer is in suspend mode, the USB 2.0 7-
port hub also enters suspend mode to avoid power
consumption. When your computer wakes up, tso does
the hub automatically.
Targus Always On
The two USB ports that provide up to 1Amp of power will
continue providing power even when the laptop is
powered down or disconnected from the USB 2.0 7-port
hub. This allows you to continue to charge any USB
device you may have connected.
Using USB Devices That
Require More Power
Some devices, which use large amounts of power, such
as printers and optical drives, should be plugged into the
USB High Power Ports. These ports will provide up to
1000mA of power - double the power of a standard USB
ports, and are identified by the lightning bolt symbol.
Product Limitations
Some devices may halt temporarily when a high data
transfer is occurring. For example, your mouse may

13
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
respond slowly while a graphic print job is printing or
while you are experiencing heavy network traffic.
We recommend the following guidelines:
• Do not transfer data to or from multiple high-speed
devices, such as a digital camera or scanner, at the
same time.
• If speed degradation does occur, close other programs
that use a USB device to improve device performance.
Troubleshooting
Device Not Working
• Make sure that the device is fully inserted into the
correct port on the USB 2.0 7-port hub.
• Plug the device into a different port on the USB hub. If it
still doesn’t work, test the device by connecting it
directly to your computer.
• Verify that you ran the Setup or Install program for the
device.
• Make sure that the device appears in Device Manager.
For more information refer to “Verifying Devices are
Installed” on page 14.
• Disconnect all devices from the USB 2.0 7-port hub
and reconnect them, one at a time. Check that each
device works before plugging in the next one.
• Each USB port is equipped with over-current
protection. Should a USB device draw more current
than the USB port can supply, the port will shut down.

14
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
To re-enable the port, unplug the device and go to
Device Manager or to the message in the system tray
and choose the Reset option. You can then plug the
device back into the USB port. If a shut down reoccurs,
check the power requirements of the device.
Verifying Devices are Installed
You can view the devices installed on the USB 2.0 7-port
hub from the Device Manager window in System
Properties.
Right-click My Computer, Properties, then click the
Hardware tab, and then the Device Manager button.
Technical Support
For technical questions, please visit:
Internet:
English http://www.targus.com/uk/support.asp
French http://www.targus.com/fr/support.asp
German http://www.targus.com/de/support.asp
Spanish http://www.targus.com/sp/support.asp
Italian http://www.targus.com/it/support.asp
Our knowledgeable staff is also available to answer your
questions through one of the following telephone
numbers.
Austria 01 795 676 42
Belgium 02-717-2451
Denmark [phone]
Finland 0922948016

15
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
France 01-6453-9151
Germany 0211-6579-1151
Italy 02-4827-1151
Netherlands 02 0504 0671
Norway 022577729
Portugal [phone]
Spain 91 745 6221
Sweden 08-751-4058
Switzerland 01-212-0007
United Kingdom 020-7744-0330
Eastern Europe & others [phone]
Product Registration
Targus recommends that you register your Targus accessory
shortly after purchasing it. To register your Targus accessory, go
to: http://www.targus.com/registration.asp
You will need to provide your full name, email address, phone
number, and company information (if applicable).
Warranty
Targus warrants this product to be free from defects in materials
and workmanship for two years. If your Targus accessory is found
to be defective within that time, we will promptly repair or replace
it. This warranty does not cover accidental damage, wear and
tear, or consequential or incidental loss. Under no conditions is
Targus liable for loss of, or damage to a computer; nor loss of, or
damage to, programs, records, or data; nor any consequential or
incidental damages, even if Targus has been informed of their
possibility. This warranty does not affect your statutory rights.

16
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
Product Registration: http://www.targus.com/registration.asp
Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation.
FCC Statement
Tested to Comply
This equipment has been tested and found to comply with the
limits of a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and receiver;
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected;
• Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not authorized by the party responsible
for compliance could void the user’s authority to operate this
product.

17
Targus Desktop USB 2.0 7-Port Hub with Audio Pass-Through
Targus Recycling Directive
At the end of this product’s useful life please dispose at an
appropriate recycling collection point provided in your country.
Targus recycling policy is available for viewing at:
www.targus.com/recycling.
Windows and ActiveSync are registered trademarks of Microsoft Corporation. Palm and
HotSync are a registered trademarks of Palm, Inc. Features and specifications subject
to change without notice. Microsoft, Windows, and Windows Vista are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other
countries. All trademarks and registered trademarks are the properties of their
respective owners. All rights reserved. © 2007, Targus Group International, Inc. and
Targus, Inc., Anaheim, CA 92806 USA.

18
TARGUS DESKTOP USB
2.0 7 -PORT HUB MIT
AUDIO PASS-THROUGH
Einführung
Herzlichen Glückwunsch zum Kauf des Targus Desktop
USB 2.0 7-Port-Hub mit Audio Pass-Through. Mit diesem
Desktop-Hub können Sie Ihren Schreibtisch um sieben
zusätzliche USB-Ports mit Überstromschutz sowie Audio
Pass-Through-Ports für den vereinfachten Anschluss von
Kopfhörer/Lautsprecher und Mikrofon erweitern.
Der Desktop USB 2.0 7-Port-Hub mit Audio Pass-
Through bietet drei einzigartige Funktionen:
1High Power Technologie – leistet das Zweifache der
USB-Spezifikation für Geräte, die mehr Leistung
erfordern als normale USB-Ports liefern können.
2Targus Always On Technologie - versorgt die USB-
Ports auch dann, wenn der Computer ausgeschaltet
ist, abgetrennt ist oder sich im Ruhezustand/Standby-
Modus befindet. So können USB-Geräte, die über den
USB-Port versorgt, in jeder Situation aufgeladen
werden.
3Targus Easy Access Ports - USB-Ports bieten mehr
Platz für den Anschluss größerer USB-Adapter.

19
Targus Desktop USB 2.0 7-Port Hub mit Audio Pass-Through
Merkmale
Platzsparend und Flexibel:
Der Desktop USB 2.0 7-Port-Hub mit
Audio Pass-Through wird entweder
horizontal oder vertikal auf Ihrem
Schreibtisch platziert. Um den Hub vertikal
aufzustellen, setzen Sie ihn einfach in die
mitgelieferte Basis ein. So haben Sie
maximalen Platz auf dem Schreibtisch und
einfachen Zugriff auf die oberen Ports. Der
Hub kann auch links oder rechts vom
Monitor aufgestellt werden, um den
unterschiedlichen Bedürfnissen von
rechts- und linkshändigen Mausbedienern
entgegenzukommen..
Der Desktop USB 2.0 7-Port-Hub hat
folgende Ports:
• Vier 3.5 mm Audio: (2x) Kopfhörerein/ausgang und (2x)
Mikrofonein/ausgang (vorne und hinten am Hub)
• Fünf USB 2.0-Ports
• Zwei USB High Power Ports (mit bis zu 1A Leistung pro
Port – ein Port befindet sich oben am Hub, der andere
auf der Rückseite des Hub; diese Ports unterscheiden
sich durch das Blitzsymbol daneben)
• Ein Mini-USB-Port (Typ B)

20
Targus Desktop USB 2.0 7-Port Hub mit Audio Pass-Through
Lieferumfang
Zusätzlich zu diesem Benutzerhandbuch umfasst der
Lieferumfang:
• Targus Desktop USB 2.0 7-Port-Hub mit Audio Pass-
Through
• High-Speed USB 2.0 Upstream-Kabel
• Audio Pass-Through-Kabel für Mikrofon/ Headset
• Netzstromadapter (Erforderlich)
• Ein Entfernbar Unterseite
Systemvoraussetzungen
Hardware
• USB 2.0 port
• Audioanschlüsse für Audio Pass-Through-Ports
(erforderlich, falls Sie die Pass-Through-Ports
benutzen wollen)
HINWEIS: BEIM ANSCHLUSS AN EINEN USB 1.1-PORT IHRES
COMPUTERS ERREICHT DER DESKTOP 7 PORTS USB-HUB NICHT
DIE OPTIMALE LEISTUNG. FÜR OPTIMALE RESULTATE SCHLIESSEN
SIE SIE AN EINEN USB 2.0-PORT AN.
Betriebssystem
• Windows®ME, 2000 Service Pack 4
• Windows®XP
• Windows VistaTM
