Owner‘s Manual
TF-IT9519
VERTICAL ROW IT95
TAURUS® is a registered brand of the company Sport-Tiedje GmbH.
All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

Table Of Contents
CAUTION!
Read all precautions and instructions in this manual before using this equipment.
Please assemble according to the actual Weights you buy !
Important Safety Instructions----------------------------------------------------------- 3
Instructions-------------------------------------------------------------------------------- 5
Exploded View and Parts List------------------------------------------------------------ 6
Measurement Guide--------------------------------------------------------------------- 18
Assembly Instructions------------------------------------------------------------------ 19
Assembly--------------------------------------------------------------------------------- 20
Adjust Instructions---------------------------------------------------------------------- 32
Exercise Instructions-------------------------------------------------------------------- 33
Maintenance Schedule------------------------------------------------------------------ 34
General Maintenance Information----------------------------------------------------- 35
Weight Training Tips-------------------------------------------------------------------- 36

3
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete physical
examination from your physician. When using exercise equipment, basic
precautions should always be taken, including the following:
1. Read all instructions before using the equipment.
These instructions are written to ensure your safety and to protect the unit.
2. Use the equipment only for its intended purpose as described in this guide.
Do not use accessory attachments that are not recommended by the
manufacturer: such attachments might cause injuries.
3. The product should only be used on a level surface and is with 0.5 meters
space around the product.
Do not use the equipment outdoors.
4. Do not allow children on or near the equipment. And children are not allowed
to use this equipment.
Teenagers should use this equipment with adult supervision.
5. Do not overexert yourself or work to exhaustion.
Do not attempt to lift more weight than you can control safely.
If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
6. This equipment is not used as medical apparatus and instruments.
7. Never operate the unit when it has been dropped or damaged.
Never drop or insert anything into any opening in the equipment.
Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
Frayed or worn cables can be dangerous and may cause injury. Periodically
check these cables for any indication of wear.
Keep hands, limbs, loose clothing and long hair well out of the way of moving
parts.
8. Be careful when getting on or off the equipment.
9. Wear proper exercise clothing and shoes for your workout, no loose clothing.

Specifications
Class: S
Maximum Wt. Capacity: 134kg/ 295lbs
Maximum User Weight: 150kg/ 330lbs
Product Total Surface: 1624*1272mm
Product Total Mass: 126.5kg/ 279lbs
Training Area and Free Area
4
Important Safety Instructions
Personal Safety During Assembly
Read each step in the assembly instructions and follow the steps in sequence.
Do not skip ahead. If you skip ahead, you may learn later that you have to
disassemble components and that you may have damaged the equipment.
Assemble and operate the equipment on a solid, level surface. Locate the unit
a few feet from walls or furniture to provide easy access. The equipment is
designed for your enjoyment. By following these precautions and using
common sense, you will have many safe and pleasurable hours of healthful
exercise with the equipment.

5
Instructions
Tools Required
The equipment is designed to provide the smoothest, most effective exercise
motion possible. After assembly, you should check all functions to ensure correct
operation. If you experience problems, first recheck the assembly instructions to
locate any possible errors made during assembly. If you are unable to correct the
problem, call your authorized dealer. Be sure to have your serial number and this
manual when calling. When all parts have been accounted for, continue on.
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
Phillips Screwdriver
Before beginning assembly please take the time to read instructions thoroughly.
Please use the various lists in this manual to make sure that all parts have been
included in your shipment. When ordering, use part number and description from
the lists. Use only our replacement part when servicing. Failure to do so will void
your warranty and could result in personal injury.

6

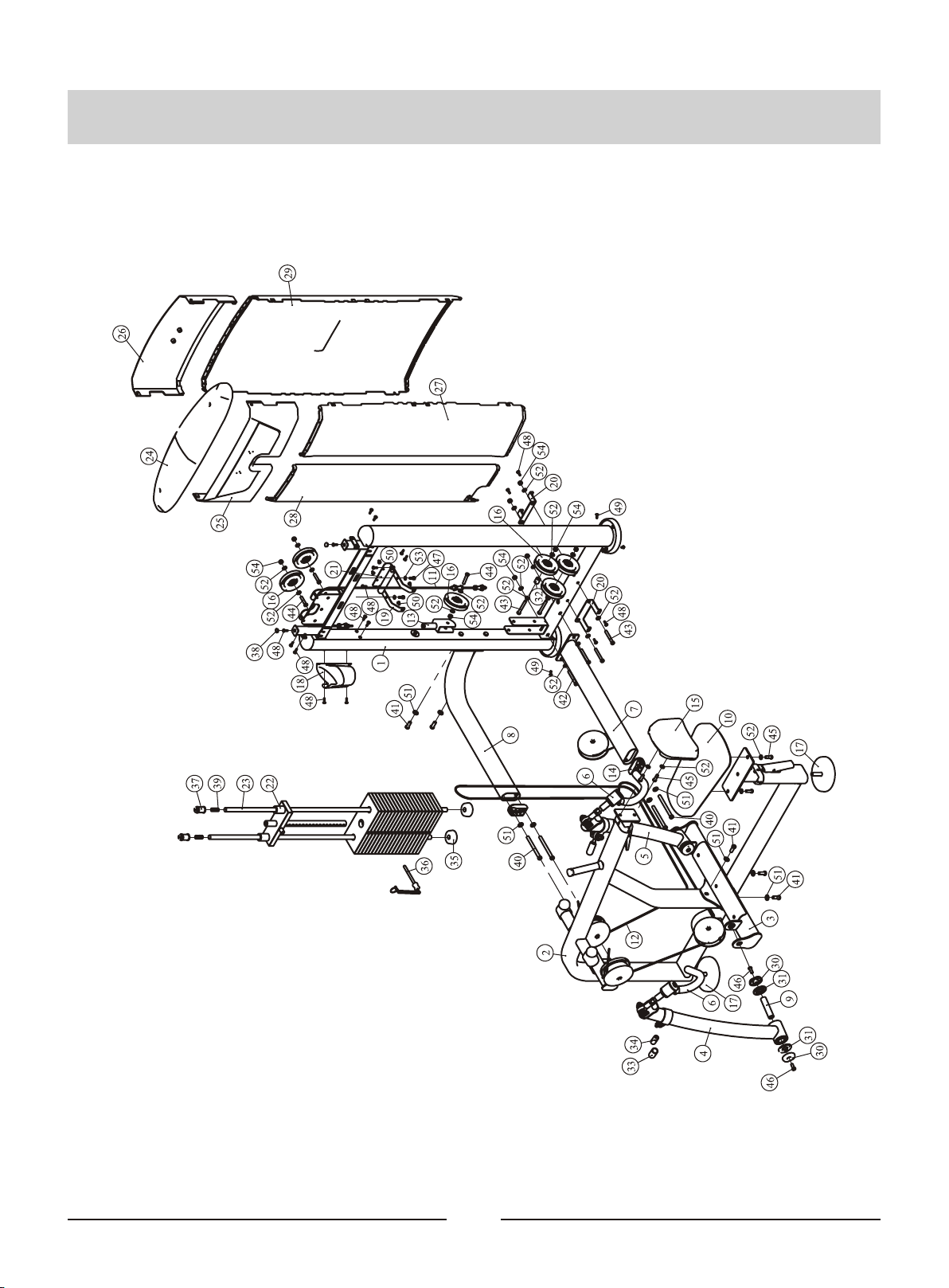

Exploded View and Parts List
Overall
Item No. Grade No. Part No. Description QTY
1 1 IT951901ASSY Weight Stack Frame ASSY 1
2 2 IT951902ASSY Main Frame ASSY 1
3 3 IT951903ASSY Bottom Frame Brace 1
4 4 IT951904ASSY Left Arm Frame ASSY 1
5 5 IT951905ASSY Right Arm Frame ASSY 1
6 6 IT951906ASSY Handle Frame ASSY 2
7 7 IT951908ASSY Middle Connection Frame ASSY 1
8 8 IT95050300 Rear Connection Frame 1
9 9 IT95191300 Spindle 2
10 10 IT95191400 Seat Pad 1
11 11 IT95191500 Cable 1 ASSY 1
12 12 IT95191600 Cable 2 ASSY 1
13 13 IT95082100 Single Pulley Bracket 1
14 14 IT95016000 Plastic Cover 2
15 15 IT951910ASSY Chest Pad ASSY 1
16 16 SG500110400V5 4.5" Pulley 6
17 17 SD1000B3000ASSY Adjustable Foot Plate 2
18 18 IT801210300P11C Cup Holder 1
19 19 IT950121ASSY Top Bracket ASSY 1
20 20 IT950122ASSY Bottom Bracket ASSY 2
21 21 IT95012300 Rear Bracket 1
22 22 IT95014200 Top Plate 1
23 23 IT95014400 Guide Rod φ19*1242 2
24 24 IT95015100 Top Cover 1
25 25 IT95015200 Training Placard Cover 1
26 26 IT95015500 Top Rear Shroud 1
27 27 IT95015300 Front Shroud 1
28 28 IT95055400 Left Front Shroud 1
29 29 IT95015600 Rear Shroud 1

7
Exploded View and Parts List
Overall
Item No. Grade No. Part No. Description QTY
30 30 FE97211900 Cap φ60 4
31 31 FE97212000 Circle Ring φ62.5*5 4
32 32 FE97193400 Pulley Spacer 1
33 33 FE970113100 Cable Connector Jacket 2
34 34 FE970113200 Cable Connector 2
35 35 IT80023000 Weight Rubber Bumper 2
36 36 IT90012000V1 Selector Pin W/Coil 1
37 37 IT95016100 Guide Rod Fixing Sleeveφ25*φ19*45 2
38 38 IT95016500 Spout Plug φ16.5*6.88 2
39 39 HFOPT900-04A0602 Spring 2
40 40 GB70BTM12*135DN18 Socket Head Cap Screw M12*135 4
41 41 GB70BTM12*30DN18 Socket Head Cap Screw M12*30 5
42 42 GB70BTM10*80DN18 Socket Head Cap Screw M10*80 2
43 43 GB70BTM10*75DN18 Socket Head Cap Screw M10*75 4
44 44 GB70BTM10*50DN18 Socket Head Cap Screw M10*50 3
45 45 GB70BTM10*30DN18 Socket Head Cap Screw M10*30 4
46 46 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 4
47 47 GB70M8*20N19 Socket Head Cap Screw M8*20 2
48 48 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 18
49 49 GB818M6*16DHS2 Cross Recessed Pan Head Screw M6*16 4
50 50 GB818M6*10DHS2 Cross Recessed Pan Head Screw M6*10 4
51 51 GB9512DN2 Flat Washer φ13*φ24*2.5 9
52 52 GB9510DN2 Flat Washer φ11*φ20*2 22
53 53 GB958DN2 Flat Washer φ9*φ16*1.6 2
54 54 NM10DN2 Nylon Lock Nut M10 9
55 55 NBS6DHS Hex Key S=6 1
56 56 NBS8DHS Hex Key S=8 1
57 57 LW200BS Wrench φ6*117 1
58 58 YHY Lube 1

8
Exploded View and Parts List
Overall

9
Exploded View and Parts List
Weight Stack Frame ASSY
Item No. Grade No. Part No. Description QTY
1 1.1 IT95010100 Weight Stack Frame 1
2 1.2 GB17880.5M6*16.5DS17 Rivet Nut M6 14
3 1.3 AC32705800 U-nut M6 4
4 1.4 IT95015700 Foot Plate 2
5 1.5 IT95015900 Plastic Block 2
6 1.6 IT95015800 Plug φ95*81.1 2
7 1.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 2

10
Exploded View and Parts List

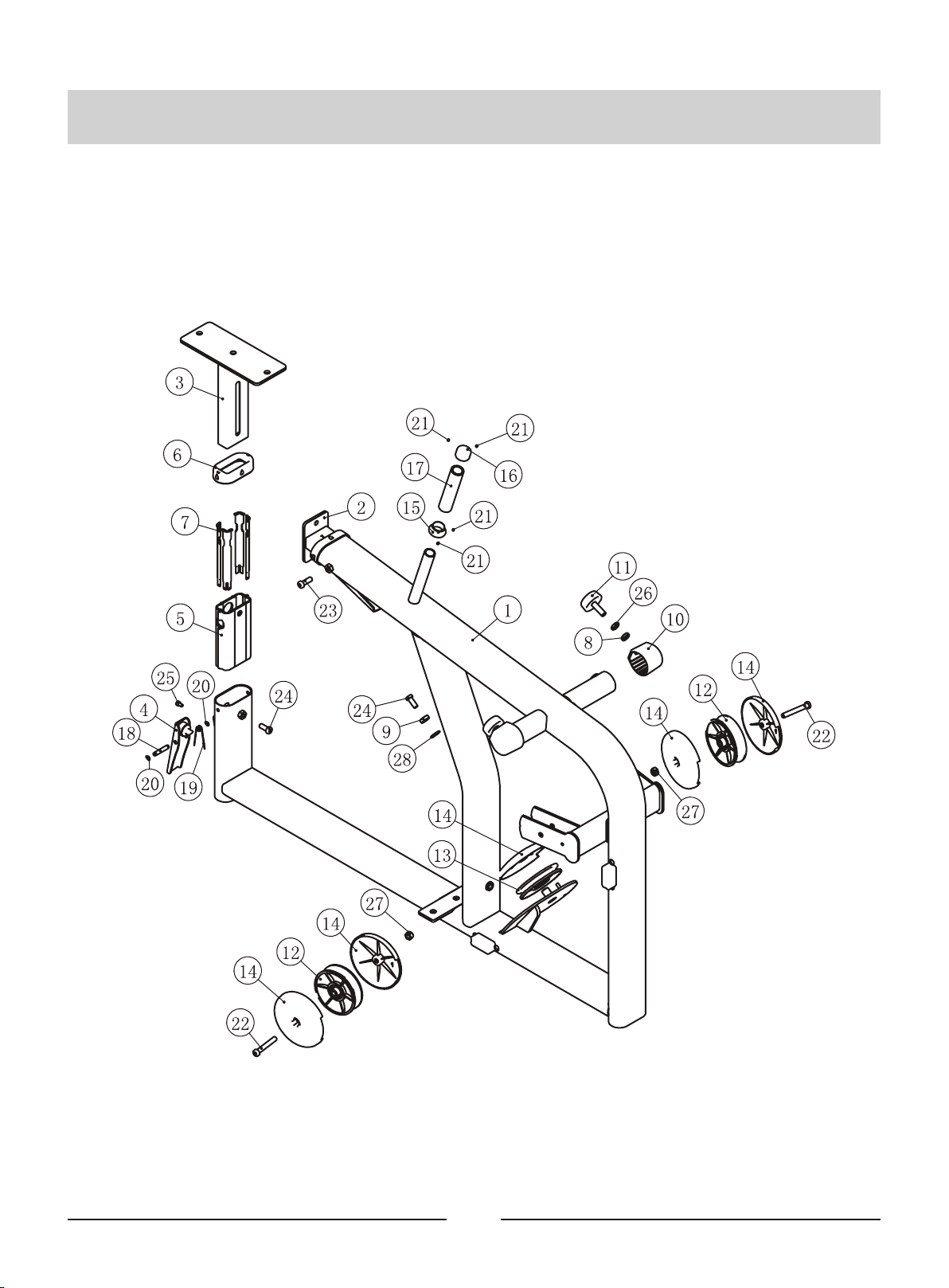

Main Frame ASSY
Item No. Grade No. Part No. Description QTY
1 2.1 IT95190200 Main Frame 1
2 2.2 IT95190700 Chest Pad Support 1
3 2.3 IT95120900 Seat Pad Support 1
4 2.4 IT95014500 Adjustable Support 2
5 2.5 IT95014300 Aluminum Tube Guide 2
6 2.6 IT95016200 Plastic Tube Plug 2
7 2.7 IT95016300 Plastic Corner Tube Glide 8
8 2.8 IT95121400 Bushing φ20*φ14*6 2
9 2.9 FE97122100 Bushing φ22*φ17.5*7.5 1
10 2.10 IT95122100 Plastic Plug 2
11 2.11 IT95122200 Urethane Bumper 2
12 2.12 PL90101200 V-type Pulley 2
13 2.13 IT95057800 4.5" Pulley 1
14 2.14 IT95016400 Pulley Cover 5
15 2.15 IT90102200 Aluminum Grip Cap 1
16 2.16 V39600 Aluminum Grip Ring 1
17 2.17 026-01PL0206-12 Grip 1
18 2.18 CWRVL0012200 Roll Pin 2
19 2.19 AXT3S5500 Torsional Spring 2
20 2.20 GB894.18FH12 Circlips For Shaft φ8 4
21 2.21 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 4
22 2.22 GB70BTM10*70DN18 Socket Head Cap Screw M10*70 2
23 2.23 GB70BTM10*30DN18 Socket Head Cap Screw M10*30 1
24 2.24 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 2
25 2.25 GB70M6*10N19 Socket Head Cap Screw M6*10 2
26 2.26 GB6172.1M12DN2 Hexagon Thin Nut M12 2
27 2.27 NM10DN2 Nylon Lock Nut M10 2
28 2.28 DQ10N19B Flat Washer φ11*φ25*2 1

11
Exploded View and Parts List
Main Frame ASSY

12
Exploded View and Parts List
Bottom Frame Brace
Item No. Grade No. Part No. Description QTY
1 7.1 IT95190800 Middle Connection Frame 1
2 7.2 IT95016400 Pulley Cover 1
3 7.3 IT95057800 4.5" Pulley 1
4 7.4 FE97122100 Bushing φ22*φ17.5*7.5 1
5 7.5 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 1
6 7.6 DQ10N19B Flat Washer φ11*φ25*2 1
Middle Connection Frame ASSY
Item No. Grade No. Part No. Description QTY
1 3.1 IT95190300 Bottom Frame 1
2 3.2 IT95191000 Foot Plate 1
3 3.3 CNLM6*15N19 Flat Head Cap Screw M6*15 3
4 3.4 GB17880.5M6*16.5DS17 Rivet Nut M6 3

13
Exploded View and Parts List
Left Arm Frame ASSY
Item No. Grade No. Part No. Description QTY
1 4.1 IT95190400 Left Arm Frame Sub Assembly 1
2 4.2 IT95121300 Spacer Bushingφ22*φ12.2*14 2
3 4.3 L290PB2600 Hollow Shaft 1
4 4.4 BG10004600V1 Bumper 1
5 4.5 IT90194100 Flat Washer φ23*φ16.4*3 2
6 4.6 SA12T_K Joint Bearing M12 1
7 4.7 SIBJK16S Joint Bearing M16 1
8 4.8 GB2766205-2ZNBK Deep Groove Ball Bearing φ25*φ52*15 2
9 4.9 GB70BTM10*65DN18 Socket Head Cap Screw M10*65 1
10 4.10 GB70BTM12*60DN18 Socket Head Cap Screw M12*60 1
11 4.11 GB6172.1M12DN2 Hex Thin Nut M12 1
12 4.12 DQ10DG2E Flat Washer φ28*φ10.5*5 2
13 4.13 NM12DN2 Nylon Lock Nut M12 1
14 4.14 NM10DN2 Nylon Lock Nut M10 1

14
Exploded View and Parts List
Right Arm Frame ASSY
Item No. Grade No. Part No. Description QTY
1 5.1 IT95190500 Right Arm Frame Sub Assembly 1
2 5.2 IT95121300 Spacer Bushingφ22*φ12.2*14 2
3 5.3 L290PB2600 Hollow Shaft 1
4 5.4 BG10004600V1 Bumper 1
5 5.5 IT90194100 Flat Washer φ23*φ16.4*3 2
6 5.6 SA12T_K Joint Bearing M12 1
7 5.7 SIBJK16S Joint Bearing M16 1
8 5.8 GB2766205-2ZNBK Deep Groove Ball Bearing φ25*φ52*15 2
9 5.9 GB70BTM10*65DN18 Socket Head Cap Screw M10*65 1
10 5.10 GB70BTM12*60DN18 Socket Head Cap Screw M12*60 1
11 5.11 GB6172.1M12DN2 Hex Thin Nut M12 1
12 5.12 DQ10DG2E Flat Washer φ28*φ10.5*5 2
13 5.13 NM12DN2 Nylon Lock Nut M12 1
14 5.14 NM10DN2 Nylon Lock Nut M10 1

15
Exploded View and Parts List

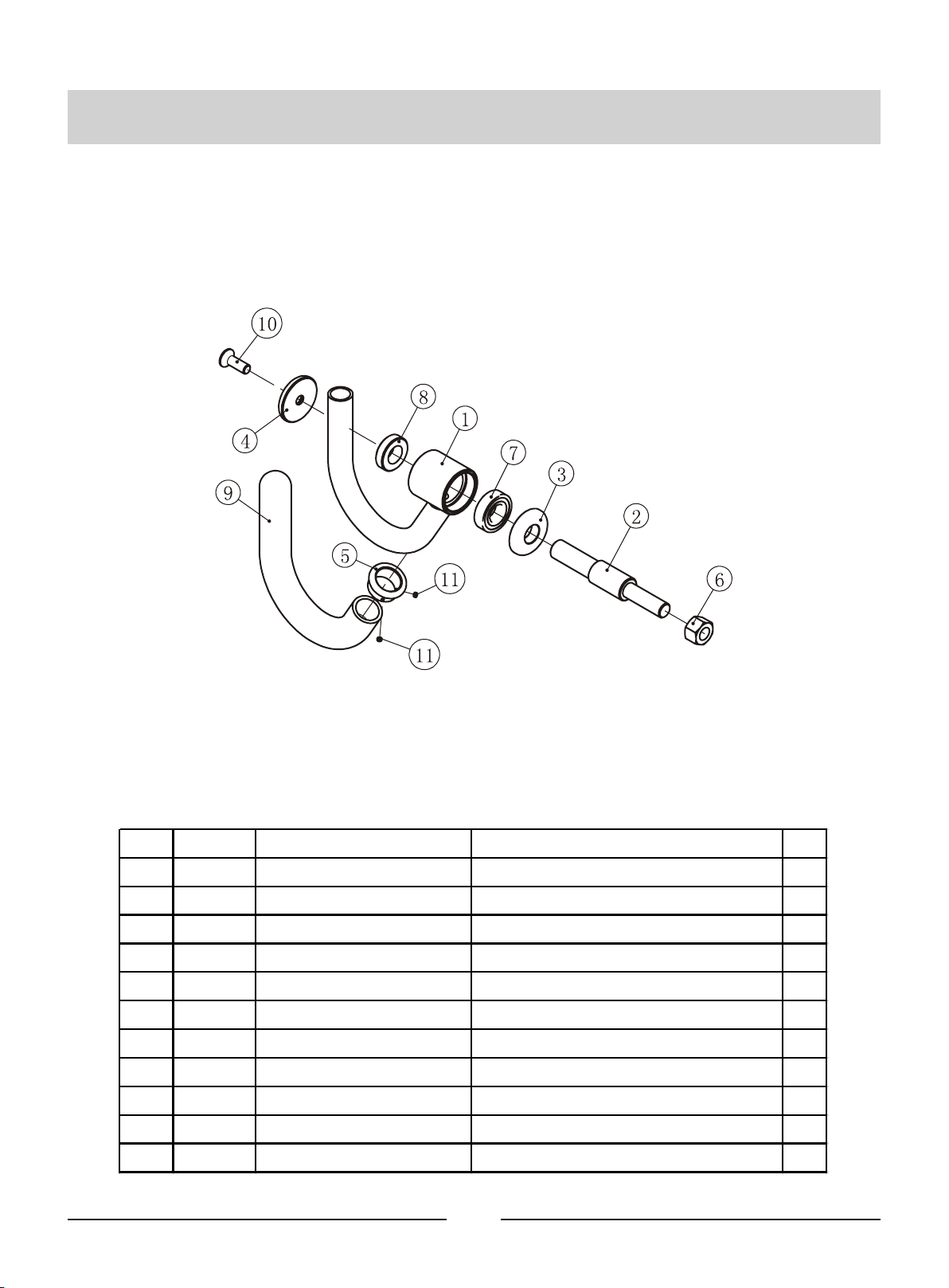

Handle Frame ASSY
Item No. Grade No. Part No. Description QTY
1 6.1 L290PB0600 Handle Frame 1
2 6.2 IT95191100 Thread Spindle 1
3 6.3 IT95191200 Aluminum Endφ50*11 1
4 6.4 IN-S51102100 Aluminum Endφ50*8 1
5 6.5 IT90102200 Aluminum Grip Cap 1
6 6.6 GB41M16N19 Hex Nut M12 1
7 6.7 GB2766004-2Z Bearingφ40*φ20*15 1
8 6.8 GB29732904 Bearingφ37*φ20*12 1
9 6.9 P8A2800 Grip 1
10 6.10 CNLM10*30*30DN20 Flat Head Cap Screw M10*30 1
11 6.11 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 2

16

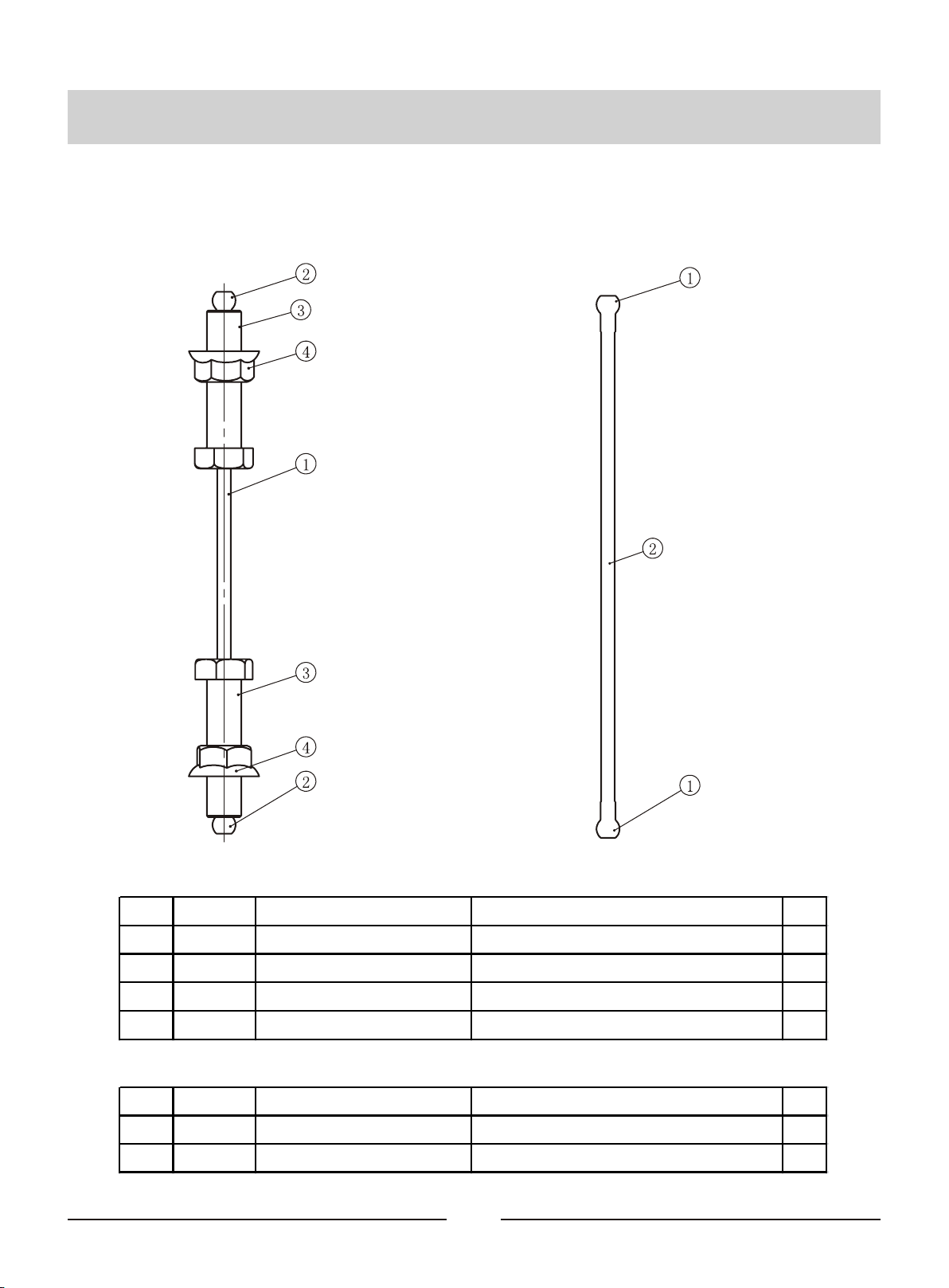

Exploded View and Parts List
Cable2 ASSY
Cable2 ASSY
Cable1 ASSY
Cable1 ASSY
Item No. Grade No. Part No. Description QTY
1 12.1 IT95191601 Cable1 1
2 12.2 M01002100 Terminal Block 2
Item No. Grade No. Part No. Description QTY
1 11.1 IT95191501 Cable1 1
2 11.2 L1-3102 Screw1/2"-13*50.8 2
3 11.3 HF900-03A1002 Hex Flange Nut 2
4 11.4 M01002100 Terminal Block 2

17

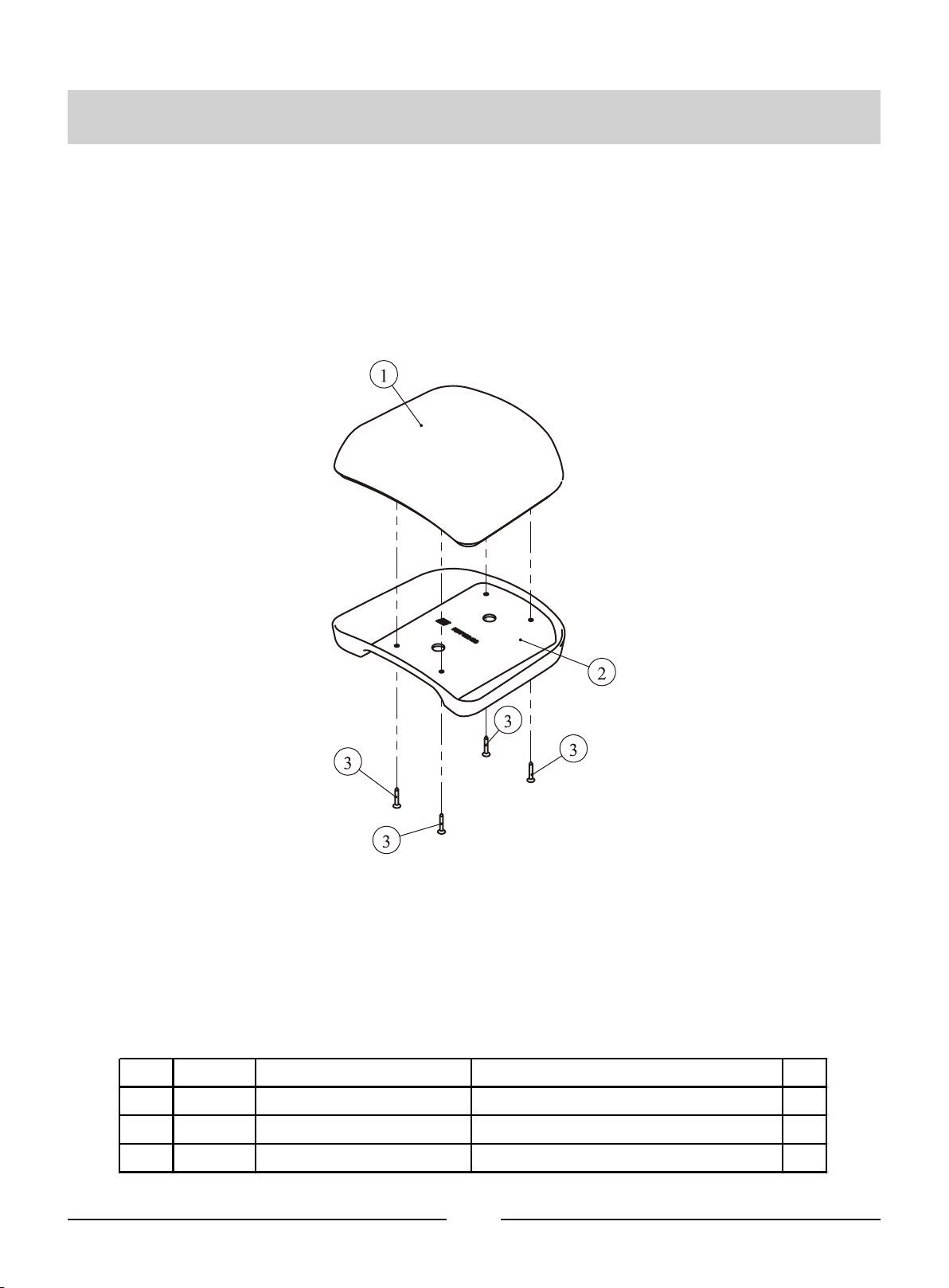

Exploded View and Parts List
Item No. Grade No. Part No. Description QTY
1 15.1 IT95191800 Head Pad 1
2 15.2 FE97123400 Head Pad Cover 1
3 15.3 GB846ST3.5*25DN Cross Recessed Countersunk Head Tapping Screw ST3.5*25 4
Chest Pad ASSY

Inches
Millimeters
BHCS = Button Head Cap Screw
SHCS = Socket Head Cap Screw
FHCS = Flat Head Cap Screw
HHB = Hex Head Bolt
Measurement Guide
Diameter of bolt
(mm/inch) M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8")
Tightening
torque (N.m) 9~12 22~30 45~59 78~104 193~257
Operational
methods for
adult men
The strength of
the wrist
The strength of
the wrist and
forearm
The strength of
the entire arm
The strength of
the arm and
upper body
with all strength
18
CRPHS = Cross Recessed Pan
Head Screw

19
Assembly Instructions
Assembly of the equipment takes professional installers about 2 hours. If this
is the first time you have assembled this type of equipment, plan to spend
more time. It is strongly recommended to assemble the equipment by
professional installers. You may find it quicker, safer, easier to assemble this
equipment with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you assemble your
product in a clean, clear, uncluttered area. This will enable you to move around
the product while you are fitting components and reduce the possibility of
injury during assembly.
As with any assembled part, proper alignment and adjustment is critical. While
tightening the fasteners, be sure to leave room for adjustments. Do not fully
tighten the fasteners until instructed to do so. Be careful to assemble the
components in the sequence presented in this guide.
NOTE

STEP 1
1. Attach two Adjustable Foot Plates (#11) to the Main Frame ASSY (#2).
2. Attach the Rear Bracket (#21) to the Top Rear Shroud (#26) using:
two M6*10 CRPHS (#50)
Note: Wrench Tighten Bolts.
Assembly
20
