Taurus WEIGHT ASSISTED CHIN/DIP COMBO IT95 User manual

Owner‘s Manual
TF-IT9520
WEIGHT ASSISTED CHIN/DIP COMBO IT95
TAURUS® is a registered brand of the company Sport-Tiedje GmbH.
All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

Table Of Contents
CAUTION!
Read all precautions and instructions in this manual before using this equipment.
Please assemble according to the actual Weights you buy !
Important Safety Instructions----------------------------------------------------------- 3
Instructions-------------------------------------------------------------------------------- 5
Exploded View and Parts List------------------------------------------------------------ 6
Measurement Guide--------------------------------------------------------------------- 17
Assembly Instructions------------------------------------------------------------------ 18
Assembly--------------------------------------------------------------------------------- 19
Adjust Instructions---------------------------------------------------------------------- 35
Exercise Instructions-------------------------------------------------------------------- 36
Maintenance Schedule------------------------------------------------------------------ 37
General Maintenance Information----------------------------------------------------- 38
Weight Training Tips-------------------------------------------------------------------- 39

3
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete physical
examination from your physician. When using exercise equipment, basic
precautions should always be taken, including the following:
1. Read all instructions before using the equipment.
These instructions are written to ensure your safety and to protect the unit.
2. Use the equipment only for its intended purpose as described in this guide.
Do not use accessory attachments that are not recommended by the
manufacturer: such attachments might cause injuries.
3. The product should only be used on a level surface and is with 0.5 meters
space around the product.
Do not use the equipment outdoors.
4. Do not allow children on or near the equipment. And children are not allowed
to use this equipment.
Teenagers should use this equipment with adult supervision.
5. Do not overexert yourself or work to exhaustion.
Do not attempt to lift more weight than you can control safely.
If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
6. This equipment is not used as medical apparatus and instruments.
7. Never operate the unit when it has been dropped or damaged.
Never drop or insert anything into any opening in the equipment.
Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
Frayed or worn cables can be dangerous and may cause injury. Periodically
check these cables for any indication of wear.
Keep hands, limbs, loose clothing and long hair well out of the way of moving
parts.
8. Be careful when getting on or off the equipment.
9. Wear proper exercise clothing and shoes for your workout, no loose clothing.

Specifications
Class: S
Maximum Wt. Capacity: 134kg/ 295lbs
Maximum User Weight: 150kg/ 330lbs
Product Total Surface: 1580*1320mm
Product Total Mass: 171kg/ 377lbs

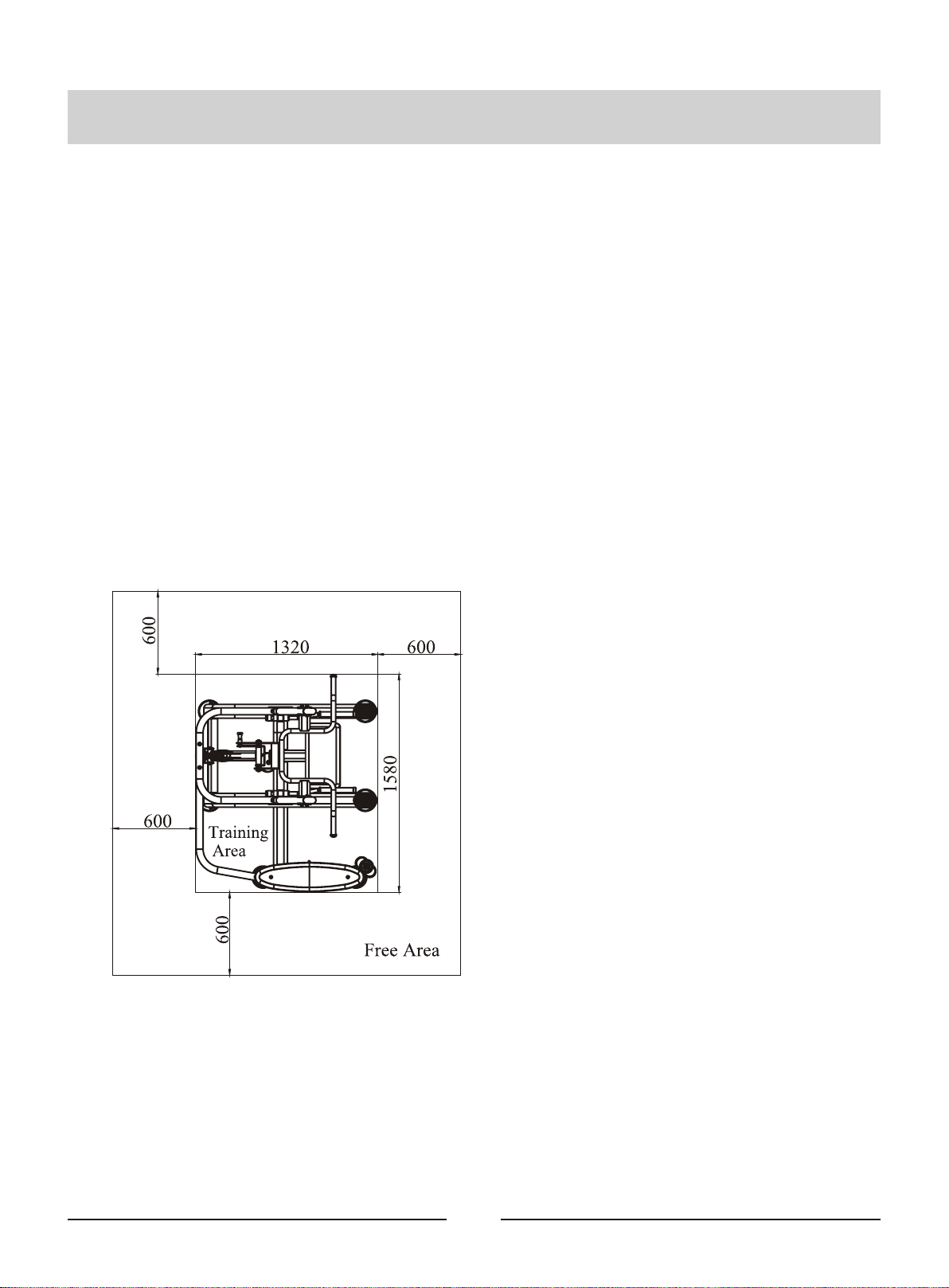

Training Area and Free Area
4
Important Safety Instructions
Personal Safety During Assembly
Read each step in the assembly instructions and follow the steps in sequence.
Do not skip ahead. If you skip ahead, you may learn later that you have to
disassemble components and that you may have damaged the equipment.
Assemble and operate the equipment on a solid, level surface. Locate the unit
a few feet from walls or furniture to provide easy access. The equipment is
designed for your enjoyment. By following these precautions and using
common sense, you will have many safe and pleasurable hours of healthful
exercise with the equipment.

5
Instructions

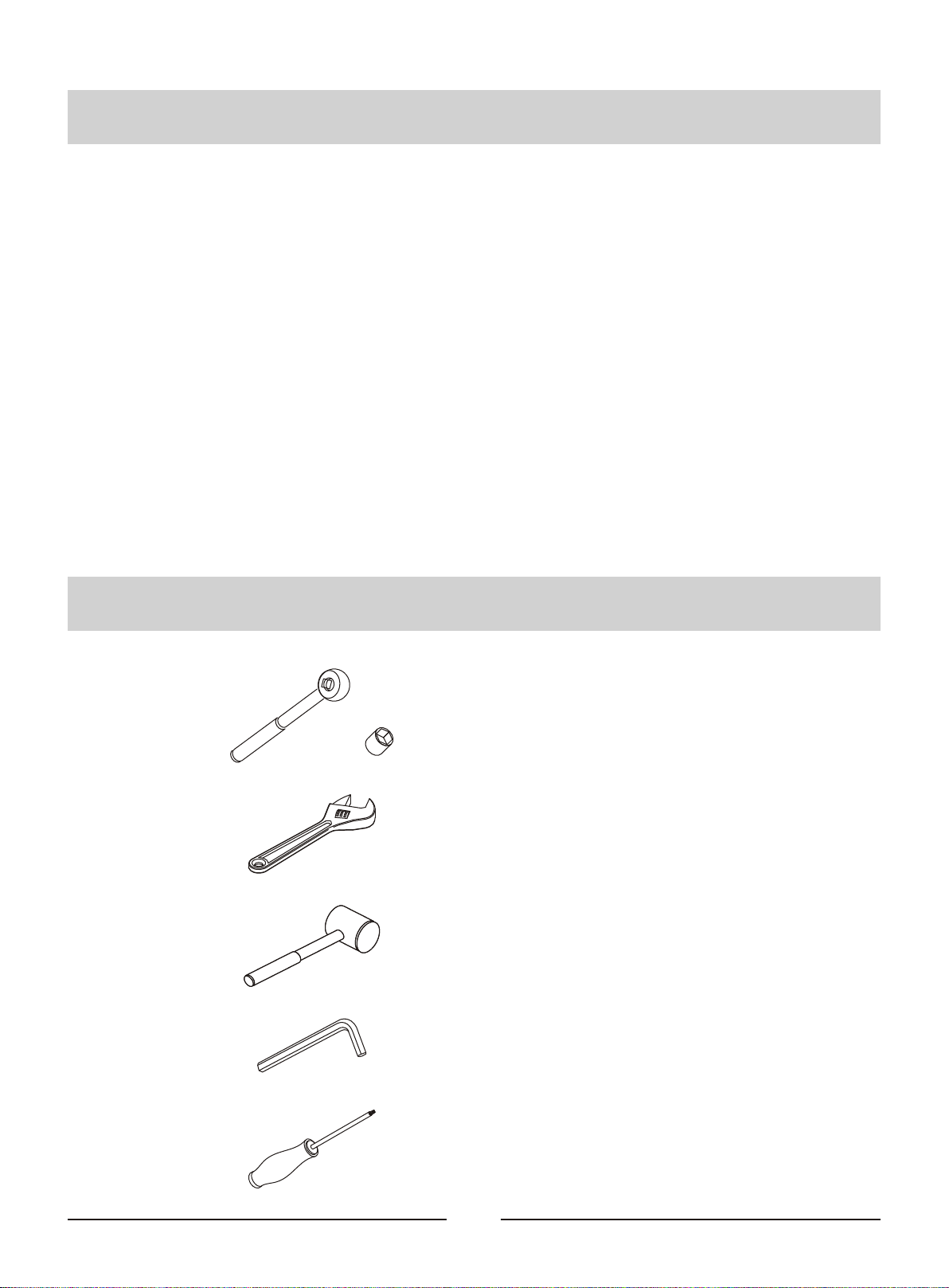

Tools Required
The equipment is designed to provide the smoothest, most effective exercise
motion possible. After assembly, you should check all functions to ensure correct
operation. If you experience problems, first recheck the assembly instructions to
locate any possible errors made during assembly. If you are unable to correct the
problem, call your authorized dealer. Be sure to have your serial number and this
manual when calling. When all parts have been accounted for, continue on.
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
Phillips Screwdriver
Before beginning assembly please take the time to read instructions thoroughly.
Please use the various lists in this manual to make sure that all parts have been
included in your shipment. When ordering, use part number and description from
the lists. Use only our replacement part when servicing. Failure to do so will void
your warranty and could result in personal injury.

6

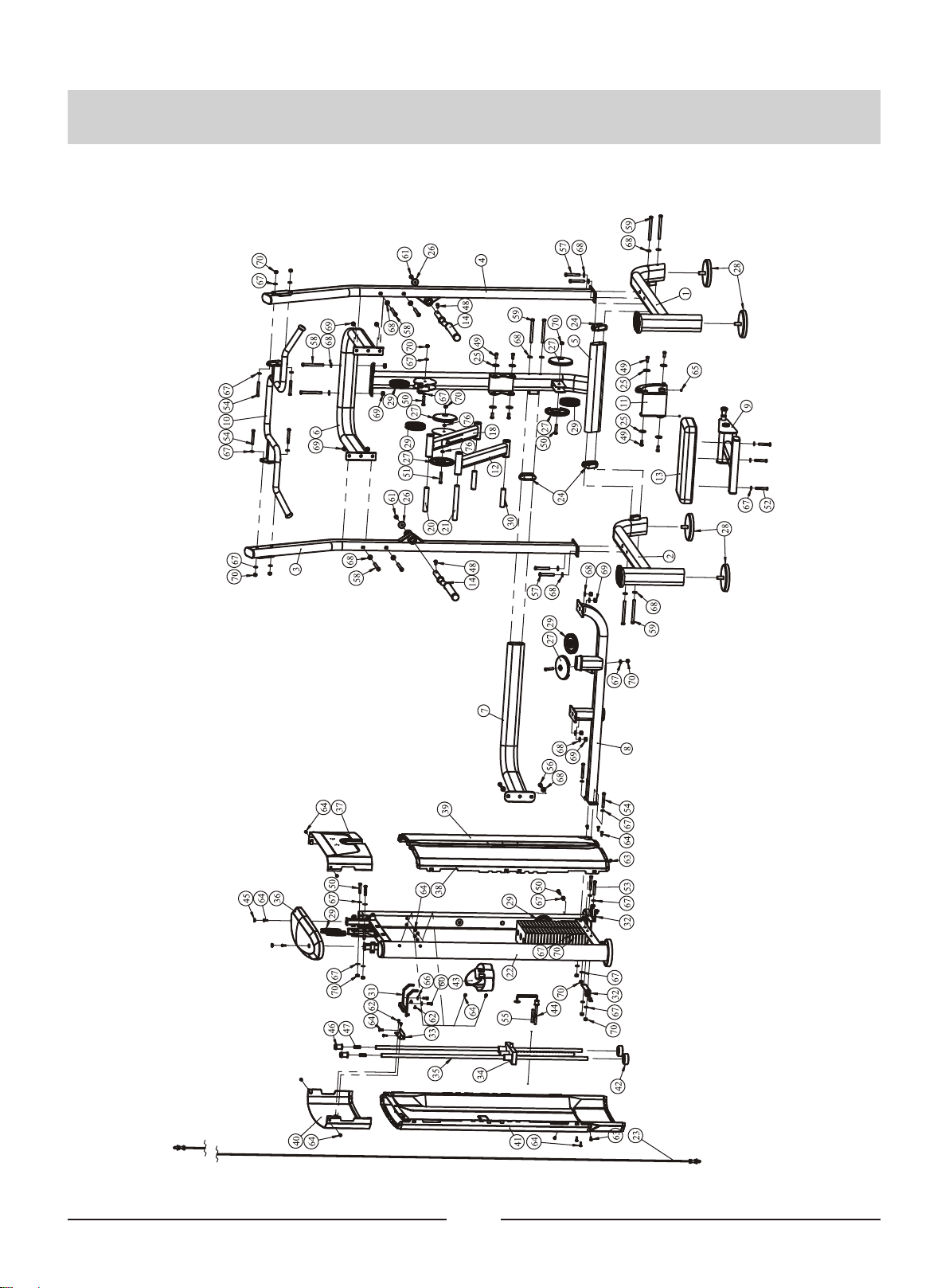

Exploded View and Parts List
Overall
Item No. Grade No. Part No. Description QTY
1 1 IT952001ASSY Right Bottom Frame ASSY 1
2 2 IT952002ASSY Left Bottom Frame ASSY 1
3 3 IT952003ASSY Left Floorstand ASSY 1
4 4 IT952004ASSY Right Floorstand ASSY 1
5 5 IT952005ASSY Back Floorstand ASSY 1
6 6 IT95200600 Up Connector 1
7 7 IT95200700 Back Connector 1
8 8 IT952008ASSY Low Support Frame ASSY 1
9 9 IT952009ASSY Leg Pad Frame ASSY 1
10 10 IT952010ASSY Bar ASSY 1
11 11 IT952011ASSY Adjust Frame ASSY 1
12 12 IT952012ASSY Down Swing Frame ASSY 1
13 13 IT95201300 Leg Pad 1
14 14 IT952014ASSY Long Bar ASSY 2
15 18 IT952018ASSY Up Swing Frame ASSY 1
16 20 IT95202000V1 shaft φ25.4*146 1
17 21 IT95202100V1 shaft φ25.4*210.5 1
18 22 IT953201ASSY Weight Stack Frame Assy 1
19 23 IT95202300 Cable ASSY 1
20 24 IT95016000 Plastic Cover 3
21 27 IT95016400 Pulley Cover 5
22 28 SD1000B3000ASSY Adjustable Foot Plate 4
23 29 SG500110400V5 4.5" Pulley 7
24 30 FE97202000V1 shaft φ25.4*109 2
25 31 IT950121ASSY Top Bracket ASSY 1
26 32 IT950122ASSY Bottom Bracket ASSY 2
27 33 IT95012300 Rear Bracket 1
28 34 IT95014200 Top Plate 1
29 35 IT95014400 Guide Rod φ19*1242 2
30 36 IT95015100 Top Cover 1
31 37 IT95015200 Training Placard Cover 1
32 38 IT95015300 Front Shroud 1
33 39 IT95015400 Left Front Shroud 1
34 40 IT95015500 Top Rear Shroud 1
35 41 IT95015600 Rear Shroud 1
36 42 IT80023000 Weight Rubber Bumper 2

7
Exploded View and Parts List
Overall
Item No. Grade No. Part No. Description QTY
37 43 IT801210300P11C Cup Holder 1
38 44 IT90012000V1 Selector Pin W/Coil 1
39 45 IT95016500 Spout Plug φ16.5*6.88 2
40 46 IT95016100 Guide Rod Fixing Sleeveφ25*φ19*45 2
41 47 HFOPT900-04A0602 Springφ1.5*36 2
42 48 GB70BTM10*16DN18NL Socket Head Cap ScrewM10*16 2
43 49 GB70BTM10*25DN18NL Socket Head Cap ScrewM10*25 8
44 50 GB70BTM10*50DN18 Socket Head Cap ScrewM10*50 6
45 51 GB70BTM10*60DN18 Socket Head Cap ScrewM10*60 1
46 52 GB70BTM10*65DN18 Socket Head Cap ScrewM10*65 3
47 53 GB70BTM10*75DN18 Socket Head Cap ScrewM10*75 2
48 54 GB70BTM10*80DN18 Socket Head Cap ScrewM10*80 6
49 55 IT80124103 Split Pin φ11*76 1
50 56 GB70BTM12*30DN18NL Socket Head Cap ScrewM12*30 2
51 57 GB70BTM12*80DN18 Socket Head Cap ScrewM12*80 4
52 58 GB70BTM12*120DN18 Socket Head Cap ScrewM12*120 6
53 59 GB70BTM12*135DN18 Socket Head Cap ScrewM12*135 6
54 60 GB70M8*20N19 Socket Head Cap ScrewM8*20 2
55 61 CNLM10*30*30DN20 Flat Head Cap Screw M10*30 2
56 62 GB818M6*10DHS2 Cross Recessed Pan Head Screw M6*10 4
57 63 GB818M6*16DHS2 Cross Recessed Pan Head Screw M6*16 4
58 64 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 18
59 65 GB77M8*6DS18 Screw M8*6 2
60 66 GB958DN2 Flat Washer φ9*φ16*1.6 2
61 67 GB9510DN2 Flat Washer φ11*φ20*2 28
62 68 GB9512DN2 Flat Washer φ13*φ24*2.5 22
63 69 NM12DN2 Nylon Lock Nut M12 10
64 70 NM10DN2 Nylon Lock Nut M10 15
65 71 NBS4DHS Hex Key S=4 1
66 72 NBS6DHS Hex Key S=6 1
67 73 NBS8DHS Hex Key S=8 1
68 74 LW200BS Wrench φ6*117 1
69 75 YHY Lube 1
70 25 AC31001301V1 Washer φ36*φ11*3 8
71 26 IN-D21202000 Caps φ38*φ10.5*8 2
72 76 IW32904 Spacer Φ16*Φ10.2*5 2

8
Exploded View and Parts List
Overall

9
Exploded View and Parts List

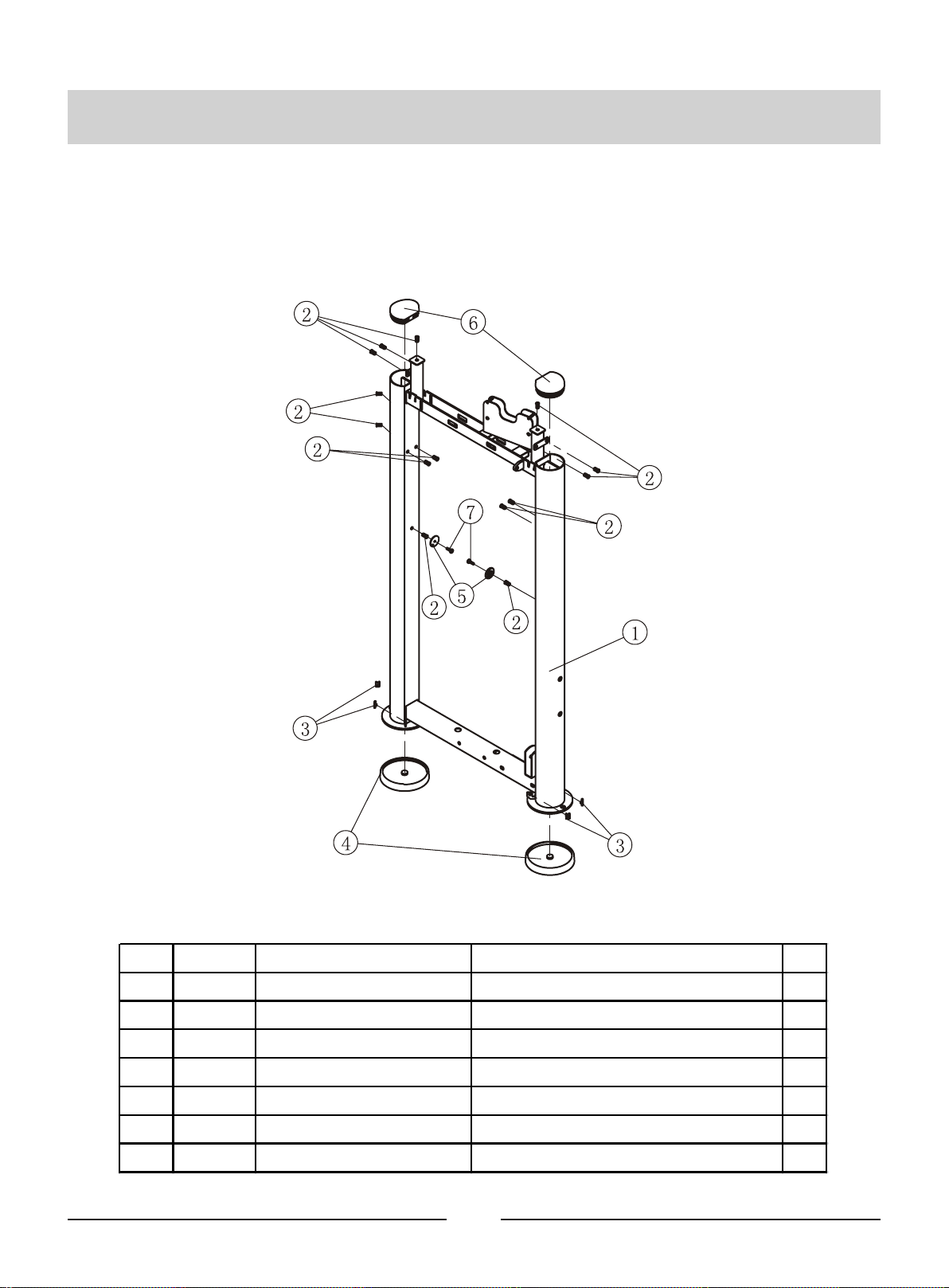

Weight Stack Frame ASSY
Item No. Grade No. Part No. Description QTY
1 22.1 IT95320100 Weight Stack Frame 1
2 22.2 GB17880.5M6*16.5DS17 Rivet Nut M6 14
3 22.3 AC32705800 U-nut M6 4
4 22.4 IT95015700 Foot Plate 2
5 22.5 IT95015900 Plastic Block 2
6 22.6 IT95015800 Plug φ95*81.1 2
7 22.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 2

10
Exploded View and Parts List

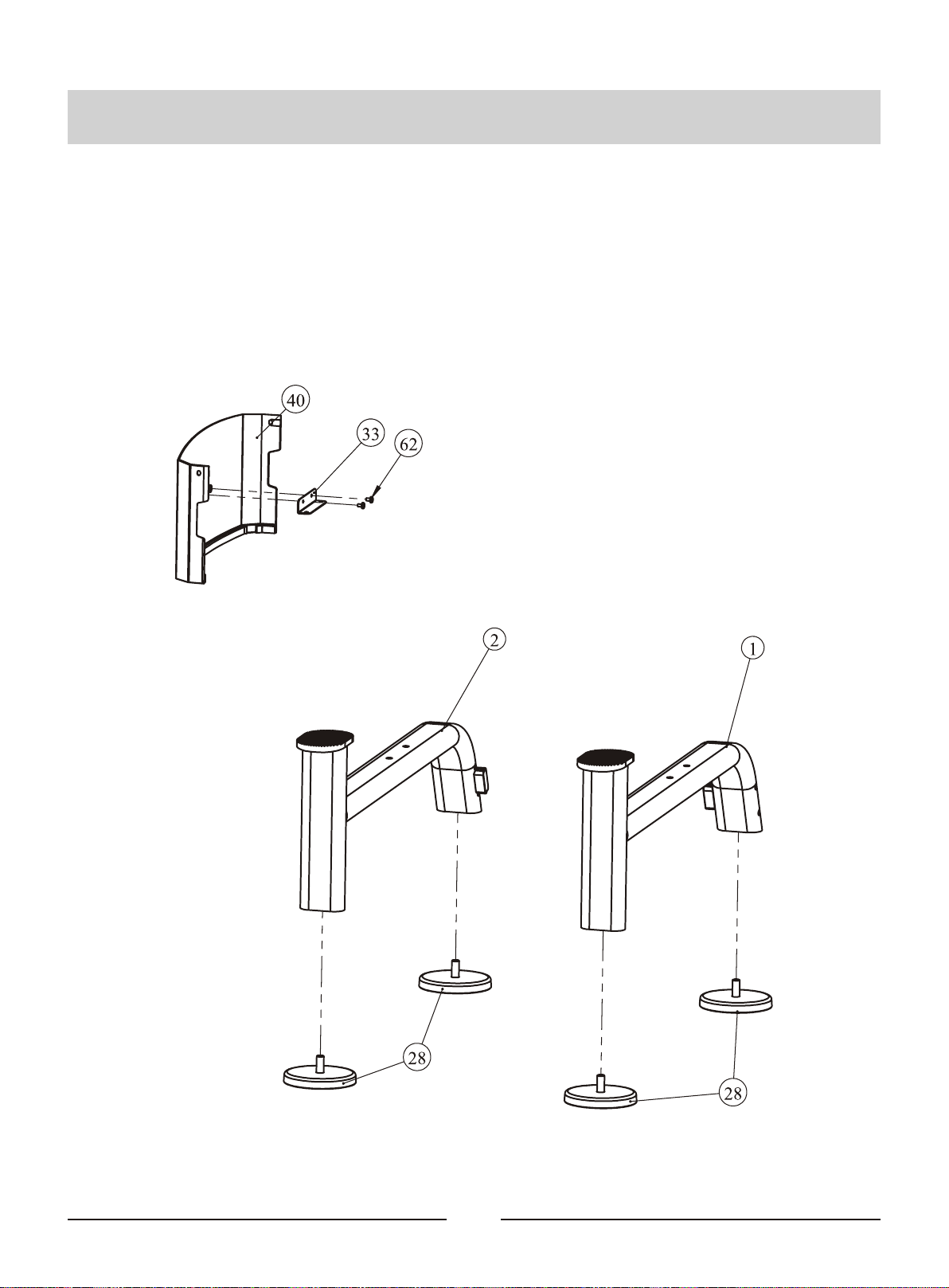

Right Bottom Frame ASSY
Left Bottom Frame ASSY
Item No. Grade No. Part No. Description QTY
1 1.1 IT95200100 Right Bottom Frame 1
2 1.2 SPT-62200 Foot Plate 1
Item No. Grade No. Part No. Description QTY
1 2.1 IT95200200 Left Bottom Frame 1
2 2.2 SPT-62200 Foot Plate 1

11

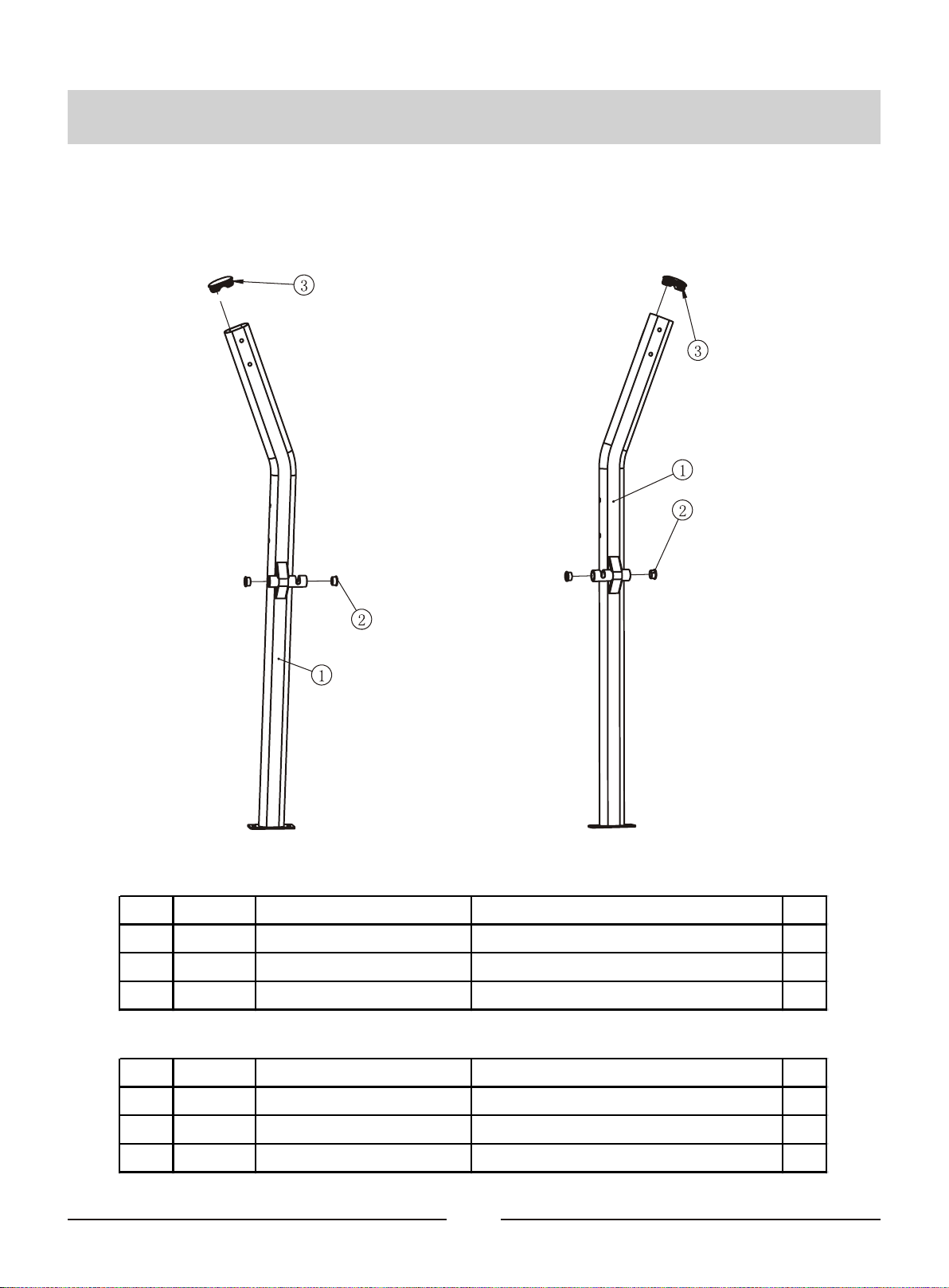

Exploded View and Parts List
Left Floorstand ASSY
Left Floorstand ASSY
Right Floorstand ASSY
Right Floorstand ASSY
Item No. Grade No. Part No. Description QTY
1 3.1 IT95200300 Left Floorstand 1
2 3.2 M02502000 Bushing φ38*φ25.4*18 2
3 3.3 IT90013800P11C Plug RT50*100 1
Item No. Grade No. Part No. Description QTY
1 4.1 IT95200400 Right Floorstand 1
2 4.2 M02502000 Bushing φ38*φ25.4*18 2
3 4.3 IT90013800P11C Plug RT50*100 1

12
Exploded View and Parts List

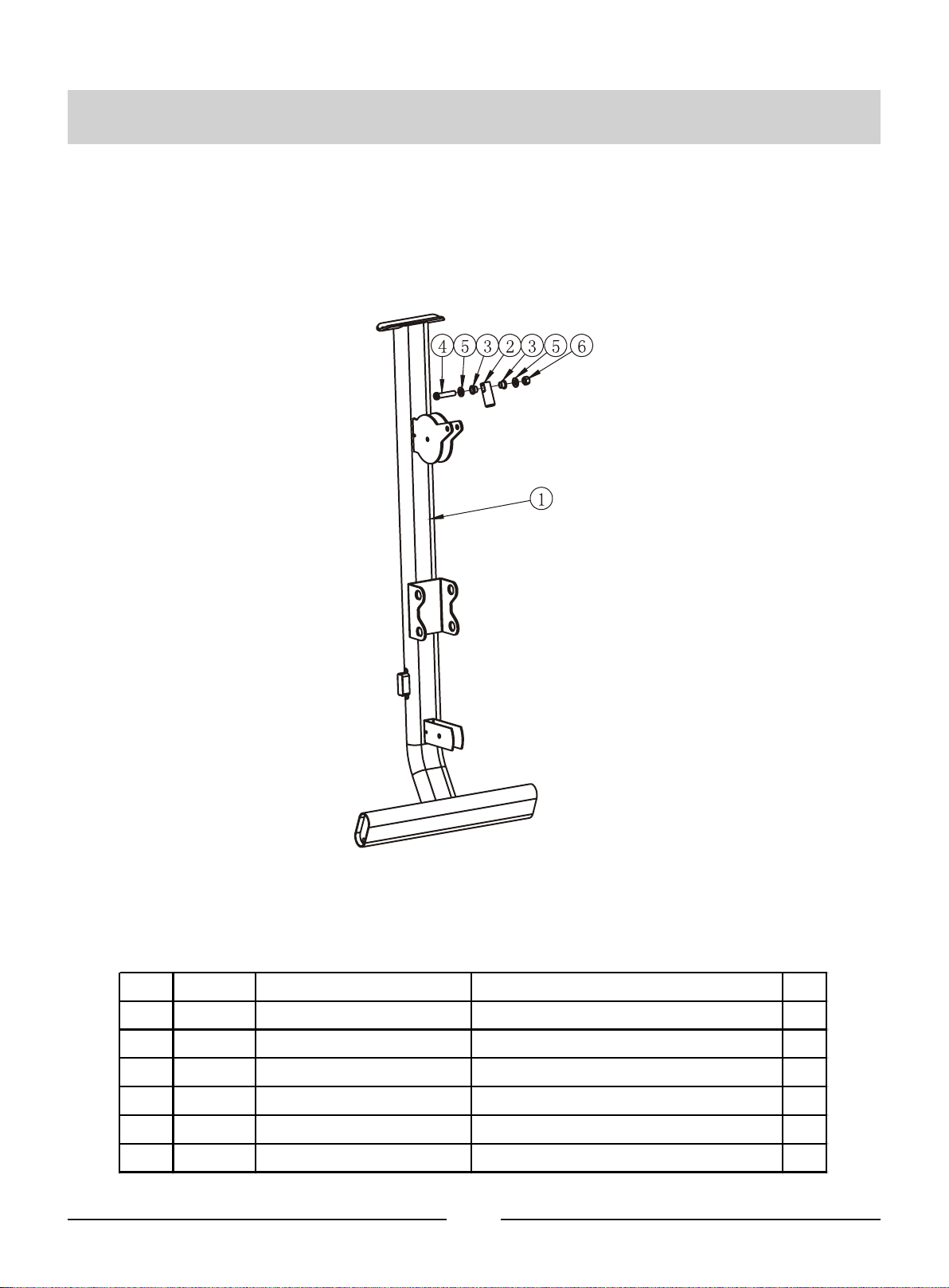

Back Floorstand ASSY
Item No. Grade No. Part No. Description QTY
1 5.1 IT95200500 Back Floorstand 1
2 5.2 ROC-IT1013600V1 Cable Connectorφ25.4*63.5*1/2"-13 1
3 5.3 BNH0528 Bushing φ22*φ16*φ12.8*12.7 2
4 5.4 GB70BTM12*55DN18 Socket Head Cap Screw M12*55 1
5 5.5 GB9512DN2 Flat Washer φ13*φ24*2.5 2
6 5.6 NM12DN2 Nylon Lock Nut M12 1

13

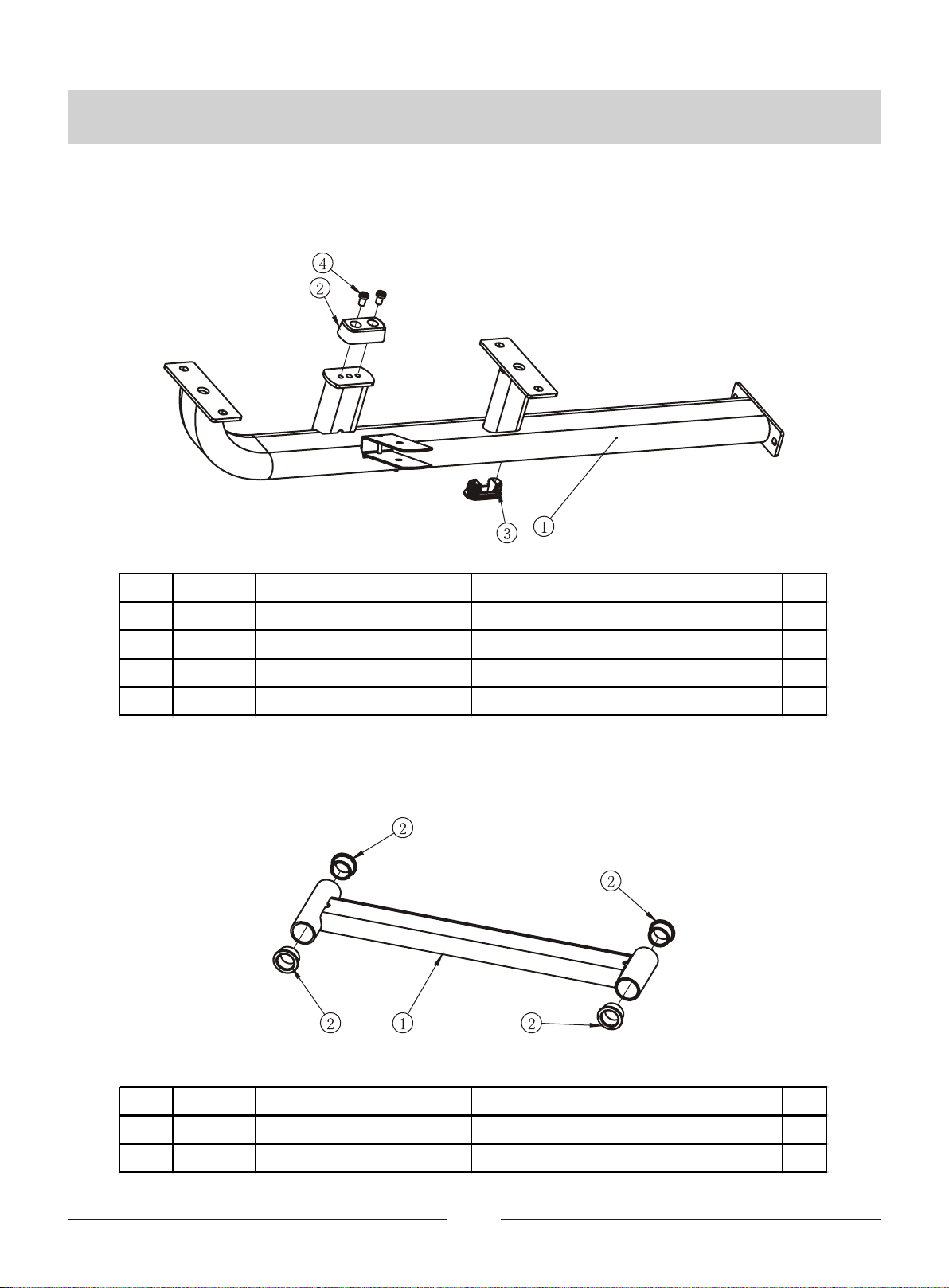

Exploded View and Parts List
Low Support Frame ASSY
Item No. Grade No. Part No. Description QTY
1 8.1 IT95200800 Low Support Frame 1
2 8.2 RS17000400 Bumper 1
3 8.3 VI21003000 Plug RT30*70 1
4 8.4 GB70BTM10*16DN18NL Socket Head Cap Screw M10*16 2
Item No. Grade No. Part No. Description QTY
1 12.1 IT95201200 Down Swing Frame 1
2 12.2 M02502000 Bushing φ38*φ25.4*18 4
Down Swing Frame ASSY

14
Exploded View and Parts List
Leg Pad Frame ASSY
Item No. Grade No. Part No. Description QTY
1 9.1 IT95200900 Leg Pad Frame 1
2 9.2 IT9322G0500 Pin ASSY 1
3 9.3 M02502000 Bushing φ38*φ25.4*18 2
4 9.4 026-01PL2565 Plug RT40*80*25 3

15
Exploded View and Parts List
Bar ASSY
Adjust Frame ASSY
Item No. Grade No. Part No. Description QTY
1 11.1 IT95201100 Adjust Frame 1
2 11.2 IT95201900 Lining Board 1
3 11.3 IN-S10111200 Rubber Sleeve φ17*10.5 2
4 11.4 GB70M8*10DS2 Socket Head Cap Screw M8*10 2
Item No. Grade No. Part No. Description QTY
1 10.1 IT95201000 Bar 1
2 10.2 IF81212700 Sun Nut 2
3 10.3 IT9030B9500 Cap φ25 2
4 10.4 CNLM10*40*40DS20NL Flat Head Cap Screw M10*40 2

16
Exploded View and Parts List

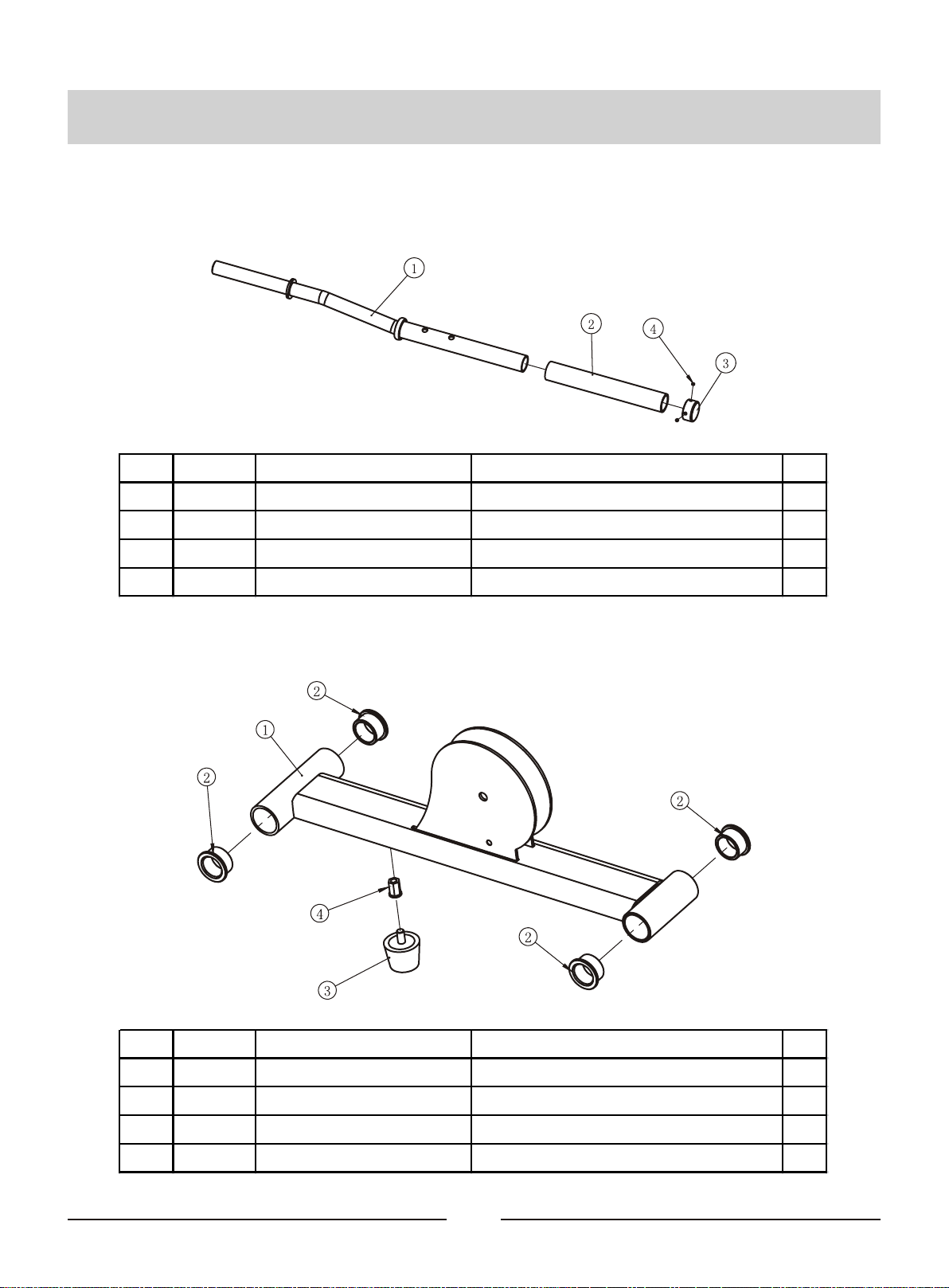

Long Bar ASSY
Item No. Grade No. Part No. Description QTY
1 14.1 IT95201400 Long Bar 1
2 14.2 026-01PL0206-29 Grip STφ36*φ29*240 1
3 14.3 V39000 Cap φ32 1
4 14.4 YZGB7710-32*3.2N19 Screw 10-32*3.2 2
Item No. Grade No. Part No. Description QTY
1 18.1 IT95201800 Up Swing Frame 1
2 18.2 M02502000 Bushing φ38*φ25.4*18 4
3 18.3 AC3170B5200V1 Bumper φ40*φ32*30 1
4 18.4 GB17880.5M8*16.5DCS17 Rivet Nut M8 1
Up Swing Frame ASSY

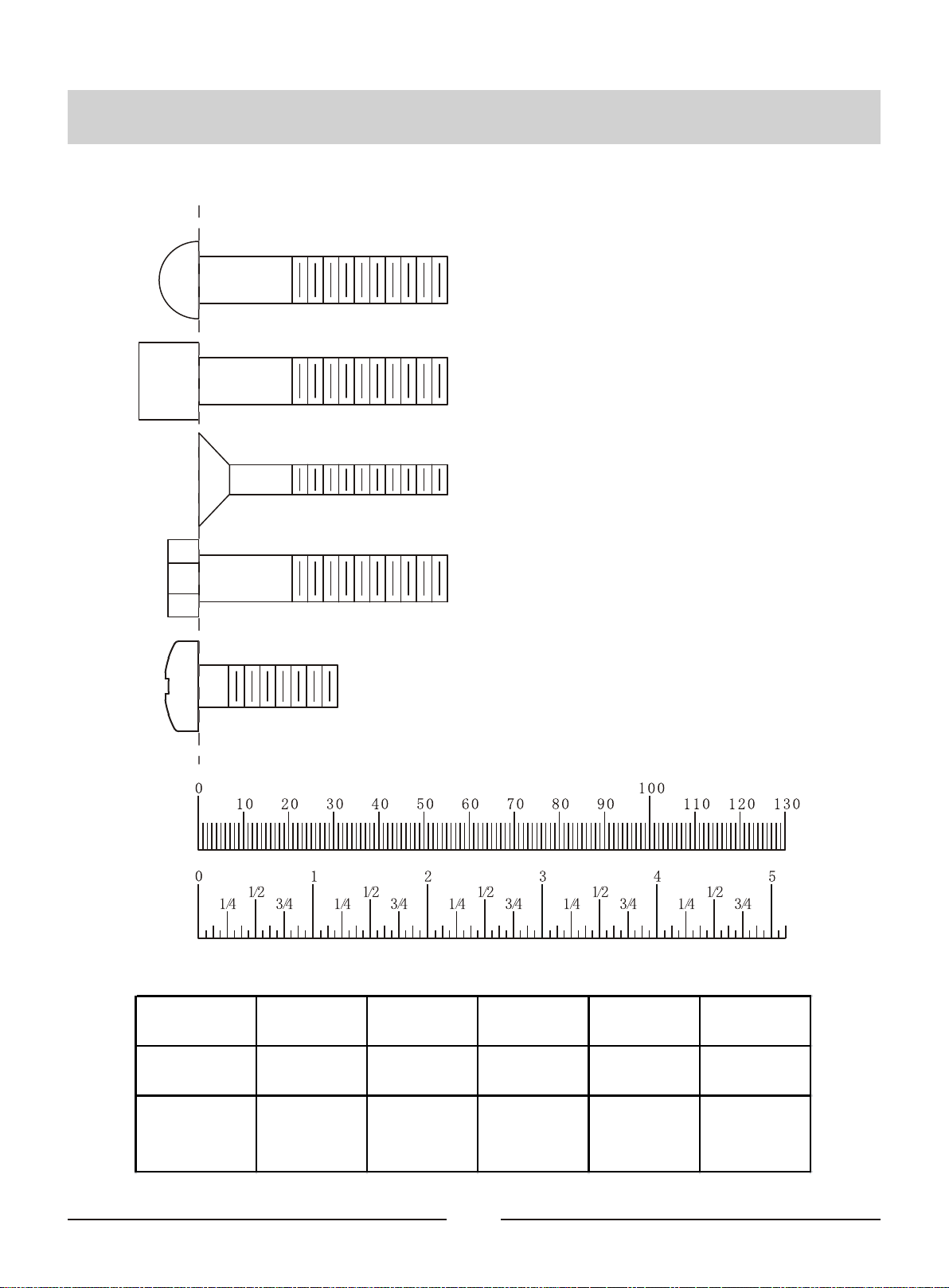

Inches
Millimeters
BHCS = Button Head Cap Screw
SHCS = Socket Head Cap Screw
FHCS = Flat Head Cap Screw
HHB = Hex Head Bolt
Measurement Guide
Diameter of bolt
(mm/inch) M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8")
Tightening
torque (N.m) 9~12 22~30 45~59 78~104 193~257
Operational
methods for
adult men
The strength of
the wrist
The strength of
the wrist and
forearm
The strength of
the entire arm
The strength of
the arm and
upper body
with all strength
17
CRPHS = Cross Recessed Pan
Head Screw

18
Assembly Instructions
Assembly of the equipment takes professional installers about 2 hours. If this
is the first time you have assembled this type of equipment, plan to spend
more time. It is strongly recommended to assemble the equipment by
professional installers. You may find it quicker, safer, easier to assemble this
equipment with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you assemble your
product in a clean, clear, uncluttered area. This will enable you to move around
the product while you are fitting components and reduce the possibility of
injury during assembly.
As with any assembled part, proper alignment and adjustment is critical. While
tightening the fasteners, be sure to leave room for adjustments. Do not fully
tighten the fasteners until instructed to do so. Be careful to assemble the
components in the sequence presented in this guide.
NOTE

STEP 1
1. Attach two Adjustable Foot Plates (#28) to the Right Bottom Frame ASSY (#1).
2. Attach two Adjustable Foot Plates (#28) to the Left Bottom Frame ASSY (#2).
3. Attach the Rear Bracket (#33) to the Top Rear Shroud (#40) using:
two M6*10 CRPHS (#62)
Note: Wrench Tighten Bolts.
Assembly
19

Assembly
20
STEP 2
Attach the Back Floorstand ASSY (#5) to the Right Bottom Frame ASSY (#1) and the Left
Bottom Frame ASSY (#2) using:
four M12*135 SHCS (#59)
four Φ13*Φ24*2.5 Flat Washer (#68)
two Plastic Cover (#24)
Note: NOT Wrench Tighten Bolts.
