Taurus TF-KABELZUG User manual

TFKABELZUG.01.01
TF-
~ 90 Min.
CM
75 kg
Assembly and Operating Instructions
Art. No. TF-KABELZUG
L 40 | W 36 | H 223
Taurus Pulley Hi-Low

2Hi-Low

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 10
2.3 Assembly 14
3 STORAGE AND TRANSPORT 21
3.1 General Instructions 21
4 TROUBLESHOOTING, CARE AND MAINTENANCE 22
4.1 General Instructions 22
4.2 Faults and Fault Diagnosis 22
4.3 Maintenance and Inspection Calendar 23
5 DISPOSAL 23
6 RECOMMENDED ACCESSORIES 24
7 ORDERING SPARE PARTS 25
7.1 Serial Number and Model Name 25
7.2 Parts List 26
7.3 Exploded Drawing 28
8 WARRANTY 29
9 CONTACT 31

4Hi-Low

5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2011 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

6Hi-Low
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions
Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.:
Box 1: 218 cm x 20 cm x 13 cm 23 kg
Box 2: 98 cm x 38 cm x 11 cm 17.5 kg
Box 3: 28 cm x 15 cm x 18 cm 35 kg
Set-up dimensions (L x W x H) approx.: 40 cm x 36 cm x 223 cm
Article weight (net, excl. packaging) approx.: 74.5 kg
Weight block
Weight block: 1 (40 kg)
Weight plates: 16 (2.5 kg each)
Cables und Pulleys
Cable length: 808 cm
Cable material: Steel
Cover material: PU
Pulleys: 90 mm, 115 mm
Transmission ratio: 1:1

8Hi-Low
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9

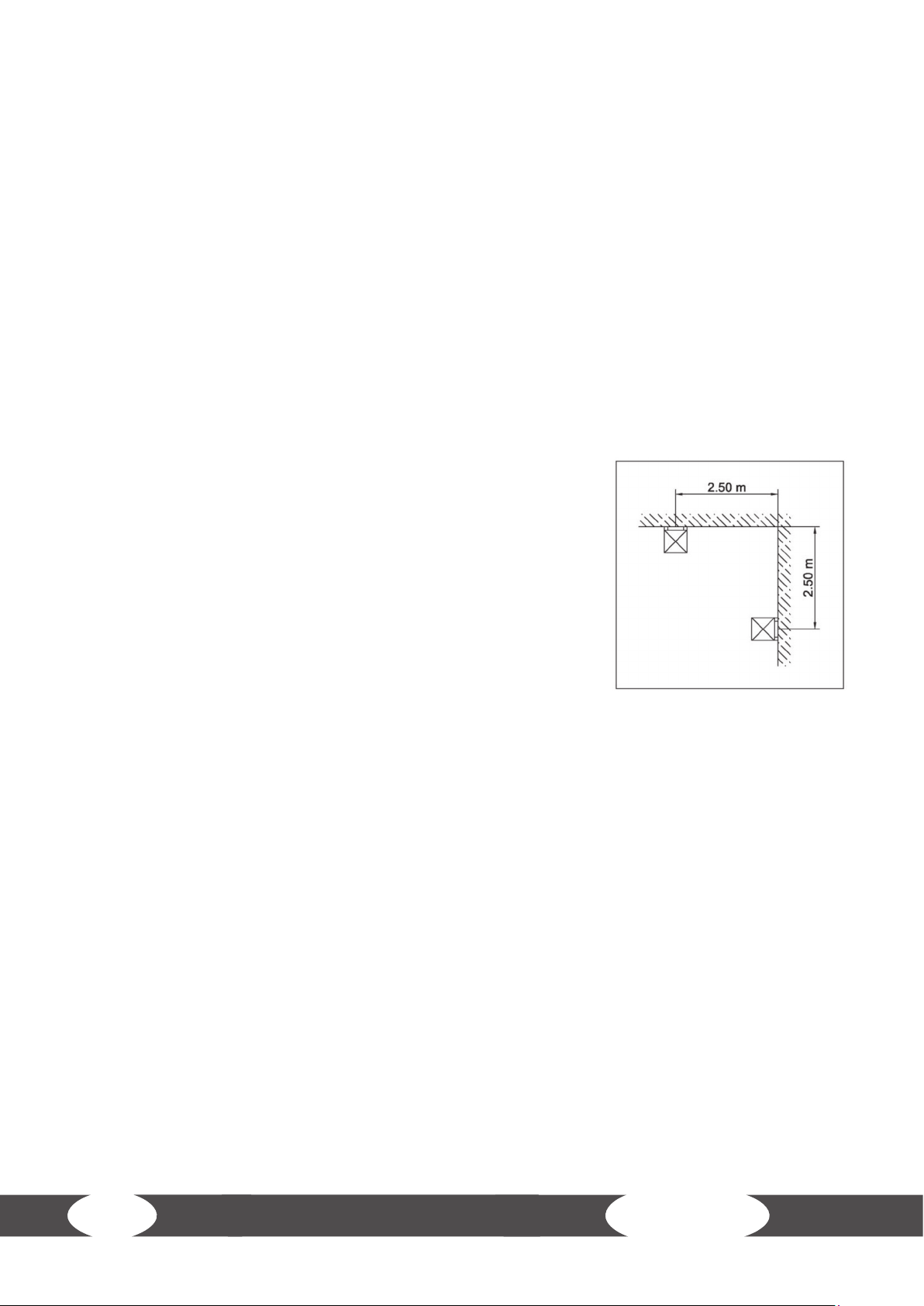

1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10 Hi-Low
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.
2.2 Scope of Delivery

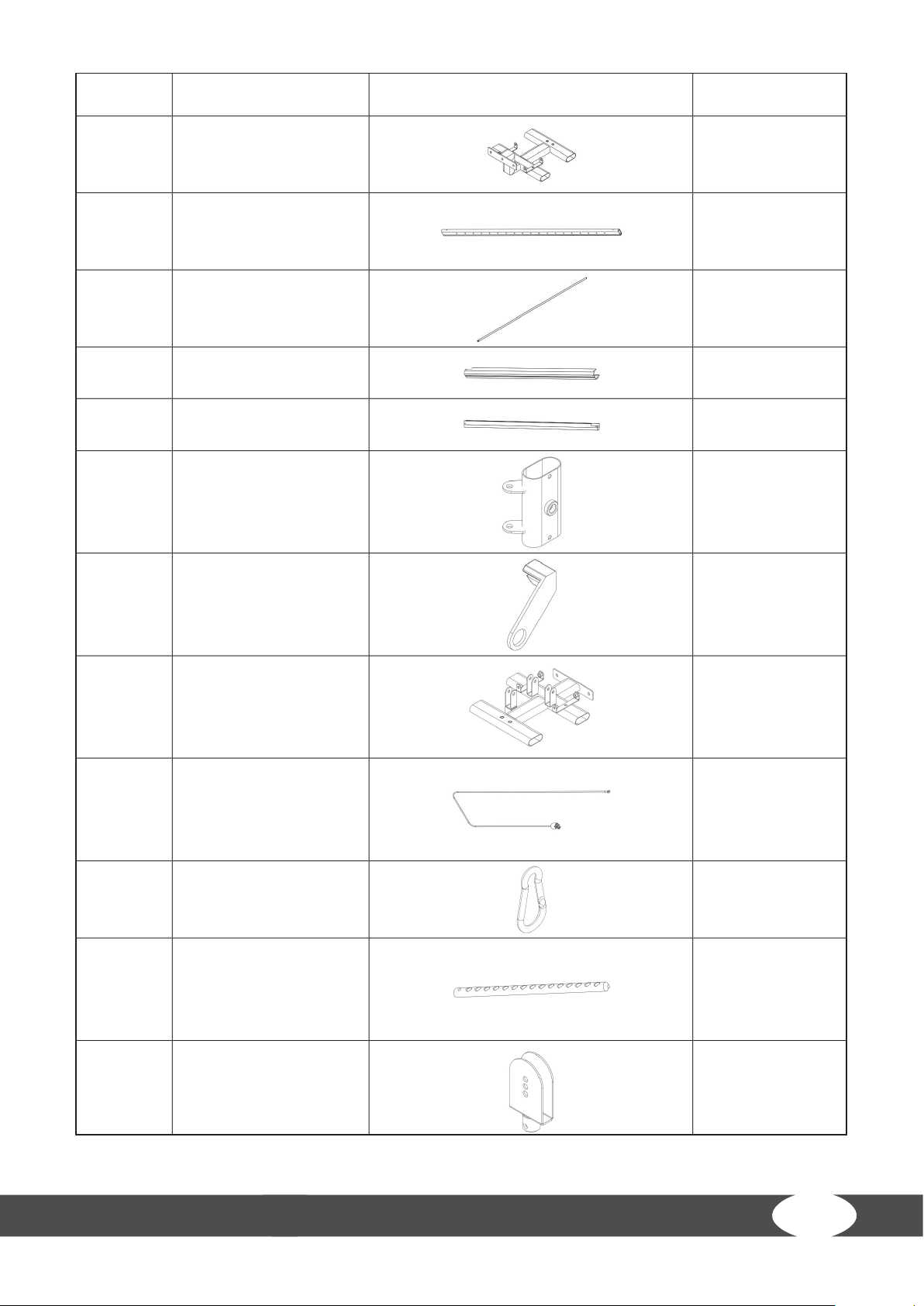

The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

1
1
1
1
2
1
1
1
5
1
1
2
1
2
3
4
5
6
7
8
9
10
11
12
11

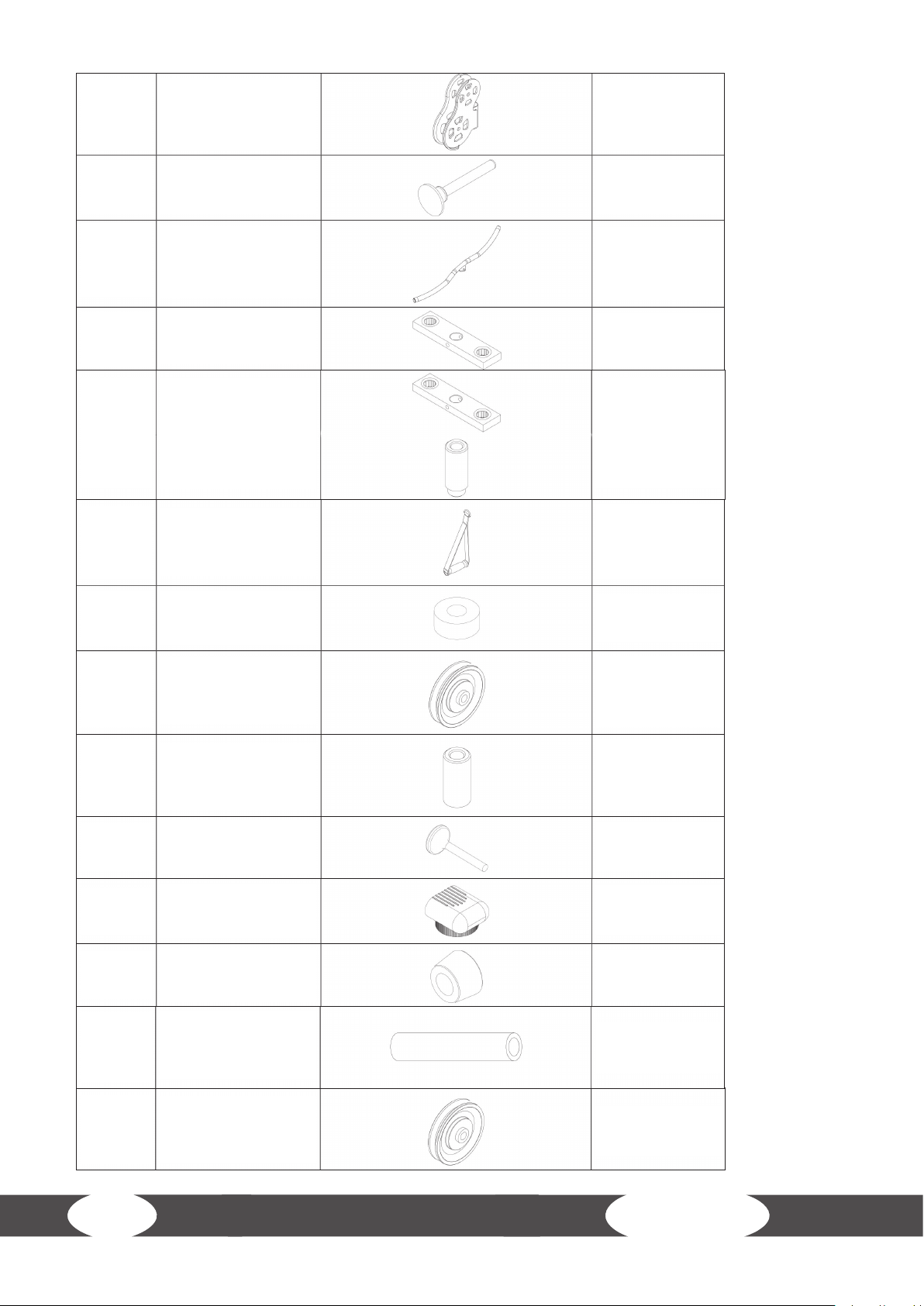

Number Description Quantity
Bottom base
Upright frame
Guide rod
Left cover
Right cover
Upper slide block
Cable slide
Upper beam
Cable
Hook
Selector shaft
Pulley block

2
13
1
14
15
16
16
&
17
18
19
20
22
24
27
28
37
38
1
15
1
&
2
2
2
8
1
1
4
2
2
2
12 Hi-Low
Double pulley block
Pin
Long lat bar
Heavy weight plate
Heavy weight plate
with pre-mounted
plastic bushing for
top plate
Handle strap
Rubber donut
Pulley
Nylon lock
bushing
Plastic head bolt
Oval end cap
Buer
Shaft
Large pulley

30
31
32
33
34
35
36
8
8
8
2
2
2
1
13

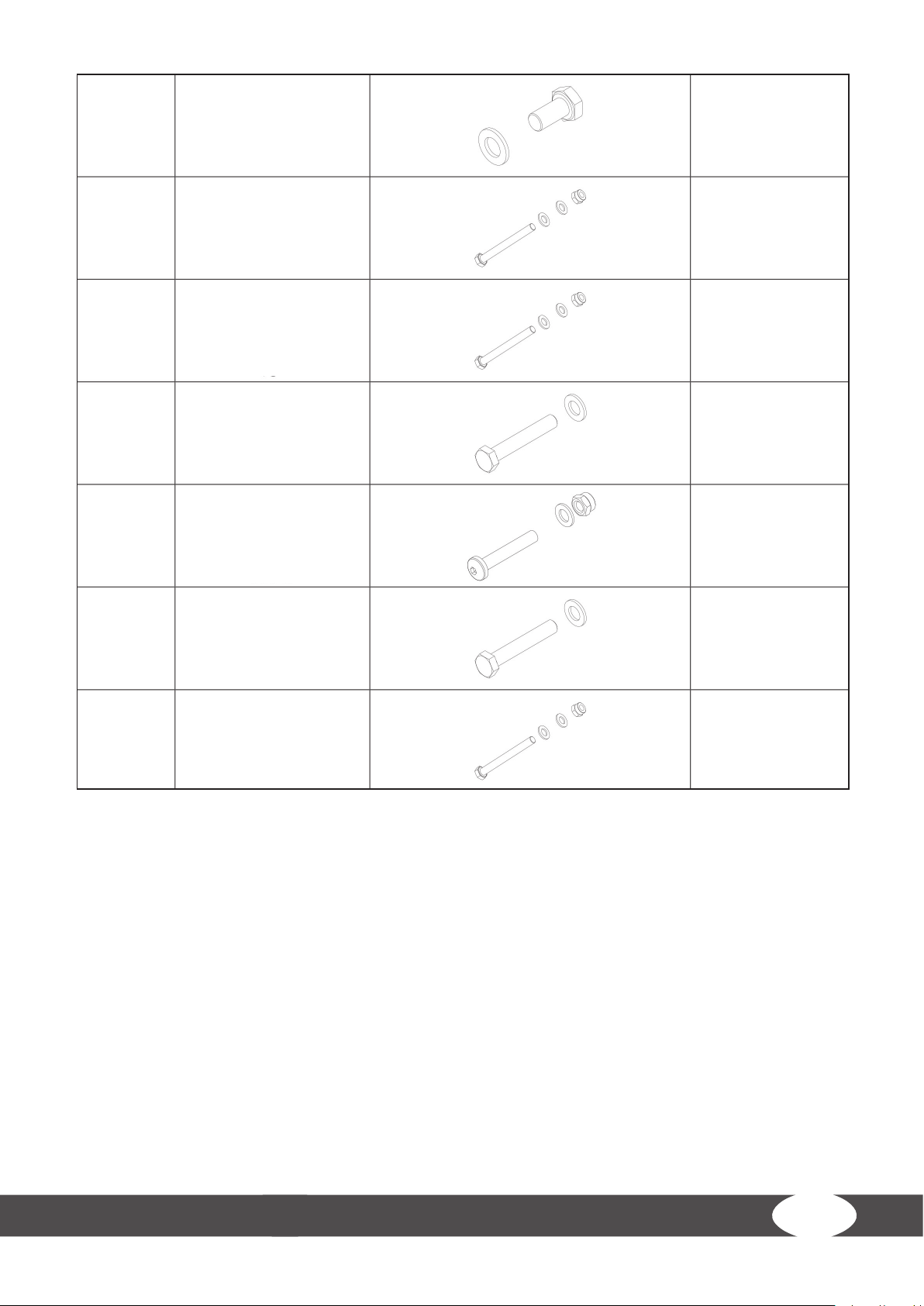

Bolt M8*12
+
washer
Bolt M10*50 +
washers +
lock nut
Bolt M10*110 +
washer + bend washer
+ lock nut
Bolt M8*50
+
washer
Cross pad head screw
M8*50 + washer +
lock nut
Bolt M8*55
+
washer
Bolt M10*105 +
washers + lock nut

14 Hi-Low
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

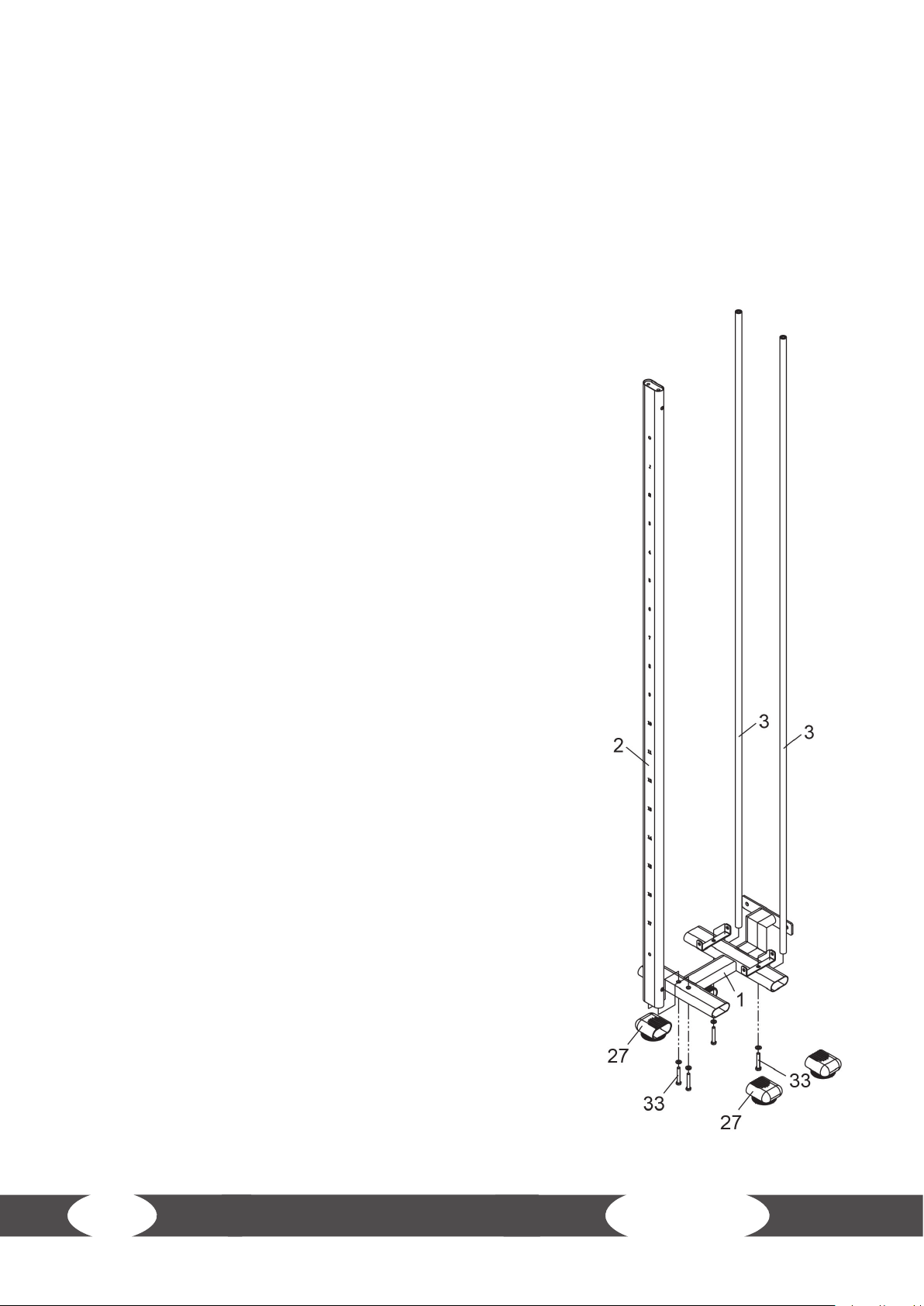

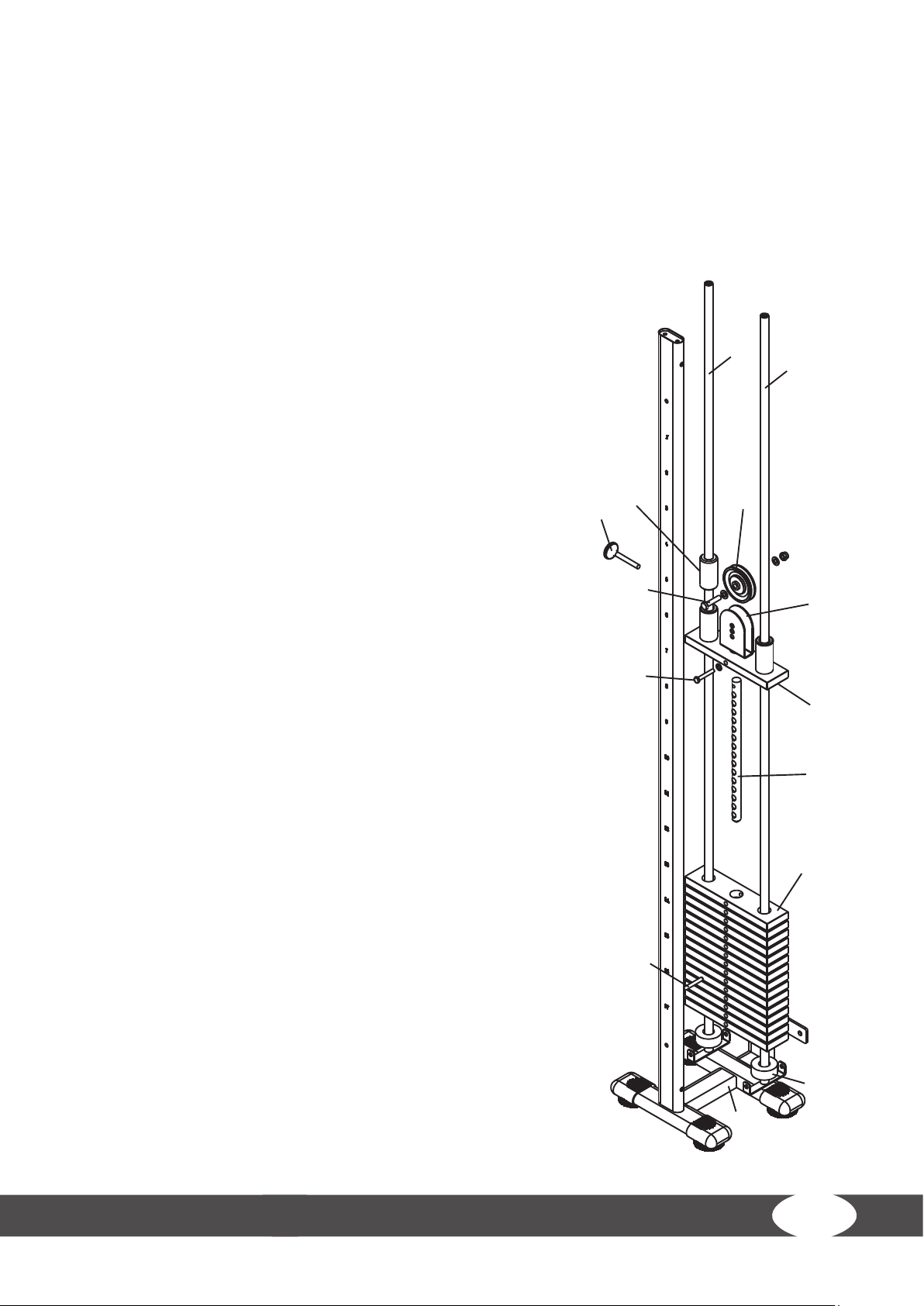

Step 1: Assembly of the Bottom Base, Upright Frame and Guide Rods
1. Attach four oval end caps (27) to the bottom base (1).
LNOTICE
For the next steps, it can be helpful to tilt the bottom base and
mount the upright frame and guide rods sideways.
2. Attach the guide rods (3) to the bottom base (1) with one bolt
assembly (33) each.
3. Attach the upright frame (2) to the bottom base (1) with two
bolt assemblies (33).
4. Tighten the bolts.

35
12
14
11
16
19
1
3
3
24
31
20
22
16
15

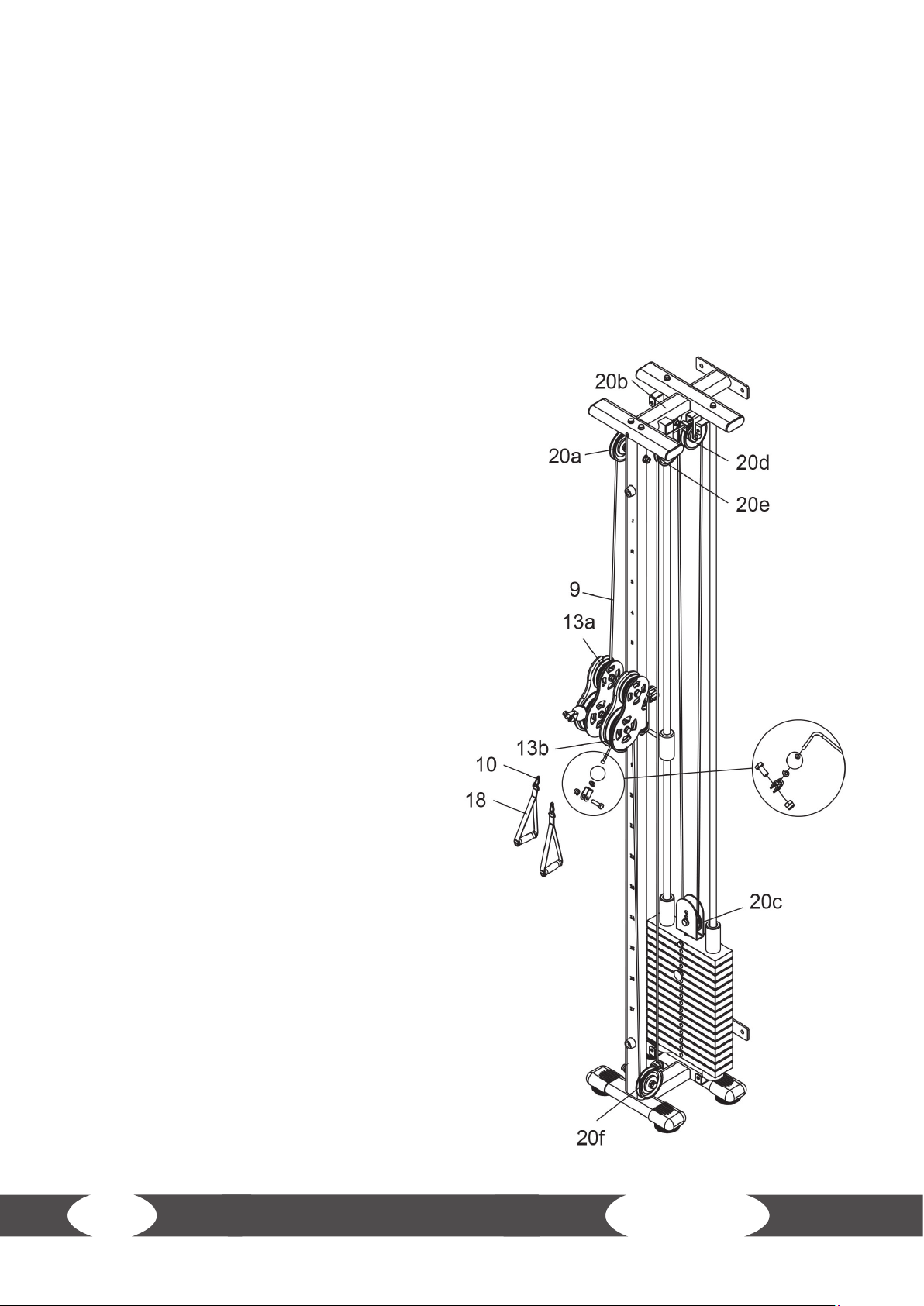

Step 2: Assembly of the Weight Stack
1. Slide two rubber donuts (19) over the guide rods (3).
2. Carefully slide each of the heavy weight plates (16) over the guide rods (3).
3. Attach the selector shaft (11) and the pulley block (12) to the top weight plate (16) with one bolt
assembly (35).
4. Tighten the bolt assembly (35).
5. Carefully slide the top weight plate (16) over the guide rods (3).
6. Insert the pin (14) into one of the weight plates (16).
7. Attach one pulley (20) to the pulley block (12) with one bolt
assembly (31).
8. Slightly screw in the plastic bolt head (24) into the nylon
lock bushing (22) and slide the nylon lock bushing (22) over
one of the guide rods (3).

16 Hi-Low

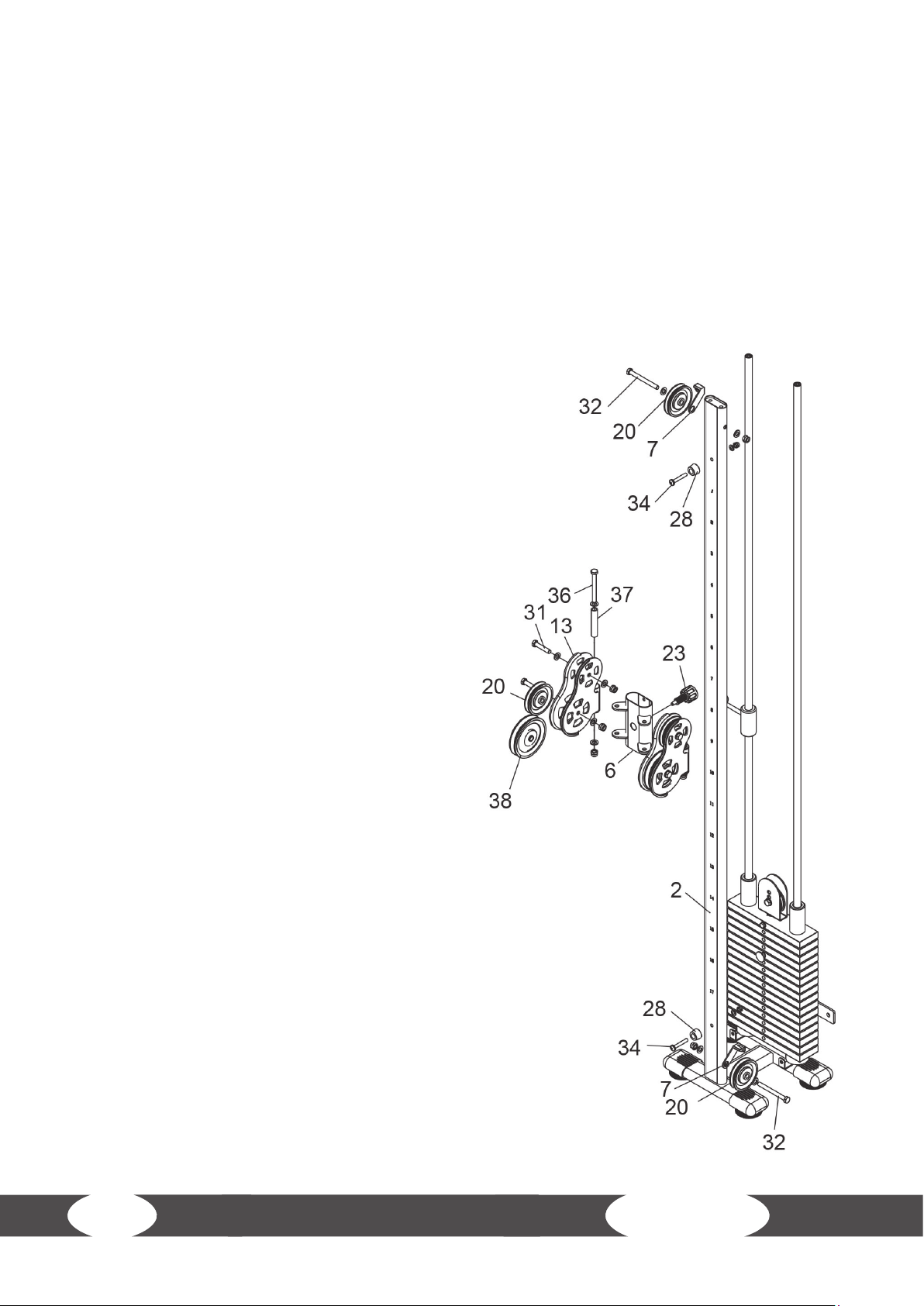

Step 3: Assembly of the Double Pulley Blocks and Pulleys

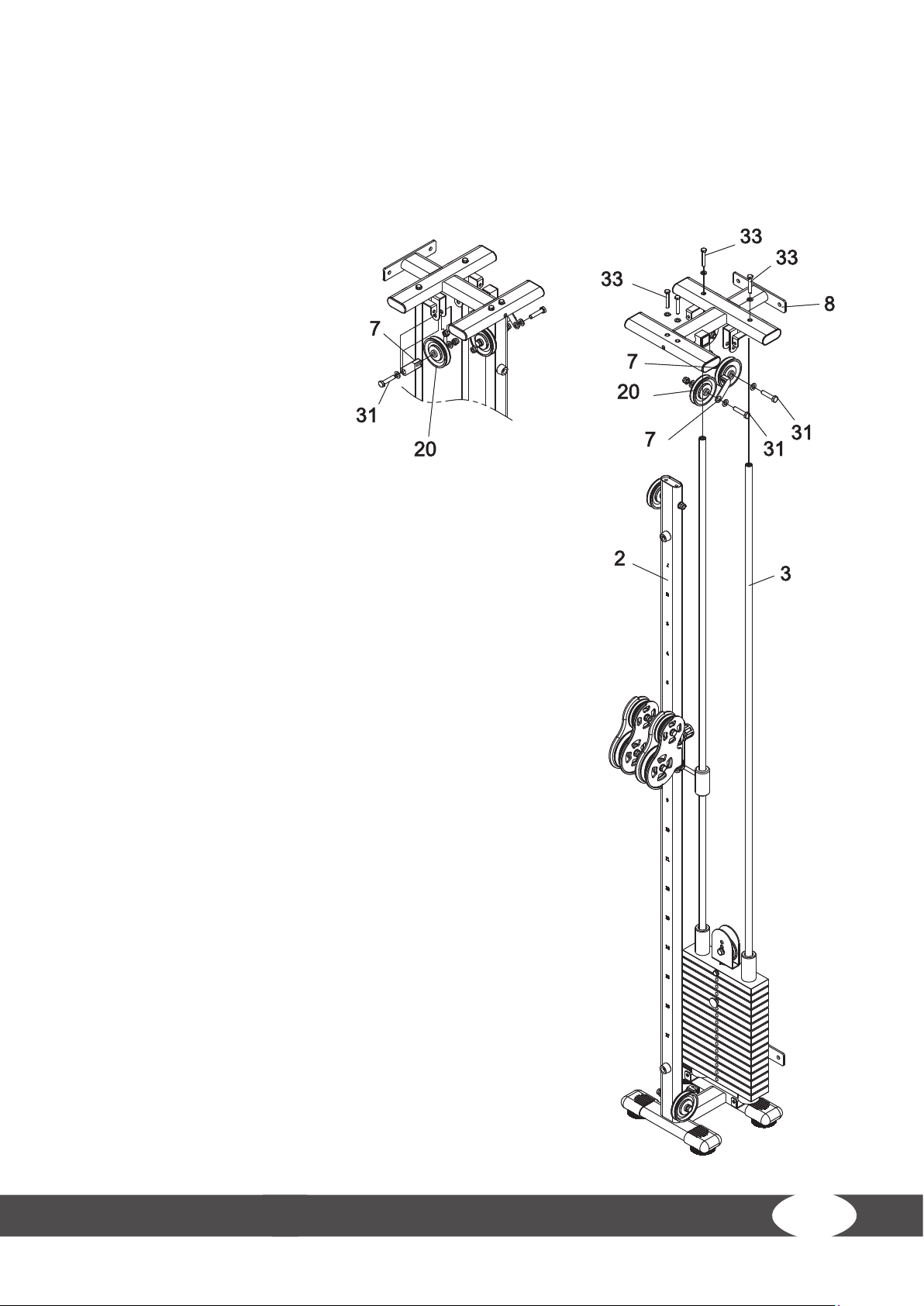

1. Attach the double pulley blocks (13) to the upper slide block (6) with one shaft (37) and one bolt
assembly (36) each.
2. Tighten the bolts and nuts (36).
3. Slightly pull the fast pin (23) and slide the upper slide block (6) over the upright frame (2).
4. Tighten the fast pin (23) again and make sure it engages in one of the holes on the upright
frame (2).
5. Attach one pulley (20) and one large pulley (38) to each double pulley block (13) with one bolt
assembly (31) each.
6. Attachonepulley(20)along withonecableslide (7)tothetopand bottomoftheupright frame(2)
with one bolt assembly (32) each.
7. Attach one buer (28) to the top and bottom
of the upright frame (2) with one bolt
assembly (34) each.

17
Step 4: Assembly of the Upper Beam and Pulleys
1. Attach the upper beam (8) to the upright frame (2) and guide rods (3) with four bolt assemblies
(33).
2. Attach three pulleys (20) along with three cable slides (7) to the upper beam (8) with one bolt
assembly (31) each.

18 Hi-Low
Step 5: Cable Routing
LNOTICE
To perform the cable routing, you might need to loosen some of the pulleys.
1. Detach the ball ends of the cable (9) and place one end of the cable under the upper pulley in
the double pulley block (13a).
2. Reattach the ball end to the cable (9) in this position to ensure the cable (9) does not pull
through.
3. Pass the cable (9) up and over the pulleys (20a) and (20b).
4. Pass the cable (9) down and under the pulley (20c).
5. Pass the cable (9) up and over the pulleys
(20d) and (20e).
6. Pass the cable (9) down and under the pulley
(20f).
7. Pass the cable (9) up and over the lower
pulley in the double pulley block (13b).
8. Reattach the other ball end to the cable (9).
9. Attacth the handle straps (18) and hooks (10)
to the cable ends (9).
10. Tighten all bolts and nuts.
Cable Adjustment
If the cable is too tight or too loose, you can adjust
the tension by changing the locking position of
the pulley mounted in the pulley block (20c).

19

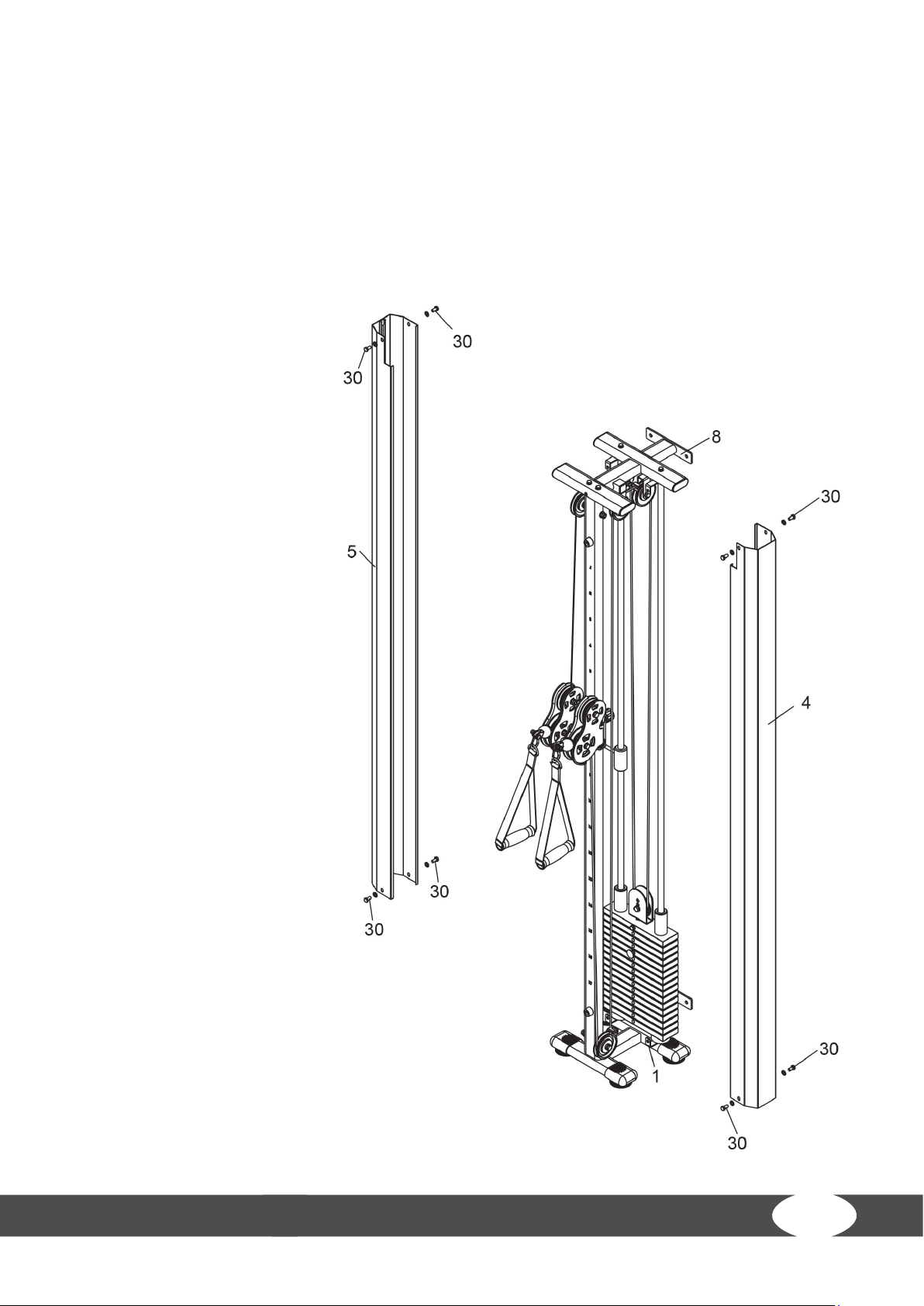

Step 6: Assembly of the Covers
1. Remove the plastic bolt head (24) from the nylon lock bushing (22).
2. Attach the left cover (4) to the bottom base (1) and upper beam (8) with four bolt assemblies
(30).
3. Attach the right cover (5) to the bottom base (1) and upper beam (8) with four bolt assemblies
(30).
4. Reattach the plastic bolt head (24) to the nylon lock bushing (22).
5. Tighten the bolts.

20 Hi-Low
Step 7: Wall Mounting
࣑ATTENTION
The supplied assembly material for wall mounting is not suitable for every wall. Pay attention to
the condition of your wall to determine which assembly material is suitable for your wall.
The contractual partner accepts no liability for any damage to the wall.
Make sure that there are no cables or wires running in the wall where you attach the training
equipment.
LNOTICE
+ The supplied assembly material is not suitable for every wall, so you may need to get
assembly material that is suitable for your wall.
+ It is recommended to keep at least 2.5 m free space around the equipment.
