Taurus SEATED LEG CURL IT95 User manual

Owner‘s Manual
TF-IT9506
SEATED LEG CURL IT95
TAURUS® is a registered brand of the company Sport-Tiedje GmbH.
All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

Table Of Contents
CAUTION!
Read all precautions and instructions in this manual before using this equipment.
Please assemble according to the actual Weights you buy !
Important Safety Instructions----------------------------------------------------------- 3
Instructions-------------------------------------------------------------------------------- 5
Exploded View and Parts List------------------------------------------------------------ 6
Measurement Guide--------------------------------------------------------------------- 17
Assembly Instructions------------------------------------------------------------------ 18
Assembly--------------------------------------------------------------------------------- 19
Adjust Instructions---------------------------------------------------------------------- 33
Exercise Instructions-------------------------------------------------------------------- 34
Maintenance Schedule------------------------------------------------------------------ 35
General Maintenance Information----------------------------------------------------- 36
Weight Training Tips-------------------------------------------------------------------- 37

3
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete physical
examination from your physician. When using exercise equipment, basic
precautions should always be taken, including the following:
1. Read all instructions before using the equipment.
These instructions are written to ensure your safety and to protect the unit.
2. Use the equipment only for its intended purpose as described in this guide.
Do not use accessory attachments that are not recommended by the
manufacturer: such attachments might cause injuries.
3. The product should only be used on a level surface and is with 0.5 meters
space around the product.
Do not use the equipment outdoors.
4. Do not allow children on or near the equipment. And children are not allowed
to use this equipment.
Teenagers should use this equipment with adult supervision.
5. Do not overexert yourself or work to exhaustion.
Do not attempt to lift more weight than you can control safely.
If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
6. This equipment is not used as medical apparatus and instruments.
7. Never operate the unit when it has been dropped or damaged.
Never drop or insert anything into any opening in the equipment.
Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
Frayed or worn cables can be dangerous and may cause injury. Periodically
check these cables for any indication of wear.
Keep hands, limbs, loose clothing and long hair well out of the way of moving
parts.
8. Be careful when getting on or off the equipment.
9. Wear proper exercise clothing and shoes for your workout, no loose clothing.

Specifications
Class: S
Maximum Wt. Capacity: 134kg/ 295lbs
Maximum User Weight: 150kg/ 330lbs
Product Total Surface: 1536*1187mm
Product Total Mass: 149.6kg/ 330lbs
Training Area and Free Area
4
Important Safety Instructions
Personal Safety During Assembly
Read each step in the assembly instructions and follow the steps in sequence.
Do not skip ahead. If you skip ahead, you may learn later that you have to
disassemble components and that you may have damaged the equipment.
Assemble and operate the equipment on a solid, level surface. Locate the unit
a few feet from walls or furniture to provide easy access. The equipment is
designed for your enjoyment. By following these precautions and using
common sense, you will have many safe and pleasurable hours of healthful
exercise with the equipment.

5
Instructions
Tools Required
The equipment is designed to provide the smoothest, most effective exercise
motion possible. After assembly, you should check all functions to ensure correct
operation. If you experience problems, first recheck the assembly instructions to
locate any possible errors made during assembly. If you are unable to correct the
problem, call your authorized dealer. Be sure to have your serial number and this
manual when calling. When all parts have been accounted for, continue on.
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
Phillips Screwdriver
Before beginning assembly please take the time to read instructions thoroughly.
Please use the various lists in this manual to make sure that all parts have been
included in your shipment. When ordering, use part number and description from
the lists. Use only our replacement part when servicing. Failure to do so will void
your warranty and could result in personal injury.

6
Exploded View and Parts List

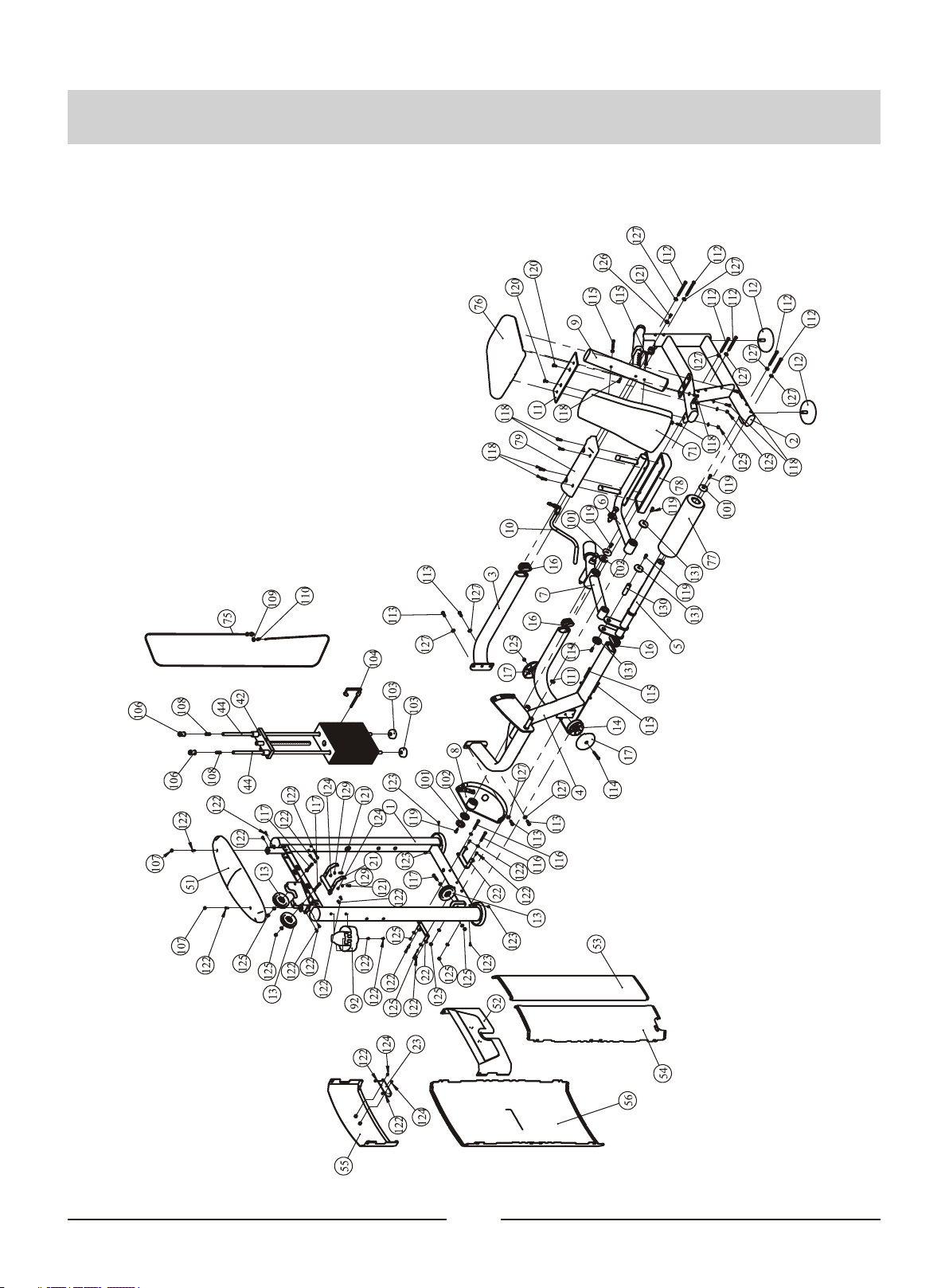

Overall
Item No. Grade No. Part No. Description QTY
1 1 IT950601ASSY Weight Stack Frame ASSY 1
2 2 IT950602ASSY Main Frame ASSY 1
3 3 IT95060300 Rear Connection Frame 1
4 4 IT950604ASSY Front Support Frame ASSY 1
5 5 IT95060500 FOAM Frame 1
6 6 IT950606ASSY Thigh Frame ASSY 1
7 7 IT950607ASSY Swing Frame ASSY 1
8 8 IT950608ASSY Wheel Frame ASSY 1
9 9 IT950508ASSY Back Pad Frame ASSY 1
10 10 IT950510ASSY Adjustable Handle Frame ASSY 1
11 11 CWRVL0101100 Plate 1
12 12 SD1000B3000ASSY Adjustable Foot Plate 2
13 13 SG500110400V5 4.5" Pulley 3
14 14 PL90101200 V-type Pulley 1
15 16 IT95016000 Plastic Cover 3
16 17 IT95016400 Pulley Cover 2
17 21 IT950121ASSY Top Bracket ASSY 1
18 22 IT950122ASSY Bottom Bracket ASSY 2
19 23 IT95012300 Rear Bracket 1
20 42 IT95014200 Top Plate 1
21 44 IT95014400 Guide Rod Φ19*1242 2
22 51 IT95015100 Top Cover 1
23 52 IT95015200 Training Placard Cover 1
24 53 IT95015300 Front Shroud 1
25 54 IT95055400 Left Front Shroud 1
26 55 IT95015500 Top Rear Shroud 1
27 56 IT95015600 Rear Shroud 1
28 71 IT950171ASSY Back Pad ASSY 1
29 75 IT95067500 Cable ASSY 1
30 76 IT95057600 Seat Pad 1
31 77 IE950528ASSY FOAM ASSY 1
32 78 IT95067600 Thigh Pad 1
33 79 IT95067300 Thigh Pad Shroud 1
34 92 IT801210300P11C Cup Holder 1

7
Exploded View and Parts List
Overall
Item No. Grade No. Part No. Description QTY
35 101 FE97211900 Cap Φ60 3
36 102 FE97212000 Circle Ring Φ62.5*5 2
37 103 IT80023000 Weight Rubber Bumper 2
38 104 IT90012000V1 Selector Pin W/Coil 1
39 106 IT95016100 Guide Rod Fixing SleeveΦ25*Φ19*45 2
40 107 IT95016500 Spout Plug Φ16.5*6.88 2
41 108 HFOPT900-04A0602 Spring 2
42 109 V22500 Plug 1
43 110 HFOPT900-04A1400 Aluminium Sheath 1
44 111 GB894.125FH12 Circlips For Shaft 1
45 112 GB70BTM12*135DN18 Socket Head Cap Screw M12*135 6
46 113 GB70BTM12*30DN18 Socket Head Cap Screw M12*30 4
47 114 GB70BTM10*70DN18 Socket Head Cap Screw M10*70 1
48 115 GB70BTM10*80DN18 Socket Head Cap Screw M10*80 4
49 116 GB70BTM10*75DN18 Socket Head Cap Screw M10*75 2
50 117 GB70BTM10*50DN18 Socket Head Cap Screw M10*50 3
51 118 GB70BTM10*30DN18 Socket Head Cap Screw M10*30 9
52 119 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 6
53 120 CNLM10*25DS20 Flat Head Cap Screw M10*25 2
54 121 GB70M8*20N19 Socket Head Cap Screw M8*20 3
55 122 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 18
56 123 GB818M6*16DHS2 Cross Recessed Pan Head Screw M6*16 4
57 124 GB818M6*10DHS2 Cross Recessed Pan Head Screw M6*10 4
58 125 NM10DN2 Nylon Lock Nut M10 10
59 126 DQ8DS2B Flat Washer Φ9*Φ28*2 1
60 127 GB9512DN2 Flat Washer Φ13*Φ24*2.5 10
61 128 GB9510DN2 Flat Washer Φ11*Φ20*2 22
62 129 GB958DN2 Flat Washer Φ9*Φ16*1.6 2
63 130 IT95062400 Shaft 1
64 131 IT95062000 Cap ASSY 3
65 132 NBS6DHS Hex Key S=6 1
66 133 NBS8DHS Hex Key S=8 1
67 134 LW200BS Wrench Φ6*117 1
68 135 YHY Lube 1

8
Exploded View and Parts List
Overall

9
Exploded View and Parts List

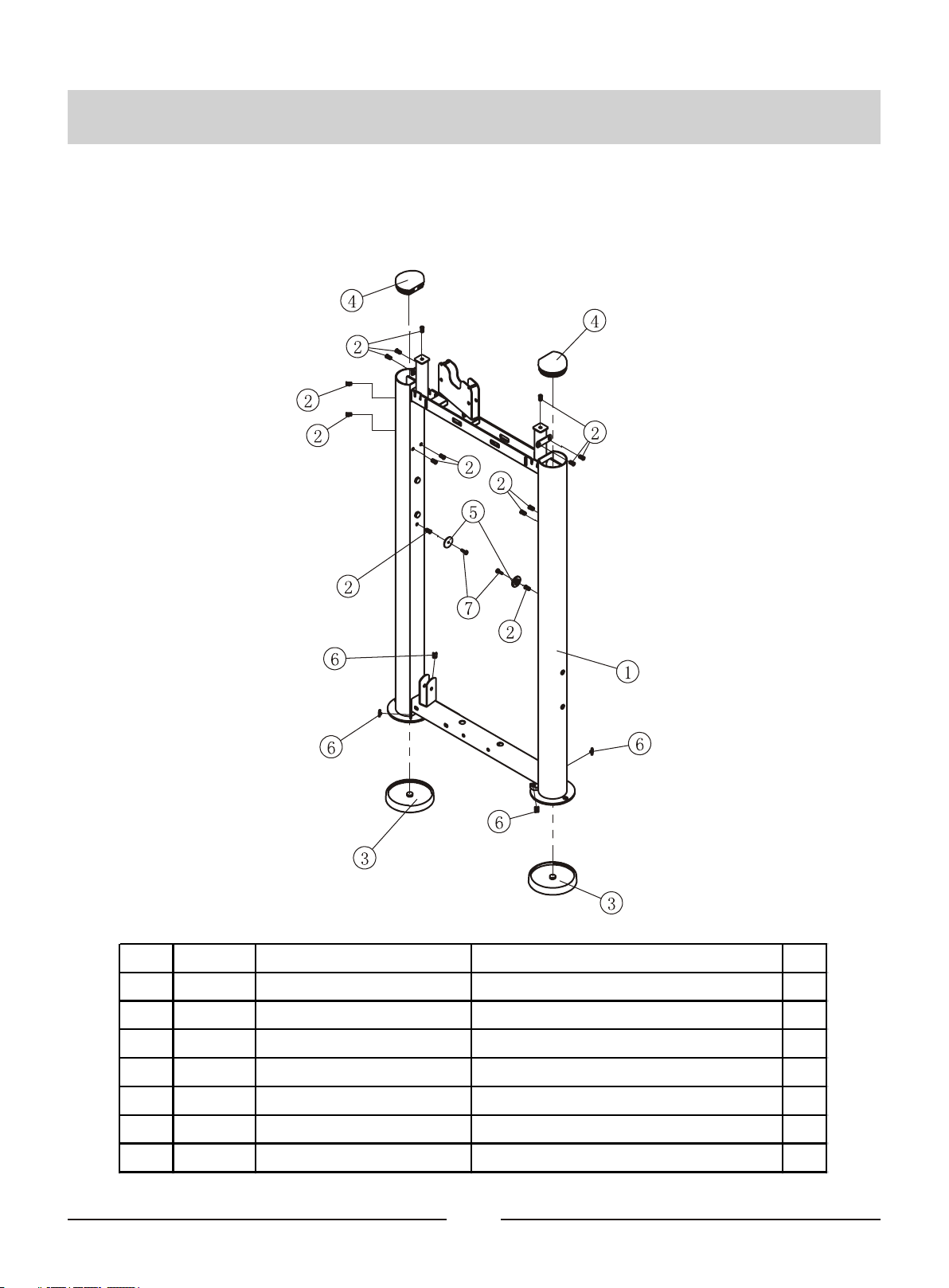

Weight Stack Frame ASSY
Item No. Grade No. Part No. Description QTY
1 1.1 IT95060100 Weight Stack Frame 1
2 1.2 GB17880.5M6*16.5DS17 Rivet Nut M6 14
3 1.3 IT95015700 Foot Plate 2
4 1.4 IT95015800 Plug Φ95*81.1 2
5 1.5 IT95015900 Plastic Block 2
6 1.6 AC32705800 U-nut M6 4
7 1.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 2

10
Exploded View and Parts List
Main Frame Sub ASSY
Item No. Grade No. Part No. Description QTY
1 2.1 IT95060200 Main Frame 1
2 2.2 IT95054300 Aluminum Tube Guide 1
3 2.3 IT95016300 Plastic Corner Tube Glide 4
4 2.4 IT95016200 Plastic Tube Plug 2
5 2.5 GB956DN2 Flat WasherΦ6.6*Φ12*1.6 1
6 2.6 GB70M6*10N19 Socket Head Cap Screw M6*10 1
7 2.7 HVCORE5300 Bushing Φ19 2
8 2.8 IT90013800P11C Plug RT50*100 2

11
Exploded View and Parts List

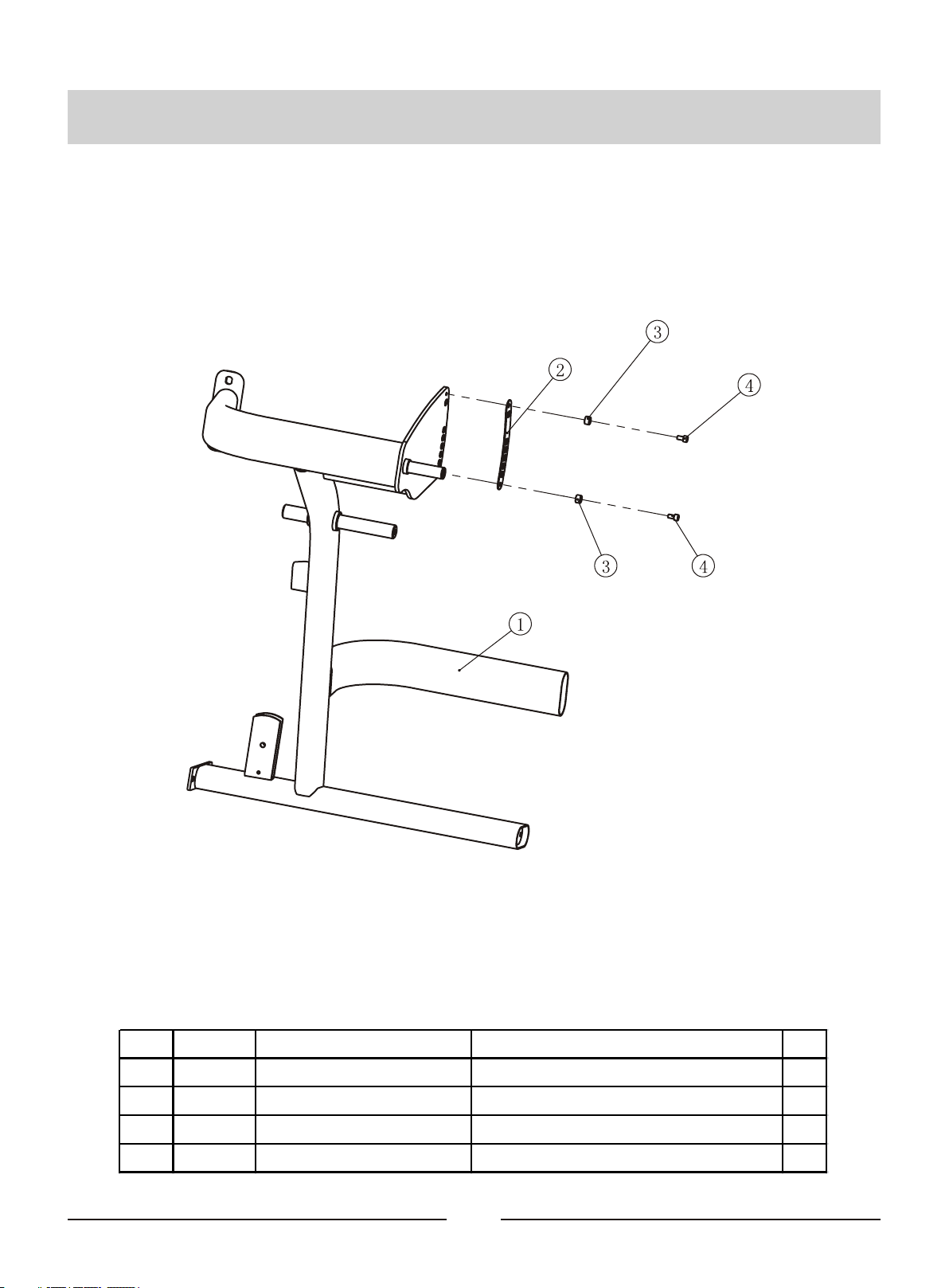

Front Support Frame ASSY
Item No. Grade No. Part No. Description QTY
1 4.1 IT95060400 Front Support Frame 1
2 4.2 IT95062300 Lining Board 1 1
3 4.3 IN-S10111200 Rubber Sleeve Φ17*10.5 2
4 4.4 GB70M8*15N19NL Socket Head Cap Screw M8*15 2

12
Exploded View and Parts List
Thigh Frame ASSY
Item No. Grade No. Part No. Description QTY
1 6.1 IT95060600 Thigh Frame 1
2 6.2 IT95021600 Long Pin 1
3 6.3 026-01PL0206-12 Grip 2
4 6.4 V39600 Aluminum Grip Cap 2
5 6.5 M02502000 SpacerΦ38*Φ32*Φ25.4*18 2
6 6.6 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 4

13
Exploded View and Parts List
Swing Frame ASSY
Item No. Grade No. Part No. Description QTY
1 7.1 IT95060700 Swing Frame 1
2 7.2 IT95121200 Counter Poise Block 1
3 7.3 GB2766006-2ZNBK Bearing 2
4 7.4 IT950521ASSY Long Pin 1
5 7.5 M02502000 SpacerΦ38*Φ32*Φ25.4*18 2
6 7.6 GB958DN2 Flat Washer Φ9*Φ16*1.6 2
7 7.7 GB938N19 Spring Washer Φ8 2
8 7.8 PNLM8*25DN20 Button Head Cap Screw M8*25 2

14
Exploded View and Parts List
Wheel Frame ASSY
Item No. Grade No. Part No. Description QTY
1 8.1 IT95060800 Wheel Frame 1
2 8.2 IT95062500 Lining Board 2 1
3 8.3 GB2766006-2ZNBK Bearing 2
4 8.4 FE97213100 Square Rubber Sleeve 1
5 8.5 IN-S10111200 Rubber Sleeve Φ17*10.5 2
6 8.6 GB958DN2 Flat Washer Φ9*Φ16*1.6 2
7 8.7 NM8DN2 Nylon Lock Nut M8 2
8 8.8 GB70M8*20DS20 Socket Head Cap Screw M8*20 2

15
Exploded View and Parts List

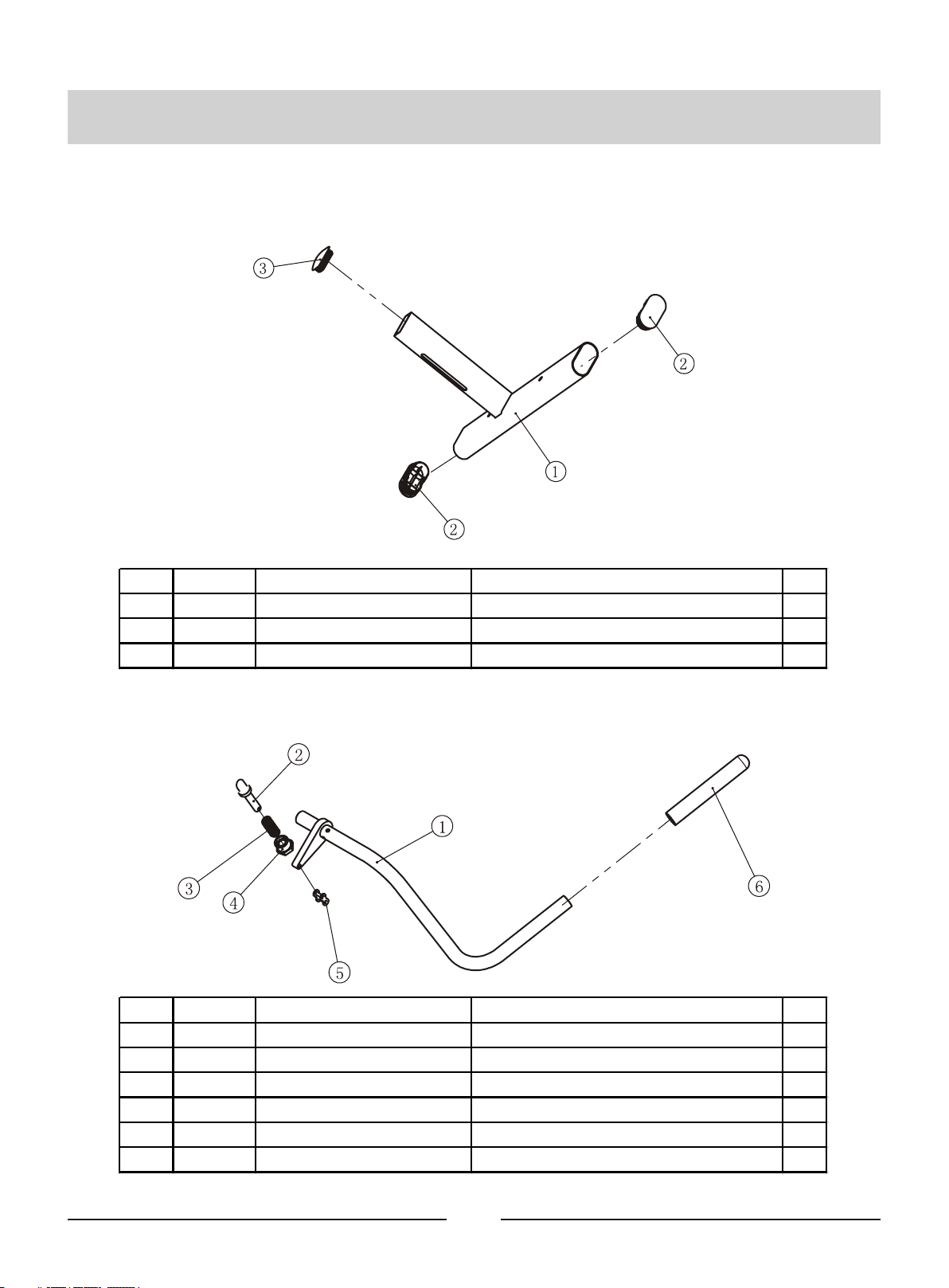

Back Pad Frame ASSY
Adjustable Handle Frame ASSY
Item No. Grade No. Part No. Description QTY
1 9.1 IT95050800 Back Pad Frame 1
2 9.2 IT90013800P11C Plug RT50*100 2
3 9.3 IN-D10134200P11C Plug □30*70 1
Item No. Grade No. Part No. Description QTY
1 10.1 IT95051000 Adjustable Handle Frame 1
2 10.2 IT95052400 Pin 1
3 10.3 IN-B72001600 Spring 1
4 10.4 KPS18002701V1 Nut M20*1.5*18 1
5 10.5 GB/T1243-199708BN19 Chain 1
6 10.6 FS522800 Grip 1

Back Pad ASSY
16
Exploded View and Parts List
Item No. Grade No. Part No. Description QTY
1 71.1 IT95017100 Back Pad 1
2 71.2 IT95017300 Back Pad Cover 1
3 71.3 IT95017500 Back Pad Support Plate 1
4 71.4 GB70M10*15DS20 Socket Head Cap Screw M10*15 2
5 71.5 GB846ST4.2*19DHS Cross Recessed Countersunk Head Tapping Screw ST4.2*19 6

Inches
Millimeters
BHCS = Button Head Cap Screw
SHCS = Socket Head Cap Screw
FHCS = Flat Head Cap Screw
HHB = Hex Head Bolt
Measurement Guide
Diameter of bolt
(mm/inch) M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8")
Tightening
torque (N.m) 9~12 22~30 45~59 78~104 193~257
Operational
methods for
adult men
The strength of
the wrist
The strength of
the wrist and
forearm
The strength of
the entire arm
The strength of
the arm and
upper body
with all strength
17
CRPHS = Cross Recessed Pan
Head Screw

18
Assembly Instructions
Assembly of the equipment takes professional installers about 2 hours. If this
is the first time you have assembled this type of equipment, plan to spend
more time. It is strongly recommended to assemble the equipment by
professional installers. You may find it quicker, safer, easier to assemble this
equipment with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you assemble your
product in a clean, clear, uncluttered area. This will enable you to move around
the product while you are fitting components and reduce the possibility of
injury during assembly.
As with any assembled part, proper alignment and adjustment is critical. While
tightening the fasteners, be sure to leave room for adjustments. Do not fully
tighten the fasteners until instructed to do so. Be careful to assemble the
components in the sequence presented in this guide.
NOTE

STEP 1
1. Attach two Adjustable Foot Plates (#12) to the Main Frame ASSY (#2).
2. Attach the Rear Bracket (#23) to the Top Rear Shroud (#55) using:
two M6*10 CRPHS (#124)
Note: Wrench Tighten Bolts.
Assembly
19

Assembly
20
STEP 2
Attach the Front Support Frame ASSY (#4) and the Rear Connection Frame (#3) to the
Weight Stack Frame ASSY (#1) and the Main Frame ASSY (#2) using:
three Plastic Cover (#16)
six M12*135 SHCS (#112)
four M12*30 SHCS (#113)
two M10*80 SHCS (#115)
two M10 Nylon Lock Nut (#125)
four Φ11*Φ20*2 Flat Washer (#128)
ten Φ13*Φ24*2.5 Flat Washer (#127)
Note: 1. Wrench Tighten Bolts and Nylon Lock Nuts.
2. Adjust the Adjustable Foot Plates to make the machines stable.
