Taurus TF-X7.1 User manual

TFX7.01.02
Assembly and Operating Instructions
Art. No. TF-X7.1
TF
TF- Elliptical trainer X7.1

X7.1
2

X7.1
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 14
3 OPERATING INSTRUCTIONS 19

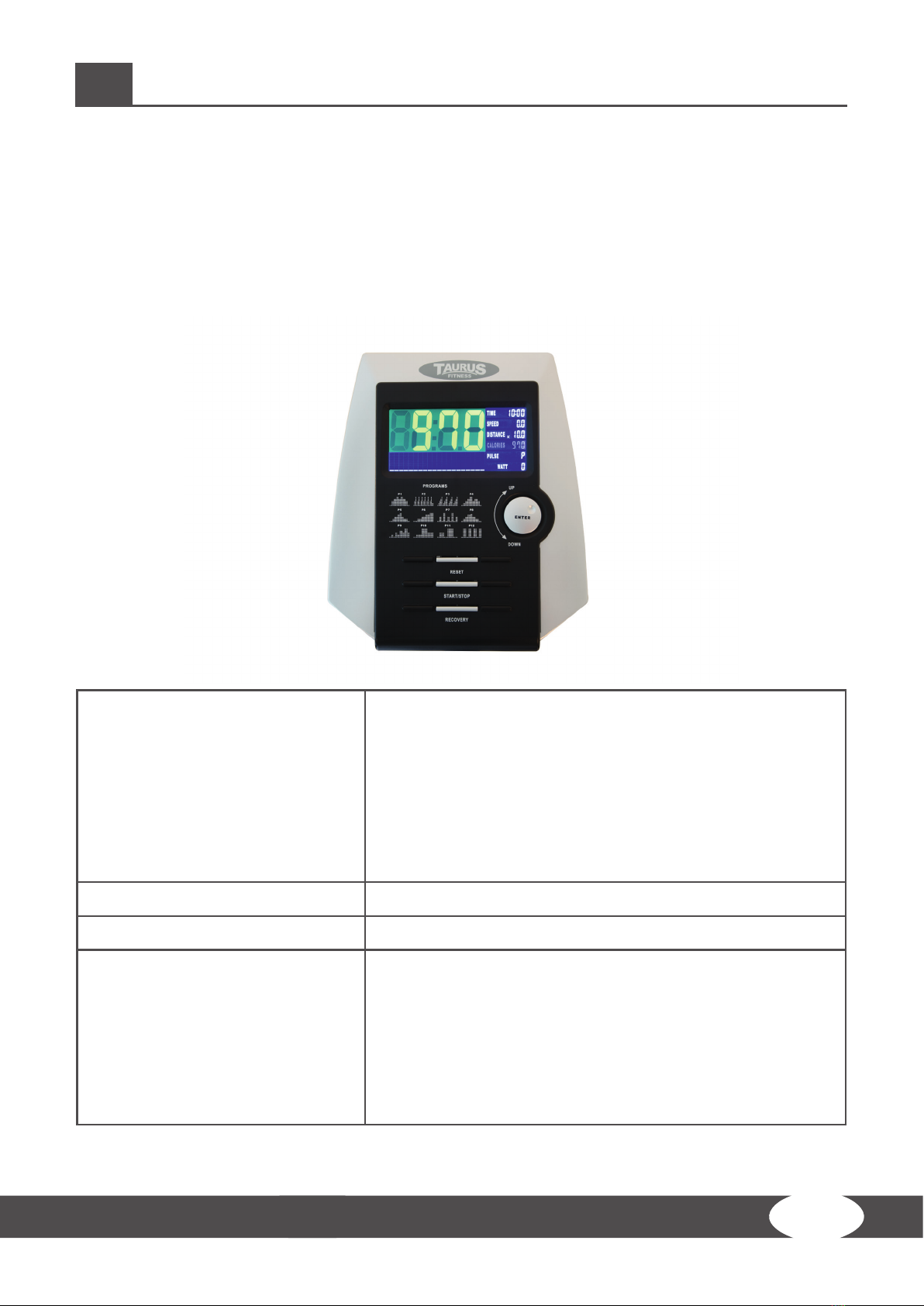

3.1 Console display 19
3.2 Tastenfunktionen 20
3.3 Programmes 20
3.3.1 Quick-Start Programme 20
3.3.2 Manual programme (MAN) 21
3.3.3 Default Programmes (PROG) 22
3.3.4 Heart rate oriented programmes(HRC) 23
3.3.5 Watt-controlled programme (WATT) 24
3.3.6 User-dened programme (USER) 24
3.4 RECOVERY - recovery frequency 25
4 STORAGE AND TRANSPORT 26
4.1 General Instructions 26
4.2 Transportation Wheels 26
5 TROUBLESHOOTING, CARE AND MAINTENANCE 27
5.1 General Instructions 27
5.2 Faults and Fault Diagnosis 27
5.3 Maintenance and Inspection Calendar 28
6 DISPOSAL 28
7 RECOMMENDED ACCESSORIES 29

X7.1
4
8 ORDERING SPARE PARTS 30
8.1 Serial Number and Model Name 30
8.2 Parts List 31
8.3 Exploded Drawing 33
9 WARRANTY 34
10 CONTACT 36

X7.1
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2008 Taurus is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-
professional (e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional
use (e.g. tness studios).

X7.1
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

X7.1
7
1 GENERAL INFORMATION
1.1 Technical Data
LED display of
+ speed in km/h
+ cadence (rotations per minute)
+ training time in min
+ training distance in km
+ calories burnt in kcal
+ heart rate (when using the hand sensors or a chest strap)
+ Watts/Resistance level
Resistance system: Electronic magnet brake system
Resistance level: 16
Watt: 10 - 350 Watt
Total number of training programmes: 20
Quick start programmes: 1
Default programmes: 12
Manual programme: 1
User dened programmes: 1
Heart rate controlled programmes: 4
Watt-controlled programme: 1
Flywheel mass: 12.62 kg
Transmission ratio: 1 : 8.25
Stride length: 44 cm
Stride height: 16 cm
Stride width: 12 cm
Weight and dimensions:
Article weight (gross, including packaging): 78.2 kg
Article weight (net, without packaging): 68.9 kg
Packaging dimensions (L x W x H): approx. 147 cm x 57.5 cm x 78 cm
Set-up dimensions (L x W x H): approx. 166 cm x 56 cm x 163 cm
Maximum user weight: 120 kg/264 lbs

X7.1
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+
+ The equipment is strictly for use by one person at a time.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

X7.1
9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed from the mains socket to
prevent improper use by third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. Until
repair, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50Hz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16A, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.

X7.1
10
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment. Make sure that you leave
at least 30 cm on each side of the equipment and at least 15 cm in front of and behind the
equipment as a training zone. This is the minimum required area in order to safely use the
equipment. The recommended free zone around the equipment should be at least 60 cm on
each side and 45 cm in front of and behind the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

X7.1
11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

X7.1
12

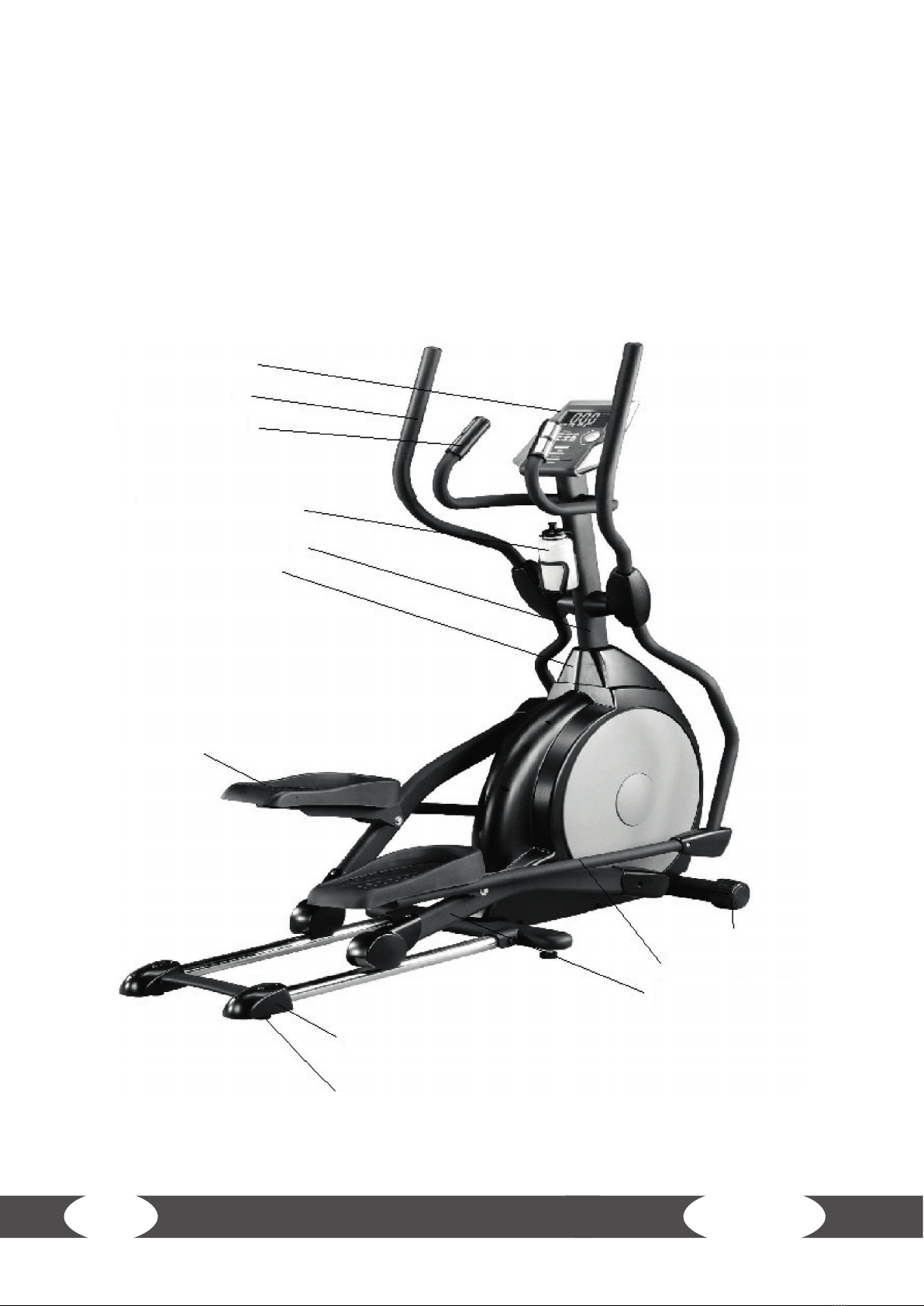

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.
Console
Arm bars
Hand pulse sensors
Bottle holder
Console mast
Console mast cover
Pedal arm
Pedals
Connection bar
Transport wheels
Base foot cover
Rear base foot

X7.1
13

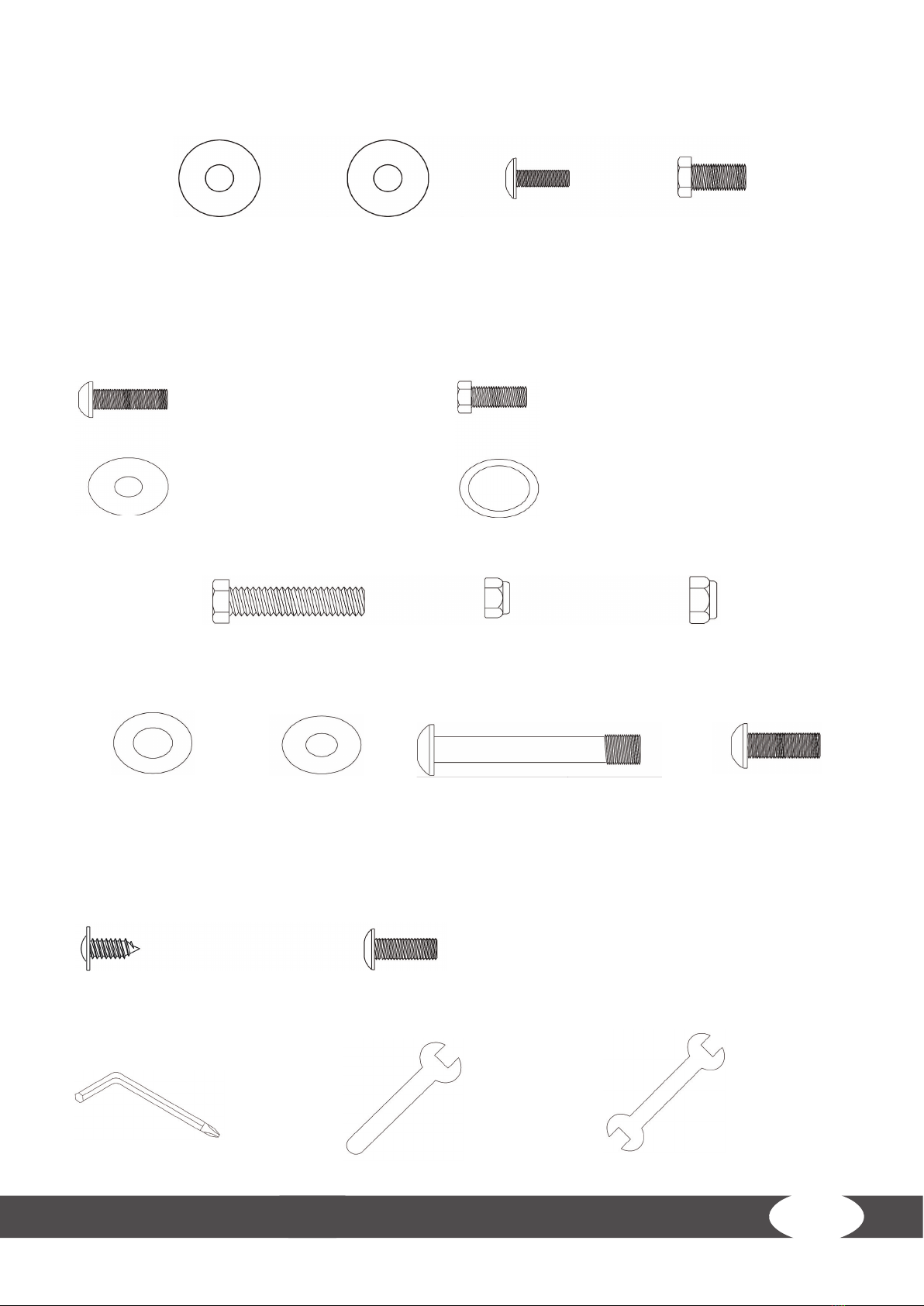

Screws and tools
Step 1:
5/16“x 23 x 1.5T
Washer (97) 4x
5/16“x 23 x 2T Spring
washer (102) 2x
M5 x 10mm
screw (78) 4x
(pre-mounted on
the console)
5/16“ x 15mm
screw (70) 6x
5/16“ x 15mm screw
(75) 6x
5/16“x 23 x 1.5T Washer
(97) 2x
5/16“ x 15mm hexagon
screw (70) 2x
Ø 17 Washer (101) 2x
Step 2:
Step 3:
5/16“ x 32mm hexagon
screw (75) 2x
5/16“ x 7T Nylon nut
(105) 2x
3/8“ x 7T Nylon nut (89)
2x
3/8“ x 19 x 1.5T Washer
(94) 2x
5/16“ x 20 x 1.5T
Washer (98) 4x
3/8 x 2-1/4“ screw
(77) 2x
5/16 x 3/4“ screw (76)
2x
Step 4:
Ø3.5 x 12mm screw
(84) 8x
M5 x 15mm screw (79)
8x
M5 Alen key/
screwdriver
1x
12mm wrench
1x
13/14 mm
wrench
2x

X7.1
14

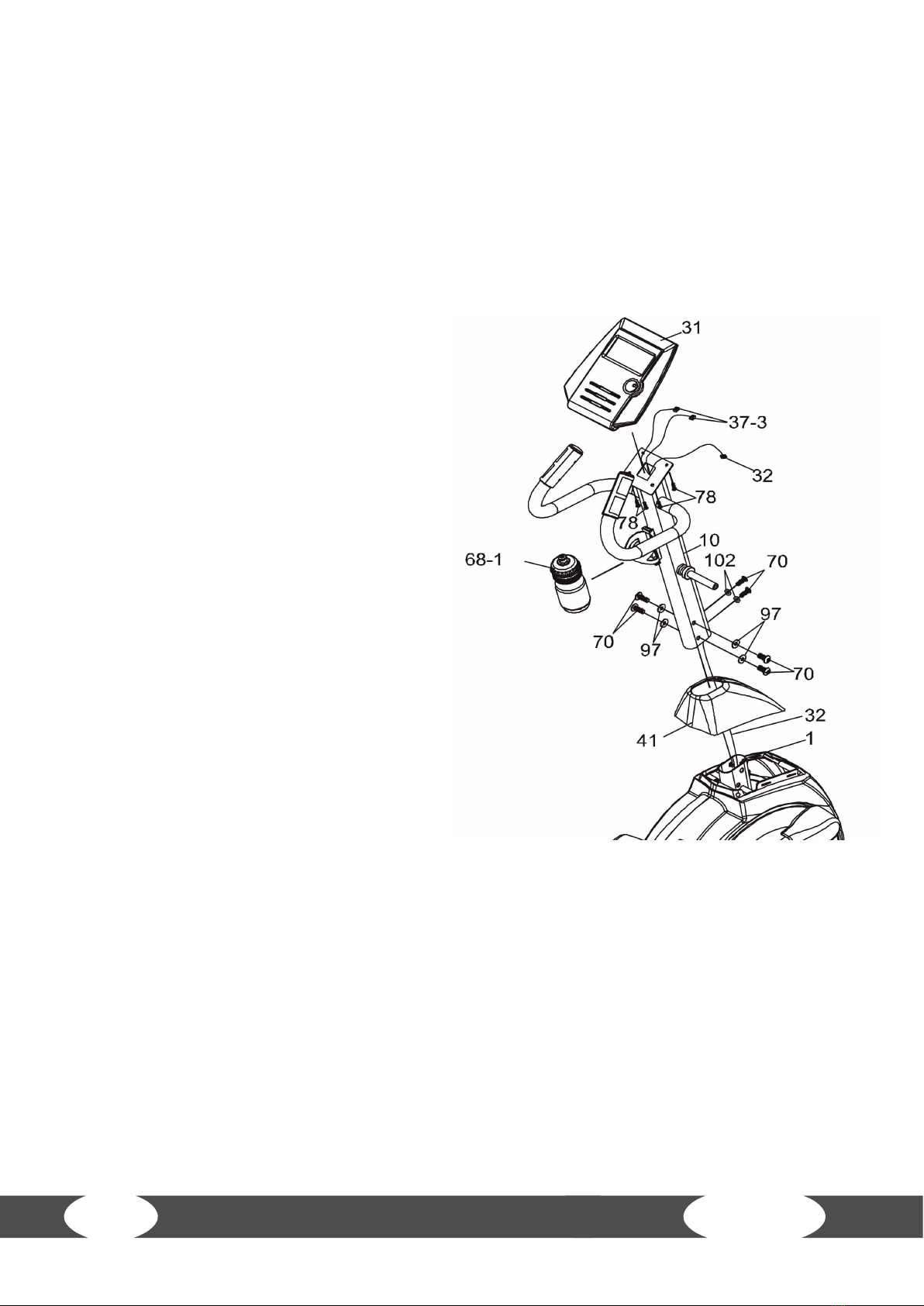

2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assembly of the console mast
1. Move the console mast cover (41) as far
as possible on the console mast (10).
LNOTICE
Make sure that the console mast cover
(41) points in the correct direction.
2. On the upper opening of the frame (1),
you will nd a console cable (32). Unwind
the console cable (32) and smooth it
out in order to then thread it from the
bottom to the top through the console
mast (10).
3. Assemble the console mast (10) on the
designated bracket on the frame (1) with
four hexagon bolts (70), four washers
(97), two hexagon bolts (70) and two
spring washers (102).
࣑ATTENTION
Be careful not to pinch the cables in the
following step.
4. Mount the console (31) on the console
mast (10) with the four screws (78) pre-
mounted on the bracket.
5. On the upper opening of the console
mast (10), there are three cables, two
hand pulse cables (37-3) and a console cable (32). Connect this cable with the corresponding
cables on the backside of the console (31).
LNOTICE
The plugs are arranged so that they cannot be incorrectly inserted in each other.
6. First store the excess cable in the console mast (10). Then fasten the console (31) on the console
mast (10) with four M5 x 10mm screws (78).
7. Tighten all screws with the tool.

X7.1
15
Step 2: Assembly of the handles
1. Fasten the two washers (101) on the right and left side of the handle axles.
2. Slide the lower left and right side of the handles (4 and 5) on the corresponding side of the axle.
3. Place the two at washers (97) on the two hexagonal screws (70) and fasten them on the thread
holes on the end of the axle.
4. Fasten the left and right handles (13 and 14) on the lower left and right handles (4 and 5) with
six screws (75).
5. Tighten all screws with the tool.

X7.1
16
Step 3: Assembly of the connecting arms
1. Align the hole on the end of the connecting arm (L (7) and R (8)) with the hole in the bracket for
the lower handles (L (4) and R (5)). The end of the bar should be in the bracket from the lower
handles (L (4) R (5)).
2. Fasten the parts with two hexagonal screws (71), two washers (98) and two nylon nuts (105).
3. Mount the two rails (15) on the bracket on the end of the frame (1) with two screws (77), two
washers (94) and two nylon nuts (89).
4. Assemble the base covers (L (61) and R (62)) on the iron plate (16).
5. Mount the rails (15) with two screws (76) and two washers (98).
6. Tighten all screws with the tool.

X7.1
17

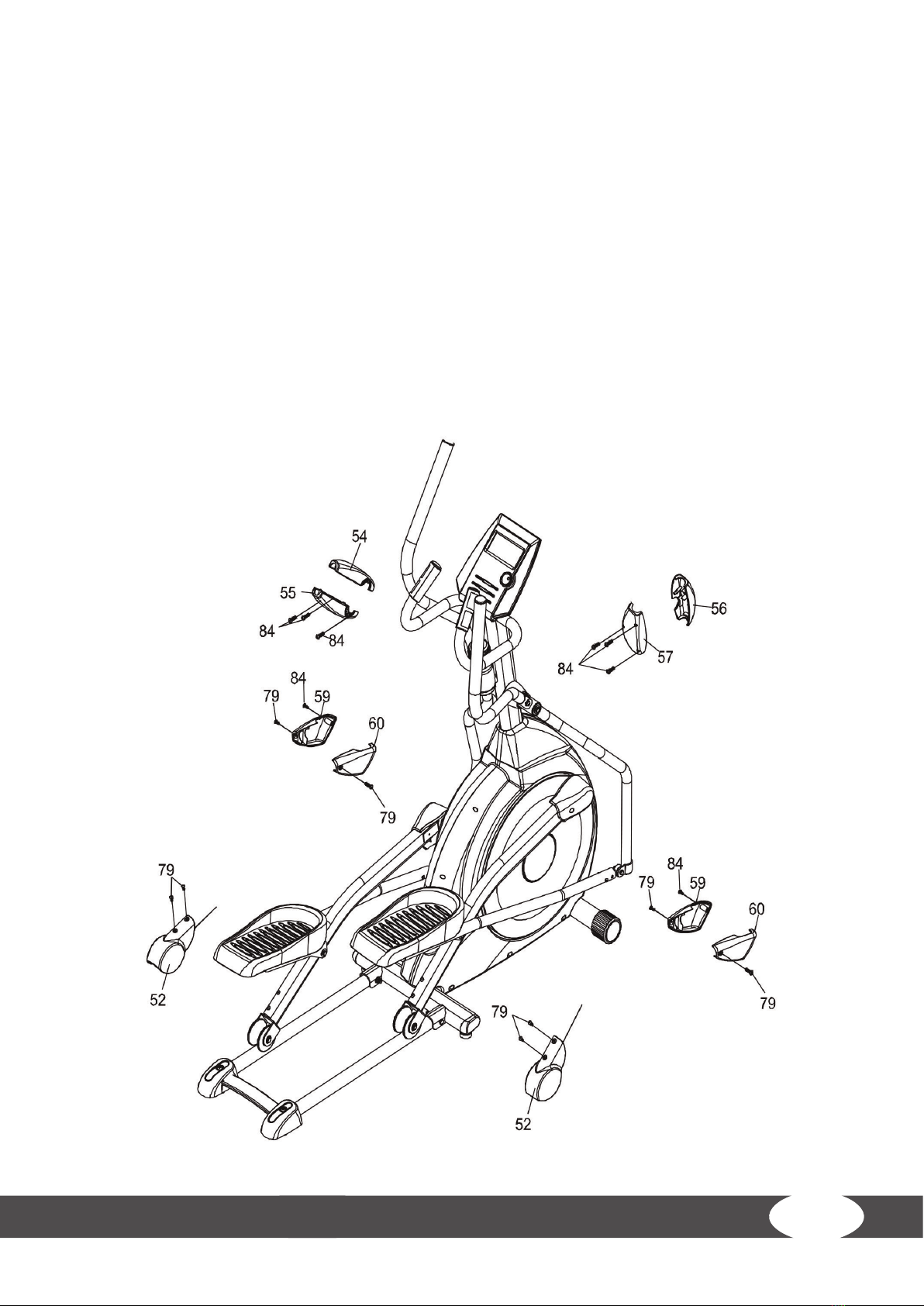

Step 4: Assembly of the covers
1. Mount the covers for the connection arms (L (59) and R (60)) through the connection between
the end of the bar and the lower handles (L (4) and R (5)) with four screws (79) and two screws
(84).
2. Mount the two wheel covers (52) with four screws (79).
3. Mount the front handle covers (L (54) and R (56)) and the rear handle covers (L (55) and R (57))
through the handle axle connections with six screws (84).
4. Check that all previous screws are tightened and re-tighten them with the tool if necessary.

X7.1
18
Step 5: Alignment of the feet
If the oor is uneven, you can stabilize the equipment by turning the two setting screws under the
main frame.
1. Lift the equipment on the desired side and rotate the setting screws under the main frame.
2. Rotate the screws clockwise in order to remove them and to raise the equipment.
3. Rotate them counterclockwise in order to lower the equipment.
Step 6: Connecting the equipment to the mains supply
࣑ATTENTION
The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed
that the equipment will be supplied with sucient power. Technical errors can result.
Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical
safety.

X7.1
19
3 OPERATING INSTRUCTIONS
LNOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.
3.1 Console display
CALORIES
Display of calories in kcal
LNOTICE
The calculation of calories burnt is based on a general
formula. It is not possible to exactly determine
individual calories burnt, because diverse personal
data is required for this.
TIME Display of the training time in min.
Temperature Display of room temperature
PULSE
Display of heart rate (heart beats per minute)
⚠WARNING
Your training equipment is not a medical device. The
heart rate measurement of this equipment may be
inaccurate. Various factors can aect the accuracy
of the heart rate measurement. The heart rate
measurement serves only as a training aid.

X7.1
20
SPEED / RPM Display of speed in km/h and rotations per minute in
5-second intervals
DISTANCE Display of training distance in km
Watt Display of resistance in watts
Load Resistance level 1-16
Program Display of programme proles
3.2 Tastenfunktionen
ENTER Button to conrm settings
UP/DOWN Selection of programmes and input of values
RESET Resets all values
START/STOP Starting and ending a programme
3.3 Programmes
You can choose from the following programmes:
+ Quick start programmes: 1
+ Manual programme: 1
+ Default programmes: 12
+ User dened programmes: 1
+ Heart rate controlled programmes: 4
+ Watt-controlled programme: 1
3.3.1 Quick-Start Programme
To start the Quick Start programme, press the START/STOP button.
The values for training time, training distance and calories are counted up.
LNOTICE
+ The level of diculty may be adjusted during training by turning the ENTER button.
+ The distance display indicates the distance in kilometres. Your cadence serves as a basis.
