Taurus TORSO ROTATION IT95 User manual

Owner‘s Manual
TF-IT9518
TORSO ROTATION IT95
TAURUS® is a registered brand of the company Sport-Tiedje GmbH.
All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

Table Of Contents
CAUTION!
Read all precautions and instructions in this manual before using this equipment.
Please assemble according to the actual Weights you buy !
Important Safety Instructions----------------------------------------------------------- 3
Instructions-------------------------------------------------------------------------------- 5
Exploded View and Parts List------------------------------------------------------------ 6
Measurement Guide--------------------------------------------------------------------- 19
Assembly Instructions------------------------------------------------------------------ 20
Assembly--------------------------------------------------------------------------------- 21
Adjust Instructions---------------------------------------------------------------------- 34
Exercise Instructions-------------------------------------------------------------------- 35
Maintenance Schedule------------------------------------------------------------------ 36
General Maintenance Information----------------------------------------------------- 37
Weight Training Tips-------------------------------------------------------------------- 38

3
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete physical
examination from your physician. When using exercise equipment, basic
precautions should always be taken, including the following:
1. Read all instructions before using the equipment.
These instructions are written to ensure your safety and to protect the unit.
2. Use the equipment only for its intended purpose as described in this guide.
Do not use accessory attachments that are not recommended by the
manufacturer: such attachments might cause injuries.
3. The product should only be used on a level surface and is with 0.5 meters
space around the product.
Do not use the equipment outdoors.
4. Do not allow children on or near the equipment. And children are not allowed
to use this equipment.
Teenagers should use this equipment with adult supervision.
5. Do not overexert yourself or work to exhaustion.
Do not attempt to lift more weight than you can control safely.
If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
6. This equipment is not used as medical apparatus and instruments.
7. Never operate the unit when it has been dropped or damaged.
Never drop or insert anything into any opening in the equipment.
Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
Frayed or worn cables can be dangerous and may cause injury. Periodically
check these cables for any indication of wear.
Keep hands, limbs, loose clothing and long hair well out of the way of moving
parts.
8. Be careful when getting on or off the equipment.
9. Wear proper exercise clothing and shoes for your workout, no loose clothing.

Specifications
Class: S
Maximum Wt. Capacity: 134kg/ 295lbs
Maximum User Weight: 150kg/ 330lbs
Product Total Surface: 1221*1202mm
Product Total Mass: 127.3 kg/ 281 lbs

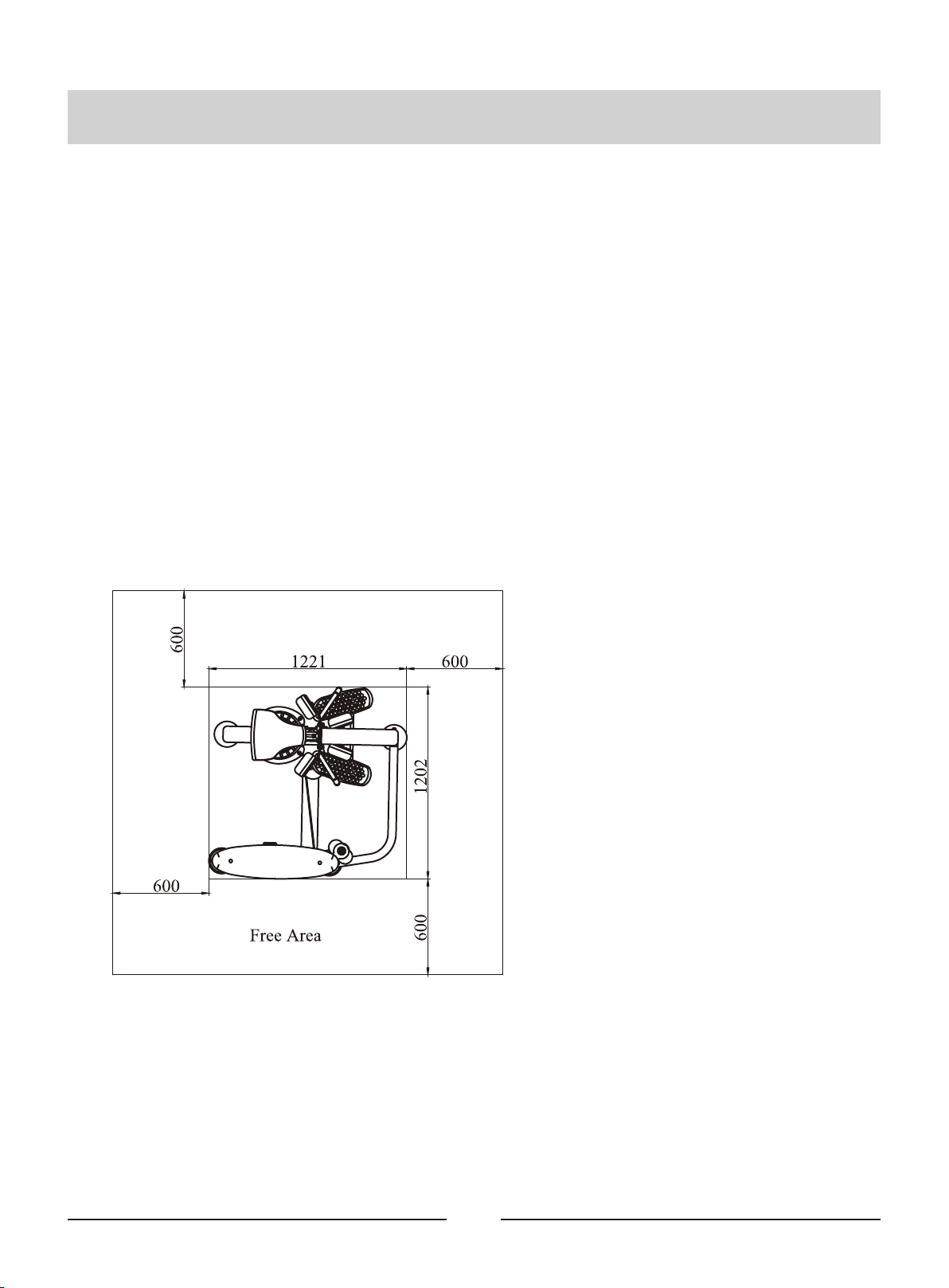

Training Area and Free Area
4
Important Safety Instructions
Personal Safety During Assembly
Read each step in the assembly instructions and follow the steps in sequence.
Do not skip ahead. If you skip ahead, you may learn later that you have to
disassemble components and that you may have damaged the equipment.
Assemble and operate the equipment on a solid, level surface. Locate the unit
a few feet from walls or furniture to provide easy access. The equipment is
designed for your enjoyment. By following these precautions and using
common sense, you will have many safe and pleasurable hours of healthful
exercise with the equipment.
Training
Area

5
Instructions
Tools Required
The equipment is designed to provide the smoothest, most effective exercise
motion possible. After assembly, you should check all functions to ensure correct
operation. If you experience problems, first recheck the assembly instructions to
locate any possible errors made during assembly. If you are unable to correct the
problem, call your authorized dealer. Be sure to have your serial number and this
manual when calling. When all parts have been accounted for, continue on.
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
Phillips Screwdriver
Before beginning assembly please take the time to read instructions thoroughly.
Please use the various lists in this manual to make sure that all parts have been
included in your shipment. When ordering, use part number and description from
the lists. Use only our replacement part when servicing. Failure to do so will void
your warranty and could result in personal injury.

6
Exploded View and Parts List
Overall
Item No. Grade No. Part No. Description QTY
1 1 IT951801ASSY Weight Stack Frame ASSY 1
2 2 IT951802ASSY Main Frame ASSY 1
3 3 IT951803ASSY Bottom Cross Brace ASSY 1
4 4 IT951804ASSY Handle Frame ASSY 1
5 5 IT951805ASSY Left Foot Frame ASSY 1
6 6 IT951806ASSY Wheel Frame ASSY 1
7 7 IT951807ASSY Swivel Frame ASSY 1
8 8 IT951808ASSY Connecting Frame ASSY 1
9 9 IT951810ASSY Right Foot Frame ASSY 1
10 10 IT95170400 Rear Connection Frame 1
11 11 IT95171000 Seat Pad Support 1
12 12 IT950121ASSY Top Bracket ASSY 1
13 13 IT950122ASSY Bottom Bracket ASSY 2
14 14 SD1000B3000ASSY Adjustable Foot Plate 2
15 15 RS16020800 Cable Connecting Frame 1
16 16 IT95183500 Main Shaft 1
17 17 IT95017600 Seat Pad 1
18 18 IT95012300 Rear Bracket 1
19 19 SG500110400V5 4.5" Pulley 3
20 21 IT95014400 Guide Rod φ19*1242 2
21 22 IT95016000 Plastic Cover 2
22 23 IT95014200 Top Plate 1
23 24 FE97212000 Circle Ring φ62.5*5 1
24 25 FE97211900 Cap φ60 1
25 26 IT90012000V1 Selector Pin W/Coil 1
26 27 IT80023000 Weight Rubber Bumper 2
27 28 IT95016100 Guide Rod Fixing Sleeve φ25*φ19*45 2
28 30 FS600600 Short bushing 2
29 31 RS16026900 Short bushing 1
30 32 GB70M8*20N19 M8*20 2
31 33 GB5781M10*25N19 Hex Head Bolt M10*25 2
32 34 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 3
33 35 GB70BTM10*50DN18 Socket Head Cap Screw M10*50 3
34 36 GB70BTM10*75DN18 Socket Head Cap Screw M10*75 2

7
Exploded View and Parts List
Overall
Item No. Grade No. Part No. Description QTY
35 37 GB70BTM10*80DN18 Socket Head Cap Screw M10*80 2
36 38 GB70BTM12*30DN18 Socket Head Cap Screw M12*30 4
37 39 GB70BTM12*80DN18 Socket Head Cap Screw M12*80 3
38 40 GB70BTM12*135DN18 Socket Head Cap Screw M12*135 4
39 41 GB70BTM10*30DN18 Socket Head Cap Screw M10*30 8
40 42 GB818M6*10DHS2 Cross Recessed Pan Head Screw M6*10 4
41 43 GB818M6*16DHS2 Cross Recessed Pan Head Screw M6*16 4
42 44 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 18
43 45 GB958DN2 Flat Washer φ9*φ16*1.6 2
44 46 GB9510DN2 Flat Washer φ11*φ20*2 24
45 47 GB9512DN2 Flat Washer φ13*φ24*2.5 16
46 48 TLE-2824600 Cap 1
47 49 HFOPT900-04A0602 Spring 2
48 50 NM10DN2 Nylon Lock Nut M10 7
49 51 NM12DN2 Nylon Lock Nut M12 5
50 52 NM8DN2 Nylon Lock Nut M8 1
51 53 IT801210300P11C Cup Holder 1
52 54 IT95015200 Training Placard Cover 1
53 55 IT95015500 Top Rear Shroud 1
54 56 IT95015300 Front Shroud 1
55 57 IT95055400 Left Front Shroud 1
56 58 IT95015600 Rear Shroud 1
57 59 IT95015100 Top Cover 1
58 60 IT95186000 Cable ASSY 1
59 61 IT95184000 Arm Pad 4
60 62 IT93149300 Weight Stack Space 300 2
61 63 IT95016500 Spout Plug φ16.5*6.88 2
62 64 NM16DN2 Nylon Lock Nut M16 1
63 66 NBS0.188DHS Hex Key S=3/16" 1
64 67 NBS6DHS Hex Key S=6 1
65 68 NBS8DHS Hex Key S=8 1
66 69 LW200BS Wrench φ6*117 1
67 70 YHY Lube 1
68 74 HFOPT900-04A1400 Aluminium Sheath φ14.5*27 1
69 80 NBS10DHS Hex Key S=10 1

8
Exploded View and Parts List
Overall

9
Exploded View and Parts List

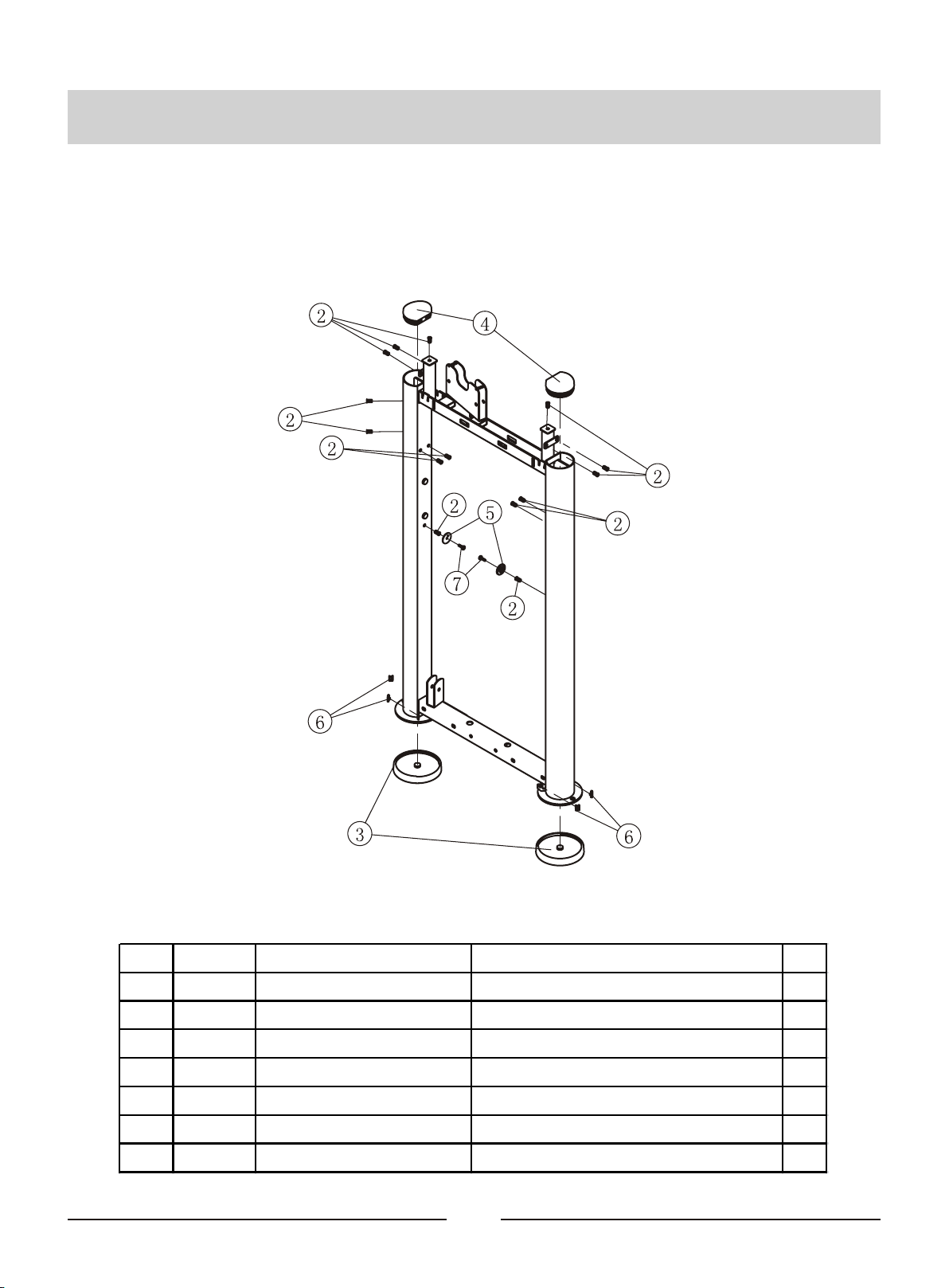

Weight Stack Frame ASSY
Item No. Grade No. Part No. Description QTY
1 1.1 IT95180100 Weight Stack Frame 1
2 1.2 GB17880.5M6*16.5DS17 Rivet Nut M6 14
3 1.3 IT95015700 Foot Plate 2
4 1.4 IT95015800 Plug φ95*81.1 2
5 1.5 IT95015900 Plastic Block 2
6 1.6 AC32705800 U-nut M6 4
7 1.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 2

10
Exploded View and Parts List

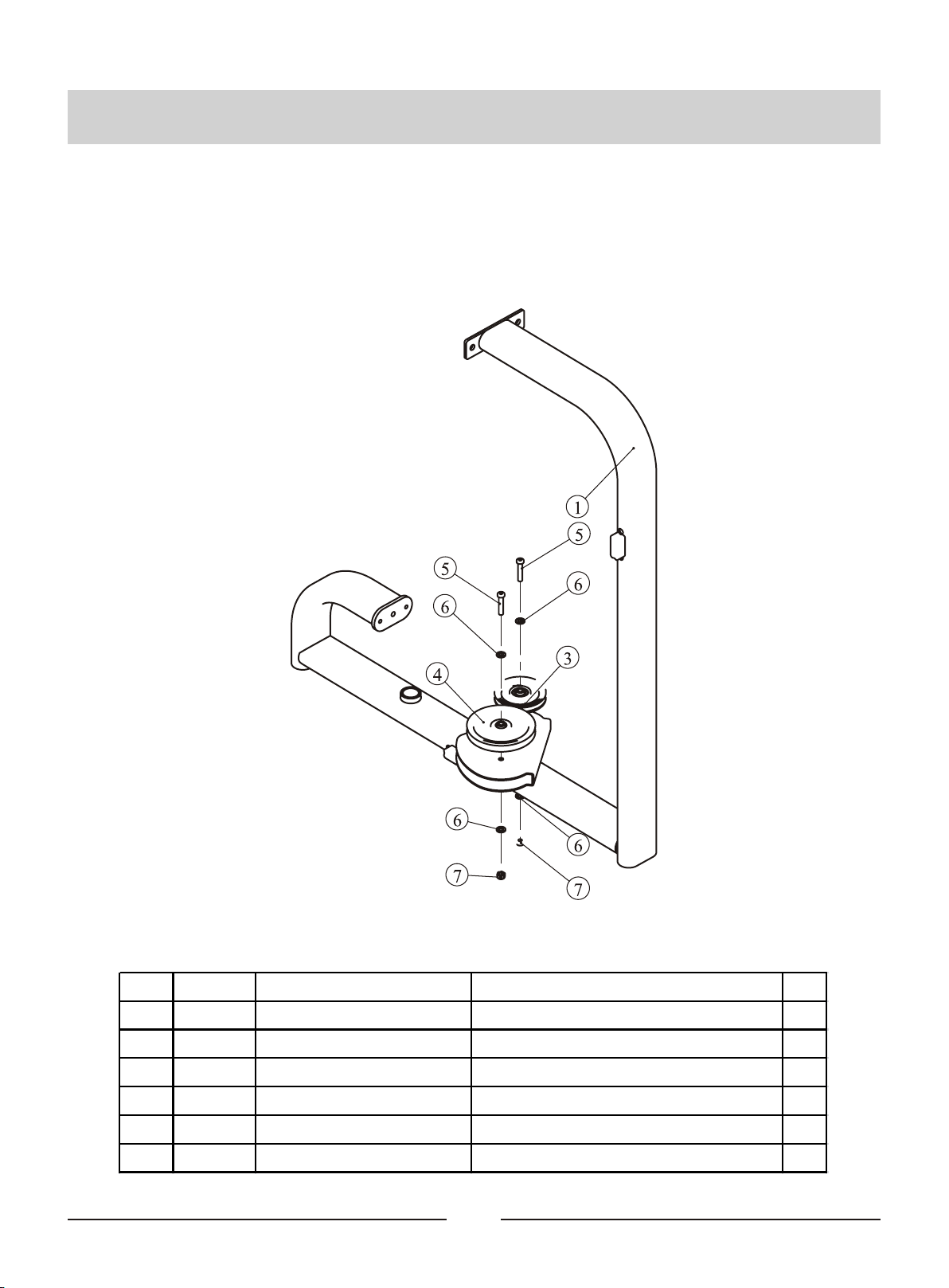

Main Frame ASSY
Item No. Grade No. Part No. Description QTY
1 2.1 IT95180200 Main Frame 1
2 2.3 SG500110400V5 Thin 4.5" Pulley 1
3 2.4 L1-3800 Thin 6" Pulley 1
4 2.5 GB70BTM10*50DN18 Socket Head Cap Screw M10*50 2
5 2.6 GB9510DN2 Flat Washer φ11*φ20*2 4
6 2.7 NM10DN2 Nylon Lock Nut M10 2

11

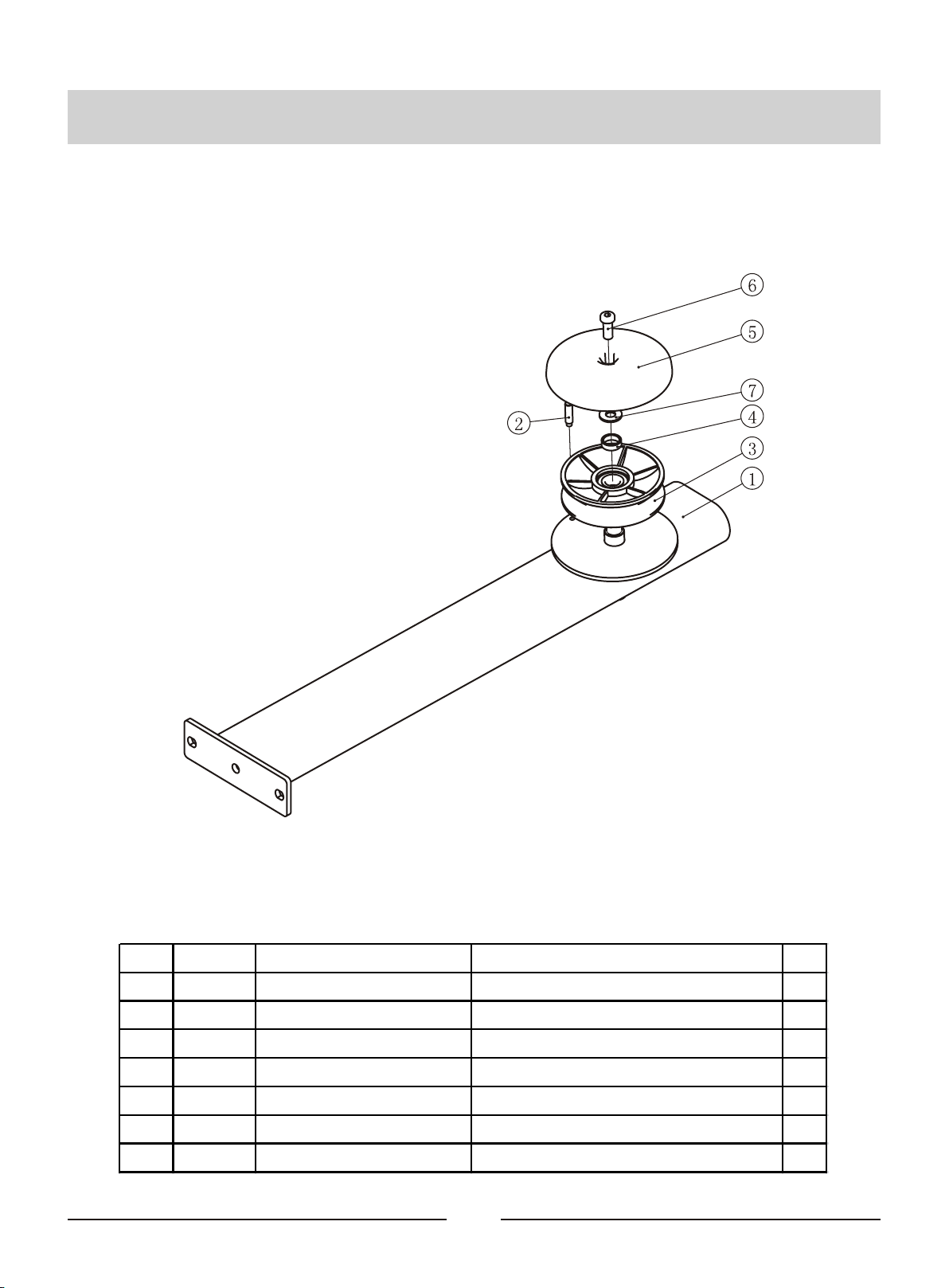

Exploded View and Parts List
Bottom Cross Brace ASSY
Item No. Grade No. Part No. Description QTY
1 3.1 IT95180300 Bottom Cross Brace 1
2 3.2 FE97122300 Threaded column 1
3 3.3 FE97123600 V Pulleys 1
4 3.4 FE97122100 Pulley Spacer 1 1
5 3.5 IT95016400 Pulley Cover 1
6 3.6 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 1
7 3.7 DQ10N19B Flat Washerφ11*φ25*2 1

12
Exploded View and Parts List

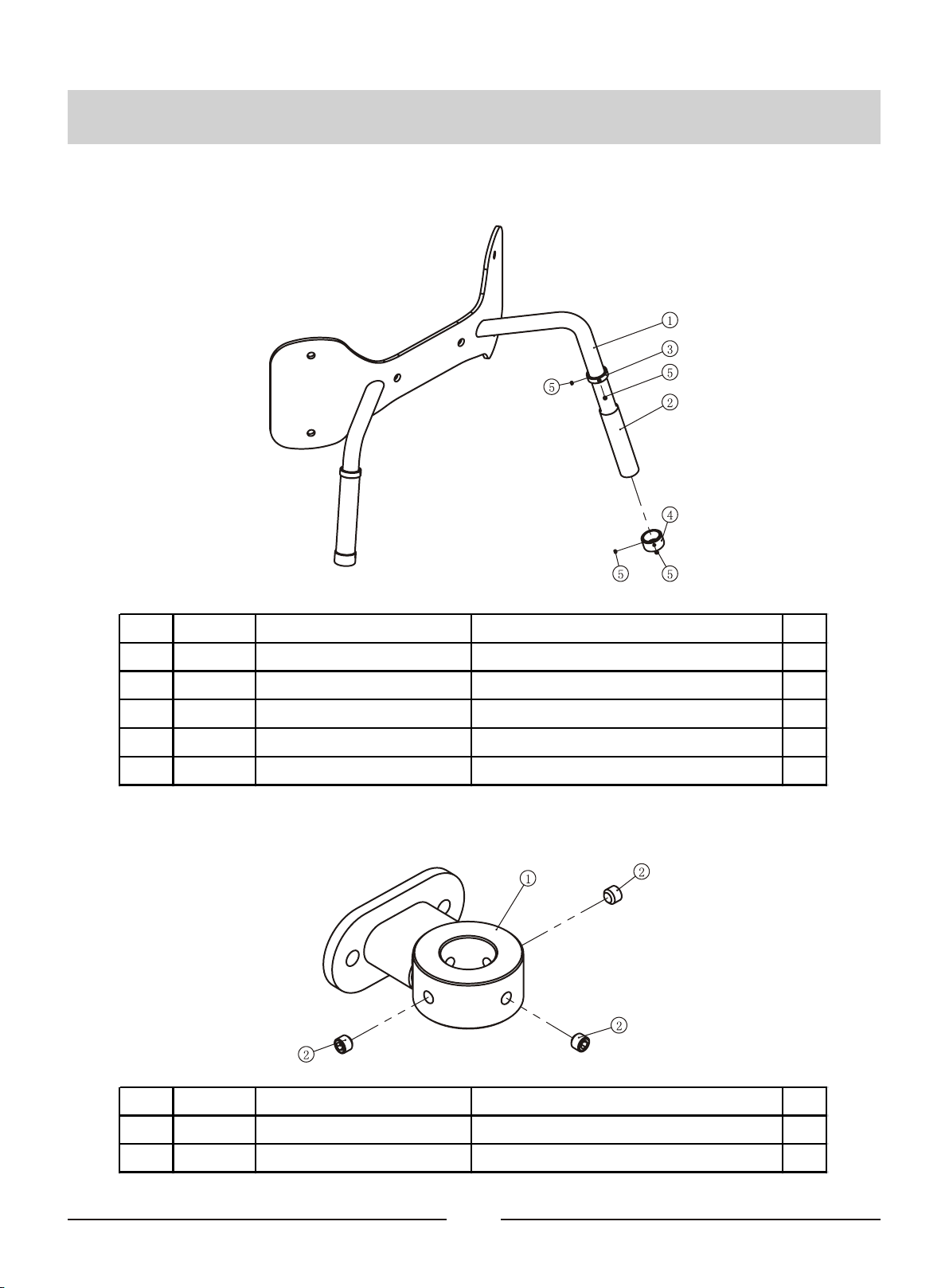

Handle Frame ASSY
Item No. Grade No. Part No. Description QTY
1 4.1 IT95180400 Handle Frame 1
2 4.2 026-01PL0206-12 Grip 2
3 4.3 V39500 Aluminum Grip Ring 2
4 4.4 V39600 Aluminum Grip Cap 2
5 4.5 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 8
Connecting Frame ASSY
Item No. Grade No. Part No. Description QTY
1 8.1 IT95180800 Connecting Frame 1
2 8.2 GB77M10*8DS2 Screw M10*8 3

13
Exploded View and Parts List

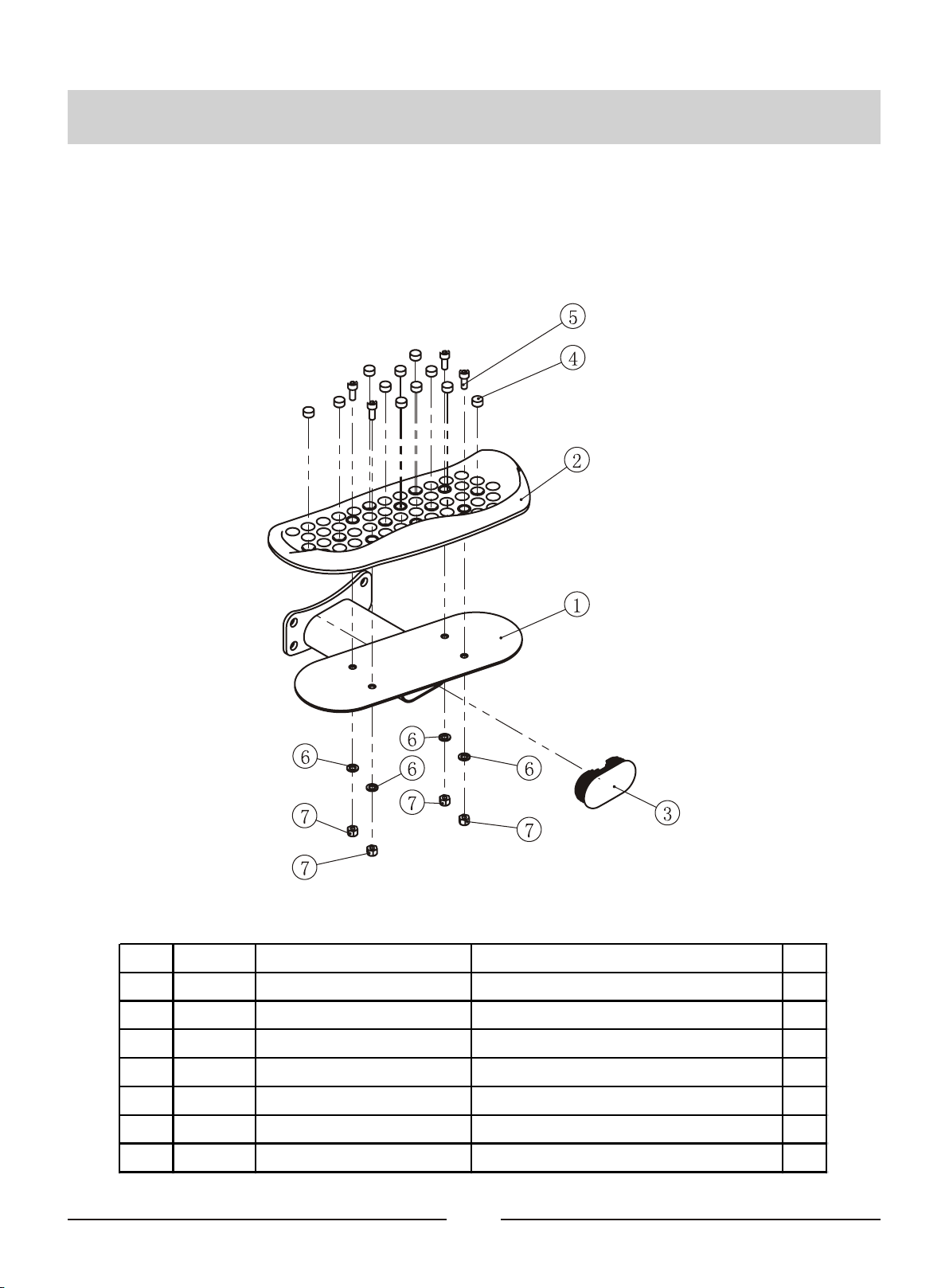

Left Foot Frame ASSY
Item No. Grade No. Part No. Description QTY
1 5.1 IT95180500 Left Foot Frame 1
2 5.2 IW38800 Right pedal 1
3 5.3 IT90013800P11C Plug RT50*100 1
4 5.4 IW38900 Pedal hole plug 11
5 5.5 GB70M8*20DN20 Socket Head Cap Screw M8*20 4
6 5.6 GB958DN2 Flat Washer φ9*φ16*1.6 4
7 5.7 NM8DN2 Nylon Lock Nut M8 4

14

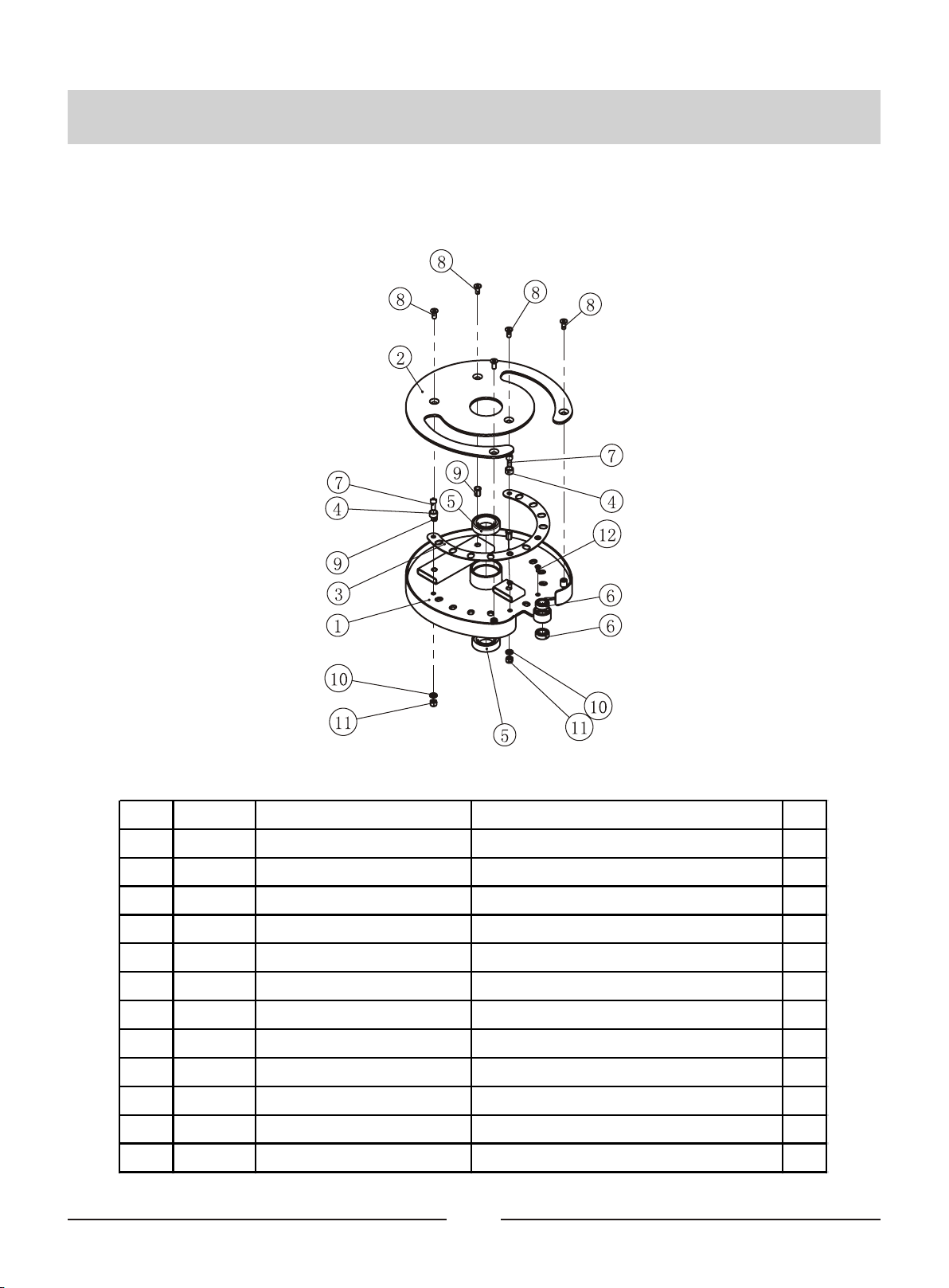

Exploded View and Parts List
Item No. Grade No. Part No. Description QTY
1 6.1 IT95180600 Wheel Frame 1
2 6.2 IT95183200 Wheel cover plate 1
3 6.3 IT95183000 Adjustment plate 1 1
4 6.4 IN-S10111200 Rubber Sleeve φ17*10.5 2
5 6.5 GB2766007-2ZNBK Bearing 2
6 6.6 GB2766200-2ZNBK Bearing 2
7 6.7 GB70M8*20DN20 Socket Head Cap Screw M8*20 2
8 6.8 CNLM8*20N19 Flat Head Cap Screw M8*20 5
9 6.9 GB17880.5M8*16.5DCS17 Rivet Nut M8 3
10 6.10 GB958DN2 Flat Washer φ9*φ16*1.6 2
11 6.11 NM8DN2 Nylon Lock Nut M8 2
12 6.12 GB819M6*12N19 Screw M6*12 2
Wheel Frame ASSY

15
Exploded View and Parts List

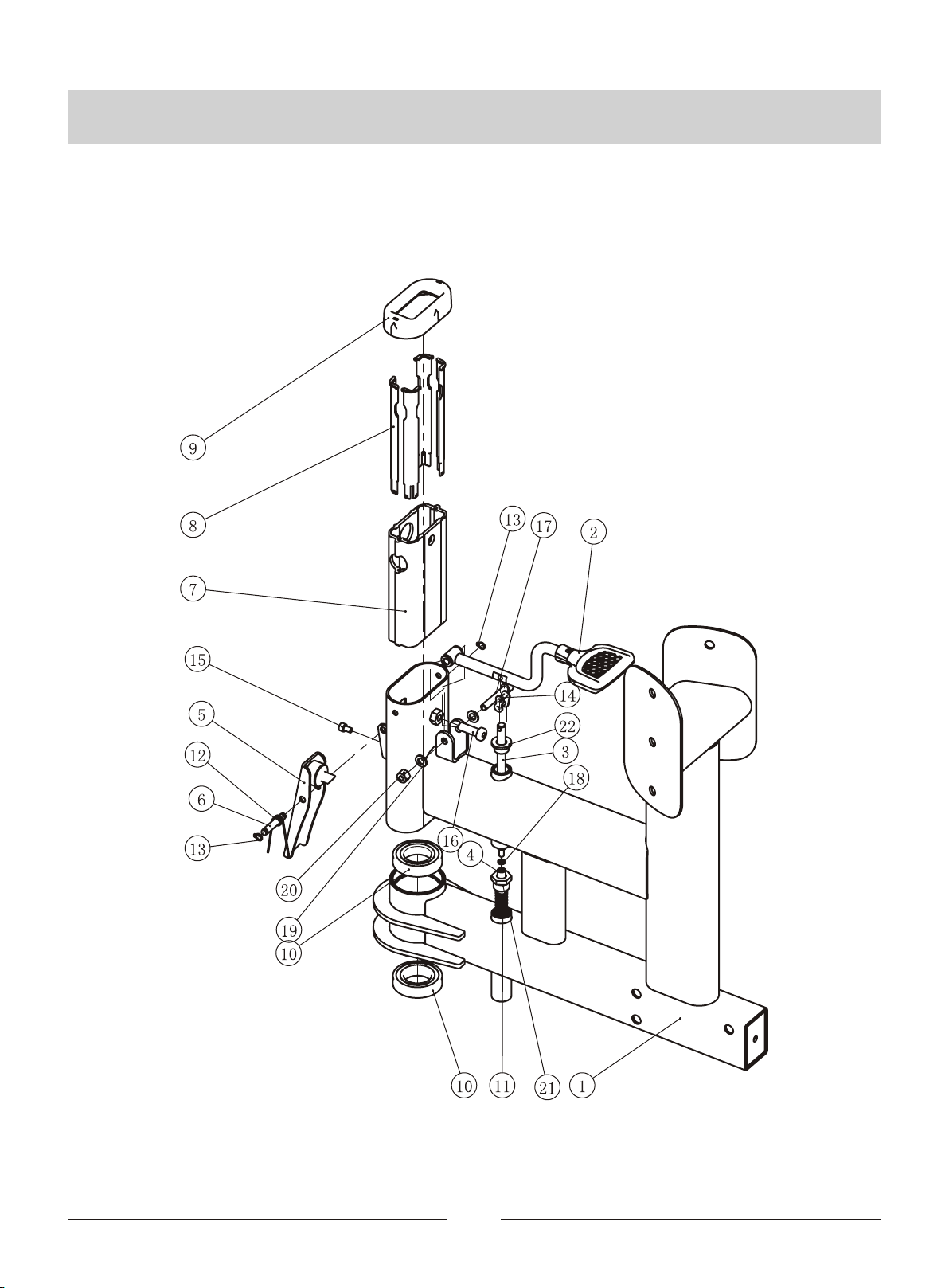

Swivel Frame ASSY
Item No. Grade No. Part No. Description QTY
1 7.1 IT95180700 Swivel Frame 1
2 7.2 IT951809ASSY Adjustment Handle Frame ASSY 1
3 7.3 IT95183300 1
4 7.4 IT95183600 Pin axle 1
5 7.5 IT95014500 Adjustable Support 1
6 7.6 CWRVL0012200 Pin axle 1
7 7.7 IT95014300 Aluminum Tube Guide 1
8 7.8 IT95016300 Plastic Corner Tube Guide 4
9 7.9 IT95016200 Plastic Tube Plug 1
10 7.10 GB2766007-2ZNBK Bearing 2
11 7.11 IT80181702 Spring 1
12 7.12 AXT3S5500 Torsion Spring 1
13 7.13 GB894.18FH12 Circlips For Shaftφ8 2
14 7.14 GB/T1243-199708BN19 Link 12.7 1
15 7.15 GB70M6*10N19 Socket Head Cap Screw M6*10 1
16 7.16 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 1
17 7.17 GB70M8*50DS20 Socket Head Cap Screw M8*50 1
18 7.18 GB936DS12 Spring Washerφ12 1
19 7.19 GB958DN2 Flat Washer φ9*φ16*1.6 2
20 7.20 NM8DN2 Nylon Lock Nut M8 1
21 7.21 KPS18002701 Lock Nut M20*1.5*18 1
22 7.22 M01402000 Spacer φ25*φ12.2*13 1

16
Exploded View and Parts List
Swivel Frame ASSY

17
Exploded View and Parts List
Adjustment Handle Frame ASSY
Item No. Grade No. Part No. Description QTY
1 7.2.1 IT95180900 Adjustment Handle Frame 1
2 7.2.2 FE970114200 Upper Regulation cover 1
3 7.2.3 FE970114100 Lower Regulation cover 1
4 7.2.4 P60015700 Spacer φ16*φ8*8 2
5 7.2.5 GB818M4*16DN2NL Hexagon Nut M4 1
6 7.2.6 GB819M4*8DN2 Screw M4*8 2
7 7.2.7 GB41M4DN2 Hexagon Nut M4 1

18

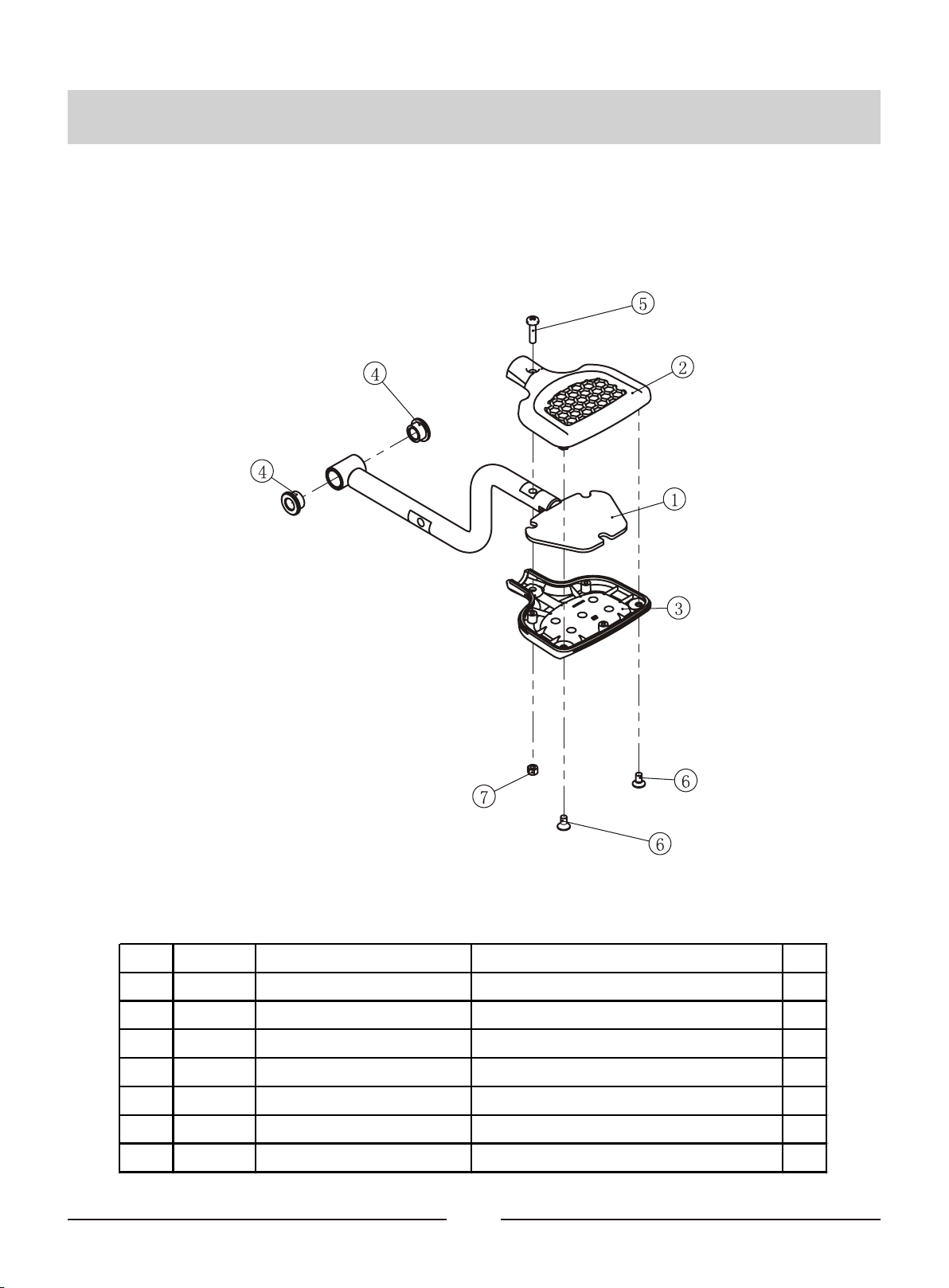

Exploded View and Parts List
Right Foot Frame ASSY
Item No. Grade No. Part No. Description QTY
1 9.1 IT95180500 Left Foot Frame 1
2 9.2 IW38700 Left pedal 1
3 9.3 IT90013800P11C Plug RT50*100 1
4 9.4 IW38900 Pedal hole plug 11
5 9.5 GB70M8*20DN20 Socket Head Cap Screw M8*20 4
6 9.6 GB958DN2 Flat Washer φ9*φ16*1.6 4
7 9.7 NM8DN2 Nylon Lock Nut M8 4

Inches
Millimeters
BHCS = Button Head Cap Screw
SHCS = Socket Head Cap Screw
FHCS = Flat Head Cap Screw
HHB = Hex Head Bolt
Measurement Guide
Diameter of bolt
(mm/inch) M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8")
Tightening
torque (N.m) 9~12 22~30 45~59 78~104 193~257
Operational
methods for
adult men
The strength of
the wrist
The strength of
the wrist and
forearm
The strength of
the entire arm
The strength of
the arm and
upper body
with all strength
19
CRPHS = Cross Recessed Pan
Head Screw

20
Assembly Instructions
Assembly of the equipment takes professional installers about 2 hours. If this
is the first time you have assembled this type of equipment, plan to spend
more time. It is strongly recommended to assemble the equipment by
professional installers. You may find it quicker, safer, easier to assemble this
equipment with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you assemble your
product in a clean, clear, uncluttered area. This will enable you to move around
the product while you are fitting components and reduce the possibility of
injury during assembly.
As with any assembled part, proper alignment and adjustment is critical. While
tightening the fasteners, be sure to leave room for adjustments. Do not fully
tighten the fasteners until instructed to do so. Be careful to assemble the
components in the sequence presented in this guide.
NOTE
