tayco Height Adjustable Tables User manual

Height Adjustable Tables
installation guide
F O R M O RE I N F O R M A T I O N , C O NT A C T I N S T A L L AT I O N SER V I C E
Mon-Fri • 8:30 AM – 5:00 PM EST
Phone [phone] • Toll Free 1.800.675.4092
www.tayco.com

Table of Contents
General Instructions 1|03
Table of Contents ..................................................................................................................... 1
Installation Checklist ................................................................................................................ 2
Care and Maintenance ............................................................................................................. 3
Height Adjustable Table Base Installation 4|17
2-Legged Height Adjustable Base Installation ........................................................................... 4
3-Legged Height Adjustable Base Installation ......................................................................... 11
1 Height adjustable table
APRIL 2019

Installation Checklist
Perform a site inspection prior to the installation date to check existing site conditions and identify
constraints and limitations that could possibly cause delays or problems during the actual installation.
SITE ACCESSIBILITY
1. Verify existing loading facilities and proximity of loading dock to staging area.
2. Verify if receiving area is accessible by trailer.
3. Verify access to service elevators.
4. Reserve service elevators in advance, if necessary.
SITE PREPARATION
1. Clear all obstacles that could interfere with the installation process.
2. When doing a reconfiguration, ensure that all furniture to be re-used are clear of computers,
accessories, books, papers and all personal effects.
3. Ensure that all live wires and data/communications wires are disconnected prior to installation.
FURNITURE PLANS
1. Labeled furniture plans for installation purposes are located in the hardware box. Ensure that
drawings are complete and handy before beginning installation.
STAGING
1. If damages are noticed upon opening the trailer, these must be noted by the receiver on the Bill
of Lading. Also note any imperfections or missing components discovered while unpacking the
furniture. This information is necessary when requesting for product replacement and shipping
claims.
2. Unpack products in the general order of installation (refer to Installation Sequence).
WASTE MANAGEMENT
1. Establish a trash removal area separate from the product staging area.
2 Height adjustable table
APRIL 2019

Care & Maintenance
Laminates
Dust laminated surfaces for regular maintenance. Clean any dirt or stain with a damp cloth. Do not use
an excessive amount of water, abrasive cleaners, acids or alkalis and do not scratch or scrape surfaces.
For persistent stains and marks use a commercial cleaner, such as Cabinet Magic® or Countertop
Magic®, both manufactured by Magic American Corporation.
Painted Metals
Tayco’s painted metal products are powder-paint-coated. To clean these products, use a damp cloth,
using only a small amount of lukewarm water if necessary. Dry with a clean a dry cloth. To avoid
scratching and damaging the painted surface, do not use hard bristled brushes or abrasive.
THE USE OF HARSH CLEANERS AND CHEMICALS MAY PERMANENTLY ALTER THE PRODUCT FINISH
APPEARANCE AND WILL VOID WARANTY.
3 Height adjustable table
APRIL 2019

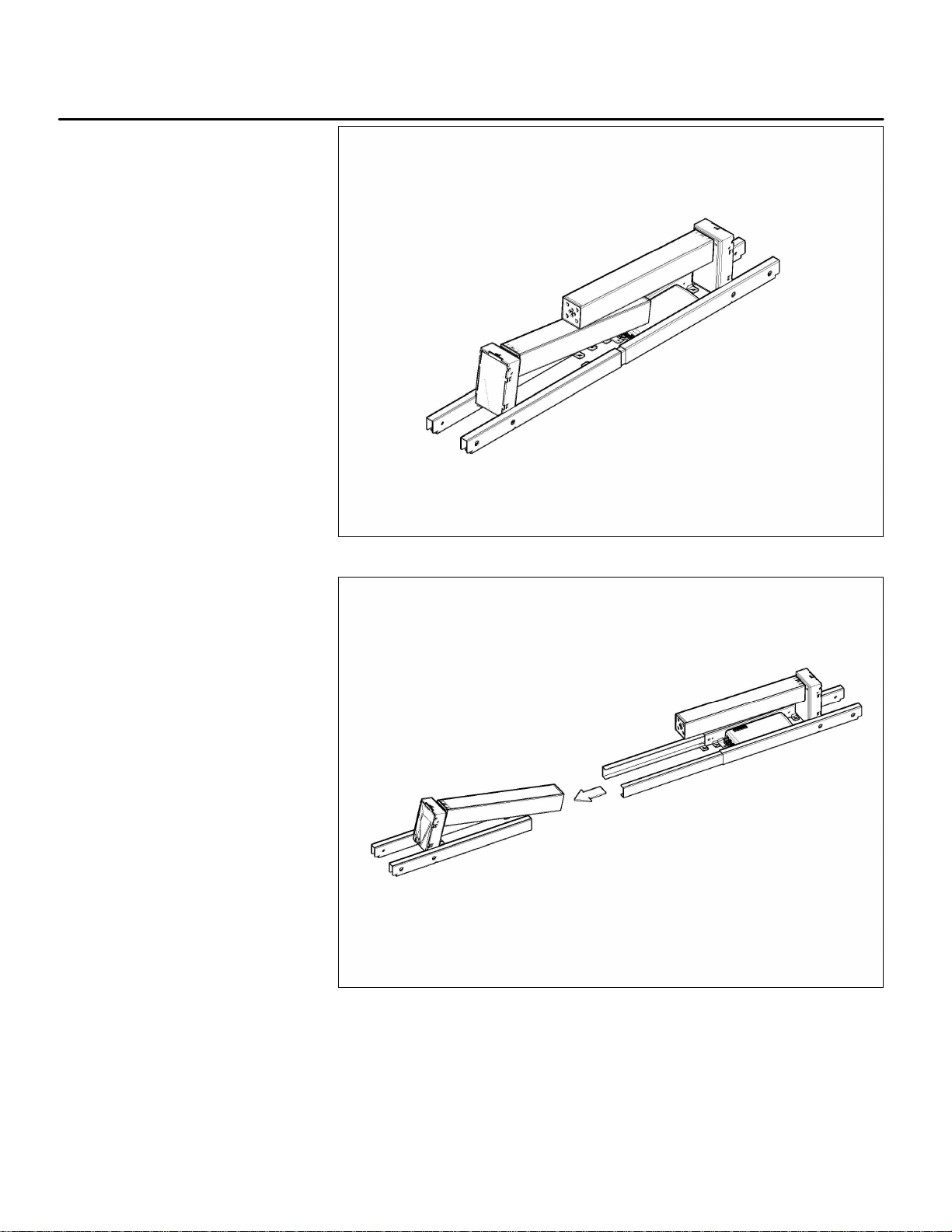

1. Take the main frame out of the
box and place it on a clean, solid
surface or floor (Figure 1). For
worksurface, 46 inches in length,
go to step 2 and for worksurface
48 to 72 inches in length,
proceed to step 6.
2. Remove half of the main frame
by sliding it out. Set it aside
(Figure 2).
2- legged height adjustable table base installation
FIGURE 2
FIGURE 1
4 Height adjustable table
APRIL 2019

3. Remove the channels by sliding
them out (Figure 3).
4. Insert the other channels
provided by sliding them into the
main frame (Figure 4) .
2- legged height adjustable table base installation (cont'd)
FIGURE 4
FIGURE 3
5 Height adjustable table
APRIL 2019

5. Put back the half of the main
frame by sliding it into the
channels (Figure 5).

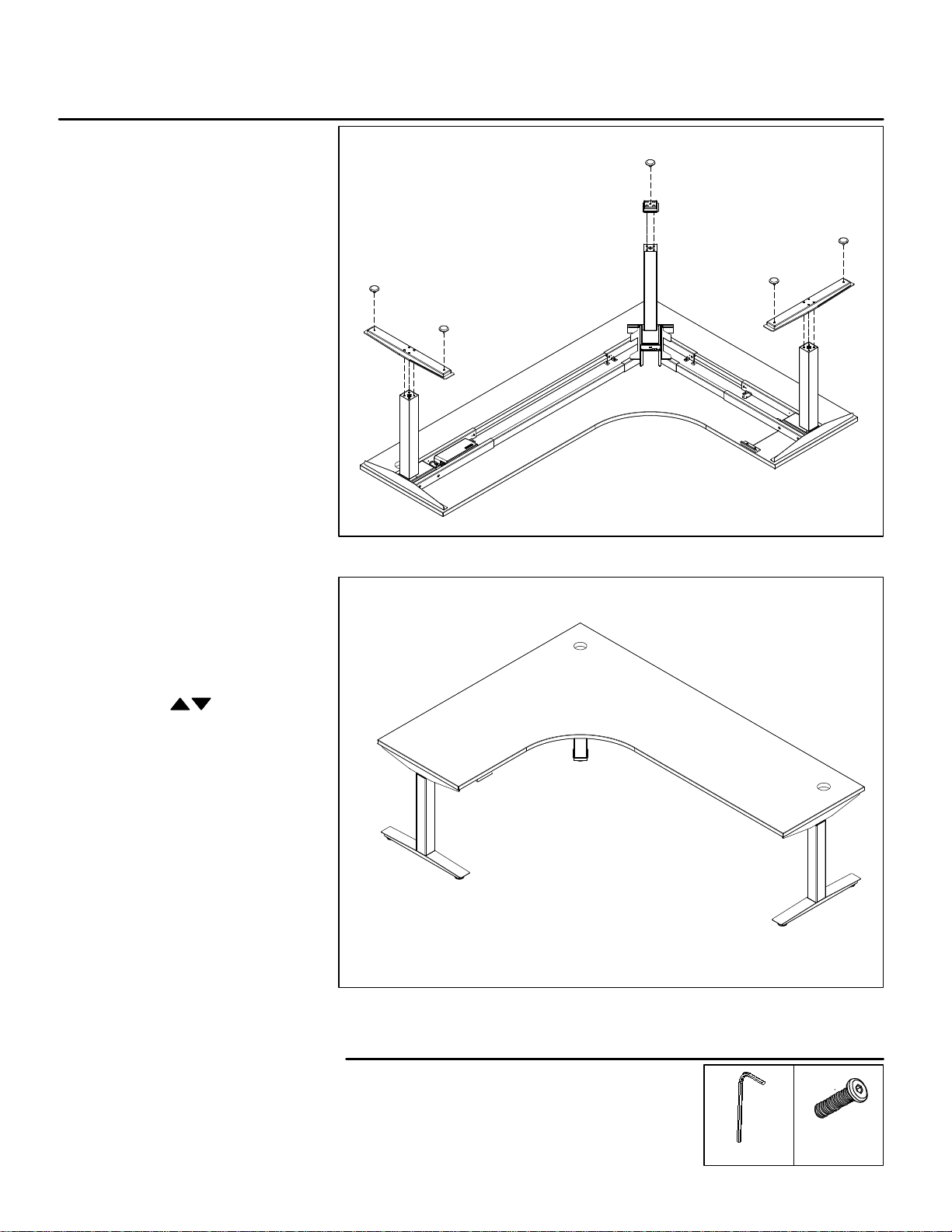

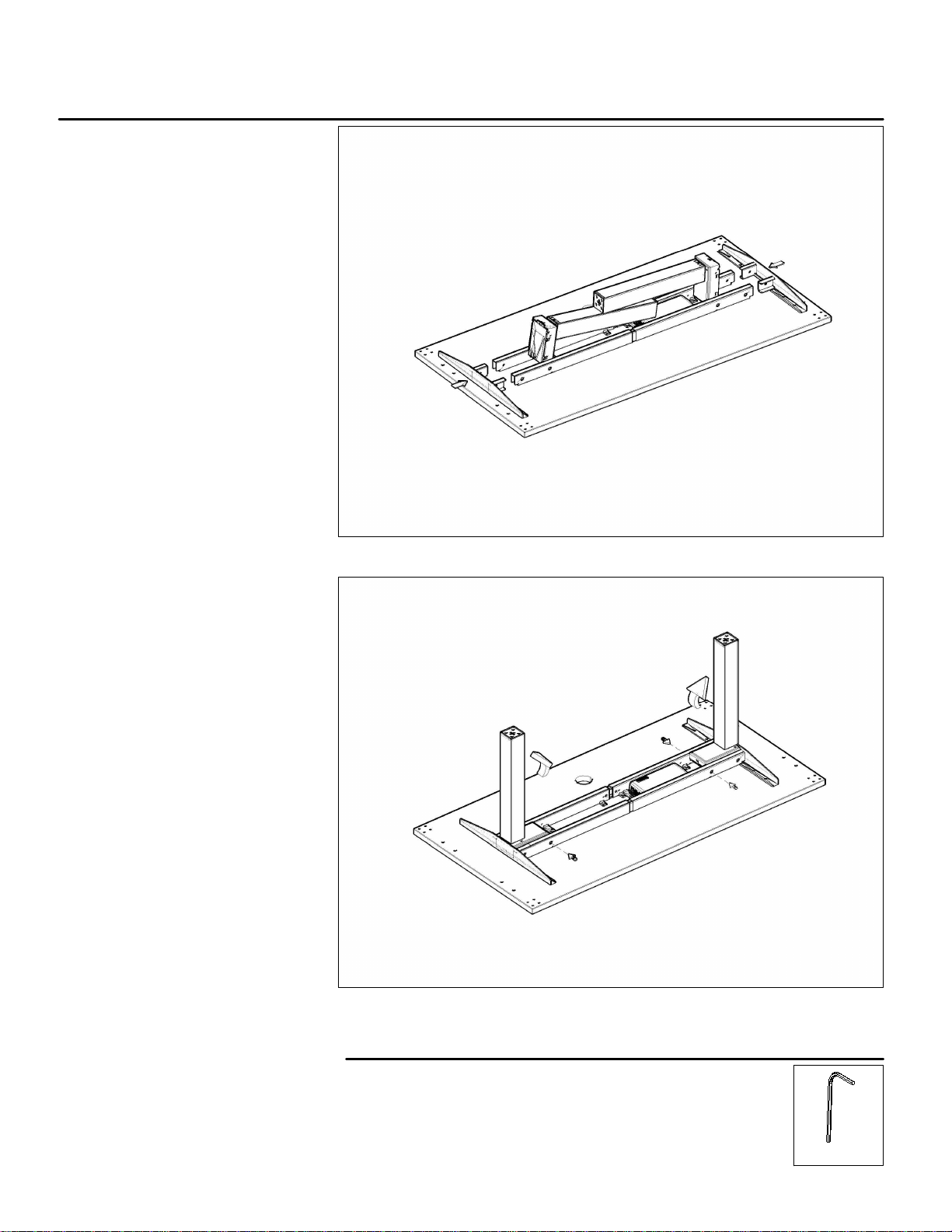

6. Put the main frame on the
back side of the worksurface
(Figure 6).
2- legged height adjustable table base installation (cont'd)
FIGURE 6
FIGURE 5
6 Height adjustable table
APRIL 2019

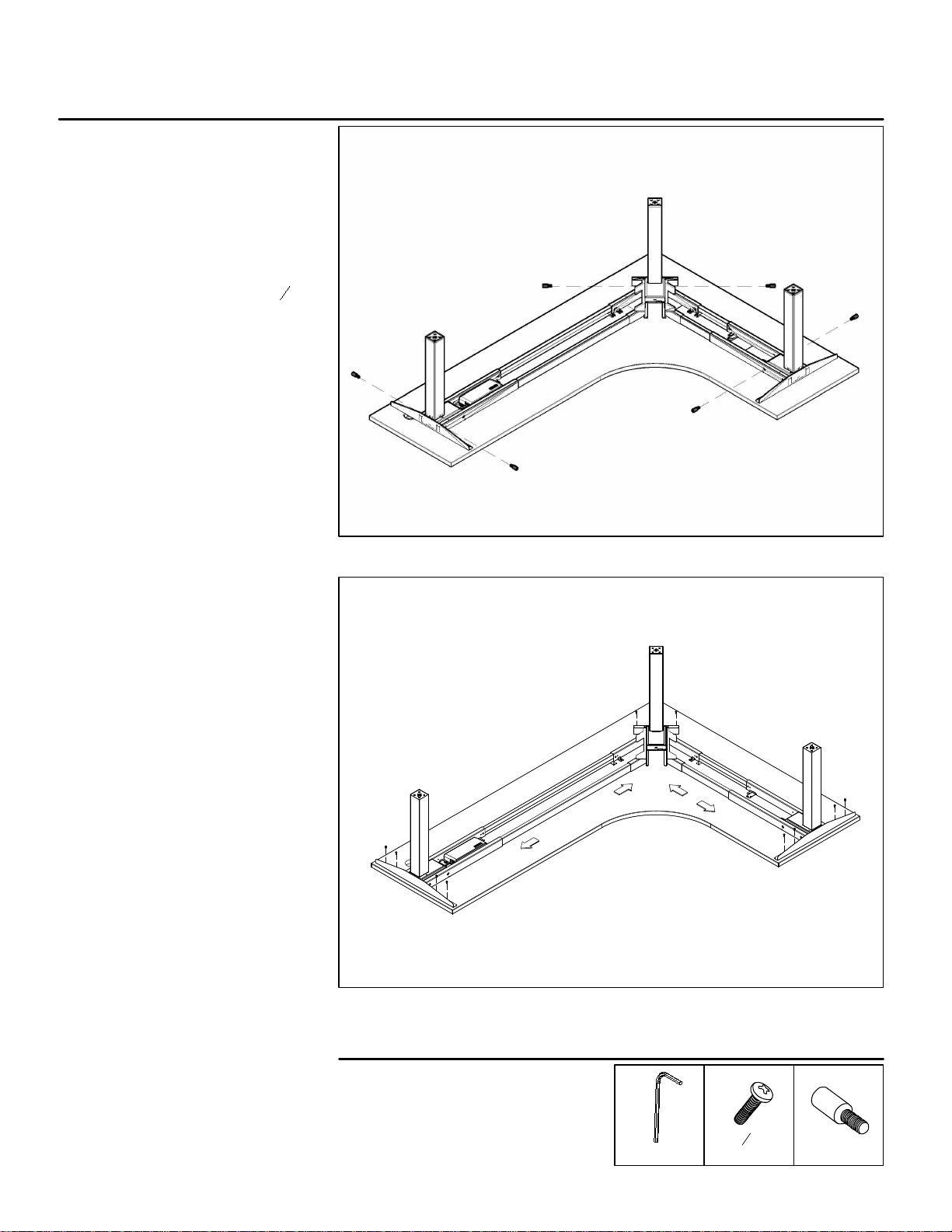

7. Install the top side frame to the
main frame by inserting it into
the main frame (Figure 7).
8. Set the column straight, then tie
up the screws inside the main
frame (Figure 8).
2- legged height adjustable table base installation(cont'd)
tools & hardware needed
FIGURE 8
FIGURE 7
allen key
7 Height adjustable table
APRIL 2019

9. Install M6 x 15 machine screws
using 5 mm allen wrench
(Figure 9).
10. Adjust the width by aligning the
holes of the side frame and
pre-drilled holes of the
worksurface with #10-24 x 58"
machine screws, (Figure 10).
2- legged height adjustable table base installation (cont'd)
tools & hardware needed
M6 x 15, 4 pcs
FIGURE 10
FIGURE 9
5 mm allen key
10-24x58" mach.
screw,8 pcs
8 Height adjustable table
APRIL 2019

11. Install the handset with 4 x 25
cross-head, then secure the
worksurface with 5 x 20
cross-head screw (Figure 11).
12. Tie up the tailstock screws at
the inner side of the main frame
(Figure 12).
2- legged height adjustable table base installation (cont'd)
tools & hardware needed
cross-head
screw driver
4x25 cross-head
screw, 2 pcs.
FIGURE 13
FIGURE 12
tailstock screw
(pre-installed)
handset
measuring
tape 4 mm allen key
5x20 cross-head
screw, 10 pcs.
tailstock screws
tailstock screws
9 Height adjustable table
APRIL 2019

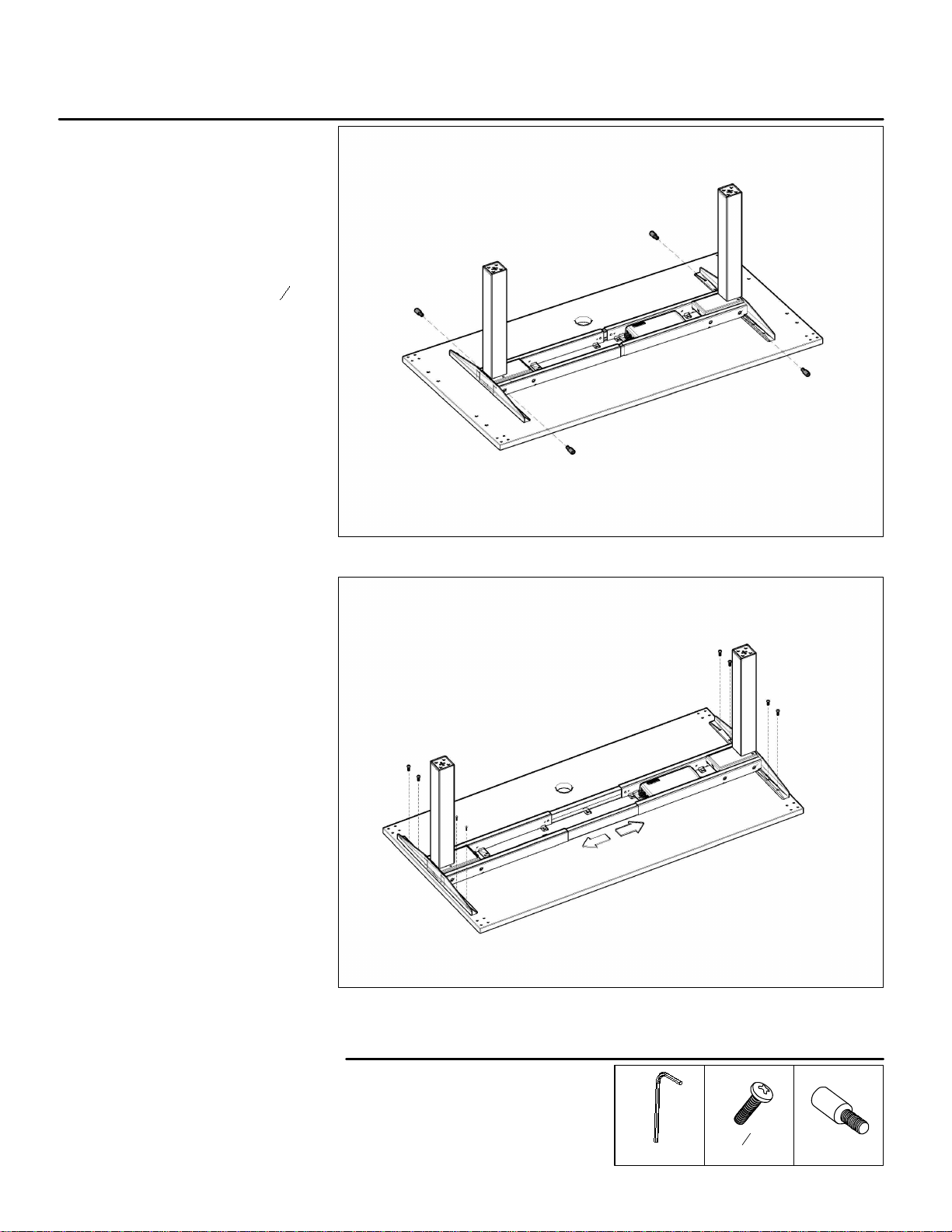

13. Install the foot with M10 x 35
machine screws using 5 mm
allen screw wrench, then install
the glides (Figure 14).
14. Flip over the table (Figure 15).
2- legged height adjustable table base installation (cont'd)
tools & hardware needed
FIGURE 15
FIGURE 14
M10x35 machine
screw, 8 pcs.
5 mm allen key
CAUTION
RESET THE DESK BEFORE
1. Press the buttons at
the same time for 3 seconds.
2. Continue pressing the buttons
until both columns are in lowest
position.
3. When finish reset, the control
box makes a sound and the
buttons can be released.
4. Now the system is operational.
10 Height adjustable table
APRIL 2019

1. Take the main frame out of the
box and place it on a clean,
solid surface or floor (Figure 1).
2. Remove half of the main frame
by sliding it out. Set it aside
(Figure 2).
3-legged height adjustable table base installation
FIGURE 2
FIGURE 1
11 Height adjustable table
APRIL 2019

20.7
39.0
51.6

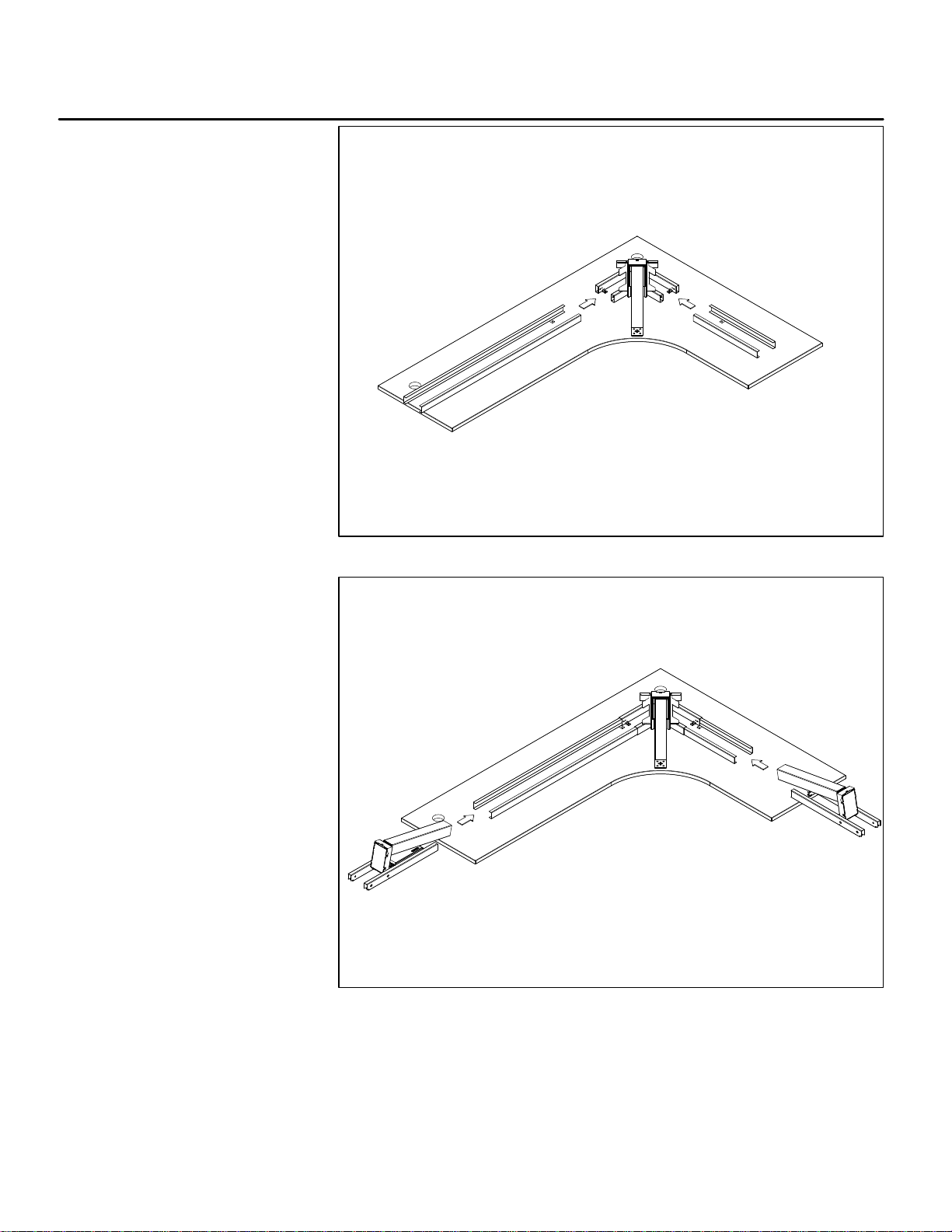

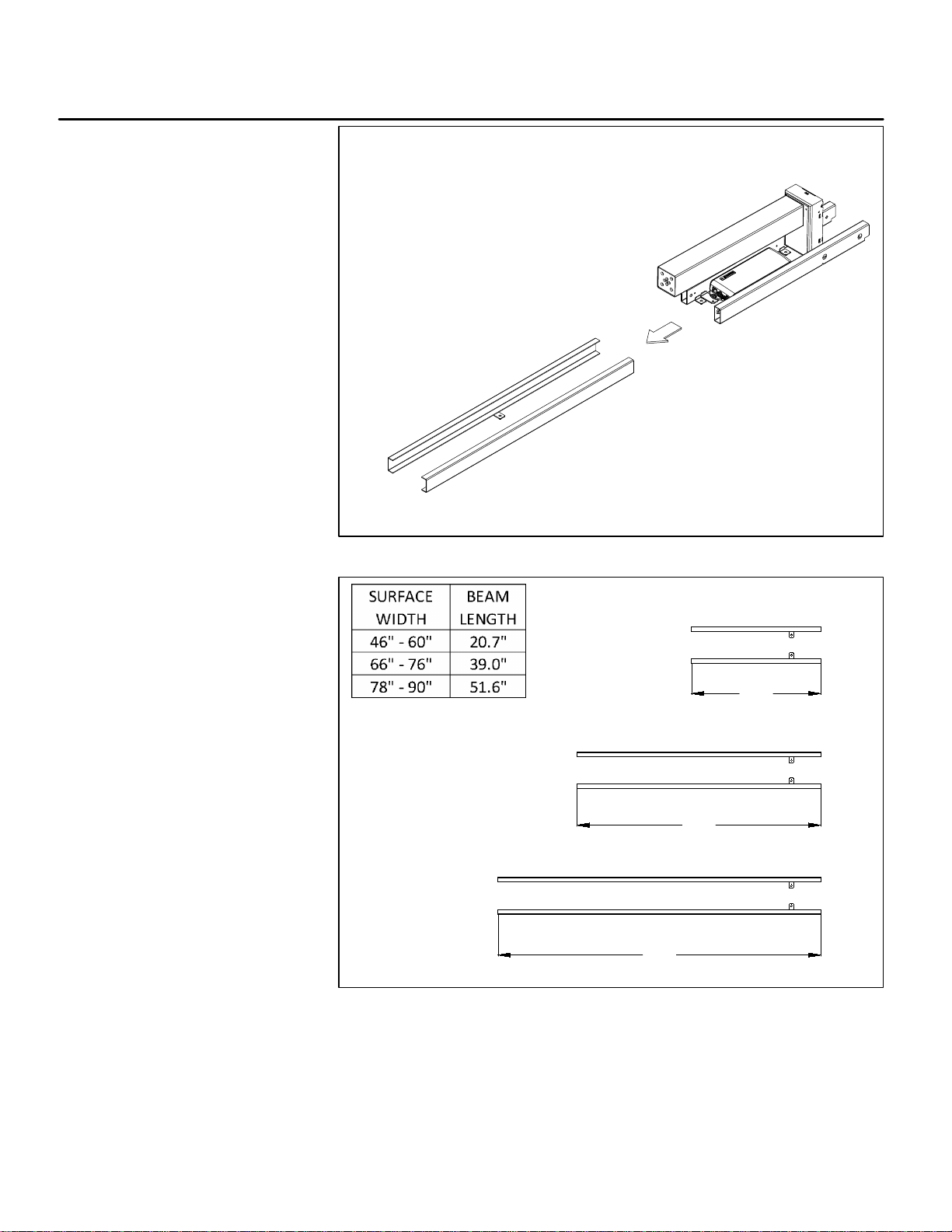

3. Remove the existing channels
by sliding them out (Figure 3).
4. Identify and match the channel
length with the worksurface
width (Figure 4) .
3-legged height adjustable table base installation (cont'd)
FIGURE 4
FIGURE 3
12 Height adjustable table
APRIL 2019

5. Slide the channels inside, with
the screw mount into the
corner leg (Figure 5).
6. Put the main frame on the
back side of the worksurface
(Figure 6).
3-legged height adjustable table base installation (cont'd)
FIGURE 6
FIGURE 5
13 Height adjustable table
APRIL 2019

7. Install the top side frame to the
main frame by inserting it into
the main frame (Figure 7).
8. Set the column straight, then tie
up the screws inside the main
frame (Figure 8).
3-legged height adjustable table base installation (cont'd)
tools & hardware needed
FIGURE 8
FIGURE 7
allen key
14 Height adjustable table
APRIL 2019

9. Install M6 x 15 machine screw
using 5 mm allen wrench
(Figure 9).
10. Adjust the width by aligning the
holes of the side frame and
pre-drilled holes of the
worksurface with #10-24 x 58"
machine screws, (Figure 10).
3-legged height adjustable table base installation (cont'd)
tools & hardware needed
M6 x 15, 4 pcs
FIGURE 10
FIGURE 9
5 mm allen key
10-24x58" mach.
screw,8 pcs
15 Height adjustable table
APRIL 2019

11. Install the handset with 4 x 25
cross-head, then secure the
worksurface with 5 x 20
cross-head screw (Figure 12).
12. Tie up the tailstock screws at
the inner side of the main frame
(Figure 13).
height adjustable corner table base installation (cont'd)
tools & hardware needed
cross-head
screw driver
4x25 cross-head
screw, 2 pcs.
FIGURE 13
FIGURE 12
tailstock screw
(pre-installed)
handset
measuring
tape 4 mm allen key
5x20 cross-head
screw, 10 pcs.
tailstock screws
tailstock screws
tailstock screws
16 Height adjustable table
APRIL 2019

13. Install the foot with M10 x 35
machine screws using 5 mm
allen screw wrench, then install
the glides (Figure 14).
14. Flip over the table (Figure 15).
height adjustable corner table base installation (cont'd)
tools & hardware needed
FIGURE 15
FIGURE 14
M10x35 machine
screw, 8 pcs.
5 mm allen key
CAUTION
RESET THE DESK BEFORE
1. Press the buttons at the
same time for 3 seconds.
2. Continue pressing the buttons
until both columns are in lowest
position.
3. When finish reset, the control
box makes a sound and the
buttons can be released.
4. Now the system is operational.
