TBB power Energier Mobile CC2.0L User manual

Energier MobileUser Manual

Energier MobileUser Manual
WARNING: HIGH VOLTAGE INSIDE
CAUTION: THE DC FUSE MUST HAVE BEENTURNED OFF BEFORE SERVICING
MADE IN CHINA

Energier MobileUser Manual
Disclaimer
Unless specially agreed in writing, TBB Power Co.,Ltd
Take no warranty as to the accuracy, sufficiency of suitability of any technical or other
information provided in this manual or other documentation.
Assumes no responsibility or liability for loss or damage, whether direct, indirect,
consequential or incidental, which might arise out of the use of such information.
TBB offer standard warranty with its products, taking no responsibility for direct or indirect loss
due to equipment failure.
About this Manual
This manual describes our product features and provides procedure of installations. This manual
is for anyone intending to install our equipment.
General Instruction
Thanks for choosing our products and this manual were suitable for Energier Mobile Inverter
Charger Combination. This chapter contains important safety and operation instructions. Read
and keep this User Guide well for later reference.
The Energier Mobile Inverter Charger Combination needs to be installed by professionals and
please pay attention to the following points prior to installation:
Please check the input voltage or voltage of battery is same to the nominal input voltage of this
inverter.
Please connect positive terminal “+” of battery to “+” input of the inverter.
Please connect negative terminal “-” of battery to “-” input of the inverter.
Please use the shortest cable to connect and ensure the secure connection.
While connecting, please secure the connection and avoid short cut between positive
terminal and negative terminal of battery, which will cause damage of battery.
Inverter will have high voltage inside. Only authorized electrician can open the case.
The inverter WAS NOT designed to use in any life retaining equipment.

Energier Mobile User Manual
Contents
1.General Safety Instruction ..................................................................................................1
1.1 Safety instruction...............................................................................................1
1.2 General precaution ............................................................................................1
1.3 Precaution regarding battery operation..............................................................1
2.Instruction...........................................................................................................................2
2.1 Brief Instruction..................................................................................................2
2.1.1 General Description.................................................................................2
2.1.2 Naming Rules..........................................................................................2
2.2 Structure............................................................................................................3
2.2.1 Front........................................................................................................3
2.2.2 Control panel...........................................................................................3
2.2.3 Remote control and monitor MCK............................................................4
2.2.4 Connection compartment.........................................................................5
2.2.5 Dimension................................................................................................6
2.3 Function.............................................................................................................6
2.3.1 Powerful and Reliable Inverter.................................................................6
2.3.2 Professional Battery Charger for lead acid battery...................................7
2.3.3 Lithium Battery Compatible......................................................................7
2.3.4 Protect function........................................................................................8
2.3.5 Communication........................................................................................8
3.Installation and Wiring ........................................................................................................9
4.Operation..........................................................................................................................10
4.1 Check before Operation...................................................................................10
4.2 Power ON Test.................................................................................................10
4.3 Power OFF......................................................................................................10
5.Configuration....................................................................................................................11
5.1 Default Setting................................................................................................. 11
5.2 Configuration...................................................................................................11
5.2.1 TBB Interface.........................................................................................11

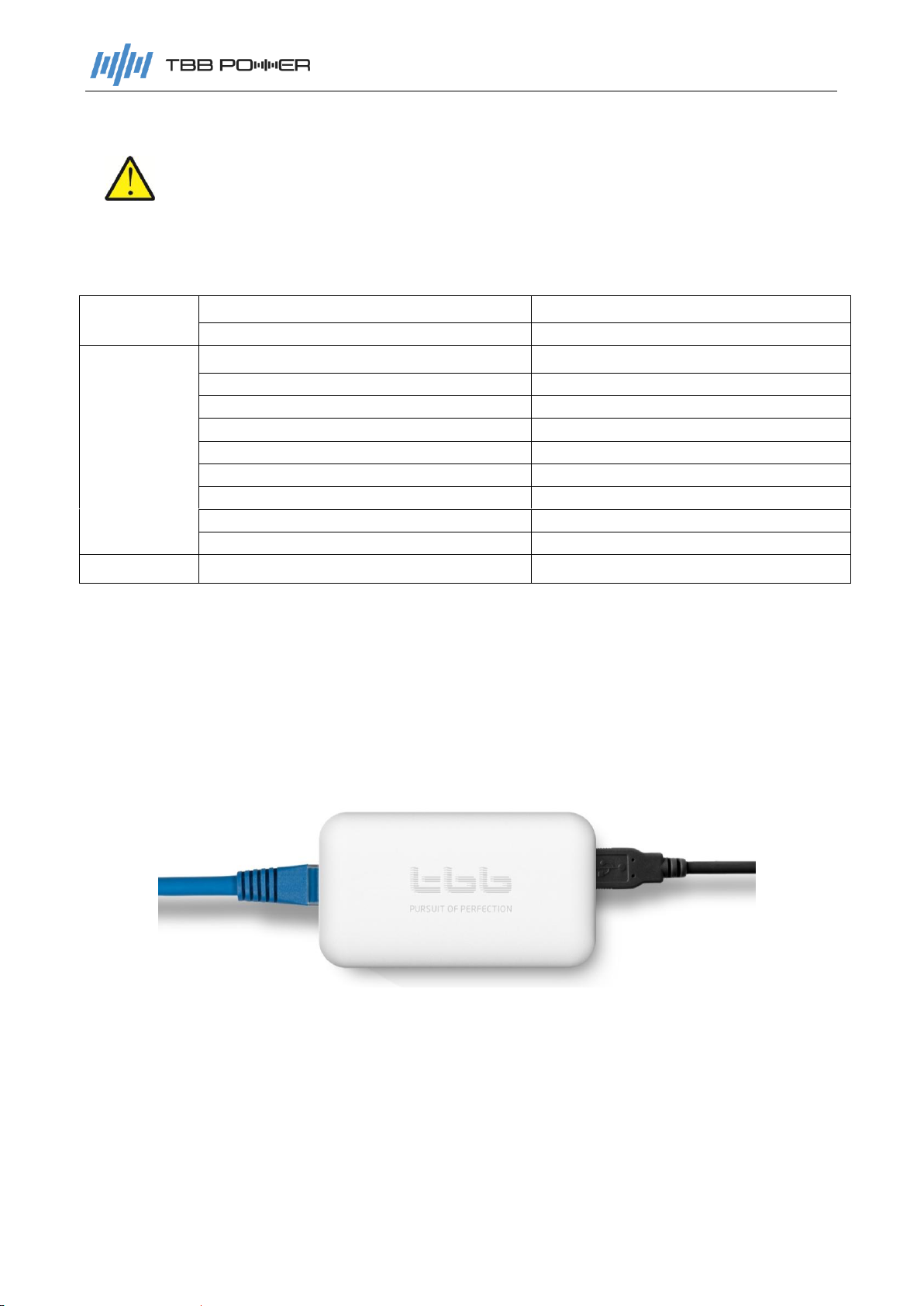

5.2.2 TBB Link................................................................................................12
6.Specification.....................................................................................................................13

Energier Mobile User Manual
1
1. General Safety Instruction
1.1 Safety instruction
As dangerous voltages and high temperature exist within the Energier Mobile Inverter Charger
Combination, only qualified and authorized maintenance personnel are permitted to open and
repair it. Please make sure Energier Mobile Inverter Charger Combination is turned off before
opening and repairing it.
This manual contains information concerning the installation and operation of the Energier Mobile
Inverter Charger Combination. All relevant parts of the manual should be read prior to
commencing the installation. Please follow the local stipulation meantime.
Any operation against safety requirement or against design, manufacture, safety standard are out
of the manufacturer warranty.
1.2 General precaution
DO NOT expose to dust, rain, snow or liquids of any type, it is designed for indoor use. DO
NOT block off ventilation, otherwise the Energier Mobile Inverter Charger Combination
would be overheating.
To avoid fire and electric shock, make sure all cables selected with right gauge and being
connected well. Smaller diameter and broken cable are not allowed to use.
Please do not put any inflammable goods near to inverter.
NEVER place unit directly above batteries, gases from a battery will corrode and damage
Energier Mobile Inverter Charger Combination.
DO NOT place battery over Energier Mobile Inverter Charger Combination.
1.3 Precaution regarding battery operation
Use plenty of fresh water to clean in case battery acid contacts skin, clothing, or eyes and
consult with doctor as soon as possible.
The battery may generate flammable gas during charging. NEVER smoke or allow a spark
or flame in vicinity of battery.
DO NOT put the metal tool on the battery, spark and short circuit might lead to explosion.
REMOVE all personal metal items such as rings, bracelets, necklaces, and watches while
working with batteries. Batteries can cause short-circuit current high enough to make metal
melt, and could cause severe burns.

Energier Mobile User Manual
2
2. Instruction
2.1 Brief Instruction
2.1.1 General Description
Energier Mobile is the new generation Inverter Charger Combination designed for various
on-board power application such as for RV, Utility Vehicle, Marine etc.
Energier Mobile delivers high reliability, performance and industry leading efficiency for mission
critical application. Its distinguishing surge capability makes it capable to power most demanding
appliances, such as air conditioner, water pump, washing machine, freezer, compressor, power
tool etc.
With the function of power assist & power control, it can be used to work with a limited AC source
such as generator or limited grid. Energier Mobile can automatically adjust its charging current
avoiding grid or generator to be overloaded. In case of temporary peak power appear, it can work
as the supplement source to generator or grid.
2.1.2 Naming Rules
Rate capacity
Rate DC voltage
Series name
CC XX Y ZZ
Rate AC voltage
Figure
Explanation
CC
series name
2.0
Represent rated capacity
2000W(nom)
3.0
3000W(nom)
L
Represent rated DC voltage
12VDC
--
Represent rated AC voltage
230VAC
Naming example: CC3.0L
Energier Mobile Inverter Charger Combination
Rated capacity: 3000W(nom)
RatedDC voltage: 12V

Energier Mobile User Manual
3
2.2 Structure
2.2.1 Front
Figure 2-1 Inverter Charger Combination structure in front view
2.2.2 Control panel
Mode LED Indication
ON/OFF
Power LED Indication
Mute
&
Unlock the fault
and alarm
Figure 2-2 Inverter Charger Combination Control buttons

Energier Mobile User Manual
4
Table 2-1 LED directive function
LED
Function
Invert
It will illuminate when CC is inverting.
AC In
It will flash when CC detect any input, mains or generator.
Charge
It will flash when CC is in float charging.
It will illuminate when CC is in bulk or absorption charging.
Warning
It will flash when CC have warning.
Fault
It will flash when CC have error.
2.2.3 Remote control and monitor MCK
Apart from above control panel, the user is also allowed to monitor, control and configure CC by a
remote controller MCK. The MCK could be installed at a location with convenient access to user
to monitor and operate CC.
Figure 2-3 Remote control and monitor MCK
More details of MCK about operation, installation and connection, please refers to the a dedicated
user manual which is attached in the box of MCK.

Energier Mobile User Manual
5
2.2.4 Connection compartment

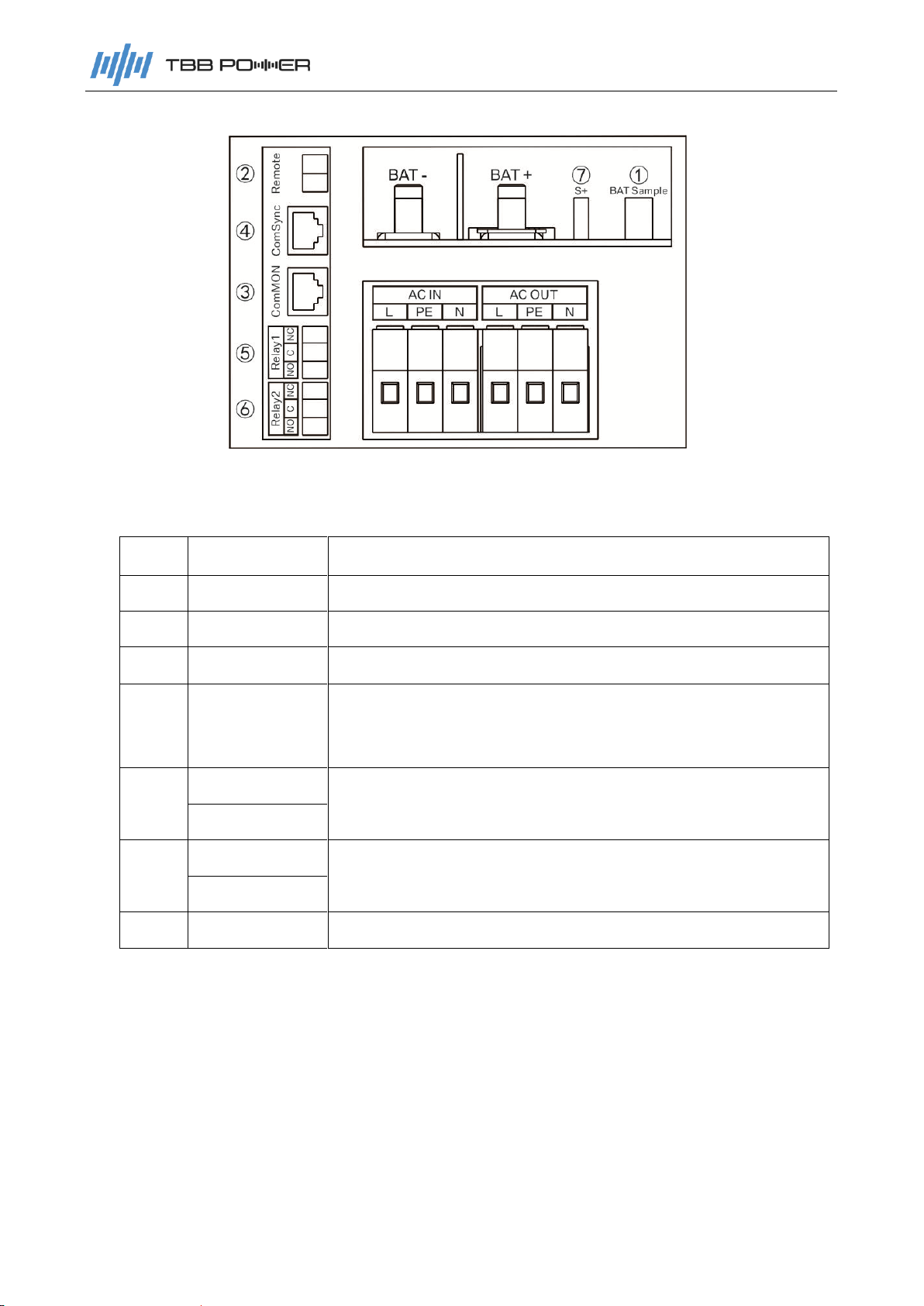

Figure 2-4 Signal terminal
Table 2-2 Signal terminal introduction
No.
Silk-screen
Definition
①
Bat Sample
Battery temperature and voltage sample.
②
Remote
A dry contact input for remote on/off, often IGN was connected.
③
Com MON
RS485 port for external monitor such as MCK, SNMP etc.
④
Com Sync
Communication with TBB’s M or P series lithium battery, which
is able to synchronize lithium battery’s charging and discharging
strategy
⑤
Relay1
Dry contact output control 1(NO, C, NC)
(NO, C, NC)
⑥
Relay2
Dry contact output control 2(NO, C, NC)
(NO, C, NC)
⑦
S+
Slave charger for starter battery

Energier Mobile User Manual
6
2.2.5 Dimension
Figure 2-5 Dimension of Inverter Charger Combination
2.3 Function
2.3.1 Powerful and Reliable Inverter
High performance pure sine wave
Energier Mobile is a pure sine wave inverter generating a near perfect sinusoidal AC wave power
output that is very similar or even better to what you can get from your utility grid. Pure sine wave
can guarantee the correct function of sensitive equipment (computer, laser printer, TV etc.). Also,
your home appliances will work smoother, cooler and more efficient, such as fridge, microwave
and power tools.
High surge power capability
Provided with outstanding surge power capability and low frequency transformer, Energier Mobile
is suitable for heavy inductive load like fridge, coffee maker, microwave, power tools, air
conditioner etc.
Battery low voltage protect
Energier Mobile provides configurable batterylow voltage protection.

Energier Mobile User Manual
7
2.3.2 Professional Battery Charger for lead acid battery
Multi stage sophisticated charging algorithm for lead acid battery
Fitted with multistage charging algorithm (bulk-absorption-float-recycle), the built-in charger of
Energier Mobile is designed to charge battery quickly and fully. Microprocessor controlled
charging algorithm with variable absorption charging timer could guarantee the optimal charging
for batteries of different discharged state.
Battrry Voltage
Charge Current
Soft Start Bulk Absorption Float Recycle
Icc
11.5V
10 days 1h 5
mins
½ Icc
Figure 2-6 Multi stage sophisticated charging algorithm for lead acid battery
Float charging and recycle charging program guarantee your battery getting proper maintenance
in case of long time connected and less aging in case of long time connected with no use.
Battery Sample Cable (Temperature and voltage)
Battery temperature is a key factor in correct charging for lead acid battery, the charging formula
must be adjusted (automatically and in real time) according to the actual battery temperature to
ensure that battery is fully charged but not overcharged or undercharged. All charging voltages
recommended by battery manufacture are in fact ONLY applied at 20℃-25℃.
The Bat sample cable (battery temperature and voltage sensor) supplied with Energier Mobile
measures the temperature of battery and automatically makes adjustments at real time to properly
charge your batteries at compensation rate of –4mV/℃/cell. In case of Bat sample cable is not
present, Energier Mobile will use 25℃as default setting. This feature is especially recommended
for sealed batteries and/or when important fluctuations of battery temperature are expected.
Multi battery chemical available
Energier Mobile offers premium charging algorithm for commonly encountered lead acid battery
chemicals include AGM, GEL, Flooded, lead-carbon and Lithium battery, of which you can set
through LCD interface and TBB Link software.
2.3.3 Lithium Battery Compatible
Energier Mobile support universal LFP charging profile and offered pre-defined LFP charging
profile for TBB M and P series lithium battery.

Energier Mobile User Manual
8
Built in BMS pre-defined LFP charging and communication.
According to cell temperature and real time SOC, BMS will send command to battery charger
asking for optimum charging voltage and current. This synchronization will prevent overheating or
overcharging especially at the end of charging, to ensure the lithium battery reaches its target
cycle life
In the meantime, instead of using voltage as protection, SOC value is used with more accuracy
thus to avoid permanently dead of lithium battery due to left discharged for long time.
2.3.4 Protect function
The Energier Mobile Inverter Charger Combination is equipped with a series of complete
hardware and software protection functions to ensure its stable and reliable operation.
Overload protection
When overload protection is trigger on, it will restart automatically after 60s. And after three
consecutive overload shutdown protections, the equipment will not restart automatically. At this
time, the user needs to manually restart.
Over temperature protection
When the internal temperature is too high, Energier Mobile will enter into the over-temperature
protection. After the internal temperature returns to normal, it can automatically resume normal
operation.
Short circuit protection
The equipment will automatically shut down when the AC output is shorted and needs to be
manually activated.
Battery over temperature protection
During the charging, the equipment will continuously monitor the battery temperature. When the
battery temperature is too high, the equipment will automatically reduce the charging current.
When the battery is severely heated, the charger will automatically turn off to protect the battery.
Battery low voltage protection
To prevent the permanent damage caused by the over discharge of battery, the equipment will
automatically cut off the output according to the low voltage protection point set by the user.
2.3.5 Communication
Dry contact input
Energier Mobile is equipped with a dry contact input for remote on/off, often IGN was connected.
RS485
Equipped with a RS485 interface.

Energier Mobile User Manual
9
3. Installation and Wiring
Please refer to "Quick Installation Guide".
Keep away from fire, avoid direct sunlight and rain; do not store flammable,
explosive or corrosive gases or liquids in the working environment. Don't
install in a working environment with metal conductive dust.
Please install the equipment in a location of dry, clean, cool with good ventilation.
Operating temperature: -20～65℃
Storage temperature: -40～70℃
Cooling: Force fan
Relative humidity in operation: 95% without condensation.

Energier Mobile User Manual
10
4. Operation
4.1 Check before Operation
Please check before Operation according to the following.
Inverter is installed correctly and steady.
Reasonable cable layout to meet customer requirements.
Make sure the grounding is reliable.
Make sure the ground wire is properly connected and firm and reliable.
Double check the battery breaker is OFF.
Make sure the cables are properly connected and firm and reliable.
Reasonable installation space, clean and tidy environment, no construction residue.
4.2 Power ON Test
Make sure the battery voltage is within the permissible range before turning
ON the breaker.
Please follow the following instruction step by step.
Step 1: Turn on the circuit breaker between the battery and the inverter.
Step 2: Press the On/Off button to turn on the inverter entering into self diagnostic.
Step 3: Set the parameters following the setup wizard.
Step 4: Press the On/Off button Again to turn on the inverter.
Step 5: Observe the LED light to make sure the inverter is running normally.
(refer toTable 2-2 LED directive function)
4.3 Power OFF
After the inverter is power OFF, there is still residual power and heat in the
chassis, which may lead to electric shock or burn.
Method 1: Press the On/Off button about 2secs to turn off the output of inverter. Afterwards,
you can press and hold the On/Off for 5secs, after hearing consecutive beep, you can
permanently shut down the inverter.
Method 2: Press and hold the On/Off for 5secs, after hearing consecutive beep, you can
permanently shut down the inverter straight away.

Energier Mobile User Manual
11
5. Configuration
Settings may only be changed by a qualified electrical engineer.
Read the instructions thoroughly before implementing changes.
During setting of the charger, the AC input must be removed.
5.1 Default Setting
Table 5-1 CC2.0L/CC3.0L factory settings
System
Rate AC Voltage
230VAC
Rate AC Frequency
50Hz
Battery
Battery Type
AGM
Battery AH
200AH
Max Charge Current
100% of the Max charge current
Absorption Voltage
14.1
Float Voltage
13.7
Undervoltage Protect Recover
13.0
Undervoltage Warning
11.0
Undervoltage Protect
10.5
Deep Undervoltage Protect
9.9
AC Input
Power Assist Cur
16
5.2 Configuration
5.2.1 TBB Interface
The TBB Interface is a RS485 to USB communication module.
Connect the inverter to the computer requires a TBB Interface, which goes between the ComMon
port on the inverter, and a USB port on the computer.
Figure 5-1 TBB Interface

Energier Mobile User Manual
12
5.2.2 TBB Link
The TBB Link is a powerful tool or CC3.0L series inverter Configuration. The TBB Link can be
installed on the computer, open the TBB Link and turn on the inverter, the inverter can be
configured.
Figure 5-2 TBB-Link

Energier Mobile User Manual
13
6. Specification
Model
CC2.0L
CC3.0L
AC inputs
Input voltage range:175~265 VAC, Input frequency:45~65Hz
AC input Current
32A (transfer switch)
Inverter
Nominal battery voltage
12VDC
Input voltage range
10.5~17VDC
Output
Voltage: 220/230/240 VAC ±2%, Frequency: 50/60 Hz ±0.1%
Harmonic distortion
<2%
Power factor
1.0
Cont. output power at 25°C
2000W
3000W
Output power (30min) at 25°C
2150W
3200W
Peak power
4000W
6000W
Cont. output power at 40°C
1800W
2700W
Maximum efficiency
93%
Zero load power
12W
16W
Charger
Charge voltage 'absorption'
14.4VDC
Charge voltage 'float'
13.8VDC
Battery types
AGM / GEL / OPZV / Lead-Carbon / Li-ion / Flooded
Battery Charge current
100A
150A
Temperature compensation
Yes
General data
AC Out Current
32A
Transfer time
<4ms (<15ms when WeakGrid Mode)
Remote on-off
Yes
Programmable relay
2x
Protection
a) output short circuit, b) overload, c) battery voltage over voltage
d) battery voltage under voltage, e)over temperature, f) Fan block
g) input voltage out of range, h) input voltage ripple too high
General purpose com. Port
RS485
Operating temperature range
-20 to +65˚C
Storage temperature range
-40 to +70˚C
Relative humidity in
operation
95% without condensation
Altitude
2000m
Mechanical Data
Dimension
510*245*135mm
Net Weight
17kg
21kg
Cooling
Forced fan
Protection index
IP20
Standards
Satety
EN-IEC 62477-1
EMC
EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-3-11,EN61000-3-12

Energier Mobile User Manual
14

Energier Mobile User Manual
15
