Team Kalorik TKG VC 1021 User manual


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International BELGIUM. The pages must be reproduced and
folded in order to obtain a booklet A5 (+/- 148.5 mm width x
210 mm height). When folding, make sure you keep the good
numbering when you turn the pages of the I/B. Don’t change
the page numbering. Keep the language integrity.

Front cover page (first page)
Assembly page 1/22
Fax [phone]
Staubsauger mit
Wasserfiltrierung
Water filtration
vacuum cleaner
Aspirateur avec filtration
par eau
Stofzuiger met waterfilter
Art.-Nr. TKG VC 1021
220-240V~ 50/60Hz 1200-1400 W
I/B Version
160216
Downloaded from www.vandenborre.be


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International BELGIUM. The pages must be reproduced and
folded in order to obtain a booklet A5 (+/- 148.5 mm width x
210 mm height). When folding, make sure you keep the good
numbering when you turn the pages of the I/B. Don’t change
the page numbering. Keep the language integrity.
2 TKG VC 1021 - 160216
Assembly page 2/22
Fax [phone]
D

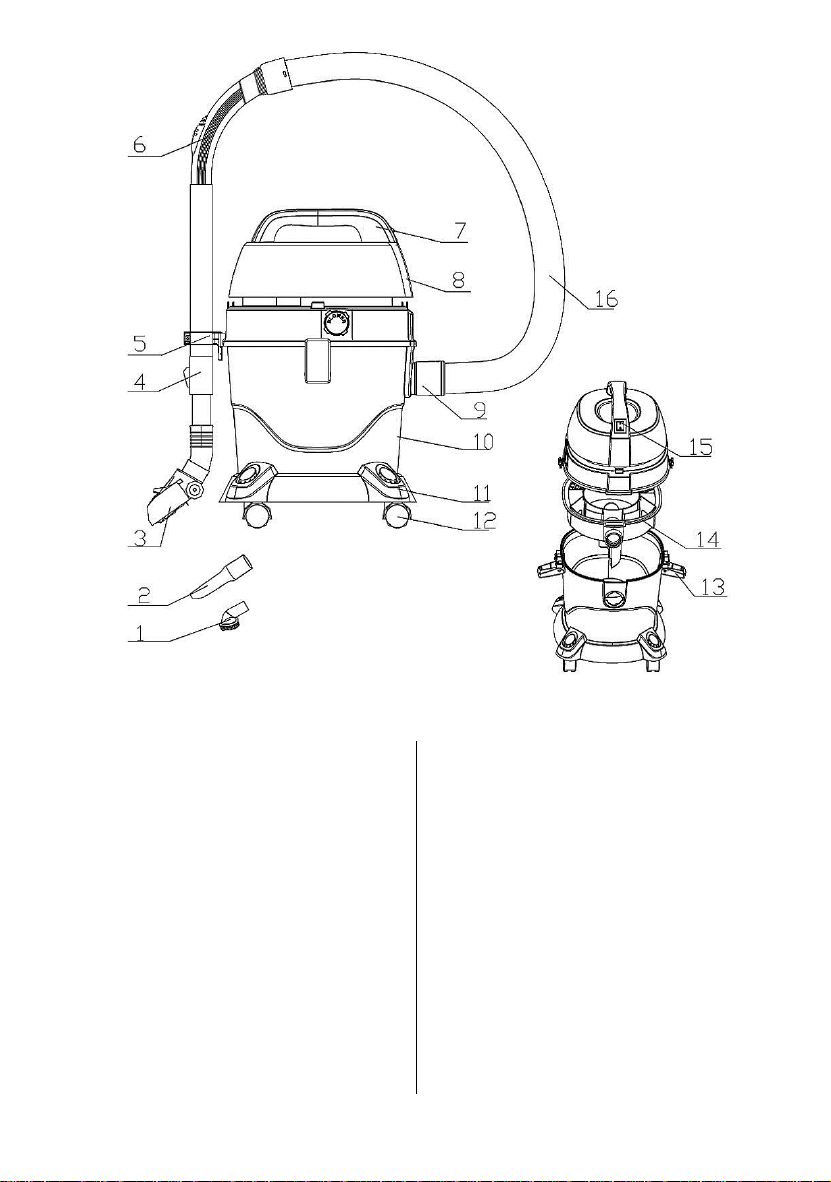

1. Polsterbürste
2. Spaltendüse
3. Bodenbürste
4. Einstellbares Saugrohr
5. Aufhänger
6. Handgriff Saugrohr
7. Handgriff
8. Gerätegehäuse
9. Anschluss Saugschlauch
10. Staubbehälter
11. Standfuß
12. Laufrolle
13. Verriegelung Staubbehälter
14. Filter
15. Ein-/Ausschalter
16. Saugschlauch
UK
1. Dust Brush
2. Crevice Tool
3. Floor Brush
4. Adjustable Tube
5. Hook
6. Curved Tube
7. Handle
8. Main Body
9. Hose Inserter
10. Barrel
11. Base
12. Wheel
13. Buckle Assembly
14. Clapboard Assembly
15. Power
16. Hose
Downloaded from www.vandenborre.be


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International BELGIUM. The pages must be reproduced and
folded in order to obtain a booklet A5 (+/- 148.5 mm width x
210 mm height). When folding, make sure you keep the good
numbering when you turn the pages of the I/B. Don’t change
the page numbering. Keep the language integrity.
3 TKG VC 1021 - 160216
Assembly page 3/22
Fax [phone]
FR
1. Brosse à poussière
2. Suceur plat
3. Brosse pour plancher
4. Tube télescopique
5. Crochet
6. Tube courbé
7. Poignée
8. Corps principal
9. Embout d’insertion du tuyau
10. Cuve
11. Base
12. Roue
13. Jeu d’attaches
14. Ensemble séparateur
15. Interrupteur d‘alimentation
16. Tuyau
NL
1. Borstel voor stoffering
2. Plat zuigstuk
3. Vloerborstel
4. Telescopische buis
5. Bevestigingshaak
6. Handvat van de flexibele buis
7. Handvat van het toestel
8. Behuizing
9. Verbindingsstuk van de flexibele
buis
10. Stofbakje
11. Basis
12. Wieltje
13. Vergrendeling stofbakje
14. Filter
15. AAN/UIT-schakelaar
16. Flexibele buis
