Team Magic E6 Monster Truck Trooper II User manual

61463
TROOPER II EP MONSTER TRUCK
Instruction Manual
505004
Instruction Manual
505004

Thank you for choosing the Team Magic E6 TROOPER II. The E6 TROOPER II is designed to be fun to drive and usestop quality parts for
performance and durability. Before you start building your new R/C kit, we suggest you read though the instruction manual first. Be sure
to check all assembly and performance tips before you start. We hope you enjoy the building processes.
General Building Tips:
Read the instruction manual before building.
Clear a work area and try to work on a light color towel to avoid missing dropped parts.
Don't over-tighten fasteners. Many assembly problems are caused by over-tightening screws or nuts. Don't use too large a grip. Please go slowly and
feel the resistance build. Just snug it up.
When it doesn't fit, please double check. If an assembly is not going together correctly, then either there really is a bad fit (e.g. a part is damaged or
defective) or a mistake in assembly. Always re-read the instructions when there are any problems. If you cannot figure out what's wrong, always ask
dealer, distributor or Team Magic. Don't use force beyond what the instructions call for.
Using the right tools makes assembly much easier. The instructions below finely indicate you what tools to get to make things easier. We don't want to
scare you by saying that all these tools are required, but you will have a easier time if you have them. Borrow them from a friend to check if necessary.
The assembly is arranged so that you will open the bag and finish that bag before you go on to the next bag. Sometimes, you will have parts
remaining at the end of a bag. These will become part of the following bags.
A Good Dealer Is Extremely Important!!
A good hobby dealer can help you with most assembly problems you might encounter. This is the main reason why you should buy your kits from a
good dealer rather than from the cheapest dealer. Bring your problematic parts to the dealer and, most likely, you'll walk away soon thereafter with
the problem solved. If you think that you really don't have the mechanical skills to complete the assembly, you may pay your dealer to finish the job for
you.
!Thank you for purchasing the E6 TROOPER II. To drive the car, you will need to check the following procedures.
1
1

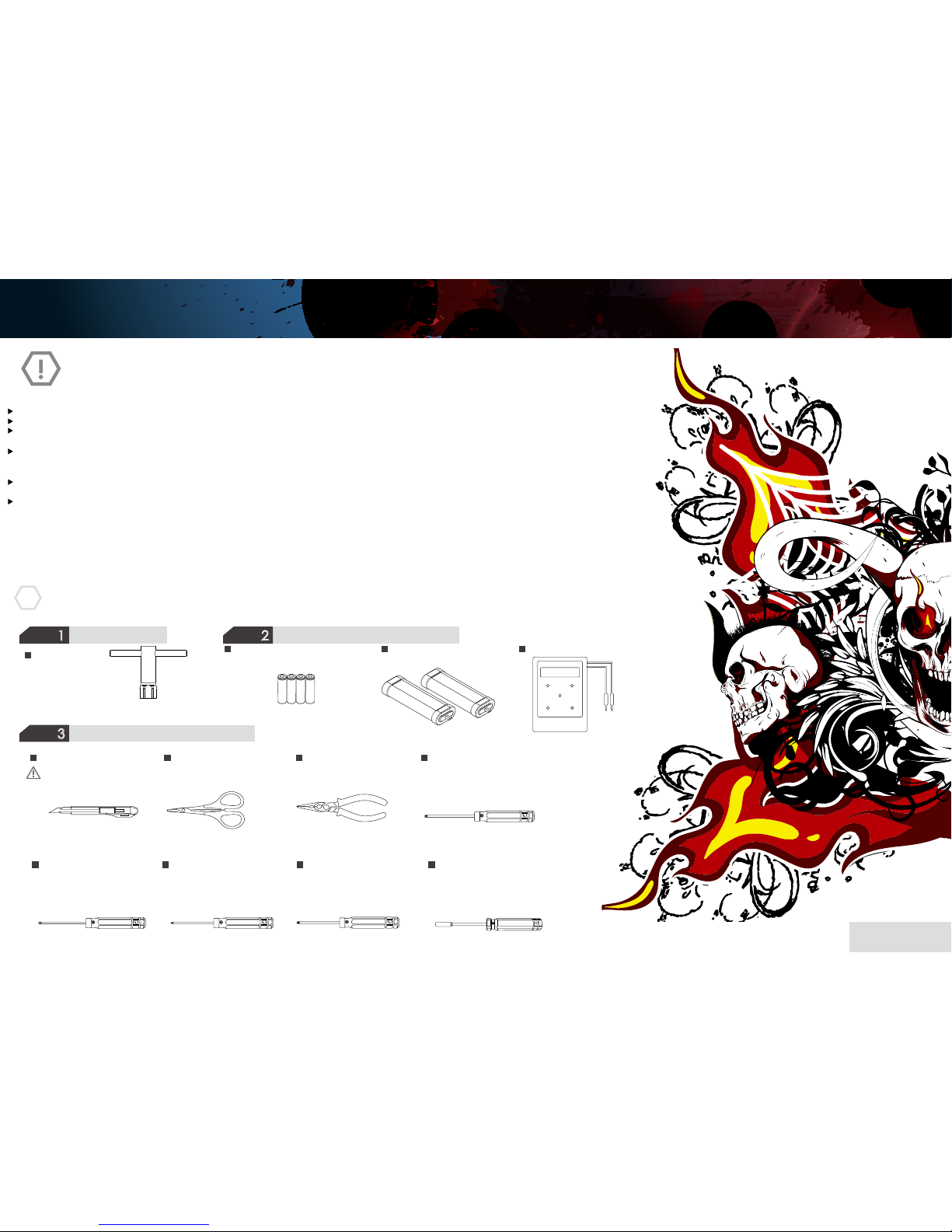

Included tools
Cross Wrench
(17mm)
(Please always buy these items in model shops)
AA Alkaline Or Rechargeable
Batteries For Transmitter, 4pcs
Helpful equipments
3
Hobby Knife
(Warning!! This knife cuts
nylon parts and fingers with
equal ease. Be careful.)
TM Black HC Nut Driver
5.5mm (for 3mm nut)
#117010
TM Black HC Hex Wrench
Metric Size 3.0mm
#117002-4M
Needlenose Pliers
TM Black HC Hex Wrench
Metric Size 2.5mm
#117002-3M
Body Scissors
(for body cutting)
#116006
TM Black HC Hex Wrench
Metric Size 1.5mm
#117002-1M
TM Black HC Hex Wrench
Metric Size 2.0mm
#117002-2M
Required items
2
7.4v Rechargeable
Battery Pack X 2
Battery Pack charger
MONSTER TRUCK TROOPER II
2
E6 TROOPER II EP MONSTER TRUCK

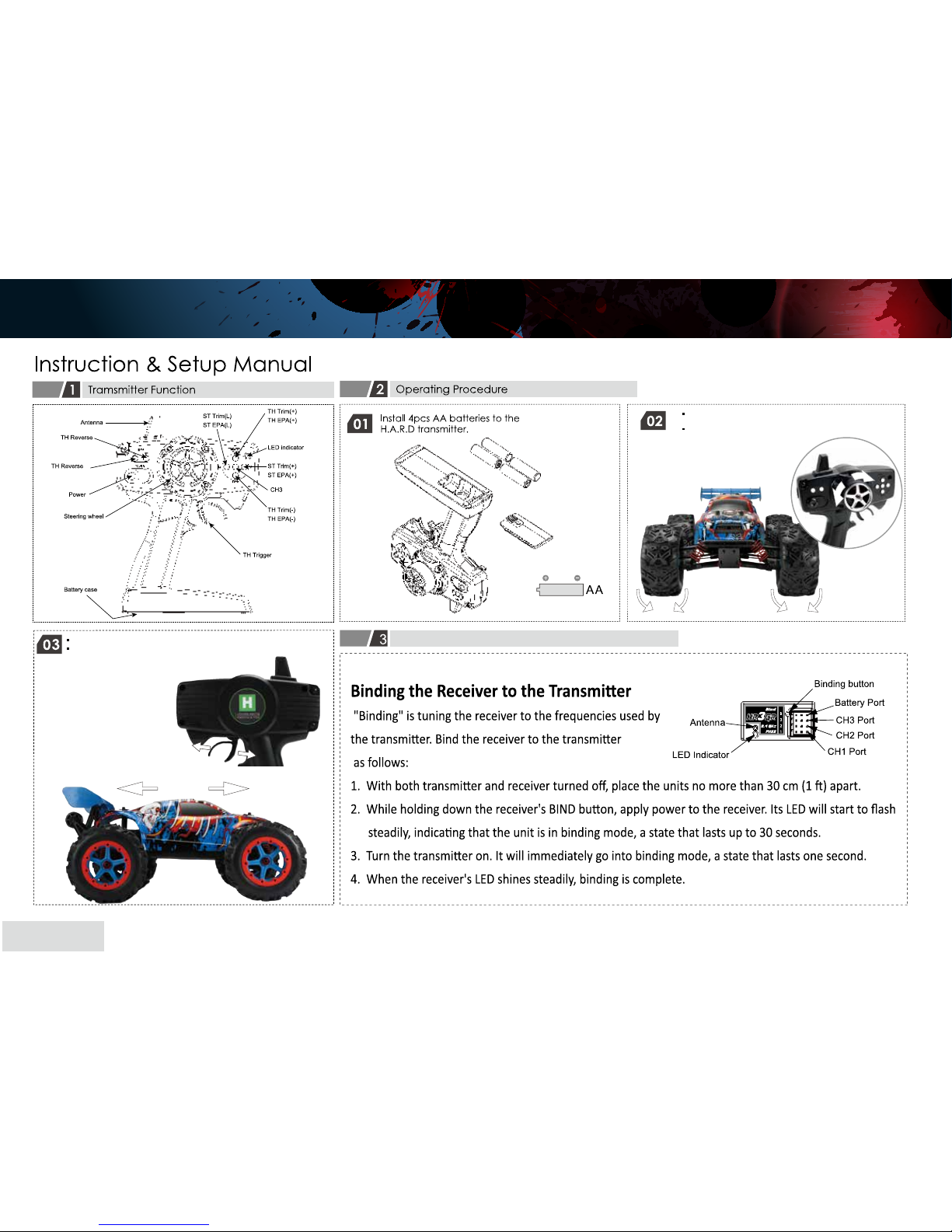

Binding (connecting the receiver to transmitter)
Turn the steering wheel right to turn the front tires go
right.
Turn the steering wheel left to turn the front tires go left.
Press the throttle trigger to moving forward the vehicle
Push forward the throttle trigger to brake and reverse the vehicle.

Thank you for choosing the Team Magic E6 TROOPER II. The E6 TROOPER II is designed to be fun to drive and usestop quality parts for
performance and durability. Before you start building your new R/C kit, we suggest you read though the instruction manual first. Be sure
to check all assembly and performance tips before you start. We hope you enjoy the building processes.
General Building Tips:
Read the instruction manual before building.
Clear a work area and try to work on a light color towel to avoid missing dropped parts.
Don't over-tighten fasteners. Many assembly problems are caused by over-tightening screws or nuts. Don't use too large a grip. Please go slowly and
feel the resistance build. Just snug it up.
When it doesn't fit, please double check. If an assembly is not going together correctly, then either there really is a bad fit (e.g. a part is damaged or
defective) or a mistake in assembly. Always re-read the instructions when there are any problems. If you cannot figure out what's wrong, always ask
dealer, distributor or Team Magic. Don't use force beyond what the instructions call for.
Using the right tools makes assembly much easier. The instructions below finely indicate you what tools to get to make things easier. We don't want to
scare you by saying that all these tools are required, but you will have a easier time if you have them. Borrow them from a friend to check if necessary.
The assembly is arranged so that you will open the bag and finish that bag before you go on to the next bag. Sometimes, you will have parts
remaining at the end of a bag. These will become part of the following bags.
A Good Dealer Is Extremely Important!!
A good hobby dealer can help you with most assembly problems you might encounter. This is the main reason why you should buy your kits from a
good dealer rather than from the cheapest dealer. Bring your problematic parts to the dealer and, most likely, you'll walk away soon thereafter with
the problem solved. If you think that you really don't have the mechanical skills to complete the assembly, you may pay your dealer to finish the job for
you.
!Thank you for purchasing the E6 TROOPER II. To drive the car, you will need to check the following procedures.
1
1
Included tools
Cross Wrench
(17mm)
(Please always buy these items in model shops)
AA Alkaline Or Rechargeable
Batteries For Transmitter, 4pcs
Helpful equipments
3
Hobby Knife
(Warning!! This knife cuts
nylon parts and fingers with
equal ease. Be careful.)
TM Black HC Nut Driver
5.5mm (for 3mm nut)
#117010
TM Black HC Hex Wrench
Metric Size 3.0mm
#117002-4M
Needlenose Pliers
TM Black HC Hex Wrench
Metric Size 2.5mm
#117002-3M
Body Scissors
(for body cutting)
#116006
TM Black HC Hex Wrench
Metric Size 1.5mm
#117002-1M
TM Black HC Hex Wrench
Metric Size 2.0mm
#117002-2M
Required items
2
7.4v Rechargeable
Battery Pack X 2
Battery Pack charger
MONSTER TRUCK TROOPER II
2
E6 TROOPER II EP MONSTER TRUCK
Binding (connecting the receiver to transmitter)
Turn the steering wheel right to turn the front tires go
right.
Turn the steering wheel left to turn the front tires go left.
Press the throttle trigger to moving forward the vehicle
Push forward the throttle trigger to brake and reverse the vehicle.

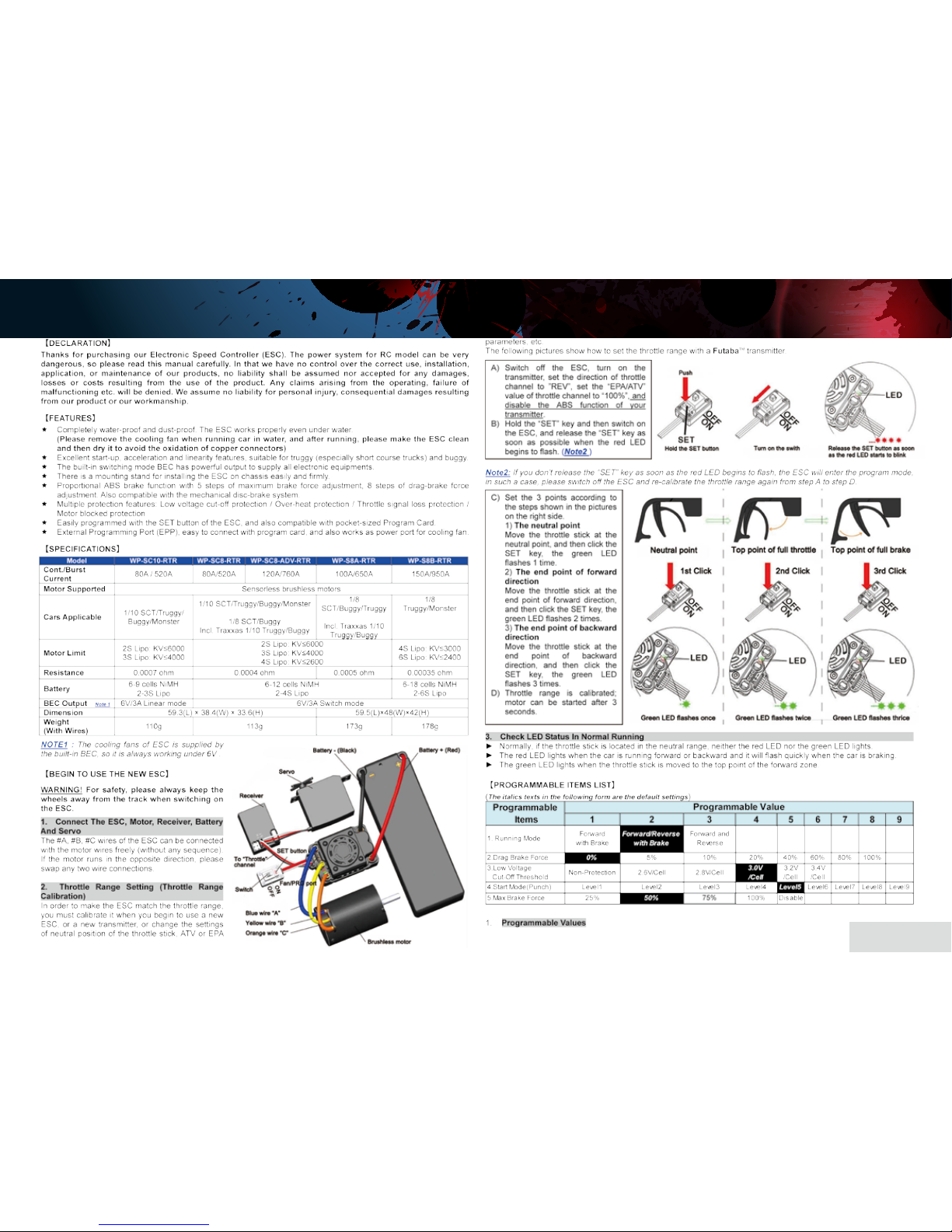

3
E6 TROOPER II EP MONSTER TRUCK

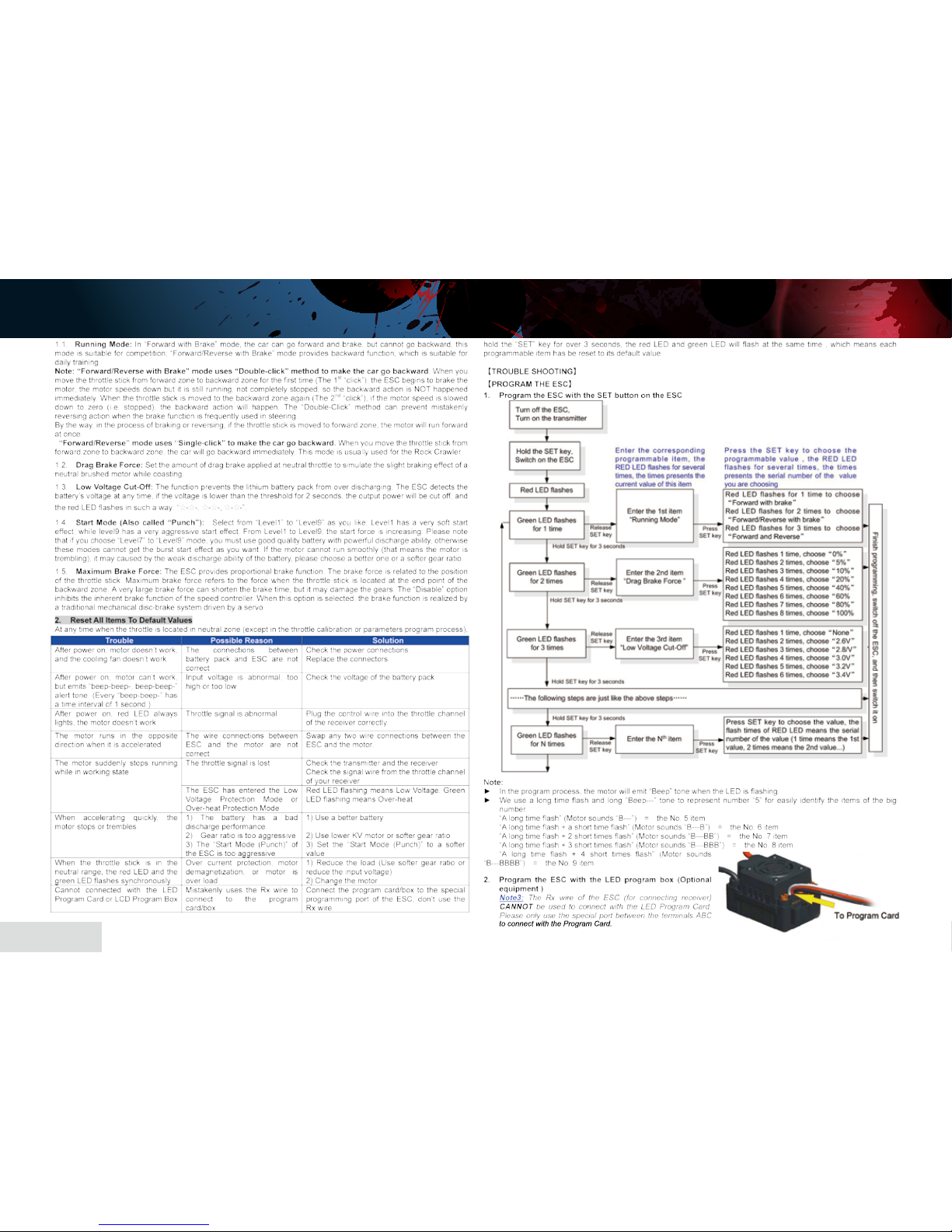

E6 TROOPER II EP MONSTER TRUCK
4

3
E6 TROOPER II EP MONSTER TRUCK
E6 TROOPER II EP MONSTER TRUCK
4

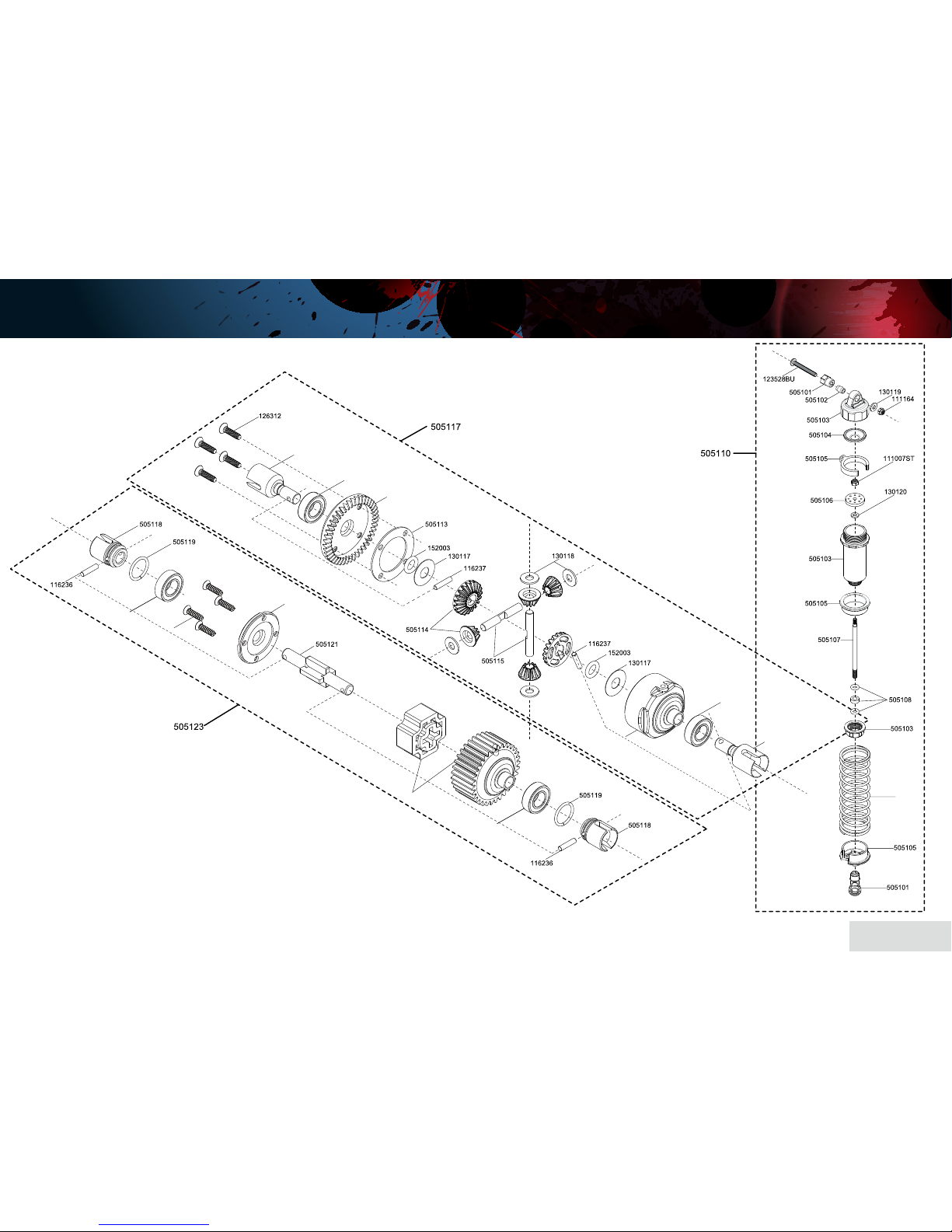

E6 TROOPER II EP MONSTER TRUCK
5
150816BK
116312
505201
505202
150816BK
505111
150816BK
505175
505116
150816BK
505111
505176

E6 TROOPER II EP MONSTER TRUCK
5
150816BK
116312
505201
505202
150816BK
505111
150816BK
505175
505116
150816BK
505111
505176
505175

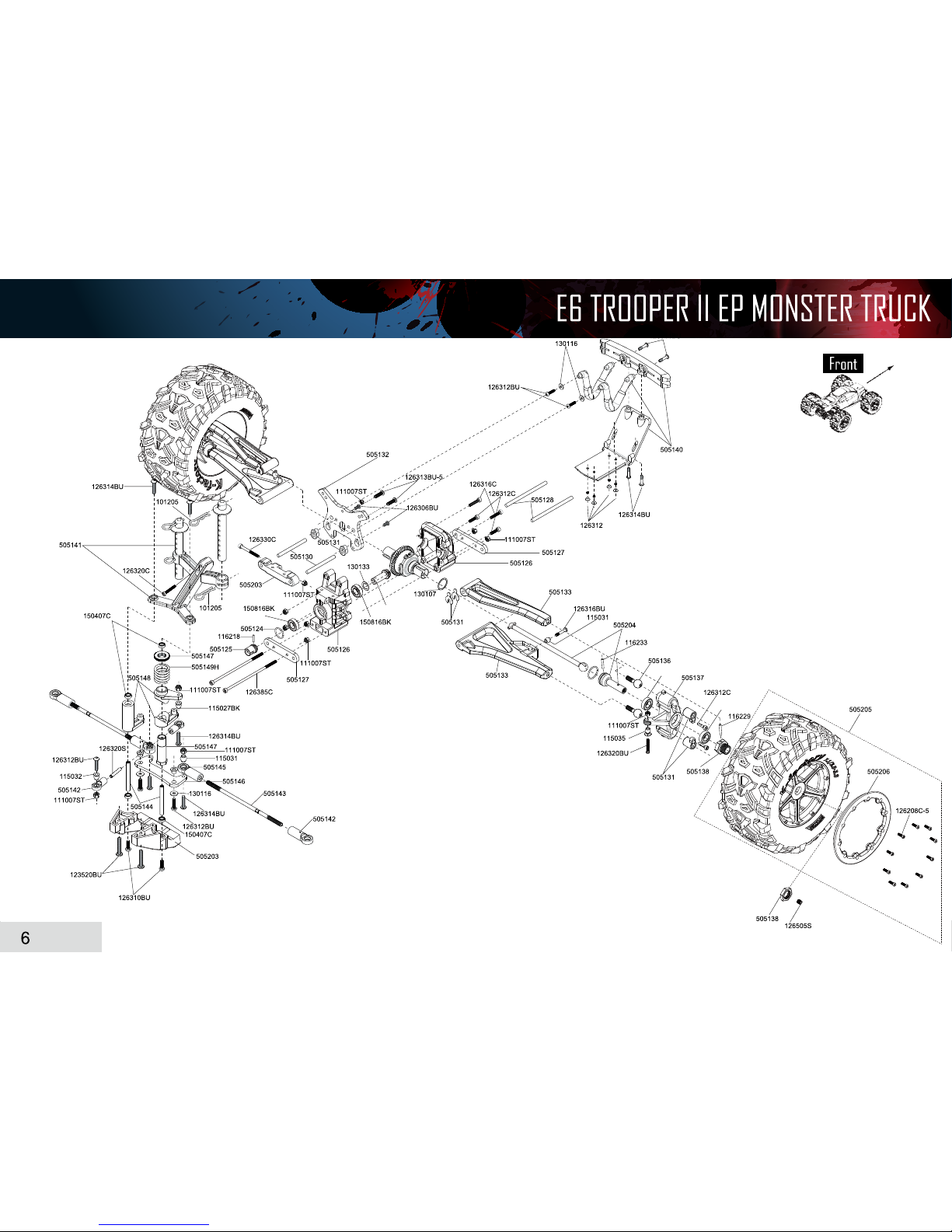

7
Front
E6 TROOPER II EP MONSTER TRUCK
505207
116234
150816BK
505153
123510C
126308C
130119
K6602-11
126404NL
505208
H6824
505211
H6825
126310C
505164
505209
152007
505210
114071
H6818
505165
126310
505212
126310BU
126312BU
SA-SW0231

7
Front
E6 TROOPER II EP MONSTER TRUCK
505207
116234
150816BK
505153
123510C
126308C
130119
K6602-11
126404NL
505208
H6824
505211
H6825
126310C
505164
505209
152007
505210
114071
H6818
505165
126310
505212
126310BU
126312BU
SA-SW0231

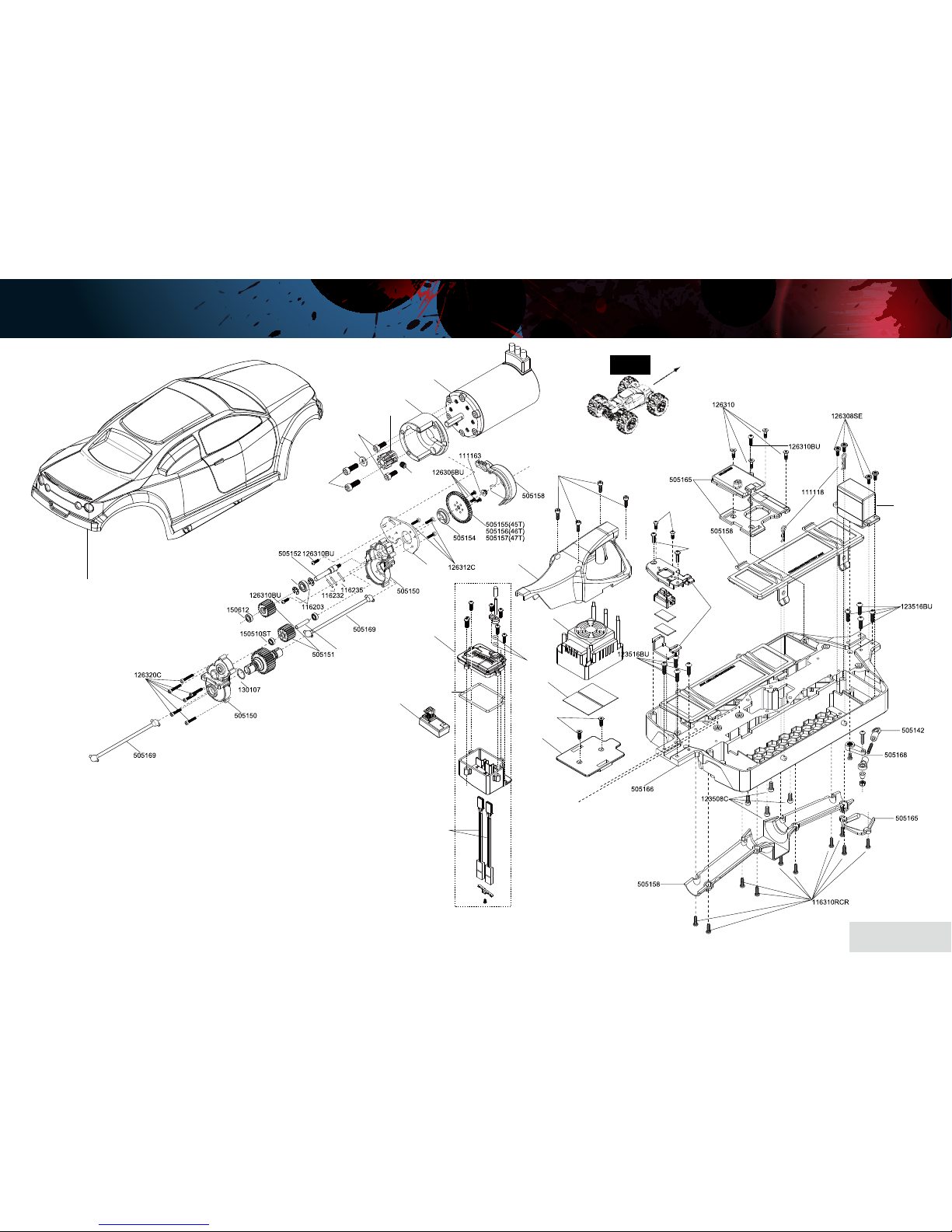

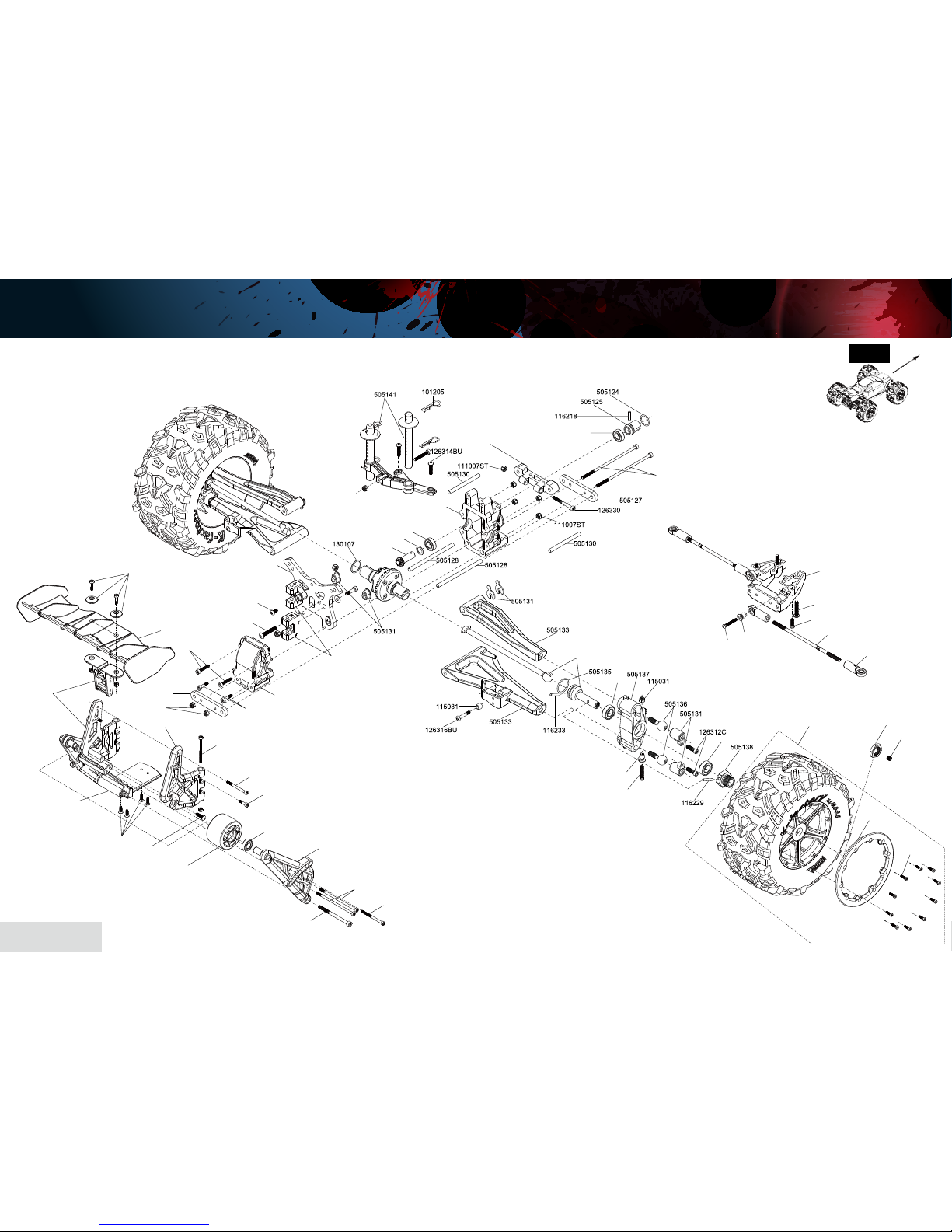

E6 TROOPER II EP MONSTER TRUCK
8
Front
505142
505143
115035
126320BU
126310BU
123520BU
505203
505214
505215
505215
505213
505216
123513BU
505218
150816BK
126312C
126335C
126340C
505217
126340C
126456C
126370C
126310
111007ST
505127
126312C
126316C
505126
505216
126306BU
505132
123520BU
505175
130133
150816BK
505126
505203
126385C
150816BK
505204
150816BK
150816BK
115035
126320BU
505205 505138
126505S
505206
126208C-5

E6 TROOPER II EP MONSTER TRUCK
9
101205
111007ST
111118
111163
111164
114071
115027BK
115031
115035
116203
116218
116229
116232
116233
116234
116235
116236
116237
116310RCR
116312
123508C
123510C
123513BU
123516BU
123520BU
123528BU
123528BU
126208C-5
126306BU
126308C
126308SE
126310
126310BU
126310C
126312
126312BU
126312C
126313BU-5
126316BU
126316C
126320BU
126320C
126320S
126330C
126335C
126340C
126370C
126385C
126404NL
126456C
126505S
130107
130116
130117
130118
130119
130120
130133
150407C
150510ST
150612
150816BK
152003
152007
505101
505102
505103
505104
505105
505106
505107
505108
505109
505110
505111
505175
505113
505114
505115
505116
505117
505118
505119
505121
505122
505123
R Clip R8 (10)
3mm Steel Locknut (10)
R5 R-clip (10)
4mm Lock Nut (10)
3.5mm Lock Nut (10)
Singal Extension Cord (2)
Ball End & 5.8mm Single Flanged Steel Ball (6) Black
6.8mm Flanged Steel Ball (10)
6.8mm Single Flanged Steel Ball (6)
E-clip 5 (10)
2.5x12.8mm Pin (10)
2.5x16.8mm PIN(10)
2x13.8mm Pin (10)
2.5x14.8mm Pin (10)
5x23.9mm Pin (10)
2x14.8mm Pin (10)
2.5x10.8mm Pin (10)
2.5x11.8mm Pin (10)
3x10mm Steel RH TP Screw (cross) (6)
3x12mm Steel F.H. Self-Tapping Screw (6)
3.5x8mm Steel Cap Screw (6)
3.5x10mm Steel Cap Screw (6)
3.5x13mm Steel Button Head Screw (6)
3.5x16mm Steel BH Screw (6)
3.5x20mm Steel BH Screw (6)
3.5x28mm Steel BH Screw (6)
3.5x28mm Steel BH Screw (6)
2.5x8mm Steel Cap Screw (6)
3x6mm Steel Button Head Screw (6)
3x8mm Steel Cap Screw (6)
3x8mm Steel Flat Round Servo Mount Screw (6)
3x10mm Steel F.H. Screw (6)
3x10mm Button Head Screw (6)
3x10mm Cap Screw (6)
3x12mm Steel F.H. Screw (6)
3x12mm Button Head Screw (6)
3x12mm Cap Screw (6)
3.5x13mm Steel Button Head Screw (6)
M3X16mm BH Screw(10)
3x16mm Cap Screw (6)
3x20mm Steel Button Head Screw (6)
3x20mm Cap Screw (6)
3x20m Set Screw (6)
3x30mm Cap Screw (6)
3x35mm Cap Screw (6)
3x40mm Cap Screw (6)
3x70mm Cap Screw (6)
3x85mm Cap Screw (6)
4x4mm Thread Lock Set Screw (6)
4x56mm Cap Screw (6)
M5x5mm Set Screw(6)
13.2x15.9x0.5mm Shim (6)
3.2x8x0.7 Washer (10)
6.2x15x0.3 Washer (10)
4.2x9.6x1mm Washer (10)
3.6x8x1mm Washer (10)
3x7x1mm Washer (10)
8.1x12x0.5mm Shim (10)
4X7X2.5mm Collar(4)
5x10x4mm Steel Bearing (4)
6x12x4mm Bearing (4)
8x16x5mm Bearing-Black
O-RING P6(10)
O-Ring P3(10)
E6 Shock Pivot Ball Mount (4)
E6 Shock Pivot Ball (4)
E6 Shock Body (2)
E6 Shock Bladder 17mm (4)
E6 Shock Spring Holder
E6 Shock Piston
E6 Shock Shaft (2)
E6 Shock O-Ring & Washer
E6 Shock Spring (Red) (2)
E6 Shock Absorber Set
E6 F/R Differential Outdrive (2)
E6 Machined Bevel Gear -43T/11T
E6 Differential Case Gasket (4)
E6 Differential Bevel Gear Set (for 1 diff)
E6 Differential Bevel Shaft (2)
E6 Bevel Gear Case
E6 Complete Differential Kit (F/R)
E6 Center Solid Axle Outdriver (2)
E6 C-Clip 10.8x1.1mm (4)
E6 Center Solid Axle
E6 Center Gear (33T)
E6 Complete Center Spool Kit
505124
505125
505126
505127
505128
505130
505131
505132
505133
505135
505136
505137
505138
505140
505141
505142
505143
505144
505145
505146
505147
505148
505149H
505150
505151
505152
505153
505154
505155
505156
505157
505158
505164
505165
505166
505168
505169
505176
505201
505202
505203
505204
505205
E6 C-Clip 13x1.3mm (4)
E6 Joints Outdriver (2)
E6 Differential Box
E6 Lower Arm Mount (2)
E6 Lower Arm Hinge Pin 4x70mm (2)
E6 Upper Arm Hinge Pin 4x48mm (2)
E6 Nylon Adjuster & Pivot Ball Mount
E6 Shock Tower
E6 Arm Set
E6 C-Clip 15x1.3mm (4)
E6 Pivot Ball (11mm) (4)
E6 Steering Block (2)
E6 Wheel Adapter Set (2)
E6 Bumper Set
E6 Body Post Set (F/R)
E6 Ball Cup 5.8mm (10)
E6 4x110mm Rod (2)
E6 Servo Saver Inner Post
E6 Steering Bushing
E6 Steering Linkage Plate
E6 Servo Saver Post
E6 Servo Saver Nylon Parts
E6 Servo Saver Spring(Hard)
E6 Reduction Gear Box
E6 Reduction Gears
E6 Spur Gear Shaft
E6 Spur Gear Linkage Plate
E6 Spur Gear Hub
E6 Spur Gear-45T (CNC Machined for 6S)
E6 Spur Gear-46T (CNC Machined for 6S)
E6 Spur Gear-47T
E6 Spur Gear, Battery , Driveshafts Cover
E6 Double Side Tape
E6 ESC&Motor Mount , Front Nylon Cover
E6 Chassis
E6 Alum. Servo Arm (Futaba)
E6 Center Universal Joint
E6 Shock Spring (White) (2)
E6 Center Gear Cover (for 3mm screws)
E6 Center Gear (33T) (for 3mm screw)
E6 New Front/Rear Upper Arm Hinge Pin Mount (4)
E6 New Universal Driveshaft (2)
E6 Mounted Tire 7.1" Size (Pair)
505206R
505207
505208
505209
505210
505211
505212
505213
505214
505216
505217
505218
H6818
H6824
H6825
K6602-11
SA-SW0231
E6 Tire Ring (Red)(2)
E6 Trooper II Body Shell
E6 Motor Mount (for 4S Motor)
E6 Waterproof Receiver Box
E6 Receiver Box Seal (2)
E6 Cover for Waterproof ESC
E6 Waterproof Switch Mount
E6 Rear Wing
E6 Screws and Shims for Rear Wing (2)
E6 Rear Wing Support Mount
E6 New Wheelie Support (2)
E6 New Wheelie Wheel
HR3GR 3 Channel 2.4G Reveiver
H.A.R.D. Z4074 2500KV Brushless Motor
H.A.R.D. P100 Waterproof ESC (2-4S,100A)
M1.0 Pinion Gear for 5mm Shaft 11T
SW-0231 Waterproof Servo (15KG)

61463
TROOPER II EP MONSTER TRUCK
Instruction Manual
505004
Instruction Manual
505004
