Technaxx®* User Manual
Wireless Rear Camera System TX-110
Suitable for most of cars (& vans, SUVs, minibuses, caravans, etc.)
as assistance for reverse parking.
This system should be an aid and should NOT replace the need to drive
carefully.
Under no circumstances will the manufacturer or supplier accept any
responsibility or can held liable for any direct or indirect, incidental or
consequential damage, or for injuries resulting from installing or use of
this system.
The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares
that this device, to which this user manual belongs, complies with the
essential requirements of the standards referred to the Directive RED
2014/53/EU. The Declaration of Conformity you find here:
www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before
using the device the first time, read the user manual carefully.
Keep this user manual for future reference or product sharing carefully. Do
the same with the original accessories for this product. In case of warranty,
please contact the dealer or the store where you bought this product.
Warranty 2 years
Features
Inconspicuous reversing camera in license plate holder
Suitable for most vehicles as assistance for reverse parking
Wireless video transmission or via cable (6m)
IR LED for clear night vision ~4m
Adjustable camera alignements & 110° viewing angle
Power supply of the camera by connection to the reverse light
Power supply of the monitor via the cigarette lighter socket
IP67 camera protection class (dustproof & protection against
temporary immersion)
3.5" TFT LCD monitor with 320x240 pixel
Distance display on the monitor
License plate holder suitable for single-line EC registration
(52x11cm)
Complete installation set
More safety in reverse driving

Technical specifications
License plate holder with camera
Image sensor / Resolution CMOS / 640x480 pixel
Viewing angle 110°
Min. illumination 0.5Lux / automatic white balance
IR night vision distance ~4m
Power supply Connection via transmitter
Max. current 140mA (incl. transmitter)
Protection class IP67
Weight / Dimensions 264g / (L) 52.8 x (W) 4.0 x (H) 13.7cm
Wireless Transmitter
Modulation FM (Frequency Modulation)
Bandwidth 18MHz
Transmission frequency 2.468GHz
Max. radiated output power 6mW
Weight / Dimensions 72g / (L) 9.5 x (W) 4.0 x (H) 1.4cm
Monitor
Display / Resolution ColorTFT 8.89cm(3.5”)/320x240pixel
Transmission frequency 2.4GHz
Video system PAL/NTSC
Sensitivity ≦–85dBm
Input voltage DC 12V
Max. current 250mA
Transmission distance ~10m openspace (no interferences)
Operating temperature –10°C up to +50°C
Humidity 85%RHmax.
Weight / Dimensions 165g / (L) 10.8 x (W) 3.7 x (H) 7.5cm
Packing
Contents
License plate holder with camera, Monitor, Suction
cup holder, Wireless transmitter with power
connection for camera, 12V power supply for monitor,
Video cable for direct connection, Mounting material,
User Manual

Product overview
The rear view camera sends a video signal from the camera on
channel 4 in the 2.4GHz frequency range (specified for such video
transmissions) to the monitor. In case another Bluetooth handsfree
device is installed in your vehicle, it works in the same frequency
range as the camera. If that handsfree device is activated, it may
cause disturbances. Therefore we recommend to deactivate that
other Bluetooth handsfree device while using the reversing system.
Video cable (included): In order to give you the possibility to use a
reversing camera despite another Bluetooth handsfree device in
your vehicle, a video cable is included. With this cable the video
signal can be transmitted to the monitor. So connect alternatively
the video cable to the camera and lay it inconspicuously in the
vehicle. For permanent operation with the video cable, remove the
antenna from the monitor.
License plate holder with camera
1 Infrared-LED 3 Holder
2 Camera 4 Connection cable

Wireless Transmitter
1
Connection cable to
reverse light 2 Connection cable to camera (wired connection to monitor)
Monitor
1 Channel 2 Video-In (AV) 2.5mm
3 DC 12V power input 3.5mm 4 Antenna
5 On/Off press to turn the screen on/off
6 Anti glare 7 Display (3.5”)
8 Image rotation pressing repeatedly will rotate the image
9 Channel selector switch to switch the receivde channel
(channel 4 is default setting)
10 Brightness press to adjust the screen brightness
11 Contrast press to adjust the screen contrast

Commissioning
Check the functionality of the components before installation (a
installed product is excluded from the return). Preparing and
installing the license plate holder and the transmitter unit.
NOTE: You may need a voltmeter to measure the polarity of the
reversing light.

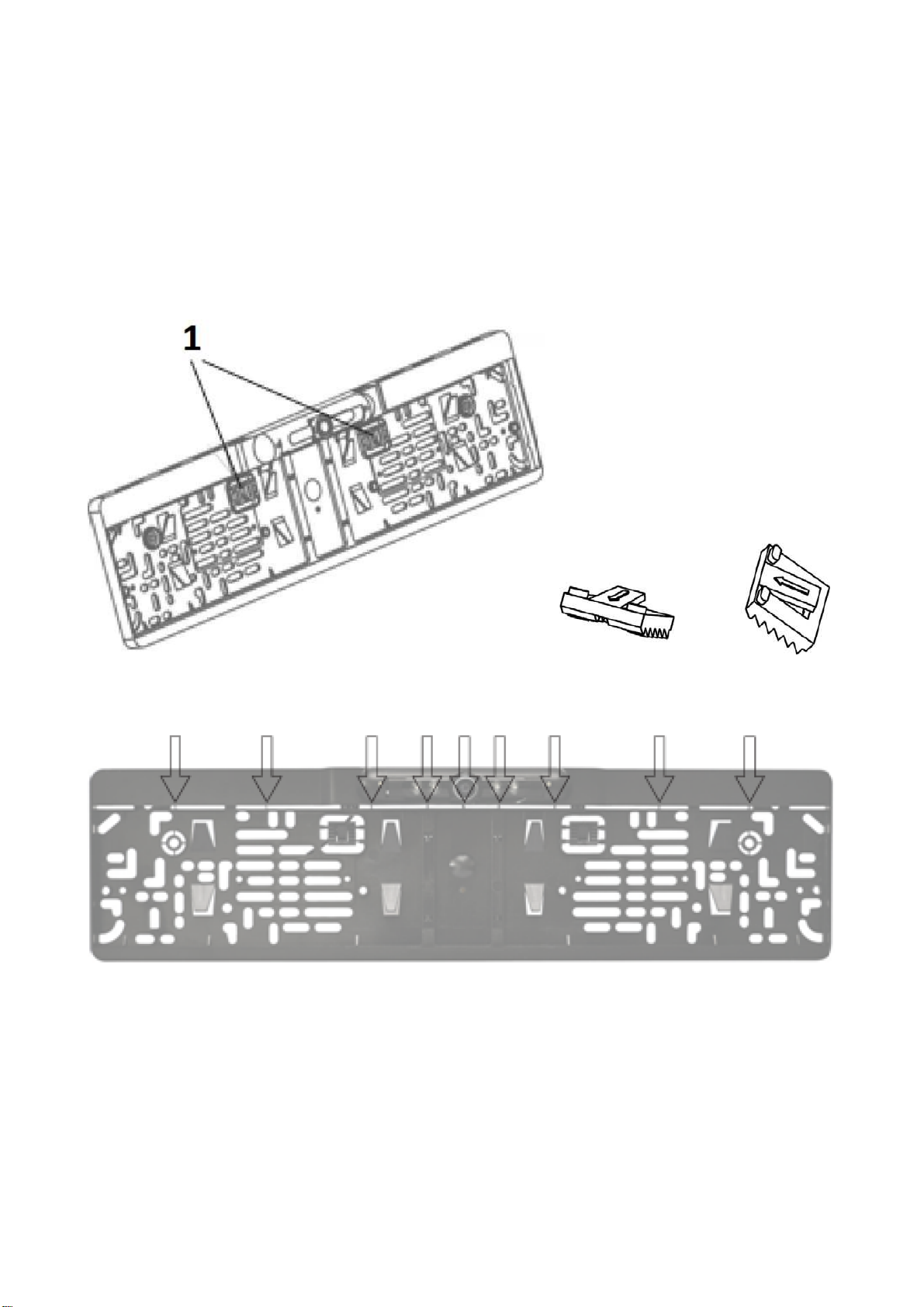

Break the two locks carefully out of the holder.
Remove the transport locks carefully. Use a sharp knife or a
tong.
 Attach the license plate holder to the vehicle instead of your
previous license plate holder.
 Insert the camera cable into the trunk compartment and
connect it to the transmitter unit.
 Attach the transmitter unit steady and firm in the trunk
compartment.

 Connect the black connection cable of the wireless
transmitter to the negative pole of the reversing light.
 Connect the red connection cable of the wireless
transmitter to the positive pole of the reversing light.

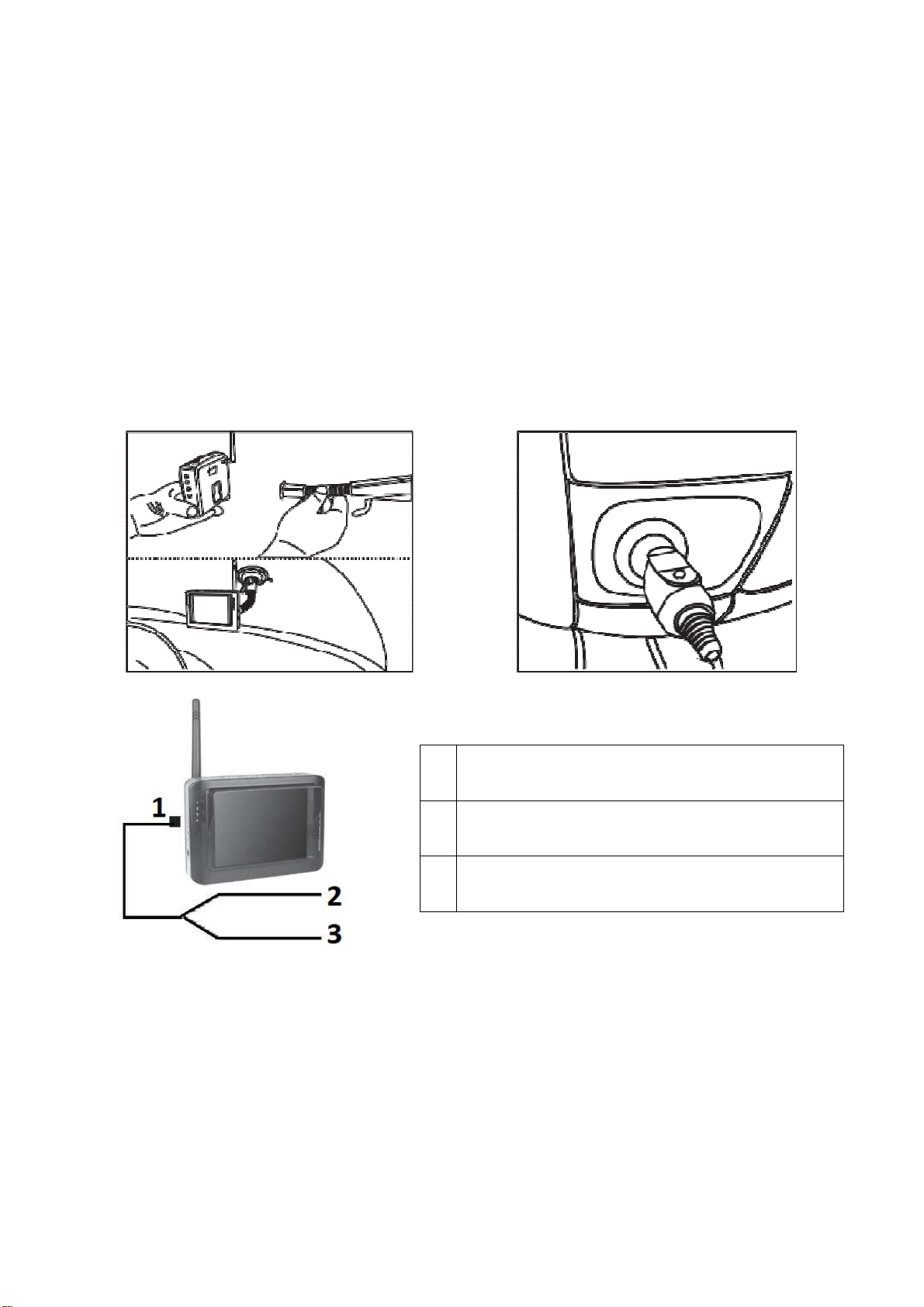

Installing the monitor
Attach the suction cup to the windshield.
Connect the monitor to the electrical system (onboard voltage).
Use the DC 12V connection cable or alternatively the connection
cable for direct connection to the electrical system (onboard
voltage).
 If not already preset, switch the monitor to channel 4.
 Set the camera at an angle where you have a good view to
the rear, depending on the height of the license plate holder from
the ground. The displayed lines on the monitor give you an
indication of the distance. Definitely control the distance with a
folding ruler.
 Then tighten the screws on both sides of the camera.
1 Hollow connector to the monitor
2 Connect black to vehicle mass
3 Connect red with +12V

NOTE: If your 12V connection has a permanent plus, switch off
the monitor when you leave the vehicle. In a parked car the
temperature can easily rise up very high in direct sunlight. To
avoid damages on the monitor, store it in e.g. the glove
compartment.
Using the cable clamps
The pictures explains how to use the supplied cable clamps.
1. Put the cable from
the car you want to
connect the wireless
transmitter with into
the clamp.
2. Insert the 2nd
cable (red or black
cable of the wireless
transmitter).
3. Close the clamp.
Insert the license plate in the holder
The following drawings show in sequence the insertion of the
license plate.
1. Step
Slide the license plate into the upper
opening.
 Press the number plate towards
the holder.

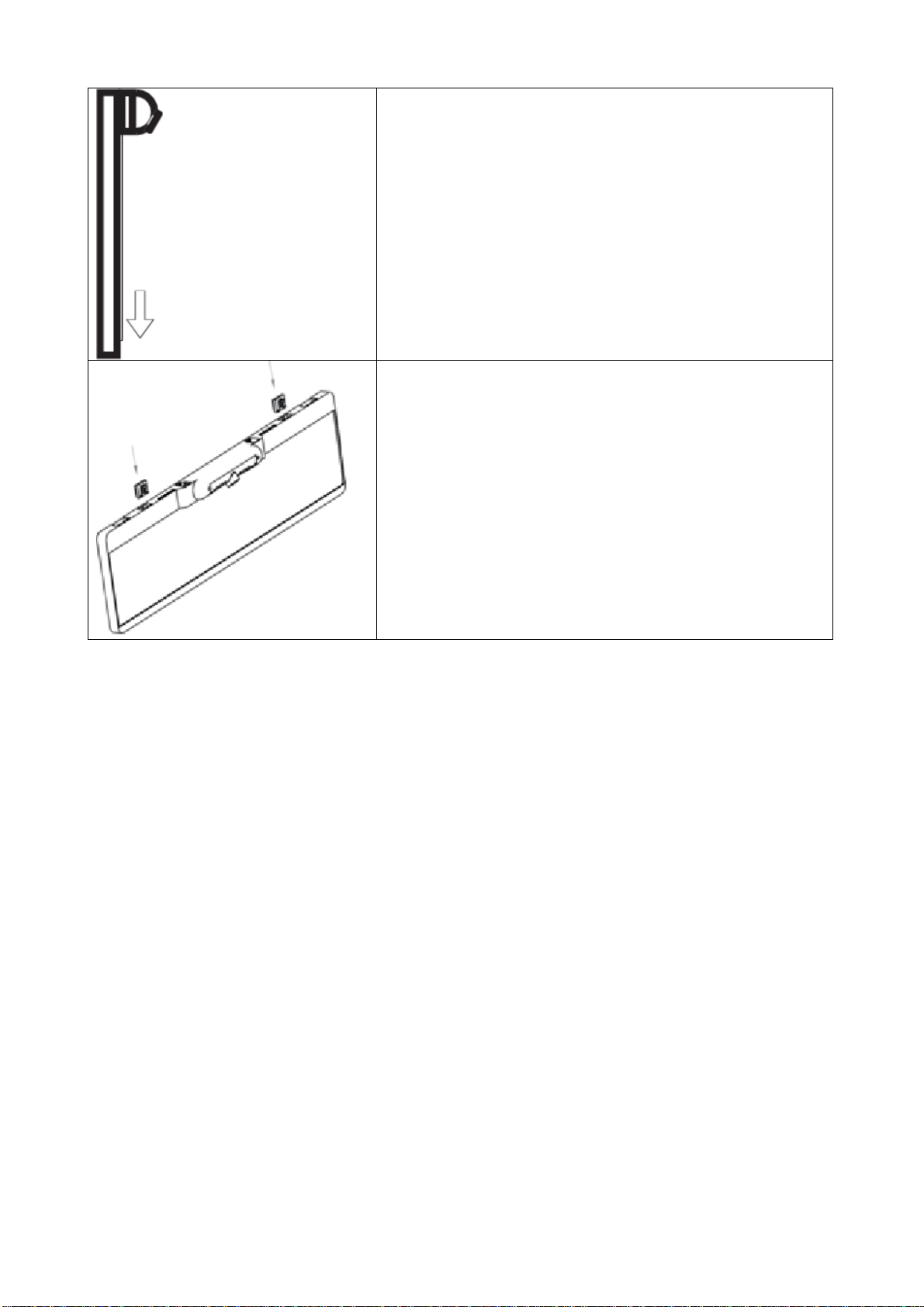

2. Step
 Slide the license plate down
until it stops.
3. Step
 Insert the locks from above
into the holder.
(You carefully broke them out of the
holder in the first step.)
Safety regulations
The reversing system is an aid and does not relieve the driver of his
duty of care in road traffic according to STVO. Please read these
instructions carefully before first use.
General information
Never place the device on an unstable surface. Dropping may
damage the device. The device is not in the hands of children. It is not
a toy. Also observe the safety instructions and the operating
instructions of the other devices to which the device is connected. In
commercial facilities, the accident prevention regulations of the
Association of Professional Associations for Electrical Installations and
Equipment must be observed. In schools, training centers, hobby or
self-help workshops, the operation of electronic products is to be
monitored responsibly by trained personnel. The seller assumes no
responsibility for damage that occurs during the use of the device, as
well as for complaints by third parties.

Environmental conditions
Avoid heavy mechanical stress on the device. Protect it from vibration,
hard knocks, do not drop it or shake it. Do not expose the device to
high temperatures (over 50°C) and strong temperature fluctuations.
Protect it from direct solar radiation and proximity to radiators. IP67
camera protection class (dustproof & protection against temporary
immersion). The monitor and the transmitter may only be operated
indoors. It cannot be completely ruled out that some paints, plastics or
other care products attack the material of the housing or accessories.
Disorders: If an object or liquid gets into the device, have the device
checked by an authorized technician before continuing to use it. We
recommend that you contact our service center.
Packing material: Keep children away from packaging material. There
is danger of suffocation.
Cleaning and care: Always store the device in a clean, dry place when
not in use. Use a dry, soft cloth to clean the exterior surfaces.
Interference by wireless transmission: The device operates at a
frequency of 2468 MHz. This frequency can also be used by other
devices that transmit video wireless. It can thus come in individual cases
to disturbances.
Hints for Environment Protection: Packages
materials are raw materials and can be recycled. Do
not disposal old devices or batteries into the domestic
waste. Cleaning: Protect the device from
contamination and pollution (use a clean drapery).
Avoid using rough, coarse-grained materials or
solvents/aggressive cleaner. Wipe the cleaned device
accurately. Distributor: Technaxx Deutschland
GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M.,
Germany
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks).
Free Email: sup[email protected]
Enjoy your product * Share your experience and opinion on one of the
well-known internet portals.
