Technaxx® * User Manual
Universal Auto Alarm Pro TX-168
Please read and keep all safety, security, and use instructions.
Products marked with this symbol meet all applicable community
regulations of the European Economic Area.
The manufacturer Technaxx Deutschland GmbH & Co.KG hereby
declares that this device, to which this user manual belongs,
complies with the essential requirements of the standards referred
to the Directive RED 2014/53/EU. The Declaration of Conformity
you find here: www.technaxx.de/ (in bar at the bottom
“Konformitätserklärung”). Before using the device the first time,
read the user manual carefully.
This symbol means the product must not be discarded as
household waste, and should be delivered to an appropriate
collection facility for recycling. Proper disposal and recycling helps
protect natural resources, human health and the environment. For
more information on disposal and recycling of this product, contact
your local municipality, disposal service, or the shop where you
bought this product.
Security and Disposal Hints for Batteries: Hold children off
batteries. When a child swallowed a battery go to a doctors place
or bring the child into a hospital promptly! Look for the right polarity
(+) and (–) of batteries! Always change all batteries. Never use old
and new batteries or batteries of different types together. Never
short, open, deform or load up batteries! Risk of injury! Never
throw batteries into fire! Risk of explosion!
Batteries can be returned free of charge after use in retail stores.
The end user is legally obliged to return used batteries. Separate
collection and recycling of old batteries for the environment and
health. Remove batteries before disposing of the device.
Hints for Environment Protection: Packages materials are raw
materials and can be recycled. Do not disposal old devices or
batteries into the domestic waste. Cleaning: Protect the device
from contamination and pollution (use a clean drapery). Avoid
using rough, coarse-grained materials or solvents/aggressive
cleaner. Wipe the cleaned device accurately. Important Notice:
Should battery fluid leak from a battery, wipe the battery case with
a soft cloth dry. Distributor: Technaxx Deutschland GmbH &
Co.KG, Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany

2
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this device near water.
6. Clean only with a dry cloth.
7. Only use attachments/accessories specified by the manufacturer.
This manual will show you how to use your device safely and
effectively. Please read, understand and follow these instructions
and precautions carefully.
WARNING: Failure to read and follow these warnings and instructions
may result in serious injury, including damaged property, so please pay
close attention and exhibit the utmost care.
IMPORTANT
⚫ Do not use in a marine application.
⚫ Keep out of reach of children.
⚫ Use of an attachment not recommended or sold by the unit
manufacturer may result in a risk of fire, electric shock, or injury to
persons.
⚫ To prolong the life of this device, pull it out before starting the engine
of the car.
⚫ Keep the device in dry and ventilated environment. Avoid high
humidity and high temperature.
⚫ Use this product only with an agency-approved power supply that
meets local regulatory requirements (e.g., UL, CSA, VDE, CCC).
WARNINGS
⚫ Do NOT disassemble the unit; take it to a qualified serviceman when
service or repair is required. Incorrect reassembly may result in a risk
of electric shock or fire.
⚫ To reduce risk of electric shock, unplug unit from outlet before
attempting any maintenance or cleaning. Turning off controls will not
reduce this risk.
⚫ DO NOT expose this unit to rain or moisture, to reduce the risk of fire
or electrical shock. The device should not be exposed to dripping or
splashing.

3
⚫ DO NOT touch the external siren if you, the external siren, the
device being operated or any other surfaces that may come into
contact with any power source are wet. Water and many other liquids
can conduct electricity, which may lead to serious injury or death.
⚫ DO NOT place the external siren on or near heating vents, radiators
or other sources of heat or flammable materials.
⚫ Only connect the external siren to a DC12V or DC24V battery for
power supply. DO NOT attempt to connect the external siren to any
other power source, including an AC power source. Connecting to a 6V
or 16V battery will cause damage to the external siren.
⚫ DO NOT use with positive ground electrical systems.
⚫ DO NOT try extending or otherwise changing the power cord
supplied with your external siren. Make sure the cord connections are
tight.
⚫ DO NOT drop or shake the device, it may break internal circuit boards
or mechanics.
⚫ DO NOT make unauthorized alterations to this product.
⚫ Incorrect operation of your Car Alarm and external siren may result
in damage and personal injury.
⚫ Keep the device away from little children.
PERSONAL PRECAUTIONS
⚫ Wear complete eye protection and protective clothing when working
near lead-acid batteries. Always have someone nearby for help.
⚫ Remove all personal metal items from your body, such as rings,
bracelets, necklaces and watches. A lead-acid battery can produce a
short circuit current high enough to weld a ring to metal, causing a
severe burn.
⚫ Never smoke or allow a spark or flame in the vicinity of the battery or
engine.

4
BATTERY SAFETY INSTRUCTIONS
- DO NOT burn products and their batteries and do not expose them to
direct sunlight or to high temperatures (e.g. in hot cars or near hot
stoves). Batteries may explode if overheated.
- Only use this product for its intended purpose and follow the general
and battery safety instructions as described in this user manual. Any
misuse can cause electric shock, burns, fire and other hazards or
injuries.
-Charge, use and store the product at a temperature between -10 C and
+50 C.
- Always unplug the product when it is fully charged.
- If the product becomes abnormally hot, gives off an abnormal smell,
changes color or if charging takes much longer than usual, stop using
and charging the product and contact your local dealer.
- DO NOT place products and their batteries in microwave ovens or on
induction cookers.
- This product contains a rechargeable battery that is non-replaceable.
DO NOT open the product to replace the rechargeable battery.
- When you handle batteries, make sure that your hands, the product
and the batteries are dry.
- To prevent batteries from heating up or releasing toxic or hazardous
substances, do not modify, pierce or damage products and batteries and
DO NOT disassemble, short-circuit, overcharge or reverse charge
batteries.
- To avoid accidental short-circuiting of batteries after removal, DO NOT
let battery terminals come into contact with metal objects (e.g. coins,
hairpins, rings).
- DO NOT wrap batteries in aluminum foil. Tape battery terminals or put
batteries in a plastic bag before you discard them.
- If batteries are damaged or leaking, avoid contact with the skin or eyes.
If this occurs, immediately rinse well with water and seek medical care.
- Please dispose of used batteries properly, following local regulations.
DO NOT incinerate.
Enjoy your product. Share your experience and opinion on one of
the well-known internet portals.

5
Contents
IMPORTANT SAFETY INSTRUCTIONS .............................................. 2
WARNINGS .......................................................................................... 2
PERSONAL PRECAUTIONS ............................................................... 3
BATTERY SAFETY INSTRUCTIONS................................................... 4
Features................................................................................................ 6
Product overview .................................................................................. 7
Charge the Car Alarm........................................................................... 8
Get started............................................................................................ 9
System Installation and Wiring........................................................... 9
Install the external Siren................................................................... 10
Inserting Car Alarm to the cigartte lighter socket............................. 11
Remote Control & Functions .............................................................. 12
Activate (Arm) .................................................................................. 12
Deactivate (Disarm) ......................................................................... 12
Shut OFF the Car Alarm .................................................................. 13
Change remote control battery......................................................... 13
Pair a new remote control................................................................ 13
USB charger function ......................................................................... 14
Panic mode......................................................................................... 14
Troubleshooting .................................................................................. 15
Technical Specification ....................................................................... 15
Disposal.............................................................................................. 16
Warranty ............................................................................................. 16
Support ............................................................................................... 16

6
Features
⚫ DC12 or 24V rechargeable Car Alarm for the cigarette lighter socket
⚫ DC12 or 24V external siren for engine compartment for more attention
⚫ Button for panic alarm (about 105dB)
⚫ 1x USB-C charging port with a total of 5V / 3.0A output power
⚫ 1x USB charging port with a total of 5V / 2.4A output power
⚫ Automatic alarm triggering at motion detection by PIR sensor (Passive
Infrared sensor for physical movement detection for the car's interior)
⚫ Built-in 500mAh battery for ~7 days working time ensures alarm
triggering even when engine is switched off
⚫ Car Alarm and exernal siren each about 105dB
⚫ Remote control to activate and deactivate the alarm
⚫ Possibility to connect up to 3 remote controls
⚫ LED status indicator
⚫ Over-current protection & short circuit protection
⚫ Easy handling and installation

7

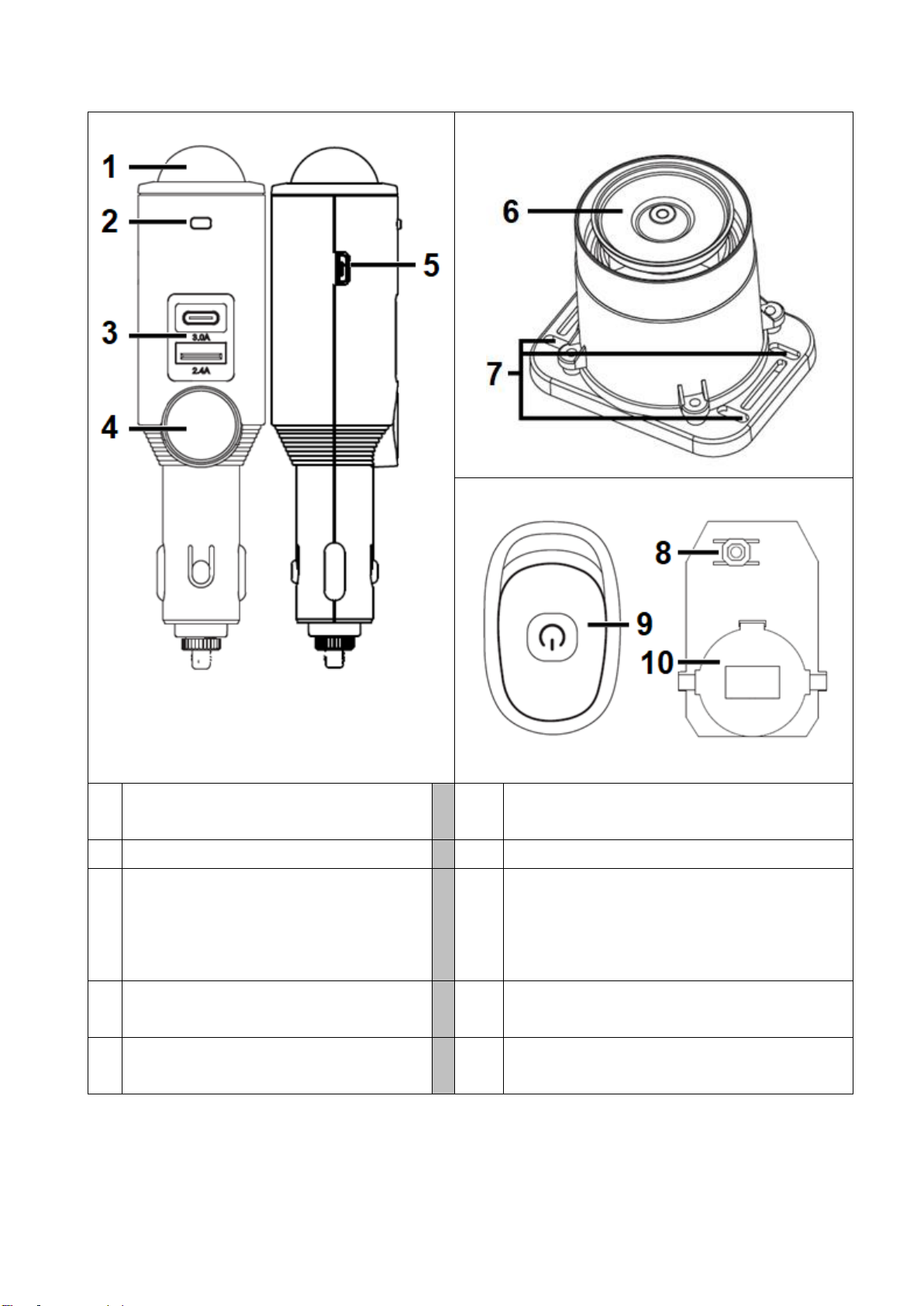

Product overview
Car Alarm
External Siren
Remote Control
1
PIR (Motion detection)
and LED indicator
6
Siren
2
Panic button
7
Mounting holes
3
USB-C charging slot
(DC5V/3.0A)
USB charging slot
(DC5V/2.4A)
8
Pairing button (on circuit
board)
4
Siren
9
Remote control button
(activate/deactivate)
5
MicroUSB input
10
Battery compartment (on
circuit board)

8
Charge the Car Alarm
This device has a rechargeable battery. It must be fully charged before
first use. Connect an USB cable* (*not included) to the MicroUSB Input
(5) of the Car Alarm to charge completely. Or use the DC12V/24V
cigarette socket of your vehicle for charging. Charge the device for
aprox. 2 hours before using it.
Status
LED Indication
Charging
Solid Blue
Charged
Solid Green
Low battery warning
Flash Blue continuously
Charge the device only under supervision and with the recommended
equipment (USB charger DC5V/500mA and a MicroUSB cable).
Charge the battery of the device every 2–3 month if it is not used! To
counteract deep discharge.
In some vehicles the cigarette lighter socket is off power when the
engine of the vehicle is not started.

9
Get started
System Installation and Wiring
These installation instructions do not apply to all types of vehicles.
They are meant only as a general guide due to the large number of
vehicle makes and models. Consult your local motor vehicle laws on
the use of this product to be sure it is permitted.
Through installation of this Car Alarm system, you should be sure as
to not degrade, damage or compromise the safety of any system or
device on your vehicle.
Improper installation and wiring of the external siren may damage the
vehicle's electrical system, including vital vehicle computer and
operating systems. That could lead to an accident or causing property
damage and/or serious personal injury. It is highly recommended to
seek professional installation advice from a qualifed auto electrician
or, in the alternative, to have the installation performed by a qualifed
auto electrician.
Please ensure that external siren is secured and mounted where it
would NOT obstruct any OEM vehicle safety features. In an event of
an accident, manufacturer is not responsible for bodily injury or
vehicle damage caused by the external siren being a projectile.
The manufacturer assumes no liability for damage caused to your
vehicle due to improper installation or use.
This unit is designed to operate on a 12V or 24V DC negative ground
electrical system. Connecting to other types of electrical systems will
cause damage to your vehicle. Please contact the manufacturer if you
are unaware of the system type in your vehicle.
If you have no experience in installing electrical devices on vehicles,
you are not allowed to carry out the following work yourself. Have the
assembly and connection carried out by qualified specialists.
Connecting incorrectly may result in voltage high enough to cause
electrocution

10
Install the external Siren
Before final installation, find a location in the engine compartment where
the siren has the best opportunity to transmit the alarm sound to the
outside when the hood is closed.
If the engine has been running for more than 10 minutes, there is a
risk of burns. Allow the engine and other parts in the engine
compartment to cool down for at least 30 minutes before starting to
install the external siren.
Loose connectors result in excessive voltage drop and may cause
over heated wires and melted insulation, which can lead to electrical
fires. Reverse polarity connections (positive to negative) will blow the
fuse in the connection cable and may permantly damage the external
siren.
Mounting the siren in the engine compartment make sure that the ties
are secured and the siren is not connected with movable parts. The
siren must be mounted with sufficient distance to rotating parts.
DO NOT lay the connection cable to the battery in such a way that it
runs past hot engine parts where the insulation can melt and cause a
short circuit or fire.
DO NOT lay the connection cable to the battery in such a way that it
runs past moving parts in which it can get caught.
Ensure that connection cable is coiled up and securely fastened in
the engine compartment with cable ties.
DO NOT touch postiv and negative terminal of the vehicle battery at
the same time. It may result to cause electrocution.

11
Securely connect red wire to Positive terminal (“+”) of the battery and
black wire to Negative terminal (“-”) of the battery. The external siren
makes a short alarm sound when it is connected correctly to the
vehicle’s battery.
Fix the siren with ties to non-movable parts and mount it in suitable
position.
Inserting Car Alarm to the cigartte lighter socket
After inserting the Car Alarm to the cigarette lighter socket the light will
be solid blue for charging. The device is ready for operation and can
receive the command from the remote control.
Depending on the current status the Car Alarm’s LED indicator shows
below light color.
Status
LED Indication
Charging
Solid Blue
Charged
Sold Green
Low battery warning
Flash Blue continuously
Alarm
Flash Red continuously
Activated
Flash Red once with “Beep”
Deactivated
Flash Red twice with “Beep,Beep”
Armed
Flash Red every 5 seconds
Power off
Flash Red continuously with “Beep,Beep,
Beep,Beep”
When mounting the siren, make sure that the position of the siren
does not interfere with the closing of the engine hood.
Keep siren far away from engine, the heating of engine may destroy
the siren.
Make sure that the excess connection cable is coiled up and
additionally fastened securely in the engine compartment with cable
ties.
The included remote is already paired to the device.

12
Remote Control & Functions
Activate (Arm)
The Car Alarm can be activated by pressing the remote control button
shortly (1x short "beep" and red light flash once). The external siren will
“beep” once as well.
Once the PIR sensor of the Car Alarm is activated, it takes about 10
seconds until the device is armed. When armed the red light flashes
every 5 seconds. After human action is detected, red light flashes
continuously. The siren of the Car Alarm and the external siren are
noising loudly together. The external siren will stop alarming after 30
seconds and the siren of the Car Alarm will stop alarming after 120
seconds.
The max. distance to arm the Car Alarm while leaving the vehicle is
~10m on open field.
Deactivate (Disarm)
To deactivate the Car Alarm and turn off the alarm sound, press the
button on the remote control shortly (2x short "beep" and red light
flashes twice). The external siren will “beep” twice as well. Then the red
light stops flashing.
The max. distance to disarm the Car Alarm before getting back into the
vehicle is ~10m on open field.
It is possible to operate the remote control from outside the closed
vehicle through the window.
It is possible to operate the remote control from outside the closed
vehicle through the window.

13
Shut OFF the Car Alarm
If you press the remote control button long (4-5 seconds) you will hear
4x short “beep”.
After that the Car Alarm’s battery is turned off. Not just the PIR sensor
is shut off, the whole Car Alarm is shut off for long time no use or for
transportation.
The Car Alarm can only be activated/armed again when you:
- plug it into the cigarette lighter socket
- connect it via MicroUSB
- as soon as the cigarette lighter socket gives a new charge impuls to
the device if it is still pluged into the cigarette ligther socket.
The remote control and the panic button are not working when device is
shut off.

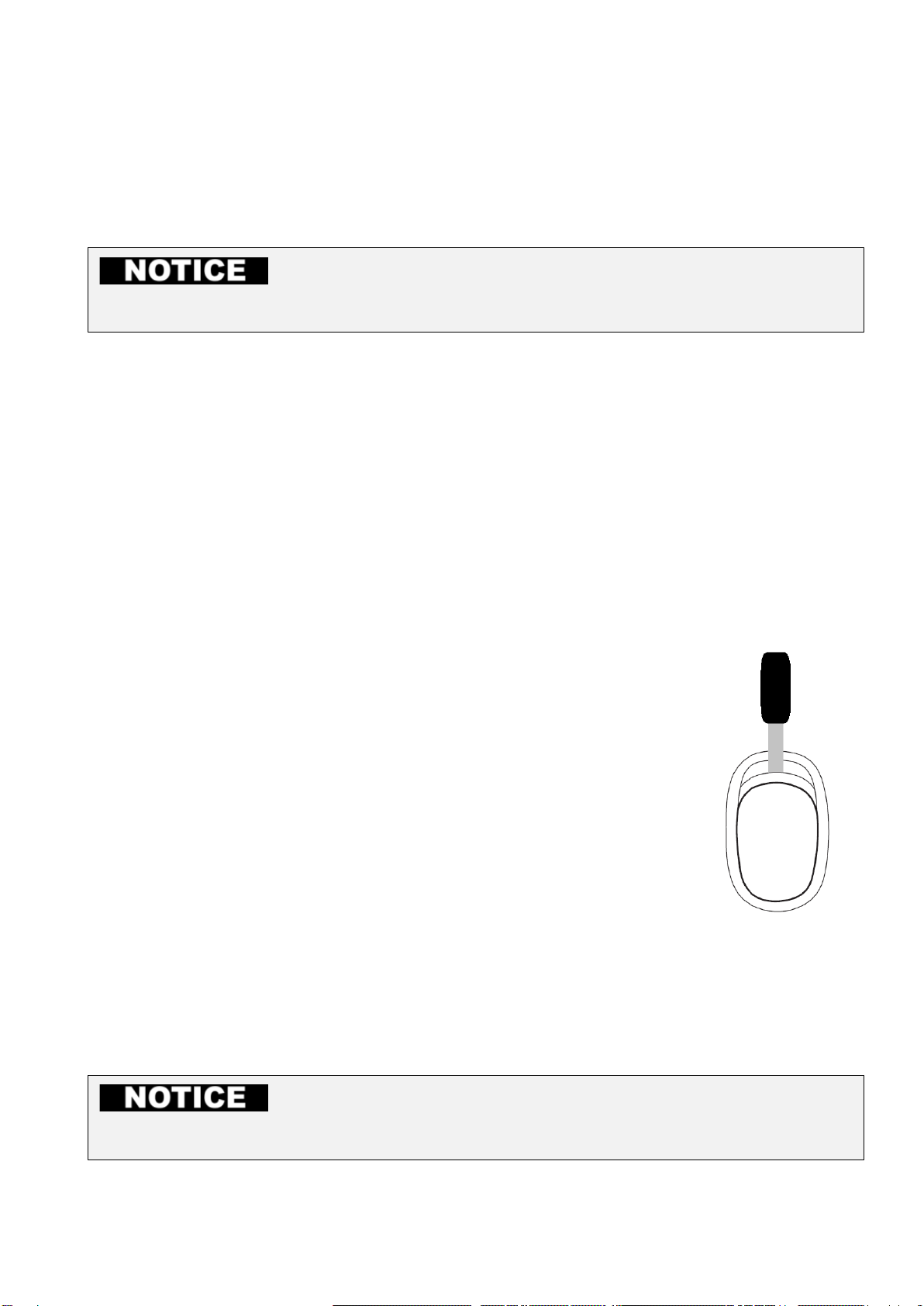

Change remote control battery
When the remote control does not work anymore, change
the battery (CR2032).
For changing the battery open the remote control. Use a
flat, wide object to remove the rear cover of the remote
control. To do so, insert the corresponding object into the
groove on the top. Now carefully pry open the back cover.
You will now see the circuit board with the battery.
Exchange the battery and close the remote control.
Pair a new remote control
⚫ Open the remote control. Use a flat, wide object to remove the rear
cover of the remote control. To do so, insert the corresponding object
into the groove on the top. Now carefully pry open the back cover. You
will now see the circuit board with the battery.
Shut off does not work when the Car Alarm is connected for charging.
If no battery is inserted, insert a battery (CR2032)

14

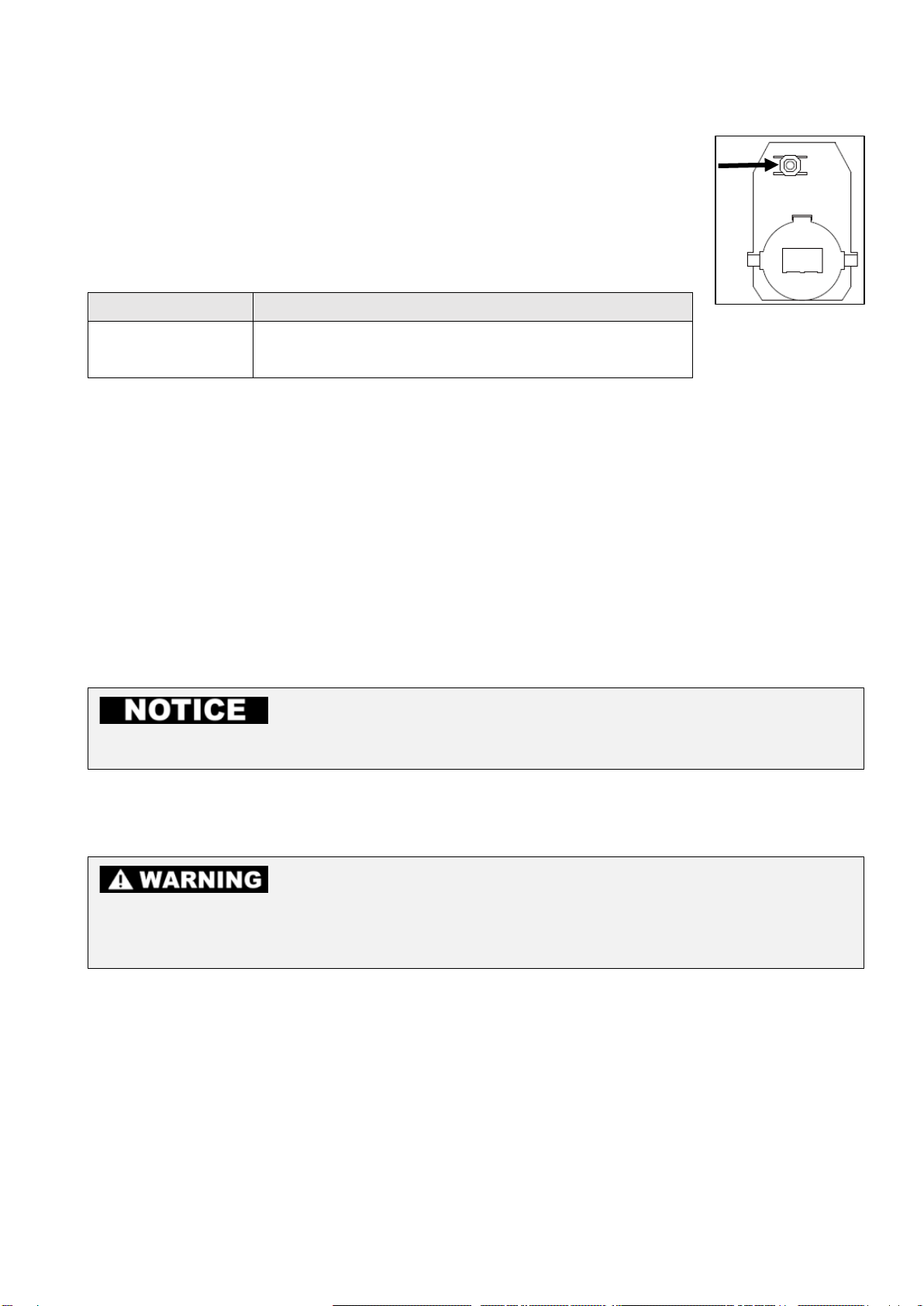

⚫ Press and hold the panic button of Car Alarm for 3-4 seconds till the
LED is on. It lights up mixed color flashing (Red/Green/Blue). This
activates the pairing mode.
⚫ Press the button (8) on the circuit board once. The light
of circuit board will flash blue once.
⚫ Wait for 15seconds until the mixed color light
(Red/Green/Blue) of the Car Alarm turns off.
Status
LED Indication
Pair mode
Flash Mixed color (Red/Green/Blue)
continuously
⚫ The pairing mode is successful. You can control the Car Alarm with
the new remote control.
⚫ Close the back cover of remote control.
USB charger function
If the Car Alarm is powered from a vehicle cigarette lighter socket, you
can connect the USB-C/USB to your mobile phone with a USB cable*
(*not included). The Car Alarm now is working as mobile phone charger.
It is also possible to charge other devices via USB.
Panic mode
If you have an emergency press the button of the Car Alarm and the
alarm will be nosing loudly to alert people around you. When you press
the button again, the alarming will be deactivated.
Maximum output of USB is 2.4A and USB-C is 3.0A.
The alarm sound will be about 105dB and can harm you or your
opponets health.

15
Troubleshooting
- Remote does not work:
1. Remove the small plastic strip on the top of the remote control.
2. Open the remote and check if a battery is inserted
Technical Specification
Detecting distance
~3m car interior (without obstacles (e.g. rear
wall in trucks)
Detecting range
120° cone angle
Distance IR remote control
~10m (open field)
Alarm time (Car Alarm)
120seconds maximum
Alarm volume (Car Alarm)
105dB
Alarm time (siren)
30 seconds maximum
Alarm volume (siren)
105dB (lower when mounted in engine
compartment)
USB output
DC5V / 2.4A (total)
USB-C output
DC5V / 3.0A (total)
Micro USB input
DC5V / 500mA
Battery
Built-in rechargeable 500mAh lithium
polymer battery 3.7V
Charging time
~2 hours
Working time
~7 days (by alarm once a day)
Standby time
~14 days
Input voltage (Car
Alarm)
DC12 or 24V (cigarette lighter socket)
Charging current (Car Alarm)
500mA
Operating current (Car Alarm)
600mA
Input voltage (siren)
DC12 or 24V (direct connection with car
battery)
Operating current (siren)
100mA
Remote battery
CR2032
Blade fuse siren
3A (replaceable); regular size
Cable length of siren
1.5m
Transmission frequency
2.4GHz
Frequency type
ASK
Radiated output power
maximum 15.85mW (by pressing remote
control button, not continuously)
Material
ABS
Operating temperature
-10°C – +50°C

16
Weight / Dimensions
(Car Alarm)
69g / (L) 3.0 x (W) 3.0x (H) 13.5cm
Weight / Dimensions
(siren with connection
cable and fuse)
120g / (L) 7.3 x (W) 5.7 x (H) 6.2cm
Weight / Dimensions
(remote)
16g / (L) 5.9 x (W) 3.7 x (H) 1.0cm
Package
Contents
Universal Auto Alarm Pro TX-168:
Car Alarm, External Siren with connection cable and 3A
Fuse, Remote Control (with CR2032 battery),
Mounting material, User Manual
Disposal
Waste electrical equipment from private households
⚫ If you no longer have any use for the device, hand it in free of charge
at a public collection point designated for old electrical devices. ⚫ Under
no circumstances should old electrical equipment be disposed of in the
residual waste.
Further notes on disposal
⚫ Always return the old electrical equipment in such a way that its
subsequent reuse or recycling is not impaired. Batteries must be
removed beforehand and damage to containers containing liquids must
be avoided.
⚫ Waste electrical equipment may contain harmful substances. If the
device is handled improperly or damaged, this may result in damage to
health or contamination of water and soil during subsequent recycling.
Warranty
Keep this user manual for future reference or product sharing carefully.
Do the same with the original accessories for this product. In case of
warranty, please contact the dealer or the store where you bought this
product. Warranty 2 years
Support
Service phone No. for technical support: 01805 012643 (14
cent/minute from German fixed-line and 42 cent/minute from mobile
networks). Free Email: [e-mail]
The support hotline is available Mon-Fri from 9am to 1pm & 2pm to
5pm
