TECO TPO47CFAM User manual

PORTABLE AIR CONDITIONER
Owner’s Manual
IMPORTANT NOTE:
Thank you for selecting a TECO quality Air Conditioner. Read this manual
carefully before installing or operating your new air conditioning unit. Make
sure to save this manual for future reference.
The design and specifications are subject to change without prior
notice for product improvement. Consult with the sales agency or
manufacturer for details.
Model:
TPO47CFAM
(Cooling Only)

CONTENTS
SAFETY PRECAUTIONS
Safety Rules ...............................................................................................................................................3
Operating Condition ...................................................................................................................................3
Electrical Information .................................................................................................................................4
Accessories .......................................................................................................................................4
Names of Parts ...........................................................................................................................................5
Electronic Control Operating Instructions .................................................................................................6
Operating Instructions ...............................................................................................................................7
Location ...................................................................................................................................................11
Window Kit Installation ............................................................................................................................11
Exhaust Hose Installation ........................................................................................................................14
Water Drainage .........................................................................................................................................15
Care and Maintenance .............................................................................................................................16
Trouble Shooting .......................................................................................................................................17
AIR CONDITIONER FEATURES
CARE AND MAINTENANCE
TROUBLESHOOTING TIPS
OPERATING INSTRUCTIONS
INSTALLATION INSTRUCTIONS
IDENTIFICATION OF PARTS

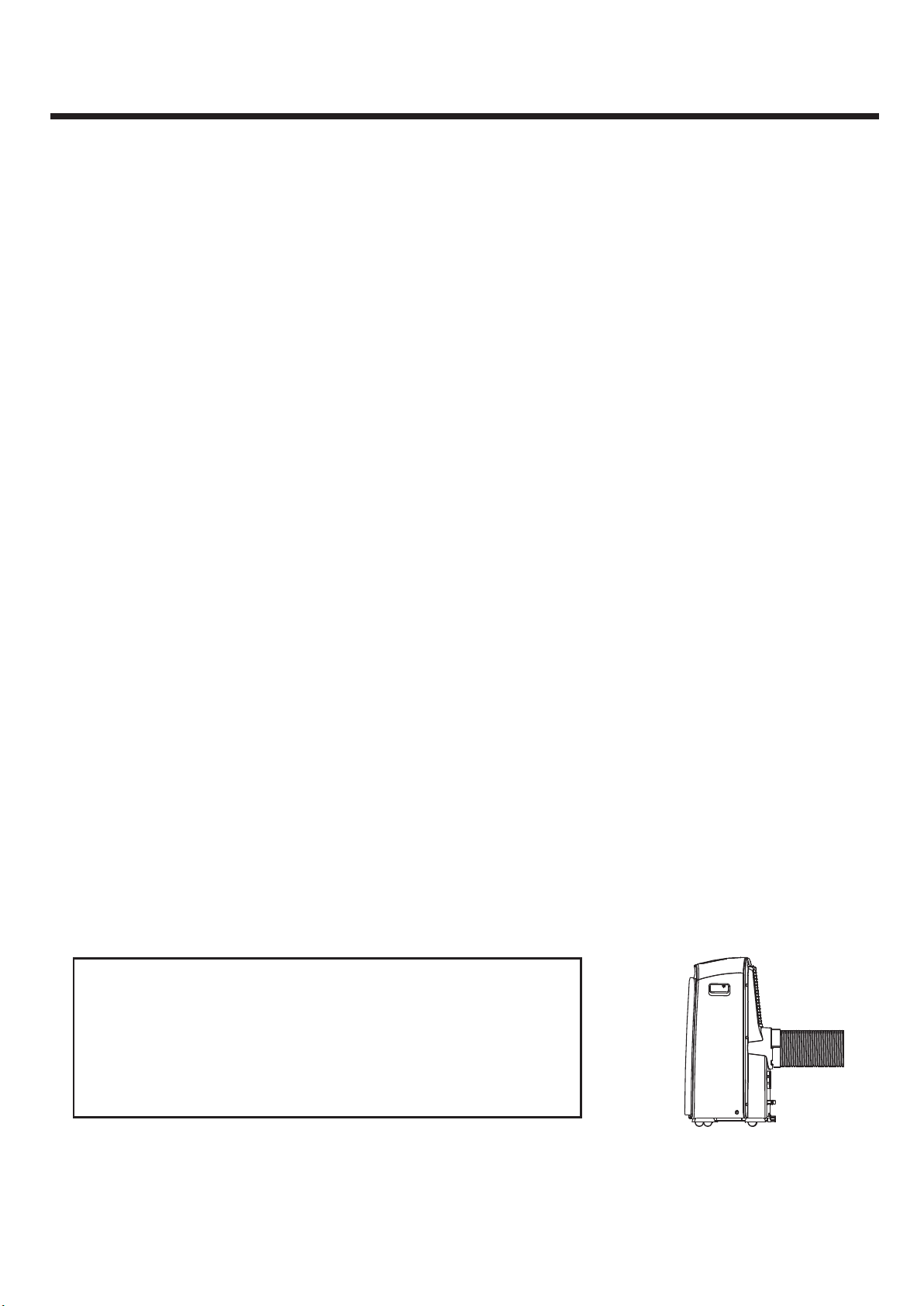

The rating data indicated on the energy label is based
on the testing condition of installing the un-extended
air exhaust duct without adaptor A & B (The duct and
the adaptor A & B are listed in the accessories chart
of the Instruction Manual). See the right figure.
NOTE
Operation Panel .........................................................................................................................................6
Remote Instructions ..................................................................................................................................9
REMOTE INSTRUCTIONS
Error Code and Protection Code ..............................................................................................................17
Repairs, Service & Warranty ....................................................................................................................18
REPAIRS, SERVICE & WARRANTY

SAFETY PRECAUTIONS
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
WARNING
CAUTION
DANGER
NOTICE
Safety of Children
• Young children should be supervised to ensure that they do not
play with the appliance.
• Packing (e.g. wraps, polystyrene etc.) can be dangerous
for children. There is a risk of suffocation. Keep packaging
materials away from children.
• Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
Dispose of old appliances in accordance with local regulations.
Remove the doors, cut off the main cable, break or remove
spring or bolt catches if fixed to prevent children getting trapped
or involve themselves in other dangers.
WARNING
1

Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The appliance must be installed in conformity with local and regulating electrical
equipment and installations.
Before operation, please confirm whether power specification complies with that on
nameplate.
Please make sure connected to properly grounded power outlet.
Do not operate your air conditioner in a wet room such as a bathroom or laundry.
The appliance with electric heater shall have at l east 1 meter space to the
combustible materials.
Contact the authorised service technician for repair or maintenance of this unit.
If the air conditioner is knocked over during use, turn off the unit and unplug it from
the main power supply immediately. Visually inspect the unit to ensure there is no
damage.
In a thunderstorm, the power must be cut off to avoid damage to the machine due to
lightning.
To reduce the risk of fire or electric shock, do not use this air conditioner with any
solid-state speed control device.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
Before cleaning or maintaining the air conditioner, please turn off air conditioner and
pull out the power plug.
If the appliance requires repair, contact the TECO National Service Centre. Repairs
carried out by unauthorised personnel may be dangerous and warranty may be
voided.
Read This Manual
2
SAFETY PRECAUTIONS
CAUTION

3
Your air conditioner should be used in such a way
that it is protected from moisture. e.g. condensation,
splashed water, etc.Do not place or store your air
conditioner where it can fall or be pulled into water
or any other liquid.Unplug immediately if it occurs.
Always transport your air conditioner in a vertical
position and stand on a stable, level surface during
use.
Turn off the product when not in use.
Always contact a qualified person to carry out
repairs. If the damaged power supply cord must be
replaced with a new power supply cord obtained
from the product manufacturer and not repaired.
Keep an air path of at least 30cm all around the
unit from walls, furniture and curtains.
If the air conditioner is knocked over during use,
turn off the unit and unplug from the mains supply
immediately.
Always use the switch on the control panel.
Do not operate your air conditioner in a wet room
such as a bathroom or laundry room.
Do not touch the unit with wet or damp hands or
when barefoot.
Do not press the buttons on the control panel with
anything other than your fingers.
Do not remove any fixed covers. Never use this
appliance if it is not working properly, or if it has
been dropped or damaged.
Never use the plug to start and stop the unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use hazardous chemicals to clean or come
into contact with the unit. Do not use the unit in the
presence of inflammable substances or vapour such
as alcohol, insecticides, petrol,etc.
Do not allow children to operate the unit
unsupervised.
Do not use this product for functions other than
those described in this instruction manual.
The air conditioner must be operated within the temperature range indicated below:
Operating Condition
SAFETY PRECAUTIONS
Safety Rules
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
Suggested tools for window kit installation
1. Screwdriver (medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw(In the event that the window kit needs to be cut down in size because the
window is too narrow for direct installation)
MODE ROOM TEMPERATURE
COOL
DRY
O O O O
17 C(62 F)~35 C(95 F)
O O O O
13 C(55 F)~35 C(95 F)
Always do this
!
Never do this
Energy Save
Use the unit in the recommended room size.
Locate the unit where furniture cannot obstruct the air flow.
Keep blinds/curtains closed during the sunniest part of the day.
Keep the filters clean.
Keep doors and windows closed to keep cool air in and warm air out (cooling mode).

4
IDENTIFICATION OF PARTS
Be sure the electrical service is adequate for the model you have chosen. This information can be found
on the serial plate, which is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding
is important. The power cord is equipped with a three-prong grounding plug for protection against shock
hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a
qualified electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Check all the accessories are included in the package and please refer to the installation instructions
for their usage.
NOTE: Optional parts( ), some models without.
All the illustrations in this manual are for explanation purpose only. Your air
conditioner may be slightly different. The actual shape shall prevail.
NOTE:

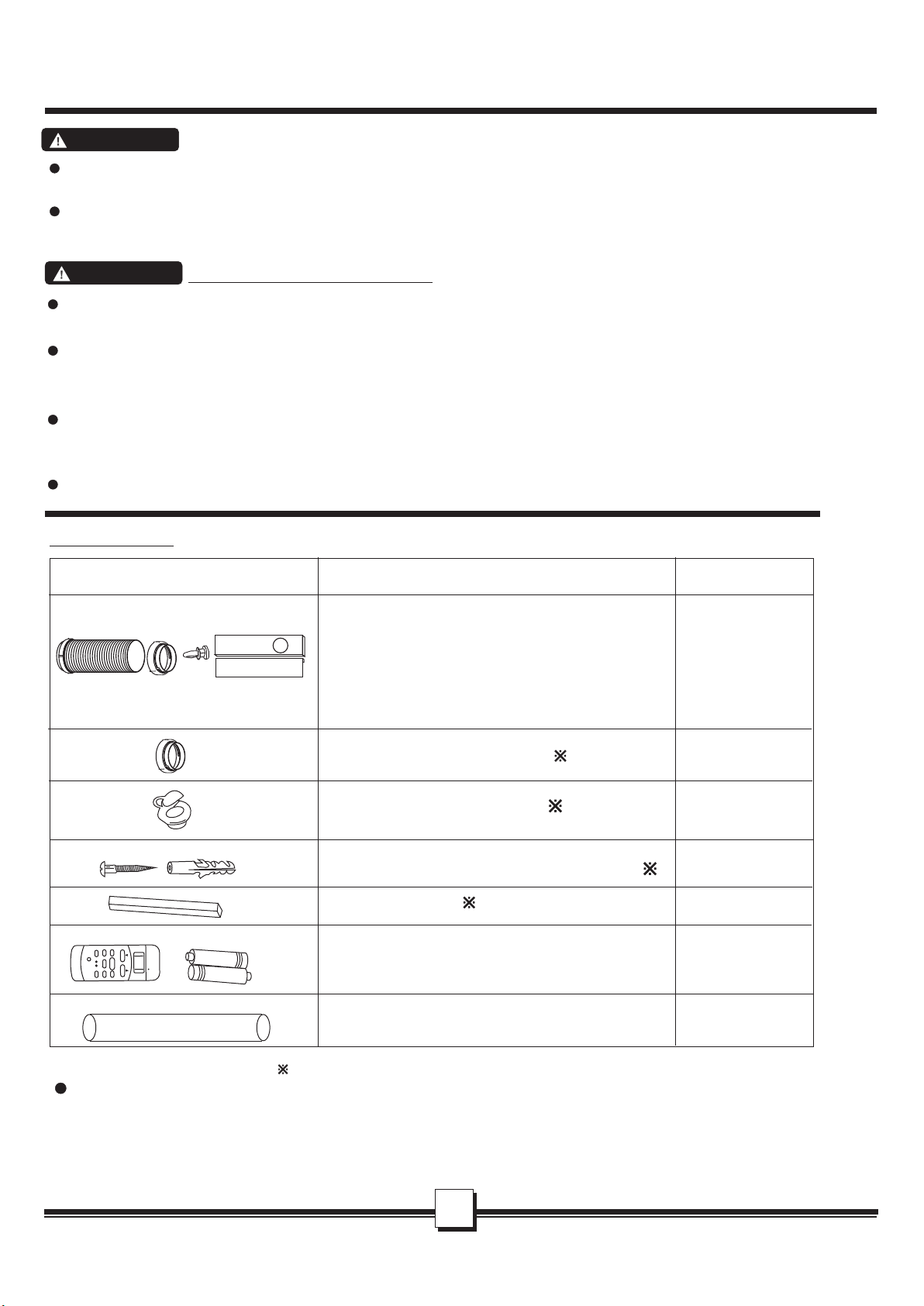

Accessories
PARTS :
PARTS NAME :
Wall Exhaust Adaptor A( ? )
Expansion Plug and wooden screw(?)
QUANTITY :
1 set
1 set
1 pc
4/ pc
Foam seal
3/pc
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
ECONOMY
ON/OFF
TIMER OFF
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
ION
TURBO
Remote Controller and Battery
(For remote control models only)
1set
Drain hose
Adaptor B(round mouth)
(?)
1pc
(?)
Exhaust hose(supplied), adapter B(round
mouth or flat month:depending on models)
and
Window Slider Kit and bolt
(?)
WARNING For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove
any prong from the power cord.
WARNING Electrical Information

IDENTIFICATION OF PARTS
5
Names of Parts
Front
Rear
Operation panel
Horizontal louver blade
(swing automatically)
Caster
Carrying handle
(both sides)
3
1
2
3
4
6
7
8
9
10
11
Upper air intake
12
Fig.1
13
1
2
4
Fig.2
5
7
9
8
15
14
13
12
5Upper air filter
(Behind the grille)
6
10
11
Air outlet
Drain outlet (only for Pump
heating model)
Power cord outlet
Power cord buckle (Used
only when storing the unit)
Bottom tray drain outlet
Power plug socket (Use
only when storing the unit)
Lower air filter
(Behind the grille)
14
Lower air intake
15
Drain outlet

6
AIR CONDITIONER FEATURES
Electronic Control Operating Instructions
Fig.3
Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all
its functions, then follow the symbol for the functions you desire.
The unit can be controlled by the unit control panel alone or with the remote controller.

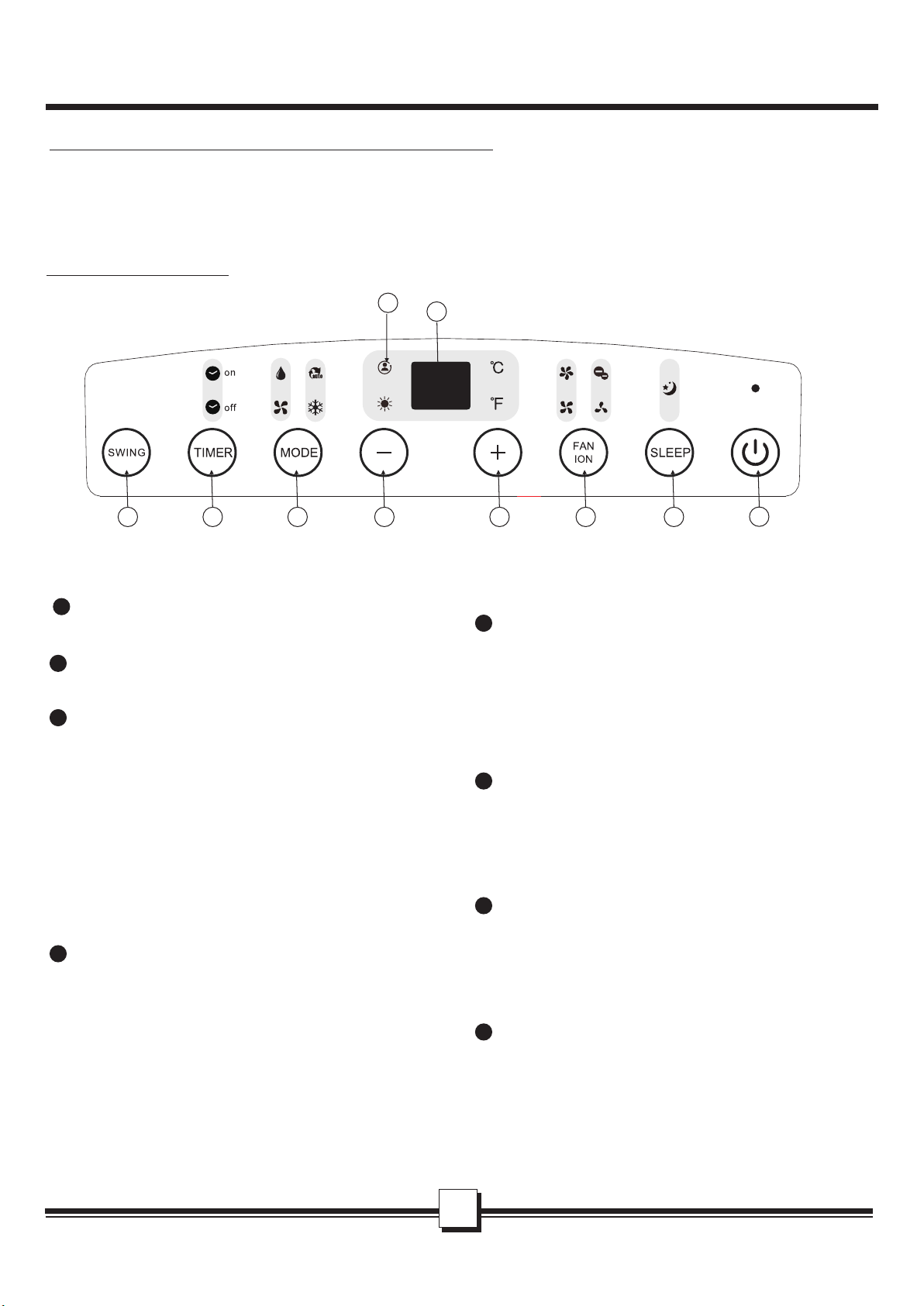

Operation Panel
1
5
3
1
2344567
8
9
(ION is not
applicable)
MODE select button
Selects the appropriate operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
AUTO, COOL, DRY and FAN. The mode
indicator light illuminates under the different
mode settings.
POWER button
2
6TIMER button
Used to initiate the AUTO ON start time and
AUTO OFF stop time program, in conjuction
with the & buttons. The timer on/off
indicator light illuminates under the timer
on/off settings.
+-
7SWING button
Used to initiate the Auto swing feature.
When the operation is ON, press the
SWING button can stop the louver at the
desired angle.
Power switch on/off.
SLEEP/ECO button
Used to initiate the SLEEP operation.
FAN/ION button
(ION is not applicable)
O
Shows the set temperature in C
O
" F" and the Auto-timer settings.
While on DRY and FAN modes, it shows
the room temperature.
" " or
LED Display
8
4
Used to adjust (increasing/decreasing)
O O O
temperature s ettings in 1 C/2 F(or 1 F) inc rements
O O O O O
in a range of 17 C/62 F to 30 C/88 F (or 86 F)
or the TIMER setting in a range of 0~24hrs.
UP( ) and DOWN( ) button
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or degrees
Celsius. To convert from one to the other, press
and hold the Up and Down buttons at the same
time, for 3 seconds.
+-
Control the fan speed. Press to select
the fan speed in four steps-LOW, MED,
HI and AUTO.
The fan speed indicator light illuminates
under different fan settings except AUTO
speed. When select AUTO fan speed, all
the fan indicator lights turn dark.
(FOLLOW ME is
not applicable)

7
OPERATING INSTRUCTIONS
- Press the "MODE" button until the "COOL"
indicator light comes on.
- Press the ADJUST buttons "+" or " - " to
select your desired room temperature. The
temperature can be set within a range of
O O O O O
17 C-30 C/62 F-88 F (or 86 F).
-Press the "FAN SPEED" button to choose the
fan speed.
Operating Instructions
COOL operation
FAN operation
-When you set the air conditioner in
AUTO mode, it will automatically select
cooling, heating(cooling only models
without), or fan only operation depending
on what temperature you have selected
and the room temperature.
- The air conditioner will control room
temperature automatically round the
temperature point set by you.
- Under AUTO mode, you can not select
the fan speed.
9
FOLLOW ME/TEMP SENSING feature
To activate the Follow Me/Temp Sensing
feature, point the remote control towards
the unit and press the Follow Me/Temp
Sensing button. The remote display is
actual temperature at its location. The
remote control will send this signal to the
air conditioner every 3 minutes interval
until press the Follow Me/Temp Sensing
button again.If the unit does not receive
the Follow Me/Temp Sensing signal during
any 7 minutes interval, the unit will beep to
indicate the Follow Me/Temp Sensing mode
has ended.
NOTE:This feature can be activated from the
remote control ONLY. The remote control serves
as a remote thermostat allowing for the precise
temperature control at its location.
- Press the "MODE" button until the
"FAN " indicator light comes on.
- Press the "FAN SPEED" button to
choose the fan speed. The temperature
cannot be adjusted.
- Do not put the duct to window.
TIMER operation
- When the unit is on, press the
Timer button will initiate the Auto-off stop
program, the TIMER OFF indicator light
illuminates. Press the UP or down button to
select the desired time. Press the TIMER
button again within 5 seconds, the Auto-on
start program is initiated. And the TIMER
ON indicator light illuminates. Press the up
or down button to select the desired Auto
on start time.
- When the unit is off, press the Timer
button to initiate the Auto-on start
program,press it again within five seconds
will initiate the Auto-off stop program.
- Press or hold the UP or DOWN
button to change the Auto time by
0.5 hour increments, up to 10 hours, then
at 1 hour increments up to 24 hours. The
control will count down the time remaining
until start.
- The system will automatically revert back
to display the previous temperature setting
if there is no operation in a five seconds
period.
DRY operation
-Press the "MODE" button until the "DRY"
indicator light comes on.
-Under this mode, you cannot select a fan
speed or adjust the temperature. The fan
motor operates at LOW speed.
AUTO operation
-Keep windows and doors closed for
the best dehumidifying effect.
-Do not put the duct to window
-Turning the unit ON or OFF at any time
or adjusting the timer setting to 0.0 will
cancel the Auto Start/Stop timer
program.
-When the malfunction (E1,E2,E3 or E4)
occurs, the Auto Start/Stop timed
program will also be cancelled.
(not applicable)

8
OPERATING INSTRUCTIONS
Fig.4

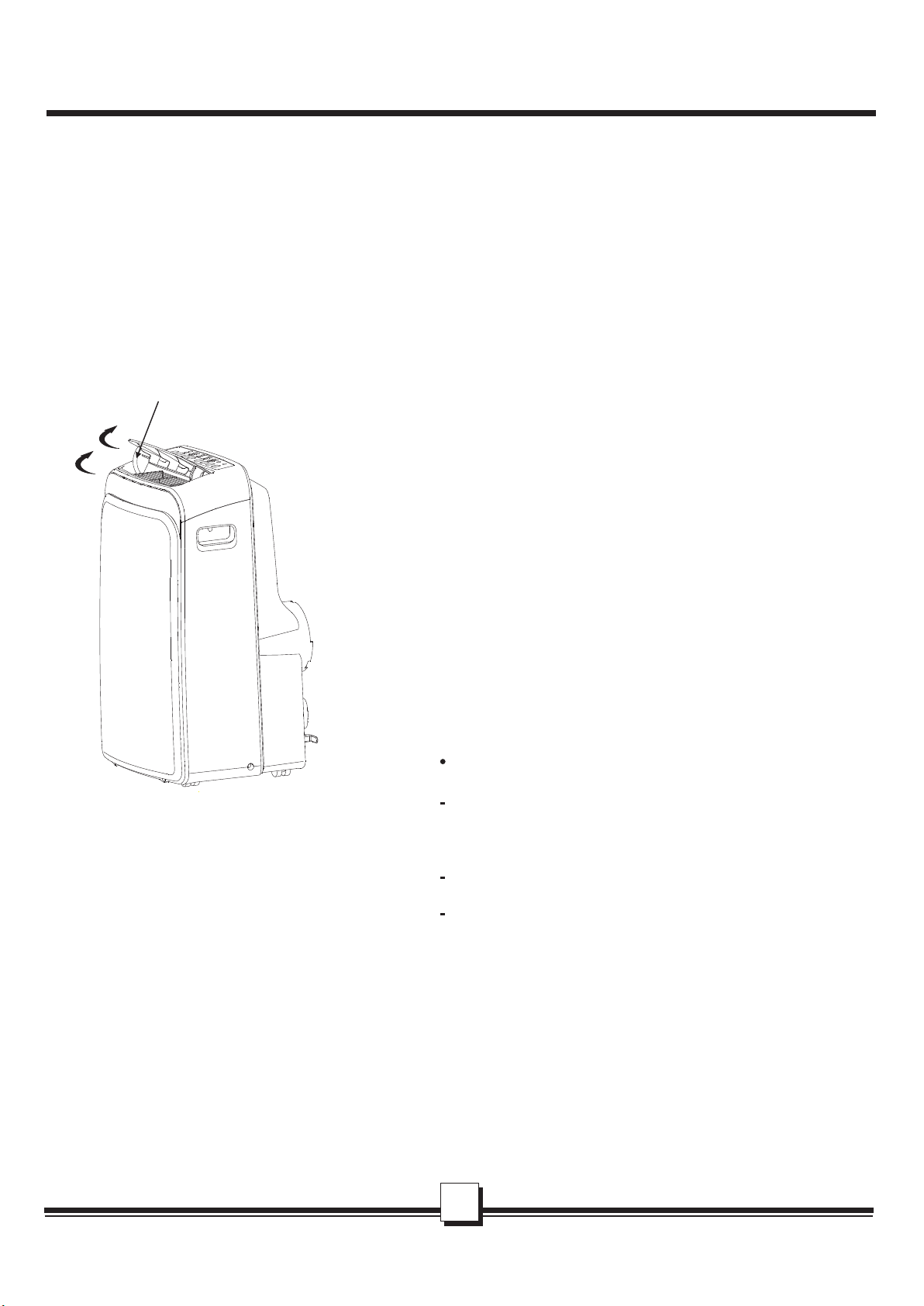

Adjust the air flow direction automatically
(Fig.4):
When the Power is ON, the louver opens fully.
Press the SWING button on the panel or
remote controller to initiate the Auto swing
feature.
The louver willl swing up and down
automatically.
Please do not adjust the louver manually.
Other Features
Auto-Restart
If the unit breaks off unexpectedly due to the power
cut,it will restart with the previous function setting
automatically when the
power resumes.
Wait 3 minutes before resuming operation
After the unit has stopped, it can not be restarted
operation in the first 3 minutes. This is to protect
the unit. Operation will automatically start after
3 minutes.
Air flow direction adjustment
The louver can be adjusted automatically .
Swing automatically
SLEEP operation
Press this button, the selected temperature will
increase(cooling) or decrease(heating) by
O O O
1 C/2 F(or 1 F) 30 minutes.The temperature will
then increase (cooling) or decrease (heating) by
O O O
another 1 C/2 F(or 1 F) after an additional 30
minutes. This new temperature will be maintained
for 7 hours before it returns to the originally
selected temperature. This ends the Sleep/Eco
mode and the unit will continue to operate as
originally programmed.
NOTE: This feature is unavailabe under FAN or
DRY mode.

1
2
Press this button to modify the air
conditioner mode in a sequence
of following:
3
MODE Button
5
4
ON/OFF Button
This button turns the air conditioner
ONand OFF.
AUTO COOL
DRY
HEAT FAN
Used to select the fan speed in four steps:
AUTO LOW MED HIGH
FAN Button
SLEEP Button
ION Button(Not applicable)
NOTE: While the unit is running under SLEEP
mode, it would be cancelled if MODE, FAN
SPEED or ON/OFF button is pressed.
Active/Disable sleep function. It can
maintain the most comfortable temperature
and save energy. This function is available
on COOL, HEAT or AUTO mode only .
NOTE：Not applicable for this model ..
NOTE: You can not switch the fan speed in
AUTO or DRY mode.
Operation of buttons
UP Button( )
Push this button to decrease the indoor
o o
temperature setting in 1 C increments to 17 C.
DOWN Button( )
7
9
Push this button to increase the indoor
o o
temperature setting in 1 C increments to 30 C.
SILENCE Button
Active/Disable SILENCE function.
LED
ION
SLEEP SWING
MODE
FAN
TEMP
ON/OFF
SILENCE
TIMER
ON
TIMER
OFF
1
2
4
3
8
9
7
5
6
10
11
8
SILENCE Button
Active/Disable SILENCE function.
9
SWING Button
6
starts and stop louver movement.

TIMER ON Button
TIMER OFF Button
9
10
Press this button to initiate the auto-on
time sequence. Each press will increase
the auto-timed setting in 30 minutes
increments. When the setting time displays
10.0, each press will increase the auto-
timed setting 60 minutes increments.
To cancel the auto-timed program, simply
adjust the auto-on time to 0.0.
Press this button to initiate the auto-off time
sequence. Each press will increase the auto
-timed setting in 30 minutes increments.
When the setting time displays 10.0, each
press will increase the auto-timed setting
60 minutes increments. To cancel the auto-
timed program, simply adjust the auto-off
time to 0.0
11
LED Button(not applicable)
NOTE:
Buttons design is based on typical model and might be slightly different from the
actual one you purchased，the actual shape shall prevail.
All the functions described are accomplished by the unit. If the unit has no this
feature, there is no corresponding operation happened when press the relative
button on the remote controller.

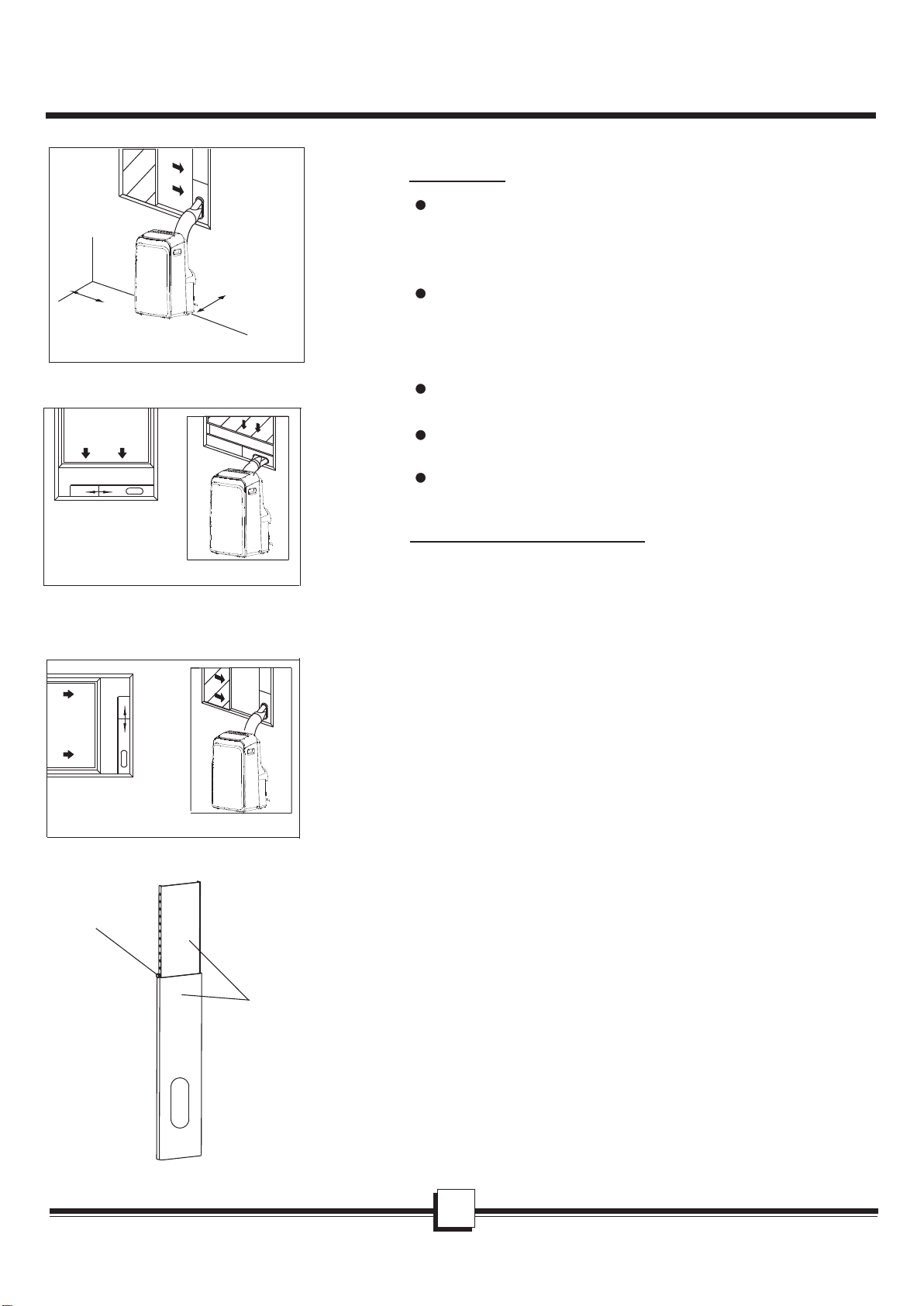

Horizontal
window
Window Slider Kit
Minimum:67.5cm(2.22ft).
Maxmum:123cm(4.04ft).
Horizontal
window
Fig.6
Fig.7
Fig.5
Location
The air conditioner should be placed on a firm
foundation to minimize noise and virbration. For
safe and secure positioning, place the unit on a
smooth, level floor strong enough to support the unit.
The unit has casters to aid placement, but it should
only be rolled on smooth, flat surfaces. Use caution
when rolling on carpet surfaces. Do not attempt to
roll the unit over objects.
The unit must be placed within reach of a properly
rated grounded socket.
Never place any obstacles around the air inlet or
outlet of the unit.
Allow 30cm to 100cm of space from the wall with
for efficient air-conditioning.
Window Kit Installation
Your window slider kit has been designed to fit most
standard "Vertical" and "horizontal"window
applications, However, it may be necessary for you to
improvise/modify some aspects of the installation
procedures for certain types of window. Please refer
to Fig. 6& Fig.7 for minimum and maximum window
openings.Window slider kit can be fixed with a bolt
(see Fig.7a).
Note: If the window opening is less than the mentioned
minimum length of the window slider kit, cut that one
with a hole in it short to fit for the window opening.
Do never cut out the hole in window slider kit.
B
A
INSTALLATION INSTRUCTIONS (optional)
11
bolt
Window slider kit
Fig.7a
A:30cm-100cm B:≥30cm
Window Slider Kit
Minimum:67.5cm(2.22ft).
Maxmum:123cm(4.04ft).

INSTALLATION INSTRUCTIONS (optional)
12
Installation in a double-hung sash
window

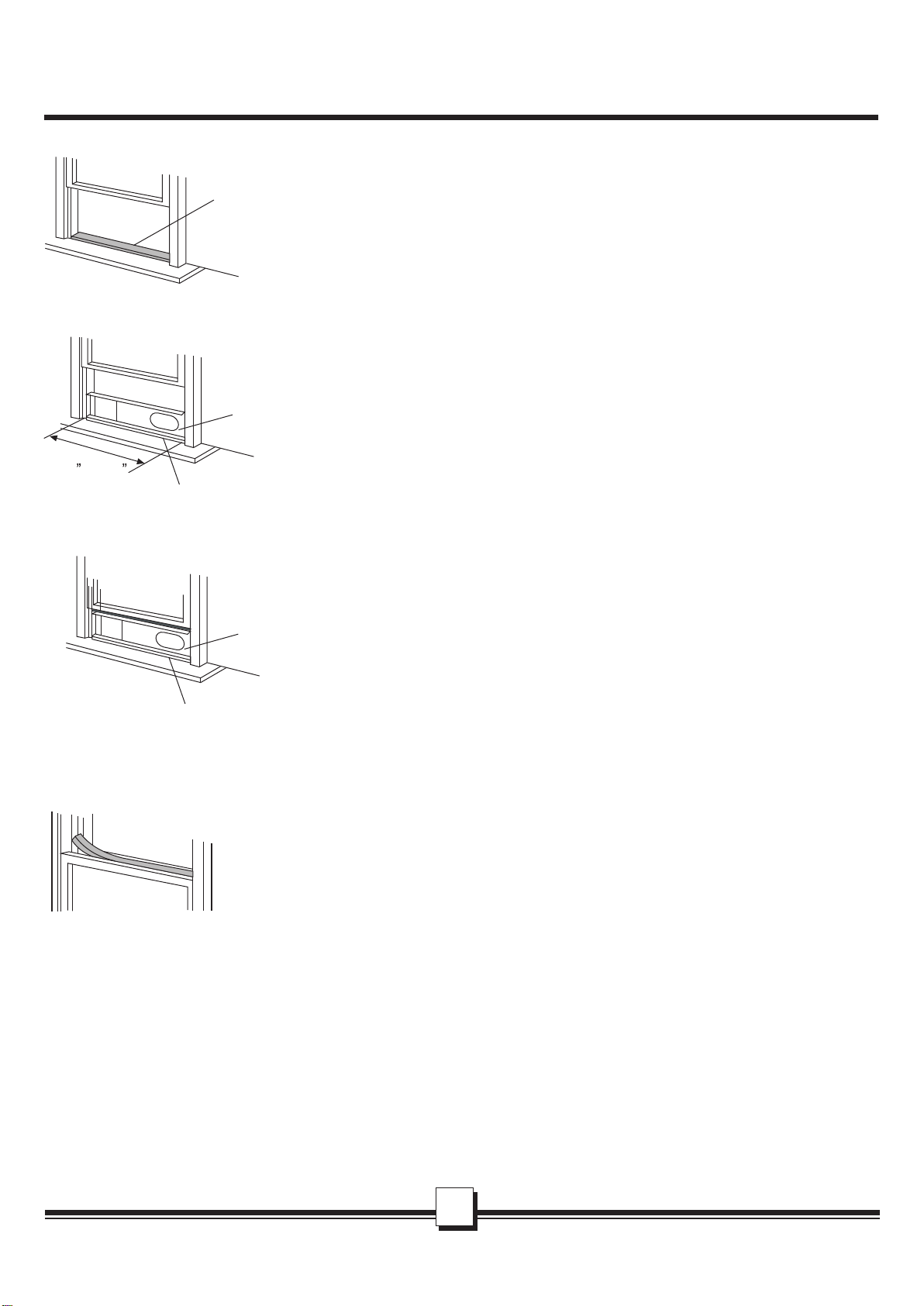

1. Cut the foam seal(adhesive type) to the proper length and
attach it to the window stool. Fig.8
2. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the width of
window, shorten the adjustable window kit if the width of
window is less than 26.5 inches
Open the window sash and place the window slider kit on
the window stool. Fig.9
3. Cut the foam seal(adhesive type) to the proper length
and attach it on the top of the window. Shown as in Fig.10
4. Close the window sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the
open gap between the top window sash and outer window
sash. Shown as in Fig.11.
Foam seal A
(adhesive type)
Foam seal
Fig.8
Fig.9
Fig.10
Fig.11
Window kit
Window stool
Window kit
Window stool
26.5 ~ 48.0

INSTALLATION INSTRUCTIONS (optional)
13
Installation in a sliding sash window
1. Cut the foam seal(adhesive type) to the proper length and
attach it to the window frame. See Fig.12.
2. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the width of
window, shorten the adjustable window kit if the width of
window is less than 26.5 inches.
Open the window sash and place the window slider kit on
the window stool. See Fig.13.
3. Cut the foam seal(adhesive type) to the proper length
and attach it on the top of the window. Shown as in Fig.14.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and sea the
open gap between the top window sash and outer window
sash. Shown as in Fig.15.
Foam seal
Foam seal A
(adhesive type)
Fig.12
Fig.13
Fig.14
Fig.15
Window
panel
NOTE:All the illustrations in this manual are for explanation
purpose only.Your unit may be slightly different. The
actual shape shall prevail.
26.5 ~ 48.0

Hole seat
Hook

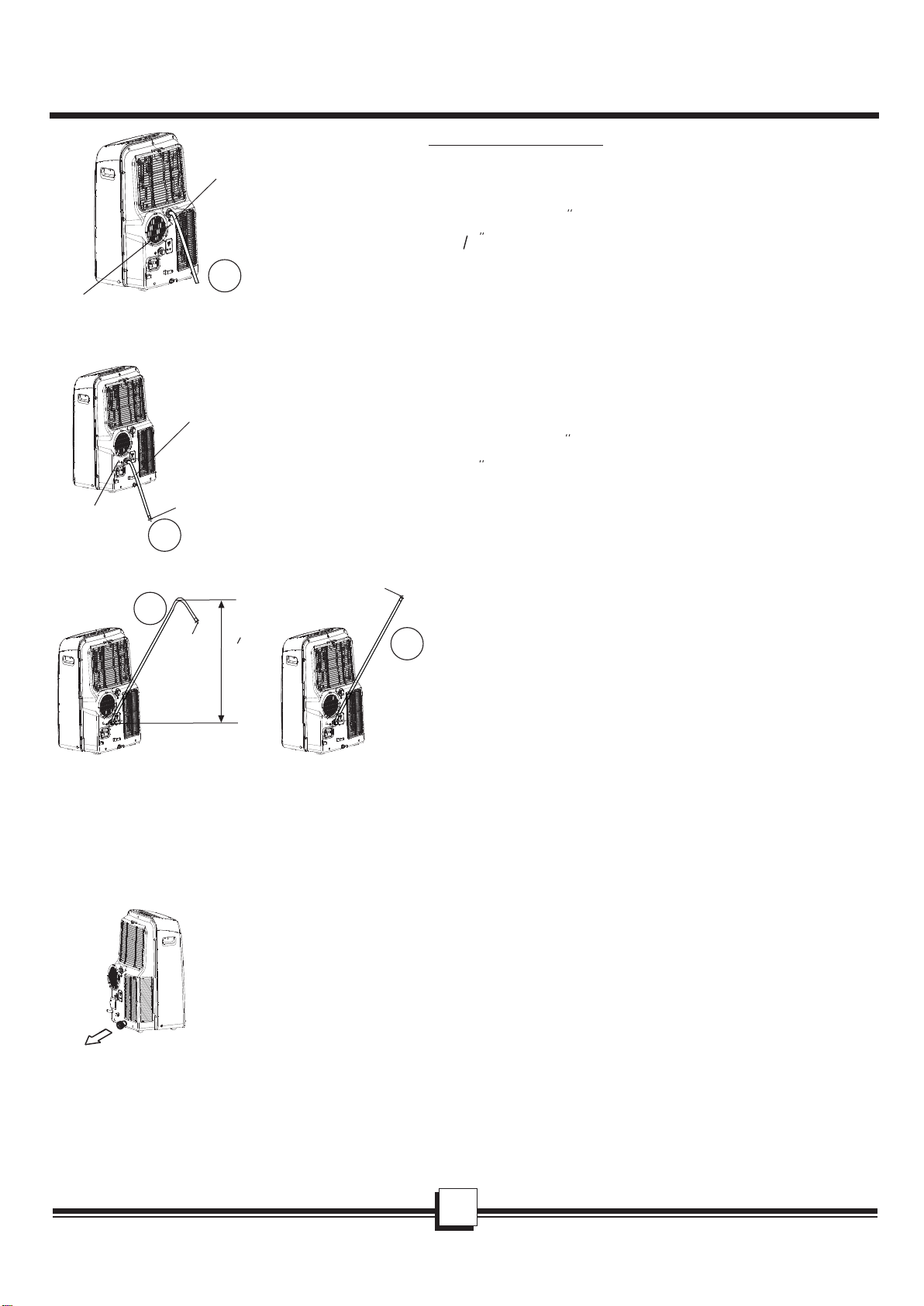

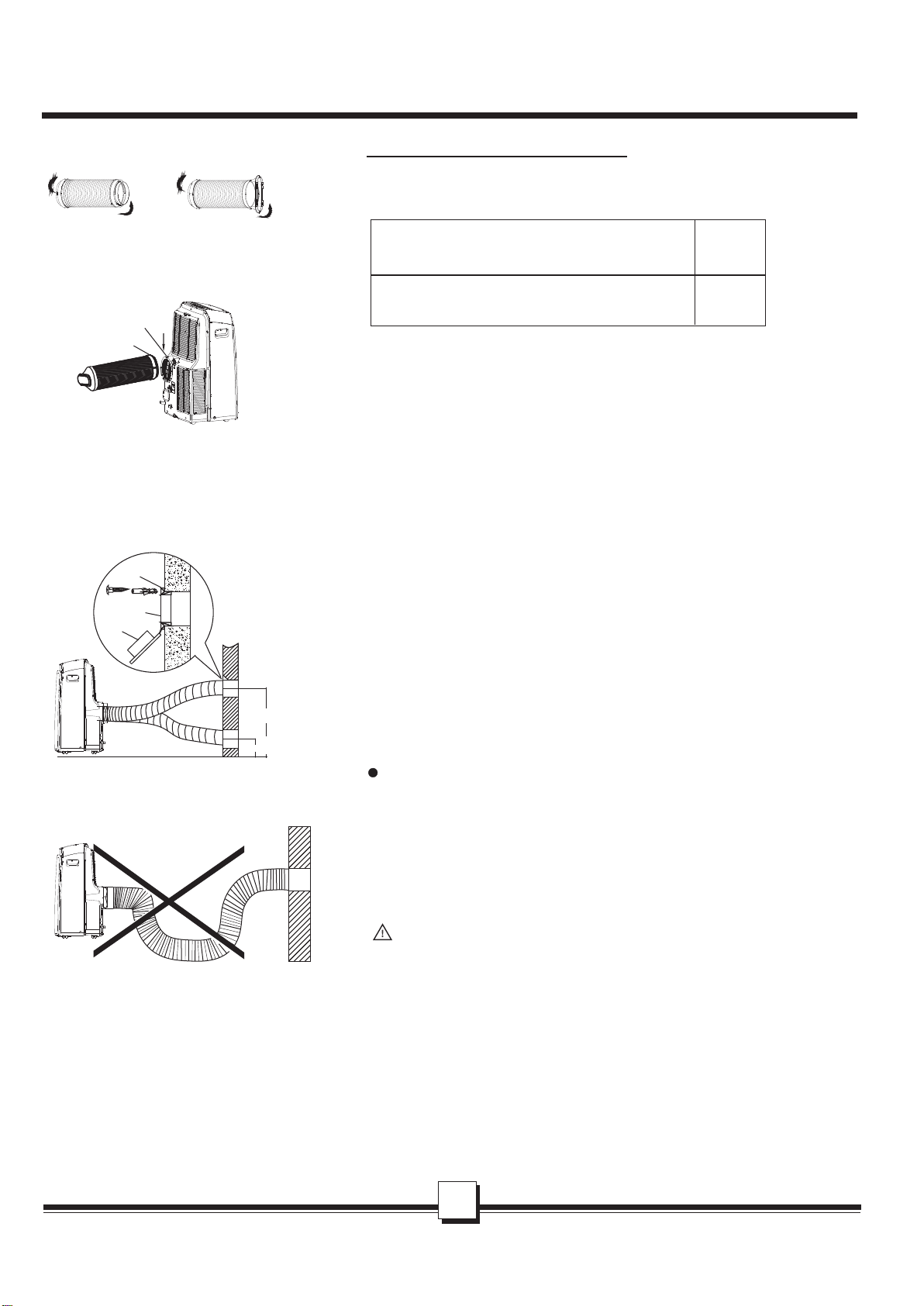

INSTALLATION INSTRUCTIONS
Exhaust Hose Installation
The exhaust hose and adaptor must be installed or removed
in accordance with the usage mode.
The exhaust hose can be compressed or extended
moderately according to the installation requirement,
but it is desirable to keep the hose length to a minimum.
1. Install the adaptor B and adaptor I onto the exhaust hose as
shown in Fig.16a or Fig.16b. Refer to the previous pages for
window kit installation.
2. Resert the hook of the Exhaust hose into the hole seat of the
air outlet and slide down the Exhaust hose along the arrow
direction (See Fig.17) for installation.
IMPORTANT:
DO NOT OVER BEND THE EXHAUST HOSE (SEE Fig.19)
14
Fig.16a
Fig.17
Fig.19
The exhaust hose can be installed into the wall
(Not applicable to the units without adaptor A, expansion
plugs and wooden screws of Accessories ).
1. Prepare a hole in the wall. Install the wall Exhaust adaptor A
onto the wall(outside) by using 4 expansion plugs and
wooden screws, be sure to fix thoroughly. (See Fig.18)
2. Attach the Exhaust hose to wall Exhaust adaptor A.
Fig.18
max 120CM
min 30CM
Adaptor A
Expansion plug
position
Adaptor
cap
Note:
Cover the hole using the adaptor cap when not in use.
Fig.16b
COOL or AUTO model
FAN or DEHUMIDIIFY mode
Install
Remove
CAUTION:
Make sure that there is no obstacle around the air outlet of
the exhaust hose (in the range of 500mm) in order to the
exhaust system works properly.

Remove the
upper drain plug
Continuous
drain hose
Fig.20a
Fig.20b
Fig.22
Remove the
lower drain plug
Continuous
drain hose
drain hose
adaptor
Fig.21a Fig.21b
√
×
√
√
drain hose
adaptor
drain hose
adaptor
delivery lift <1.8m
INSTALLATION INSTRUCTIONS
Water Drainage:
- During dehumidifying modes, remove the upper
drain plug from the back of the unit, install the drain
connector(5/8 universal female mender) with
3 4 hose(locally purchased). For the models
without drain connector, just attach the drain
hose to the hole. Place the open end of the
hose directly over the drain area in your basement
floor. Please refer to Fig.20a.
- During heating pump mode, remove the lower drain
plug from the back of the unit, install the drain
connector(5/8 universal female mender) with
3/4 hose(locally purchased). For the models
without drain connector, just attach the drain
hose to the hole. Place the open end of the
hose adaptor directly over the drain area in your
basement floor. Please refer to Fig.20b.
- When the water level of the bottom tray reaches
a predetermined level,
Carefully move the unit to a drain location,
remove the bottom drain plug and let the
water drain away(Fig.22). Reinstall the bottom
drain plug and restart the machine until the "P1"
symbol disappears. If the error repeats, call for
service.
the unit beeps 8 times,
the digital display area shows "P1" . At this time
the air conditioning/dehumidification process will
immediately stop. However, the fan motor will
continue to operate(this is normal).
15
NOTE: Be sure to reinstall the bottom drain plug
before using the unit.
NOTE: Make sure the hose is secure so there are
no leaks.Direct the hose toward the drain,making
sure that there are no kinks that will stop the warter
flowing.Place the end of the hose into the drain and
make sure the end of the hose is down to let the
water flow smoothly.(See Fig.20a,20b,21a).Do
never let it up.(See Fig.21b).

CARE AND MAINTENANCE
1) Be sure to unplug the unit before cleaning or servicing.
2) Do not use gasoline, thinner or other chemicals to clean
the unit.
3) Do not wash the unit directly under a tap or using a hose.
It may cause electrical danger.
4) If the power cord is damaged, it should be repaired by
manufacture or its agency.
Care and Maintenance
IMPORTANT:
1. Air filter
2. Unit enclosure
- Use a lint-free cloth soaked with neutral detergent to clean
the unit enclosure. Finished by a dry clean cloth.
Fig.23
3. Unit idle for a long time
16
- Remove the rubber plug at the back of the unit and attach
a hose to drain outlet. Place the open end of the hose
directly over the drain area in your basement floor
(See Fig.20 & 21).
- Remove the plug from the bottom drain outlet, all the water
in the bottom tray would drain out (See Fig.22).
- Keep the appliance running on FAN mode for half a day in
a warm room to dry the appliance inside and prevent mold
forming.
- Stop the appliance and unplug it, wrapped the cord and
bundle it with the tape(Fig.25). Remove the batteries from
the remote controller.
- Clean the air filter and reinstall it.
Fig.24
Fig.25
Buckle
Power
cord
Upper filter
(take out)
Remove the
screw ,then
take the lower
filter out.
Upper filter
(install)
Install the lower
filter by using
the screw.
- Clean the air filter at least once every two weeks to prevent
inferior fan operation because of dust.
- Removal
This unit has two filters. Take the upper filter out along the
the arrow direction (Fig.23),then take the filter down.
Remove the lower filter by loosening the screw, taking out
the filter as shown in Fig.23.
- Cleaning
Wash the air filter by immersing it gently in warm water
O O
(about 40 C/104 F) with a neutral detergent. Rinse the filter
and dry it in a shady place.
-Mounting
Install the upper air filter after cleaning , and install the lower
filter by using the screw (see Fig.24).
Power plug
socket
Power plug

TROUBLE SHOOTING TIPS
17
TROUBLE SHOOTING
1. Unit does not
Start when
Pressing on/off
Button
TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES
Reset the temperature.
Make sure all the windows and
doors are closed.
Remove the heat sources if
possible.
Connect the duct and make
sure it can function properly.
Decrease the set temperature.
Clean the air filter.
- Room temperature is lower than
the set temperature.(Cooling mode)
- The windows or doors in the
room are not closed.
- There are heat sources
inside the room.
- Exhaust air duct is not
connected or blocked.
- Temperature setting is too high.
- Air filter is blocked by dust.
2. Not cool enough
Place the unit on a flat, level
ground if possible.
It is normal.
- The ground is not level or
not flat enough.
- The sound comes from the
flowing of the refrigerant
inside the air-conditioner.
4. Noisy or vibration
5. Gurgling sound
Switch on again after the unit
has cool down.
- The automatic over heat
protection function. When
the temperature at the air
O O
outlet exceed 70 C/158 F,
th e de vice will st
op.
6. Power shut off
- P1 appears in the display
window
Drain the water in the bottom tray.
Error Codes and Protection Code
E1- Room temperature sensor error-
Unplug the unit and plug it back in. If error repeats, call for service.
E2- Evaporator temperature sensor error-
Unplug the unit and plug it back in. If error repeats, call for service.
E3- Condenser temperature sensor error-
Unplug the unit and plug it back in. If error repeats, call for service.
E4- Display panel communication
error-
Unplug the unit and plug it back in. If error repeats, call for service.
P1- Bottom tray is full -
Connect the drain hose and drain the collected water away. If protection repeats, call for service.

It is hazardous for anyone installing, removing, altering, repairing, servicing
or testing of this appliance.
Only an Authorised Service Person can carry out servicing or repairs to this
appliance.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned in this manual, contact:
TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST)
For warranty details please visit www.teco.com.au
Service Email: [email protected]
Spare Parts: [email protected]
REPAIRS, SERVICE & WARRANTY
18
● If there're following phenomenon, please turn off the air conditioner and discon nect the
power immediately, and then contact dealer immediately.
→ Power cord is overheating or damaged.
→ Abnormal sound during operation.
→ Water leakage
● If operate the air conditioner under abnormal condition, it may cause malfunction, electric
shock or fire hazard.
WARNING
