TECO TWS-TSO25HVGT User manual

Cooling Only
TWS-TSO25CVGT
TWS-TSO50CVGT
TWS-TSO70CVGT
SPLIT-TYPE ROOM AIR CONDITIONER
User Manual
Models:
Heat Pump
TWS-TSO25HVGT
TWS-TSO32HVGT
TWS-TSO50HVGT
TWS-TSO70HVGT
TWS-TSO80HVGT
IMPORTANT NOTE:
Thank you for selecting a TECO quality Air Conditioner.
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.
The design and specifications are subject to change
without prior notice for product improvement. Consult
with the sales agency or manufacturer for details.

CONTENTS
....................................................................................................1
.................................................................................................................3
.........................................................................................................4
.................................................................................................5
........................................................................................................6
...............................................................................................9
SAFETYPRECAUTIONS
NAMES OF PARTS
INDOOR UNIT DISPLAY
EMERGENCY FUNCTION
REMOTE CONTROLLER
OPERATING INSTRUCTIONS
OPERATION RANGE
MAINTENANCE
TROUBLESHOOTING
REPAIRS, SERVICES & WARRANTY
.............................................................................................................15
....................................................................................................................16
..........................................................................................................17
.................................................................................18

SAFETY PRECAUTIONS
1
Read Safety Precautions Before Operation
WARNING
This symbol indicates the possibility
of personnel injury or loss of life.
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
WARNING
•This appliance is not intended for use by persons(including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
•Children should be supervised to ensure that they do not play with the appliance.
WARNINGS FOR PRODUCT USE
• If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the
power. Call your dealer for instructions to avoid electric shock, fire or injury.
• Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since
the fan may be rotating at high speeds.
• Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire
or combustion.
• Do not operate the air conditioner in places near or around combustible gases. Emitted gas may
collect around the unit and cause explosion.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too much
exposure to water can cause electrical components to short circuit.
• Do not expose your body directly to cool air for a prolonged period of time.
• Do not allow children to play with the air conditioner. Children must be supervised around the unit at
all times.
• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the
room to avoid oxygen deficiency.
• In certain functional environments, such as kitchens, server rooms, etc., the use of specially
designed air-conditioning units is highly recommended.
CLEANING AND MAINTENANCE WARNINGS
• Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical
shock.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents
can cause fire or deformation.

2
CAUTION
• Turn off the air conditioner and disconnect the power if you are not going to use it for a long time.
• Turn off and unplug the unit during storms.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows open, or
if the humidity is very high.
ELECTRICAL WARNINGS
• Only use the specified power cord. If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty
plugs can cause fire or electric shock.
• Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling directly
on the cord can damage it, which can lead to fire or electric shock.
• Do not modify the length of the power supply cord or use an extension cord to power the unit.
• Do not share the electrical outlet with other appliances. Improper or insufficient power supply can
cause fire or electrical shock.
• The product must be properly grounded at the time of installation, or electrical shock may occur.
• For all electrical work, follow all local and national wiring standards, regulations, and the Installation
Manual. Connect cables tightly, and clamp them securely to prevent external forces from damaging
the terminal. Improper electrical connections can overheat and cause fire, and may also cause
shock. All electrical connections must be made according to the Electrical Connection Diagram
located on the panels of the indoor and outdoor units.
• All wiring must be properly arranged to ensure that the control board cover can close properly. If the
control board cover is not closed properly, it can lead to corrosion and cause the connection points
on the terminal to heat up, catch fire, or cause electrical shock.
• All wiring and disconnection must be incorporated in the fixed wiring in accordance with the wiring
rules.
Disposal Guidelines
This marking shown on the product or its literature, indicates that waste electrical and
eletrical equipment should not be mixed with general household waste.
•Young children should be supervised to ensure that they do not play with
the appliance and packaging.
•Packing (e.g. wraps, polystyrene etc.) can be dangerous for children. There
is a risk of suffocation. Keep packaging materials away from children.
•Contact your local authorities for correct method of disposal. Dispose of all
packaging in a responsible manner in accordance with local regulations.

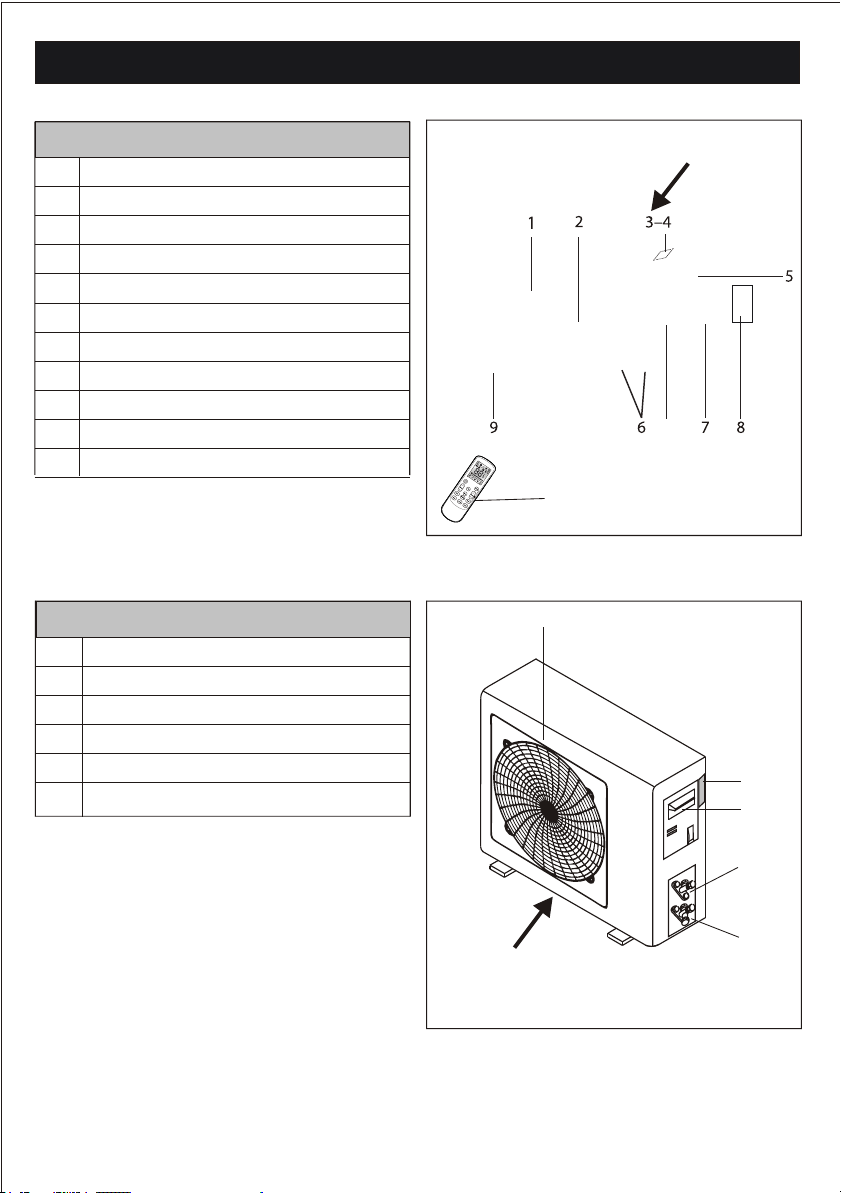

NAMES OF PARTS
No. Description
1
2
Front panel
Air filter
3
Terminal block cover
4
Emergency button
5
6
LED Display
Signal receiver
7
Airflow direction louver
8
Deflectors
9
10
Note: the above figures are only intended to be a
simple diagram of the appliance and may not
correspond to the appearance of the units that
have been purchased.
No. Description
13 Air outlet grille
Terminal block cover
14
Gas valve
15
Liquid valve
16
Indoor unit rating label
17
Outdoor unit rating label
13
15
16
17
INDOOR UNIT
3
OUTDOOR UNIT
14
11
INDOOR UNIT
OUTDOOR UNIT
10
Remote controller

INDOOR UNIT DISPLAY
The shape and position of switches and indicators may be different according to the model, but their
function is the same.
4
No.
Led Function
1
2
3Temperature display / Error code
(1) Lights up during Timer operation when
the air conditioner is operational
(2) Displays the malfunction code when
fault occurs.
SLEEP mode
Lights up during Timer operation.
SLEEP
TIMER

EMERGENCY FUNCTION
5
The emergency button in some models could be on
the right part of the unit under the front panel.
Open and lift the front panel up to an angleto reach the
emergency button.
1. One press of the emergency button(one beep) will
lead to the forced COOLING operation
2. Two press of the emergency button within 3 sec
(two beeps) will lead to the forced HEATING
operation (Heat pump models only).
3. To switch off the unit , you just need to press the
button again (a single long beep) .
4. After 30 minutes in forced operation , the air
conditioner will automatically start working in 23
cooling mode, auto fan speed.
If the remote controller fails to work or maintenance
necessary,proceed as follows:
EMERGENCY FUNCTION
The shape and position of the emergency button may be different according to the model, but
their function is the same.
The indoor fan speed during capacity and or efficiency test should be "quick cool" or "quick heat"
which can be activated by pressing "TURBO" button of remote controller

REMOTE CONTROLLER
6
The shape and position of buttons and indicators may vary according to
the model, but their function is the same.
The outlooking and some function of remote control may vary according
to the model.
The unit confirms the correct reception of each press button with a beep.
To select the mode of operation
To LED displayswitch on/off the
To activate or deactivate of the movement of the
deflectors.
To activate the function SLEEP
In cooling mode,press this button ,the temperature
will increase 2 on the base of setting temperature
In heating mode, press this button, the temperature
will decrease 2 on the base of setting temperature
Press this button to activate / deactivate the Super
function which enables the unit to reach the preset
temperature in the shortest time.
In COOL mode, the unit will give the maximum
cooling temperature with 16 , high fan speed.
In HEAT mode, the unit will give the maximum heating
temperature with 31 , high fan speed.
Press it to decrease temperature / time setting.
Press it to increase temperature / time setting.
Press it to start or stop operation.
Press it to set auto-off timer.
To select the fan speed of auto/low/mid/high
No.
8
10
12
6
7
9
MODE
SWING
DISPLAY
SLEEP
ECO
TURBO
11
1
(TEMP DN)
(TEMP UP)
2
3
4
ON/OFF
FAN
5TIMER
Button Function
To activate the function of Mute.
MUTE
8
3
6
7
9
10
5
12
4
1
2
11
13To activate the I Feel function.
I FEEL
13

REMOTE CONTROLLER

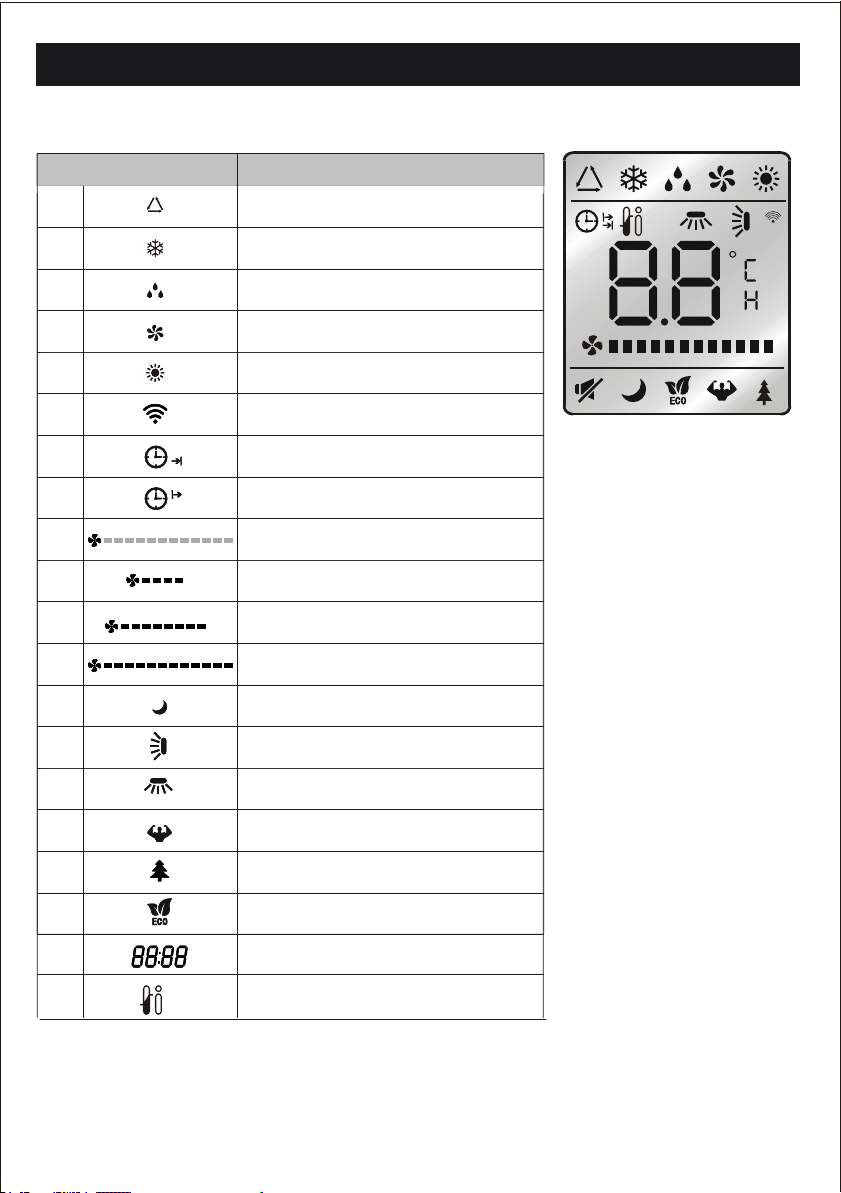

Remote controller DISPLAY
Meaning of symbols on the liquid crystal display
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
COOLING indicator
DEHUMIDIFYING indicator
FAN ONLY OPERATION indicator
SIGNAL RECEPTION indicator
TIMER OFF indicator
TIMER ON indicator
AUTO FAN indicator
LOW FAN SPEED indicator
MIDDLE FAN SPEED indicator
HIGH FAN SPEED indicator
SLEEP indicator
15
TUBRO indicator
16
17 HEALTHY indicator
18 ECO indicator
Meaning
No. Symbols
CLOCK indicator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
FEEL mode indicator
COOLING indicator
DEHUMIDIFYING indicator
FAN ONLY OPERATION indicator
HEATING indicatorHEATING indicator (heat pump models only)
SIGNAL RECEPTION indicator
TIMER OFF indicator
TIMER ON indicator
AUTO FAN indicator
LOW FAN SPEED indicator
MIDDLE FAN SPEED indicator
HIGH FAN SPEED indicator
SLEEP indicator
SWING Up-Down indicator
15
TUBRO indicator
16
17 HEALTHY indicator
18 ECO indicator
Meaning
No. Symbols
CLOCK indicator
SWING Left-Right indicator
19
20 I FEEL indicator

8
REMOTE CONTROLLER
Signal
receptor
+
+
+
Replacement of Batteries
Remove the battery cover plate from the rear of the remote controller,
by sliding it in the direction of the arrow.
Install the batteries according the direction (+and -) shown on the Remote
Controller.
Reinstall the battery cover by sliding it into place.
1. Direct the remote controller toward the Air conditioner.
2. Check that there are no objects between the remote control
and the Signal receptor in the indoor unit.
3. Never leave the remote controller exposed to the rays of the sun.
4. Keep the remote controller at a distance of at least 1m from the
television or other electrical appliances.
The remote controller be kept in a wall-mounted holder.
Use 2 x AAA (1.5V) batteries . Do not use rechargeable
batteries . Replace the old batteries with new ones of the same
type when the display is no longer legible.
Do not dispose batteries as unsorted municipal waste. Collection
of such waste separately and dispose in a responsible manner in
accordance with local regulations.
Open the battery cover, you can see a DIP switch
DIP switch on position Function
The remote controller is adjusted in degree Celsius
The remote controller is adjusted in only cooling mode
The remote controller is adjusted in cooling and heating mode
(Heat pump models only)
The remote controller is adjusted in degree Fahrenheit.
Cool
Heat
C
F
Remote controller holder
Mode
Fan
Eco
TempSwing
Timer
Display
Sleep
MildewTurbo Health
Mode
Fan
Eco
Temp Swing
Timer
Display
Sleep
Mildew TurboHealth
Mode
Fan
Eco
Temp Swing
Timer
Display
Sleep
Mute Turbo I Feel
RePRWH)XQFWLRQ
NOTE: Remote controller is preset in the factory based on
country and model. If you adjust the remote controller to
cooling mode, you will not be able to activate the heating
function even for heat pump models. You will need to take
out the batteries and repeat the procedure again.
Positioning the Remote Controller
Installing the Remote Controller Holder (optional)

OPERATING INSTRUCTIONS
Filter
Heat
Fan
Exchanger
“SWING”CONTROL OFTHE AIR FLOW
9
flaps
flap
movement Deflectors
The direction of the air outlet is motorized up and down
by flaps, and manually moved right and left by the vertical
deflectors, for some models, the vertical deflectors could be
controlled by motor as well.
The air sucked by the fan enters from the grill and
passes through the filter, then it is cooled/dehumidified
or heated through the heat exchanger.
Never position Flaps manually, the delicate mech-
anism might seriously damaged!
Never poke fingers, sticks or other objects in the air
inlet or outlet vents. Such accidental contact with live
pants might cause unforeseeable damage or hurt.
The air outlet flow is uniformly dist-
ributed in the room.
It is possible to position the direction
of the air in the optimal.
In cooling mode , orient the flaps in horizontal
direction;
In heating mode, orient the flaps downward as
the warm air tends to rise.
The deflectors are positioned manually and placed un-
der the flaps .They allow to direct the air flow rightw-
ard or leftward.
This adjustment must be done while the appliance
is switched off.
SWING
The key activates the motorized deflectors ,
the air flow is directed alternatively from left to right.
(Optional function, depends on the models)
SWING
The key activates the FLAP ,
the air flow is directed alternatively from
up to down .In order to guarantee an even
diffusion of the air in the room.
SWING

OPERATING INSTRUCTIONS
10
COOLING MODE
The cooling function allows the air condit-
ioner to cool the room and at the same time
reduces Air humidity.
COOL
To activate the cooling function ( COOL ) , press the
MODE button until the symbol ( COOL )
appears on the display.
HEATING MODE (Heat pump models only)
The cooling function is activated by setting the button
or at a temperature lower than that of the room.
To optimize the function of theAir conditioner, adjust
the temperature (1) , the speed (2) and the direction
of the air flow (3) by pressing the button indicated.
HEAT
The heating function allows the air conditi-
oner to heat the room.
To activate the heating function ( HEAT ) , press the
MODE button until the symbol ( HEAT )
appears on the display.
With the button or set a temperature higher than
that of the room..
To optimize the function of theAir conditioner adjust
the temperature ( 1 ), the speed ( 2 ) and the direction
of the air flow ( 3 ) by pressing the button indicated
In HEATING operation, the appliance can automatically
activate a defrost cycle, which is essential to clean the
frost on the condenser so as to recover its heat exchange
function.This procedure usually lasts for 2-10 minutes
during defrosting,indoor unit fan stop operation.
After defrosting ,it resumes to HEATING mode
automatically.
If the appliance is fitted with a electrical heater,
which delays appliance to startup in a few seconds
to ensure an immediate output of hot air (Optional ,
depends on the model).
COOL
HEAT

OPERATING INSTRUCTIONS
11
Note: The TIMER function can be set at
half-hour intervals.
FAN
SWING
SLEEP

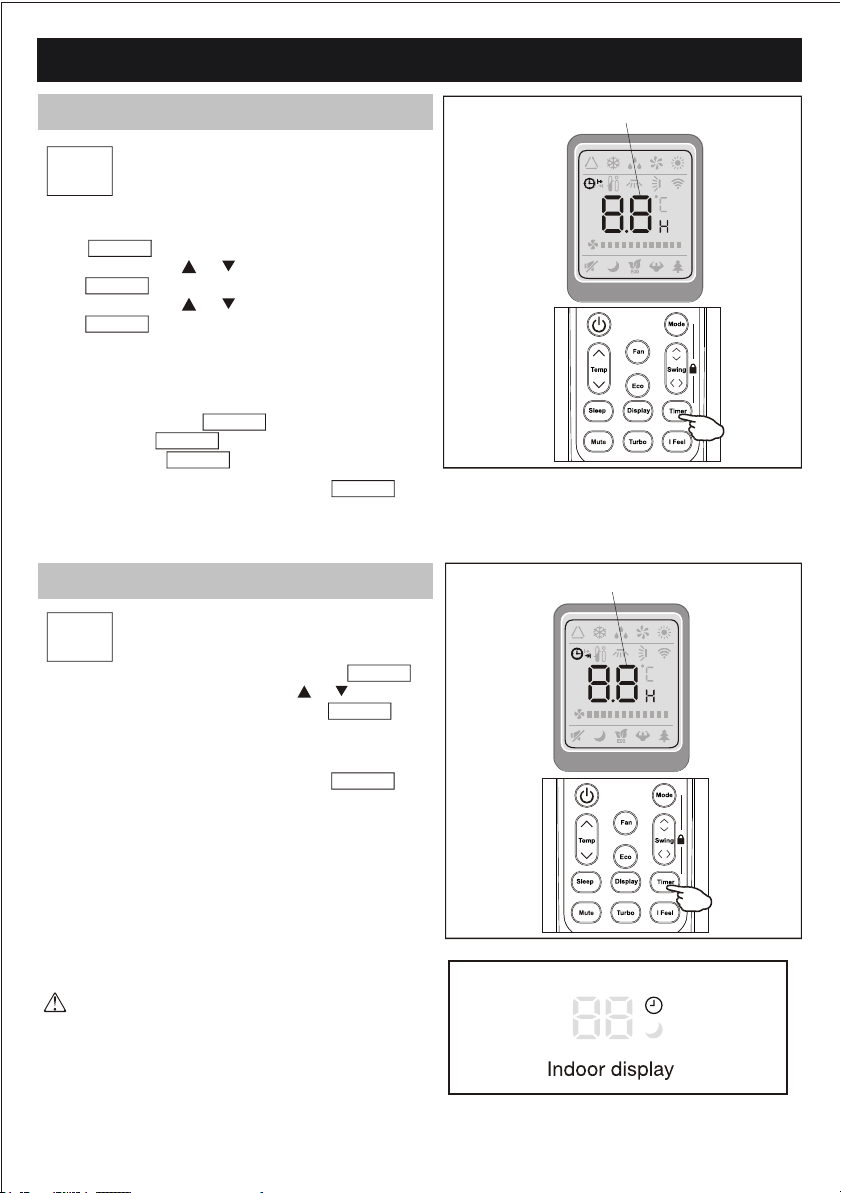

TIMER MODE----TIMER OFF
TIMER MODE----TIMER ON
TIMER
To set the time of the air conditioner
To program the automatical switching-on time, the
appliance should be power off.
Press TIMER at the fist time , set the temperature with
pressing the button or ;
Press TIMER at the second time , set the rest time with
pressing the button or ;
Press TIMER at the third time, confirm the setting, then
the rest time to next automatical switching-on could be
read on the display.
NOTE !
Before proceeding with the time: program the working
mode with the button MODE (2) and the fan speed
with the button FAN (3) . Switch the conditioner
off (with the key ON/OFF ).
TIMER
To set the automatic switching-off of
the air conditioner
The timed stop is programmed by pressing TIMER ,
Set the rest time by pressing the button or ,until the rest
time displayed is to your demand then press TIMER again.
Note:To cancel the set function ,press the TIMER
button again.
Note:To cancel the set function, press the TIMER
button again.
Note:In case of power off,it is necessary to set TIMER
ON again
Note:In case of power off,it is necessary to set TIMER
OFF again
TIMER ON
TIMER OFF

OPERATING INSTRUCTIONS
12
FAN The conditioner works in only
ventilation.
To set the FAN mode , Press MODE until
( FAN ) appears in the display.
While pressing FAN button the speed changes
in the following sequence: LOW/ MEDIUM/HIGH
/AUTO in FAN mode.
The remote control also stores the speed that was set
in the previous mode of operation.
In FEEL mode (automatic) the air conditioner auto-
matically chooses the fan speed and the mode of
operation (COOLING or HEATING).
This function reduces the humid-
ity of the air to make the room
more comfortable.
To set the DRY mode , Press MODE untill
( DRY ) appears in the display .An automatic
function of alternating cooling cycles and air fan
is activated.
DRY

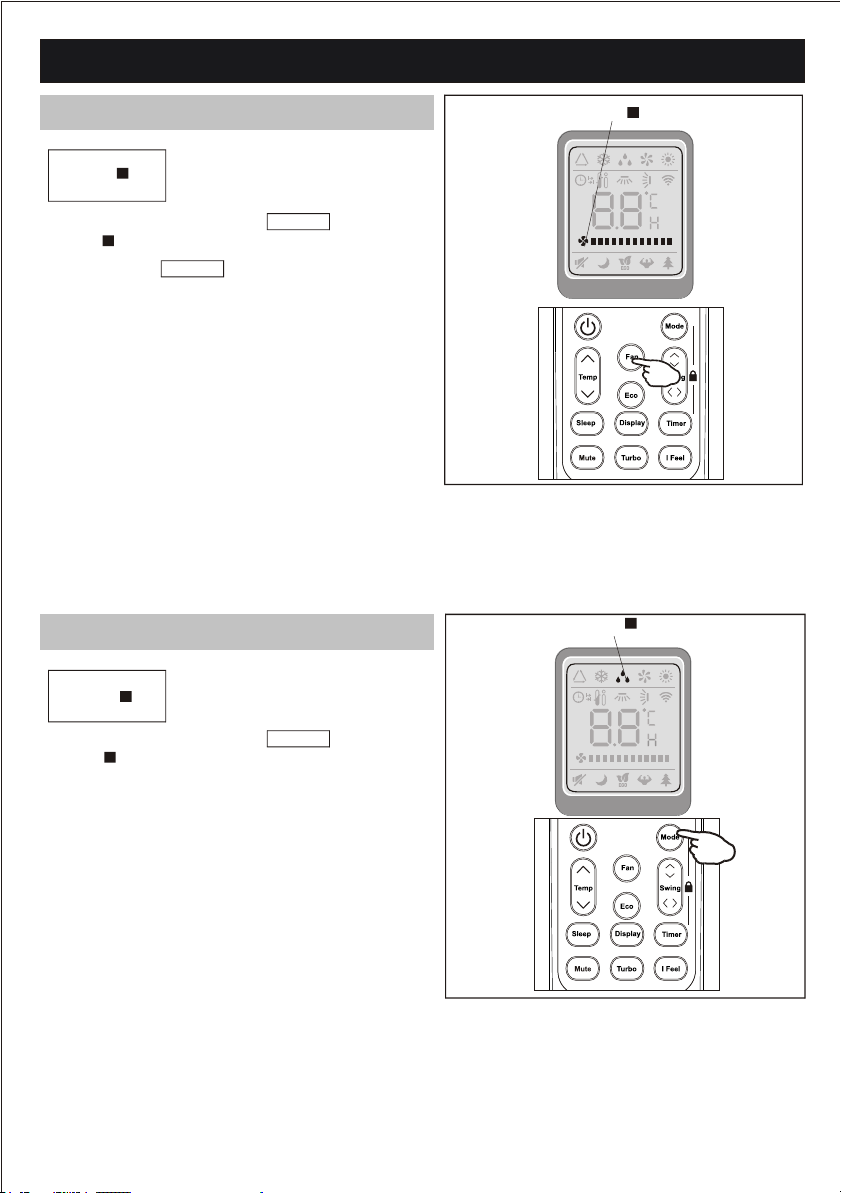

FAN MODE
DRY MODE
FAN
DRY

OPERATING INSTRUCTIONS
13
Ambient temp Auto temp.
20 23
23
26
20 ~26
Operation mode
HEATING ( FOR HEAT PUMPTYPE)
DRY
COOL 18
FAN (FOR COOL ONLY TYPE)
To optimize the function of the air conditioner, adjust
the temperature(only 2 )(1), the speed (2) and the
direction of the air flow (3) by pressing the buttons
indicated
SLEEP
To activate the SLEEP mode of operation, press the
SLEEP button on the remote controller until the
symbol (SLEEP) appears on the display.
The function SLEEP automatically adjusts the
temperature to make the room more comfortable
during the night . In cooling or dry mode , the set
temperature will automatically raise by1 every
60 minutes, to achieve a total rise of 2 during the
first 2 hours of operation.
In heating mode the set temperature is gradually
decreased by 2 during the first 2 hours of operation.
After 10 hours running in sleep mode the air
conditioner is swicthed off automatically.
FEEL MODE
FAN
SWING
SLEEP
SLEEP MODE
FEEL Automatic mode.
To activate the FEEL (automatic) mode of operation,
press the MODE button on the remote controller until
the symbol ( FEEL ) appears on the display.
In FEEL mode the fan speed and the temperature are set
automatically according to the room temperature
(tested by the temperature sensor which is incorporated
in the indoor unit).
SLEEP
FEEL

MODES OF OPERATION
I FEEL MODE
Automatic mode.
I Feel
I Feel
14

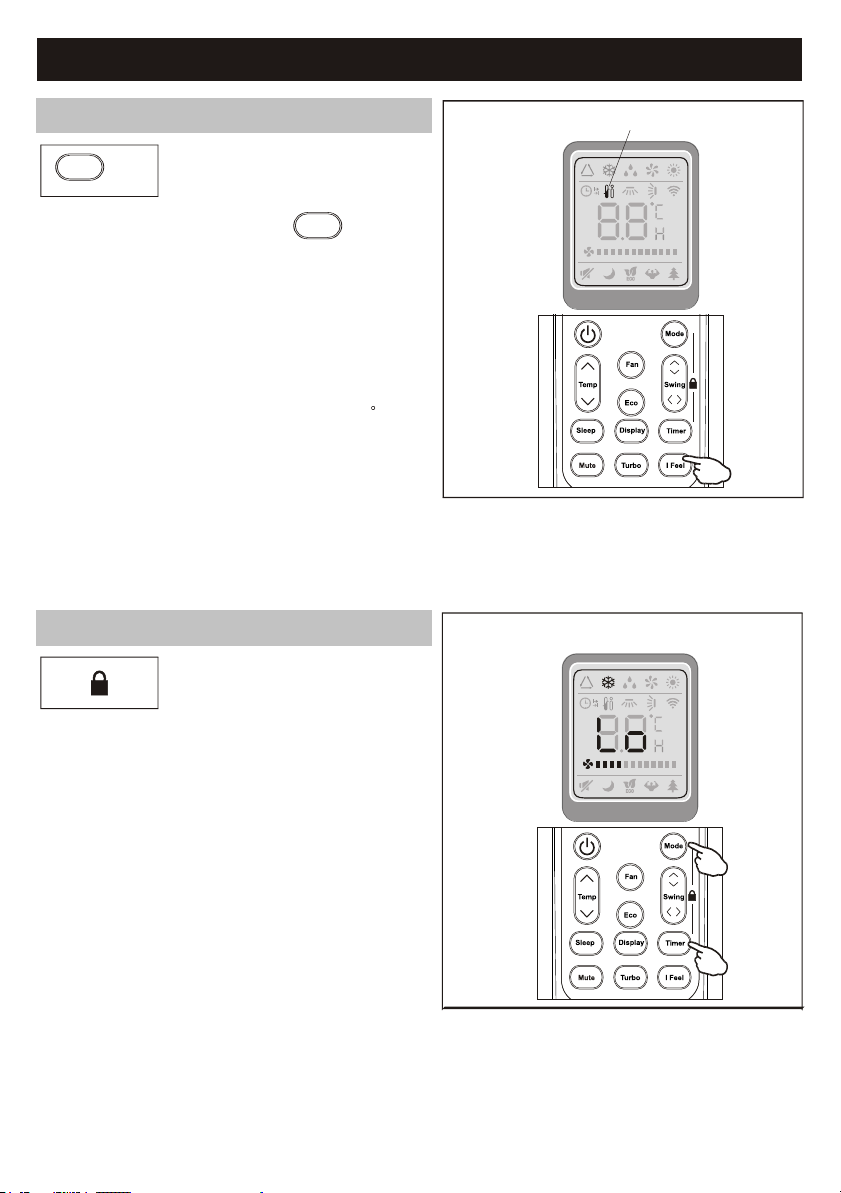

Child-Lock
Press "Mode" and "Timer" together to
active/disactive.
To activate I Feel function, press the button
on the remote controller. Press again to deactivate this
function.
This function enable the remote control measure the
temperature at its current location and send this signal
7 times in 2 hours to the air conditioner to enable the
air conditioner to optimize the temperature around you
and ensure maximum comfort.
It will automatically deactivate 2 hours late after the
activation or temperature exceed the range 0~50 C
I Feel

OPERATION RANGE
15
If air conditioner is used outside of the above conditions, certain safety protection features might
come into operation and cause the unit to function abnormally.
The unit does not operate immediately if it is turned on after being turned off or after changing the
mode during operation. This is a normal self-protection action, you need wait for about 3 minutes.
The table below indicates the temperature ranges the air conditioner can be operated within.
COOL Mode HEATMode
(Heat pump models only) DRY Mode
Room Temperature
Outdoor Temperature
17
14~60
30
-15 ~28
6
5 ~31

MAINTENANCE
Periodic maintenance is essential for keeping your air
conditioner efficient.
Before carrying out any maintenance , disconnect the
power supply by taking the plug out from the socket.
INDOOR UNIT
ANTIDUST FILTERS
1. Open the front panel following the direction of the
arrow
2. Keeping the front panel raised with one hand, take out
the air filter with the other hand
3. Clean the filter with water ; if the filter is soiled with
oil,it can be washed with warm water (not exceeding
45 ).
Leave to dry in a cool and dry place.
4. Keeping the front panel raised with one hand , insert
the air filter with the other hand
5. Close
The electrostatic and the deodorant filter (if installed)
cannot be washed or regenerated and must be replaced
with new filters after every 6 months.
CLEANING THE HEATEXCHANGER
1. Open the front panel of the unit and life it till its
greatest stroke and then unhooking it from the hinges
to make the cleaning easier.
2. Clean the indoor unit using a cloth with the water
( not higher than 40 ) and neutral soap . Never use
aggressive solvents or detergents.
3. If the outdoor unit is clogged , remove the leaves and
the waste and remove the dust with air jet or a bit of water.
END OF SEASON MAINTENANCE
1. Disconnect the automatic switch or the plug.
2. Clean and replace the filters
3. On a sunny day let the conditioner work in ventilation for some hours , so that the inside of the unit can
dry completely..
REPLACING THE BATTERIES
When:
How:
N.B: Use only new batteries. Remove the batteries from the remote controller when the conditioner is not in
operation
WARNING ! Do not throw batteries into common rubbish , they should be disposed of in the special
containers situated in the collection points.
antidust filter
16
There is no confirmation beep heard from the indoor unit.
The LCD doesn't act.
Take off the cover at back.
Place the new batteries respecting the symbols + and - .

TROUBLESHOOTING
17
MALFUNCTION
Strange odour
The appliance does not
operate
Noise of running water
Afine mist comes from
the air outlet
Insufficient airflow, either
hot or cold
The appliance does not
respond to commands
The display is off
Switch off the air conditioner immediately and cut off the power supply in the event of:
ERROR SIGNALS ON THE DISPLAY
In case of error, the display on the indoor unit shown the following error codes:
POSSIBLE CAUSES
Power failure/plug pulled out
Damaged indoor/outdoor unit fan motor
Faulty compressor thermomagnetic circuit breaker
Faulty protective device or fuses.
Loose connections or plug pulled out
It sometimes stops operating to protect the appliance.
Voltage higher or lower than the voltage range
Active TIMER-ON function
Damaged electronic control board
Air filter dirty
Back flow of liquid in the refrigerant circulation
This occurs when the air in the room becomes very cold, for example in the
COOLING or DEHUMIDIFYING/DRY modes.
This noise is made by the expansion or contraction of the front panel due
to variations in temperature and does not indicate a problem.
Inappropriate temperature setting..
Air inlet or outlet of indoor or outdoor unit has been blocked.
Air filter is blocked.
Fan speed set at minimum.
Other sources of heat in the room.
No refrigerant.
Remote control is not near enough to indoor unit.
Battery in Remote controller may have been exhausted..
Obstacles between remote control and signal receiver in indoor unit.
Active LED function
Power failure
Strange noises during operation.
Faulty electronic control board
Faulty fuses or switches.
Spraying water or objects inside the appliance.
Overheated cables or plugs.
Very strong smells coming from the appliance.
The fault ofindoor temperature sensor
The fault ofindoor pipe temperaturesensor
Malfunction of indoor fan motor.
Astrange noise can be
heard
flashes once
RUN lamp
flashes twice
flashes 6 times
Description of thetrouble

REPAIRS, SERVICES & WARRANTY
It is hazardous for anyone installing, removing, altering, repairing, servicing or
testing of this appliance.
Only an Authorised Service Person can carry out servicing or repairs to this
appliance.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the checks
mentioned in this manual, contact:
TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST)
For warranty details please visit www.teco.com.au
Service Email: [email protected]
Spare Parts: [email protected]
18
