Teka AEH-600 User manual

Operating instructions
(Translation of the original operating instructions)
AEH-600
TEKA Absaug- und Entsorgungstechnologie GmbH, Millenkamp 9, D-48653 Coesfeld,
Tel.: [phone], E-Mail: [email protected], www.teka.eu
1

Table of contents
1. General 3
2. Description of the system elements 4
2.1. Illustration of the system elements 4
2.2. Functionality of the system 4
2.3. Intended use 5
2.4. Residual risk 5
3. Safety instructions 6
3.1. Definition of the hazard symbols 6
3.2. General safety instructions 6
4. Storage, transport and installation of the device 7
5. Commissioning 8
5.1. Connecting the suction line and exhaust air line 8
5.2. Electrical connection 9
6. Operating the system 9
6.1. Explanation of the operating elements 9
7. Maintenance 10
7.1. Reset to maintenance state 10
7.2. Recplacing the pocket filter 11
8. Dismantling / Disposal 12
9. Diagnostics and troubleshooting 13
10. List of spare parts 13
11. Technical data 14
12. EC declaration of conformity 15
13. Training protocol 16
14. Maintenance intervals 17
14.1. Usage-related maintenance 17
14.2. General maintenance 17
14.2.1. Visual inspection of the device 18
14.2.2. Functional test of the device 18
14.2.3. Electrical test of the electrical lines and earthing connections 19
BA_AEH-600_20230808_EN
2
08.08.2023

1. General
Congratulations on purchasing the product from TEKA.
Our engineers ensure that our devices reflect the state of the art through continuous development.
Nevertheless, misuse or misconduct can endanger your safety. Please observe the following for a
successful use of the device:
Only authorised and instructed personnel can carry out transport, operation,
maintenance and repair of the device. The operator must ensure that the operating
personnel take note of these instructions.
Please read these instructions before operating the device, and observe the safety
precautions to avoid injury!
Store this manual in a safe place! These instructions are to be regarded as a component
of the product!
Adhere to all product notes!
Modifications or conversions that the operator carries out at the device without the
consent of the manufacturer, can lead to new safety hazards or to the loss of warranty
claims.
Observe the manufacturer’s instructions. Contact the manufacturer in case of any
uncertainty:
Tel: [phone]
E-mail: [email protected]
BA_AEH-600_20230808_EN
3
08.08.2023

2. Description of the system elements
2.1. Illustration of the system elements
Installation example:
Z.Nr. 18311701
Pos.1
Pos.2
Pos.3
Pocket filter housing
Fan housing
Suction nozzle
Pos.4
Pos.5
Pos.6
Exhaust air nozzle
Connection for mains cable
Swivel castor
2.2. Functionality of the system
The filter unit serves to suck off and filter polluted air (according to the intended use). First of all, the
coarse particles are separated in the pocket filter in the filter section of the unit. The purified air is led
outside via the exhaust air pipe.
BA_AEH-600_20230808_EN
4
08.08.2023

2.3. Intended use
The device is intended for commercial use. If the device is made publicly accessible, it must never be
operated unsupervised by authorized personnel, authorized by the operator.
The filter unit is intended as suction and pre-filtration unit of fumes that result from lasers jobs.
WARNING
Improper use can damage parts and be a danger to life and limb!
The device must not be used for the extraction of oil-laden welding fume, explosive dust
and gases, hybrid mixtures, glowing or burning substances, gases, water, etc. The
device must not be operated in explosive zones.
Dangers arising from fire.
If the sucked medium is combustible fume or dust, the operator must determine
beforehand which fire protection measures are to be taken.
2.4. Residual risk
CAUTION
Danger due to possible hazardous materials in the exhaust air flow.
Because the unit does not monitor the quality of the air in the exhaust air flow, we
recommend that you always guide the exhaust air flow exiting our unit to areas (e.g. to the
outside into the open air) in which there is no danger to any living being. To do this, it is
necessary to fit a suitable exhaust air line at the filter unit.
BA_AEH-600_20230808_EN
5
08.08.2023

3. Safety instructions
3.1. Definition of the hazard symbols
The device is constructed according to the state of the art and the recognised safety regulations.
Nevertheless, during use threats to life and limb of the user or other persons may arise. The impairment
of the machine or other property are also possible. In these instructions we warn by using corresponding
indications.
WARNING
WARNING
These instructions are made in case of risks that can lead to injury or death.
CAUTION
CAUTION
These instructions are made in case of risks that can lead to injury.
NOTICE
NOTICE
These instructions are made in case of risks that can lead to material damages.
Information notes are no hazard warnings; they call attention to useful information.
3.2. General safety instructions
WARNING
Dangers arising from improper use / unauthorised operations.
The operator must ensure that their authorised personnel are familiar with all the safety
indications in this manual in advance. The operator is responsible for ensuring that all work
is carried out by authorised and qualified personnel. We therefore recommend using the
training protocol on the last page for that purpose (see chapter “Training protocol”).
Laymen are allowed to operate the device after having received the necessary instructions.
But they are not allowed to carry out any installation, repair or maintenance work.
Dangers arising from fire.
In case of fire, if possible, switch the unit immediately off or disconnect it from the power
supply. Fire extinguishing measures which the operator is obliged to determine beforehand
must be initiated immediately.
BA_AEH-600_20230808_EN
6
08.08.2023

WARNING
Dangers arising from electricity.
The operator must ensure that electrical plants and equipment are only built, modified and
maintained by a qualified electrician or under the direction and supervision of a qualified
electrician. Do not work on components if you are not sure that these are disconnected. If
necessary, disconnect the device from the electric power supply and secure it against
unauthorized restarting.
4. Storage, transport and installation of the device
WARNING
Risk of injury from tilting or unmounted components when stored or transported.
The device must be secured against tilting and slipping when it is stored or transported. Do
not stand under or next to the floating load. Lift trucks, forklift trucks and transport cranes
must have a sufficient minimum load bearing capacity. Pay attention to uneven grounds
during the transport. Avoid jerky pushing.
Dangers arising from titling or functional impairments at its destination.
The unit may only be set up on a suitable surface. The surface must be vibration-free and
horizontal. The operator must check the bearing capacity of the surface. As soon as the unit
has reached its intended destination, the brakes of the castors must be activated.
NOTICE
Damage or functional impairment of the unit due to climatic influences.
The unit must be stored in a dry place and protected against moisture during transport. As a
matter of principle, the filter unit is not designed to be installed outside.
BA_AEH-600_20230808_EN
7
08.08.2023

5. Commissioning
WARNING
Dangers arising from a defective condition of the unit.
Make sure that the measures described in this chapter are completed before the
commissioning of the unit. All doors of the unit must be closed and all necessary connections
must be attached before turning the unit on. Do not operate the unit if any components are
defective, missing or damaged. Check the orderly condition of the unit before switching it on.
The unit must not be operated without a filter element.
NOTICE
Damaged supply lines.
Make sure that the supply lines are protected against damage by forklift trucks and similar
events. Protect all supply lines from heat, moisture, oil and sharp edges.
5.1. Connecting the suction line and exhaust air line
For extracting the contaminated air, a suction line must be connected to the suction nozzle (see chapter
2.1).
CAUTION
Danger for the respiratory tract arising from polluted ambient air. Dust deposits in the
suction pipe are possible.
Only operate the system if the necessary suction line is fitted. The suction line must be
dimensioned according to the application in such a way that, if possible, no dust deposits
occur in the suction line. If this has not already been carried out by TEKA, a suitably qualified
employee must be consulted.
The unit must not be operated without an exhaust air line. The exhaust air must be led to the
outside.
If the air shall be directly sucked off by an upstream machine, the suction line must be connected to the
capture opening of the upstream machine.
The exhaust air pipe must be attached to the exhaust nozzle (see chapter 2.1).
WARNING
Danger to life when reaching the fan impeller.
The required exhaust air pipe must be attached before the commissioning.
BA_AEH-600_20230808_EN
8
08.08.2023

5.2. Electrical connection
NOTICE
Electric malfunction possible in cause of an incorrect power supply.
Pay attention to the admissible supply voltage. Please observe the specifications on the type
plate.
● Connect the mains cable (see chapter 2.1) to the power supply.
6. Operating the system
6.1. Explanation of the operating elements
Operating elements for the device control
Representa
tion
Designation
Description / function
ON-OFF-switch
By means of this switch, the device is switched on and off.
When the device is switched off, it is not disconnected from
the power supply.
BA_AEH-600_20230808_EN
9
08.08.2023

7. Maintenance
In accordance with national regulations, the operator is obliged to carry out repeat and functional tests.
Unless otherwise specified by national regulations, we recommend regular visual inspections and
functional tests of the device as described in the chapter “Maintenance intervals”.
You find the chapter “Maintenance intervals” at the end of the document. The general
maintenance (visual inspection, etc.) is also explained there.
In the chapter “Maintenance intervals” there is information on the maintenance intervals of the filter
elements. But these are only recommendations. Depending on the application (multi-shift operation,
dust generation, ...) it may be necessary for the operator to change the maintenance intervals.
In this chapter the maintenance work which is caused by wear caused during operation is described.
WARNING
Work on the open system entails the risk of electrical shock or accidental restart the
system. Both pose a danger to life and limb.
When cleaning and servicing equipment during the replacement of parts or when changing
to another function, set the device to maintenance condition first (see chapter “Reset to
maintenance state”).
A recommissioning of the device must only occur if it is ensured that the device is
functionally equivalent to the original state.
CAUTION
Hazards to the respiratory tracts are possible.
All maintenance work must only be carried out in well-ventilated rooms and while wearing an
appropriate respiratory mask! We recommend: respiratory protection half mask DIN EN
141/143 protection level P3. For all maintenance work ensure a cautious handling of filter
elements and components in order to avoid whirling up dust.
The operator is obliged to store and dispose of the collected dust in accordance with national or
regional regulations. For all maintenance or cleaning work please refer to the applying
environmental regulations. Pollutants and filter elements must be disposed of or stored according
to the regulations as well. If you have any doubts, we recommend contacting a disposal
contractor in your area.
7.1. Reset to maintenance state
● Switch off the unit. Unplug the mains plug. Secure the unit against unauthorized restarting
during maintenance.
● After completion of all maintenance work the unit can be reconnected to the power supply.
BA_AEH-600_20230808_EN
10
08.08.2023

7.2. Recplacing the pocket filter
The pocket filter must be changed after a certain number of operating hours. The time depends on the
amount of accumulated dust, and therefore cannot be determined beforehand. At the latest, the pocket
filter must be changed when the suction performance decreases too much.
CAUTION
Whirling up dust is possible.
The pocket filter is a disposable filter element. Do not try to clean the filter element.

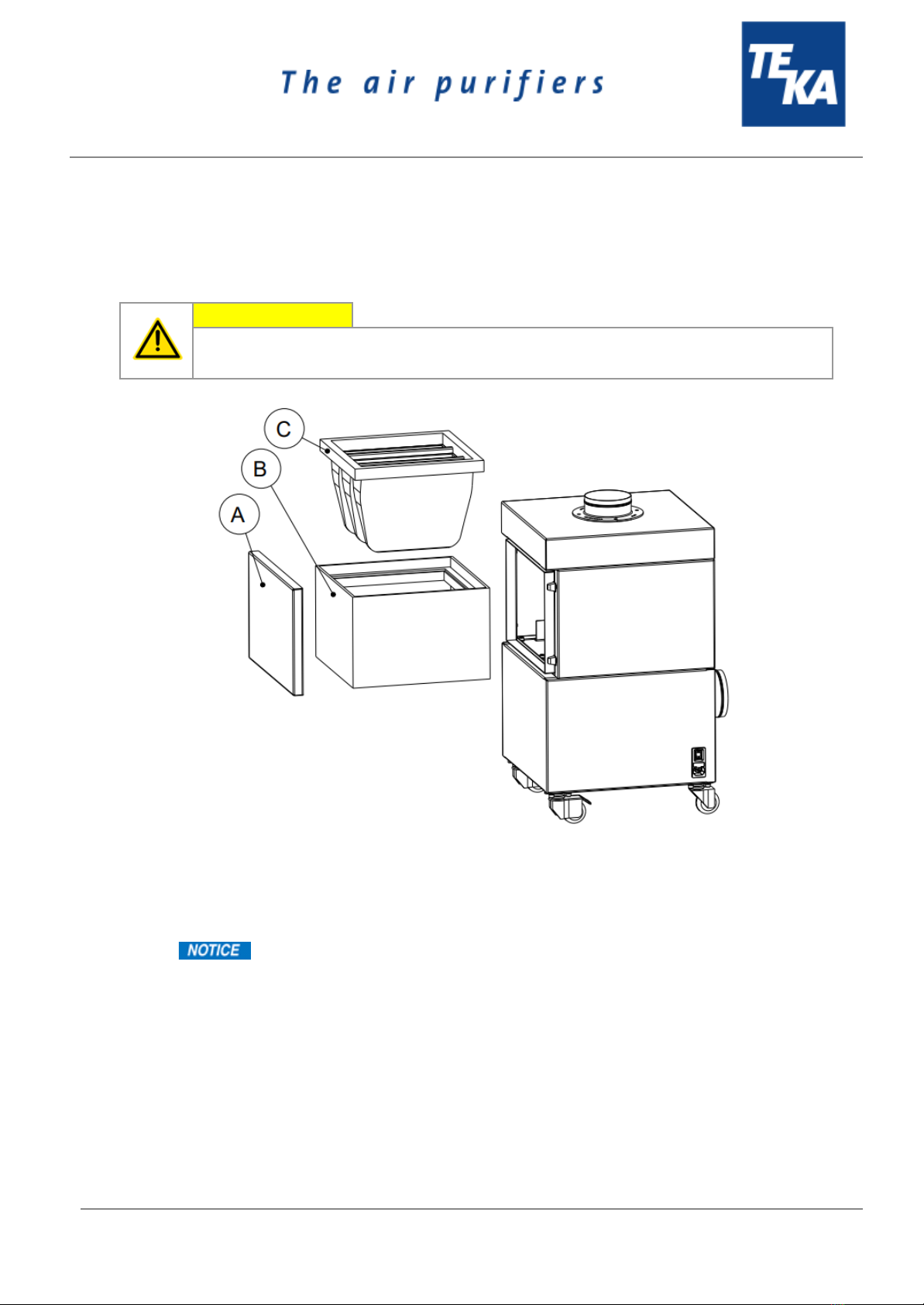

● Pull the service door (A) from the pocket filter housing.
● Carefully pull the frame (B) with the pocket filter out of the housing.
● Replace the pocket filter (C) out of the frame (B), and insert the new pocket filter.
Only use TEKA spare filters. Otherwise the proper functioning of the unit is
not guaranteed.
● Push the frame with the pocket filter back in the filter housing as far as it will go.
● Hold the service door in front of the pocket filter housing and push the service door until it snaps
back into place.
BA_AEH-600_20230808_EN
11
08.08.2023

8. Dismantling / Disposal
Only authorised personnel may disassemble the machine.
WARNING
Dangers arising from electricity.
Before the dismantling of the machine it has to be disconnected from the power supply and
all supply lines.
CAUTION
Whirling up dust is possible due to the deposited dust.
During all work a suitable respiratory protection and protective clothing have to be worn.
The operator is obliged to store and dispose of the collected dust in accordance with national or
regional regulations.
BA_AEH-600_20230808_EN
12
08.08.2023

9. Diagnostics and troubleshooting
A list of possible system errors is provided in the table.
A recommissioning of the device must only occur if it is ensured that the system is functionally
equivalent to the original state. Repairs may only be carried out by TEKA personnel or, after
consultation with TEKA GmbH, by the personnel authorised by the operator.
Adhere to the instructions in the chapter "Safety instructions" and " Maintenance" when carrying out any
repairs. If in doubt, contact our TEKA service department:
Tel: [phone]
E-mail: [email protected]
Fault
Cause
Removal
System does not start.
Plug power supply is missing or
incorrectly inserted.
Plug connector check power
supply / plug in correctly.
No power at outlet.
Check the mains, remove error if
possible.
Dust at the service door
of the filter housing.
The door is not correctly closed.
Close the door.
The seal between the service door and
filter housing is damaged.
The seal must be replaced.
Suction power too low
(smoke hardly
extracted).
Filter element is saturated.
Replace the filter package,
dispose of old filter properly!
Damage at the extraction elements.
Replace the extraction elements.
Suction line contracted.
Check and fix.
Exhaust line contracted.
Check and fix.
10. List of spare parts
Filter element
Article no.
Pocket filter “G4” (287x287x200)
10034508
BA_AEH-600_20230808_EN
13
08.08.2023

11. Technical data
Version
230 V
115 V
Supply voltage
V
230
115
Frequency
Hz
50
60
Type of current
Ph
1
1
Engine power
kW
0,315
0,315
Current intake
A
2,15
4,15
Air flow volume max.
m³/h
615
Negative pressure max.
Pa
2800
Protection class
IP54
ISO class
F
Width
Depth
Height
mm
mm
mm
365
376
646
Weight
kg
29
Sound pressure level
dB(A)
66
Allowed ambient temperature
°C
+5 to +35 (during operations)
-10 to +40 (during transport and storage)
Max. temperature of polluted air
at the capture point
°C
+50
Allowed max. humidity
%
70
BA_AEH-600_20230808_EN
14
08.08.2023

12. EC declaration of conformity
according to the Machinery Directive 2006/42/EG, Annex II, 1 A
TEKA Absaug- und Entsorgungstechnologie GmbH
Millenkamp 9, D-48653 Coesfeld
Tel.:[phone] E-Mail: [email protected] Internet: www.teka.eu
Designation of the device: AEH-600
We hereby declare under our sole responsibility that the product mentioned above, from the serial
number A22600010011001 resp. P57300010011001 on, conforms to the following directives:
Machinery directive: 2006/42/EC
Electromagnetic compatibility directive: 2014/30/EU
RoHS directive: 2011/65/EU
This declaration will become void if the device is exposed to modifications that are not approved by the
manufacturer in written form.
Authorized representative for the technical documentation:
TEKA Absaug- und Entsorgungstechnologie GmbH, Millenkamp 9, D-48653 Coesfeld
(Jürgen Kemper, managing director)
Coesfeld, 3rd january 2023
BA_AEH-600_20230808_EN
15
08.08.2023

13. Training protocol
Designation of the device: AEH-600
(This form can be used by the operator to document the training of the employees. Training should be performed by
authorized personnel only. Refer to the instructions in Chapter "Safety Instructions")
By his signature, the employee confirms that he has been instructed regarding the following items:
Instruction
completed
Description of the device
Operation and application of the device
Explanation of the safety instructions
Behavior in case of fire
Explanation of the operation elements
Change of the filter elements
Appropriate disposal
Maintenance works / Maintenance intervals
Name of the employee (legible)
Signature
Introduction through (legible):
Signature:
BA_AEH-600_20230808_EN
16
08.08.2023

14. Maintenance intervals
14.1. Usage-related maintenance
The described maintenances become necessary through the demands of the system operations. The
maintenance intervals are recommendations. Depending on the application (multi-shift operation, dust
generation, ...) it may make sense for the operator to change the intervals of maintenance, replacing
and cleaning.
Maintenance work must always be documented by means of a protocol.
The approach of the maintenance measures is described in chapter "Maintenance".
Maintenance work
Chapter
Maintenance interval
recommended by TEKA
determined by the operator
Replacing the pocket filter
(or check the degree of pollution)
7.2
monthly
14.2. General maintenance
The described maintenances are independent from the demands of the system operations.
The operator is obliged to carry out repeated inspections and functional tests according to national
regulations. If not otherwise covered by national regulations, the described maintenance intervals must
be respected.
Maintenance work must always be documented by means of a protocol.
Maintenance work
Chapter
Maintenance interval
Visual inspection of the device
14.2.1
weekly
Functional test of the device
14.2.2
monthly
Electrical test of the electrical lines and earthing connections
14.2.3
annually
BA_AEH-600_20230808_EN
17
08.08.2023

14.2.1. Visual inspection of the device
Visual inspection: Observation that there are no visible safety-related defects.
WARNING
Danger arising from the ready to operate condition of the device.
Follow the procedure as described in the chapter “Set to maintenance state”.
The following steps must be carried out in the course of the visual inspection:
● Check if all required pipeline elements, cable connections and hoses are connected to the filter
unit
● Ensure that all parts are firmly connected.
● Check all connection points of the filter unit for escaping dust.
● Check all metal parts for corrosion or damages / changes of the coating.
● Check the inner filter area and the filter housing.
● Visual inspection of the control and operating elements as well as the outside running cables for
damages.
14.2.2. Functional test of the device
NOTICE
Possible material damage due to faulty condition of the unit.
Carry out a visual inspection before the functional test of the device as described in the
previous chapters.
The work as described in the chapter “Commissioning” must be finished.
The following steps must be carried out in the course of the functional test:
● Switch on the device.
● Pay attention to extraneous noises or vibrations during the device´s operation.
● A functional test should always be carried out with a connected / producing machine tool. Check
if the collection of the fume or dust is sufficient. (Visual inspection).
BA_AEH-600_20230808_EN
18
08.08.2023

14.2.3. Electrical test of the electrical lines and earthing connections
WARNING
Danger arising from electricity.
The operator is responsible for ensuring that all work on electric components is carried out
by authorised and qualified personnel.
The device is subject to regular electrical checks by the operator of the device, and are subject to
national standards of the different countries.
The here recommended maintenance interval complies with the in Germany applying "Regulation 3 of
the German Social Accident Insurance - Electrical plants and equipment" (formerly known as BGV-A3).
The check must only be carried out by a qualified electrician or a person trained in electrics using
suitable measuring and test devices. The scope of testing and the methods must be in line with the
respective national standard. All contacts in the control cabinet must be checked for tight fit, and must
be readjusted if necessary.
BA_AEH-600_20230808_EN
19
08.08.2023
