TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
2
Table of Contents
Product Introduction .................................................................. 3
Safety Precaution Information.................................................... 4
Definitions .................................................................................. 6
Electrical Requirements............................................................. 7
Care and Maintenance .............................................................. 7
Features and Usage .................................................................. 8
Standard Auto-Sensing/Toggle Feature .....................................8
Using MediaHub Active..............................................................8

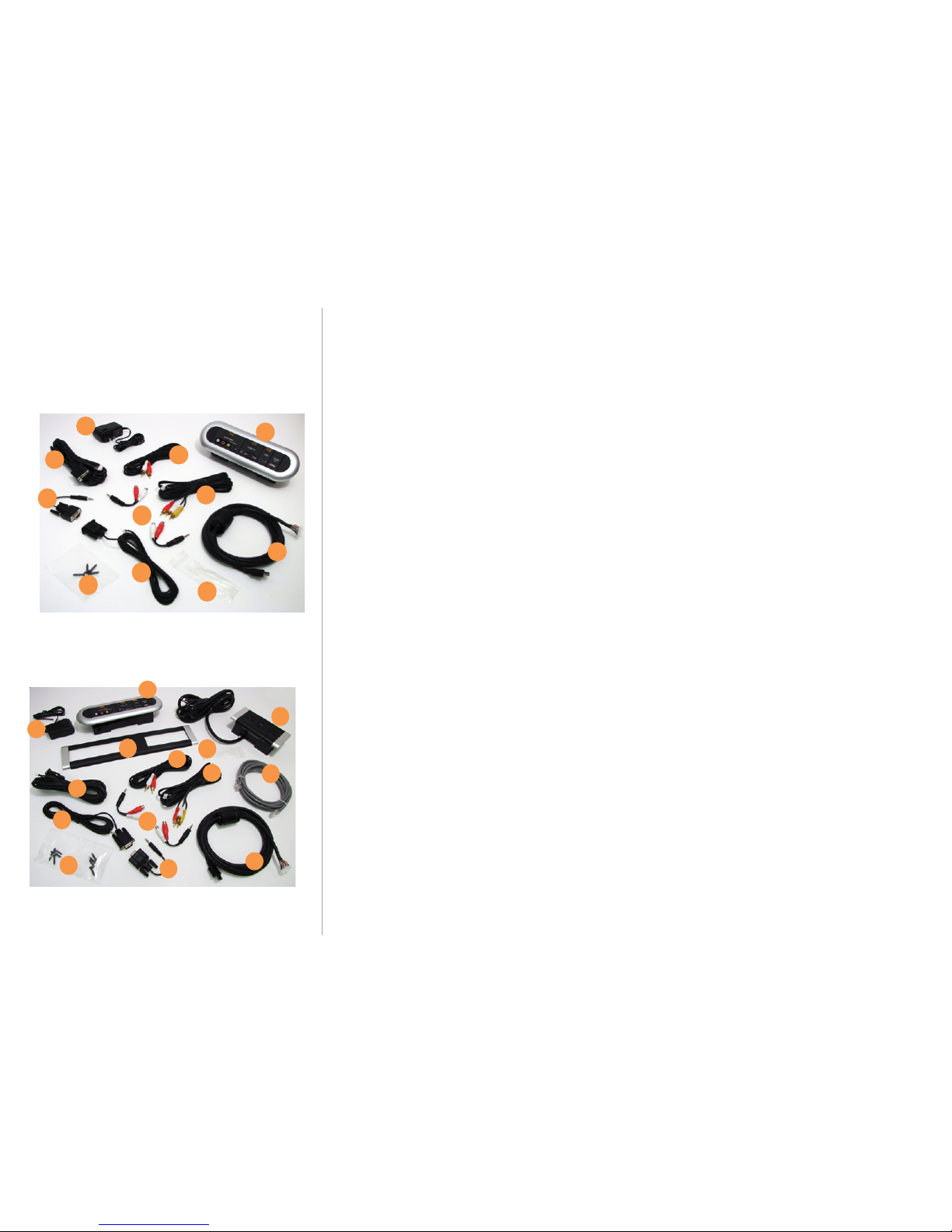

Packing List(s) ..........................................................................10
Installation Instructions ............................................................ 12
LodgeNet PPV System … .........................................................13
Enseo Set Top Box ...................................................................14
Samsung North America...........................................................16
Panasonic North America .........................................................18
Philips North America ...............................................................20
LG North America .....................................................................22
Manual Switch Mode –With ANY Hospitality TV ......................24
Troubleshooting ....................................................................... 26
MediaHub Active Troubleshooting ….......................................26
Protocol Converter Dongle Troubleshooting ............................27
Flush-Mount Cut Measurements ............................................... 28
Assemble Flush Mount MediaHub Active with Power/Data.. 29
Assemble Desktop Housing (DTH-S01, DTH-R01, DTH-EXT)30
Technical Support..............................................................32

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
3
Product Introduction
Thank you for choosing the TeleAdapt MediaHub for your in-roo m en tertainme nt o r
conference room connectivity needs. MediaHub allows business and leisure
travellers to use the in-room TV display as their personal entertainment or
projection screen for enjoying their personal standard-and high-definition (HD)
video games, music playlists, movies, TV shows, photos, business presentations
and more from their portable elec tronic devices.
The MediaHub Active™entertainment panel features true auto-sensing
technology. Hotel guests can plug in their personal media devices such as a game
console, camera, laptop, etc. and the MediaHub will automatically detect their
device and change the TV input channel to play their personal audio/video
selections through the in-room TV and speakers, without having to use the in-roo m
remote c ontro l. Guests may also plug in multiple devices at once and toggle
among them using the amber buttons above the ports. This automatic plug and
play connectivity is unique to TeleAdapt MediaHub.
Please review this Installation Manual carefully, taking note of important safety,
installation and usage information.
This full User and Installation Manual is available for download at www.teleadapt.com.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
4
Safety Precaution Information
When used in the directed manner, this unit has been designed and manufactured
to ensure your personal safety. However, improper use can result in potential
electrical shock or fire hazards. Please read all safety and operating instructions
carefully before installation and use. Be sure to keep these instructions handy for
future reference. Take special note of all warnings listed in these instructions and
on the unit.
The lightning flash with arrowhead symbol within an equilateral is intended to alert
the user to the presence of un-insulated dangerous voltage within the product
enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Important Safety Instructions
1 |Read these instructions.
2 |Keep these instructions.
3 |Heed all warnings.
4 |Follow all instructions.
5 |Do not use this apparatus near water.
6 |Clean only with dry cloth.
7 |Do not block any ventilation openings. Install in accordance with the
man ufa ctu rer’s instruc tion s.
8 |Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including amplifiers) that produce heat.
9 |Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
5
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10 |Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles and the point where they exit
from the apparatus.
11 |Only use attachments/accessories specified by the manufacturer.
12 |Use only with the cart, stand, tripod, bracket or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13 |Unplug this apparatus during lightning storms or when unused for
long periods of time.
14 |Refer all servicing to qualified service personal. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15 |The apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
16 |The mains plug used as disconnect device shall remain readily operable.
17 |To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
6
Definitions
Auto-sensing –the automatic detection of a device plugged into an audio/video port
of the MediaHub. For example, MediaHub will auto-sense a Composite AV source
when a device is connected to the 3RCA ports and begin playing the Composite AV
Out content. When a laptop is plugged into the PC socket, MediaHub will detect a PC
Video source and begin to play the laptop video.
Auto-switching –the automatic switching of the TV input away from regular
tuner mode (TV Mode) to MediaHub content (MediaHub Mode).
Control Cable –MediaHub Active uses serial or game control protocol for implementing
the TV auito-switching feature. Most hospitality TVs support control protocols through the
following ports:
RS232 Serial Port (DB9)
Serial Control Jack (3.5mm)
Ex-Link Serial Control Jack (3.5mm)
RJP (RJ45 LG Remote Jack Pack)
GAME/DATA (RJ12 on TV or STB)
DIP Switches –MediaHub Active has two DIP Switches located on the rear
of the unit. (See figure 1.) These switches must be configured accordingly to
allow appropriate communication between MediaHub and TV/STB. See the Installation
Instructions section.
RS232 –MediaHub Active uses an RS232 serial control protocol for implementing the TV
auto-switching feature. Most hospitality TVs support RS232 protocol through their RS232
Serial Port (circular port with nine pins) or through their 3.5mm Serial Control port.
Figure 1: Dip switches located on the
rear of the MediaHub Active

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
7
Electrical Requirements
A 120-volt, 60Hz, 15-Amp electrical supply is required for the TA-7630. A standard
duplex (2) 120-volt, 60Hz, 15-Amp electrical supply is required for the TA-7630 plus
TA-7500L.
Care and Maintenance
Though TeleAdapt MediaHubs are designed for durability, they still remain complex
electronic devices. As such, care needs to be taken with how they are handled. The
following are tips to care for your system:
If the MediaHub has visible smudges, fingerprints, or other foreign material, you
can clean it by using a soft clean cloth such as a lens or eyeglass cleaning
cloth.
Slightly dampen a corner of the cloth with water and wipe off the unit housing to
loosen any dirt or foreign material. Using a dry portion of the same cloth, wipe the
housing to dry.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
MediaHub.
Your TeleAdapt MediaHub should never be positioned or installed anywhere
where it could get hit, dropped, or banged around.
Do not drop, knock, or shake the device. Rough handling can harm internal
operations.
Your MediaHub should be dry. Liquids or moisture can cause damage to internal
electronic circuits. If your unit gets wet, immediately remove power allowing the
unit to dry before re-applying power.
Do not store the MediaHub in hot areas. High temperatures can shorten the life of
electronic components and warp or melt certain plastics.
Do not attempt to open the MediaHub gaining access to the internal
infrastructure. Please notify TeleAdapt service and support personnel regarding
return materials authorization policy.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
8
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or packaging
reminds you that in the European Union all electrical and electronic products must
be taken to separate collection at the end of their working life. Do not dispose of
these products as unsorted municipal waste.
Return the products to collection to prevent possible harm to the environment or
human health from uncontrolled waste disposal and to promote the sustainable
reuse o f ma terial resource s.
Features and Usage
Standard Auto-Sensing / Toggle Feature
MediaHub Active has been engineered with a built-in au to-sensing audio/video
function. Multiple devices may be connected to the MediaHub Active at once. The
connectivity panel will recognize and automatically play content from the most
recently populated AV socket. To switch back (toggle) to a previously used device,
press the LED/button above the desired AV socket.
Using MediaHub Active
When in use, MediaHub Active’s LED/buttons located above the sockets will light
up notifying you of which port is in use.
To change devices, plug in a new device using a new socket. TV will automatically
play content from the most recently populated socket. When connecting multiple
devices, guests may toggle between devices by pressing the LED/buttons located
above the sockets.

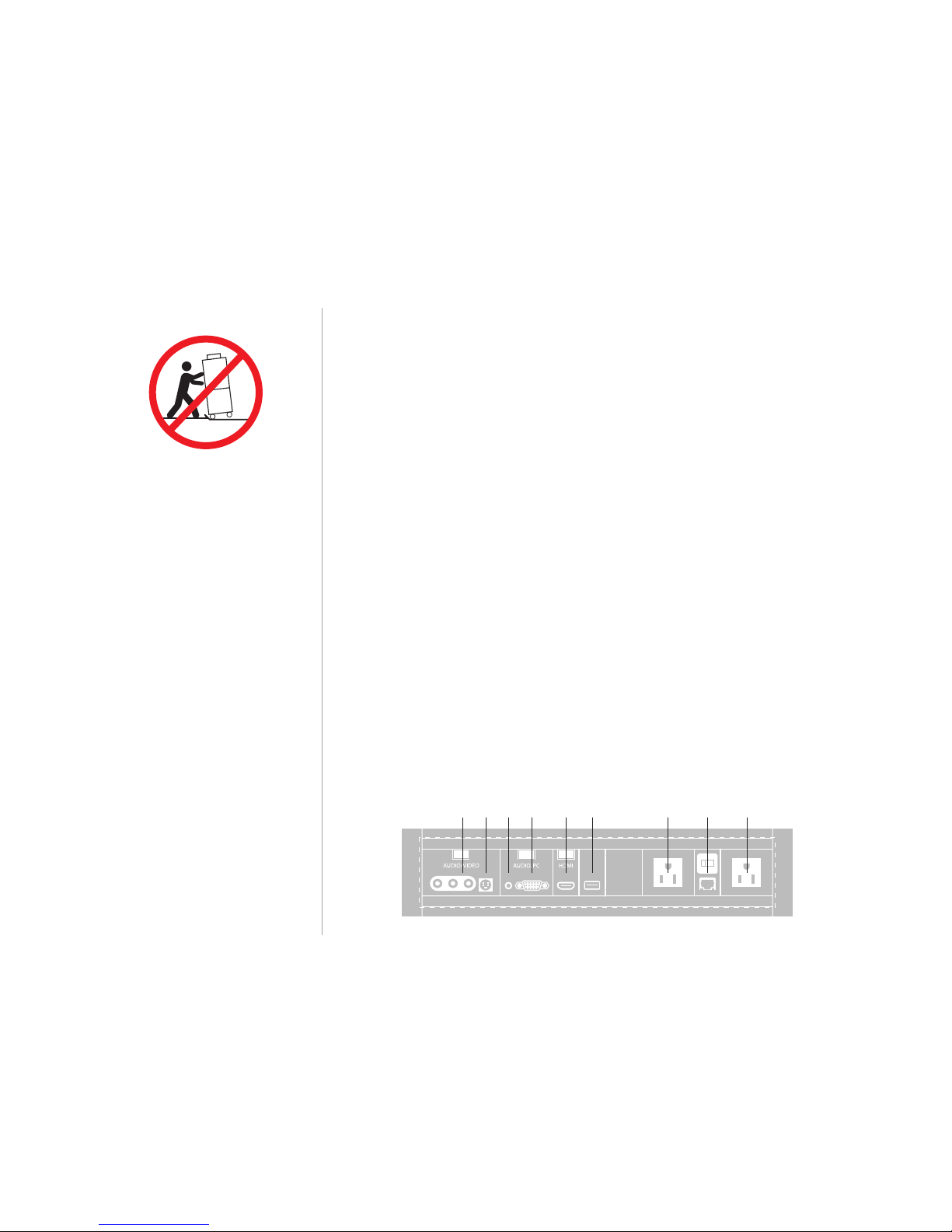

3.3”
(84.0 mm)
14.764” (375.0 mm)
2.7”
(68.0 mm)
2.2” (55.8 mm)
2.5” (63.5 mm)
.375” (9.5 mm)
1.06” (27.0 mm)
POWER
(5V)
7.4” (184.0 mm) 5.24” (133.0 mm)
10A MAX
AB FEDC G IH

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
9
AComposite Audio/Video (3RCA):Using acomposite cable, provides audio and video
playback through the in-room TV. Compatible with any electric device that can use a
composite connection including iDevices, MP3 player, DVD player, game console, or
digital cameras.
BS-Video:Using an S-Video cable, provides video-only playback through the in-room TV.
Some Super Video-enabled video cameras, laptops, digital cameras and laptops. May
also couple the 2RCA stereo ports (red and white) of the Composite AV to provide paired
audio playback through the in-room TV speakers.
CMini-Stereo Jack:This 3.5mm stereo jack will provide audio playback through the in-
room TV speakers. Compatible with any electronic media player with aheadphone jack.
Use a male-to-male audio cable.
DVGA (RGB):Using aVGA cable, converts the in-room TV into a secondary or mirror
display option for laptop computers.
EHDMI:Using an HDMI cable, provides high definition video and audio playback through
the in-room TV. Compatible with newer generation laptops, smartphones, or digital
video cameras that have an HDMI-out, mini-HDMI out or micro-HDMI out. Also compatible
with non-HDMI devices using an HDMI converter cable such as VGA-to-HDMI or
MDP-to-HDMI.
FUSB (5V):Using aUSB cable, offers acharging outlet for USB-powered electronics such
as iDevices, smartphones, digital cameras, and more. Note, iPad®product will charge
using 5V power when in sleep mode only.
MediaHub Active with PowerHub Extender also features:
G Power Outlet: Two AC power outlets are on the MediaHub Active Extender model
for convenient power charging. Voltage and frequency varies by regional model and
for based on North American and European standards. For example, US outlets
are 120V/60Hz.
H RJ45 Internet Jack: The MediaHub Active Extender model includes wired Internet access
point. Using a CAT5 cable, guest can connect their computers to the Internet. If this port
will remain inactive, you may purchase an optional cover piece (Part # COV-RJ45S01).

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
10
Packing List(s)
*Note: To ensure proper installation, you will also need the TV/STB remote
control.
TA-7630x-xx-x03
AMediaHub Active Connectivity Panel
BPower Supply with Cable
MediaHub Ac tive Cable Kit (3m cables)
C Mini Connecto r -HDMI cable CAB-40543D5
D Mini Con ne cto r -PC Audio cable CAB-40633D5
E Mini Connecto r -PC Video cable CAB-40623D5
F Mini Connecto r -CVBS cable (for composite AV and S-Video)
CAB-40503D5A
G Mini Connecto r -RS-232 serial cable CAB-40583D5
Not Pictured:
Mini Connecto r -SmartPort cable (for select Philips TVs)
Mini Connecto r -Serial for Enseo HD2000 (for Enseo HD2000 STB)
H DB9-3.5mm Adapter CAB-4067D16 (optional for TVs with 3.5mm control)
I Flat-Head Mounting Screws
J Cable Ties
K Optional 2RCA to 3.5mm Y-Adapter CAB-4066D12
TA-7500L-US-x03 (PowerHub Extender) also includes:
L TA-7500 PowerHub unit (Power/Data Panel)with connected Power Supply
Cable
M Extender Trim
N Cat5 Eth ernet Cable
I Additional Flat-Head Mounting Screws x4
A
C
B
E
F
G
D
J
H
I
K
A
C
B
E
F
M
D
L
H
G
N
K
I
J

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
11
DTH-xxx Desktop Mount Kit also includes:
A Desktop Housing
DTH-S01 for Oval MediaHub Trim
DTH-R01 for Rectangle MediaHub Trim
DTH-EXT for Rectangle MediaHub plus PowerHub Extender
B Rear Door Screws
C Rubber Tabs
See Assemble Desktop Housing section for assembly instructions
A
B
B
C

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
12
Installation Instructions
The following pages outline instructions for installing MediaHub Active with
specific brands of TV and STB that support serial control auto-switching
communication. For all noted TV model numbers, “nn” denotes the screen size.
For hotel room environments that are integrating a TV plus a VOD STB, MediaHub
may have direct serial control integration with both the TV serial port and the STB
serial or data port. Please use the following list of priority connections when
determining which connection you should use to install MediaHub.
#1 Priority –Connect to Lodgenet Game/Data Port
#2 Priority –Connect to RJP port (on most LG TVs)
#3 Priority –Connect to VOD STB Serial Control port (such as Enseo)
#4 Priority –Connect to TV Serial Control port

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
13
LodgeNet PPV Systems (with ANY TV)
Installing MediaHub Active to auto-switch a TV in a LodgeNet environment requires
a TeleAdapt Protocol Converter Dongle (PCD), part number TA-8700-A01.
What You Will Need:
-TA-7630 or TA-7630/TA-7500L
MediaHub Active Connectivity Panel
Mini Connecto r -HDMI cable CAB-40543D5
Mini Connecto r -PC Audio cable CAB-40633D5
Mini Connecto r -PC Video cable CAB-40623D5
Mini Connecto r -CVBS cable (for composite/S-Video) CAB-40503D5A
Mini Connecto r -RS-232 serial cable CAB-40583D5
Mini Connecto r -Power Supply (Note: MediaHub with Power/Data Extender model
requires TWO power supplies – one for media panel and one for power panel)
-PCD TA-8700-A01
Protocol Converter Dongle
Game/Data Cable (RJ11-RJ11) CAB-0505D60
MediaHub Cable (DB9-RJ11) CAB-0502D60
-Hospitality TV with remote control and LodgeNet STB wth remote control
For Hospitality Displays Connected to a LodgeNet PPV/VOD System*
Follow the cable connection diagram to the left. Make sure the HDMI connection is
in the MediaHub’s HDMI Mini Connection, NOT HDMI(VGA). If your hospitality TV
has a built-in LodgeNet terminal (internal terminal card), plug the Game/Data cable
into the TV’s DATA port.
MediaHub DIP Mo de 0 0: DOWN-DOWN
PCD DIP Mode: DOWN-DOWN
Configure TV as recommended by your VOD provider.
*Note: PCD does not support legacy OnCommand (OCV) STB.
Figure 1: Cable connection diagram for installing
MediaHub Active with to a LodgeNet STB.
If the TV has a built-in LodgeNet terminal card,
connect the GAME/DATA cable to the TV’s
DATA port.
Note: Dotted cables in diagram are packaged
with PCD, solid black cables are packaged
with MediaHub.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
14
Enseo Set Top Box (with ANY TV)
What You Will Need:
-TA-7630 or TA-7630/TA-7500L
MediaHub Active Connectivity Panel
Mini Connector -HDMI cable CAB-40543D5
Mini Connecto r -PC Audio cable CAB-40633D5
Mini Connecto r -PC Video cable CAB-40623D5
Mini Connecto r -CVBS cable (for composite AV and S-Video) CAB-40503D5A
Mini Connecto r -RS-232 serial cable CAB-40583D5
Mini Connector -SmartPort cable (only used for legacy models)
Mini Connecto r -Power Supply Cable (Note: MediaHub with Power/Data
Extender model requires TWO power supplies –one for media panel and one
for power panel)
-DB9-3.5mm Adapter CAB-4067D16
-Mini Connector -Serial for Enseo HD2000 (CAB-40583D5H, only used for HD2000
STB)
-Enseo STB and TV Remote Control
For HD3000 STB firmware v.2.12.04+ / HD2000 STB firmware v.2.10.29.17+
Special note: Enseo HD2000 installation requires the TeleAdapt CAB-40583D58
Control Cable
MediaHub Active DIP Mode 01: DWN-UP
MediaHub Active Firmware Version: EN0.2T4
Configure Enseo STB: Press <Channel Up>, <Right Arrow>, <Left Arrow>,
<MUTE> to enter set-up screen. Go to Control Options and AUX panel.
Set BAUD Rate to 9600.
See model-specific connections and TV configuration requirements according to the
TV make/model below.
Panasonic North America Series 20/12 + Enseo HD2000/3000
Configure TV: Go into HOTEL MODE (<MENU>, <G>, <Y>, <0>), set MODE=ON, TA
Control=EXTERNAL, BUTTON LOCK is OFF.
Philips North America, LG North America, Sharp North America +
Enseo HD2000/3000
No TV configuration needed.
Figure 1: Cable connection diagram for
installing MediaHub Active with Hospitality TV
and Enseo STB.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
15
Any Samsung North America Model + Enseo HD2000/3000
Connect STB RJ11 to TV’s DATA port using Samsung’s BN3900865B
RJ11 cable.
Configure TV: Turn power ON. With Samsung remote control,
enter the men u by pressing <INFO>, <MENU>, <0>, <1>,
<EXIT>. Ensure the following is selected:
Hotel Mode is ON
Music Mode (AV) is ON
Music Mode (PC) is ON
RJP Priority AV, PC and HDMI is 1, 2, and 3, respectively
RJP AV Option is AV1
RJP HDMI Option is HDMI2
Set SI Vendor to ENSEO

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
16
Samsung North America
What You Will Need:
-TA-7630 or TA-7630/TA-7500L
MediaHub Active Connectivity Panel
Mini Connecto r -HDMI cable CAB-40543D5
Mini Connecto r -PC Audio cable CAB-40633D5
Mini Connecto r -PC Video cable CAB-40623D5
Mini Connecto r -CVBS cable (for composite AV and S-Video) CAB-40503D5A
Mini Connecto r -RS-232 serial cable CAB-40583D5
Mini Connecto r -SmartPort cable (only used for legacy models)
Mini Connecto r -Power Supply Cable (Note: MediaHub with Power/Data
Extender model requires TWO power supplies –one for media panel and one
for power panel)
-DB9-3.5mm Adapter CAB-4067D16
-Samsung TV and Samsung Remote Control
Samsung Direct-to-TV Installation Instructions
1 |Ensure the DIP Switches Settings are in the appropriate positions according
to the model-specific requirements below.
2 |Connect the cables to the MediaHub Active back-end Mini-Connectors.
Make sure HDMI connection is always in the HDMI Mini Connection,
NOT HDMI(VGA)
3 | Using the DB9-3.5mm Adapter, connect the RS-232 Cable to the TV’s EXLINK port.
4 | Connect the AV cables to the TV: HDMI2, PC Audio IN, PC Video IN, 3RCA
Composite AV (2008 models Composite AV is located on the side)
5 | Plug the power supply into awall power socket.
6 |Power ON the TV and configure the TV settings according to the
model-specific requirements below
For Samsung 2009-2011 North America Models
For Samsung 2011 LED and LCD Hospitality Series displays with EXLINK serial port
(factory-level firmware). For Samsung 2009 Series 4LNnnB450C4H and
LNnnB457C6H models with EXLINK serial port (TV firmware v.1011.1+).
For Samsung 2009 Series 5LNnnB550K1H models with EXLINK serial port
(TV firmware v. 1007+). For Samsung 2010 LED Series 4, LED Series 5, LCD Series 3,
LED Series 4, LED Series 5 models with EXLINK serial port (factory-level firmware)
Figure 1: Cable connection diagram for installing
MediaHub Active with Samsung TVs.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
17
Samsung 2009-2011 Continued:
MediaHub Active DIP Mode 00: DWN-DWN
MediaHub Active Firmware Version: 1.74B+
Configure TV: Turn power ON. With Samsung remote control, enter the
menu by pressing <MUTE>, <1>, <1>, <9>, <ENTER> in order.
Ensure the following is selected:
Hotel Mode is ON
Music Mode (AV) is ON
Music Mode (PC) is ON
RJP Priority AV, PC and HDMI is 1, 2, and 3, respectively
RJP AV Option is AV1
RJP HDMI Option is HDMI2
For Samsung 2008 North America Models and Older
For Samsung Series 4LNnnA450C1H and Series 6LNnnA650A1H models
with EXLINK serial port (TV firmware v.1003.8+).
Special note: Samsung 2008 displays have an audio - only limitation – TV will not
play audio/music through any MediaHub Active socket when video is not present.
MediaHub Active DIP Mode 00: DWN-DWN
MediaHub Active Firmware Version: 1.74B
Configure TV: Turn power ON. With Samsung remo te control,
enter the men u by pressing <MUTE>, <1>, <1>, <9>, <ENTER> in order
Ensure the following is selected: Hotel Mo de is ON.
For Samsung North America Models with an External PPV STB
Follow Direct-to-TV installation instructions according to the year/model number of your
Samsung display. Connect the PPV STB AV Out to TV’s HDMI1 port. If using an Enseo
STB, follow the Enseo Installation Instructions.
For Samsung North America Models and an External Enseo STB
Follow instructions for Direct-to-TV installation according to the year/model number of your
Samsung display. OR, you may install MediaHub Active’s serial control connection to the
Enseo STB. See instructions below for installing the serial control connection to the
Enseo HD3000 and Enseo HD2000 STB models.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
18
Panasonic North America
What You Will Need:
-TA-7630 or TA-7630/TA-7500L
MediaHub Active Connectivity Panel
Mini Connecto r -HDMI cable CAB-40543D5
Mini Connecto r -PC Audio cable CAB-40633D5
Mini Connecto r -PC Video cable CAB-40623D5
Mini Connecto r -CVBS cable (for composite AV and S-Video) CAB-40503D5A
Mini Connecto r -RS-232 serial cable CAB-40583D5
Mini Connecto r -SmartPort cable (only used for legacy models)
Mini Connecto r -Power Supply Cable (Note: MediaHub with Power/Data Extender
model requires TWO power supplies –one for media panel and one for power panel)
-DB9-3.5mm Adapter CAB-4067D16
-Panasonic TV and Panasonic Remote Control
Panasonic North America Direct-to-TV Installation (Series 20)
1 |Ensure the DIP Switches Settings are in the appropriate positions
according to the model-specific requirements below.
2 |Connect the cables to the MediaHub Active back-end Mini-connectors.
(Make sure HDMI connection is always in the HDMI Mini Connection, NOT HDMI(VGA)
3 | Connect the AV cables to the TV HDMI1, AV IN1 (for PC Audio), PC IN, AV IN2 (on side) and
serial control.
4 | Plug the power supply into awall power socket.
5 |Power ON the TV and configure the TV settings according to the model-specific
requirements below.
Panasonic North America Series 20/30 Models
For TH-nnLRU20 and TH-nnLF20U models with serial control (factory-level firmware)
MediaHub Active DIP Mode 10: UP-DWN
MediaHub Active Firmware Version: EN0.2T7
Configure TV: Go into HOTEL MODE (<MENU>, <G>, <Y>, <0>). Set MODE=ON,
BUTTON LOCK is OFF, TA CONTROL=OFF.For Series 30, also set CP MODE=YES.
Note: For Panasonic Series 20 displays + Legacy OnCommand (OCV) STB system, TV requires firmware
version 1.09. Follow instructions above but set TAControl=External.
Figure 1: Direct-to-TV cable connection diagram for
installing MediaHub Active with Panasonic TVs.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
19
Panasonic Series 20 using Internal Terminal Adapter
This installation requires Panasonic Series 20 firmware version 1.080. Follow
instruc tions abo ve for Series 20 in stallation.
MediaHub Active DIP Mode 10: UP-DWN
MediaHub Active Firmware Version: EN0.2T7
Configure TV: Go into HOTEL MODE (<MENU>, <G>, <Y>, <0>). Set
MODE=ON, BUTTON LOCK is OFF, TA CONTROL=INTERNAL.
Panasonic Series 10/11/12 with IMP-/DTB-Tuner Card
See Figure 1 on left -This installation requires an IMP-/DTB-Tuner Card in Slot 2/3
and the Panasonic TY-FB10HMD Dual HDMI Terminal Card in Slot 1. Audio Y-
Adapters CAB-4066D12 also required for this application (2RCA to 3.5mm).
MediaHub Active DIP Mode 01: DWN-UP
MediaHub Active Firmware Version: EN0.2T4
Configure TV: Go into HOTEL MODE (<MENU>, <G>, <Y>, <0>),
set MODE=ON, BUTTON LOCK is OFF.
Configure IMP-/DTB-Tuner Card: Press <Channel Up>, <Right Arrow>,
<Left Arrow>, <MUTE> to enter set-up screen. Go to Control Options and
AUX panel. Set BAUD Rate to 9600. Go to Service Options, verify the HDMI
Terminal Card is assigned to Slot 1.
Figure 1: Cable connection diagram for installing
MediaHub Active with Panasonic TV and an IMP
tuner card.

TA-7630 and TA-7730 Installation Manual
Last Revised: 9/30/11 10:47 AM
20
Philips North America
What You Will Need:
-TA-7630 or TA-7630/TA-7500L
MediaHub Active Connectivity Panel
Mini Connecto r -HDMI cable CAB-40543D5
Mini Connecto r -PC Audio cable CAB-40633D5
Mini Connecto r -PC Video cable CAB-40623D5
Mini Connecto r -CVBS cable (for composite AV and S-Video) CAB-40503D5A
Mini Connecto r -RS-232 serial cable CAB-40583D5
Mini Connecto r -SmartPort cable (only used for legacy models)
Power Supply Cable (Note: MediaHub with Power/Data Extender model
requires TWO power supplies –one for media panel and one for power panel)
-Philips TV and Philips Remote Control
1 |Ensure the DIP Switches Settings are in the appropriate positions according
to the model-specific requirements below.
2 |Connect the cables to the MediaHub Active back-end Mini-connectors.
(Make sure HDMI connection is always in the HDMI Mini Connection, NOT HDMI(VGA)
3 | Connect the RS232 Cable to the TV’s RS232 Serial port.
4 | Connect the AV cables to the TV: HDMI1, PC Audio IN, PC Video IN, 3RCA Composite AV
5 | Plug the power supply into awall power socket.
6 |Power ON the TV and configure theTV settings according to the model-specific
requirements below
Philips HFL 2011 Models
For nnHFLL,/F7, nnHFLD/F7, nnHFLF/F7, and nnHFLH/F7 models. This installation requires Philips
TV firmware version 1.13.
MediaHub Active DIP Mode 10: UP-DWN
MediaHub Active Firmware Version: XP0.3NA
Be sure to connect cables accordingly:
-MediaHub HDMI cable to TV’s REAR HDMI1 port
-CVBS to TV’s REAR AVIN ports
-PC Video to TV’s SIDE VGA
-PC Audio to TV’s SIDE PC Audio 3.5mm jack (using adapter)
Configure TV: Using guest remote control, enter the set-up menu by pressing
<3>, <1>, <9>, <7>, <5>, <3>, <MUTE>. Ensure following is set:
-Under PPV/VOD, set SerialXpress = YES
-Under GUEST SETTINGS, set VGA = NO
Figure 1: Direct-to-TV cable connection diagram for
installing MediaHub Active with Philips Hospitality TV
