Teledyne Lecroy M42de User manual

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 1 November 03, 2022
M42de 80 Gbps Video
Analyzer/Generator
for DisplayPort 2.1 Testing
Quick Start Guide
Version A1

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 2 November 03, 2022
Table of Contents
1Scope of this Quick Start Guide 3
1.1 Introducing the M42de 3
1.2 Topics Covered in this Quick Start Guide 4
1.3 About the M42de 5
2About the VPS GUI Application 5
2.1 Switching Between the VPS and ATP GUIs 7
3Getting Started 9
3.1 What is in the M42de Shipping Box? 9
3.2 Connectors and Controls 9
3.3 Getting the M42de Up and Running 11
4Managing the M42de with VPS GUI from a PC 17
4.1 Install the M42de VPS GUI Application 17
4.2 Setting the Instrument Date and Time 23
5Connecting the Devices Under Test 26
5.1 Connecting a DisplayPort Source Device Under Test 26
5.2 Connecting a DisplayPort Sink Device Under Test 27
5.3 Connecting a DisplayPort Source and Sink DUT for
Passive Probing 28
6Upgrading the VPS GUI Application and System
Software 32

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 3 November 03, 2022
1Scope of this Quick Start Guide
This Quick Start Guide provides basic setup and configuration of the
M42de 80 Gbps Video Analyzer/Generator and the Video Protocol Suite
(VPS) GUI application used to manage it.
1.1 Introducing the M42de
The following features and functions are supported on the M42de.
Note: The features in the following bullets are not necessarily covered in
this QSG. Please see the M42de User Guide and the 6.80 Release
Notes for additional information.
•Equipped with USB-C ports and new enhanced full-size
DisplayPort (UHBR20) connectors for Tx and Rx functions.
•Fully supports UHBR sink and source testing at 10Gb/s,
13.5Gb/s and 20Gb/s lane rates with 128b/132b line coding.
•Supports a broad range of compliance testing for HBR3 and
UHBR source, sink and branch devices in accordance with
VESA DP 2.1 compliance test specifications.
•Capture and decode video, protocol, control packets including
Display Stream Compression (DSC) and Multi-Stream
Transport (MST).
•View incoming video and metadata (including DSC
compressed) from a source device.
•Custom video generator can test displays at HBR and UHBR
lane rates with large format and image library.
•Configure link training parameters to test display’s handling of
link training.
•Generate DSC, select patterns and configure slices and video
parameters.
•View and edit EDID and DPCD registers.
•Monitor AUX Channel transactions while emulating a DP 1.4 or
DP 2.1 source or sink.
•Exclusive: T.A.P.4 passive monitoring mode provides visibility
to Main Link and AUX Channel traffic for debug of
interoperability issues between real DP 2.1 devices.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 4 November 03, 2022
•Test source and sink devices with Panel Replay capability.
•Python-based automation API allows running compliance and
custom verification tasks in unattended mode.
•Support for LTTPR in non-transparent mode for 128b/132b at
UHBR rates and 8b/10b encoding for lane rates up to HBR3.
•The M42de supports the ability to passively monitor devices
which support USB-C Extended Power Range (EPR).
•Cable ID of DP40, DP80, and USB-C cables is supported.
•DP Alt Mode adapters using pin assignment E are supported
with the M42de as a source or a sink.
•Operation via a VNC Server is supported.
1.2 Topics Covered in this Quick Start Guide
The following high level tasks are described in this Quick Start Guide:
Set up procedures
Provisioning the IP address of the M42de
Installing the M42de VPS GUI on a PC
Establishing an IP session between an M42de and the host PC
running the VPS GUI
Connecting the DisplayPort source or sink devices under test to
the M42de
This Quick Start Guide does not include descriptive or procedural
information for any of the video test functions of the M42de applications
themselves. Procedures for the functional applications are covered in the
M42de User Guide. The User Guide is available from the product page
on the Teledyne Lecroy website: Teledyne LeCroy - quantumdata
M42de Video Analyzer/Generator.
Note: Please be sure to check the Teledyne Lecroy website (Teledyne
LeCroy - quantumdata M42de Video Analyzer/Generator) for updates to
this Quick Start Guide & User Guides.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 5 November 03, 2022

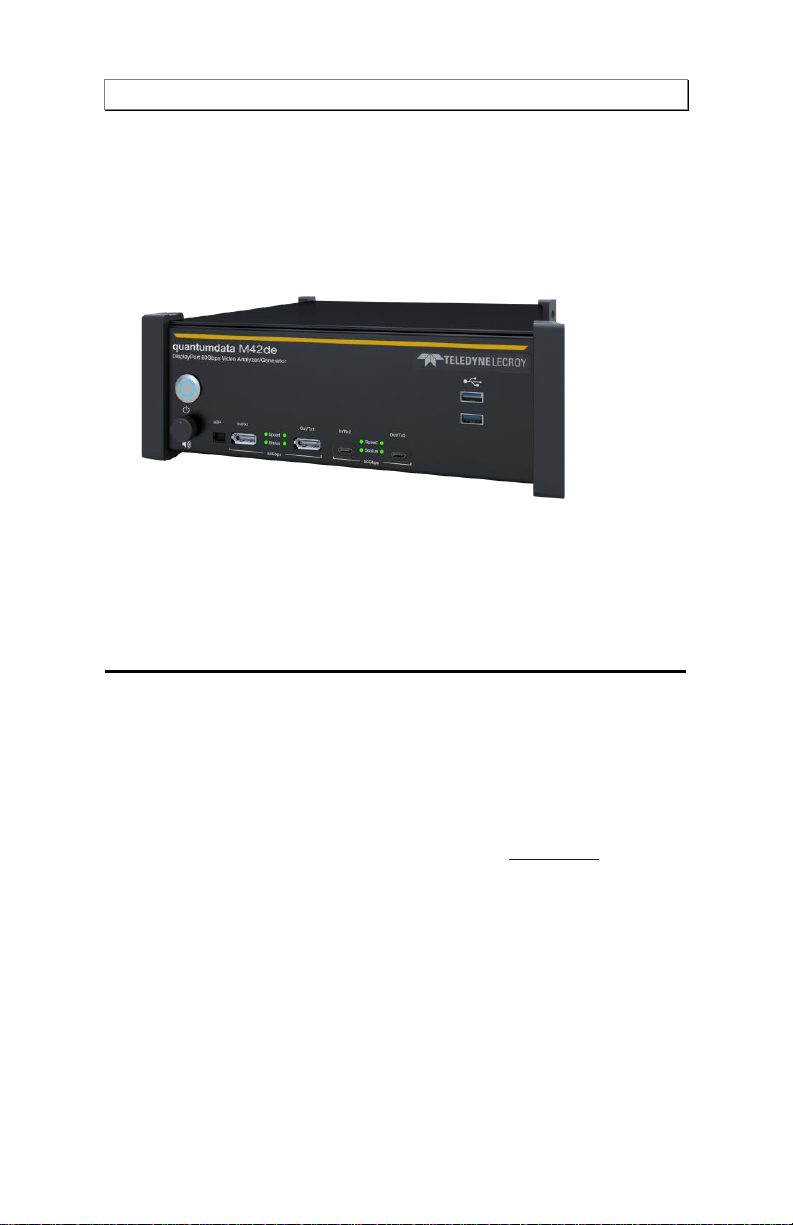

1.3 About the M42de
The M42de is a compact versatile test instrument offering entry level
functional testing that can be extended through software licenses to a full
compliance tester with sophisticated analysis and diagnostic capabilities.
M42de 80Gbps Video Analyzer/Generator
2About the VPS GUI Application
The M42de is operated through the embedded Video Protocol Suite
(VPS). The VPS is a GUI application that can run either on a Windows
host PC or on an external display connected to an HDMI port.
Note: The VPS GUI is activated by default for M42de systems.
Instructions for operating through the legacy ATP Manager is provided in
the User Guide. You can switch between the ATP Manager (legacy GUI)
and the VPS GUI using the procedure provided in Section 2.1.
When operating from a host PC, the VPS and/or ATP Manager
application has to be installed on the PC. When operating using an
external display, a mouse (provided) is required and a keyboard is
optional but recommended. These operational scenarios are shown in
the following images.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 6 November 03, 2022

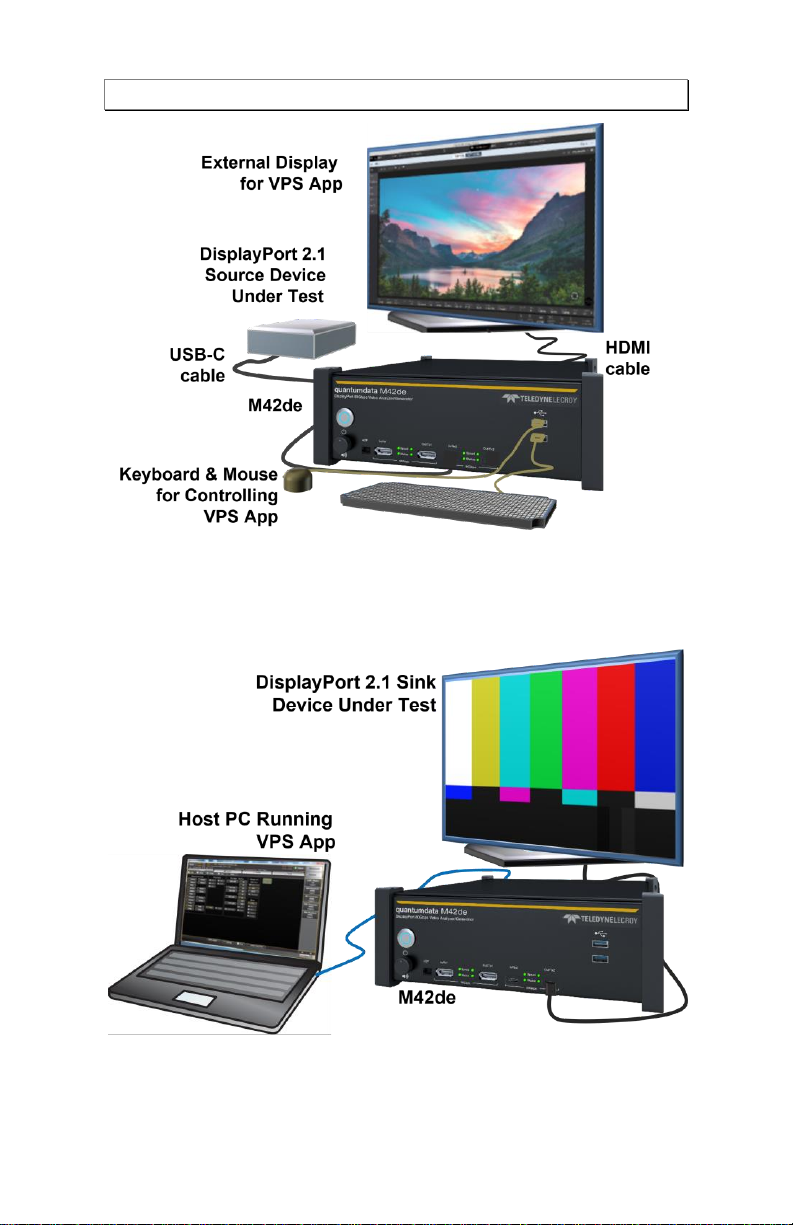

VPS GUI Running on External Display (Source Test Example)

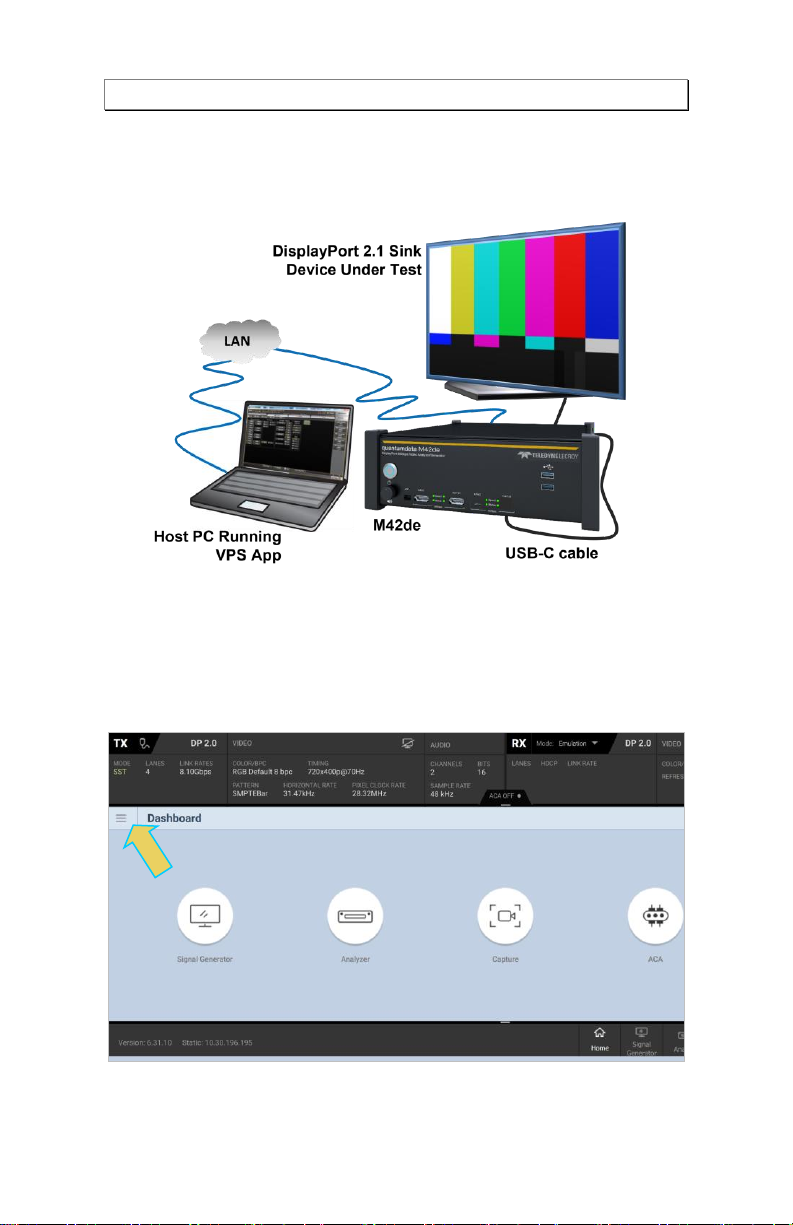

VPS GUI Running on Host PC (Sink Test Example)

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 7 November 03, 2022
2.1 Switching Between the VPS and ATP GUIs
You may easily switch between the VPS GUI and the legacy ATP
Manger GUI using the following procedure:
To access the system menu from the VPS Dashboard, click the
three-bar menu at the top left.
Within the system menu, select the SWITCH TO ATP MANAGER button
at the bottom left.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 8 November 03, 2022

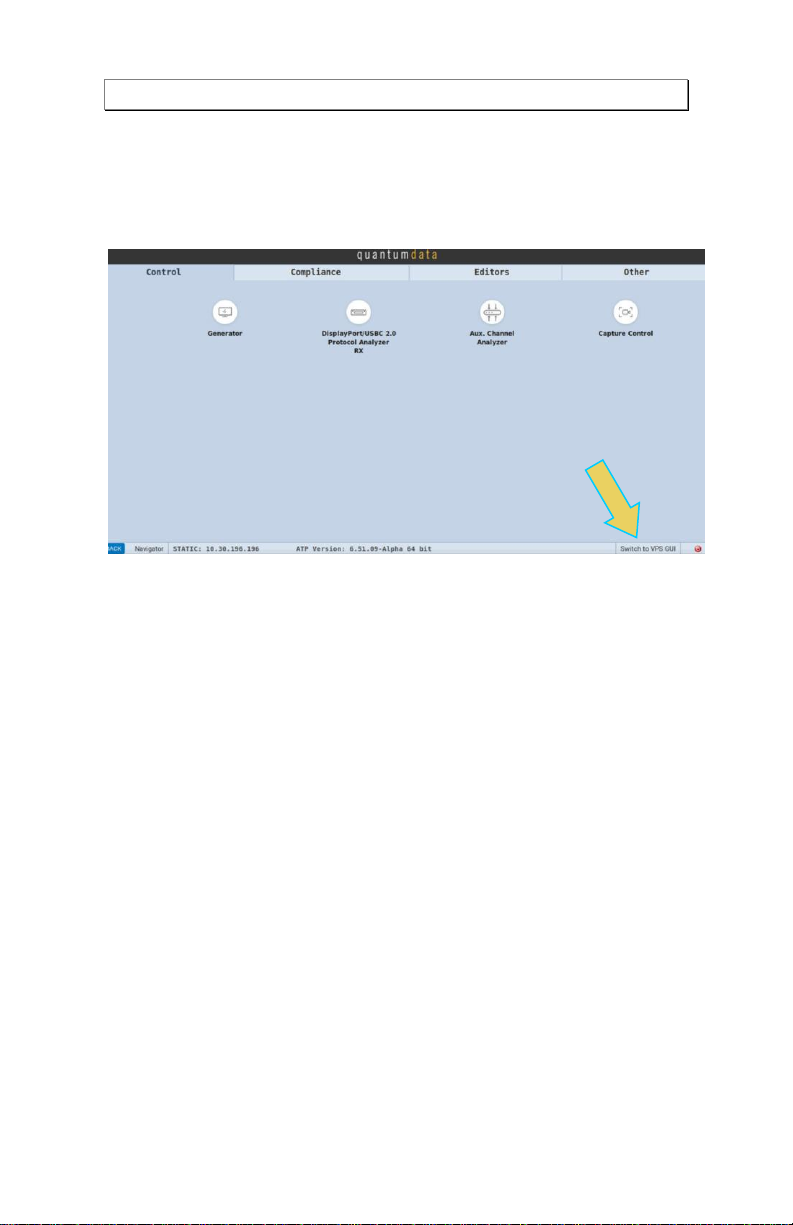

This will bring up the legacy ATP Manager GUI. You may revert to the
VPS GUI from here by clicking the Switch to VPS GUI button at the
bottom right of the card control screen, as shown below.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 9 November 03, 2022
3Getting Started
This chapter explains what is involved in getting your M42de up and
operating.
3.1 What is in the M42de Shipping Box?
The Teledyne LeCroy M42de is shipped with the following items:
•AC Power Line Cord
•CE Declaration of Conformity
•Enhanced DP80 Cable
•USB-C cable (Unmarked) –capable of supporting 80 Gbps
DisplayPort Alt Mode
•USB-C cable (Marked) –with capabilities that indicate support for
up to 240W EPR
•Ethernet cable
•Mouse
•This Quick Start Guide
3.2 Connectors and Controls
The table below describes the M42de connectors and controls.

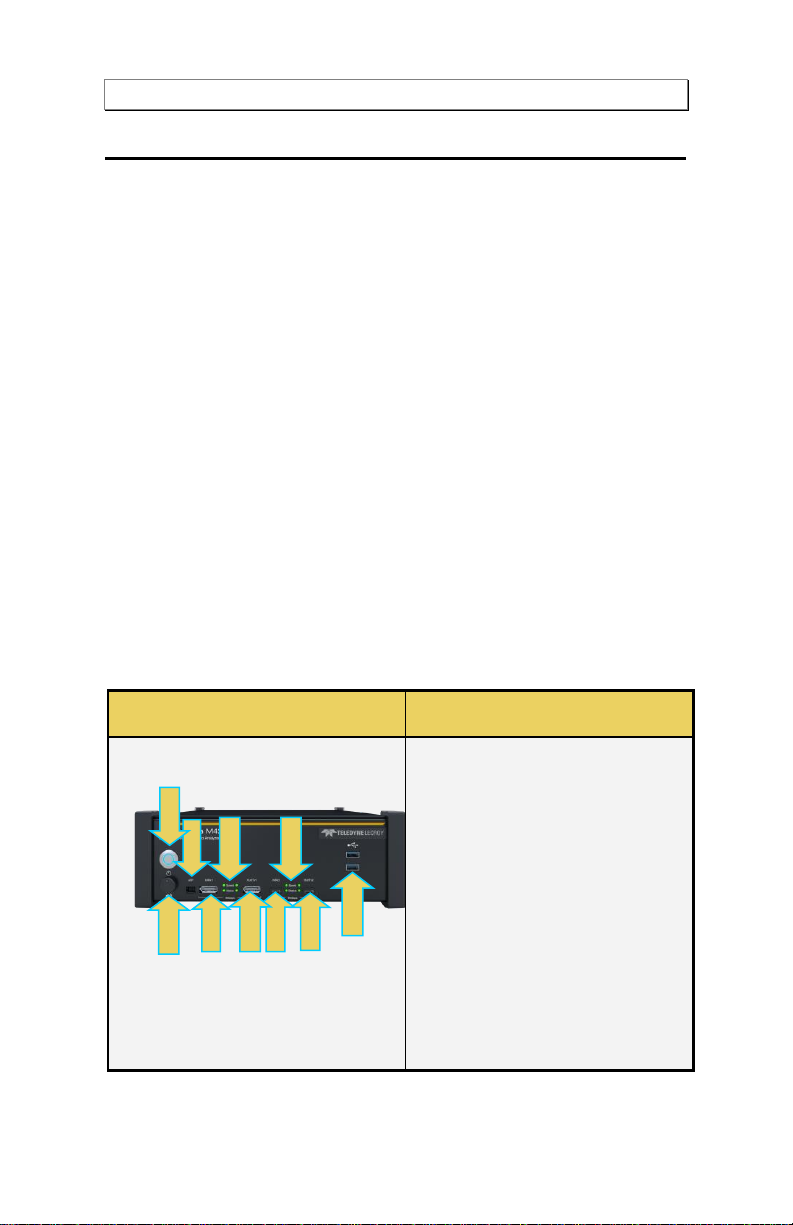

M42de Front & Rear Panels
Information / Function
M42de Front Panel
Front panel features:
▪A –USB-C Out/Tx2 port; supports
all data rates up to UHBR20.
▪B –USB-C In/Rx2 port; supports all
data rates up to UHBR20.
▪C –UHBR20 (enhanced) Out/Tx1
port; supports all data rates up to
UHBR20 .
▪D –UHBR20 (enhanced) In/Rx1
port; supports all data rates up to
UHBR20.
▪E –USB ports (2) used for
connecting a mouse and keyboard.
▪F –Volume knob for adjusting the
internal speaker audio level.
▪G –Power button; press and release
A
E
H
F
B
G
C
D
J
I

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 10 November 03, 2022
M42de Front & Rear Panels
Information / Function
M42de Rear Panel
(with LED color modes, see Section
3.2.1.).
▪H –eDP block for Backlight Control
(See Note following table).
▪I –enhanced DP80 port LEDs (see
Section 3.2.1)
▪J –USB-C port LEDs (see Section
3.2.1).
Rear panel features:
▪K–Power (110-220VAC 50/60Hz)
▪L - HDMI –Admin port for
connecting external monitor for VPS
GUI or ATP Mgr (see Section 3.3.1
for monitor requirements).
▪M –USB (2ea) & USB-C (2 ea.) -
For mouse & keyboard.
▪N - RJ45 - E1 Network for
connecting host PC running ATP
Mgr.
▪O - DVI –Not used.
▪P - RS-232 (2) –Not used.
▪Q - Audio (2) –Not used.
▪R –CrossSync™ for TRIG IN/OUT –
Future use.
▪S - RCA SPDIF In/Out. See Chptr 4
of the M42de ATP Manager User
Guide.
Note: The front panel eDP header block is used for controlling the
backlight of an eDP display. The pinout and functions are shown below
(see letter H in the preceding table for the eDP block location).
eDP Pin Configurations:
1. BL_Enable (Possible Future Rx input)
2. BL_Enable (Tx Output)
3. BL_PWM_DIM (Possible Future RX input)
4. BL_PWM_DIM (TX Output)
5. Ground
6. Ground
M
L
N
O
P
Q
R
S
K

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 11 November 03, 2022
3.2.1 Front Panel LED Color Modes
Power button LED color key:
▪Solid Red: Powered down/standby
▪Solid Yellow: Instrument power on, hardware not initialized
▪Flashing Yellow: Instrument hardware initializing in progress
▪Flashing Green: Instrument boot is in progress
▪Solid Green: Booted without network connectivity
▪Solid Blue: Booted with network connectivity
▪Flashing Red: Error
LED color key for the enhanced UHBR20 (In/Rx1 &Out/Tx1) and
USB-C (In/Rx2 & Out/Tx2) ports:
Speed:
▪Green: UHBR rate (10 Gbps, 13.5 Gbps, 20 Gbps)
▪Yellow: HBR3 or HBR2
▪Red: HBR or RBR
▪Off: Not in use.
Status:
▪Green: Ready
▪Red: Orientation Error (USB-C only)
▪Off: Not in use.
3.3 Getting the M42de Up and Running
3.3.1 Selecting an External Monitor
Due to HDCP 2.3 content protection schemes you must use an
HDCP 2.3-enabled external monitor to view HDCP 2.3 protected
content from a source in the VPS GUI. The following displays
qualify:
•Dell UltraSharp 27 inch Monitor Model U2718Q.
•Dell UltraSharp 27 inch 4K Monitor Model U2720Q.
•ASUS 28" 4K UHD Monitor Model VP28U.
•ViewSonic 27" 4K UHD Monitor Model VX2776-4K-MHD.
•Acer bmiipx 27” WQHD IPS Monitor Model KW272U

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 12 November 03, 2022

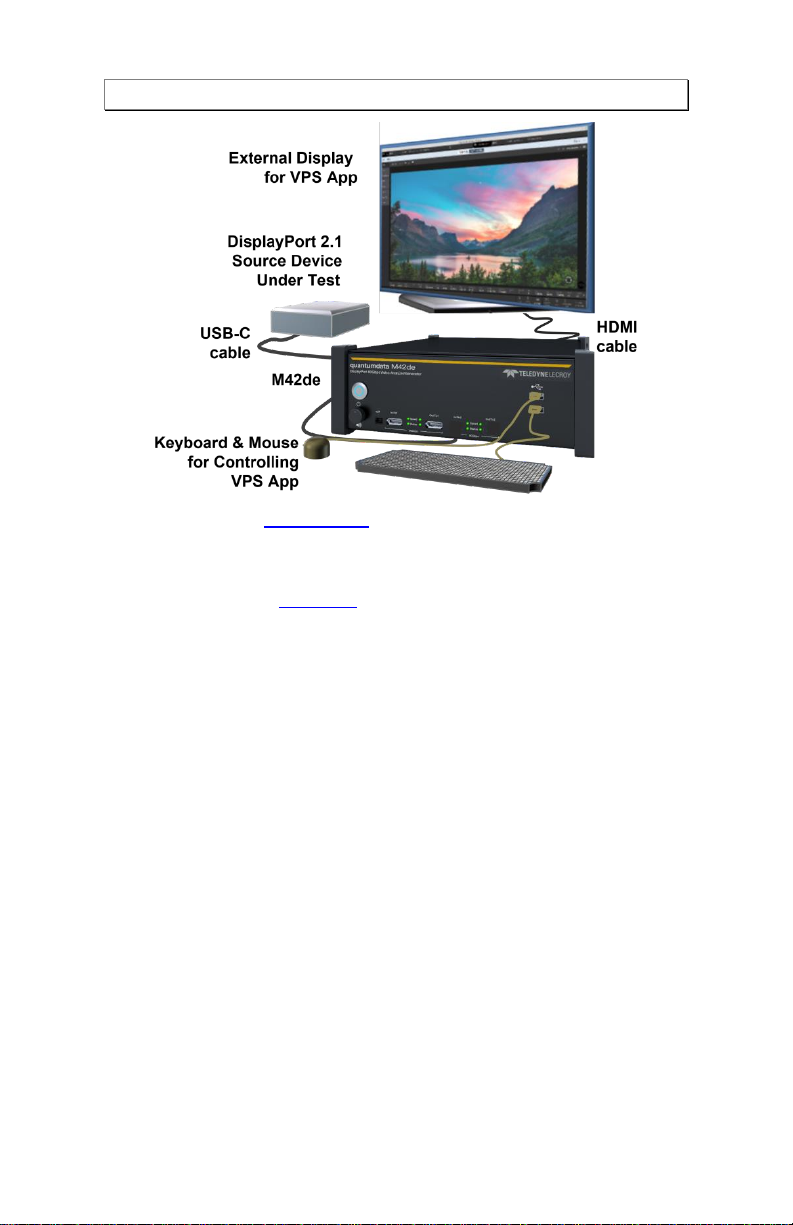

3.3.2 Set Up
Note: You can fully operate the M42de through the embedded VPS
GUI using the following instruction. However, there is an alternative
way, with the VPS GUI application running on a host Windows PC
as described in the Chapter 4.
Use the following procedure to get your M42de up and running.
1. Remove the M42de from the shipping box and lay it flat or upright on
your desktop or benchtop.
2. Connect the M42de power cable (provided) to a suitable outlet
(110-240V 50/60Hz).
Power

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 13 November 03, 2022

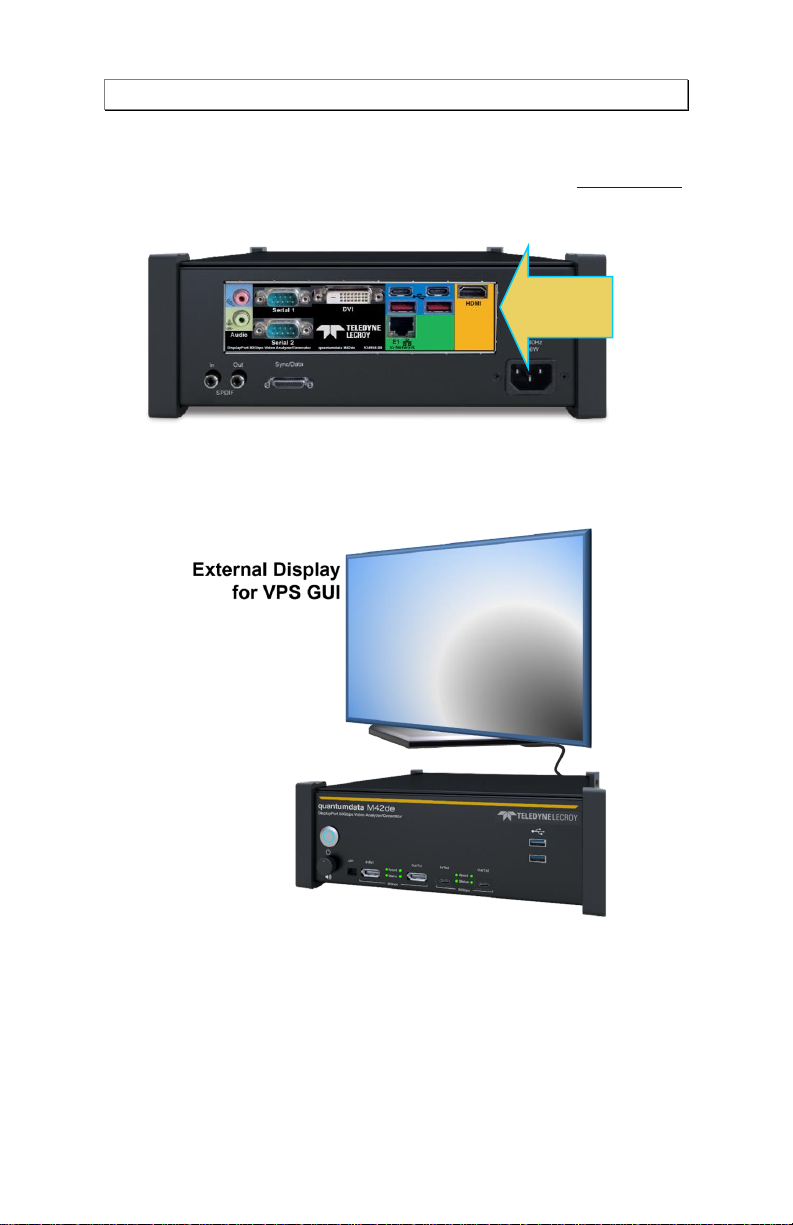

3. Connect an external HDMI monitor to the HDMI connector on the
M42de rear panel at the location indicated below (see Section 3.3.1
for external monitor requirements).
The setup is depicted below.
To Ext
Display

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 14 November 03, 2022

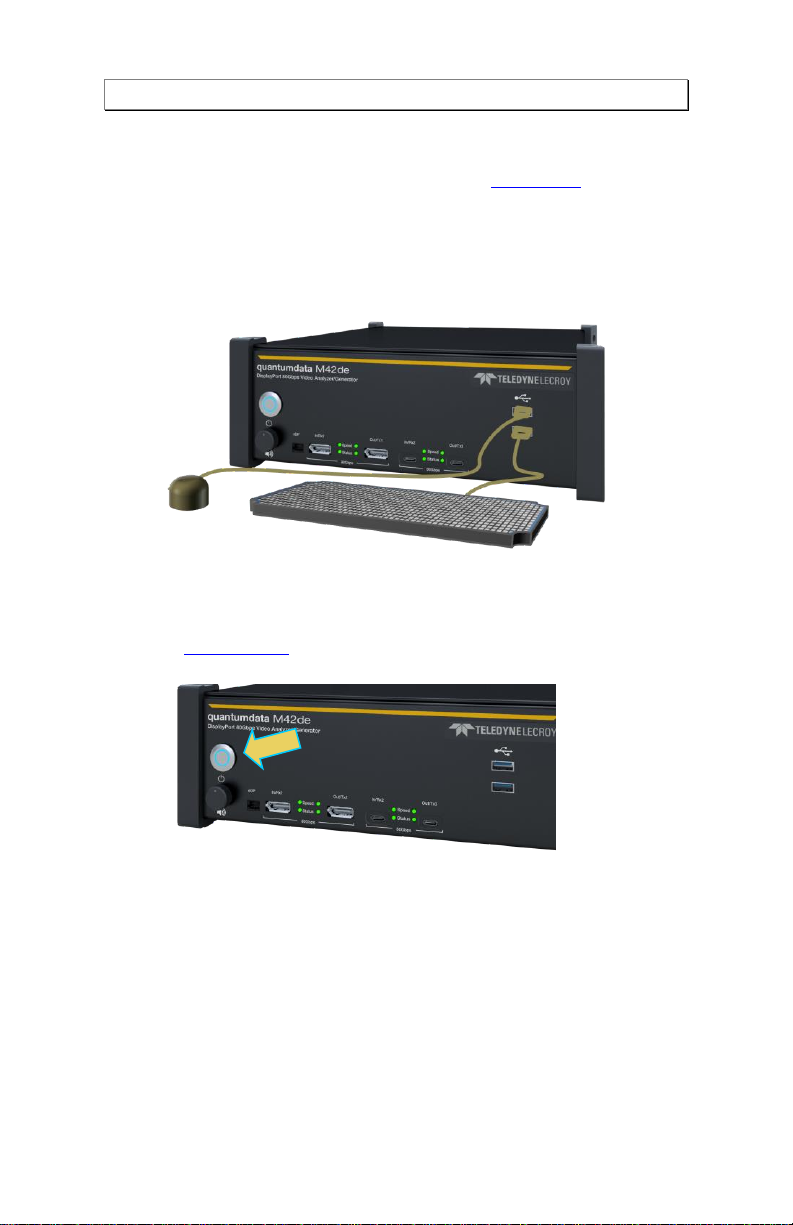

4. Connect a mouse and/or keyboard to the USB ports on the front (or
rear) panel of the M42de as shown below. (Section 3.2 provides
locations of the rear panel USB ports.)
Note: Using a connected mouse or keyboard, you can also utilize
the virtual keyboards that present themselves in the VPS GUI.
5. Power up the M42de via the power button on the front of the M42de
(see Section 3.2.1 for power button LED color modes).

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 15 November 03, 2022
The VPS GUI will appear on the external display as shown below.
6. Connect your DisplayPort device under test to the desired In/Rx or
Out/Tx port on the M42de front panel. The following example shows
a DisplayPort 2.1 source device connected to the USB-C In/Rx 2
port.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 16 November 03, 2022
Note: Refer to Section 3.3.3 as needed to change the VPS GUI’s
resolution on the connected monitor.
You can fully operate the M42de through the VPS GUI using this
connection scenario. Chapter 5 provides additional test configurations.
3.3.3 Changing the VPS GUI Display Resolution
You can change the resolution of the connected monitor that the VPS
GUI is being displayed using the Mint Linux utilities. Follow these steps:
1. Minimize the VPS GUI using the minimize button at the top right of
the window.
2. Once the VPS GUI is minimized, click on the Mint icon (green M) on
the lower left corner of the monitor to access the Mint Linux
Controls.
3. Select the Settings primary menu on the left and on the right select
Display Configuration secondary menu. The Display Configuration
menu appears.
4. Set the resolution using the Resolution pull-down menu. The
resolution should change and persist through a reboot.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 17 November 03, 2022
4Managing the M42de with VPS GUI from a
PC
The M42de can be operated from the VPS GUI application installed on a
host Windows PC. The VPS GUI application will have to be downloaded
and installed on your Windows PC and you will need to connect your PC
to the M42de over an Ethernet IP connection. This chapter provides
instruction for installing the VPS GUI, followed by how to set the time and
date.
Note: You must complete Steps 1 through 3 in Section 3.3.2 Set Up
before installing the VPS GUI application.
4.1 Install the M42de VPS GUI Application
This procedure describes how to install the VPS GUI application on your
host PC.

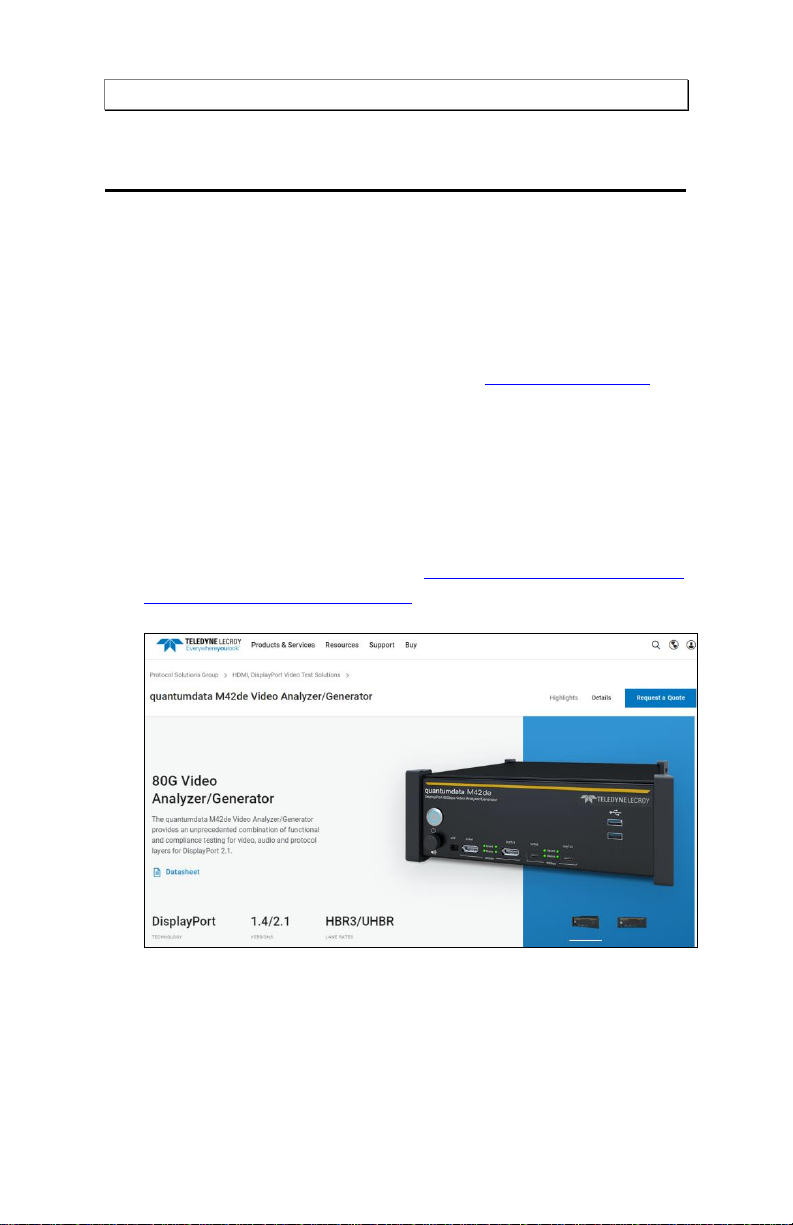

1. On your PC, download the VPS Remote GUI Application from the
Teledyne Lecroy downloads page: Teledyne LeCroy - quantumdata
M42de Video Analyzer/Generator.
2. Once the download is complete, click on the Video Protocol Suite
GUI link and follow the installation prompts.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 18 November 03, 2022
3. After installation completes, run the new VPS application. It should
be available in the Start Menu under All Programs →
VideoProtocolSuite, and from an icon on your PC desktop.
Note: Verify that the version number in the title bar matches the
version on the website.
4. Connect your PC to the M42de using an Ethernet cable. The
connection is made to the Rj45 port on the rear panel of the M42de
labeled E1 to Network as shown below.
The Ethernet IP connection from the host PC to the M42de can be
accomplished by connecting directly or through your corporate
network. Both scenarios are depicted in the following images.
PC Running VPS GUI with Ethernet Direct Connection
E1 to Network

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 19 November 03, 2022
PC Running VPS GUI w/ Ethernet Connection Through
Corporate LAN
5. Set the IP address of the M42de Instrument Network Settings of the
embedded VPS GUI from the Tester screen by clicking the three
horizontal bar menu icon at the top right corner of the Dashboard.

M42de 80 Gbps Video Analyzer/Generator - Quick Start Guide Rev. A1
Page 20 November 03, 2022

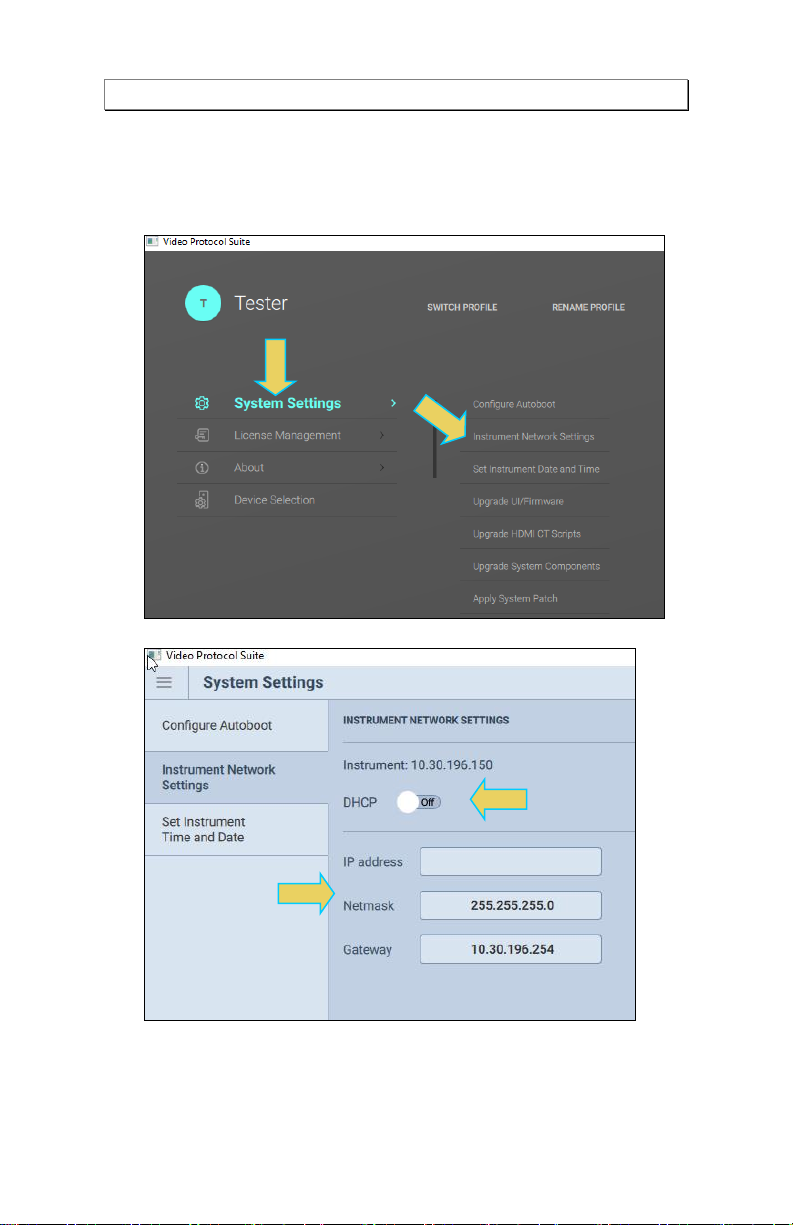

6. Select System Settings and select Instrument Network Settings.
A dialog box appears enabling you to set DHCP or specify an IP
address. Ensure the Netmask and Gateway are properly configured.
Sample screen shots are shown below
Note: Be sure to use an IP address that is compatible with your
corporate LAN or your PC if you are connecting directly.
