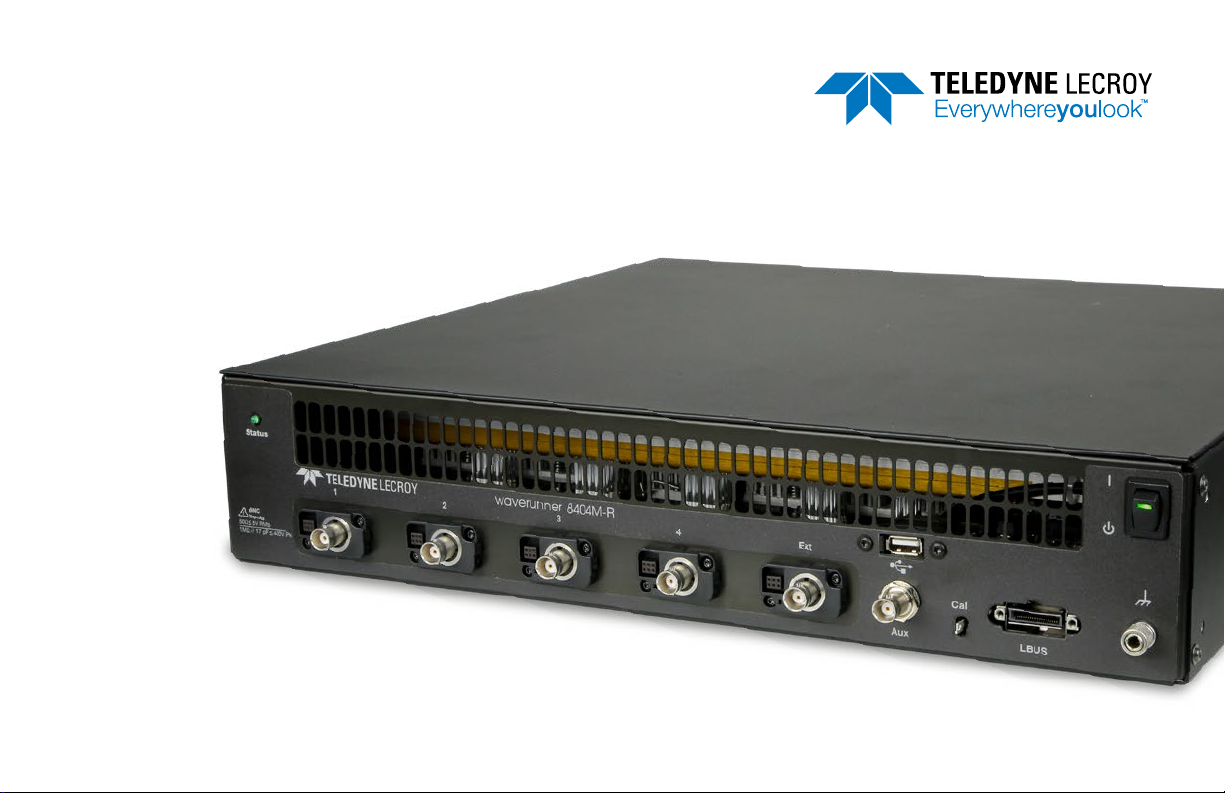

Teledyne Lecroy WaveRunner 8000-R User manual

WaveRunner 8000-R
Oscilloscopes
Getting Started Guide

930948-00 Rev A
II
WaveRunner 8000-R Oscilloscopes
Getting Started Guide
© 2019 Teledyne LeCroy, Inc. All rights reserved.
Unauthorized duplication of Teledyne LeCroy documentation materials is strictly prohibited. Customers are permitted to
duplicate and distribute Teledyne LeCroy documentation for internal educational purposes.
Teledyne LeCroy is a trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested
trademarks of their respective holders. Information in this publication supersedes all earlier versions. Specifications are
subject to change without notice.
930948-00 Rev A,
March, 2019
700 Chestnut Ridge Road
Chestnut Ridge, NY 10977
1.800.5.LECROY •teledynelecroy.com

WaveRunner 8000-R Getting Started Guidel 1
Welcome
Thank you for buying a Teledyne LeCroy product. We’re certain you’ll be
pleased with the detailed features unique to our instruments.
This guide is intended to help you install a WaveRunner 8000-R
oscilloscope into your test environment and prepare it for remote control.
See the MAUI Oscilloscopes Remote Control and Automation Manual for
comprehensive information on remote control of Teledyne LeCroy MAUI
oscilloscopes.
See the WaveRunner 8000 Operator’s Manual for information on the
operational features of the WaveRunner 8000-R, many of which can be
controlled remotely using either traditional IEEE 488.2 commands or
Windows® COM Automation.
Both manuals can be downloaded from the Oscilloscope Manuals page
on our website at:
teledynelecroy.com/support/techlib
.
Contents
Introducing WaveRunner 8000-R 2
Key Specifications 2
Safety 2
Front of Oscilloscope 4
Back of Oscilloscope 5
Powering On/Off 6
Presets 6
Preparing for Remote Control 6
Remote Configuration 8
Rackmounting 10
Cleaning 12
Calibration 12
Firmware Updates 12
Service 13
Certifications 14
Warranty 16

930948-00 Rev A
2
Key Specifications
Detailed specifications are maintained on the product page at
teledynelecroy.com.
INTRODUCTION
WR8104-R WR8254M-R WR8404M-R
Bandwidth 1 GHz 2.5 GHz 4 GHz
Analog Channels 4 standard or 2 interleaved
Max. Memory 32 Mpts 128 Mpts 128 Mpts
Max. Sample Rate 20 GS/s 40 GS/s 40 GS/s
Vertical Resolution 8-bit 8-bit 8-bit
Introducing WaveRunner 8000-R
WaveRunner 8000-R oscilloscopes utilize the WaveRunner 8000
acquisition system to provide a high-performance, 4 GHz oscilloscope in
a convenient, low-profile form factor.
The compact design has a height of less than 2U (3.5”, 8.89 cm) and
includes a standard rackmount kit, easily lending itself to be installed in
an automated test environment.
Unlike most digitizing systems, the WaveRunner 8000-R provides
the powerful, deep toolbox that is expected in a Teledyne LeCroy
oscilloscope. The full range of the WaveRunner 8000’s analysis capability
is available; including an array of serial protocol analysis packages and
application specific packages.
The WaveRunner 8000-R models are fully software-compatible with their
WaveRunner 8000 counterparts. Development can be conducted with the
assistance of the front panel and display of the WaveRunner 8000, then
seamlessly transitioned to automated testing.
A variety of remote connectivity options—LAN, USBTMC, and GPIB (with
optional adapter)—offer flexibility when connecting to the WaveRunner
8000-R. Teledyne LeCroy’s free WaveStudio software is a fast and easy
way to analyze acquired waveforms off-line, or remotely control an
oscilloscope from your desktop. CAUTION of potential damage
to equipment, or WARNING of
potential bodily injury. Refer to
manual. Do not proceed until the
information is fully understood
and conditions are met.
WARNING. Risk of electric shock
or burn.
Frame or chassis terminal
Alternating current
Power On
Standby Power
Safety
Observe generally accepted safety practices in addition to the precautions
specified here.
Symbols

WaveRunner 8000-R Getting Started Guidel 3
SAFETY
WR8104-R WR8254M-R, WR8404M-R
AC Power 100-240 VAC (±10%) at 50/60 Hz (±10%) or
100-120 VAC (±10%) at 400 Hz (±5%)
Automatic AC Voltage Selection
Consumption
Nominal 240 W / 240 VA 340 W / 340 VA
Maximum* 320 W / 320 VA 420 W / 420 VA
Standby 6 W 6 W
Power
* All PC peripherals and active probes connected to four channels.
Operating Environment Precautions
Use proper power cord. Use only the power cord shipped with this
instrument and certified for the country of use.
Maintain ground.
The AC inlet ground is connected to the frame of the
instrument. Connect line cords only to outlets with safety ground contacts.
WARNING. Interrupting the protective conductor inside or outside
the oscilloscope, or disconnecting the safety ground terminal,
creates a hazardous situation. Intentional interruption is prohibited.
Connect and disconnect properly. Do not connect/disconnect probes or
test leads while they are connected to a live voltage source.
Observe all terminal ratings. Do not apply a voltage to any input that
exceeds the maximum rating of that input. Refer to the markings next to
the BNC terminals for maximum allowed values.
Use only within operational environment listed. Do not use in wet or
explosive environments.
Use indoors only.
Keep product surfaces clean and dry.
Do not block the cooling vents. Leave a minimum six-inch (15 cm) gap
between the instrument and the nearest object. Keep the underside clear
of papers and other objects.
Exercise care when lifting and carrying.
Do not remove the covers or inside parts. Refer all maintenance to
qualified service personnel.
Do not operate with suspected failures. Check body and cables regularly.
If any part is damaged, cease operation immediately and sequester the
instrument from inadvertent use.
Temperature 0 °C to 40 °C
Humidity Maximum RH 80% (non-condensing) up to 30 °C
decreasing linearly to RH 50% at 40 °C
Altitude Up to 10,000 ft (3,048 m) at or below 30 °C
Measuring Terminal Ratings
Ratings apply to inputs C1-C4 and Ext In.
Measuring terminals have no rated measurement category (CAT) per IEC/EN 61010-1:2010.
Measuring terminals are not intended to be connected directly to supply mains.
Maximum Input Voltage 50 Ω coupling ≤ 5 Vrms
1 MΩ coupling ≤ 400 Vpk max. (Peak AC ≤ 10 kHz + DC)
derating at 14 dB/decade from 10 kHz to 2 MHz,
10 Vpk max. above 2 MHz

930948-00 Rev A
4
Front of Oscilloscope
OVERVIEW
A

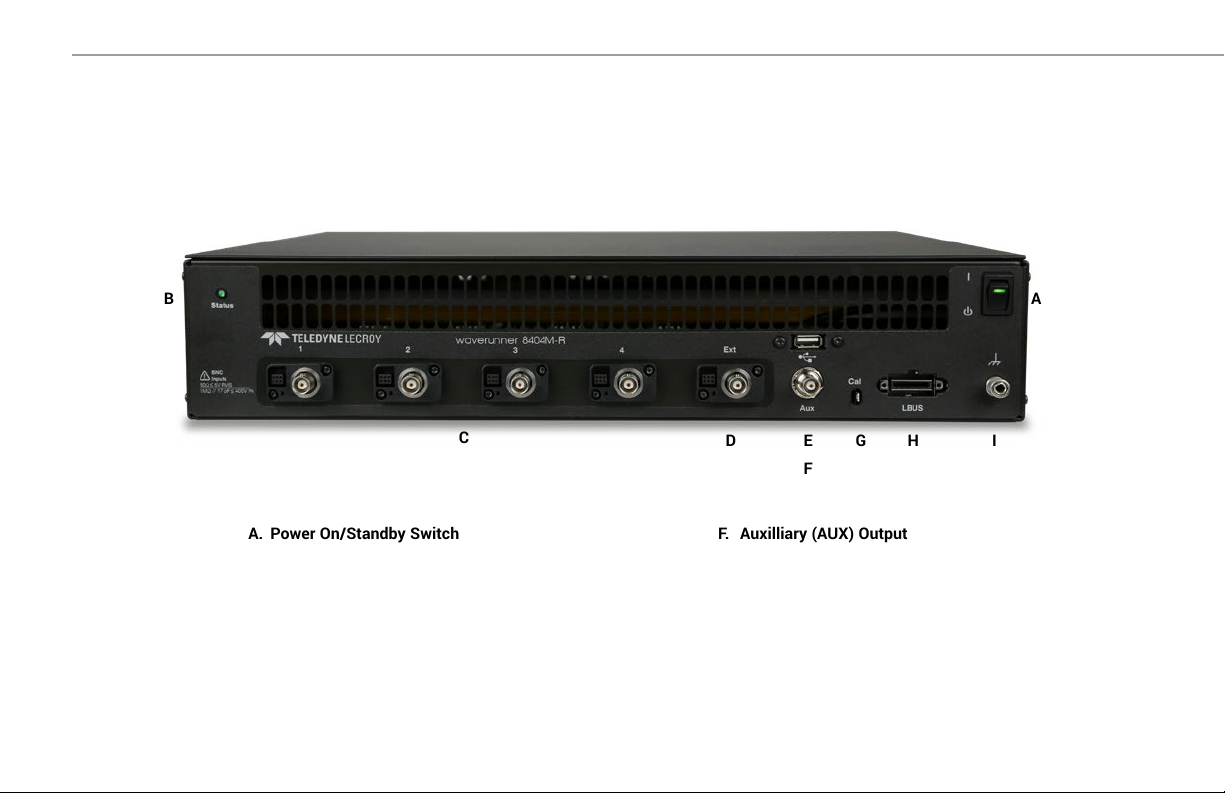

A. Power On/Standby Switch
B. Remote Status Indicator
C. Analog Inputs C1-C4
D. External Trigger Input
E. USB 2.0 Port
F. Auxilliary (AUX) Output
G. Calibration Output Terminal
H. LBUS Port (reserved)
I. Ground Terminal
B
CD E
F
G H I

WaveRunner 8000-R Getting Started Guidel 5
Back of Oscilloscope

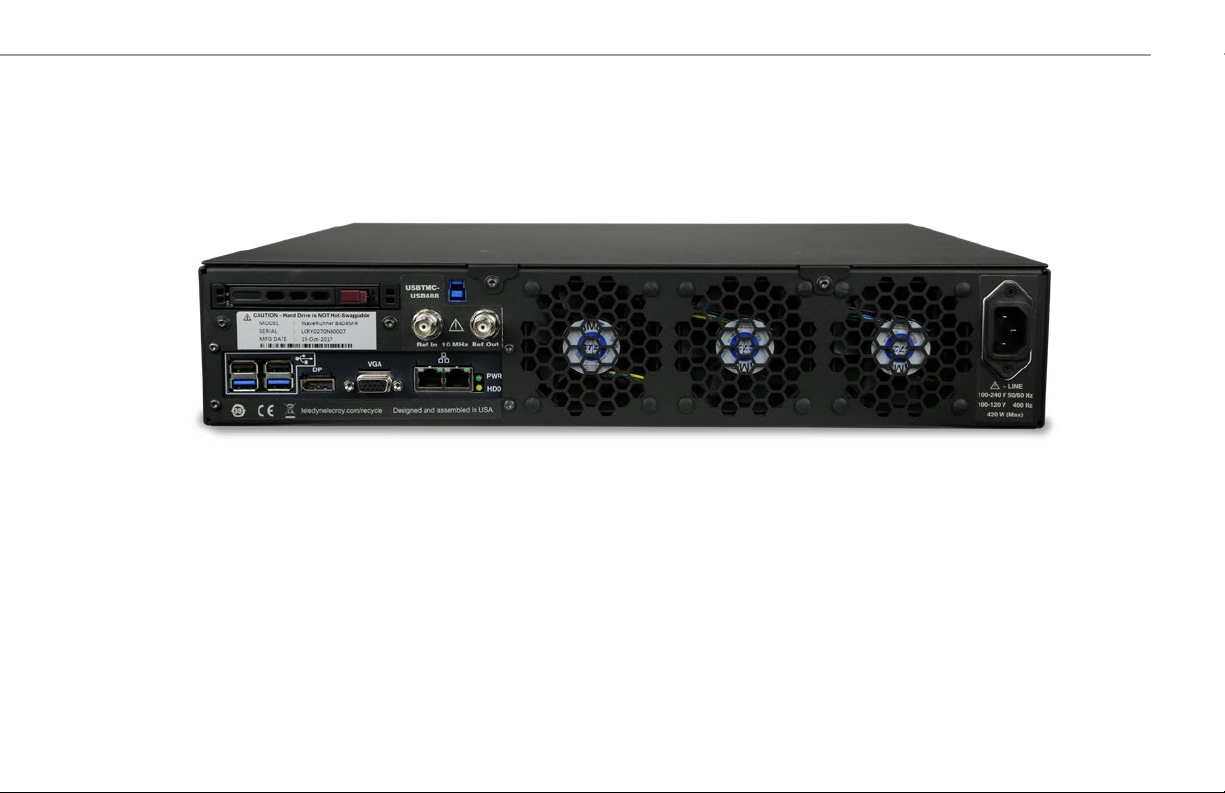

A. AC Power Inlet
B. USBTMC Port
C. External Reference Clock
Input (REF In) and Output (REF Out)
D. Removable Hard Drive
OVERVIEW
E. USB 2.0 Ports (2)
F. USB 3.1 Gen1 Ports (2)
G. DisplayPort Video Output
H. VGA Video Output
I. Ethernet Ports (2)
A
B
C
D
E
F
G H I

930948-00 Rev A
6
BASICS
Preparing for Remote Control
Powering On/Off
CAUTION: Connect only to grounded AC power. Be mindful of the
total power consumption, as connecting too many devices to a
single outlet can cause an overvoltage condition.
To power on, flip the Power Switch to ON. This automatically loads the
oscilloscope application.
The Remote Status Indicator on the front will flash when the oscilloscope
software is fully loaded and ready for remote control. It will remain a
steady green when a remote connection is established.
To power down, flip the Power Switch to STANDBY. When in Standby
mode, some "housekeeping" circuitry continues to draw power. The only
way to fully power down the instrument is to unplug the AC line cord from
the outlet. We recommend unplugging the instrument if it will remain
unused for a long period of time.
The WaveRunner 8000-R reverts to these factory defaults whenever
restarted after powering down:
Coupling 1 MOhm
Vertical Scale 1 V/div
Active Channels 4 (no interleaving)
Timebase 50 ns/div
Sampling Mode Real Time
Trigger Mode Stop
Network Addressing DHCP
Presets
The remote control setting is one of the few that do not revert to the
factory defaults when restarted, as it is critical to know what the setting is
in order to connect.
The factory default setting is LXI (VXI11), but the instrument will reboot
with whatever setting was last made.
We recommend that the remote control setting and the device address be
set locally at installation, prior to rackmounting, and that it not be changed
over a remote connection.
Remote Control Software
For all methods of remote control, an installation of NI-VISA is required on
the controller.
If you switch to TCPIP (VICP) remote control, also install the Teledyne
LeCroy VICP Passport for NI-VISA.
If the controller runs Windows, we recommend an installation of the free
Teledyne LeCroy WaveStudio software. WaveStudio will help you establish
and test the remote connection.
Teledyne LeCroy software is available from teledynelecroy.com/support/
softwaredownload under Oscilloscope Downloads > Software Utilities.
Initial Test Connection
Before rackmounting the WaveRunner 8000-R, we recommend making a
test connection from a PC to the oscilloscope using the default settings
to conrm that remote control is functional. This same procedure can be
used to test the remote connection after you have completed your remote
control conguration on the WaveRunner 8000-R, substituting whatever
connection type you have selected.

WaveRunner 8000-R Getting Started Guidel 7
5. Expand the list of WaveRunner 8000-R functions in the WaveStudio
Devices pane and open the Terminal window.
6. In the top pane of the Terminal, enter the query: *IDN?
If the WaveRunner 8000-R responds with its identifying information,
remote control is functional.
7. Open Display Capture.
An image of the WaveRunner 8000-R touch screen should appear in
the WaveStudio window.
8. Clicking on the image of the WaveRunner 8000-R in WaveStudio,
choose Utilities > Utilities Setup and open the Remote dialog.
The Remote dialog will show any dynamic IP address pulled.
BASICS
1. Install WaveStudio and NI-VISA on the PC. Open any firewalls between
the PC and the oscilloscope to TCP/IP communications on port 111.
2. Power on the WaveRunner 8000-R and connect to a network access
point using a standard Ethernet cable. It is helpful if the network is
served by a DHCP server, as this will allow you to test addressing.
3. On the PC, open WaveStudio and select Add Scope.
4. On the Add Scope dialog, choose connection type LXI and enter the
host name (oscilloscope serial number printed on the rear). Click OK.
If the connection is successful, after a brief pause you will see the
WaveRunner 8000-R added to the list of devices with the status “Alive.”

930948-00 Rev A
8
BASICS

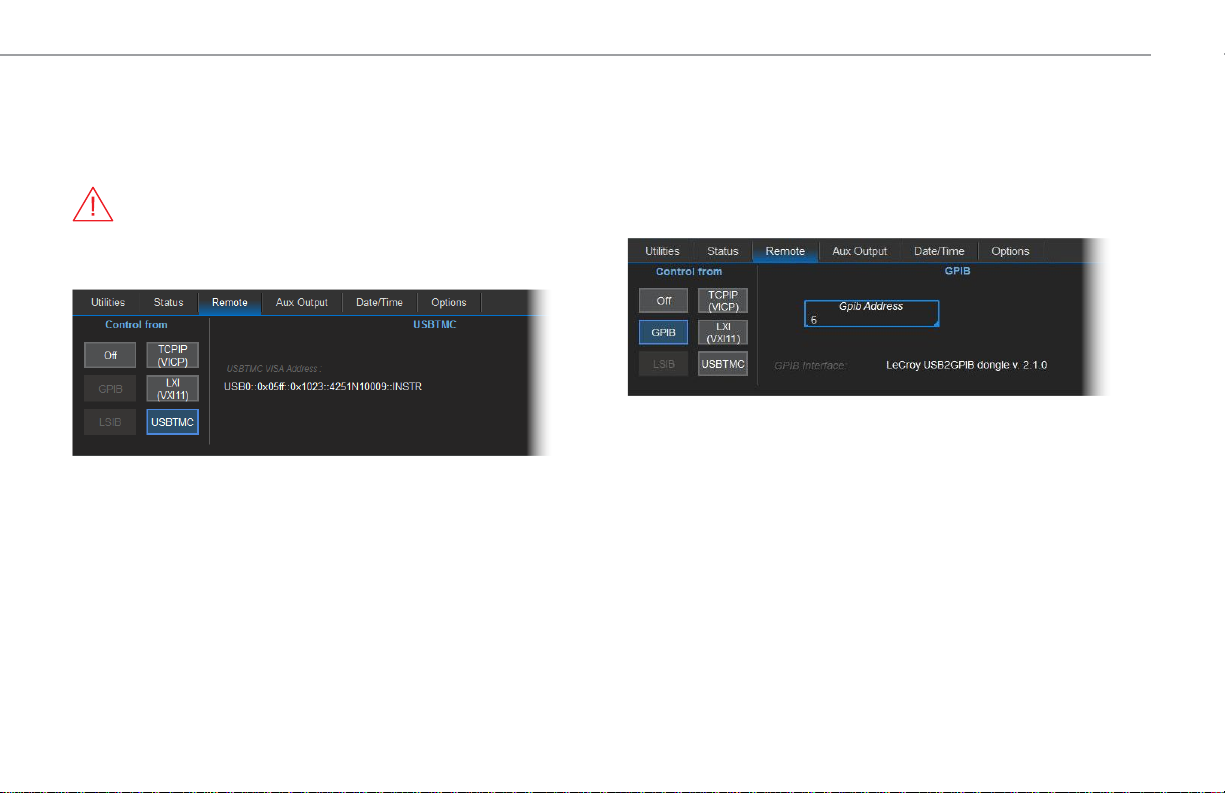

When you are ready to make your actual remote conguration, connect a
monitor to either the DisplayPort or VGA video output, and a mouse and
keyboard to any of the USB ports. You can do this before or after powering
on the WaveRunner 8000-R. This will enable you to access both the MAUI
oscilloscope software and the Windows dialogs to make all the required
remote control settings. MAUI will appear on the external monitor as soon
as it is connected to the WaveRunner 8000-R.
Connecting via LAN
The WaveRunner 8000-R can be addressed using either the host name
or the IP address. We have found that using the full IP address is more
reliable when using automated control programs, provided the correct
address is known. See the MAUI Oscilloscopes Remote Control and
Automation Manual for more information about addressing.
The default host name is the product serial number, which is printed on
the rear of the unit and your registration card. This name is also available
from MAUI by going to Support > About. If the WaveRunner 8000-R is on
a network served by a DNS server, be sure it is known to the DNS server by
this name.
The WaveRunner 8000-R is preset to pull a dynamic IP address once it is
connected to a network served by a DHCP server, but this address will be
replaced whenever the oscilloscope is restarted after being powered down.
We recommend setting a static IP address for remote control, especially if
you will be using automated programs for control.
Remote Conguration
Connect an Ethernet cable from either port on the back panel to a network
access point. Be sure the WaveRunner 8000-R is on the same subnet as
the controller.
Using the monitor, go to Utilities > Utilities Setup and open Remote.
In the Control from eld, select either of two protocols for remote control
over LAN:
• TCPIP (VICP) supports MATLAB, VBA, VBS, C/C++ and JavaScript. To
use this method, also download and install the VICP Passport on the
controller.
• LXI (VXI11), the default, supports all of the the above, except MATLAB,
plus newer programming languages such as C# and Python. You do not
need the VICP Passport.
If desired, select Net Connections from the MAUI Remote dialog to access
the Windows networking dialogs and set a static IP address.
When nished, conrm that the correct IP address appears on the Remote
dialog and record it for use in VISA and ActiveDSO connect strings.

WaveRunner 8000-R Getting Started Guidel 9
Connecting via GPIB
Connect the optional USB2-GPIB Converter from either USB 2.0 port on the
back panel to the GPIB port on the controller.
Using the monitor, go to Utilities > Utilities Setup and open Remote.
Choose Control From GPIB.
The oscilloscope software will use the default GPIB device address of 6.
This must match how the device is identied to the rest of the bus and
addressed in programs. To change the GPIB Address, double-click the eld
and enter the correct value on the pop-up keypad.
Record the GPIB address for use in VISA and ActiveDSO connect strings.
Direct Connection
The WaveRunner 8000-R can be controlled over a coaxial cable or a
straight ENET cable capable of directional switching (as most modern
cables are). In this case, choose Control From TCPIP (VICP) and follow
all other requirements for that method. Be sure to set a static IP address
on the WaveRunner 8000-R unless you are running a DHCP server on
the controller, as otherwise there will be no way to manage dynamic
addressing.
BASICS
Connecting via USBTMC
Connect a USBTMC (A-B) cable from the USBTMC port on the back of the
oscilloscope to a USB 2.0 port on the controller.
CAUTION: Do not connect to a USB 3.0 port on the controller. Use
only the USB 2.0 ports or use a USB 2.0 cable.
Using the monitor, go to Utilities > Utilities Setup and open Remote.
Choose Control From USBTMC.
Record the USBTMC address for use in VISA and ActiveDSO connect
strings.

930948-00 Rev A
10
BASICS
Rackmounting
We recommend conguring and testing all required connections prior to
mounting the device.
Parts
The WaveRunner 8000-R rackmount kit is delivered with:
• Two (2) mounting brackets
• Four (4) M4x6 pan-head screws with Torx T-20 drive
• One (1) Torx T-20 key
Note: The kit does not include the fasteners needed to attach the
rackmount to your equipment rack. Consult your rack manufacturer
regarding the appropriate type, size, and number of fasteners to install the
rackmount securely.
Tools
You will need a Torx T-20 screwdriver to attach the rackmount brackets to
the oscilloscope.
Dimensions
This rackmount kit has been designed to t standard 19-inch rack cabinets
per EIA/ECA 310-E.
Weight of instrument: 7.5 kg (16.5 lbs.)
Weight of instrument, rackmount installed: 7.65 kg (16.8 lbs.)
Width, rackmount installed: 484 mm (19.0 in.)
Depth, rackmount installed: 445 mm (17.5 in.)

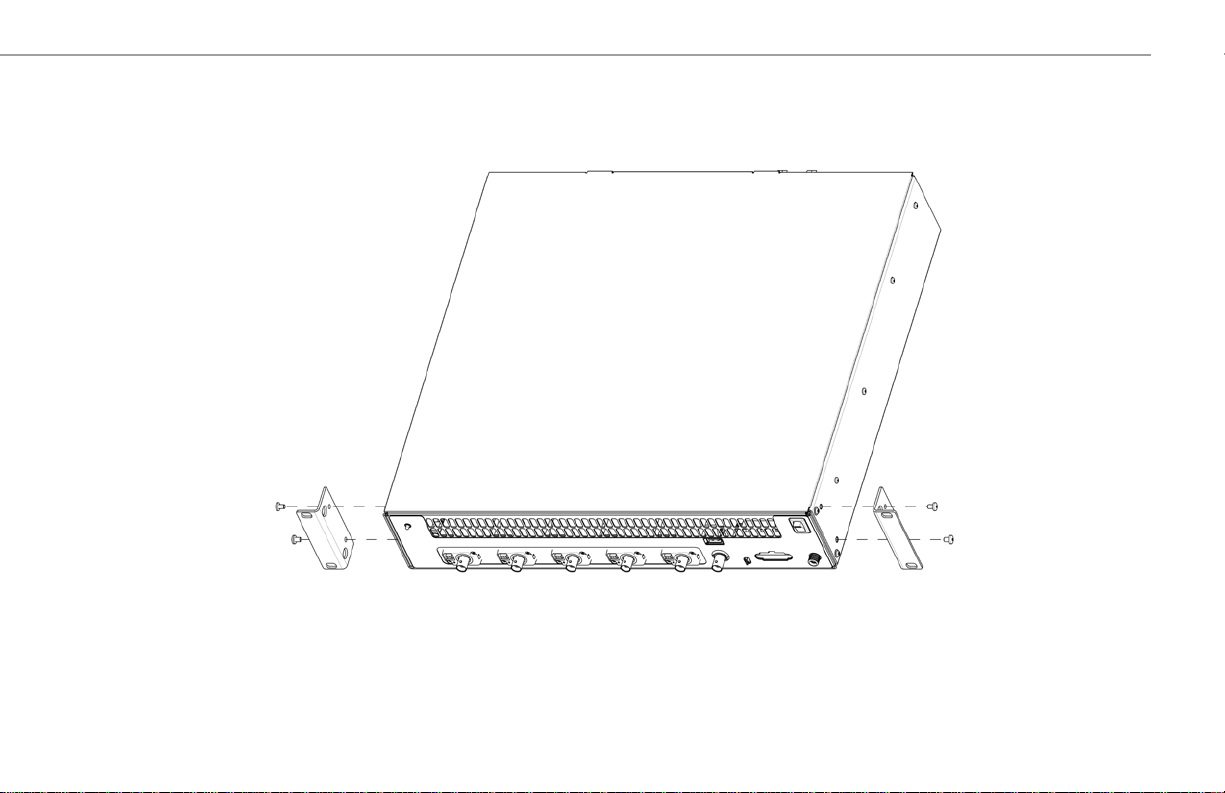

Installation Instructions
1. Position the left bracket so that the screw holes align with the two holes
on the side of the oscilloscope. The mounting "ears" should be flush
with the front of the unit.
2. Using two of the M4x6 screws included with the rackmount kit, attach
the left bracket to the oscilloscope body. Apply 20 in.-lb. torque to the
screws.
3. Install the right bracket in the same manner as the left.
4. With the brackets securely fastened to the unit, install the oscilloscope
into a rack following the manufacturer's specications.
CAUTION: Use two fasteners per side to fully support the weight of
the unit.

WaveRunner 8000-R Getting Started Guidel 11
BASICS

930948-00 Rev A
12
MAINTENANCE
Cleaning
Clean the outside of the WaveRunner 8000-R using a soft cloth moistened
with water or isopropyl alcohol solution. Do not use harsh or abrasive
cleansers. Dry thoroughly before using. Do not submerge the instrument
or allow moisture to penetrate it.
Calibration
Schedule factory calibration once per year. Contact your local Teledyne
LeCroy office for service.
Firmware Updates
Free firmware updates are available periodically from the Teledyne
LeCroy website at teledynelecroy.com/support/softwaredownload under
Oscilloscope Downloads > Firmware Upgrades. Registered users will
receive email notification when a new update is released.
Connect a monitor and pointing device to the WaveRunner 8000-R for
this procedure.
1. Go to the URL above and download XStreamDsoInstaller64.exe onto a
portable USB drive. If you don't yet have a user account on our website,
create one now.
2.
Close the oscilloscope XStreamDSO application by choosing File > Exit.
3. With the WaveRunner 8000-R powered on, insert the drive containing
the installer into one of the oscilloscope's USB ports.
4. Use the Windows Explorer installed on the oscilloscope to browse
to xstreamdsoinstaller_x.x.x.x.exe and double-click it to launch the
XStream Setup wizard.
5. Follow the wizard prompts, accepting all software and license
agreements.
6. When installation is complete, power cycle the instrument.
CAUTION. The installation may take several minutes, depending on
the length of time since your last update. Do not power down the
oscilloscope at any point during the installation process.

WaveRunner 8000-R Getting Started Guidel 13
SERVICE
Service
If the WaveRunner 8000-R cannot be serviced on location, contact your
service center for a Return Material Authorization (RMA) code and
instructions where to ship the product. All products returned to the factory
must have an RMA.
Return shipments must be prepaid. Teledyne LeCroy cannot accept
COD or Collect shipments. We recommend air freighting. Insure the item
you’re returning for at least the replacement cost. Follow these steps for a
smooth product return.
1. Remove all accessories from the device. Do not include the manual.
2. Pack the product in its case, surrounded by the original packing
material (or equivalent).
3. Label the case with a tag containing:
• The RMA
• Name and address of the owner
• Product model and serial number
• Description of failure or requisite service.
4. Pack the product case in a cardboard shipping box with adequate
padding to avoid damage in transit.
5. Mark the outside of the box with the shipping address. Add:
• ATTN: <RMA code assigned by Teledyne LeCroy>
• FRAGILE
6. If returning a product to a different country:
• Mark the shipment “Return of US manufactured goods for warranty
repair/recalibration.“
• List any cost of service in the Value column and the original purchase
price “For insurance purposes” only.
• Be very specific about the reason for shipment. Duties may have to be
paid on the value of the service.
Service Plans
Extended warranty, calibration, and upgrade plans are available for
purchase. Contact your Teledyne LeCroy sales representative or
[e-mail] to purchase a service plan.
Service Centers
For a complete list of Teledyne LeCroy offices by country, including our
sales and distribution partners, visit: teledynelecroy.com/support/contact
Teledyne LeCroy
700 Chestnut Ridge Road
Chestnut Ridge, NY, 10977, USA
teledynelecroy.com
Sales and Service:
Ph: 800-553-2769 / 845-425-2000
FAX: [phone]
[e-mail]
Support:
Ph: 800-553-2769
[e-mail]

930948-00 Rev A
14
CERTIFICATIONS
Certications
Teledyne LeCroy certifies compliance to the following standards as of
the time of publication. Please see the EC Declaration of Conformity
document shipped with your product for current certifications.
EMC Compliance
EC DECLARATION OF CONFORMITY - EMC
The instrument meets intent of EC Directive 2014/30/EU for Electromagnetic
Compatibility. Compliance was demonstrated to the following specifications
listed in the Official Journal of the European Communities:
EN 61326-1:2013, EN 61326-2-1:2013 EMC requirements for electrical
equipment for measurement, control, and laboratory use. 1
Electromagnetic Emissions:
EN 55011:2010, Radiated and Conducted Emissions Group 1, Class A 2 3
EN 61000-3-2/A2:2009 Harmonic Current Emissions, Class A
EN 61000-3-3:2008 Voltage Fluctuations and Flickers, Pst = 1
Electromagnetic Immunity:
EN 61000-4-2:2009 Electrostatic Discharge, 4 kV contact, 8 kV air, 4 kV
vertical/horizontal coupling planes 4
EN 61000-4-3/A2:2010 RF Radiated Electromagnetic Field, 3 V/m,
80-1000 MHz; 3 V/m, 1400 MHz - 2 GHz; 1 V/m, 2 GHz - 2.7 GHz
EN 61000-4-4/A1:2010 Electrical Fast Transient/Burst, 1 kV on power
supply lines, 0.5 kV on I/O signal data and control lines 4
EN 61000-4-5:2006 Power Line Surge, 1 kV AC Mains, L-N, L-PE, N-PE 4
EN 61000-4-6:2009 RF Conducted Electromagnetic Field, 3 Vrms,
0.15 MHz - 80 MHz 5
EN 61000-4-11:2004 Mains Dips and Interruptions, 0%/1 cycle,
70%/25 cycles, 0%/250 cycles 4 6
1To ensure compliance with all applicable EMC standards, use high-quality shielded interface cables.
2Emissions which exceed the levels required by this standard may occur when the instrument is
connected to a test object.
3This product is intended for use in nonresidential areas only. Use in residential areas may cause
electromagnetic interference.
4Meets Performance Criteria “B” limits of the respective standard: during the disturbance, product
undergoes a temporary degradation or loss of function or performance which is
self-recoverable.
5USBTMC cable must be double-shielded with ferrite beads at each end of cable assembly.
6Performance Criteria “C” applied for 70%/25 cycle voltage dips and for 0%/250 cycle voltage
interruption test levels per EN61000-4-11.
European Contact:*
Teledyne LeCroy Europe GmbH
Im Breitspiel 11c
D-69126 Heidelberg
Germany
Tel: + 49 6221 82700
AUSTRALIA & NEW ZEALAND DECLARATION OF CONFORMITY – EMC
The instrument complies with the EMC provision of the Radio Communications
Act per the following standards, in accordance with requirements imposed by
Australian Communication and Media Authority (ACMA):
AS/NZS CISPR 11:2011 Radiated and Conducted Emissions, Group 1, Class A.
Australia / New Zealand Contacts:*
RS Components Pty Ltd. RS Components Ltd.
Suite 326 The Parade West Units 30 & 31 Warehouse World
Kent Town, South Australia 5067 761 Great South Road
Penrose, Auckland, New Zealand
* Visit teledynelecroy.com/support/contact for the latest contact information.

WaveRunner 8000-R Getting Started Guidel 15
Environmental Compliance
END-OF-LIFE HANDLING
The instrument is marked with this symbol to indicate that it
complies with the applicable European Union requirements to
Directives 2012/19/EU and 2013/56/EU on Waste Electrical and
Electronic Equipment (WEEE) and Batteries.
The instrument is subject to disposal and recycling regulations that vary
by country and region. Many countries prohibit the disposal of waste
electronic equipment in standard waste receptacles.
For more information about proper disposal and recycling of your
Teledyne LeCroy product, please visit teledynelecroy.com/recycle.
RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS)
This instrument and its accessories conform to the 2011/65/EU RoHS2
Directive.
ISO Certification
Manufactured under an ISO 9000 Registered Quality Management System.
Safety Compliance
EC DECLARATION OF CONFORMITY – LOW VOLTAGE
The oscilloscope meets intent of EC Directive 2014/35/EU for Product
Safety. Compliance was demonstrated to the following specifications as
listed in the Official Journal of the European Communities:
EN 61010-1:2010 Safety requirements for electrical equipment for
measurement, control, and laboratory use – Part 1: General requirements
EN 61010-2:030:2010 Safety requirements for electrical equipment
for measurement, control, and laboratory use – Part 2-030: Particular
requirements for testing and measuring circuits
The design of the instrument has been verified to conform to the
following limits put forth by these standards:
•Mains Supply Connector: Overvoltage Category II, instrument intended
to be supplied from the building wiring at utilization points (socket
outlets and similar).
•Measuring Circuit Terminals: No rated measurement category.
Terminals not intended to be connected directly to the mains supply.
•Unit: Pollution Degree 2, operating environment where normally only
dry, non-conductive pollution occurs. Temporary conductivity caused
by condensation should be expected.
CERTIFICATIONS

930948-00 Rev A
16
WARRANTY
Warranty
NOTE: THE WARRANTY BELOW REPLACES ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS, OR ADEQUACY FOR ANY PARTICULAR PURPOSE OR
USE. TELEDYNE LECROY SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES, WHETHER IN CONTRACT OR OTHERWISE. THE
CUSTOMER IS RESPONSIBLE FOR THE TRANSPORTATION AND INSURANCE
CHARGES FOR THE RETURN OF PRODUCTS TO THE SERVICE FACILITY.
TELEDYNE LECROY WILL RETURN ALL PRODUCTS UNDER WARRANTY WITH
TRANSPORT PREPAID.
The product is warranted for normal use and operation, within specifications, for
a period of three years from shipment. Teledyne LeCroy will either repair or, at our
option, replace any product returned to one of our authorized service centers within
this period. However, in order to do this we must first examine the product and find
that it is defective due to workmanship or materials and not due to misuse, neglect,
accident, or abnormal conditions or operation.
Teledyne LeCroy shall not be responsible for any defect, damage, or failure caused
by any of the following: a) attempted repairs or installations by personnel other than
Teledyne LeCroy representatives; b) improper connection to incompatible equipment;
or c) for any damage or malfunction caused by the use of non-Teledyne LeCroy
supplies. Furthermore, Teledyne LeCroy shall not be obligated to service a product
that has been modified or integrated where the modification or integration increases
the task duration or difficulty of servicing the instrument. Spare and replacement
parts, and repairs, all have a 90-day warranty.
The instrument's firmware has been thoroughly tested and is presumed to be
functional. Nevertheless, it is supplied without warranty of any kind covering
detailed performance. Products not made by Teledyne LeCroy are covered solely by
the original manufacturer's warranty.

WaveRunner 8000-R Getting Started Guidel 17

© 2019 Teledyne LeCroy, Inc. All rights reserved.
930948-00 Rev A,
March, 2019
