Teledyne T3PM1006 User manual

T3PM1006
Digital Power Meter
User Manual
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Teledyne LeCroy company.
The information in this manual was correct at the time of printing.
However, Teledyne LeCroy continues to improve products and
reserves the rights to change specification, equipment, and
maintenance procedures at any time without notice.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

TABLE OF CONTENTS
3
Table of Contents
SAFETY INSTRUCTIONS .................................................. 5
GETTING STARTED........................................................ 10
Characteristics ............................................................11
Appearance.................................................................14
Set Up ........................................................................23
BASIC SETTING ............................................................. 26
Setting up measurement range ...................................27
Setting up measurement status ..................................31
Setting up System status ............................................41
MEASUREMENT AND OTHER FUNCTIONS .................... 46
Measurement function................................................47
Other functions ..........................................................50
Integration measurement function..............................52
REMOTE CONTROL ....................................................... 59
Configure Remote Control Interface ............................60
Return to Local Control...............................................63
COMMAND OVERVIEW ................................................. 64
Command Syntax ........................................................64
Command List ............................................................68
APPENDIX ....................................................................102
Specifications ...........................................................103
Dimensions ..............................................................108
Power measurement .................................................109
Introduction to IEC-62301.........................................111
EUP Directive Lot6 specifications .............................112
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
4
Connection Guide .....................................................113
CERTIFICATIONS ..........................................................115
EMC Compliance ......................................................115
Safety Compliance ....................................................117
Environmental Compliance .......................................118
RESTRICTION OF HAZARDOUS SUBSTANCES
(RoHS) .....................................................................118
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the T3PM1006
or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
1
O
On (Supply)
Off (Supply)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
6
Safety Guidelines
General Guideline
CAUTION
Make sure that the voltage input level does not
exceed DC848V/AC600V.
Make sure the current input level does not
exceed 20A.
Do not place any heavy object on the
instrument.
Avoid severe impact or rough handling that can
lead to damaging the instrument.
Do not discharge static electricity to the
instrument.
Use only mating connectors, not bare wires, for
the terminals.
Do not block or obstruct the cooling fan vent
opening.
Do not perform measurement at the source of a
low-voltage installation or at building
installations (Note below).
Do not disassemble the instrument unless you
are qualified as service personnel.
Make sure that the COM terminal to earth is
limited to 300Vpk.
Remove all test leads before disconnecting the
mains power cord from the socket.
If the equipment is used in a manner not
specified by the manufacturer, the protection
provided by the equipment may be impaired.
The device should be placed in a way that the
plug connected to it can be removed easily.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

SAFETY INSTRUCTIONS
7
(Note) EN 61010-1:2010 specifies the measurement categories and
their requirements as follows. The T3PM1006 falls under category II
300V.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Power Supply
WARNING
AC Input voltage: 100-240 VAC 50/60Hz
The power supply voltage should not fluctuate
more than 10%.
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid
electrical shock.
Cleaning the
Instrument
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Temperature: 0°C to 40°C
Humidity: < 30°C: < 80%RH(non-condensing);
30°C~40°C:<70%RH(non-condensing);
>40°C: <50%RH (non-condensing)
Altitude: <2000m
(Note) EN 61010-1:2010 specifies the pollution degrees and their
requirements as follows. The T3PM1006 falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of
dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
8
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -40°C to 70°C
Humidity: <90%RH(non-condensing)
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

SAFETY INSTRUCTIONS
9
Power cord for the United Kingdom
When using the unit in the United Kingdom, make sure the power
cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
10
GETTING STARTED
This chapter describes the T3PM1006, including
accessories, package contents, its main features
and front / rear panel introduction.
Characteristics ............................................................11
Accessories .............................................................................13
Package Contents ...................................................................13
Appearance .................................................................14
Front Panel..............................................................................14
Display Overview ....................................................................18
Rear Panel ...............................................................................21
Set Up.........................................................................23
Tilting the Stand......................................................................23
Power Up.................................................................................24
Connect the wires to the T3PM1006 ......................................25
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
11
Characteristics
The T3PM1006 is a high-precision, programmable power meter for
measuring low power devices such as switching power supplies,
transformers, power supplies, and adapters. It is equipped with a
color TFT-LCD screen which is very convenient for reading the
measurement results. The T3PM1006 has become a reliable power
measurement instruments because of its simple operation, excellent
performance and automatic measurement interface.
Operation
Press the buttons on the front panel to easily
turn on the T3PM1006 measurement function.
All settings and measurements results are
displayed on the TFT-LCD screen panel for easy
use of each function.
Standard display mode: 2 main measurement
results and 6 secondary measurement results are
displayed in this screen.
Simple display mode: 4 major measurement
results are displayed in this screen.
Performance
6 selectable voltage ranges available from 15V to
300V with 0.1% of reading + 0.1% of range.
12 selectable current ranges available from 5mA
to 20A with 0.1% of reading + 0.1% of range.
It can even measure the voltage of abnormal
wave of CF 3. The half-range CF is up to 6.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
12
It can even measure the current of abnormal
wave of CF 3. The half-range CF is up to 6.
Test terminals in the front panel.
Total harmonic distortion measurement.
Features
Full five-digit measurement.
Voltage measurement range: 15V ~ 600V or
automatic switching
Current measurement range: 5mA ~ 20A or
automatic switching
Maximum accuracy of 0.1% of reading + 0.1% of
range
2 main measurement readings and 6 minor
measurement readings are displayed in the
screen of standard display mode.
4 main measurement readings are displayed in
the screen of simple display mode.
Added stand-alone display of total harmonic
distortion measurement function (13 steps)
Test bandwidth of voltage and current: DC ~
6kHz.
Added W-h power time integrator function
Selectable boot settings (Previous / Default)
Interface
Standard interface: USB / RS232 / LAN
Application
It can be applied to production test such as
power supplies, transformers, motors, electrical
equipment and other equipment with low
standby power.
It can be applied to power measurement
conforms to IEC 62301
It can be applied to assess the power
consumption of product design.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
13
Accessories
Standard Accessories
Power Cords x 3
Test leads: 2x red, 2x black
Package Contents
Check the contents before using the instrument.
Opening the box
Contents
(single unit)
Main unit
Test leads (red x2,
black x2)
Power cords x 3
Quick Start Guide
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
14

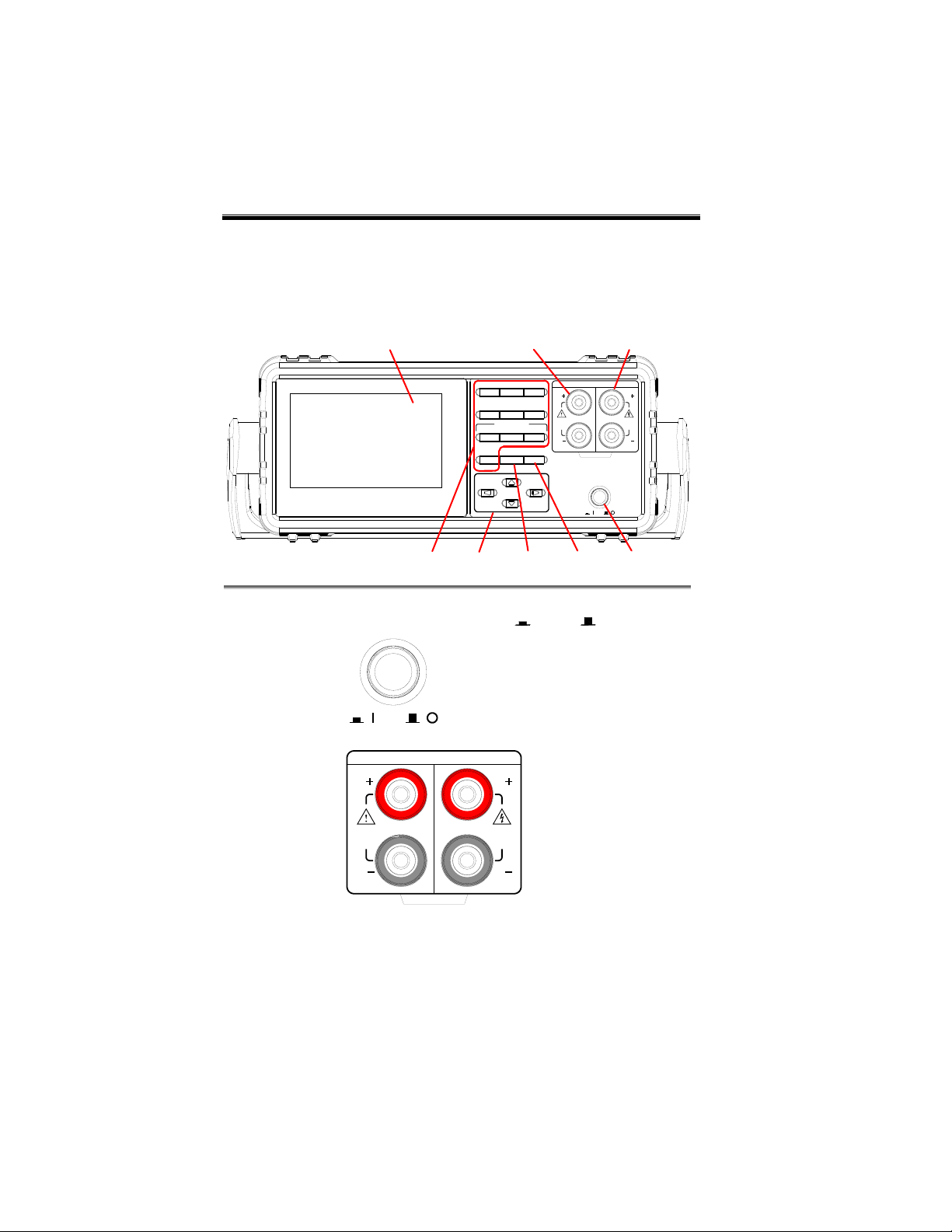

Appearance
Front Panel
V -
SetupMode
Enter
StopStart Reset
MAX Hold
Key Lock
ESCLocal
POWER
INTEGRATOR
Range I - Range CURRENT VOLTAGE
I
AC 10A
MAX
I
V
V
AC 600V
MAX
CAT II 300V
Hold
Current input Voltage input
Power
key
ESC
key
Enter
key
Arrow
keys
Function
keys
LCD display
Power Switch
POWER
Turns On or Off the main
power. For the power up sequence,
see page 24.
Current, Voltage
Terminals
CURRENT VOLTAGE
I
AC 10A
MAX
I
V
V
AC 600V
MAX
CAT II 300V
Current input: I+ and I–
terminals; Voltage
input: V+ and V-
terminals.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
15
Note
If the measurement power supply has
positive and negative electrode, please
connect + to the positive electrode of
power supply and - to the negative
electrode of power supply.
Warning
The maximum measurable current and
voltage are 600 V and 10A for voltage
and current terminals of the front
panel of the T3PM1006. Do not input
exceeded voltage and current,
otherwise it will burn the device.
Function keys
V - Range
Enter
V-Range key, up/down arrow keys
and Enter key can be used together
to select a voltage range or auto
range measurement mode. See page
27.
MAX HoldRange I -Range
Enter
I-Range key, up/down arrow keys
and Enter key can be used together
to select a current range or auto
range measurement mode. See page
27.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
16

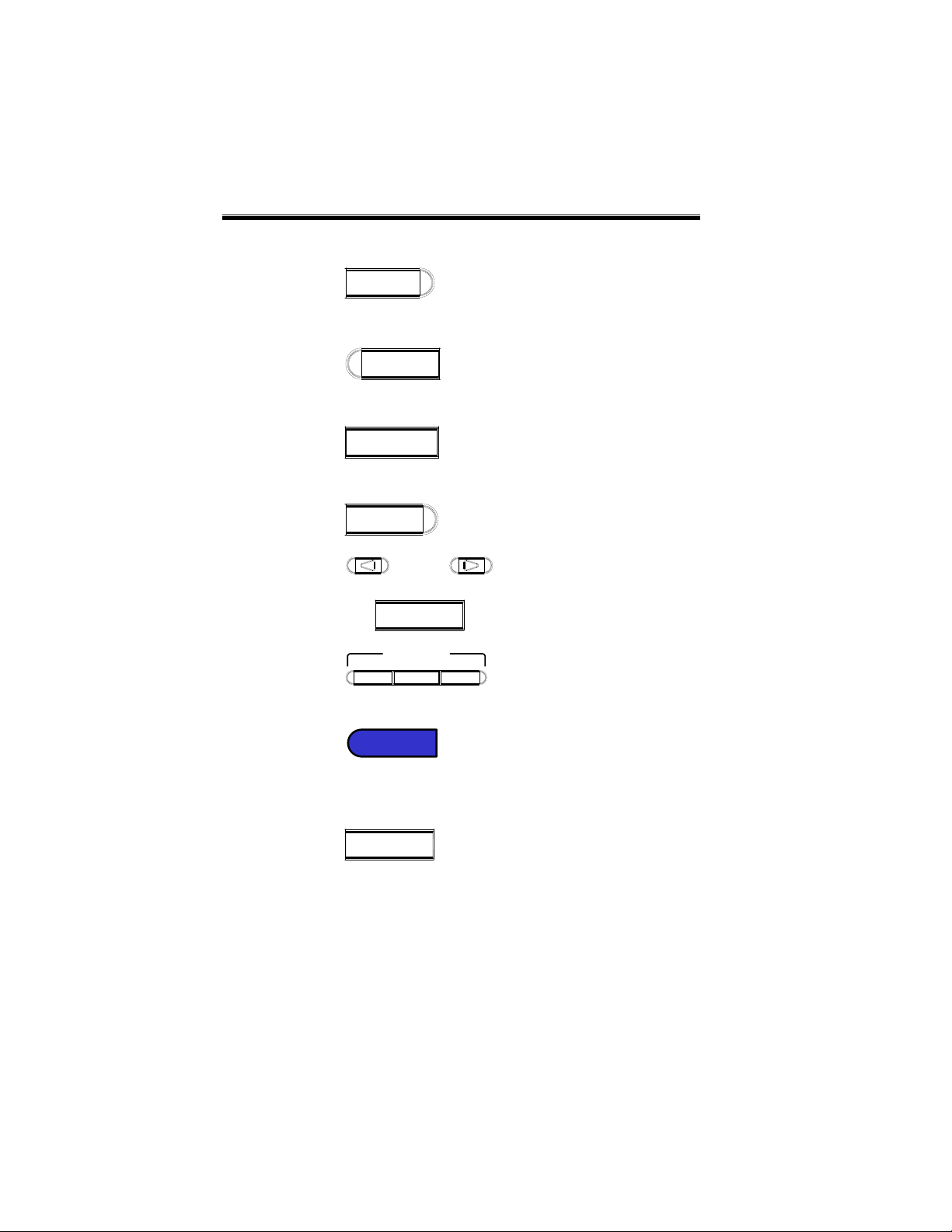

MAX Hold
Press this button to display the
maximum measurement reading.
See page 50.
Mode
Press this key to select measure
mode (DC/AC/AC+DC). See page
51.
Setup
Press this key to enter the
measurement settings menu. See
page 31.
Hold
Press this key to switch window and
stop refreshing. See page 51.
Enter
StopStart Reset
INTEGRATOR
Use the left and right arrow
keys to select Integrator
mode, and press Enter
button to enter the time
integrator function. See page
52.
Key Lock
Local
Press this key to toggle to key lock.
In Remote control mode, press this
button to switch to local mode. See
page 51.
Confirm button
Enter
This button is used to enter the
menu, confirm the settings and
switch between the standard display
mode and simple display mode (no
function table and display icon). See
page 51.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
17
Cancel (Exit)
button
ESC
Press this button to cancel the
current setting. The cursor returns to
the default position or return to the
previous menu according to the
situation. See page 51.
Arrow Keys
These four arrow keys are
used to edit the parameters,
browse the menu system
and select the parameter
range.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
18
Display Overview
Filter PT CTMax. Hold KeyLockAverage Range Display Hold
Peak Voltage
Peak Current
Remote Error
Remote CF
ModeVoltage Range
Current Range
Secondary Menus
Main
Measurement
Display
Minor
Measurement
Display
Item
Status icon
Description
Voltage Range
V_Range 300V
Voltage measurement range.
Example here range is 300V.
V_Auto means that Auto Range is
turned on.
Current Range
I_Auto 50mA
Current measurement range.
Example here range is 50mA.
I_Auto means that Auto Range is
turned on.
Mode
AC+DC
Measurement mode (AC, DC,
AC+DC)
Remote
RMT
Remote control mode (on/off)
Crest Factor
CF3
Crest Factor (3/6)
Filter
Filter
Voltage and current filters (on/off)
PT Ratio State
PT
External voltage magnification
(on/off)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
19
CT Ratio State
CT
External current magnification
(on/off)
Maximum Hold
Max. Hold
Retain and display the maximum
measurement reading.
Keyboard Lock
KeyLock
Lock Key button
Average
Avg-1
Average number of sampling
(1/2/4/8/16/32/64)
Display Hold
Hold
Retain and display the current
measurement reading.
Peak Voltage
P.V
The voltage exceeds the
measurement range
Peak Current
P.I
The current exceeds the
measurement range
Remote Error
Err-XXX
An error occurs in remote
command
Standard Display
Mode
Display the measurement result of 2 major and 6
minor measurement parameters
Simple Display
Mode
Display the measurement result of 4 major
measurement parameters
Secondary menus
Display secondary function menu
Enlarge
This function key is used to switch
display of measurement result from 2
major plus 6 minor to 4 major ones.
Integrator
This function key is used to set up
integrator measurement parameters
and execute integrator measurement
function.
Parameter
This function key is used to set up
measurement parameters.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1006 User Manual
20
System
This function key is used to enter the
system setting and system
configuration screens.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
