Teledyne T3PS12415 User manual

    




This manual contains proprietary information, which is protected by
copyrights. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Teledyne LeCroy company.
The information in this manual was correct at the time of printing.
However, Teledyne LeCroy continues to improve products and
reserves the rights to change specification, equipment, and
maintenance procedures at any time without notice.

SAFETY INSTRUCTION
3
Table of Contents
SAFETY INSTRUCTION .................................................... 4
OVERVIEW ...................................................................... 9
Main Features........................................................10
Model Differences .................................................10
Front Panel Overview .............................................11
CV/CC Crossover Characteristics ...........................13
Rear Panel Overview ..............................................14
Output Current/Temperature Characteristics .........16
SETUP ........................................................................... 17
Installation Location..............................................18
Power Up ...............................................................18
Over Voltage Protection Set Up .............................19
Load Cable Connection ..........................................20
Setting the Current Level .......................................22
Setting the Remote Control ...................................23
OPERATION .................................................................. 24
Constant Voltage Mode..........................................25
Using the Sense Terminals.....................................26
PERFORMANCE ADJUSTMENT ...................................... 27
APPENDIX ..................................................................... 33
Fuse Replacement..................................................33
Specification..........................................................34
INDEX ........................................................................... 36

T3PS1000 series User Manual
4
SAFETY INSTRUCTION
This chapter contains important safety
instructions that you must follow when operating
the T3PS power supply and when keeping it in
storage. Read the following before any operation
to insure your safety and to keep the power
supply in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the T3PS.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the power supply or to
other objects or property.
DANGER High Voltage
Attention: Refer to the Manual
Protective Conductor Terminal
Earth (Ground) Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
POWER
I Power On; connected to AC mains.
O Power Off; disconnected from AC mains.

SAFETY INSTRUCTION
5
Safety Guidelines
General Guideline
CAUTION
Do not place heavy objects on the power supply.
Avoid severe impact or rough handling that
may damage the power supply.
Avoid discharges of static electricity on or near
the power supply.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan vent.
The power supply should only be disassembled
by a qualified technician.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
T3PS falls under category II.
Measurement category IV is for measurement performed at the
source of a low-voltage installation.
Measurement category III is for measurement performed in a
building installation.
Measurement category II is for measurement performed on
circuits directly connected to a low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage: 115V / 230V ±15%
47 ~ 63Hz
Connect the protective grounding conductor of
the AC power cord to an earth ground
Fuse
WARNING
Fuse type: 115V input: T 10A 250V; 230V input:
T 6.3A 250V
To ensure fire protection, replace the fuse only
with the specified type and rating.
Disconnect the power cord before replacing the
fuse.
Make sure the cause of fuse blowout is fixed

T3PS1000 series User Manual
6
before replacing the fuse.
Cleaning the
power supply
Disconnect the power cord before cleaning the
power supply.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid
into the power supply.
Do not use chemicals containing harsh products
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: < 80%
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2010 specifies pollution degrees and
their requirements as follows. The power supply falls under degree
2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Relative Humidity: < 70%
Temperature: -10°C to 70°C
Select AC Voltage
CAUTION
Before powering up the power supply,
select the AC input voltage from the rear
panel.
115
AC LINE SELECT

SAFETY INSTRUCTION
7
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

T3PS1000 series User Manual
8
Power cord for the United Kingdom
When using the T3PS in the United Kingdom, make sure the power
cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with
the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with the
colours marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the
Earth terminal marked with the letter E or by the earth symbol or
coloured Green or Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, cable of
0.75mm2should be protected by a 3A or 5A fuse. Larger conductors
would normally require 13A types, depending on the connection
method used.
Any moulded mains connector that requires removal /replacement
must be destroyed by removal of any fuse & fuse carrier and disposed
of immediately, as a plug with bared wires is hazardous if a engaged in
live socket. Any re-wiring must be carried out in accordance with the
information detailed on this label.

OVERVIEW
9
OVERVIEW
This chapter describes the T3PS series of power
supplies, including their main features and front
/ rear panel introduction. After going through
the overview, follow the Setup chapter (page 17)
to properly power up and set operation
environment.
For initial inspection, refer to the Performance
adjustment chapter (page27).
Main Features ....................................................... 10
Model Differences................................................. 10
Front Panel Overview ............................................ 11
CV/CC Crossover Characteristics .......................... 13
Rear Panel Overview ............................................. 14
Output Current/Temperature Characteristics ........ 16

T3PS1000 series User Manual
10

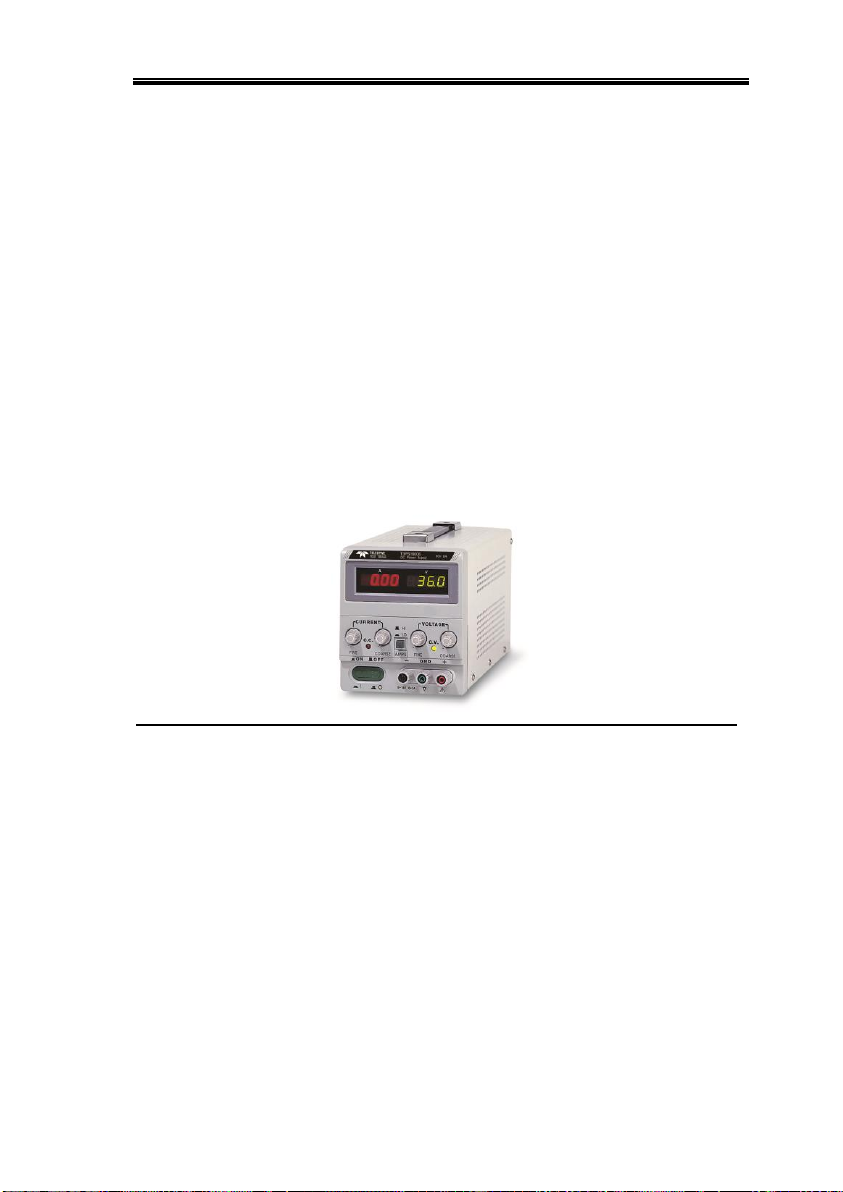

Main Features
Features
Broad input power range: For 115V (97~133V),
for 230V (195V~265V)
High frequency switching power
High power Density
High efficiency (70%)
Constant voltage and constant current operation
Remote output control (on/off)
Model Differences
Model name
Voltage
Current
Watts
T3PS11230
12V
30A
360
T3PS12415
24V
15A
360
T3PS16006
60V
6A
360

OVERVIEW
11

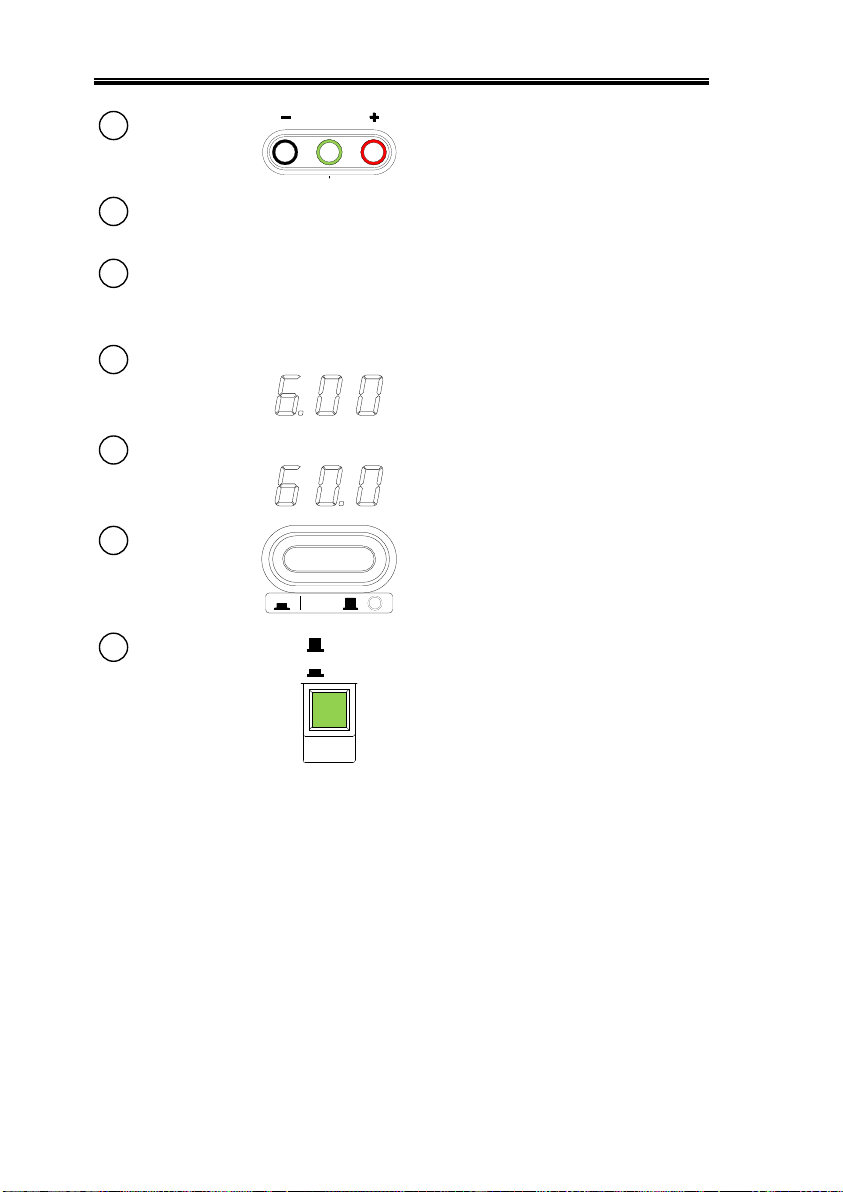

Front Panel Overview
60V 6A
T3PS16006
DC Power Supply
VA
C.V.
H
I
LO
FINE
GND
C.C.
COARSE
OFFON
AMPS
0~60V, 0~3A
COARSEFINE
POWER
1011
5
2
6 12 378913
1
4
CURRENT VOLTAGE
1
Constant
voltage
indicator
C.V.
The constant voltage indicator
lights up when the power supply
is in constant voltage mode.
2
Constant
current
indicator
C.C.
The constant current indicator
lights up when the power supply
is in constant current mode.
3
Course
current knob
CURRENT
C.C.
COARSEFINE
Used for coarse adjustment of the
current output.
4
Course
current knob
Used for fine adjustment of the
current output.
5
Course
voltage knob
VOLTAGE
C.V.
FINE COARSE
Used for coarse adjustment of the
voltage output.
6
Fine voltage
knob
Used for fine adjustment of the
voltage output.

T3PS1000 series User Manual
12
7
Positive
output
terminal
GND
Positive polarity terminal
8
Ground
terminal
Ground terminal
9
Negative
output
terminal
Negative polarity terminal
10
Current
Display
A
Displays the current output
11
Voltage display
V
Displays the voltage output
12
Power switch
POWER
13
Range selector
HI
AMPS
Selects high or low current range.

OVERVIEW
13

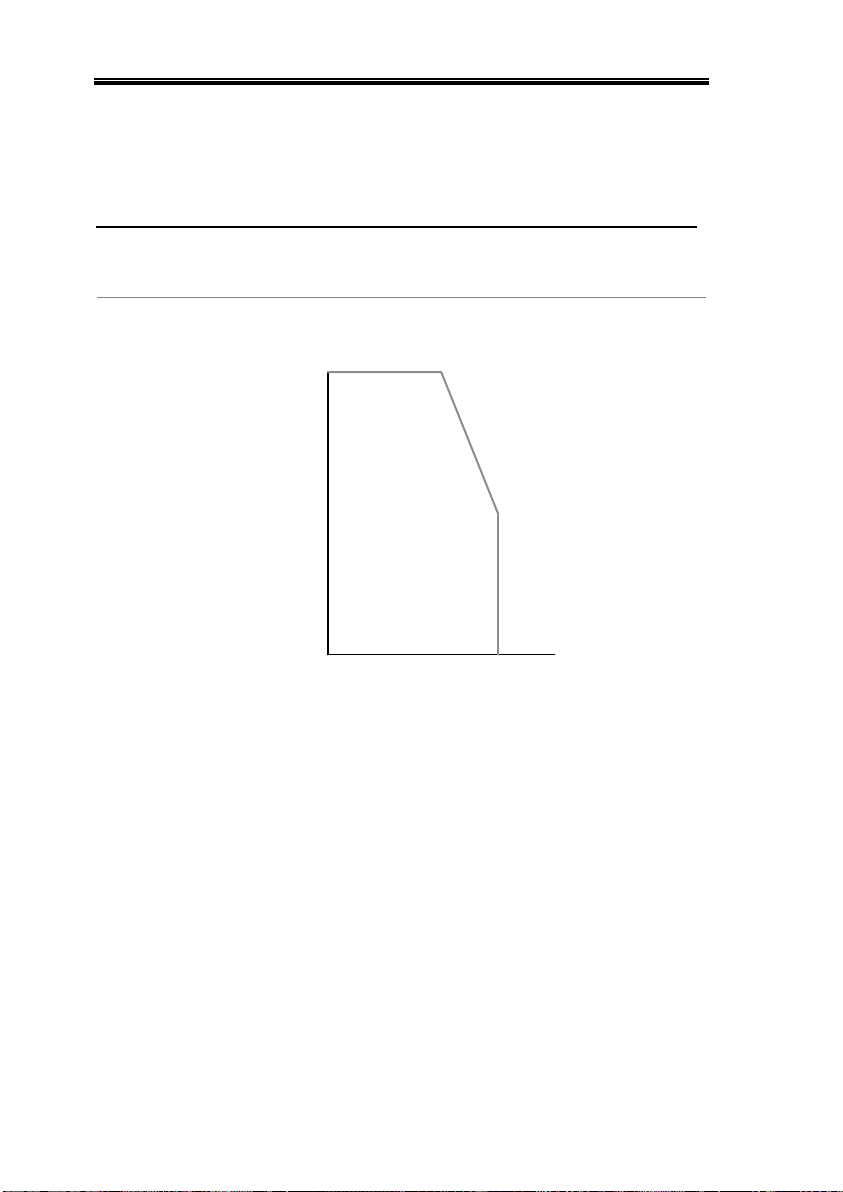

CV/CC Crossover Characteristics
Background
T3PS power supplies automatically switch
between constant voltage mode (CV) and constant
current mode (CC), according to the load
conditions.
When the current level is smaller than
the output setting, T3PS operates in
Constant Voltage mode. The C.V.
indicator on the front panel turns green.
The Voltage level is kept at the setting
and the Current level fluctuates
according to the load condition until it
reaches the output current setting.
C.V.
When the current level reaches the
output setting, T3PS starts operating in
Constant Current mode. The indicator
on the front panel turns red (C.C.) The
Current level is kept at the setting but
the Voltage level becomes lower than
the setting, in order to suppress the
output power level from overload.
When the current level becomes lower
than the setting, T3PS goes back to the
Constant Voltage mode.
C.C.
Diagram
Vmax
Imax
Constant
Voltage
Constant
Current
Vout
Iout

T3PS1000 series User Manual
14
Rear Panel Overview
14
Fuse holder
BEFORE REPLACING FUSE
DISCONNECT POWER CORD
115V input: T 10A 250V; 230V
input: T 6.3A 250V
15
Power Socket
16
AC line select
115
AC LINE SELECT
115V / 230V AC line select
17
Fan
18
S+ sense terminal
MS M S
A positive input voltage
remote sense terminal.
19
S- sense terminal
A negative input voltage
remote sense terminal.

OVERVIEW
15
20
Positive output
terminal
0 30AOUTPUT
GND
0 12V
21
Ground
22
Negative output
terminal
23
OVP adjuster
CONTROL
REMOTE
O.V.P
Overvoltage protection
adjustment
24
Remote control
terminal
Remote control jumper.
Open = Remote output off
Short = remote output on

T3PS1000 series User Manual
16
Output Current/Temperature Characteristics
Background
The chart below shows the current output
characteristics versus temperature.
Diagram
100%
50%
0%
0˚40˚60˚
Current
output (%)
Environtment
temperature (˚C)

SETUP
17
SETUP
This chapter describes how to properly power up
and configure T3PS before operation. For
checking the functionality, refer to the
Performance verification chapter, page 27.
Installation Location ............................................. 18
Power Up .............................................................. 18
Over Voltage Protection Set Up ............................. 19
Load Cable Connection ......................................... 20
Setting the Current Level ...................................... 22
Setting the Remote Control ................................... 23

T3PS1000 series User Manual
18
Installation Location
Ventilation and
cooling fan
clearance
Please ensure there is adequate ventilation and
that the cooling fan has enough clearance to allow
adequate airflow.
Power Up
Power On
Press the Power switch to
turn on the power. The
current and voltage
display will light up.
P
O
W
E
R
VA
Power Off
Press the Power switch
again to turn off the
power. After two
seconds, the meters and
indicators turn off.
P
O
WE
R

SETUP
19
Over Voltage Protection Set Up
OVP setup
Background
Over Voltage Protection (OVP) protects T3PS and
DUT from excessive output Voltage. The user sets
the maximum output voltage limit before
operation. When the output voltage exceeds this
limit, the output is shut off immediately.
1. With the machine off, turn
the voltage output to
maximum.
VOLTAGE
C.V.
FINE COARSE
2. Turn the OVP adjuster to
maximum (fully
clockwise)
O.V.P

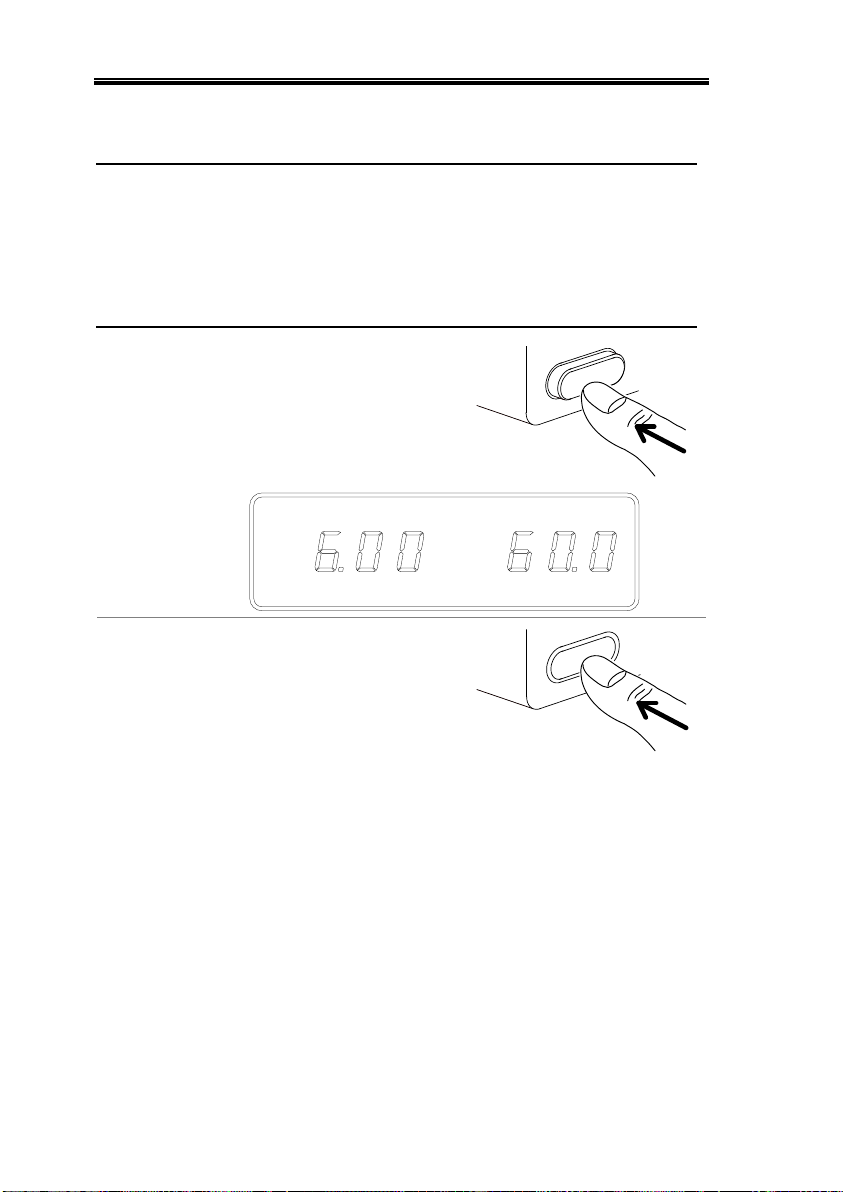

3. Turn on the T3PS.
4. Adjust the voltage output
to slightly above the
desired OVP level.
VOLTAGE
C.V.
FINE COARSE
5. Turn the OVP adjuster
until the voltage displayed
on the meter starts to
drop. This sets the OVP
level.
O.V.P
Setting range
5% rating to rating +5.5%.

T3PS1000 series User Manual
20
Note
Over voltage protection is always on and cannot be
disabled. The OVP voltage however, can be set to the
rating voltage +5.5%.
Load Cable Connection
Standard
accessory
Insert the plug into the
socket.
0~60
V
,0
~
3
A
G
ND
Test lead

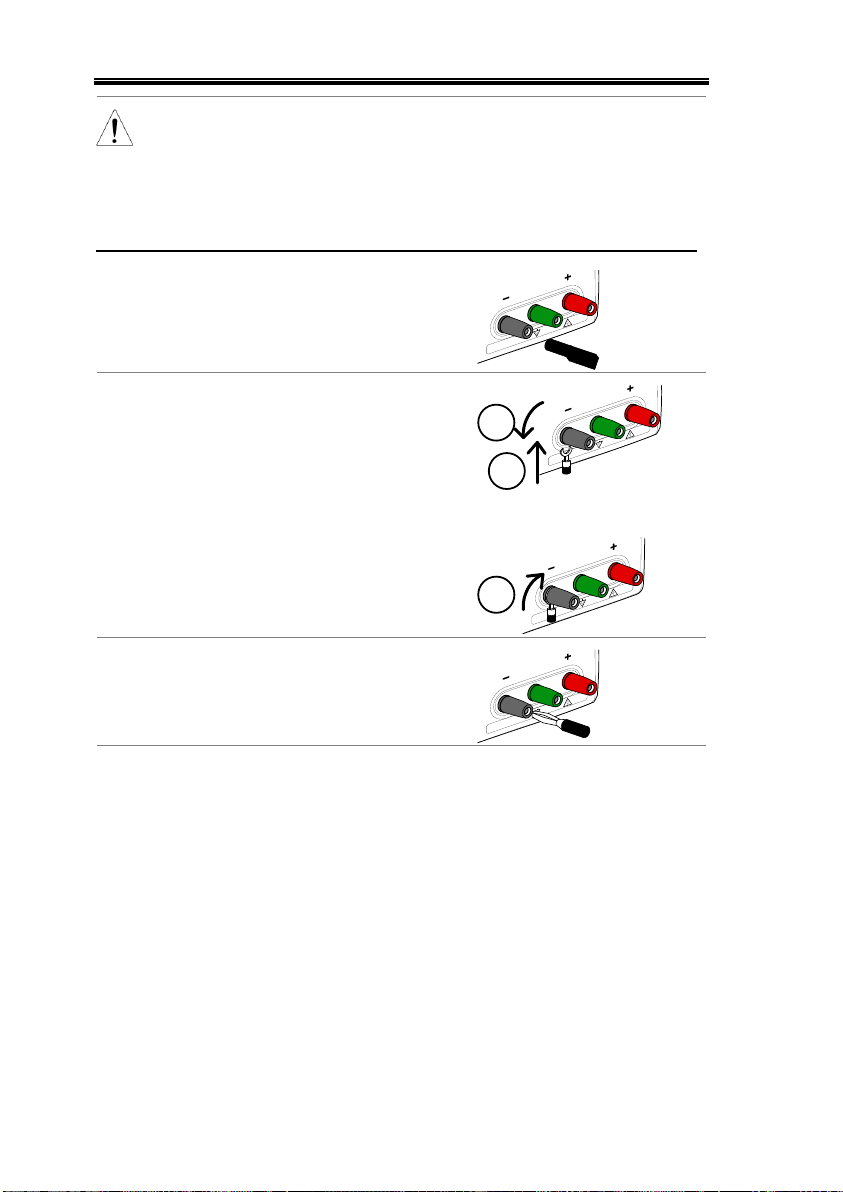

1. Turn the terminal
counterclockwise and
loose the screw.
2. Insert the cable
terminal.
0~
6
0
V,0~3A
G
ND
2
1
3. Turn the terminal
clockwise and tighten
the screw.
0
~
6
0V
,
0
~
3
A
GN
D
3
Banana plug
Insert the plug into the
socket.
0~60
V
,0
~
3
A
GND
Wire type
When using load cables other than the attached,
make sure they have enough current capacity for
minimizing cable loss and load line impedance.
Use the table below to choose an adequate test lead
for a given application.
