Teledyne T3PS40381P User manual

T3PS40381P, T3PS60251P,
T3PS062001P
Programmable DC Power Supplies
Quick Start Guide

This quick start guide contains proprietary information, which is
protected by copyright. All rights are reserved. No part of this manual
may be photocopied, reproduced or translated to another language
without prior written consent of Teledyne LeCroy company.
The information in this quick start guide was correct at the time of
printing. However, Teledyne LeCroy continues to improve products
and reserves the rights to change specification, equipment, and
maintenance procedures at any time without notice.

TABLE OF CONTENTS
3
Table of Contents
SAFETY INSTRUCTIONS .................................................. 4
GETTING STARTED.......................................................... 8
T3PS Series Overview .............................................. 8
Appearance ........................................................... 10
OPERATION .................................................................. 17
How to Use the Instrument ................................... 17
Reset to Factory Default Settings ........................... 19
APPENDIX ..................................................................... 20
T3PS Specifications ............................................... 20
CERTIFICATIONS ........................................................... 25
EMC Compliance ................................................... 25
Safety Compliance ................................................. 27
Environmental Compliance .................................... 28
RESTRICTION OF HAZARDOUS SUBSTANCES
(RoHS) .................................................................. 28

T3PS Quick Start Guide
4
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.

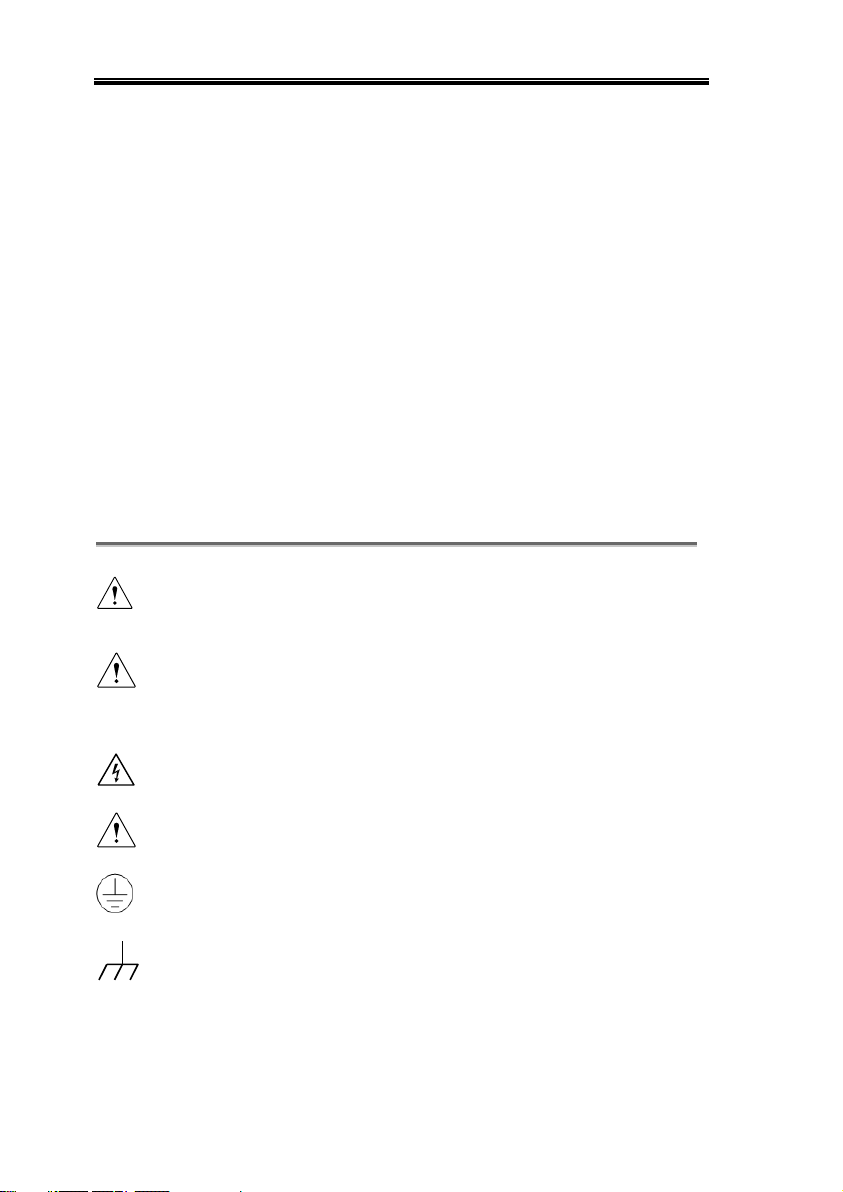

Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the T3PS or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

SAFETY INSTRUCTIONS
5
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the T3PS.
Avoid severe impact or rough handling that
leads to damaging the T3PS.
Do not discharge static electricity to the T3PS.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not disassemble the T3PS unless you are
qualified.
(Measurement categories) EN61010-1:2010 and EN61010-2-030
specifies the measurement categories and their requirements as
follows. The T3PS falls under category II.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
0 is for measurements performed on circuits not directly
connected to Mains.
Power Supply
WARNING
AC Input voltage range: 85Vac-265Vac
Input Power 2000 VA (Max)
Frequency: 47Hz to 63Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.

T3PS Quick Start Guide
6
Use proper power cord.
Maintain ground. The AC inlet ground is
connected to the frame of the instrument. Connect
line cords only to outlets with safety ground
contacts.
WARNING
Interrupting the protective conductor (safety ground
wire) inside or outside the instrument, or
disconnecting the safety ground terminal, creates a
hazardous situation. Intentional interruption is
prohibited.
Cleaning the
T3PS
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: 20%- 85% (no condensation)
Altitude: < 2000m
Temperature: 0°C to 50°C
(Pollution Degree) EN61010-1:2010 and EN61010-2-030 specifies
the pollution degrees and their requirements as follows. The T3PS
falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.

SAFETY INSTRUCTIONS
7
Storage
environment
Location: Indoor
Temperature: -25°C to 70°C
Relative Humidity: ≤90%(no condensation)
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

T3PS Quick Start Guide
8
GETTING STARTED
This chapter describes the power supply,
including its main features and front /rear panel
introduction. After going through the overview,
please read the theory of operation to become
familiar with the operating modes, protection
modes and other safety considerations.
T3PS Series Overview
Series lineup
The T3PS series consists of 3 models, covering a number of
different current, voltage and power capacities:
Model name
Voltage Rating1
Current Rating2
Power
T3PS062001P
6V
200A
1200W
T3PS40381P
40V
38A
1520W
T3PS60251P
60V
25A
1500W
1Minimum voltage guaranteed to 0.2% of rating voltage.
2Minimum current guaranteed to 0.4% of rating current.

GETTING STARTED
9
Main Features
Performance
High power density: 1500W in 1U
Universal input voltage 85-265Vac, continuous
operation.
Output voltage up to 60V, current up to 200A.
Features
Active power factor correction.
Parallel master/slave operation with active
current sharing.
Remote sensing to compensate for voltage drop
in load leads.
19" rack mounted ATE applications.
OVP, OCP and OHP protection.
Preset memory function.
Adjustable voltage and current slew rates.
Bleeder circuit ON/OFF setting.
CV, CC priority start function. (Prevents
overshoot with output ON)
Interface
Built-in RS-232/485, LAN and USB interface.
Analog output programming and monitoring.

T3PS Quick Start Guide
10
Appearance
Front Panel
Lock/Local PROT Function Test Set Output
Unlock ALM_CLR M1 M2 M3
Shift
: Long Push
VSR LAN RMT ERR DLY ALM ISR M1 M2 M3 RUN
C C
A
C V
V
VOLTAGE CURRENT
Voltage Current
2 3 4 5
Display Area
1
116 7 8 9 10 12 13
1.
Power Switch
Used to turn the power on/off.
2.
USB A Port
USB A port for data transfer,
loading test scripts etc.
3.
Air Inlet
Air inlet for cooling the inside of
the T3PS series.
4.
Voltage Knob
Voltage
Used to set the voltage value or
select a parameter number in the
Function settings.
Display Area
The display area shows setting values, output
values and parameter settings. The function LEDs
below show the current status and mode of the
power supply. See page 13 for details.
5.
Current Knob
Current
Used to set the current value or
change the value of a Function
parameter.

GETTING STARTED
11
6.
Lock/Local
Button
Lock/Local
Unlock
Used to lock all front panel
buttons other than the Output
Button or it switches to local
mode.
Unlock
Button
(Long push) Used to unlock the
front panel buttons.
7.
PROT Button
PROT
ALM_CLR
Used to set and display OVP, OCP
and UVL.
ALM_CLR
Button
(Long push) Used to release
protection functions that have
been activated.
8.
Function
Button
Function
M1
Used to configure the various
functions.
M1 Button
(+Shift) Used to recall the M1
setup.
(+Shift and hold) Used to save the
current setup to M1.
9.
Test Button
TEST
M2
Used to run customized scripts for
testing.
M2 Button
(+Shift) Used to recall the M2
setup.
(+Shift and hold) Used to save the
current setup to M2.
10.
Set Button
SET
M3
Used to set and confirm the output
voltage and output current.
M3 Button
(+Shift) Used to recall the M3
setup.
(+Shift and hold) Used to save the
current setup to M3.

T3PS Quick Start Guide
12
11.
Shift Button
Shift
Used to enable the functions that
are written in blue characters
below certain buttons.
12.
Output
Button
Output
Used to turn the output on or off.
13.
Output ON
LED
Lights in green when the output is
on.

GETTING STARTED
13
Display and Operation Panel
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C C
A
C V
V
VOLTAGE CURRENT
Display Area
14 1516 17
18 19 20 21 22 23 24 25 26 27
14.
Voltage
Meter
Displays the voltage or the parameter number of a
Function parameter.
15.
Current
Meter
Displays the current or the value of a Function
parameter.
16.
CV LED
Lights in green during constant voltage mode.
17.
CC LED
Lights in green during constant current mode.
18.
VSR LED
Lights up when CV Slew Rate Priority is enabled.
19.
LAN LED
Lights up when the LAN interface is connected.
20.
RMT LED
Lights in green during remote control.
21.
ERR LED
Lights in red when an error has occurred.
22.
DLY LED
The Output On/Off Delay indicator LED.
23.
ALM LED
Lights in red when a protection function has been
activated.

T3PS Quick Start Guide
14
24.
ISR LED
Lights up when CC Slew Rate Priority is enabled.
25.
M1 LED
Lights in green when the memory value are being
recalled or saved.
26.
M2 LED
Lights in green when the memory value are being
recalled or saved.
27.
M3 LED
Lights in green when the memory value are being
recalled or saved.
Note
Only the ERR and ALM LED’s are red. All the
others are green.

GETTING STARTED
15

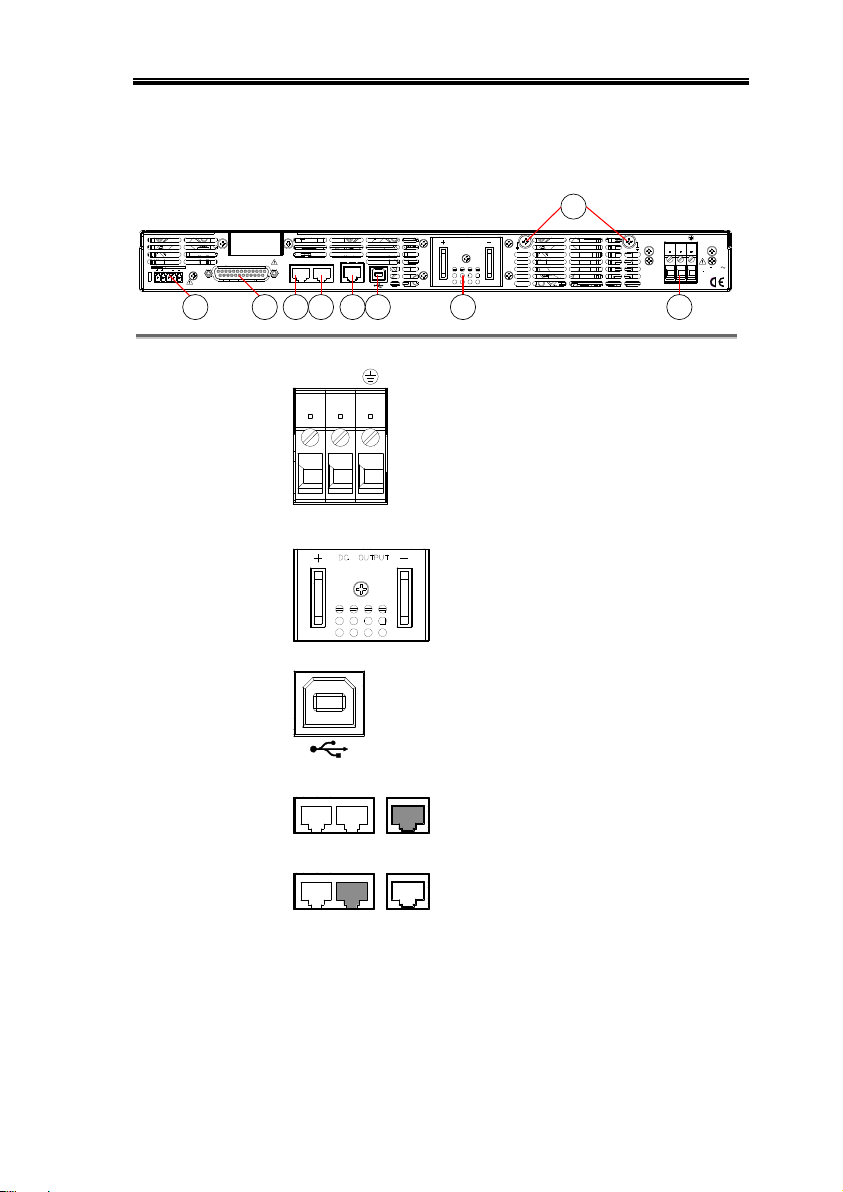

Rear Panel
S LS SLSNC
REMOTE SENSE
ANALOG PROGRAMMING RS485 / 232
OUT IN
LAN
DC OUTPUT
AC INPUT
L N
100 240V
2000VA MAX.
AC
47 63Hz
234 15678
9
1.
AC Input
L N
AC INPUT
Wire clamp connector.
2.
DC Output
Output terminals for 6V to 60V
models.
3.
USB
USB port for controlling the T3PS
remotely.
4.
LAN
LAN
RS 485 / 232
Ethernet port for controlling the
T3PS remotely.
5.
Remote-IN
LAN
RS 485 / 232
Two different types of cables can
be used for RS232 or RS485-based
remote control.
RS232 support via user supplied
cable with DB9 / RJ45 connectors
wired according to the table on
page 124 of the T3PS user manual.

T3PS Quick Start Guide
16
RS485 support via user supplied
cable with DB9 / RJ45 connectors
wired according to the table on
page 124 of the T3PS user manual.
6.
Remote-OUT
LAN
RS 485 / 232
RJ-45 connector that is used to
daisy chain power supplies with
the Remote-IN port to form a
communication bus.
Serial link cable with RJ45
shielded connectors wired
according to the table on page 129
of the T3PS user manual.
7.
Analog
Control
ANALOG PROGRAMMING
External analog control connector.
8.
Remote
Sense
S LS SLSNC
Compensation of load wire drop.
9.
Ground
Screw
Connectors for grounding the output (two
positions, shown in red).
L N
AC INPUT
100 240V
2000VA MAX.
AC
47 63Hz

OPERATION
17
OPERATION
How to Use the Instrument
Background
The T3PS power supplies use a novel method of
configuring parameter values only using the
voltage or current knobs. The knobs are used to
quickly edit parameter values at 0.01, 0.1 or 1 unit
steps at a time.
When the user manual says to set a value or
parameter, use the steps below.
Example
Use the Voltage knob to set a voltage of 10.05
volts.
1. Repeatedly press the Voltage knob
until the least significant digit is
highlighted. This will allow the
voltage to be edited in 0.01 volt
steps.
2. Turn the Voltage knob till 0.05
volts is shown on the voltage
display.
Voltage
Voltage
AV
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C

T3PS Quick Start Guide
18
3. Repeatedly press the Voltage knob until the
most significant digit is highlighted. This will
allow the voltage to be edited in 1 volt steps.
4. Turn the Voltage knob until 10.05 is shown.
AV
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
Note
Notice the Set key becomes illuminated when setting
the current or voltage.
If the voltage or current knobs are unresponsive,
press the Set key first.

OPERATION
19
Reset to Factory Default Settings
Background
The F-88 configuration setting allows the T3PS to
be reset back to the factory default settings.
Steps
1. Press the Function key. The
Function key will light up.
Function
2. The display should show F-01 on the top and
the configuration setting for F-01 on the
bottom.
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
3. Rotate the Voltage knob to change
the F setting to F-88 (Factory Set
Value).
Voltage
4. Use the Current knob to set the
F-88 setting to 1 (Return to factory
default settings).
Current
5. Press the Voltage knob to confirm.
ConF will be displayed when it is
configuring.
Voltage
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
6. Press the Function key again to
exit. The Function key light will
turn off.
Function

T3PS Quick Start Guide
20
APPENDIX
T3PS Specifications
The specifications apply when the T3PS is powered on for at least
30 minutes.
Output
Model
T3PS062001P
T3PS40381P
T3PS60251P
Rated Output Voltage*1
V
6
40
60
Rated Output Current*2
A
200
38
25
Rated Output Power
W
1200
1520
1500
Constant Voltage Mode
Model
T3PS062001P
T3PS40381P
T3PS60251P
Line regulation*3
mV
2.6
6
8
Load regulation*4
mV
2.6
6
8
Ripple and noise*5
p-p*6
mV
60
60
60
r.m.s.*7
mV
8
8
8
Temperature coefficient
ppm/ °C
100ppm/°C of rated output voltage, after a
30 minute warm-up.
Remote sense
compensation voltage
(single wire)
V
1
2
3
Rise time*8
Rated load
ms
80
80
80
No load
ms
80
80
80
Fall time*9
Rated load
ms
10
80
80
No load
ms
500
1000
1100
Transient response
time*10
ms
1.5
1
1
