Televic Confidea Instruction Manual

confidea
Installation & User manual

Attention:
This manual for Wireless Confidea System 3.0 is
valid only for all
WCAP+ firmware version ≥1.06
WCAP fpga version ≥1.06
WDU+ firmware version ≥1.06
WCAP+ 71.98.0033
Cocon ≥3.02

01
General information
1Copyright Statement 4
2Trademarks 5

4
1Copyright Statement
No part of this publication or documentation accompanying this product may be reproduced
in any form or by any means or used to make any derivative such as translation, transformation,
or adaptation without the prior written permission of the publisher, except in case of brief
quotations embodied in critical articles or reviews. Contents are subject to change without prior
notice.
Copyright© 2008 by Televic Conference NV. All rights reserved.
The authors of this manual have made every effort in the preparation of this book to ensure
the accuracy of the information. However, the information in this manual is supplied without
warranty, either express or implied. Neither the authors, Televic Conference NV, nor its dealers
or distributors will be held liable for any damages caused or alleged to be caused either directly
or indirectly by this book.

2Trademarks
5
2Trademarks
All terms mentioned in this manual that are known to be trademarks or service marks have
been appropriately capitalized. Televic NV cannot attest to the accuracy of this information. Use
of a term in this book should not be regarded as affecting the validity of any trademark or service
mark.

6
3Contents
1Copyright Statement 4
2Trademarks 5
4How to connect 9
4.1 Power up 9
4.2 Accessing the web-browser 9
4.3 Login wizard 9
4.4 Introduction 9
First time access 9
4.5 Return to factory settings 12
5Web server 13
5.1 Compatibility 14
The webserver is compatible with various types of mobile and desktop devices 14
5.2 Navigating through the webserver 15
5.3 Changing IP address 16
5.4 Initialization 18
5.4.1 Controlled Access 18
5.5 Unit Manager 19
5.5.1 Define groups 20
5.5.2 Define delegate names and assign to group 20
5.5.3 Remove delegate 21
5.5.4 Visualize delegate names or numbers in unit manager 21
5.6 Unit monitoring 22
5.7 Activating microphones 22
5.7.1 Disconnected units 23
5.8 Conference options 23
5.8.1 Max active microphones 23
5.8.2 Microphone modes 23
5.8.3 Last microphone remains on 25
5.8.4 Microphone preset 25
5.8.5 Loudpseaker volume 26
5.9 AUX Control 26

2Trademarks
7
5.9.1 AUX In/out 26
5.9.2 General Aux settings - Audio routing 26
5.10 Regional settings 28
5.11 Security 28
5.12 Check firmware versions of delegate units 29
5.13 Check firmware versions of WCAP 30
5.14 Update 30
5.14.1 WCAP update 31
5.14.2 Update delegate units 33
6Frequency selection 34
6.1 Check already used frequencies by other Confidea G3 systems 34
6.2 Selecting own frequencies 34
6.3 The current used frequency 35
6.4 Frequencies used by other Confidea G3 systems 35
6.5 Other indications 35
6.5.1 Signal quality 35
6.5.2 Sorting frequencies 35
7Message screen 36
8Guidelines on optimal WCAP setup and configuration 37
8.1 Positioning the Confidea Wireless Access Point 37
8.2 Optimizing the position the antennas 38
8.3 Max range of WCAP 39
9Frequency Planning 39
9.1 Use with WiFi base stations nearby 39
9.2 Avoiding interference b.m.o. wifi collection points 40
10 Adding Cocon license to the WCAP 40
10.1 Introduction 40
10.2 Get the MAC address of your central equipment 40
10.3 Upload your license file 41
11 Appendix 42
11.1 Use of camera control feature 42
11.1.1 Overview 42
11.1.2 Connectivity 43
11.1.3 Commands for Confidea Gen III camera protocol 43

8
11.2 Floor and interpretation channels audio coupling between WCAP G3 and Plixus
Engine 44
11.2.1 General description 44
11.2.2 Connectivity 45
11.2.3 Restrictions : 45

02
4How to connect
4.1 Power up
After applying the 24V adapter to the power supply socket and switching the device on, the
first LED blinks white. This means the system is booting.
Note: If the LED does not switch to green after some minutes or it turns red, please contact
your support team.
4.2 Accessing the web-browser
To access the web-browser connect the LAN connector directly to your computer or to the
LAN network which includes your computer.
The default IP address is 192.168.1.110. Please make sure that your PC has an IP address
and subnet mask that can access that IP address.
4.3 Login wizard
When you enter the web-browser for the first time you will be guided through a small wizard
for initial setup of the system.
4.4 Introduction
The WCAP has a built-in web server that allows you to set/monitor certain parameters
characterizing the wireless conference system.
The following is a step-by-step guide to give you a general idea of how to access your WCAP.
First time access
STEP 1 –PC IP setup
In order to access the built-in web server for the first time, the TCP IP settings from the PC
or MAC must be modified. A fixed IP address has to be set. Therefore follow the instructions
below.
Note:
The WCAP has a default fixed IP address and subnet mask:
IP: 192.168.1.110
Subnet mask: 255.255.255.0

10

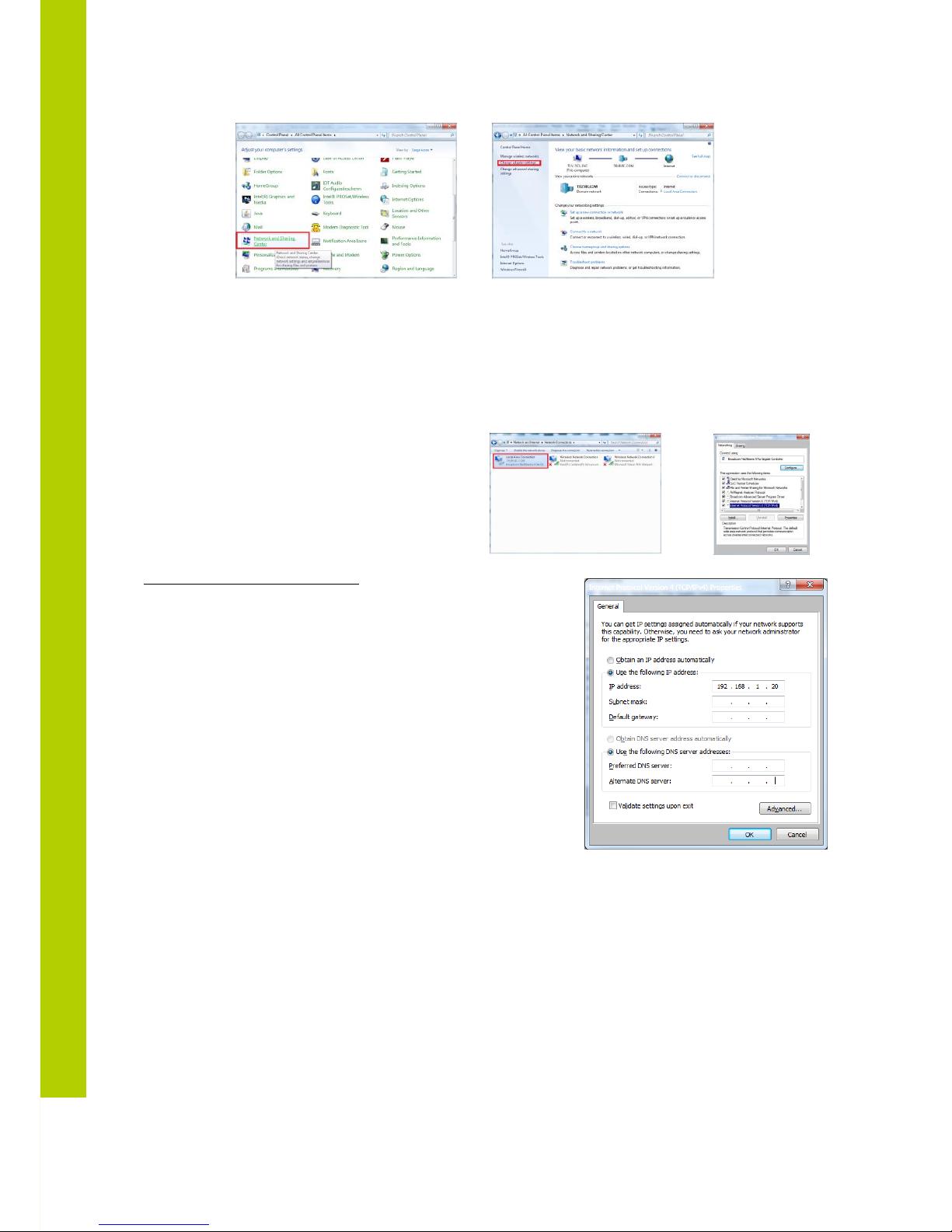

-Go to the ‘ Control Panel’
-Click on Network and sharing center
-Click on Change adapter settings
-Right-click on Local Area Connection
-Double on Properties
-Click on Internet Protocol (TCP/IP)
-Click Properties
Static IP address WINDOWS 7
-Input your IP Address and subnet mask the IP addresses
on the network must be within the same range.
-The default IP address from the WCAP is 192.168.1.110
so the computer should have an IP Address that is within
the same subnet, like 192.168.1.11 and 192.168.1.20. The
subnet mask must be the same for all equipment on the
network: 255.255.255.0)
-Click OK

4How to connect
11

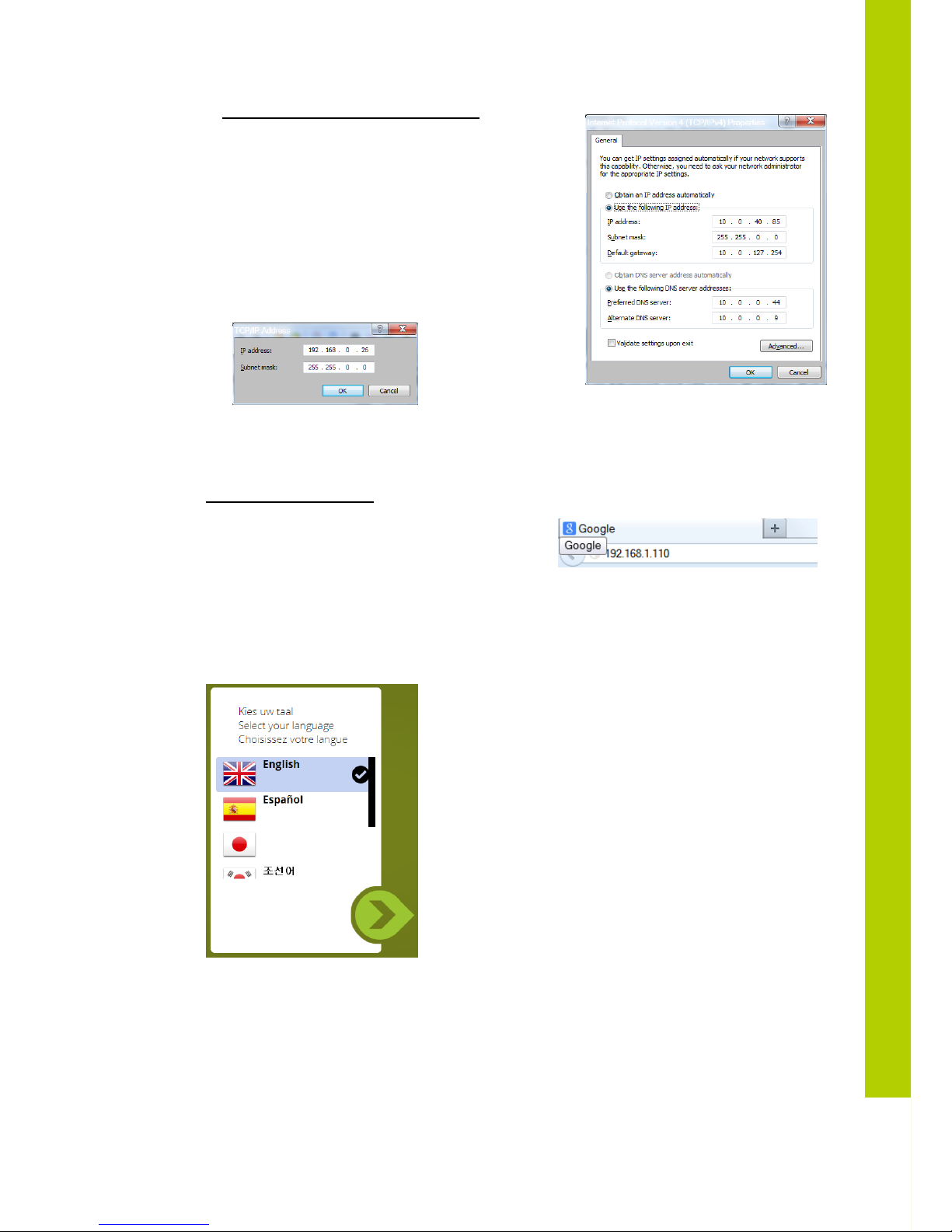

Assigning a fixed IP Address in WINDOWS 7
-Enter the IP Settings op the PC
-In this example the PC has normally “10.0.40.85” as IP
address.
-Click on Advanced and add a new IP address that is in the
range of the access point, for example 192.168.0.26 and
subnet mask 255.255.0.0
-Click to add
-Click OK
STEP 2 - Accessing WCAP
Open Internet Explorer or any other browser
(with the computer connected to the WCAP)
Enter 192.168.1.110 or wcap3.local into the Address Bar, press Enter
A wizard will guide you through the initial system setup:
-Choose your language
-Then you can choose to be notified when updates are available. This requires that the WCAP has
a connection to the internet.

12
-In the next item you have to fill in a hostname. This is a name which can be associated with the
device for easy recognition in the system. Also when you have multiple WCAPs running
simultaneously, you will be able to identify which frequencies are used by which hosts
-After you’ve completed the wizard you need to login. The default login and password are
Login: admin
Password: admin
4.5 Return to factory settings
If the ip address is not known then a return to factory settings (default ip address) is possible by
pressing the reset button next to the middle antenna , during 10 sec , and release the button .
Following screens will appear while pushing reset button and wait until the circle is completed

5Web server
13
when releasing reset button…
5Web server

14
5.1 Compatibility
The webserver is compatible with various types of mobile and desktop devices
Remark: some security SW types installed on PCs may block the webservers functionality .

5Web server
15

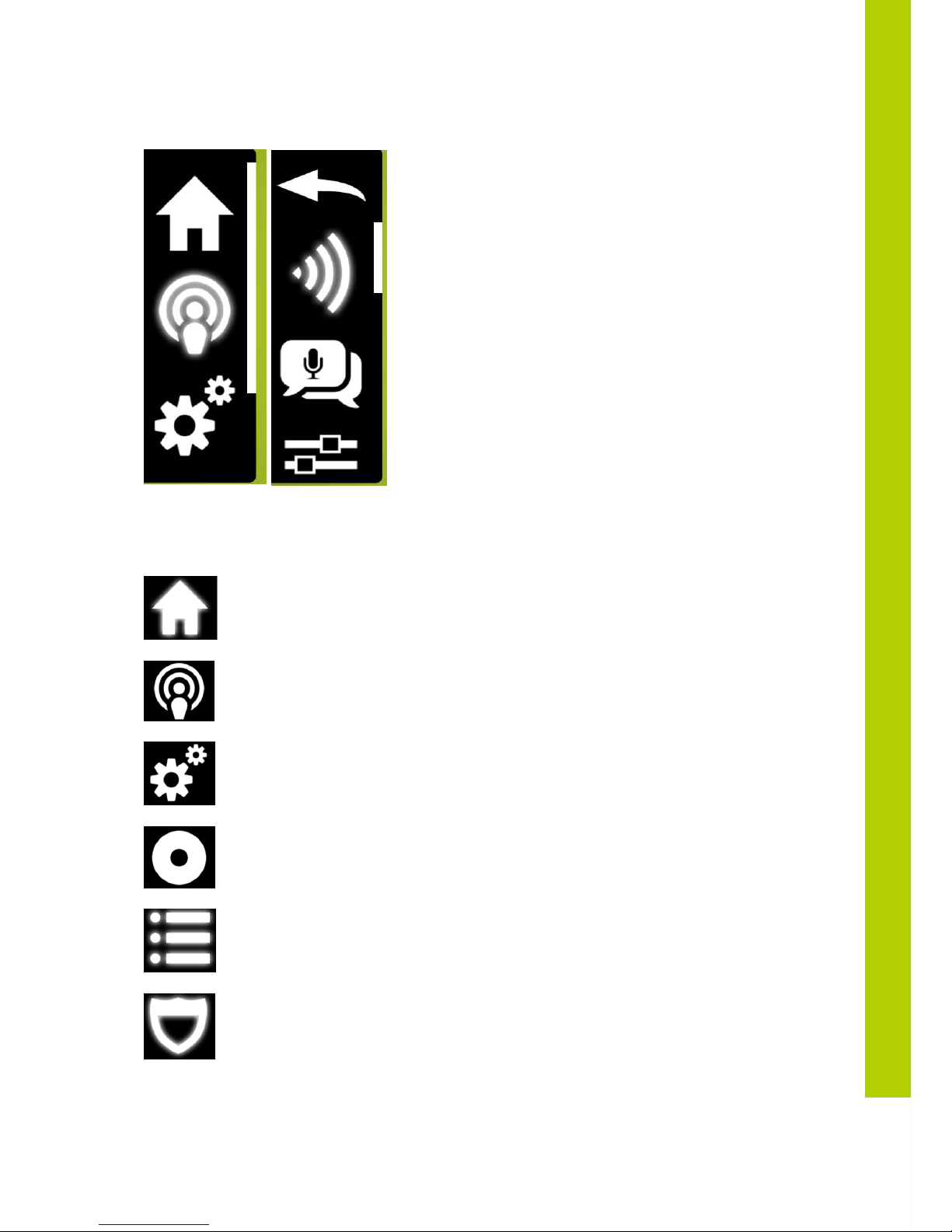

5.2 Navigating through the webserver
Click on either of the available icons and navigate through the menu b.m.o. the scrollbar
After entering a submenu , use the arrow to go back to the main menu
=> home button
=> unit monitoring menu
=> settings menu
=> initialization menu
=> delegate unit manager
=> security settings

16
=> frequency settings
=> conference options
=> Aux control
=> regional settings
=> network settings
=> login settings
=> update screen
=>message screen
=> system information

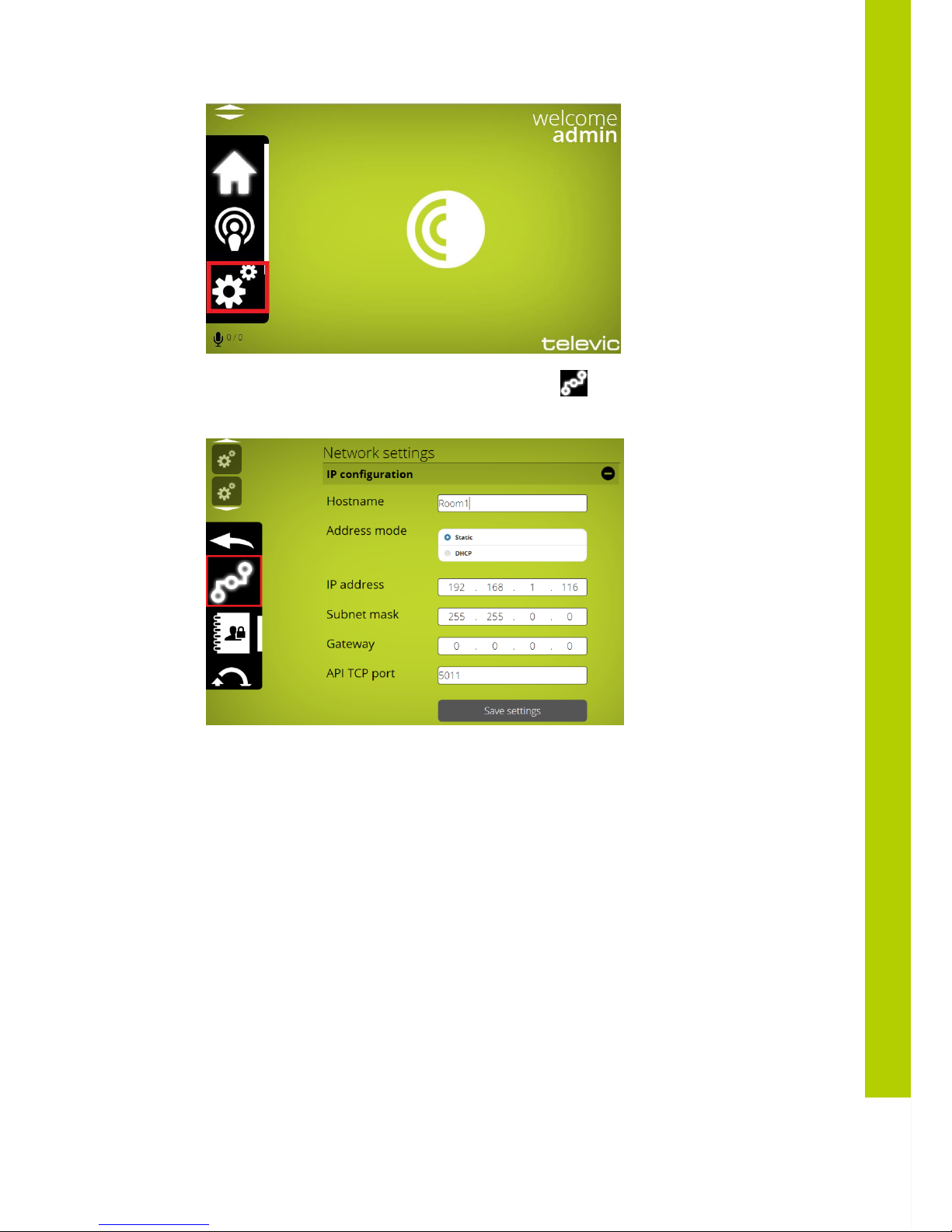

5.3 Changing IP address
First we will change the IP address of the system. To do this you have to go to the settings.
This can be done by clicking the settings icon.

5Web server
17
Then scroll all the way down until you see the following icon which indicates the
network settings.
In this menu you define:
-Hostname
-Address mode (Static –DHCP)
Static: in this mode the IP address and subnet mask is fixed and must be provided in the
appropriate fields.
DHCP: DHCP stands for Dynamic Host Configuration Protocol and is a protocol used by the WCAP
to obtain the parameters necessary for operation in an Internet Protocol network automatically.
This protocol reduces system administration workload, allowing the WCAP to be added to the
network with little or no manual configuration.
There must be a DHCP server on the network that dynamically assigns IP addresses when using
the DHCP setting.
-IP address
Here you can enter the desired fixed IP address. Only applicable in fixed IP address mode.
-Subnet mask
-Gateway setting

18
We advise to change the IP address. This will prevent conflicts when multiple access points
with the same IP address are in the network.
5.4 Initialization
In stand-alone mode, the WCAP supports two kinds of access: open access and controlled
access.
-Open access: This is the default mode. Any unit can connect to the WCAP without
initialization procedure
-Controlled access: a unit can only connect after going through an initialization procedure.
5.4.1 Controlled Access
In this mode, a manual initialization is required.
The manual initialization procedure requires the use of the 3 buttons on the web server
displayed above: “Open init”, “Close init” and “Clear init”.
Take the following steps to initialize all units:
1) Switch on all wireless units
2) As long as no WCAP was discovered , the mic leds wil flash green slowly

5Web server
19
3) When the units have discovered the WCAP. This is indicated by both mic leds blinking
red slowly
4) Select the “Clear Init”, to clear any previously created initialization list.
5) Start the new initialization by selecting the “Open Init” button.
After you started the new initialization, the red Microphone Status LED’s on all wireless
units will start to blink red .
Mic leds blinking red at a rate of 2Hz is an indication that the units are trying to connect
to the Wcap
Mic leds blinking red at a rate of 1Hz is an indication that the units are waiting for the
initialization
6) To add a unit to the initialization list, press the microphone button of the unit to add.
7) The LEDs will turn green indicating that the unit has been added to the initialization list.
8) Repeat step 5 for each unit that needs to be added.
9) When finished, stop and save the initialization by pressing the “Close init” button,
Only the units that have been initialized will now be able to join the conference.
The init list is stored in the WCAP and stays in memory even after switching the WCAP off.
Next time the WCAP and delegate units are switched on, only these units will be allowed to
connect to the WCAP.
5.5 Unit Manager
The unit manager allows to:
-Define delegate names
-Define groups
As you can see there are two main parts, the left column is the list of delegates; the right
column is the list of groups. Each delegate shows an array of information, from left to right:

20
-Autonomy
-Version
-Serial number
-Packet loss (if any)
In rare cases it may appear that the delegates background is red, this means the delegate is
running a golden version. Although this works, we strongly advice to reapply the update so that
these units can be used to their full potential.
5.5.1 Define groups
A group is defined by two parameters:
-Group name
-Group color
You can make a new group by clicking on the “Add new group” button.
Add a group name and select (optionally) a group color. Press enter to save the group.
Editing the group can be done by right-clicking (or swiping) on the group entry. A small popup
appears to edit or remove the group.
5.5.2 Define delegate names and assign to group
Right-click (or swipe) on the delegate you want to group. A small popup appears, click on
edit.
