Tenmars TM-6001 User manual

TM-6001
Battery Impedance Tester
User’s Manual
HB2TM6001M00

Contents:
1 Features............................................................1
2 Accessories.......................................................1
3 Safety Precaution..............................................2
4 Meter Description..............................................4
5 General specifications.......................................8
6 Electrical specifications: ....................................9
7 Operation:.......................................................12
7.1 Clock setup................................................15
7.2 Comparator Settings ..................................15
7.3 DC Current (DCA) measurement................20
7.4 Temperature measurement(K-TYPE).........21
7.5 DATA HOLD and Back light function..........22
7.6 Auto Hold and Auto Recording function......22
7.7 Manual data logging mode and Clear data
logger memory...........................................22
7.8 Fuse replacement ......................................23
7.9 Auto power off setup ..................................24
8. Battery Replacement.......................................25
9. External DC Power..........................................25
10. Software installation........................................26
11. End of Life Disposal ........................................29

TM-6001
1
1 Features
1. The Battery Tester is designed for measuring the
internal impedance and open circuit voltage of the
secondary battery including Nickel-metal hydride
battery ( NiMH),Nickel-cadmium
battery(NiCd),Lithium-ion battery(Li-ion), Alkaline
battery and lead-Acid battery.
2. AC four-terminal method to measure the internal
impedance by eliminating lead impedance and
contact impedance to get the accurate results.
3. Multi-display to show the internal impedance, voltage
and clock of the battery simultaneously.
4. It has 99 sets of composite comparator function,
which can be set at impedance and voltage values
to get the reliable detection of battery
deterioration.
5. Pin type leads, which can easily contact the battery
electrodes supplied as standard to get more
accurate 4-terminal measurement.
2 Accessories
.
1
Meter
1 User’s Manual
1 Kevin Clip type leads with temperature sensor
1 Pin type leads
1 AC100~240V 9V/1A switching transformer
6
1.5 V
–
LR6
–
AA
–
AM3
–
MN 1500.
1 Carrying Case
1
USB cable
1 Installation CD

TM-6001
2
3 Safety Precaution
CAUTION
Take extreme care for the following
conditions while measuring.
1. Measuring voltage over 20V as it may cause
human body electricity conduction.
2. Do not measure voltage, current under humid or
wet environment. If any unusual condition of test
leads’ send
3. (Metal part). And attachment of the meter, such as
breakage, deformation, fracture, foreign
substance, No display, etc., do not conduct any
measuring.
4. Do not contact any exposed metal (conductive)
parts, such as end of test lead, jack, fixing object,
circuit etc,.
5. Keep you insulated from the object waiting for
measuring.
6. Do not operate the meter under the environment
with explosive gas
7. (material), combustible gas (material) steam or
filled with dust.
8. In order to avoid reading incorrect data, you have
to replace the batteries immediately when the
symbol BAT appears on the LCD.
9. In order to avoid the damage caused by contamination
and static electricity, do not touch the circuit board before
you take any adequate action.

TM-6001
3
Symbols Description
Caution
Danger high Voltage：risk of electric shock
Meter Double insulated
AC Voltage or Current
AC Voltage or Current
:
Ground
FUSE

TM-6001
4
4 Meter Description

TM-6001
5
FIG (1)
1. LCD display..
2. key ：Comparator function.
3. key ：To delete single data logged reading in
the memory and settings date/time.
4. key ：To show the data logged readings..
5. key ：For recording the displayed values.
6. key ：Select the impedance range. (4mΩ,
40mΩ,400mΩ, 4Ω, 40Ω,400Ω)

TM-6001
6

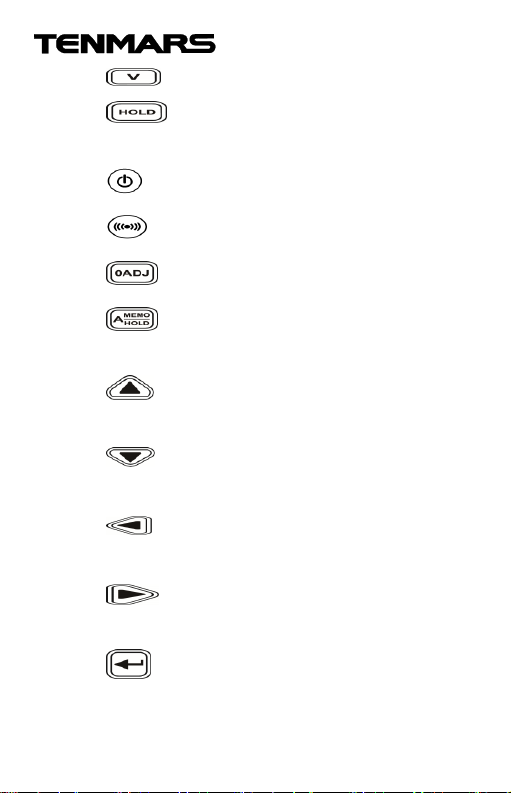

7. key ：Select the voltage range. (6V, 60V).
8. key ：Hold or disable -hold function for the
displayed values.
9. key ：Power ON/OFF.
10. key ：Turn the beeper on or off
11. key ：For implementing the zero-adjust feature.
12. key ：Select the auto-hold and auto-memory
feature.
13. key ：For configuration settings to increase
values.
14. key ：For configuration settings to decrease
values.
15. key ：For configuration settings to left changing
digit.
16. key ：For configuration settings to right
changing digit.
17. key ：To set the configuration with entering
values.
18. SOURCE＋input jack：For connecting with the red test

TM-6001
7
lead plug.
19. SOURCE－input jack：For connecting with the back
test lead plug.
20. SENSE＋input jack：For connecting with the yellow test
lead plug.
21. SENSE－input jack：For connecting with the blue test
lead plug.
22. TEMPSENSOR input jack：For connecting the plug of
the temperature sensor.
23. DCA＋input jack：For connecting with the red test lead
plug to current probe.
24. DCA－input jack：For connecting with the back test
lead plug to current probe.
25. K-TYPE＋input jack：For connecting the external T10
adapter and K-type＋probe.
26. K-TYPE- input jack：For connecting the external T10
adapter and K-type – probe.
27. Ratings and type of fuse：0.5A/250V 5ψ×20mm FAST
MIN INTERRUPT RATINGS.1500A.
28. USB interface：Used for connecting the USB cable.
29. DC input jack：Used for connecting the external power
DC 9V input.

TM-6001
8
5 General specifications
Measuring method：Impedance (AC four-terminal
method).
A/D conversion: Dual slope method.
Display：LCD display and LEDs (comparator output).
Sampling rate:2 Second.
Open-Circuit terminal voltage: 7.0Vp-p max.
Input over range: the screen displays “OL”.
Low battery detection: the screen displays “ ”.
Auto power off: The meter will turn off automatically
after about 15 minutes of inactivity, allows user to set
the inactive time (01〜99 minutes).
Comparator settings: High and Low limits of the
comparators impedance and voltage.
Number of comparator settings: 99 sets.
Manual and auto continuous Data logging: 9999 sets.
Operating temperature and R.H. value: 5°C to 40°C,
80%RH or less (non- condensation).
Storage temperature and R.H. value: -10°C to 60°C,
70%RH or less (non-condensation).
Operating ambience: In-door use, under
environmental pollution grades two.
Operating attitude: Max 2000 meters above level.
Power supply: 1.5V × 6 NEDA 15F IEC R6 JIS
SUM-3(ALKALINE).
AC adapter：AC input Voltage is 100Vac to 240Vac
1.0A with input frequency of 60 HZ or 50HZ,Free
Voltage DC output is 9VDC(8~11VDCMax) Supply
current：＞1.0ADC. Socket：pin Ground Casing
Positive External Diameter 5.5mm internal Diameter
2.1mm.
Dimension and weight: 240mm(L) x 170mm (W) x
66mm(H). approximate 1500g(including batteries).

TM-6001
9
6 Electrical specifications:
To ensure accuracy the ambient temperature should
be 23°C ± 5°C with a humidity of 80% RH (maximum)
non-condensing. In addition, perform a Zero
adjustment after each range change.
±(0.8％reading ＋10digits)
Resistance measurements
Temperature coefficient ：±(0.1％rdg ＋0.5digits)/℃.
Measurement current frequency：1KHZ±30HZ.
Measurement open-circuit terminal voltage：7Vp-p
CAUTION
The maximum input for DC voltage is
60V (No AC voltage Input permitted). Do
not attempt to measure high voltages to
avoid electrical shocks or damages to the
instrument.。
Range Resolution Measurement
current
Accuracy
4mΩ 1μΩ 150mA approx. ±(1％
reading ＋
2
0digits)
40m
Ω
10μΩ
150mA approx.
±(0.8％
reading ＋
10digits)
400m
Ω
100μΩ
50mA approx.
4
Ω
1mΩ
15mA approx.
40
Ω
10mΩ
1.5
m
Aapprox.
400
Ω
100mΩ
150
μ
A approx.

TM-6001
10
Voltage Measurements
Temperature coefficient ：(±0.1％rdg ±0.5digits)/℃
CAUTION
The maximum input for DC voltage is
60V(No AC voltage Input permitted).
Do not attempt to measure high
voltages to avoid electrical shocks or
damages to the instrument.
Range
Resolution
Accuracy
6V
1mV
±(0.1％reading ＋6digits)
60V
10mV
Temperature measurement
Measurement Ra
nge
Resolution
Accuracy
-20℃〜60℃
-4
℉
〜140
℉
0.1℃
0.1
℉
±1.0℃
±1.8
℉
CAUTION
The maximum input for AC voltage is
24Vrms DC voltage is 60V. Do not
attempt to measure high voltages to
avoid electrical shocks or damages to
the instrument.
External T10 adapter and K-Type temperature
measurement
Measurement Range
Resolution
Accuracy
0℃〜400℃
32℉〜752℉
0.1℃
0.1℉
±2.0℃
±3.6℉

TM-6001
11
DC Current (DCA) measurement
CAUTION
The maximum input for DC current is
700A. Do not attempt to measure
higher currents to avoid electrical
shocks or damages to the instrument.
Range
Sensitivity
Resolution
Accuracy
700A 0.6A〜700.0A 0.1A ±(2.0％
reading ＋
5digits)

TM-6001
12
7 Operation:
CAUTION
Do not attempt to measure DC
voltage exceeding 60V。Do not
attempt to measure AC
voltages, This could result in
jury or damage to the unit
Do not attempt to measure the
voltage of a generator. This
would result in an AC voltage
being applied to the voltage
generating output terminals,
which is dangerous.
After measuring a high voltage
battery, before continuing to
measure a low voltage battery
first short the measurement
leads together. This will
discharge the DC-elimination
capacitor which is connected
across the leads. Otherwise an
excess voltage may be applied
to the low voltage battery, which
is dangerous.

TM-6001
13
1. Connect the following test leads to the meter:
Red test lead to SOURCE〝＋〞jack
Black test lead to SOURCE〝－〞jack.
Yellow test lead to SENSE〝＋〞jack
Blue test lead to SENSE〝－〞jack.
Temperature plug to TEMP SENSOR .
2. Press power key turn on the meter。
3. Press Ω-RANGE key to select desired
impedance ranges。
4. Press V-RANGE key to select desired
voltage ranges。
5. The zero adjustment function is to zero range of
impedance. The reading during zero adjustment
will be taken as zero and will be used to calibrate
subsequent measurements.
6. (1).Short the red and black test leads probe four (4)
terminals.

TM-6001
14

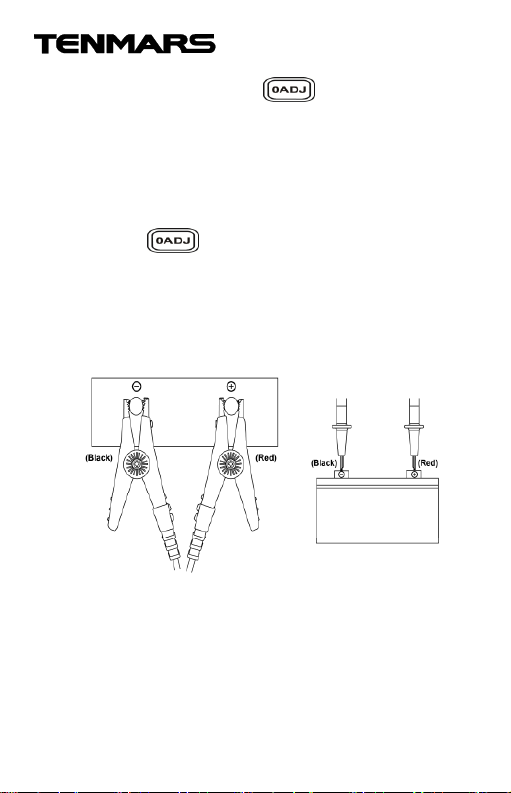

7. Press Zero adjustment key for 2 seconds
to start the zero adjustment. A flashing “0 ADJ”
appears on the screen; when the tester reads a
steady value of the resistance lower than 1000;
then the screen displays “0” and stop flashing ”0
ADJ”.
Press key again to disable the zero
adjustment.
8. Connect the red test probe to the positive battery
terminal, and the black test probe to the negative
battery terminal.
9. Read the battery internal impedance or DC voltage
directly and Temperature measurement from the
display.
Note：When the measured DC voltage or battery
internal impedance value is over range, “OL”is
displayed.

TM-6001
15
7.1 Clock setup
The clock of this meter is 24-hour time format.
1. Press power: key to turn on the meter,
2. Press clear key to enter the clock setting
mode.
3. Press left or right key to select the
options for adjustment.
4. Press up key or down key to
change the digit.
5. Press key to store the setup and exit the
mode.
7.2 Comparator Settings
The comparator function compares the measured
values with preset High and Low limit values for
internal impedance and voltage level, and determines
the range that the measurement should fall into. Then
according to the following conditions will be indicated
on the display, and sounds a beeper under the
WARNING and FAIL cases.

TM-6001
16

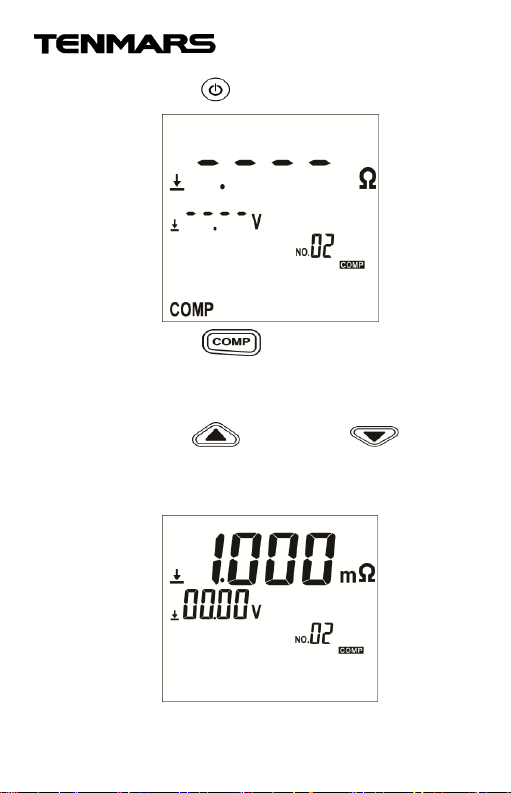

1. Press power: key turn on the meter.
2. Press comp key for 2 seconds the
display will show ”COMP” and No ” 00” .Each
flashing to enter the comparator setting mode.
3. Use the up key or down key to
select the desired comparator number form 01 up
to 99.

TM-6001
17

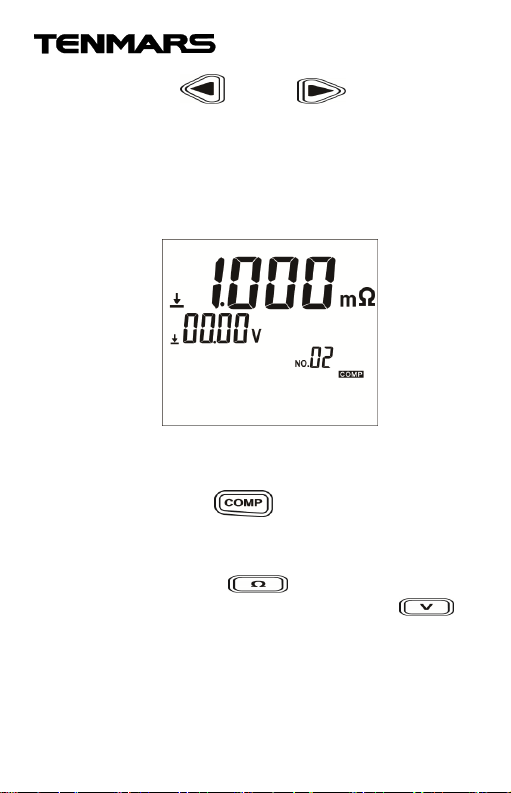

4. Press left or right key to select
option to adjust comparator low limit resistance
and low limit voltage mode or select option to
adjust comparator high limit resistance mode or
select option to adjust comparator voltage and
current mode.
5. If you select option to adjust comparator low limit
resistance and low limit voltage mode of step 5.
6. Press comp key to display will
blink ”COMP” to enter comparator setting if low
limit resistance and low limit voltage mode.
7. Press Ω-RANGE key to select low limit
resistance range. or Press V-RANGE
key to select low limit voltage range.

TM-6001
18

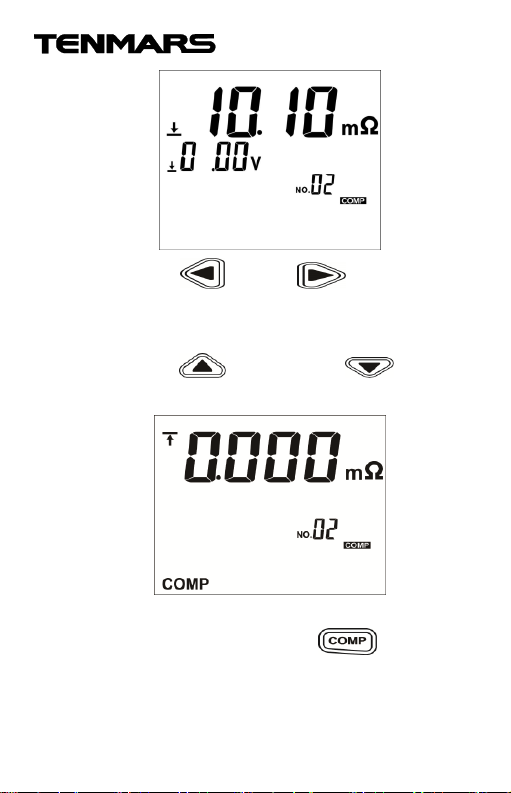

8. Press left or right key to select
option to adjust comparator low limit resistance
and voltage
9. Press up key or down key to
change the digit.
10. If select option to adjust comparator high limit
resistance mode, Press comp key to
display will blink ”COMP” to enter comparator
setting if high limit resistance.
