ENGLISH - ESPAÑOL
Battery Automatic Scrubber
Fregadora Automática Batería
5200
Model No.:
612950
612951 -- Pac
612952 -- Can. Pac
612995
Rev. 01 (04-04)
Operator and Parts Manual
Manual de Operación y de Piezas
CUSTOMER SERVICE:
1--800--982--7658
1--763--513--2850
FAX: [phone]
1--763--513--2142
TECHNICAL SUPPORT:
1--800--522--7839 EXT. 5356
TENNANT COMPANY
701 NORTH LILAC DRIVE
MINNEAPOLIS, MN 55422
MAILING ADDRESS:
TENNANT COMPANY
P.O. BOX 1452
MINNEAPOLIS, MN 55440--1452
Home
Find...
Go To..

ELECTRICAL DIAGRAMS
DIAGRAMAS ELECTRICAS
Tennant 5200 Battery (01--02)
34
24V WIRE
DIAGRAM
BRUSH
MOTOR
12V BATTERY 12V BATTERY
35 AMP
BREAKER
SWITCH
VACUUM
MOTOR
SAFETY LIGHTS
24V D.C.
FLASHER
CONDUIT
SOLENOID
CONDUIT
CHARGER
PLUG
12
3
BRUSH
SWITCH
BATTERY METER
VACUUM
SWITCH
BLK 12
RED 12
BLK 14
BLK
BLK
BLK 10
RED 8
RED 10
RED 10
RED 18
RED 8
BLK 16
BLK 18
RED 14
RED 8
BLK 16
RED 14
RED 10
RED 18
BLK 18
BLK
BLK 18
RED 18
RED 18
RED 14
RED 18
RED 16
BLK 18
Home
Find...
Go To..

ELECTRICAL DIAGRAMS
DIAGRAMAS ELECTRICAS
35
Tennant 5200 Battery (01--02)
12V BATTERY 12V BATTERY
CHARGER
PLUG
SAFETY LIGHTS
BRUSH
SWITCH
24V A.C.
FLASHER
VACUUM
SWITCH
VACUUM
MOTOR
BATTERY METER
BRUSH
MOTOR
35 AMP
BREAKER
SWITCH
SOLENOID
12
3
RED
24V LADDER
DIAGRAM
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (01--02)
36
REPLACEMENT BRUSHES AND PAD DRIVER GROUP
CEPILLO DEL REEMPLAZO Y GRUPO DEL MANDO DE LA ALMOHADILLA
1
2
3
4
5
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (01--02) 37
REPLACEMENT BRUSHES AND PAD DRIVER GROUP
CEPILLO DEL REEMPLAZO Y GRUPO DEL MANDO DE LA ALMOHADILLA
REF PART # DESCRIPTION QTY.
∇1240250 DBRUSH, POLY--SCRUB 1
240251 DBRUSH, DYNA--SCRUB 1
240252 DBRUSH, NYLON SCRUB/STRIP 1
240253 DBRUSH, STRATA SCRUB/STRIP 1
Y2240238 DLUGS,W/SCREWS(SETOF3) 3
∇ASSEMBLY / CONJUNTO
YINCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
∇3240249 DPAD DRIVER ASM 20” 1
Y4240254 DLUGS, W/SCREWS (SET OF 3) 3
Y525707 DLOCK, UNIVERSAL CENTER 1
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (01--02)
38
SOLUTION TANK GROUP
GRUPE DEL DEPÓSITO DE DISOLUCIÓN
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20 21
22
23
23 25
24
26
28
29
30
29
28
32
33
34
35
36
37
38
31 27
40
39
41
42
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04) 39
SOLUTION TANK GROUP
GRUPE DEL DEPÓSITO DE DISOLUCIÓN
REF PART # DESCRIPTION QTY.
∇607982 ASM, COVER SOL. TANK TEAL 1
Y1612519 COVER, SOLUTION TANK TEAL 1
Y2611068 HINGE, COVER 1
Y3140706 RIVET, POP 1/8 7
4607533 TANK, SOLUTION TEAL 1
5607099 DSCREEN, SOLUTION FILL 1
63701.6 SCREW, #6 X 3/8 PHL SHTMTL 2
7140032 WASHER, #6 FLAT 2
8230665 BRACKET, CHARGER PLUG 1
9140018 WASHER, LOCK INT #10 SS 2
10 140892 SCREW, 10--24 X 1/2 RNDPHL 2
11 2728.12 SCREW, 6--32 X 3/4 PANPHL 2
12 140019 WASHER, LOCK #6 EXT 2
13 605387 DCONNECTOR, RED 50A
WO/CONT. 1
14 230925 SUPPORT, RECOVERY TANK 1
15 611418 SLEEVE, 0.437D 0.315B 0.146 1
16 140027 WASHER, FLAT, 0.35B 0.75D .04 SS 2
17 140015 WASHER, LOCK, SPLT 0.31 SS 1
18 140226 SCREW, HEX .31--18 X 0.62 1
19 621324 DPLUG, EXPANDABLE 1.50D 1
20 19066 WASHER, FLAT #10 1
21 140350 SCREW, #10X1/2 1
22 600476 DSTRAP, PLUG REAR FILL 1
∇ASSEMBLY / CONJUNTO
YINCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
23 14884 FITTING, BRS STR PM06/BM08 2
24 700420 ASM., HOSE W/SOL. INDICATOR 1
25 607776 CLAMP, HOSE 2-WIRE BLK 1
26 608120 DECAL, 5200 SIDE 2
27 120210 DECAL, TENNANT LOGO 1
28 150419 FITTING, E90, PM04/BM06 2
29 607775 CLAMP, HOSE 2-WIRE BLK 2
30 606240 DHOSE, 3/8IDX5/8ODX10.25 1
31 605324 GASKET, 1/2” CLOSED CELL 2
32 602927 TRAY, BATTERY 1
33 120589 DECAL, BATTERY PLACEMENT 1
34 602592 SUPPORT, TUBE BATTERY 1
35 130364 DCABLE, BATTERY #6BLKX15” 1
36 140835 SCREW, 10--24X3/8 PAN PHL 2
37 612764 SHIELD, LIGHT 1
38 130023 LIGHT, SAFETY 24VDC 14” 1
39 130869 BATTERY, 12V 130AH (WET) 2
40 603553 CHARGER, 24DC/12A 120V 1
604280 CHARGER, 24V 12A 90V--250V 1
41 700169 WIRE, #12X17 5/16 BLK 1
42 700168 WIRE, #12X12 3/8 RED 1
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04)
40

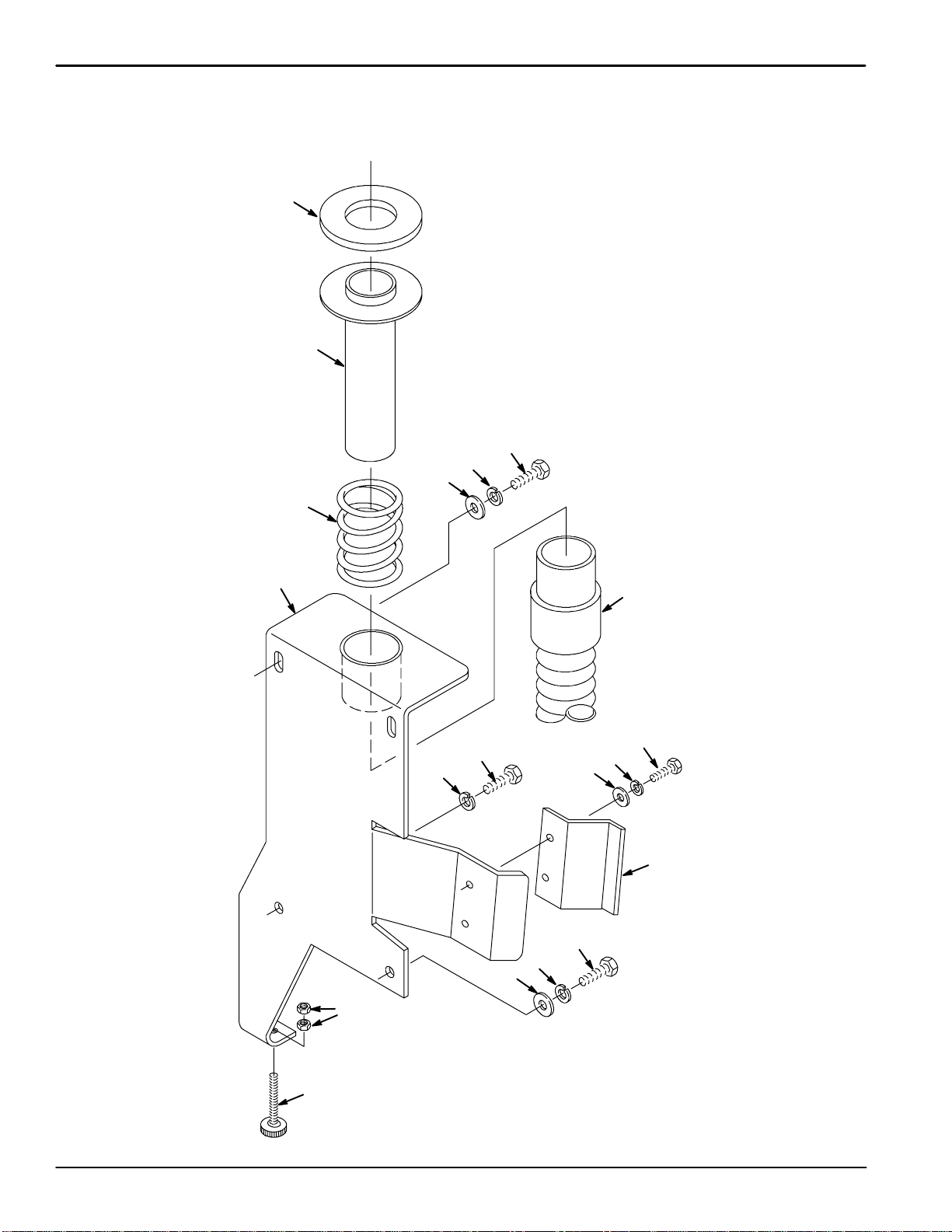

SOLUTION TANK REAR PANEL GROUP
CONJUNTO PANEL TRASERA
1
2
3
4
5
8
7
9
8
9
10
11
13
14
12
8
7
9
6
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04) 41
SOLUTION TANK REAR PANEL GROUP
CONJUNTO PANEL TRASERA
REF PART # DESCRIPTION QTY.
1100151 DGASKET, TUBE ADAPTER 1
2230664 ADAPTER, TUBE 1
3140424 SPRING, TUBE--ADAPTER 1
41001210 BRACKET, TUBE MOUNTING 1
5160617 DHOSE, VAC 1--1/2X24” W/CUFFS 1
6230872 LATCH, PLATE BRUSH LIFT 1
7140027 WASHER, FLAT, 0.35B 0.75D .04 SS 3
8140015 WASHER, LOCK, SPLT 0.31 SS 4
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
9140226 SCREW, 5/16--18X5/8 4
10 140548 NUT, 5/16 FINJAM 2
11 240191 KNOB ASSY, RND 1.00D .31--18
2.0L PLSTC 1
12 140259 SCREW, HEX, .25--20 X .62 SS 2
13 140016 WASHER, LOCK 0.25 2
14 140000 WASHER, 1/4 FLAT 2
Home
Find...
Go To..
612798
1/2x27"

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04)
42
RECOVERY TANK GROUP
CONJUNTO DESPÓSITO RECUPERAR
15
2
3
4
6
9
12
11
10
13
14
15
16
36 18
19
21
20
8
22
26
23
24
28
27
30
29
31
32
34 33
35 32 33 34
20
19
18
7
25
17
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04) 43
RECOVERY TANK GROUP
CONJUNTO DESPÓSITO RECUPERAR
REF PART # DESCRIPTION QTY.
∇1701103 ASM, STANDPIPE W/NIPPLE 1
Y2606088 FITTING, 1--1/2” NIPPLE 1
3101714 DGASKET, WASTE AIR CHAMBER 1
4210240 NUT, 1--1/2 FPT FLNG METAL 1
5180613 DFLOAT, SHUT--OFF (1) BALL 1
∇6614152 ASM., TANK REC. TEAL 1
Y7613287 LABEL, WARNING DC 6” X 2.25” 1
Y8120588 DECAL, BATTERY RECHARGING 1
∇9100102 DASM., LID CLEAR W/STND HOLE 1
Y10 100109 DLID, OUTER RING ONLY 1
Y11 100105 DLID, CLEAR CENTER ONLY 1
12 140826 SCREW, #6 X 3/4 PHL SHTMTL 7
13 3701.6 SCREW, #6 X 3/8 PHL SHTMTL 1
14 230513 CHAIN 1
∇15 1010143 DASM., DRAIN HOSE 1
Y16 1008639 DASM., CAP, DRAIN HOSE 1
Y17 1008637 O--RING 1
18 140259 SCREW, HEX, .25--20 X .62 SS 2
∇ASSEMBLY / CONJUNTO
YINCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
19 140016 WASHER, LOCK 0.25 2
20 140000 WASHER, 1/4 FLAT 2
21 140960 DCABLE, REC. TANK SUPPORT 1
22 606923 STUD, 1/4--20 X 4.00 3
23 100038 DGASKET VAC MOTOR 5.7 1
∇24 605357 DMOTOR, VAC 24V 1/2 HP 1
Y25 190163 DBRUSH, CARBON 2/PK 1
26 130133 TERMINAL, MALE .25 2
27 600009 DMUFFLER, VAC EXHAUST 1
28 130041 WIRE TIE, 11--1/2X.19 NY 1
29 41169 NUT, HEX LOCK .25--20 NL 3
30 140000 WASHER, 1/4 FLAT 3
31 605244 DHINGE, RECOVERY TANK 1
32 140000 WASHER, 1/4 FLAT 9
33 140052 WASHER, LOCK EXT 0.25 9
34 140885 SCREW, TRS 1/4--20 X 0.50 PHL 9
35 140300 CLAMP, INSULATED 1/2”ID 1
36 140308 CLAMP, HOSE, WORM, 1.31--2.25 1
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04)
44
CONTROL CONSOLE GROUP
CONJUNTO CONSOLA DE CONTROLES
2
1
3
2
4
5
6789
10
11 12 13
14
16
17
18
19
20
21
1
22
23
24
25
24
26
29
28
27
29
30
31
32
15
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04) 45
CONTROL CONSOLE GROUP
CONJUNTO CONSOLA DE CONTROLES
REF PART # DESCRIPTION QTY.
1200823 GRIP, HANDLE TUBE 2
2608605 DSWITCH, ROCKER DPST SEAL 2
3606020 DMETER, BATTERY VOLTAGE 24V 1
4600641 DECAL, DASH 1
5607531 CONTROL CONSOLE TEAL 1
6230709 HANDLE, TUBE 1
7230744 BRACKET, ELECTRONICS MOUNT 1
8606243 TAPE, ACRYLIC FOAM, 1”WX12L 1
9130021 DFLASHER, 24VDC 1
10 130756 DBREAKER, CIRCUIT 35A 1
11 610949 COVER, CONTROL CONSOLE 1
12 140018 WASHER, LOCK INT #10 SS 2
13 140197 SCREW, TRS 10--24X0.38 PHL SEM 2
14 606105 LABEL, HZRD DO NOT SPRAY 1
15 605840 LOOM, 3/4DIA X 2.5’ 1
16 281001009 DTERMINAL, RING #10 2
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
17 606404 DASM., DIODE W/RING TRMNLS 1
18 140519 NUT, 10--24 KEP 2
19 605905 DSOLENOID, 24 VDC 125A 1
20 140900 SCREW, 10--24X3/4 1
21 140916 CLAMP, CABLE 5/8ID NY 1
22 230715 TUBE, HANDLE ADJUSTMENT 1
23 230649 PIN, HANDLE ADJUSTMENT 2
24 230710 PIN, HANDLE LOCK 2
25 140415 SPRING, LOCK PIN 1
26 140241 BOLT, SHOULDER 5/8 X 2 2
27 700167 HARNESS, WIRE 1
28 140900 SCREW, 10--24X3/4 2
29 614157 CLAMP, HOSE, 27--51MM 2
30 140018 WASHER, LOCK INT #10 SS 2
31 605823 DO--RING, .926 ID X .99600 2
32 609969 DPLUG, HOUR METER 2
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04)
46
LEVER GROUP
CONJUNTO DE PALANCAS
20
1
7
9
8
2
4
7
8
15
3
10
5
11
11
25
41
26
24
34
28
35
31
30
37
42
29
28
33
6
12
14
19
7
8
9
1
5
7
16
11
13
15
8
3
8
17
18
11
12
13
42
39
27
32
32
36
38
40
16 21
22
23
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04) 47
LEVER GROUP
CONJUNTO DE PALANCAS
REF PART # DESCRIPTION QTY.
1230661 PLATE, LOCK CONTROL HOUSING 2
2611979 WELDMENT, DRAIN HOSE
HANGER 1
3200816 DGRIP, HANDLE 2
4230719 HANDLE, SOLUTION VALVE 1
5230735 BUSHING, SPACER 2
6140060 WASHER, .505 X .750 X .045 WAVE 1
7140027 WASHER, FLAT, 0.35B 0.75D .04 SS 4
8140015 WASHER, LOCK, SPLT 0.31 SS 4
9140226 SCREW, 5/16--18X5/8 2
10 32520 NUT, .25--20 HEXJAM 1
11 140000 WASHER, 1/4 FLAT 4
12 140134 SLEEVE, 0.376D 0.253B 0.28L 2
13 140208 SCREW, HEX .25--20 X 1.00 2
14 230728 HANDLE, SQUEEGEE LIFT 1
15 140221 SCREW, HEX .31--18X1.25 2
16 140016 WASHER, LOCK 0.25 2
17 140259 SCREW, HEX, .25--20 X .62 SS 1
18 140510 NUT, 1/4--20 HEXJAM 1
19 1015636 DCABLE, SQUEEGEE LIFT 1
20 230718 LEVER, SOLUTION VALVE 1
21 140951 SCREW, 10--24X7/16 2
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
22 140018 WASHER, LOCK INT #10 SS 2
23 230712 PLATE, SQUEEGEE LOCK 1
24 140616 PIN, ROLL 1
25 230657 ARM, VALVE 1
26 606238 HOSE, 3/8IDX5/8ODX18 1
27 607775 CLAMP, HOSE 2WIRE BLK 1
28 140011 WASHER, 3/16 FLAT 4
29 140552 NUT, 10--24 NYLOCK 2
30 210259 DVALVE, BALL 3--WAY 1
31 140259 SCREW, HEX, .25--20 X .62 SS 2
32 27048 FITTING, BRS E90 PM04/PF04 2
33 140016 WASHER, LOCK 0.25 2
34 600750 BRACKET, VALVE 1
35 140895 SCREW, 10--24X3/4 2
36 150206 FITTING, BRS PLUG PM04 HEX 1
37 605394 FITTING, BRS E45 BM06/PM04 1
38 150517 FITTING, BRS STR PM04/BM08 1
39 606241 HOSE, 1/2ID X 6” 1
40 180629 FILTER, SCREEN 012 MESH 1
41 41169 NUT, HEX LOCK .25--20 NL 1
42 607776 CLAMP, HOSE 2WIRE BLK 2
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04)
48
NON-DRIVE MODEL WHEEL GROUP
CONJUNTO PARA LEVANTAR CEPILLO
9
1
2
3
10
5
6
5
7
8
5
10
5
6
11
8
13
12
14
15
16
17
18
19
20
21
22
25
24
4
7
5
6
23
4
5
13
26 27
28
26
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04) 49
NON-DRIVE MODEL WHEEL GROUP
CONJUNTO PARA LEVANTAR CEPILLO
REF PART # DESCRIPTION QTY.
1230874 LEVER, BRUSH LIFT FOOT 1
2200816 GRIP, HANDLE 1
3102560 PAD, NON--SLIP 1.62 SQ. 2
4140509 NUT, 1/2--13 HEXJAM 3
5140045 WASHER, FLAT, 0.51B 1.25D .06 SS 10
6140139 SLEEVE, 0.625D 0.50B 0.25L STL 5
7140024 WASHER, LOCK 0.50 SS 3
8140236 SCREW, .50--13 X 1.25 3
9230870 WELDMENT, LIFT BRACKET 1
10 02931 NUT, HEX .50--13 LOCK NY 3
11 230869 BRACKET, AXLE & SQ PIVOT MNT 2
12 140024 WASHER, LOCK 0.50 SS 4
13 140237 SCREW, HEX .50--13 X 1.00 6
14 140045 WASHER, FLAT, 0.51B 1.25D .06 SS 2
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
15 02991 SCREW, HEX .31--18 X 0.75 2
16 140433 SPRING, EXT .50 X 3.00 2
17 140506 NUT, 5/16--18 HEX 2
18 02994 SCREW, HEX .38--16 X 0.75 2
19 140017 WASHER, LOCK SPLIT 0.38 2
20 140028 WASHER, FLAT 0.42B, 1.00D 2
21 1012022 DWHEEL 8”X1.5” 2
22 230743 SHAFT, AXLE .75D 166L 1
23 140234 SCREW, 1/2--13X2--1/2 HXHDCP 1
24 3148.816 WASHER, 0.52B 0.88D .06 1
25 140430 SPRING, HANDLE LOCK 1
26 140127 BEARING, THRUST 2
27 230871 BRACKET, MOTOR MOUNT 1
28 130040 WIRE TIE, NYLON 1
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (01--02)
50
BRUSH DRIVE GROUP
CONJUNTO IMPULSO DE CEPILLO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
24
23
28 27
26
27
21
23
22
20
24
25
Home
Find...
Go To..

PARTS LIST
LISTA DE PIEZAS
Tennant 5200 Battery (04--04) 51
BRUSH DRIVE GROUP
CONJUNTO IMPULSO DE CEPILLO
REF PART # DESCRIPTION QTY.
∇1130491 DMOTOR, W/GEARBOX 24V IMP 1
Y190970 DBRUSH, CARBON (SET OF 4) 4
Y190741 DASM, BRUSH CARD 1
Y630609 DGEAR BOX, IMPERIAL MOTOR 1
2130192 TERMINAL ENDS 2
3140431 SPRING, EXT 1.0 X 5.00 X 0.95 1
4230871 BRACKET, MOTOR MOUNT 1
5140823 SCREW, TRS 10--24 X 0.63 PHL 1
6100091 BUMPER, RECESSED 1
7140552 NUT, HEX 10--24 NY 1
8607775 CLAMP, HOSE 2WIRE BLK 1
9609924 HOSE, 3/8IDX5/8ODX19” CLEAR 1
10 140017 WASHER, LOCK SPLIT 0.38 4
11 140202 SCREW, HEX .38--16 X 1.00 4
12 606335 PLATE, DRIVE MOLDED 1
13 606915 SCREW, HILO #10--16 X 3/8 4
∇ASSEMBLY / CONJUNTO
YINCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
DRECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
REF PART # DESCRIPTION QTY.
14 230697 DSTOP, DRIVER RELEASE 1
15 230651 DCLAMP, BRUSH PLATE 1
16 140417 DCLIP, SPRING 1
17 25732 WASHER, 0.36B 1.25D .093 FLT 2
18 140015 WASHER, LOCK, SPLT 0.31 SS 1
19 140219 SCREW, HEX .31--18 X 1.00 1
20 140234 SCREW, HEX .50--13 X 2.50 1
21 3148.816 WASHER, 0.52B 0.88D .06 1
22 140430 SPRING, HANDLE LOCK 1
23 140127 BEARING, THURST 2
24 140509 NUT, 1/2--13 HXJM 3
25 140024 WASHER, LOCK 0.50 SS 2
26 140139 SLEEVE, 0.625D 0.500B 0.25L 2
27 140045 WASHER, FLAT, 0.51B 1.25D .06 SS 4
28 140237 SCREW, HEX .50--13 X 1.00 2
Home
Find...
Go To..
