Second Edition • Third Printing Operator's Manual
Introduction
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 1
Introducti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification
The machine serial number is located on the serial
label.
Serial number stamped
on chassis
Serial label
(located under cover)
Intended Use and Familiarization
Guide
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site. Before operating the machine, it’s
the operator’s responsibility to read and
understand this familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Second Edition • Third Printing
Introduction
2 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT
Platform controls symbology and related
machine movement:
Lift function
enable button
Outrigger auto level button
(when thumb rocker switch
moved up or down)
Platform up/down (when lift
function selected)
Drive forward/reverse (when
drive function selected)
Steer right/left (when drive
function selected)
Ground controls symbology and related
machine movement:
Lift function enable button
Platform up/down button
Sequential functions and movement:
•Drive and steer.
Interlocked functions:
•Elevated drive speed.
•Elevated drive in an off-level condition.
•All platform and ground controls.
Limitations of use:
•The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
•Do not elevate the platform unless the machine
is on firm level ground.

Second Edition • Third Printing Operator's Manual
Introduction
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 3
Bulletin Distribution and Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register
your machine and keep your contact information
up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual Second Edition • Third Printing
Introduction
4 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety rules—
safety and operator’s manuals and machine
decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may
damage the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol
—
used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a
hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could
result
in minor or moderate injury.
Indicates a property damage
message.

Second Edition • Third Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 5

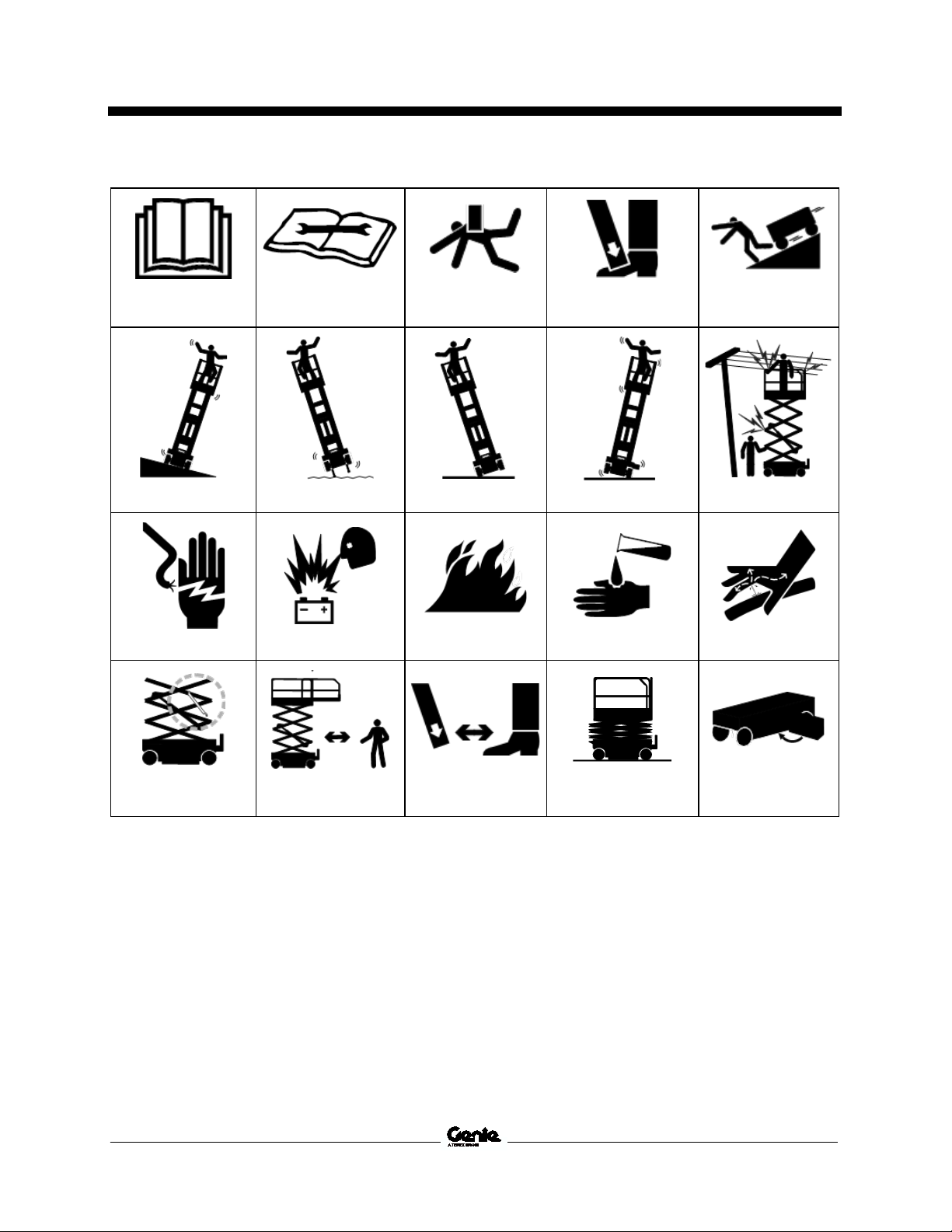

Symbol and Hazard Pic torials Definiti ons
Read the operator’s
manual
Read the service
manual
Crush hazard Crush hazard Collision hazard
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard
Electrocution hazard Explosion hazard Fire hazard Burn hazard Skin injection hazard
Engage safety arm Keep away from
moving parts
Keep clear of
outriggers and tires
Move machine to level
ground
Close chassis tray

Operator's Manual Second Edition • Third Printing
Symbol and Hazard Pictorials Definitions
6 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT
Lower the platform Do not set up where it
cannot be leveled with
outriggers
Maintain required
clearance
Access by trained and
authorized personnel
only
Use a piece of
cardboard or paper
to search for leaks
Chock the wheels Release brakes Tiedown Lanyard anchorage
points
No smoking
Wheel load Transport diagram Manual force Wind speed Outrigger load
Voltage rating for
power to platform
Pressure rating for air
line to platform
Maximum capacity Fall hazard Platform overloaded
Crushing hazard Auxiliary lowering

Second Edition • Third Printing Operator's Manual
General Safety
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 7
General Safety

Operator's Manual Second Edition • Third Printing
General Safety
8 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT

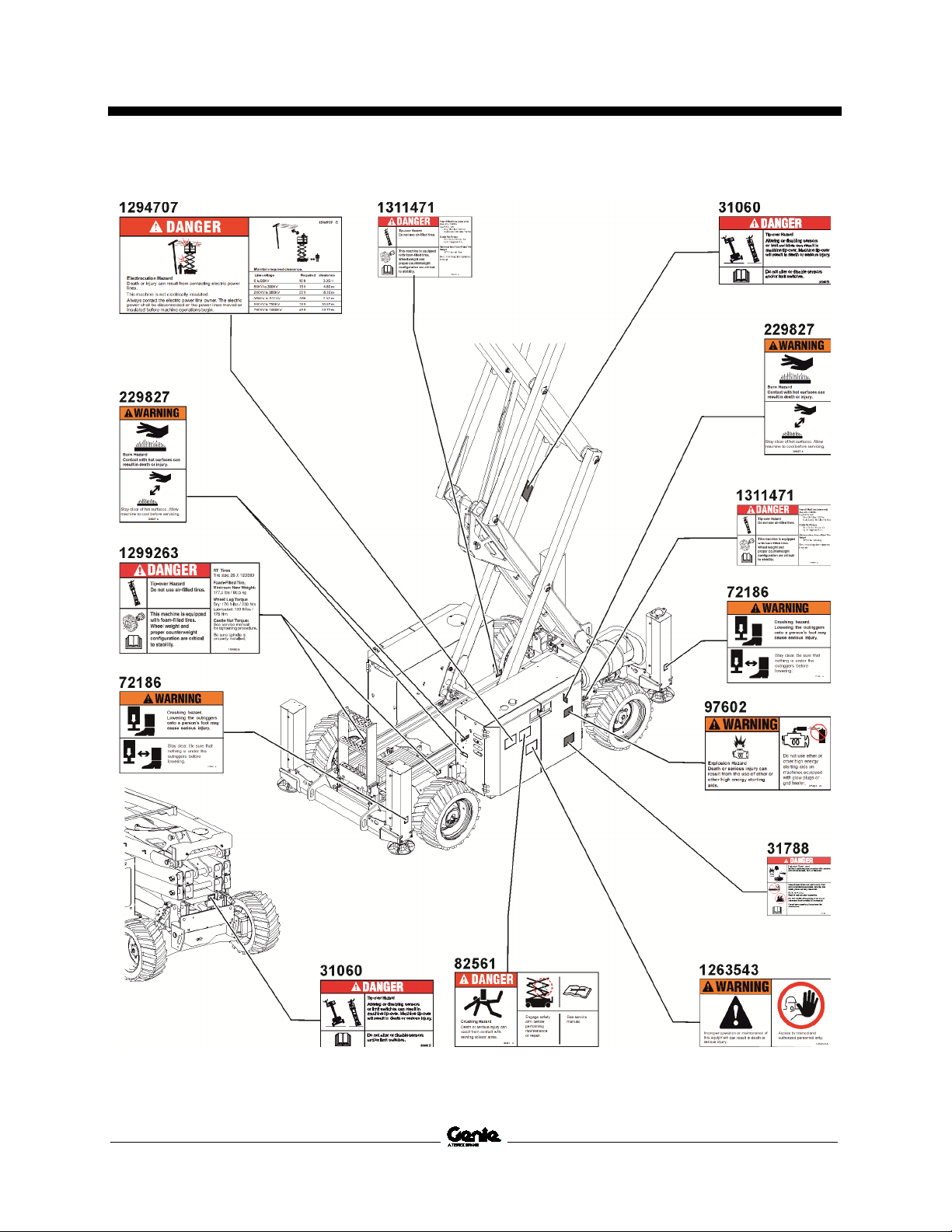

Second Edition • Third Printing Operator's Manual
General Safety
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 9

Operator's Manual Second Edition • Third Printing
General Safety
10 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT

Second Edition • Third Printing Operator's Manual
General Safety
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 11

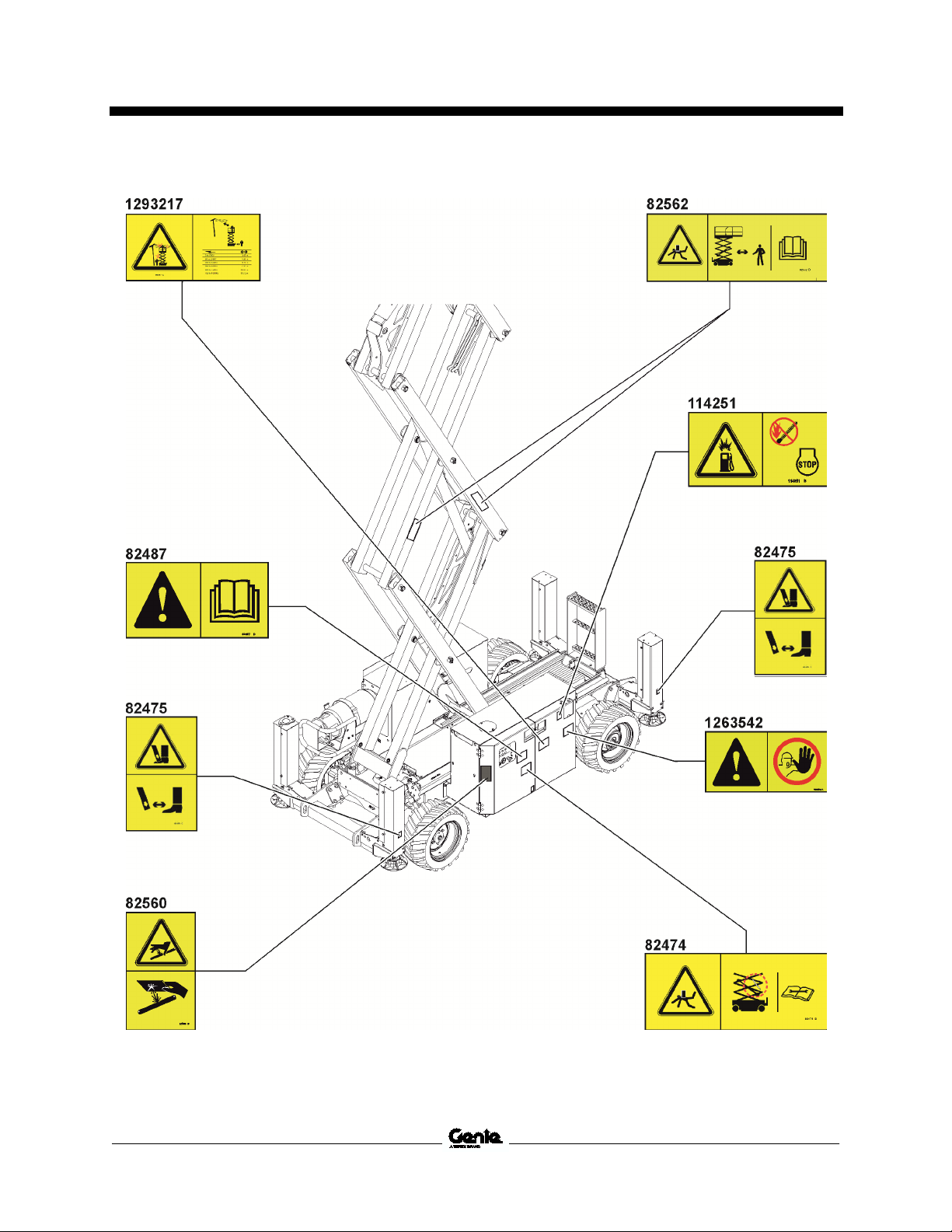

Operator's Manual Second Edition • Third Printing
General Safety
12 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT

Second Edition • Third Printing Operator's Manual
Personal Safety
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 13
Personal Safet y
Personal Fall Protection
Personal fall protection equipment (PFPE) is not
required when operating this machine provided the
operator remains inside the perimeter of the
platform guardrail system. If PFPE is required by
job site or employer rules, the following shall
apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.
Requirements for Exiting an Elevated
Work Platform
Operators must use personal fall protection
equipment when exiting and entering an elevated
platform through the side gate. When exiting or
entering an elevated platform, the platform must
be positioned as close as possible to the surface
of the exit or entry point, but not more than 12
inches / 30 cm away from the surface of the exit or
entry point.
Operators are required to wear approved PFPE at
all times when exiting and entering an elevated
platform through the side gate, and must use a
lanyard designed to allow 100% tie-off when
exiting and entering an elevated platform through
the side gate.
Do not exit or enter an elevated platform through
the rear gate.
Exiting an Elevated Platform Through the
Side Gate
1 Attach primary lanyard to a platform anchor
point.
2 Attach secondary lanyard to an approved
adjacent anchor point.
3 Detach the primary lanyard from the platform
anchor point.
The primary lanyard can not remain attached to
the platform anchor point after attaching the
secondary lanyard to the adjacent anchor point.
Do not operate the machine while the secondary
lanyard is attached to the adjacent anchor point.
Entering an Elevated Platform Through the
Side Gate
1 Attach primary lanyard to a platform anchor
point.
2 Detach secondary lanyard from the adjacent
anchor point.
3 Detach the primary lanyard from the platform
anchor point.

Operator's Manual Second Edition • Third Printing
Work Area Safety
14 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT
Work Area Safet y
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental
regulations regarding
required clearance from
electrical power lines. At
a minimum, the required
clearance contained in
the chart below must be
followed.
Line Voltage
Required Clearance
0 to 50KV
10 ft
3.05 m
50 to 200KV
15 ft
4.60 m
200 to 350KV
20 ft
6.10 m
350 to 500KV
25 ft
7.62 m
500 to 750KV
35 ft
10.67 m
750 to 1000KV
45 ft
13.72 m
Allow for platform movement, electrical line sway
or sag, and beware of strong or gusty winds.
Keep away from the
machine if it
contacts
energized power lines.
Personnel on the ground
or in the platform must
not touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum capacity
Platform extended
Model
Platform
retracted
Platform
only
Extension
only
Maximum
occupants
GS
-2669RT
1500 lbs/
680 kg
1200 lbs/
544 kg
300 lbs/
136 kg
4
GS
-3369RT
1000 lbs/
454 kg
700 lbs/
318 kg
300 lbs/
136 kg
Indoor –
4
Outdoor –
2
GS
-4069RT
800 lbs/
363 kg
500 lbs/
227 kg
300 lbs/
136 kg
Indoor –
3
Outdoor –
2
Platform retracted Platform extended
Extension only Platform only

Second Edition • Third Printing Operator's Manual
Work Area Safety
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 15
Do not raise the platform
unless the machine is on a
firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower
the platform.
Do not alter or disable the limit switches or angle
sensor.
Do not drive over 0.3 mph / 0.48 km/h with the
platform raised.
Do not raise the platform when wind speeds may
exceed 28 mph / 12.5 m/s. If wind speeds exceed
28 mph / 12.5 m/s when the platform is raised,
lower the platform and do not continue to operate
the machine.
Do not operate the
machine in strong or gusty
winds. Do not increase the
surface area of the
platform or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.
Use extreme care and
slow speeds while driving
the machine in the stowed
position across uneven
terrain, debris, unstable or
slippery surfaces and near
holes and drop
-offs.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.

Operator's Manual Second Edition • Third Printing
Work Area Safety
16 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT
Do not drive the machine on or near uneven
terrain, unstable surfaces or other hazardous
conditions with the platform raised.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.
Do not push off or pull
toward any object outside
of the platform.
Maximum manual force
GS
-2669RT –4 person
GS
-3369RT –4 person, indoor
GS
-3369RT –2 person, outdoor
GS
-4069RT –3 person, indoor
GS-4069RT
–
2 person, outdoor
90 lbs/400
N
90 lbs/400
N
90 lbs/400
N
90 lbs/400
N
90 lbs/400
N
Do not alter or disable machine components that
in any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter a mobile elevating work
platform without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not place or attach
fixed or overhanging loads
to any part of this
machine.
Do not place ladders or
scaffolds in the platform or
aga
inst any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled
by person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
are properly tightened and cotter pins are properly
installed.

Second Edition • Third Printing Operator's Manual
Work Area Safety
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 17
Crushing Hazard
Keep hands and limbs out of scissors.
Keep hands clear when folding rails.
Do not work under the platform or in the scissor
links without the safety arm in place.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the slope and side slope rating of the machine.
Slope rating applies to machines in the stowed
position.
Maximum slope rating, stowed position
GS
-2669RT
40% (22°)
GS
-3369RT
35% (19°)
GS
-4069RT
35% (19°)
Maximum side slope rating, stowed position
GS
-2669RT
40% (22°)
GS
-3369RT
35% (19°)
GS
-4069RT
35% (19°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.
Fall Hazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Use approved lanyard attachment
point provided.

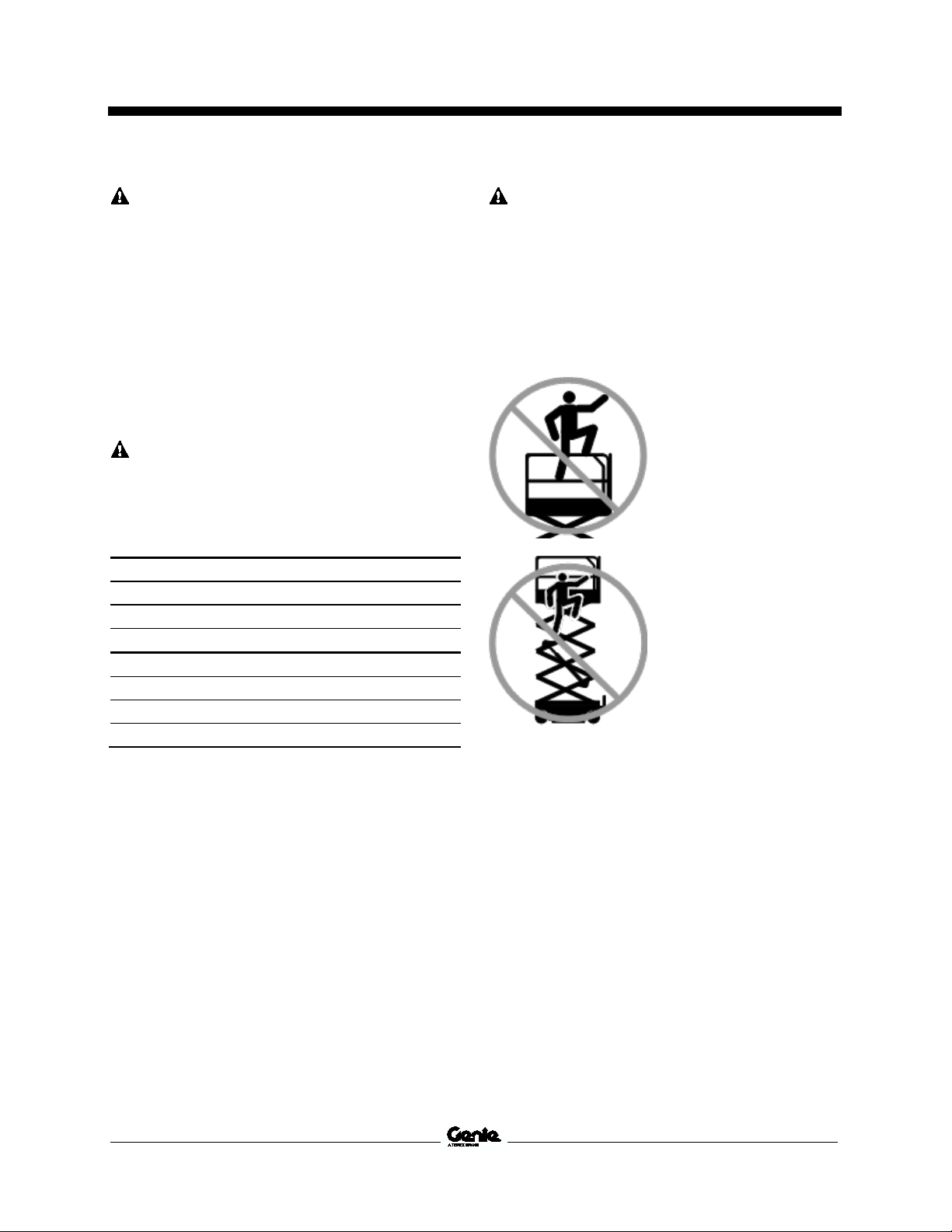

Do not sit, stand, or climb
on the platform guard
rails. Maintain a fir
m
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Close the entry gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
Do not enter or exit the platform unless the
machine is in the stowed position.
Hazards related with the specific product
application of exiting at height have been
considered in the design of the machine, for
further information contact Genie (see section
Contacting the Manufacturer).

Operator's Manual Second Edition • Third Printing
Work Area Safety
18 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1298222GT
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of extended platform position when
moving the machine.
The machine must be on a level surface or
secured before releasing the brakes.
Operators must comply with employer, job site,
and governmental rules regarding use of personal
protective equipment.
Check the work area for
overhead obstructions or
other
possible hazards.
Be aware of crushing
hazards when grasping
the platform guard rail.
Observe and use color-coded direction arrows on
the platform controls and the platform decal plate
for drive and steer functions.
Do not lower the
platform unless the
area below is clear of
personnel and
obstructions.
Limit travel speed
according to the
condition of the ground
surface, congestion,
slope, location of
personnel, and any
other factors which may
cause collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
No stunt driving or horseplay while operating a
machine.
