TESA CLINOBEVEL 3 User manual

V13 – 26.03.2019
1
Instruction Manual
TESA CLINOBEVEL 3
ELECTRONIC INCLINOMETER
05330210 : TESA CLINOBEVEL 3 ± 60°, Cast iron, rust protected
05330211 : TESA CLINOBEVEL 3 ± 60°, Aluminium, black anodized
05330212 : TESA CLINOBEVEL 3 ± 10°, Cast iron, rust protected
05330213 : TESA CLINOBEVEL 3 ± 10°, Aluminium, black anodized
05330214 : TESA CLINOBEVEL 3 High Precision ± 1°, Cast iron, rust protected
This document is confidential and only to be used internally by the company that has purchased one of the inclinometers
mentioned above. Before duplicating or transmitting it to third parties without any connection to the use of these instruments,
an official request has to be sent to TESA.

Instruction Manual for TESA CLINOBEVEL 3
2
TABLE OF CONTENTS
If you are using the PDF version of this document, you can directly access the required chapter by
clicking on the respective line of the table of contents.
1INTRODUCTION ............................................................................................................................................................. 4
1.1Acknowledgements ................................................................................................................................................. 4
1.2Warning ................................................................................................................................................................... 4
1.3Copyright (document) ............................................................................................................................................. 4
1.4Preamble ................................................................................................................................................................. 4
1.5Symbols .................................................................................................................................................................. 4
2PRESENTATION ............................................................................................................................................................. 5
2.1General description ................................................................................................................................................. 5
2.2Operation/ Short description ................................................................................................................................... 6
2.3Overview keyboard and display .............................................................................................................................. 7
2.4How to switch the instrument ON and OFF ............................................................................................................ 7
2.5Key functions ........................................................................................................................................................... 8
2.6Batteries / Rechargeable batteries ......................................................................................................................... 9
2.7Possible configurations of the TESA CLINOBEVEL 3 .......................................................................................... 10
3DISPLAY ....................................................................................................................................................................... 11
3.1Scaling of the display ............................................................................................................................................ 11
3.2Display types ......................................................................................................................................................... 11
3.3Background colour ................................................................................................................................................ 13
3.4Display brightness ................................................................................................................................................. 14
3.5Short description of the individual display areas ................................................................................................... 14
3.6Mirroring the display .............................................................................................................................................. 15
4TECHNICAL SPECIFICATIONS ................................................................................................................................... 16
5DELIVERY CONTENTS ................................................................................................................................................ 17
5.1System components ............................................................................................................................................. 17
5.2Packaging ............................................................................................................................................................. 17
6INSTALLATION, SECURITY & MAINTENANCE ......................................................................................................... 18
6.1Location ................................................................................................................................................................. 18
6.2Place of use .......................................................................................................................................................... 18
6.3Lighting .................................................................................................................................................................. 18
6.4Measuring surface ................................................................................................................................................ 18
6.5Cleanliness ............................................................................................................................................................ 18
6.6Vibrations .............................................................................................................................................................. 18
6.7Care of the batteries ............................................................................................................................................. 18
7FUNCTIONS .................................................................................................................................................................. 19
7.1Functions List Selection ........................................................................................................................................ 19
7.2Set absolute zero .................................................................................................................................................. 19
7.3Selection of the measuring unit / UNIT ................................................................................................................. 21
7.4Units with relative base length .............................................................................................................................. 21
7.5HOLD function ....................................................................................................................................................... 22
7.6Selection of the filter under different measuring conditions / FILTER .................................................................. 22
7.7Absolute measurement ......................................................................................................................................... 23
7.8Relative measurement / REL ZERO ..................................................................................................................... 23
7.9Measurement with Limits / LIMITS ........................................................................................................................ 25
7.10Quick calibration / Q.CALIB .................................................................................................................................. 26
7.11Infrared remote control .......................................................................................................................................... 28
7.12Connection to an ANDROID device as remote display ........................................................................................ 28
8OPTIONS ....................................................................................................................................................................... 30

Instruction Manual for TESA CLINOBEVEL 3
3
8.1Options menu ........................................................................................................................................................ 30
8.2Set PIN code ......................................................................................................................................................... 30
8.3Display settings ..................................................................................................................................................... 31
8.4Logarithmic scaling ............................................................................................................................................... 32
8.5Function keys ........................................................................................................................................................ 32
8.6Switching functions on or off ................................................................................................................................. 33
8.7Hide disabled Functions ........................................................................................................................................ 33
8.8Switch wireless connection on/off ......................................................................................................................... 34
8.9Gravitation ............................................................................................................................................................. 34
8.10Firmware Version .................................................................................................................................................. 35
8.11Reset quick calibration .......................................................................................................................................... 35
8.12Reset to factory settings ....................................................................................................................................... 36
8.13Function check ...................................................................................................................................................... 36
9READING OUT MEASURIEMENT DATA WITH THE HYPERTERMINAL ................................................................. 37
10ERROR MESSAGE ....................................................................................................................................................... 37
11PIN-DEFINITION ........................................................................................................................................................... 38
12ACCESSORY ................................................................................................................................................................ 38
13DECLARATION OF CONFORMITY ............................................................................................................................. 38
14WARRANTY .................................................................................................................................................................. 39

Instruction Manual for TESA CLINOBEVEL 3
4
1 INTRODUCTION
1.1 Acknowledgements Dear user,
We would like to thank you for having chosen TESA as your metrology partner. We thank you
for your confidence in purchasing one of our high-end inclinometers TESA CLINOBEVEL 3.
Your metrological concerns are important to us and we are convinced that this instrument will
meet your expectations. We are constantly striving to develop solutions adjusted to your needs.
The result? Your satisfaction for many years. Our pleasure? To know that our products help you
meet your needs in research, development and production in a quick and efficient way, and for
a long time.
The whole TESA team welcomes you to our family of TESA product users.
Your TESA team
1.2 Warning This instruction manual must be read by every technician or operator before the installation,
maintenance or use of the instrument. Not adhering to certain instructions regarding its use could
lead to malfunction or deterioration of the instrument.
1.3 Copyright
(document)
The content of this document has been created subject to subsequent modifications without prior
notice. All modification rights are reserved.
The German version is the reference lan
g
ua
g
e. All other lan
g
ua
g
e versions are onl
y
translations.
1.4 Preamble The TESA CLINOBEVEL 3 is the result of more than 70 years of experience in the conception
and production of high-precision measurement equipment. It has been designed to meet the
needs of a production environment and to offer its users an affordable, quick and precise way
for dimensional control of small or large workpieces in workshops or laboratories.
This document describes the different procedures to be followed in order to allow for a quick and
easy handling of our inclinometer TESA CLINOBEVEL 3.
1.5 Symbols Several different types of symbols are used in this manual. They give important information that
has to be taken into account in order to correctly use the measuring instrument.
Position Description
Not adhering to these instructions can lead to incorrect
measurement results.
Corresponds to an assistance for better use.

Instruction Manual for TESA CLINOBEVEL 3
5
2 PRESENTATION
2.1 General
description
TESA CLINOBEVEL are electronic inclinometers specially designed for direct
measurement of any angle of inclined surfaces up to ± 60°. Since they make use of the
force of gravity, these instruments also serve as precision levels for accurate levelling on
machines, devices etc. Both measuring faces that are arranged horizontally and vertically
on the solid instrument body serve as resting points on the inclined surface to be inspected.
Due to their possible orientation in any direction, every TESA CLINOBEVEL is also suited
for comparative measurement where the difference between both values obtained from
two successive measurements is shown on the display. In addition, these electronic
inclinometers also permit straightness and flatness inspection of scales, surface plates or
machine parts through single measurements performed step by step according to a
defined grid combined with value processing.
Providing ease of handling, TESA CLINOBEVEL 3 is the favourite for checking horizontal
and vertical surfaces.
TESA CLINOBEVEL 3 is available with 3 measurement zones: ±1°, ±10°, ±60°.
TESA CLINOBEVEL 3 with the measuring ranges ±10° and ±60° is available in cast iron
and aluminium.
The version with the measuring range ±1° is only available in cast iron and its measuring
bases on the left and bottom are precisely scraped.
The TESA CLINOBEVEL 3 allows wireless data transmission to an
Android device. The app can be downloaded from the Play Store.
Various parameters can be set and changed in the TESA CLINOBEVEL 3 like
- Various colour profiles
- Various display methods, including bar graphs or precision levels
- Measuring mode
etc.
can be set and changed.
The TESA CLINOBEVEL 3 contains a high-precision inclination sensor which is
optimized for the measuring range of the instrument. The measuring principle of this
sensor is based on the deflection of a membrane suspended between two electrodes,
which functions as a pendulum. The membrane builds a differential capacitor with the two
electrodes.
Inclining the sensor respectively the measuring instrument moves the pendulum which
changes the capacities. This change of capacities is used as the primary signal for the
calculation of the inclination angle. The system is insusceptible to external
electromagnetic influences. In the TESA CLINOBEVEL 3 this primary signal is
transformed into an inclination value basin
g
on a curve of reference points and displa
y
ed.

Instruction Manual for TESA CLINOBEVEL 3
6
2.2 Operation/ Short
description
Fig. Description of the constitutive elements of the TESA CLINOBEVEL 3
No. Description
1 Wooden thermal protection handle
2 Ke
y
s
3 External connection
4 Measurin
g
units
5 Batter
y
displa
y
6 Function indicator and infrared indicator
7 Sensor address
8 Main displa
y
9 Cross vial
9 1
2
3
5
6
7
8
4

Instruction Manual for TESA CLINOBEVEL 3
7
2.3 Overview
keyboard and
display
ON/OFF
or
select menu
confirm selection
or
save entr
y
send current inclination
or
Unfreeze measuring value and send HOLD-
inclination
or
escape from the menu
ZOOM IN / ZOOM OUT
or
next /previous option
Freeze measuring value
Use current inclination as relative Zero
2.4 How to switch the
instrument ON and
OFF
To switch ON
Keep the key (AN / MODUS) pressed
until the display and all LEDs are lit and release the key.
The instrument will automatically shut off 60 minutes
after the last key operation.
The instrument carries out a short function test and
establishes connections to other instruments, if any had
been available.
The instrument changes into measuring mode. The settings, which were used prior to
switching the instrument off, are reloaded.
 The TESA CLINOBEVEL 3 features an automatic shut off mechanism. In normal
mode the instrument is automatically switched off 60 minutes after the last key
operation. This automatic shut OFF function can be deactivated with the ON
sequence described below or by using an external power supply.
 If you keep the key pressed for more than 10 seconds, the
automatic OFF function is deactivated. This is indicated by blinking LEDs.
To switch OFF:
Keep the key pressed longer than 3 seconds until the display disappears.
A
ll settin
g
s are kept and will be reloaded a
g
ain next time the instrument is switched on.

Instruction Manual for TESA CLINOBEVEL 3
8
2.5 Key functions

ON/MODE - Key
Function - 1 - To switch the TESA CLINOBEVEL 3 on. When for starting the key
is pressed, a grey picture will appear on the screen
and all LEDs will be illuminated. After releasing the key, the TESA
CLINOBEVEL 3 is switching to the measuring mode. The current
inclination is displayed in the mode and unit which was saved last. In
case of an error the respective error message is shown in the display.
The instrument will automatically shut of 60 minutes after the last key
operation.
If the key is pressed for more than 10 seconds the
LEDs start blinking and the automatic off function is deactivated.
Exception: If the TESA CLINOBEVEL 3 is powered from an external
power supply, the automatic off function is deactivated, and the
instrument will remain on.
Function - 2 - To switch off, press the key more than 3 seconds,
until the display disappears.
Function - 3 - With the key you open the menu selection. Pressing
the key repeatedly will move the cursor down to the desired position.
Function - 4 - While setting a value with the key the default value
can be recalled.

ENTER – key
Function - 1 - The key is used to confirm a chosen function or to
save a value entered.
Function - 2 - In the function "REL ZERO" or "ABS ZERO" the measuring can be
started, or an ongoing measurement can be finished by pressing the
key .

REL ZERO - key
Function - 1 - The key serves for setting the actual inclination as
the relative Zero.

SEND/ESC- key

Instruction Manual for TESA CLINOBEVEL 3
9
Function - 1 - The key is used to transmit measuring values to the
RS485 port. The measured values can also be transmitted via the
same interface to a PC or laptop for further processing (e.g.
hyperterminal).
Data format OUT port:
[sss xxxxxx sn.nnnnnn<cr>]
sss = 0 ... 255 - continuous number
x xxxxxx = Serial number and type of sensor
(example: N2673L TESA CLINOBEVEL 3)
sn.nn sn.nnnnnn = +9.999999 - Positive out of measuring
range
-9.999999 - Negative out of measuring
range
other value - angular value in rad
e.g. +0.226349
transmission format:
asynchron, 7Bit, 2 Stopbits, No Parity, 9600 Baud
Function - 2 - Cancel (unfreeze) the "HOLD"- function to return to the measuring
mode.
At the same time the HOLD value is sent to the RS-485 port.
Function - 3 - Escape function from the menu

ZERO/SELECT - key
Function - 1 - The key is used to
 changing the scale in the display
 increase / decrease the display range.
This function can, however, be disabled in the instrument settings.
Function - 2 - The key is used to select possible adjustments,
such as
 menu selection
 modification of a figure in the menu

HOLD - key
Function - 1 - The key serves for "freezing" a measuring value.
The measured value is displayed until the TESA CLINOBEVEL 3
returns to measuring mode by pressing the key SEND.
Function - 2 - In the functions "REL.ZERO" and "ABS.ZERO" the key
is used for reading in the actual measuring value
a
g
ain durin
g
the manual enterin
g
.
2.6 Batteries /
Rechargeable
batteries
The two batteries are shipped separately. It is strongly recommended to remove the batteries
during transport or longer storage.
The batter
y
volta
g
e is shown in the displa
y
e.
g
. 27
(
2,7 Volt
)
.

Instruction Manual for TESA CLINOBEVEL 3
10
The lowest possible voltage is 1,7 Volt. After a further voltage drop a blinking battery symbol
will appear. The batteries must then be exchanged immediately.
The TESA CLINOBEVEL 3 needs 2 batteries or 2 rechargeable batteries 1,5V, LR14 "Type
C".
2 pieces 1,5V, LR14 "Type C" ALKALINE
As an end user you are forced by law (battery directive) to return all used batteries and
accumulators, a disposal through household waste is prohibited.
Batteries/accumulators containing contaminants are marked with the symbol shown, which
clearly indicates the prohibition of disposal through household waste.
You can dispose of your used batteries/accumulators free of charge at the collecting points of
your community, your TESA reseller or at each location selling batteries/accumulators. You
thus fulfil
y
our le
g
al obli
g
ation and contribute to the protection of the environment.
2.7 Possible
configurations of
the TESA
CLINOBEVEL 3
TESA CLINOBEVEL 3 as stand-alone instrument
TESA CLINOBEVEL 3 with an Android device as remote displa
y

Instruction Manual for TESA CLINOBEVEL 3
11
3 DISPLAY
3.1 Scaling of the
display
For an optimal use of the graphic display, you have various options for scaling.
With the linear scaling the display precision remains constant over the full range. With the
keys the resolution can be changed. Thus, also the range being
displayed will be changed. The following ranges can be selected, whereas certain
restrictions may be possible depending on the display type: 60°, 45°, 20°, 10°, 5°, 2°, 1°,
30', 12'. The range of 12' in the bar graph is the highest possible resolution of the
instrument, i.e. 5" for each pixel.
In the TESA CLINOBEVEL 3 High Precision the following ranges can be selected:
1°, 30', 12', 6', 3', 1'.
With the logarithmic scaling the display precision around Zero is the highest and it is
reduced continuously with higher inclination values. Around Zero the resolution
corresponds to the unit selected.
In the adjustments of the instrument you can switch between linear and logarithmic scaling.
Using the key select the menu point
[Options] and confirm your selection with
. Select now [Logscale] and confirm
with .
Switch the logarithmic scaling on or off using the keys
. The display will show the
requested state of the instrument. Confirm with the key
.
The measuring instrument returns to the measuring mode. If the logarithmic scaling is
enabled, the symbol "LOG" will appear below the graph.
3.2 Display types The display type can be selected in the menu "display".
Using the key select the menu point [display] and confirm your selection with
.
Select the required display type using the keys
and confirm your selection with
the key .
The measuring instrument returns to the measuring
mode
The following display types are available in the TESA CLINOBEVEL3 :
Numeric display

Instruction Manual for TESA CLINOBEVEL 3
12
Numeric display
plus bar graph
Display ranges:
60°, 45°, 20°, 10°,
5°, 2°, 1°, 30', 12',
for TESA
CLINOBEVEL 3
High Precision
1°, 30', 12', 6', 3', 1'.
Numeric display
plus 3 bars, each
with a 10 times
higher resolution
Display ranges:
60°, 45°, 20°, 10°,
5°, 2°, 1°, 30', 12',
for TESA
CLINOBEVEL 3
High Precision
1°, 30', 12', 6', 3', 1'.
Numeric display
plus vial (spirit
level)
Display ranges:
60°, 45°, 20°, 10°,
5°, 2°, 1°, 30', 12',
for TESA
CLINOBEVEL 3
High Precision
1°, 30', 12', 6', 3', 1'.
Numeric display
plus simple vial
(spirit level)
Display ranges:
60°, 45°, 20°, 10°,
5°, 2°, 1°, 30', 12',
for TESA
CLINOBEVEL 3
High Precision
1°, 30', 12', 6', 3',
1'.
Numeric plus
LED-display
Display ranges:
60°, 45°, 20°, 10°,
5°, 2°, 1°, 30', 12',
for TESA
CLINOBEVEL 3
High Precision
1°, 30', 12', 6', 3',
1'.

Instruction Manual for TESA CLINOBEVEL 3
13
Numeric display
plus pin
Display ranges:
60°, 45°, 20°, 10°,
5°, 2°, 1°, 30', 12',
for TESA
CLINOBEVEL 3
High Precision
1°, 30', 12', 6', 3',
1'.

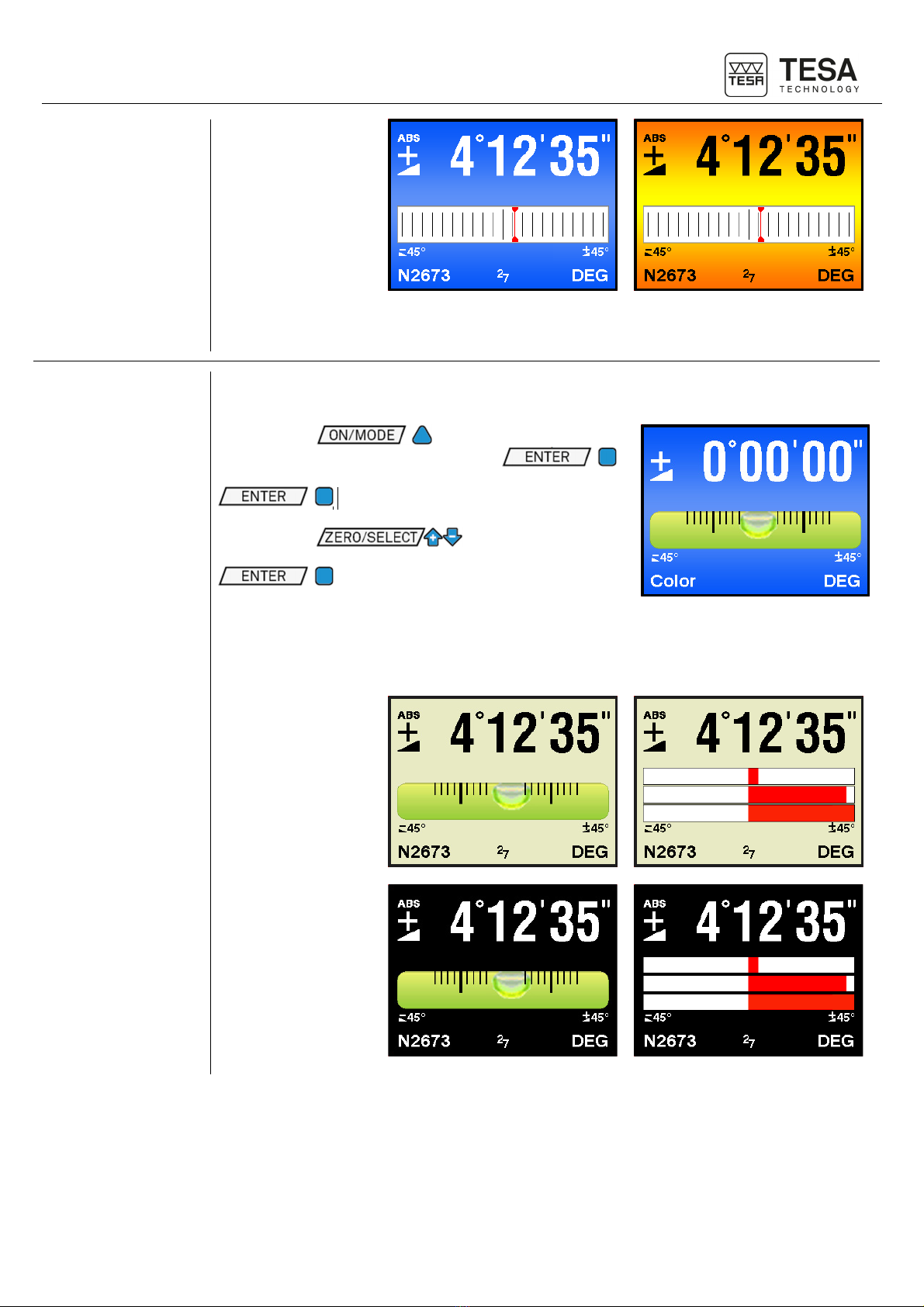

3.3 Background
colour
In the adjustments of the instrument the background colour can be selected. Depending on the
brightness of the colour selected the colour of the fonts and the symbols will change between
black and white.
Using the key select the menu point
[Options] and confirm your selection with .
Select now [Display Settings] and confirm with
. . . . .
With the keys select the background
colour and confirm the selection with the key
.
The measuring instrument returns to the measuring mode.
The following background colours are available in the TESA CLINOBEVEL3:
Background colour
beige
Background colour
black

Instruction Manual for TESA CLINOBEVEL 3
14
Background colour
blue
Background colour
orange
3.4 Display
brightness
In the adjustments of the instrument the brightness of the display can be adjusted in order to
adapt it to the environmental conditions and to optimise the battery life time. Thus, two different
values can be set for the battery operation and the operation with an external power supply
Using the key select the menu point [Options] and confirm your selection with
. Select now [Display Settings] and confirm with .
Using the keys select [Brightness] for the adjustment when using an
external power supply and [Brightness Battery] for the adjustment in battery operation. Confirm
this selection with .
With the keys you can adjust the
brightness required. The display will show the power
consumption in a range from 10% to 100% of the
maximum brightness. Only steps of 10% are possible.
Confirm the adjustment with the key .
With the key the default value of 50%
will be recalled.
The measuring instrument returns to the measuring mode.
3.5 Short description
of the individual
display areas
In the main display the actual measuring value will be displayed
Direction of the inclination A symbol indicates the direction of the inclination of the
value displa
y
ed.
inclined to the right (positive
inclination)
declined to the right
(negative inclination)
on hold The HOLD function is activated, i.e. the measuring value is
"frozen".

Instruction Manual for TESA CLINOBEVEL 3
15
ABS The absolute measurement is activated.
REL
Relative measurement is activated, i.e. the measuring value
is the difference between the current and the reference
plane, i.e. the relative base.
displaying range
60°
Shows the selected displaying range. The displaying range
can be adjusted using the keys
provided that this function is enabled in the options.
scale division
5°
Angle between two tick marks.
scale division
LOG
Indicates that the logarithmic scale is in use. If this sign is
missin
g
, the linear scale is in use.
Serial numbe
r
Shows the serial number of the instrument.
Battery voltage
26
Display of the current battery voltage (example: 2,6 V).
The lowest possible voltage is 1,7 Volt. After a further
voltage drop a blinking battery symbol will appear. The
batteries must then be exchan
g
ed immediatel
y
.
Measuring unit
Display of the measuring unit in use. There are 10 basic
units available, whereas for each setting various options can
be selected. Depending on the unit set, the last digit of the
display will be rounded to 5" or to the next lower integer
value. (e.g. 20 m/m)
3.6 Mirroring the
display With the two keys and the display can be turned by 180
deg.
First press ENTER then ZERO. This function can be disabled in "options".
With this function the values displayed can be perfectly seen from all possible angles.

Instruction Manual for TESA CLINOBEVEL 3
16
4 TECHNICAL SPECIFICATIONS
Measuring range ± 1°
(± 20 mm/m)
± 10° ± 60°
Part number
Cast iron, rust protected
Aluminium, black anodized
05330214 05330212
05330213
05330210
05330211
Resolution
(Depending on display units set)
0,005 mm/m
(1″)
0,010 mm/m
(2″)
0,025 mm/m
(5″)
Max. permissible error
(T = 20ºC)
αtot = measuring range
α = measuring value
α ≤ 0,5 αtot:
1% α
(min. 1 digit)
α > 0,5 αtot:
0,01 (2 | α | - 0,5 αtot)
3,6″ + (0,06 % α) 12″ + (0,027% α)
Temperature coefficient
(DIN 2276/2) / °C (Ø 10 °C)
0,1 % αtot 0,03 % α
Setting time < 5 sec
Digital output USB / RS-485, asynchr., 7 DataBits,
2 Stopbits, No Parity, 9600 Baud
Batteries
Size LR14, Type C
Lifetime
2 x 1,5 V (NiMH, NiCd, NiZn)
25 hours
Dimensions, weight
Housing / Net weight
Cast iron, rust protected
Aluminium, black anodized
150 x 150 x 40 mm / 3,45 kg
150 x 150 x 40 mm / 1,5 kg
Temperature range
Operating temperature
Storage temperature
0° to 40 °C.
-20° to 70 °C.
Two prismatic measuring bases
Flat measuring base
Ø 19 ... 108 mm, on the left and bottom
Right
Countries for which the wireless
transmitter is approved
EU, Canada, Japan, and USA.
For other countries, please contact us.
Remark: As a standard the instrument is delivered with batteries of Type C
Rechargeable batteries (accumulators) have to be recharged outside of the instrument

Instruction Manual for TESA CLINOBEVEL 3
17
5 DELIVERY CONTENTS
5.1 System
components
Each configuration is composed of the following elements:
Description
TESA CLINOBEVEL 3 electronic inclinometer
2 calibration pins for quick calibration / Q.CALIB
(
onl
y
for version ±60°
)
Infrared remote control, article number 05360014
(
onl
y
for version ±1°
)
2 batteries LR14
Case
Instruction Manual
5.2 Packaging The elements that constitute the packaging of the TESA CLINOBEVEL 3 are very important,
therefore you should keep them. It is absolutely necessary to use the original packaging when
transporting the instrument in order to avoid any unfortunate deterioration which could cause
malfunction or complete impossibility to use the instrument.

Instruction Manual for TESA CLINOBEVEL 3
18
6 INSTALLATION, SECURITY & MAINTENANCE
6.1 Location The instrument has to be installed in a location satisfying the general required conditions, but
also the specific and very precise conditions regarding the environment, power supply, etc. It
is essential to be able to identify important factors and to correctly prepare the zone the
instrument is installed and used in.
6.2 Place of use In order to use the instrument correctly, the following precautions have to be taken into
account:
 Avoid placing the instrument close to a window, door, cooling or heating system.
 Avoid causing recurrent temperature variations due to direct exposure of the instrument to
the sun.
6.3 Lighting Use indirect or fluorescent light. Avoid direct exposure to the sun or any other strong light.
6.4 Measuring surface Choose a surface free of any vibrations that could lead to measurement or reading errors
despite the stability of the mechanical and electronic components.
Make sure that the surface can carry the weight of the machine and the workpiece to be
measured. Ideally, the surface should not have any splits or joints.
It is recommended to use a measuring surface that is big enough to enable smooth and easy
movements of the instrument around the workpiece to be measured if the latter cannot be
displaced manuall
y
.
6.5 Cleanliness Make sure that the measuring surface is clean, so that there is no dust, condensation or metal
filings.
6.6 Vibrations Floors of companies are constantly at risk of vibration due to different reasons:
CNC and other machines, transportation vehicles and any other source of vibrations. These
vibrations can directl
y
influence the metrolo
g
ical performances of the machine.
6.7 Care of the
batteries
Make sure that the batteries are inserted properly. Follow the symbols showing you the
correct way to position the POSITIVE (+) and NEGATIVE (-) ends of the batteries. Keep
battery contact surfaces clean by gently rubbing with a clean pencil eraser or cloth. Remove
all used batteries from the device at the same time, then replace them with new batteries of
the same size and type. Store batteries in a cool, dry place at normal room temperature.
Remove batteries from devices that will be stored for extended periods. Don't dispose of
batteries in a fire - they may rupture or leak. Don't recharge a battery unless it is specifically
marked "rechargeable."
Operating temperature (min/max): 0°C to +40°C
relative humidity: max. 85%

Instruction Manual for TESA CLINOBEVEL 3
19
7 FUNCTIONS
7.1 Functions List
Selection
The TESA CLINOBEVEL 3 offers a wide range of functions and adjustment possibilities.
The list of functions appears when the key is pressed. With the keys
the desired function can be selected and with it will
be started. If during 10 seconds no further key is operated, the function list will be left. With
the key a function selected can be abandoned. Already entered changes
of parameters will be rejected and the TESA CLINOBEVEL 3 will return to the previously
used display mode.
Here after the sin
g
le functions will be described.
7.2 Set absolute zero Absolute Zero means that the instrument shows the measuring value "0" if the measuring
surface of the instrument is aligned exactly according to gravity.
The absolute zero is used as the base for absolute inclination measurements. In order to
achieve the best possible precision please observe that the measuring object (support) and
the TESA CLINOBEVEL 3 have the same temperature and that the instrument is in operation
for several minutes before starting a measurement. Mark the precise position and particularly
the direction of the TESA CLINOBEVEL 3 in order to be able to turn the instrument by 180
degrees and to put it in opposite direction at the very same spot.
The absolute zero will be determined from a
reversal measurement (two measurements
in opposite direction but at the same spot).
Use for this procedure an adequate surface
(rigid and stable support, as flat as possible
and as horizontal as possible), where you
put the TESA CLINOBEVEL 3. Mark the
position and the direction of the TESA
CLINOBEVEL 3 precisely and turn it on the
same spot by 180 degrees.
ZERO OFFSET  Messung A  Messung B
2
The ZERO-OFFSET will be stored in the
TESA CLINOBEVEL 3
EXAMPLE:
Using the key select the menu point [Abs.Zero] and confirm your selection with
.
In the display the position of the instrument for the first
measurement will be shown.
Put the TESA CLINOBEVEL 3 to the first position.
Start the first measurement pressing the key
or with the remote control.
Rotation of the
measuring
instrument on
the s
p
ot b
y
Measurement
“A”
Measurement
“B”

Instruction Manual for TESA CLINOBEVEL 3
20
During the measurement the display will graphically show
the current measurement.
Complete the measurement with the key
or with the remote control. After 15 seconds the measuring
value will automatically be read.
After a successful reading of the first measuring value the
position of the instrument for the second measurement will
appear in the display.
Put the TESA CLINOBEVEL 3 to the second position (turn
the instrument by 180 degrees in the horizontal).
Start the second measurement as well pressing the key
or with the remote control.
During the measurement the display will graphically show
the current measurement.
Complete the measurement with the key
or with the remote control. After 15 seconds the measuring
value will automatically be read.
After termination of the reversal measurement the display
for the actual measurement under consideration of the
ZERO OFFSET will appear on the screen.
The value of the “Zero-Offset” determined by a reversal measurement
corresponds to the deviation of the zero point of the TESA CLINOBEVEL 3
compared to the absolute Zero. The displayed measuring value
corresponds to the value of the TESA CLINOBEVEL 3 minus the Zero-
OFFSET.
Value displayed = Value of the TESA CLINOBEVEL 3 - “Zero-Offset”
The reversal measurement described above should be repeated periodically in order to
achieve a high measuring precision, particularly when the TESA CLINOBEVEL 3 has not been
in use for a longer period.
